Members Harbour
5 Photos
7 Likes

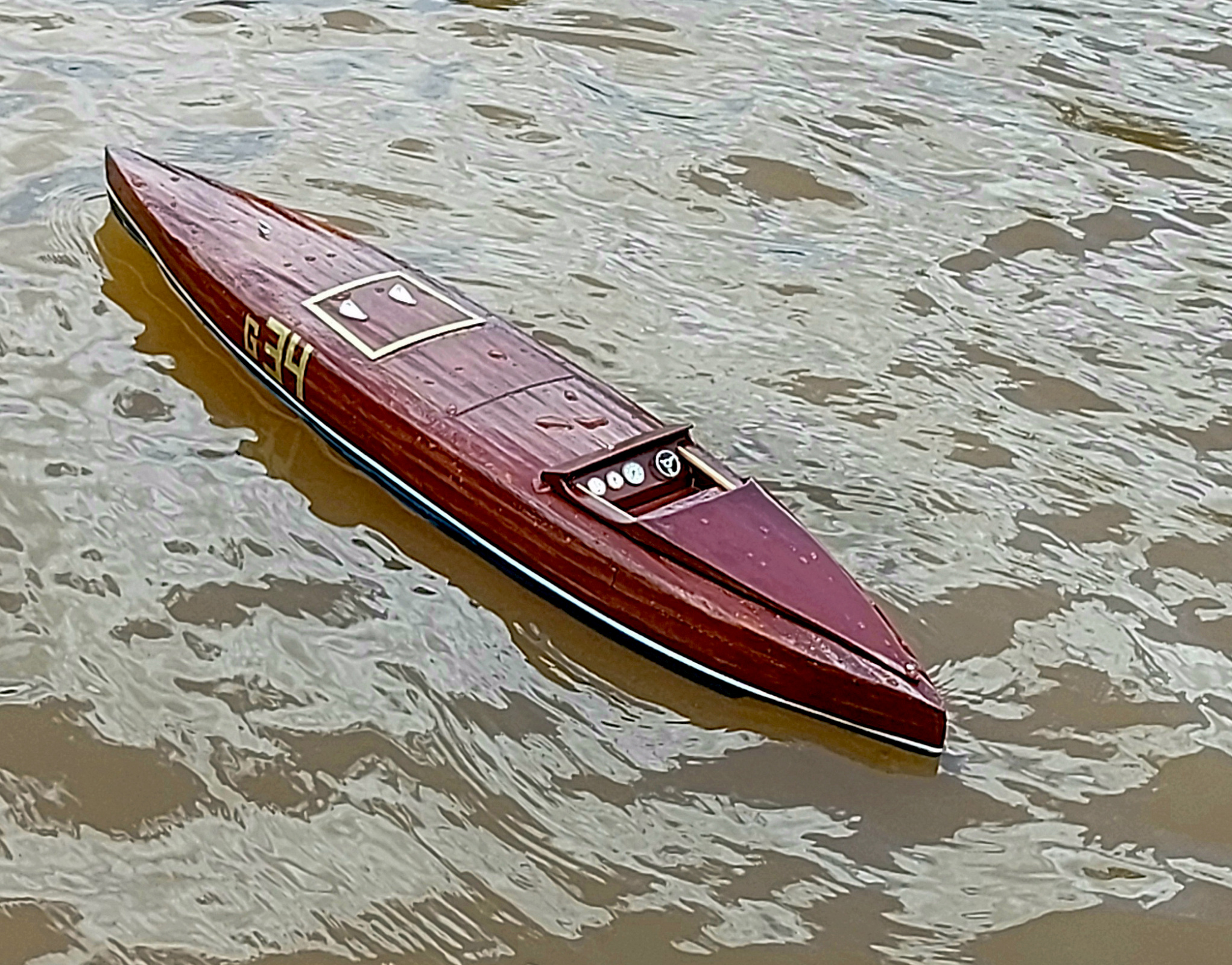

Baby Bootlegger
Boat is fitted with 2 x parallel 7.2v - 5000 mAh batteries and using a 12v brushed electric motor. It gets up on the plane using that configuration, however am contemplating upgrading the ESC and putting the batteries in series to fully utilize the 12v motor. In the meantime altering the battery forward a fraction to allow the brass 3 blade prop to get a better bite at the water when at speed.
The build took me 8 months, mistakes were made as the whole thing was a learning process, but overall the end result in the water is impressive. It is 90% complete as I wait for some parts but nothing important.
Coated in fibreglass resin followed by 3 coats of varnish.
Construction largely balsa planks with a top of veneer strips (big mistake) done due to the non local availability of mahogany timbers.
The normal racing number for the Baby Bootlegger is G5 - I numbered it G34 which is my race number with my yachts.

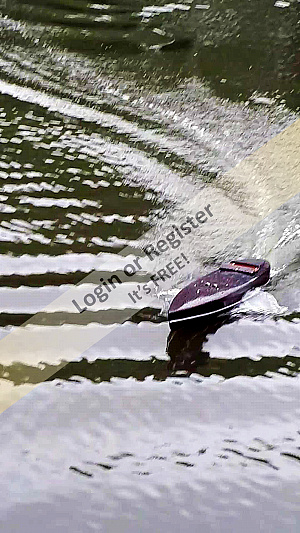

A short video of my first day trial - in case the attached media file does not work: https://youtu.be/M1mMfLXkopc
Next job, rebuild my flyer from scratch as it did not get past the framing stage, fix up another couple of rc yachts, pull the weeds out of the rose garden, and look at building another yacht.
peterd
2 years ago
10 Attributes
0 Photos
3 Likes
Bruce Crandell Flyer - 1/4 scale Single Step Hydroplane
Fell in love with the design several years ago so thought it to be the time to do something about it. Purchased the plans from john-tom.com - putting myself at the deep end - and I have finally commenced building.
The original boat was in the 135 Cu Inch class and had a V8 in front of the single cockpit, and was just under 14ft long (waterline) with a beam of 5ft;
It will be interesting and I have a lot of research to do as I go - correct motor, batteries, ballast etc., but that is all part of the fun. Photos will be put up as I go. Wish me luck.
peterd
3 years ago
5 Attributes
Members Blogs
1 Post
4 Followers
13 Likes
Baby Bootlegger
Since building my Baby Bootlegger a lot has happened. I had to remove my top skin and replace it with a new top planking. The top skin was twisting and bending out of shape - I had been told to use a veneer which was not the correct decision.
Anyhow, all good and have put that to experience.
A quick question, are there any other members who have built a similar boat and what design rudder are they using? I have used a rudder as in the original John-Tom design and found it no good in tight situations. I turn like a truck instead of a speed boat. Luckily I have a great reverse and am double ended.
I guess the main question is, as the boat is almost a pencil shape, does that combined with the rudder affect the turning circle. Photo of my rudder attached.
Your thoughts appreciated.
peterd
2 months ago
1 Post
2 Followers
9 Likes
Emma

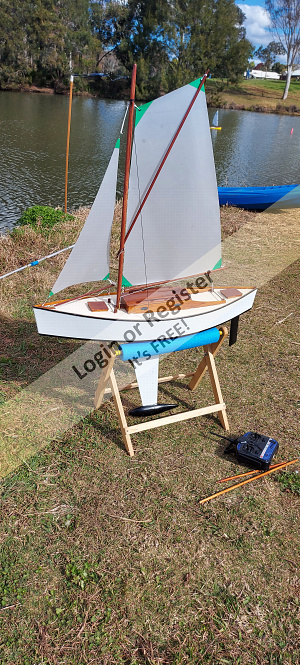

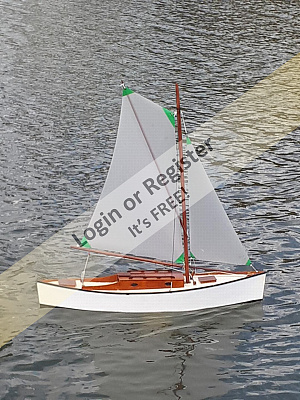

6 months work finished and am able to fully reclaim the dining table.. Launched Emma yesterday in blustery winds. A few adjustments to make yet but very happy with her. Cuts a clean wake and after doing some tuning and adding my topsail will be great to race with the fleet. Mylar sails with a ripstop topsail.
peterd
2 years ago
1 Post
2 Followers
2 Likes
Baby Bootlegger

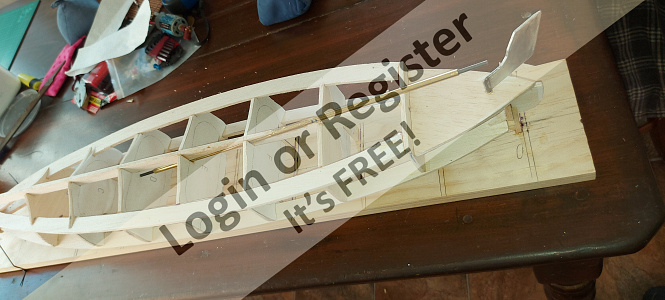

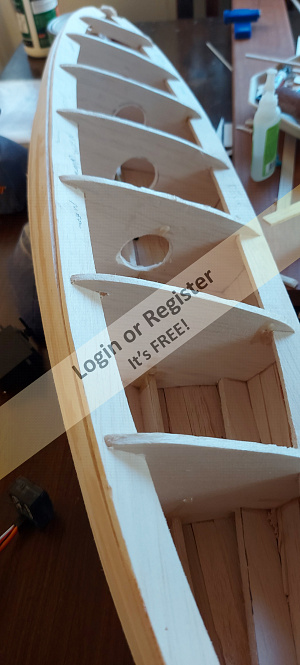

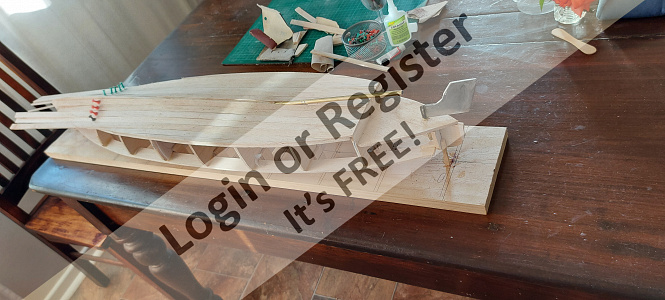

Three months ago i commenced building a Crandall Flyer. All going well till i discovered the instructions and the plans and the end result did not agree. Shelved for the moment and have taken on the Baby Bootlegger. Much better.
A scratch build from free plans, a few issues but nothing serious. It will still look similar. I have included a few photos to show where it is going. Hull is planked (1/2 in. wide balsa and next i have to plank again before cutting away the deck to allow access to motor, seating and the rear of the boat.
The original boat was planked in mahogany and the plans indicate 1/16 mahogany strips as a preference. Not available so I will be using lengths of veneer to give the impression and then coating that with resin. In the meantime, sanding, filling, sanding again. I will keep the images coming. (Who knows, we might even get the dining table back one day.)
peterd
3 years ago
Recent Posts
๐ฌ Re: Chris Craft Cobra
18 days ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Great job . I like the steering wheel, it goes well with the rest of the cockpit fittings.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ Day Dreamer gets a newly painted hull
1 month ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
The colour scheme works well. Really lifts it. Very popular with the locals as well by the look if it.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: Baby Bootlegger
2 months ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Thanks for those comments about the propellor. This is the first time I have had the issue with the only difference being the fact that I moved it forward and replaced the rudder. By doing that I was able to tighten my turns however now have the other issues.
I have not sharpened or tuned the propellor in any way.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: Baby Bootlegger
2 months ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Hi and please see the video taken this morning. Back to the drawing board but the resolve should be in sight.
The boat speed was reduced substantially however she turned better than in the past. The problem appears to be 'cavitation' which can be plainly seen and heard in the video. When turning hard you can also see her tend to skip a little sideways.
I cannot remember the format for the video so have posted on a YouTube channel - please let me know if this works - it may be a private channel. Original is MP4
https://youtube.com/shorts/pFKqx6A17SE |
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: Baby Bootlegger
2 months ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Interesting concept Mike. I can see where you are coming from.

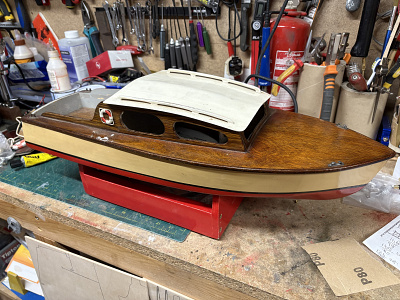

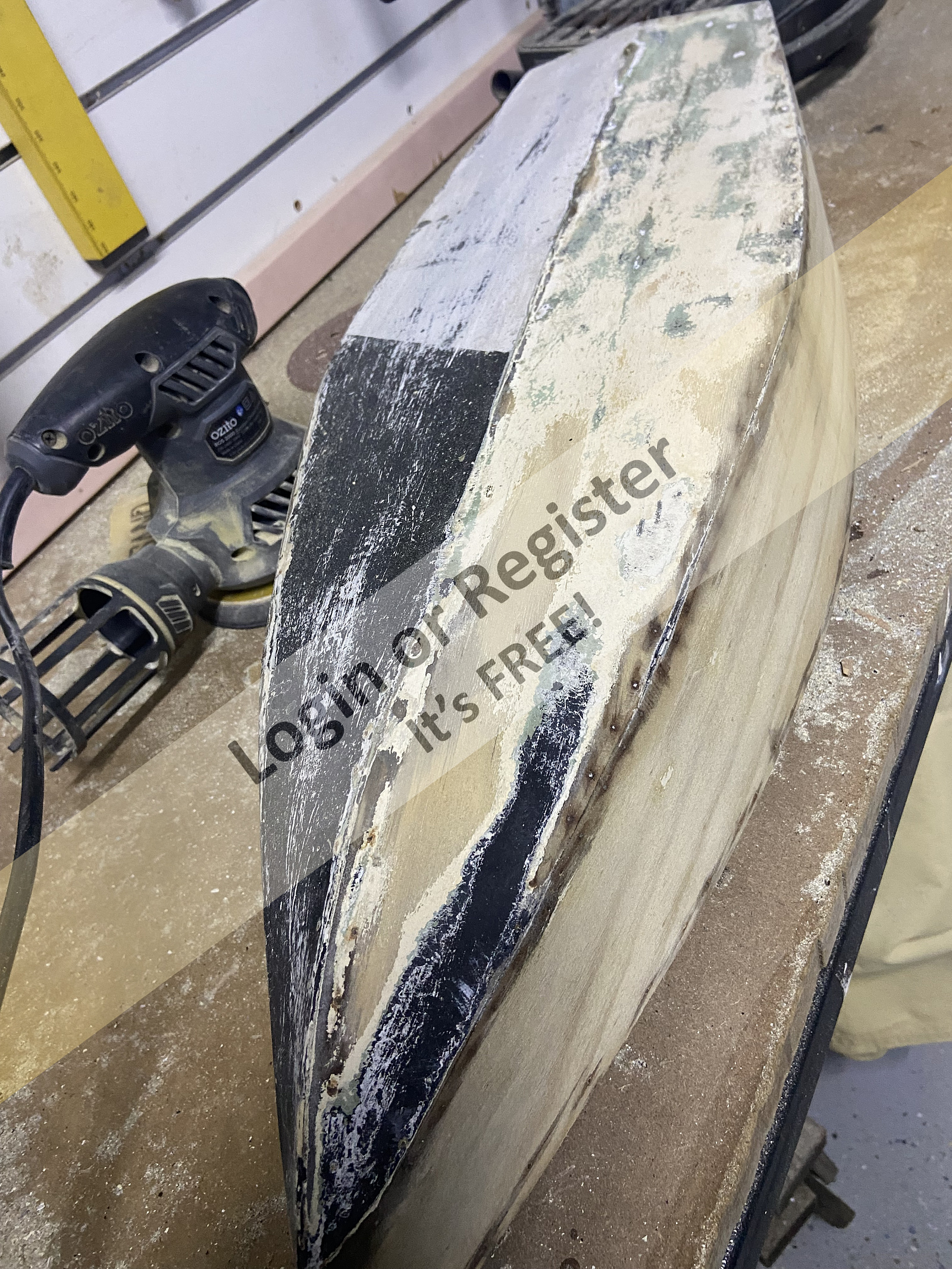

I am restoring an rc powerboat I was given that was powered by two 11cc aircraft engines.
I am thinking of putting a jet drive on it. No rudder. A long way to go though.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: Baby Bootlegger
2 months ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Version 2 (or is it 3) on the rudder. Will see how it goes this weekend and when happy will rebuild the final edition. I may still take more off the top rear.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: Baby Bootlegger
2 months ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Cutouts made - in the sun waiting for the paint to dry.
Thank goodness for some sunshine - we have had our share of rain and wind for the moment. Mind you, a bit of constant wind would be good tomorrow.
Will have a carload, my bootlegger, DF65, Emma and a friend with his Racing Sparrow. I think I need a bus.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: Baby Bootlegger
2 months ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Hi Alessandro - I will cut back a little this morning to give more room behind the propellor - not happy with that anyhow and also cut a little off the rear of the rudder as well. Unfortunately, cannot do much with the front. Luckily it is hot and dry so the paint will set.
As mentioned in your email, there is no option to alter the location of the rudder shaft. It is a tiny area and I even now struggle just to locate the rudder arm.
I have seen images on larger Baby Bootleggers where the rear of the rudder is quite rounded. Big day tomorrow. Thanks for your interest.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: Baby Bootlegger
2 months ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Terrible photo and a quick build. (Paint is still wet as well.)
Only about 2mm between the rear of the prop and the leading edge of the rudder, however as a trial will see how she goes on Friday, weather permitting.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: Baby Bootlegger
2 months ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Yes, I thought that would be half the problem. When at speed she turns reasonably well but at the narrower end very sluggish.
I have reduced my drive shaft forward by 3cm - cannot go any further and have just drawn out a new rudder - about to go and cut it. I am taking the foot of the rudder to just over the level of the propellor base however do not have room to use a fully balanced rudder. A matter of a couple of mm. This rudder will be ply so if I make an error simple to replace.
I use a 40mm propellor.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: Baby Bootlegger
2 months ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Hi AlessandroSPQR. I will chase that link however will try and get some video this Friday. In the meantime I am going to build a new rudder and when finished will give that a try. I seem to have less issue when at speed, it is when i have to slow down for a tight area. The video i will be looking for will be in that area of the waterway which leads to a weir.
These boats are built for straight line. Our waterway is pear shaped and my turning point is right at the narrow end.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: Baby Bootlegger
2 months ago by
๐ฆ๐บ peterd (
Midshipman)
Flag

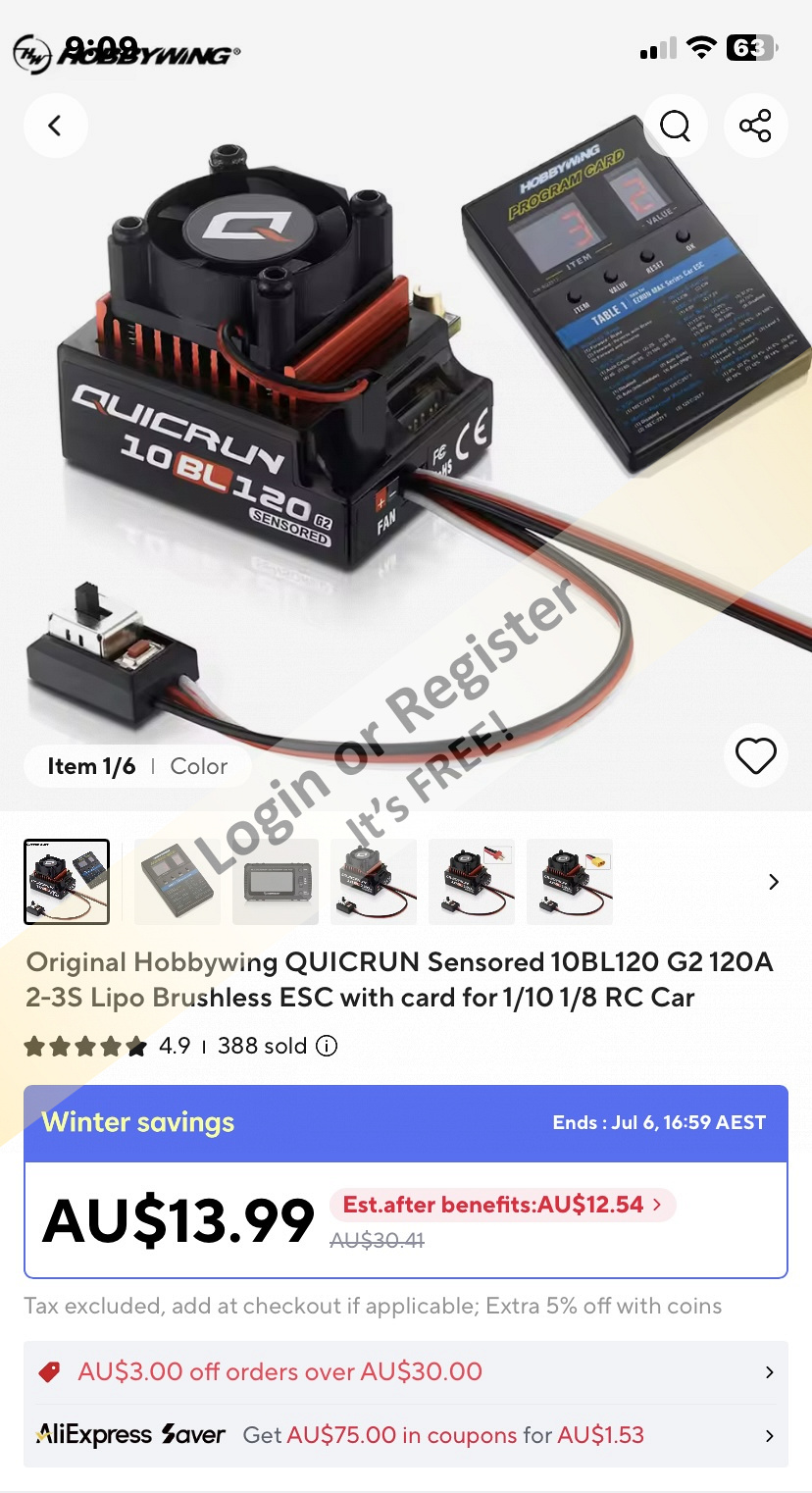

Thanks for that info on your battery esc setup. I would be getting a similar time on my nimh battery with the brushed battery though have never taken the time to work it out due to sail activities/racing. Prior when using the larger 750 brushed motor it was quite a different story - 10 mins max.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: Baby Bootlegger
2 months ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
(River Rat) Just watching a video of a mahogony typhoon on you tube. Quite an impressive vessel.
What motor are you using? I am now running with a 550 brushed and a single 7200 nicad. (I originally had two batteries and a 750 motor but not really required.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: Baby Bootlegger
2 months ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Thanks Mike - unfortunately there is no room for twin rudders as the stern is very narrow (quite an effort to simply just mount the rudder arm). I appreciate all comments and am looking very seriously at the other option of rebuilding the rudder.
It is a simple matter to just move or shorten the shaft for the prop which will allow me to move approx 1.25 inches forward. New rudder and that should do the trick. I had also been looking at the assembly on the boat (image attached) whereby the propellor shaft is fitted to the rudder - this is a more direct drive distance to the propellor but similar principal.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ Baby Bootlegger
2 months ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Since building my Baby Bootlegger a lot has happened. I had to remove my top skin and replace it with a new top planking. The top skin was twisting and bending out of shape - I had been told to use a veneer which was not the correct decision.
Anyhow, all good and have put that to experience.
A quick question, are there any other members who have built a similar boat and what design rudder are they using? I have used a rudder as in the original John-Tom design and found it no good in tight situations. I turn like a truck instead of a speed boat. Luckily I have a great reverse and am double ended.
I guess the main question is, as the boat is almost a pencil shape, does that combined with the rudder affect the turning circle. Photo of my rudder attached.
Your thoughts appreciated.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: Racing Sparrow
2 months ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Thanks for that. Will check it out.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: Racing Sparrow
2 months ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Hi, what is the length of your R๐คacing Sparrow. A friend built 2 boats several years ago, both 75cm. He has high aspect square top sails and the boats perform well.
When I can I will get photos.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: RAAF Museum Point Cook, Victoria, Australia
4 months ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
I have not been there but which flying boat - they do have a Catalina on display.
https://en.m.wikipedia.org/wiki/Consolidated_PBY_Catalina. |
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: My Harbour
1 year ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Very impressive. Many years work there.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ Battery esc combination
1 year ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Thanks gents. I will have to check out those stat's in the morning. I had been running with the 4.5 gel battery which with the Esc and motor got the boat on plane very easily. Only issue was that after 15 minutes the battery was basically flat. Both the motor and esc have cooling fans and I have ensured good ventilation throughout.
The original specs for the boat are for a 750 series motor. I tried last weekend using a single 7.2v 5000a battery with a quickrun 60 esc, this of course did not produce enough grunt to get onto a plane.
More research tomorrow.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ Battery esc combination
1 year ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
I am trying to match battery - Esc combination on my Sea Commander.
I have been running a 12v 750 size motor (around 16,000 rpm) with a 320 ESC and utilizing a 4.5a 12v gel battery.
Looking at utilizing two 7.2vx5000a nimh batteries - in series total of 12 cells. Easier to handle and a better fit. I think a little more run time as well.
3rd
It looks like this may not work due to the increased voltage. Should i stick with the gel battery and maybe upgrade to a larger capacity or should I be safe with the 320. Thanks.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ Battery Esc combination for Sea Commander
1 year ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
I am trying to match battery - Esc combination on my Sea Commander.
I have been running a 12v 750 size motor (around 16,000 rpm) with a 320 ESC and utilizing a 4.5a 12v gel battery.
Looking at utilizing two 7.2vx5000a nimh batteries - in series total of 12 cells. Easier to handle and a better fit. I think a little more run time as well.
It looks like this may not work due to the increased voltage. Should i stick with the gel battery and maybe upgrade to a larger capacity or should I be safe with the 320. Thanks.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ PT boats weathering
1 year ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
www.shapeways.com links in there to a lot of figurines whether navy from different nations or just use the search facility. I simply put in 'sailor'. Over 40 pages of figurines.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: Yet to be named launch
1 year ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Looks like she has really nice lines. Looking forward to seeing your progress.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: Having fun with the kiddo's
1 year ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
They did a good job. Good styling.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ St.Pierre Dory build underway
1 year ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Looking good and not far away from getting wet. How many projects are you working on now?
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ IOM keel
1 year ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Has anyone had the need to shorten the keel on their IOM?
After 8 months the local council has decided to drain one of our local waterways and clean out the mud.
This particular waterway is fine for WeeNips and other shallow draft boats and owners of DF90 and DF65 yachts are able to shorten their keels without altering the bulb and still sail effectively. Our other normal waterway is weed infested however that should die back with the change of season, hopefully.
I have just finished rebuilding an IOM and cannot sail it at this stage, hence the query. Thanks.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: Russian KC100D waterjet work boat project
1 year ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
Having been through several cyclones in North and Central Queensland I feel for you guys. Not a pleasant experience and especially with the flooding that ensues afterwards.
Thank you for the images and video.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ Building Yachts - Servo or Winch For The Sails
1 year ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
We all use servos on our Wee Nips. Some very creative extension arms. A variety of 10, 15 and even 20k but 15 is the preferred.
My 1m Emma which has a jib and main is also specified with an arm servo rather than a winch, works well.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
๐ฌ Re: Battery holder
1 year ago by
๐ฆ๐บ peterd (
Midshipman)
Flag
That is very neat and well done.
▲
โฉโฉ
No likes yet
This member will receive 1 point
for every like received
