Recent Posts
📝 Graupner Elke HF 408
4 years ago by 🇬🇧 AllenA (
Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 70 Views · 1 Like
Flag
📝 Reply
Hi Roy, Mine was a restoration of a wreck I picked up at a bootsale. All the information compiled in the photos I sent was gleaned from online sources. Good Luck with your project Regards Allen
▲
⟩⟩
Martin555
Login To
Remove Ads
Remove Ads
📝 Graupner Elke HF 408
4 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 70 Views · 3 Likes
Flag
📝 Reply
Hi Roycv, Please click on the following link which will take you to my Amazon file on the Elke. It has plans and instructions etc. Sorry to be slow responding i've been enjoying the caravan while i still can. Regards Allen
▲
⟩⟩
RNinMunich
figtree7nts
Martin555
📝 advise required
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 11 Views · 1 Like
Flag
📝 Reply
Hi Teejay, I have a couple of Carson Reflex sets and they are as good as gold. The only problem is the cost of the receiver. I eventually changed to the TGY i6 from which I can control 20 models with receivers a third of the cost of Carsons. Hope the info helps. Allen
▲
⟩⟩
RNinMunich
📝 Graupner Elke HF 408
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 62 Views · 1 Like
Flag
📝 Reply

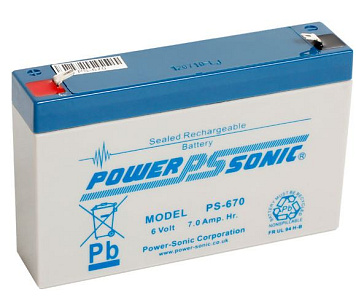

Problem solved for the moment with insertion of correct battery. Battery arrived this morning, ordered yesterday... great service! Power Sonic PS 630 ST 6v 3.4Ah £7.75. Readings (average) 6.05V, less than 1.7 amps, less than 10 watts. Will update after maiden voyage. Thanks again for all your help. ps site does not appear to support less than symbol.
▲
⟩⟩
Inkoust
📝 Graupner Elke HF 408
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 62 Views · 2 Likes
Flag
📝 Reply
Hi Dave and Doug. I love it when you two start chatting it's like tipping a cornucopia of knowledge all over the floor of my workshop.
I found my original notes and the motor is a Mabuchi TD224 23.
The shafts are: S.H.G Marine Miniature Propeller Shaft Assembly
Stainless Steel Propeller Shaft assembly with Brass Outer Tube
M2 Diameter Shafts
An excellent range of miniature shaft and tube assemblies with Grade 303 Stainless Shafts and Hard Grade Brass outer Tubes.
The outer tube diameter is 4mm, Shaft Diameter 2mm The Bearings are Oil / Water lubricated Acetyl material and are extremely hard wearing and quiet, The Shafts are Threaded at one end with an M2 Thread. The propellers are:

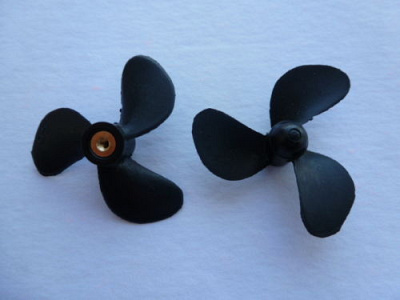

RADIOACTIVE MA 3045 RC MODEL BOAT 3 BLADE 30MM PROPELLER M2 THREAD 2 OFF.
As my Nimh battery is reading 8.09v so it's unlikely that there is a weak cell, I will recheck all the readings and be a little more precise to ensure I am not leading you on a wild goose chase. The biggest clue is that I have just measured the battery holder plate. The measurements are L130mm, H36mm and W65mm. Looks like the only battery that will fit is the PS-630 6V 3.0Ah 150mA 134(L) x 34(W) x 60(H)mm 0.7kg or similar. This looks right as it will probably take care of the ballast issue and it's no wonder my normal 6v battery wouldn't fit. it will be a couple of weeks before I can put her on the lake but at least the battery is ordered. Thanks again for all the info. One final thing... Can you tell me how to measure propeller pitch?
I found my original notes and the motor is a Mabuchi TD224 23.
The shafts are: S.H.G Marine Miniature Propeller Shaft Assembly
Stainless Steel Propeller Shaft assembly with Brass Outer Tube
M2 Diameter Shafts
An excellent range of miniature shaft and tube assemblies with Grade 303 Stainless Shafts and Hard Grade Brass outer Tubes.
The outer tube diameter is 4mm, Shaft Diameter 2mm The Bearings are Oil / Water lubricated Acetyl material and are extremely hard wearing and quiet, The Shafts are Threaded at one end with an M2 Thread. The propellers are:
RADIOACTIVE MA 3045 RC MODEL BOAT 3 BLADE 30MM PROPELLER M2 THREAD 2 OFF.
As my Nimh battery is reading 8.09v so it's unlikely that there is a weak cell, I will recheck all the readings and be a little more precise to ensure I am not leading you on a wild goose chase. The biggest clue is that I have just measured the battery holder plate. The measurements are L130mm, H36mm and W65mm. Looks like the only battery that will fit is the PS-630 6V 3.0Ah 150mA 134(L) x 34(W) x 60(H)mm 0.7kg or similar. This looks right as it will probably take care of the ballast issue and it's no wonder my normal 6v battery wouldn't fit. it will be a couple of weeks before I can put her on the lake but at least the battery is ordered. Thanks again for all the info. One final thing... Can you tell me how to measure propeller pitch?
▲
⟩⟩
RNinMunich
Gascoigne
📝 Graupner Elke HF 408
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 52 Views · 2 Likes
Flag
📝 Reply
Hi Dave, Can't find the motor I have on the Mabuchi site. My guess it is quite old. I think it is a TD 224 that I picked up at a boot sale from a model plane enthusiast. So far I have run it on a 7.2v nimh so will change to 6v asap. I gave it full throttle in the bath and no sign of heat or fumes in battery, motor or esc. Thanks for the help. As you say a quick turn around the lake is in order. The fuse advised by Doug is now installed.
▲
⟩⟩
RNinMunich
Colin H
📝 (Pleasure Craft) Billings Sea King
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 12 Views · 3 Likes
Flag
💬 Add Comment

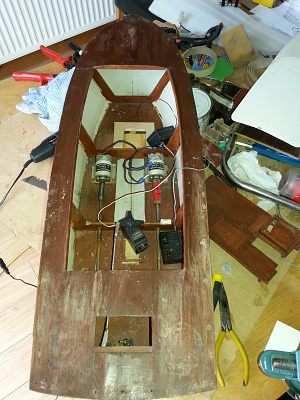

Found at a Boot Sale in a sorry state. Retained the 2 Como motors but replaced ESC with Chinese Fan Cooled 320a. Acoms AR-201 Rx, Futaba servo all linked to new old stock Acoms Techniplus Alpha 27mhz Tx. New rudder, original propshaft with new couplings. Hull painted in Hammerite Gold and Plastikote white. Retained orignal Billings decals. New stanchions and rails. Re-veneered deck and added some fancy balsa work. Plains well after contra-rotating the props. (Motor: 2 x Como Drill) (ESC: Chinese 320a Fan cooled) (8/10)
▲
⟩⟩
RNinMunich
Brightwork
Colin H
📝 Graupner Elke HF 408
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 52 Views · 1 Like
Flag
📝 Reply
'So 'ark an' 'eed, you rookies, which is always grumblin' sore' (Rudyard Kipling)....... until it comes naturally I remain a Rookie. I'll give you a shout when I get to 90 and, hopefully, still afloat then I will deserve it.
▲
⟩⟩
RNinMunich
📝 Graupner Elke HF 408
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 52 Views · 1 Like
Flag
📝 Reply

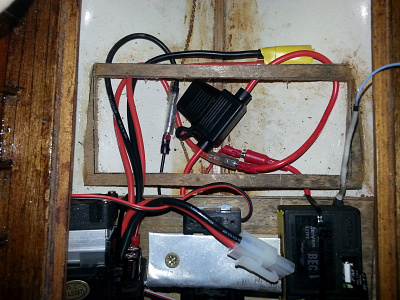

Agreed Doug. The Rookie forgot the fuse again.
▲
⟩⟩
RNinMunich
📝 Graupner Elke HF 408
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 52 Views · 2 Likes
Flag
📝 Reply

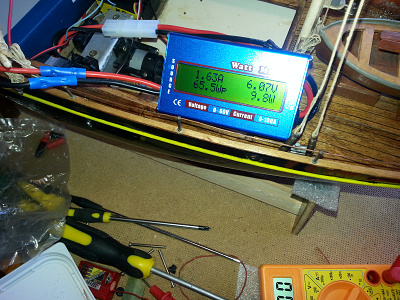

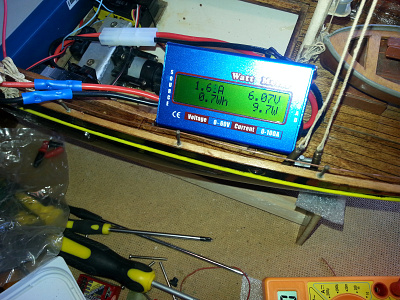

Hi Doug, I put the Watt Meter to use and with about 16ozs of ballast, might need a bit more, had 6.77 amps at full forward with just over 40 watts . At complete stall with prop spinning she jumps to 40 amps which I guess is to be expected. She is, obviously, too fast for scale so I will need to control via the Tx. Might look for a smaller propeller.... what do you think? Thanks for your help.
▲
⟩⟩
Dave M
RNinMunich
📝 Graupner Elke HF 408
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 51 Views · 2 Likes
Flag
📝 Reply
Thanks Doug. I am not sure I would rely on my Chinese friends' measurement of amps but I have used a few of the ESCs and they haven't blown up yet. How would I go about testing the amperage? I have my little unused Watt Meter. Do I, simply, connect it between the battery and the ESC and take the reading while running the motor? Sorry to hear about the snow, we are just moving into Spring. Primroses and Daffodils are out and days are lengthening. At last.
▲
⟩⟩
Dave M
RNinMunich
Login To
Remove Ads
Remove Ads
📝 Graupner Elke HF 408
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 52 Views · 5 Likes
Flag
📝 Reply
Elke HF 408 now refitted. Running on a Mabuchi motor geared 2:1, 2mm shaft and 30mm 3 blade propeller. Still fiddling with the ballast but almost ready to sail. Yet to find a suitable fishing net to suit 1:36 scale. Control is via a 40mhz Hitec Ranger 3, Acoms receiver and Chinese 320A fan cooled ESC. As they would say in Cardiff she looks tidy. Many thanks to Tica/BRCarsten for photos of the plans.
▲
⟩⟩
jbkiwi
Dave M
Tica
figtree7nts
RNinMunich
📝 Graupner Elke HF 408
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 51 Views · 1 Like
Flag
📝 Reply
Elke stripped down, cleaned and base colours flatted. Hopefully, on the water in about a month. I read somewhere that she, originally, had a 300 motor and with a narrow propshaft gap I am down to a 2mm propshaft, 4mm OD. Looking in my motor box I have a 300 motor with 2:1 gearing set up. Actually fits perfectly as the propshaft has to be low to the keel. I plan to use a 30mm 3 blade propeller, because I have one in my box, and hope, that even though it is slightly big for the motor which is 25mm diameter, I will escape any undesirable consequences. Noticeably, the stanchions and safety ropes only run along one side of the deck. I assume that this is to facilitate nets being brought in on the open side?
▲
⟩⟩
Dave M
📝 Billings Kongeskibet Dannebrog #410
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 12 Views · 1 Like
Flag
📝 Reply
Hi Selwyn. I'm about 8 miles west of Cardiff and I usually go to a couple of Boot sales each week. if you look at my posts I've been very lucky of late.
▲
⟩⟩
SelwynWilliams
📝 Billings Kongeskibet Dannebrog #410
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 12 Views · 1 Like
Flag
📝 Reply
Just luck at he moment as some of the local dealers know that I will buy most boats at the right price. in the middle of restoring the 1960s 70s Graupner HF 408 at present then I will probably start on the Dannebrog. Good sailing Selwyn.
▲
⟩⟩
SelwynWilliams
📝 Aero kits 34” Sea Commander and Model Boats Mag June 2012
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 12 Views · 1 Like
Flag
📝 Reply
Hi Penfold,
There is a copy on Ebay now £2. Here's the link
There is a copy on Ebay now £2. Here's the link
▲
⟩⟩
BOATSHED
📝 Graupner Elke HF 408
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 51 Views · 1 Like
Flag
📝 Reply
Thanks Carsten,
That would be brilliant if you could.
Best Regards
Allen
That would be brilliant if you could.
Best Regards
Allen
▲
⟩⟩
Dave M
📝 Graupner Elke HF 408
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 52 Views · 4 Likes
Flag
📝 Reply
Forgot to say... I found these..see photos inside the Elke. On the back of the card it says Xmas 1943. God Bless Trumpeter and all who sailed in her and flew from her. God bless Captain Harry Oram.
▲
⟩⟩
mturpin013
Dave M
Gravedigger47
RNinMunich
📝 Cromarty
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 11 Views · 0 Likes
Flag
📝 Reply
Also, from the same guy, is the Cromarty. She is 30" by 6.5". Quite solid but with an odd small bore propshaft. There were a couple of makers of this kit but not sure which one this is. Again, couldn't resist for £14. I am booked in for therapy regarding my obsession. The way I look at it is that you must have it when you see it and I will, one day, restore these beauties.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 Graupner Elke HF 408
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 50 Views · 0 Likes
Flag
📝 Reply
Hope you are not becoming too bored with my boot sale stories but I seem to have hit a rich vein at the moment and can't resist. Here's the Graupner Elke HF 408 picked up on Sunday for £14. Pretty good nick with lots of bits and does not appear to have been sailed or fitted with RC. Again, any help or advice really welcome. Retro fitting a propshaft could be a problem.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 Artesania Latina Amsterdam
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 14 Views · 0 Likes
Flag
📝 Reply
Thank you Mark that would be brilliant. Will pm you asap. Allen
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
Login To
Remove Ads
Remove Ads
📝 Billings Kongeskibet Dannebrog #410
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 11 Views · 0 Likes
Flag
📝 Reply
Hi Mark, Went through discontinued model plans without luck. The trouble is that it's almost 60 years old now. I am a little disappointed with Billings. They have produced so many models and they could provide a great database to modellers and make some money. Thanks for the response I guess I will have to be a bit inventive. Allen
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 Billings Kongeskibet Dannebrog #410
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 11 Views · 0 Likes
Flag
📝 Reply
Also, at the boot sale, I picked up this Billings model from the 1960s for £7. Again requiring considerable restoration but she has beautiful lines and is fundamentally solid. I have emailed Billings for any plans, drawings and instructions but based on my previous experience I am not holding my breath. So if any one has pictures, plans, instructions which might help I would be happy to purchase them.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 Artesania Latina Amsterdam
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 14 Views · 0 Likes
Flag
📝 Reply
It was worth venturing down to the Boot Sale this morning as I found this Amsterdam Tug with fittings for £20. It is an Artesania Latina model and needs considerable restoration. If anyone has plans or build instructions which might help, I would be happy to purchase them.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 (Tug Boat) Springer
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 11 Views · 1 Like
Flag
💬 Add Comment
Built as a rescue boat, the Springer seemed to be the easiest to build as I am still a Novice and to while away the time after my knee replacement. Blew up some plans off the net to 23" length and 10" beam. Makes her about 1/12, I think. Built from 3mm ply in the main. Powered by the LRP 12v Truck puller and direct drive via 12" ball raced prop-shaft with home made oiler and 50mm 2 blade propeller to be changed to 3 blade asap. Led lights front, back and upper. Transmitter Turnigy TGY i6, Rx TGY iA6, Esc 320 amp with fan. Ballast yet to be added and should slow her to scale speed. interesting build had some problems with upscaled plans from a pdf. Goes well in the bath but will post video as soon as I can get to the water. (Motor: LRP 12v Truck Puller) (ESC: Chinese 320A with fan) (7/10)
▲
⟩⟩
RNinMunich
📝 Building base boards.
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 13 Views · 2 Likes
Flag
📝 Reply
That's great Marky..........Let there be light and there was light.
▲
⟩⟩
Dave M
BOATSHED
📝 motors
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 11 Views · 0 Likes
Flag
📝 Reply
Sorry Doug, no insult intended. As to revealing, I just remember Miner's Fortnight at Barry island in the 50s. Not a pretty sight. Sorry, also, to hijack the conversation I will go back to my Springer now.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 motors
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 11 Views · 1 Like
Flag
📝 Reply
Hi Doug, Obviously, you, like me, remember woollen swimming costumes. Photo for Bryan
▲
⟩⟩
RNinMunich
📝 Springer Pusher Tug
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 16 Views · 1 Like
Flag
📝 Reply
Been a little quiet lately. The new knee is now settling in well and the Springer is taking shape. She is 3mm ply mainly, 23" by 10" beam running on LRP 12v Truck Hauler motor, 2x 6v gel batteries in parallel, 12" ball raced propshaft and 50mm propeller. Just fitting lights and accessories and she should be on the water in early January. Have a feeling she will need some considerable ballast. Pleased with my homemade oiler and lights made from E-Vape plastic container caps.
▲
⟩⟩
Joe727
📝 Smit Nederland no 528
6 years ago by 🇬🇧 AllenA ( Chief Petty Officer 1st Class)
Chief Petty Officer 1st Class)✧ 11 Views · 0 Likes
Flag
📝 Reply
Santa came early this morning in the form of a part built Smit Nederland 528 I found at the Boot sale for £40. Couldn't put the money in the owners hand quickly enough. The kit looks complete and the Accessories box too. Propshafts, propellers and motors are fitted and all she needs is some TLC. The fact that the purchase came with a Ford Sierra 1/10th RC body and decals was icing on the cake. I was tempted to put this in How many projects is too many.... but I had to buy it didn't I?
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
