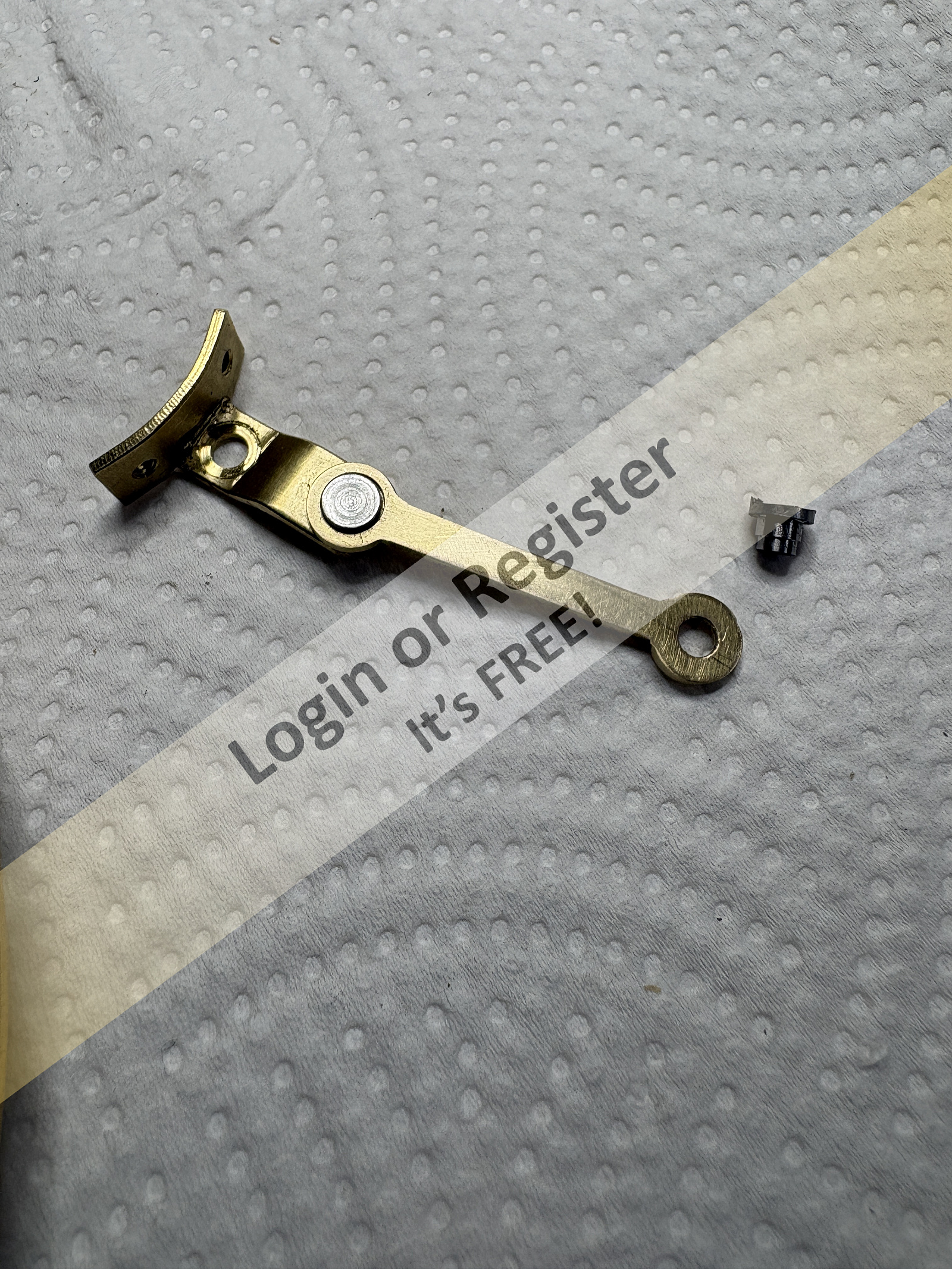

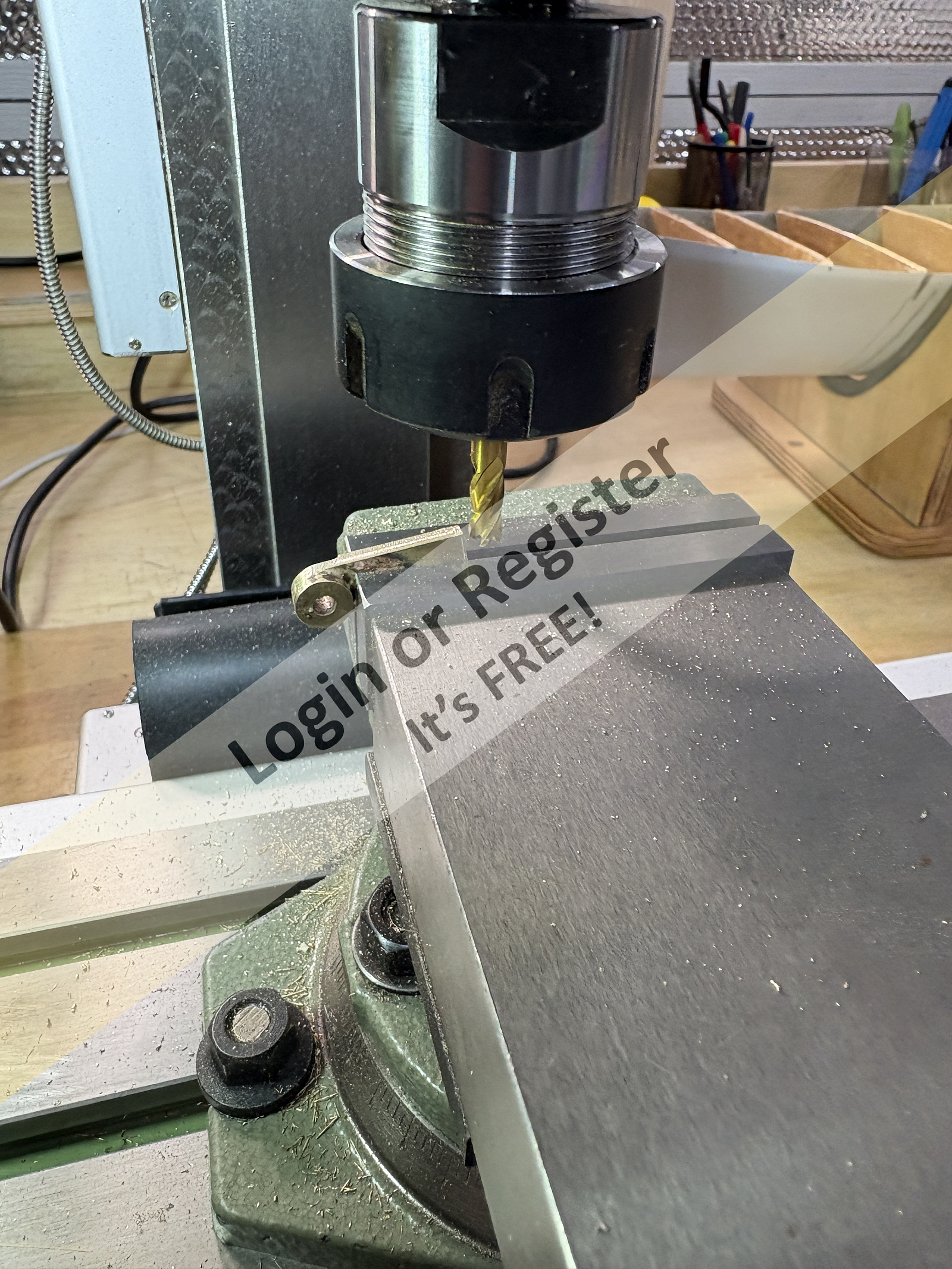

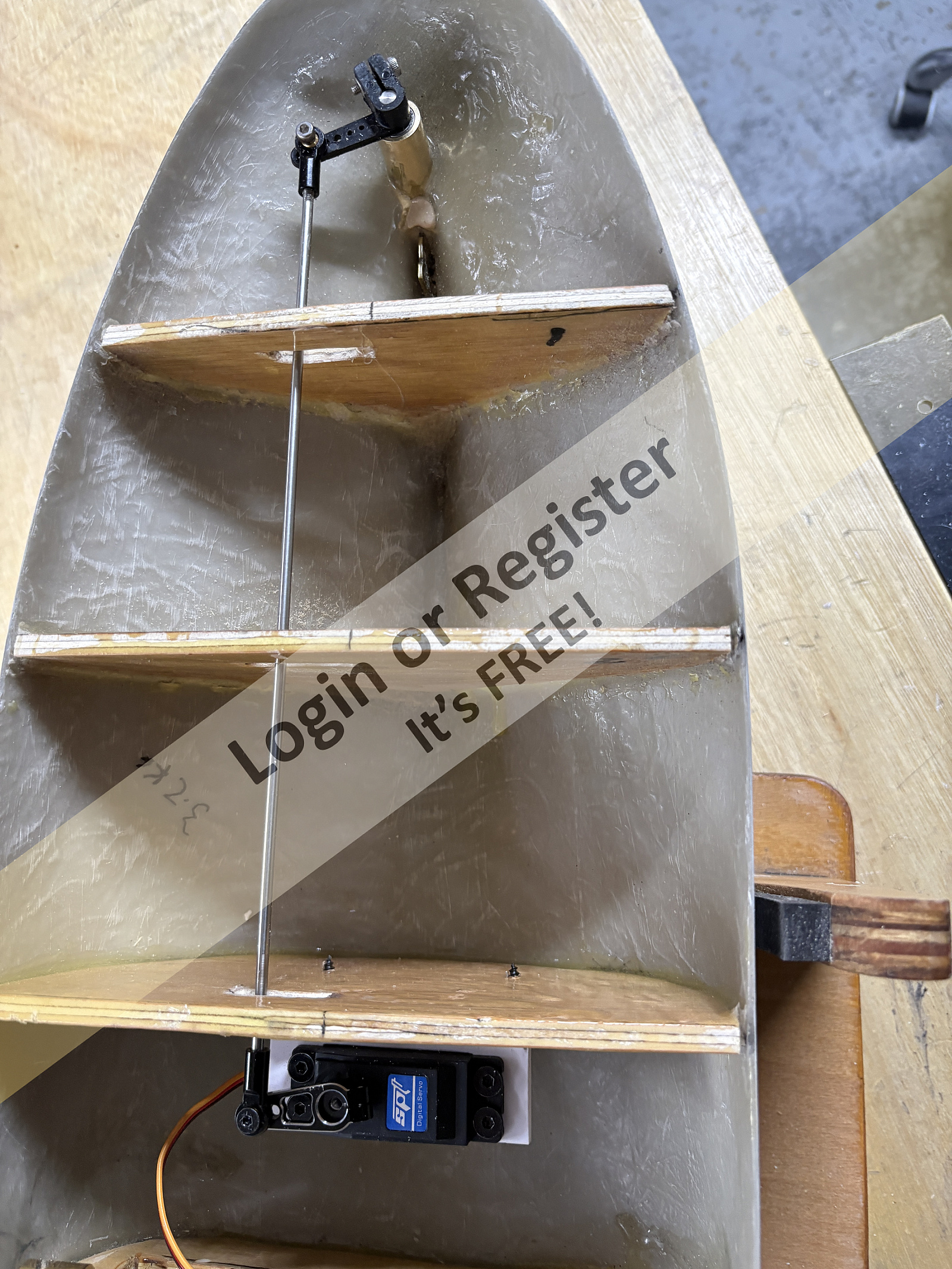

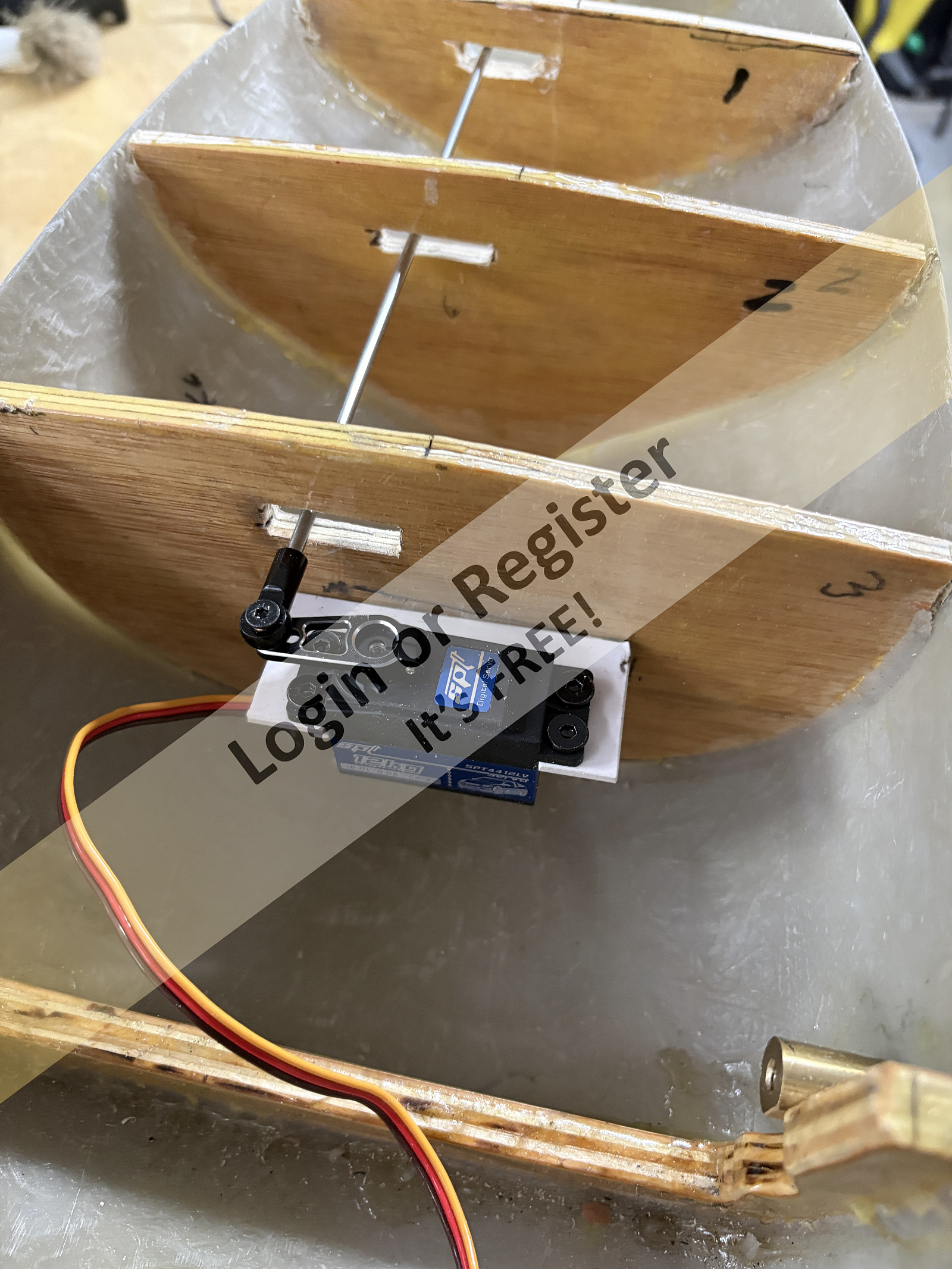

Rudder servo bracket and link arm completed and installed will remove and start the next stage of the build.
▲
⟩⟩
stevedownunder
chugalone100
Login To
Remove Ads
Remove Ads
📝 Anchor home and hawse pipe position
13 days ago by 🇬🇧 Kevin55 ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 45 Views · 5 Likes
Flag
💬 Add Comment

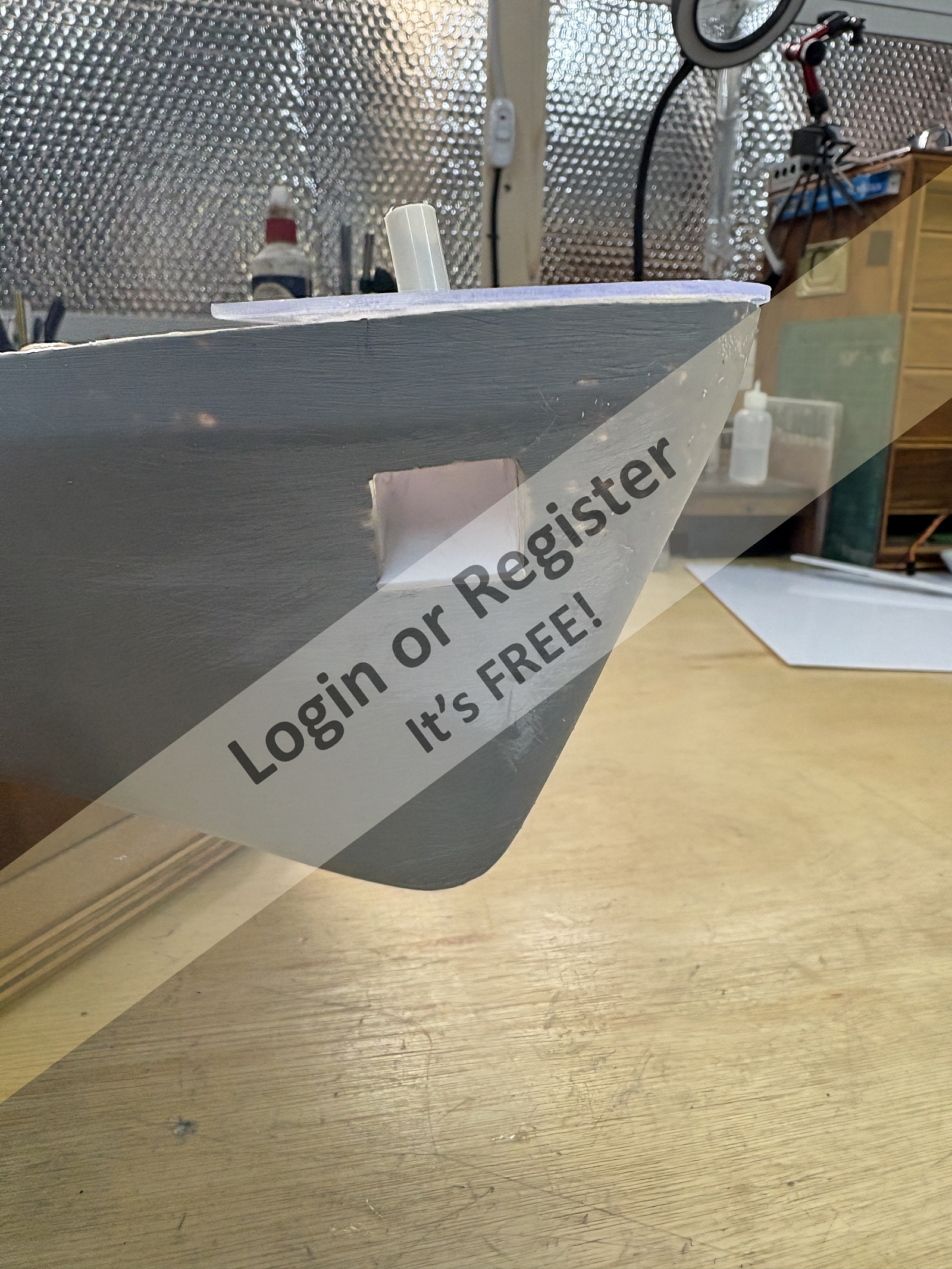

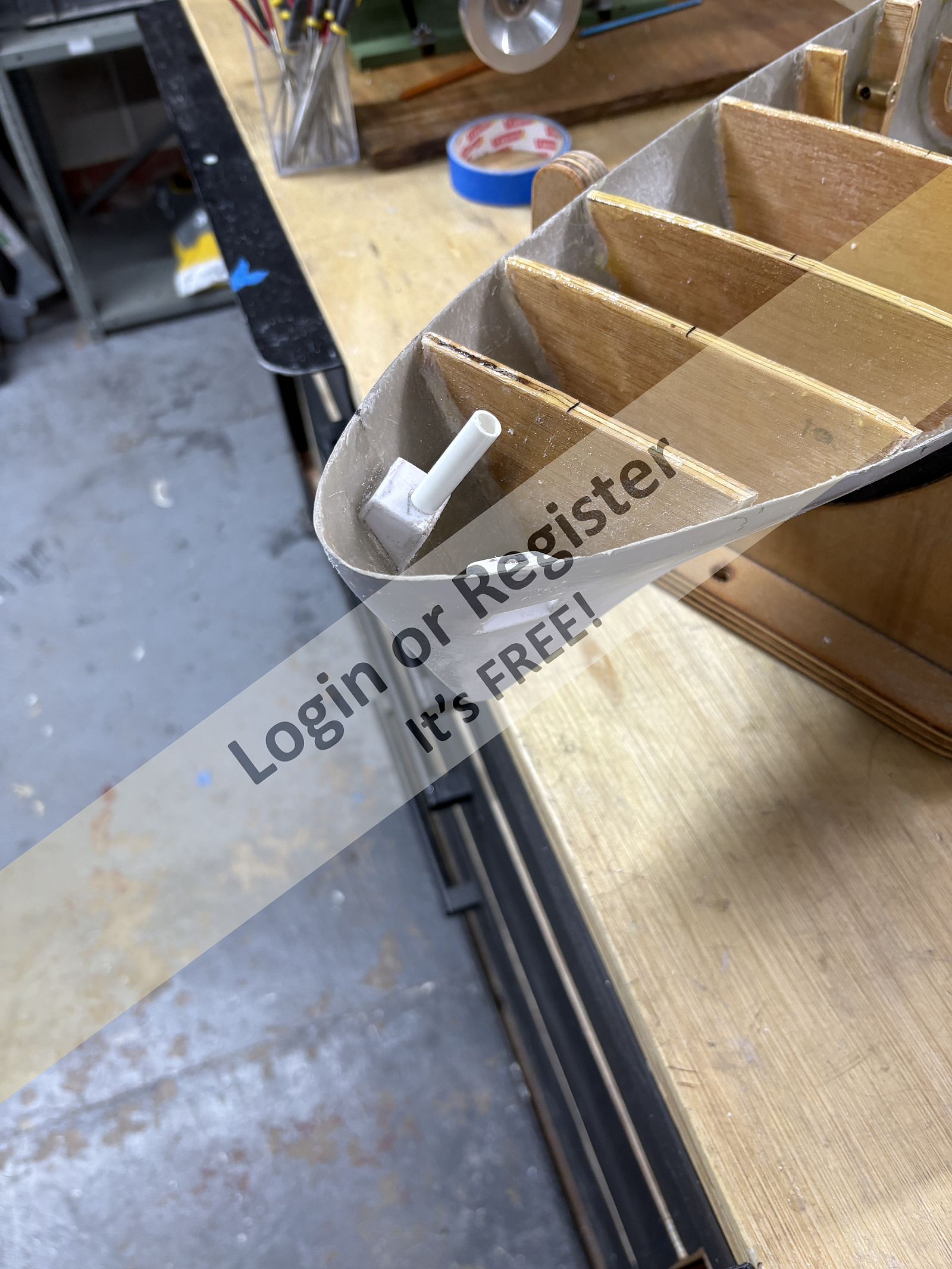

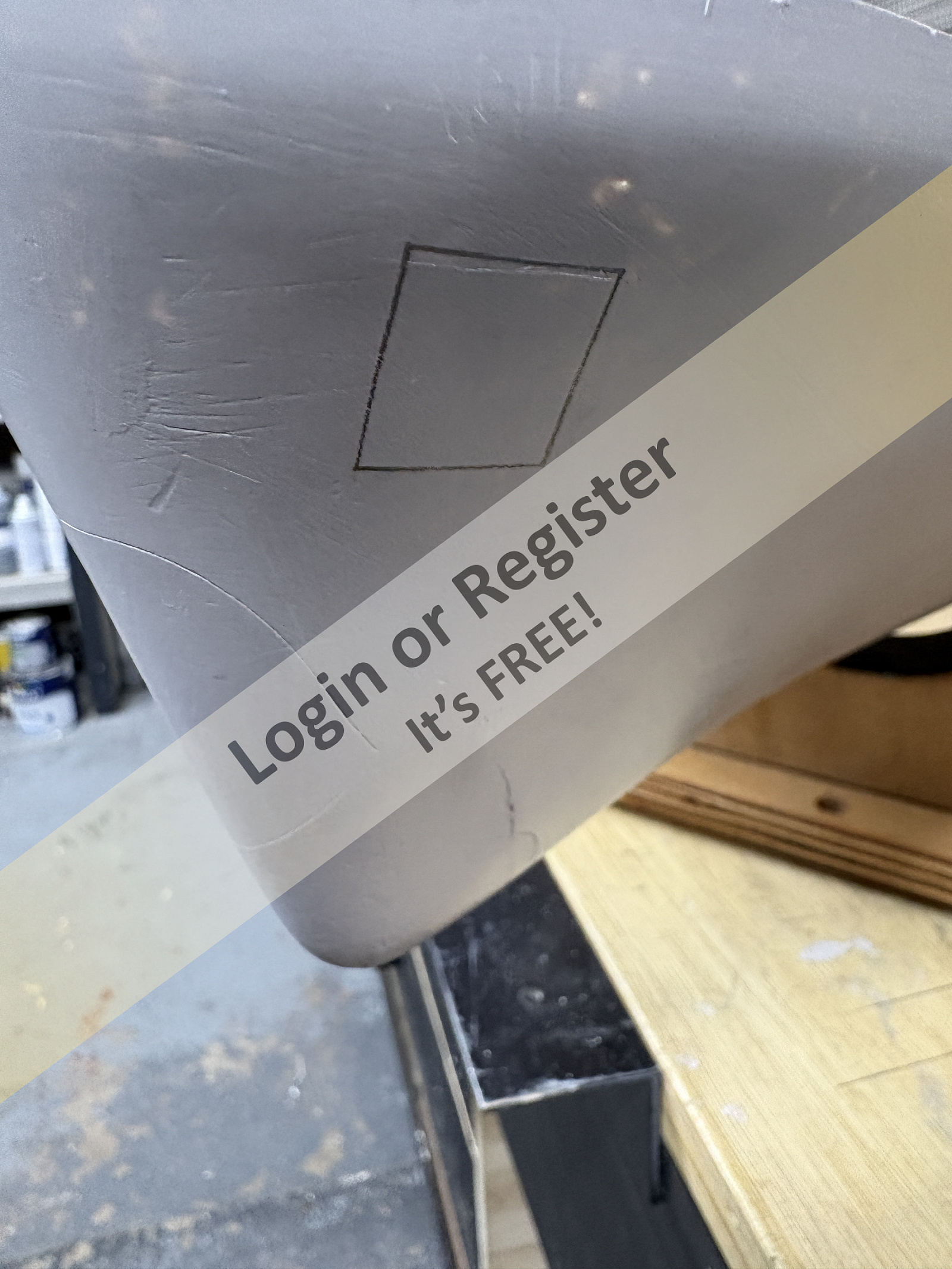

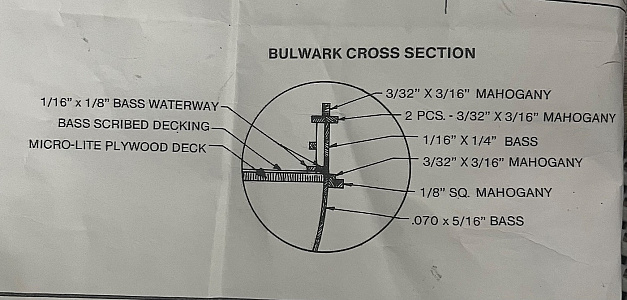

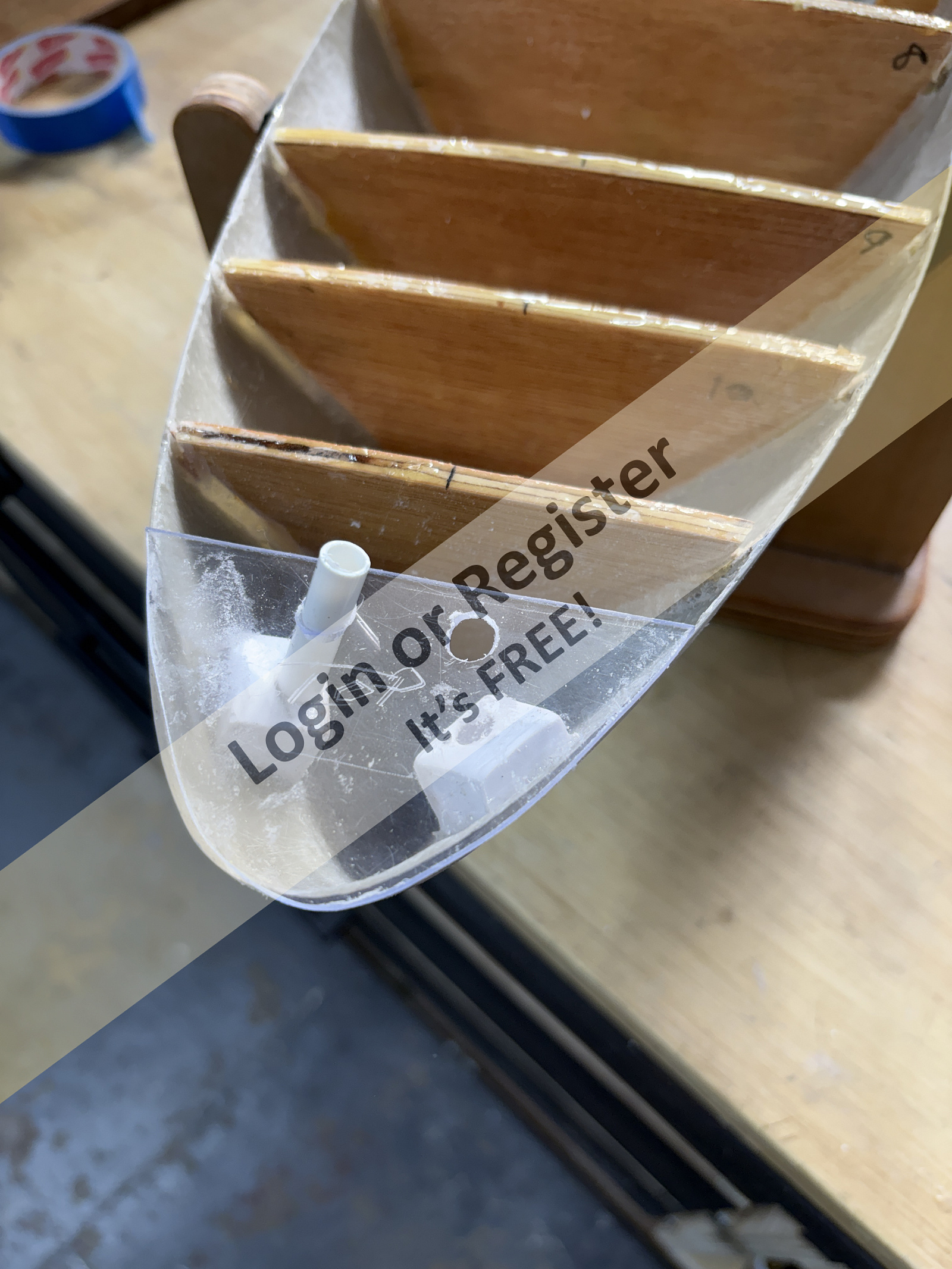

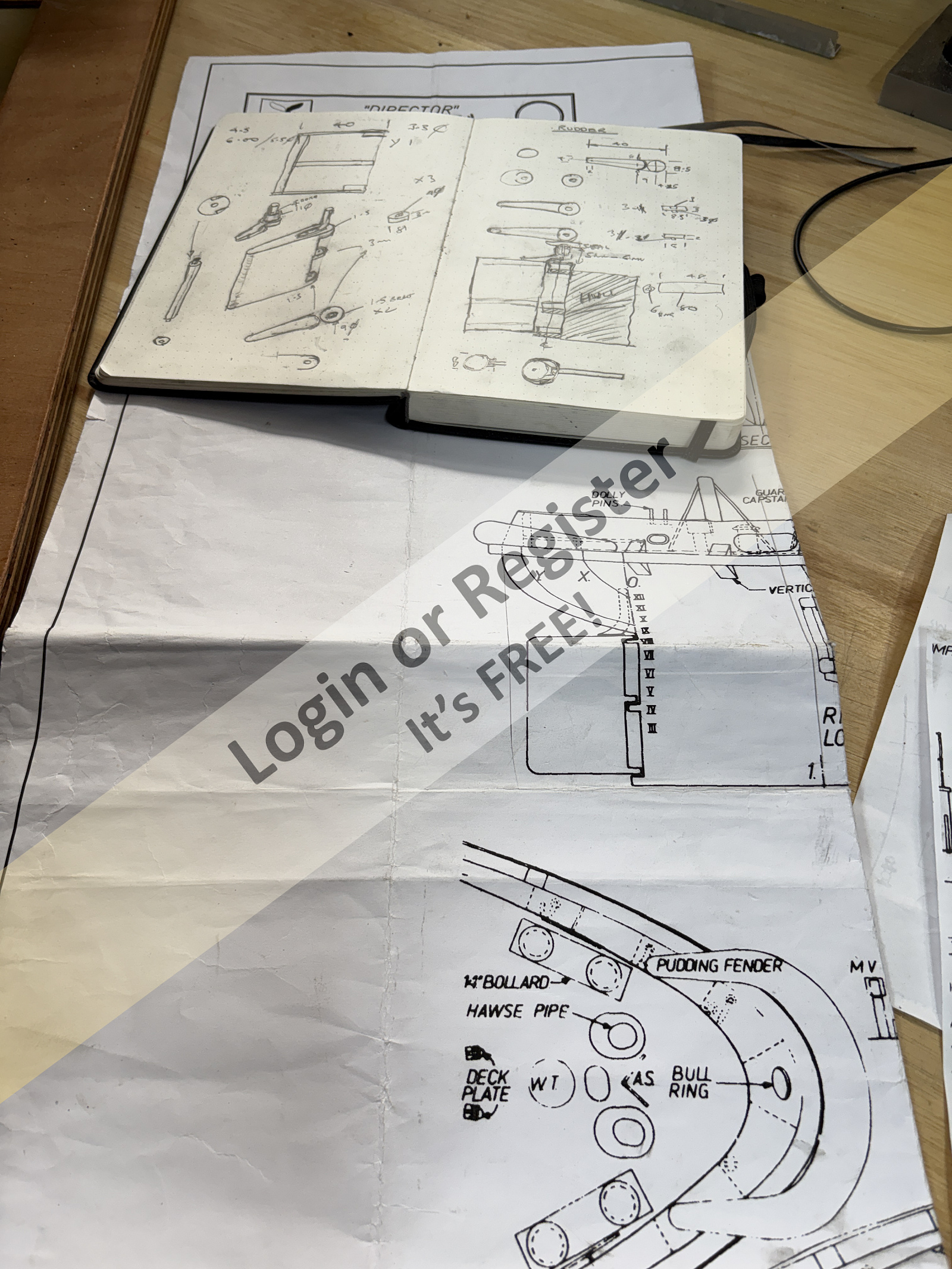

Anchor home fabricated and hawse pipe position set out with acrylic template.
▲
⟩⟩
chugalone100
Mike Stoney
EdW
stevedownunder
PhilH
📝 Rudder 1st fit
18 days ago by 🇬🇧 Kevin55 ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 55 Views · 8 Likes
Flag
💬 Add Comment

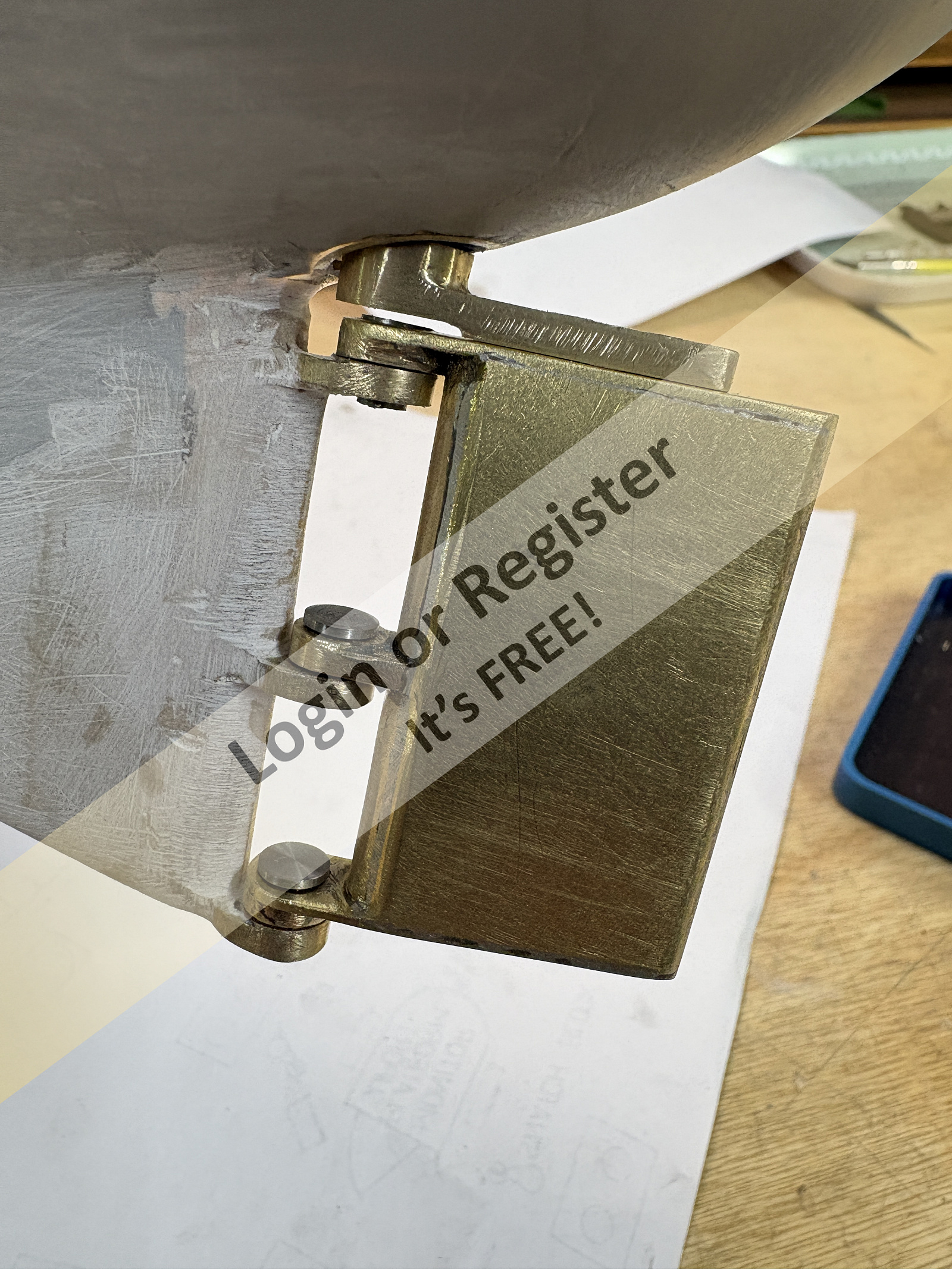

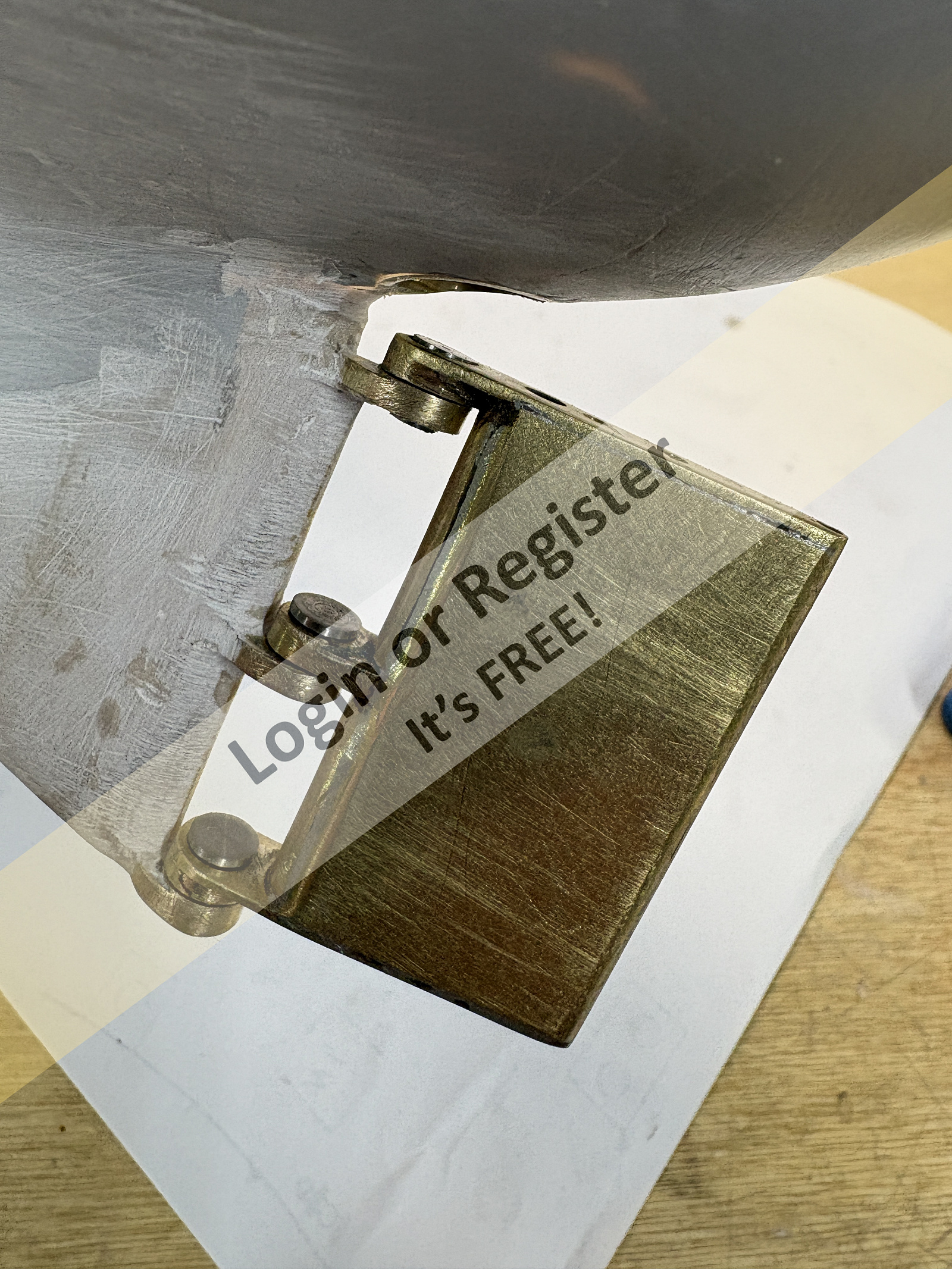

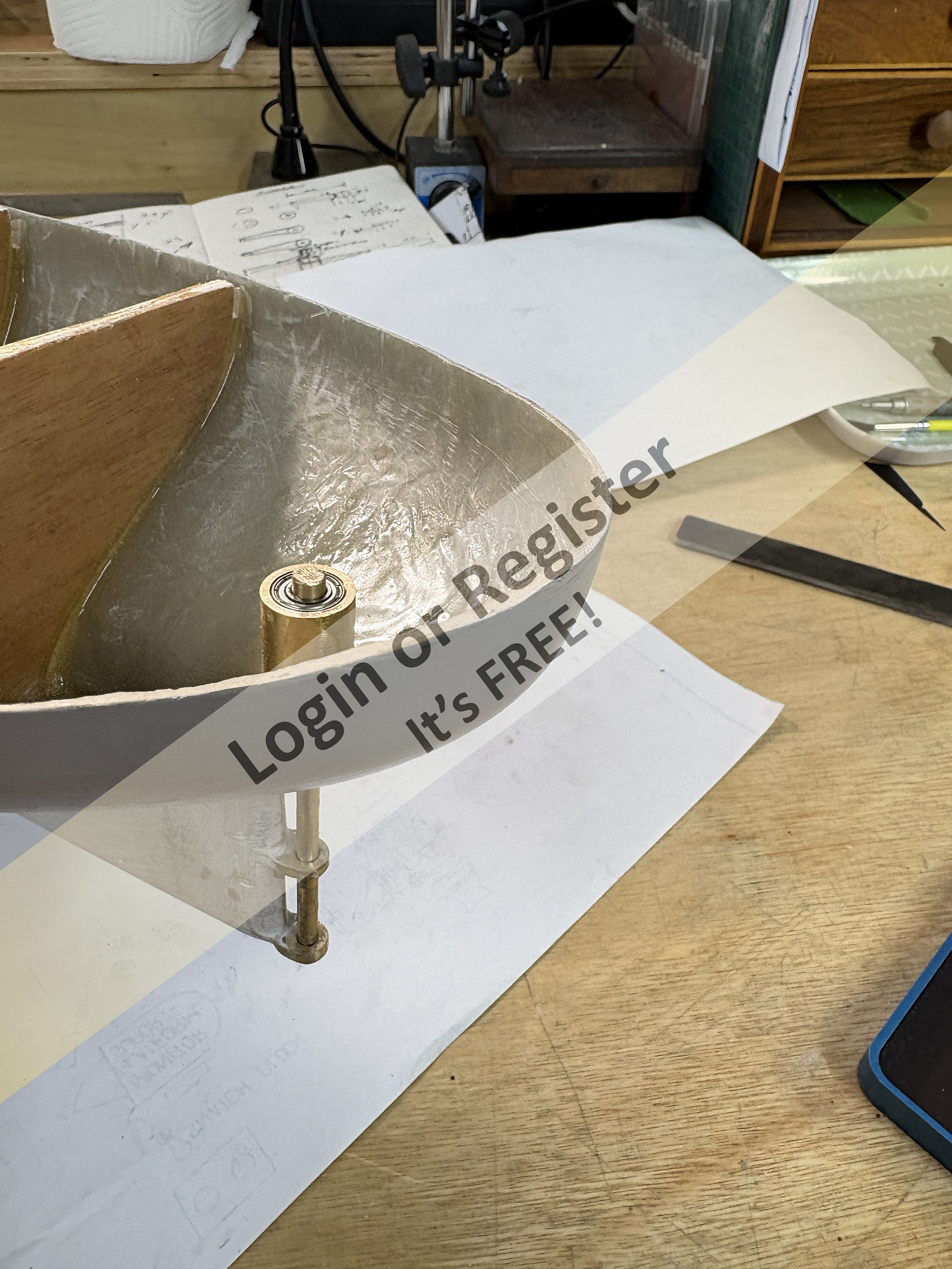

Rudder stock made and fitted to rudder and installed to check alignment.
All ok…
All ok…
▲
⟩⟩
chugalone100
Mike Stoney
EdW
PhilH
GaryLC
stevedownunder
ChrisF
AlessandroSPQR
📝 Bearing sleeve
19 days ago by 🇬🇧 Kevin55 ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 55 Views · 5 Likes
Flag
💬 Add Comment

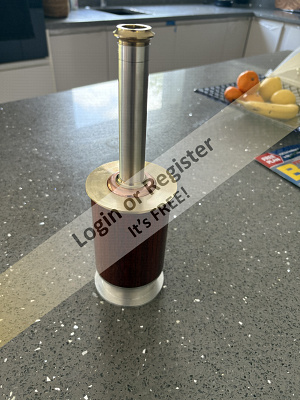

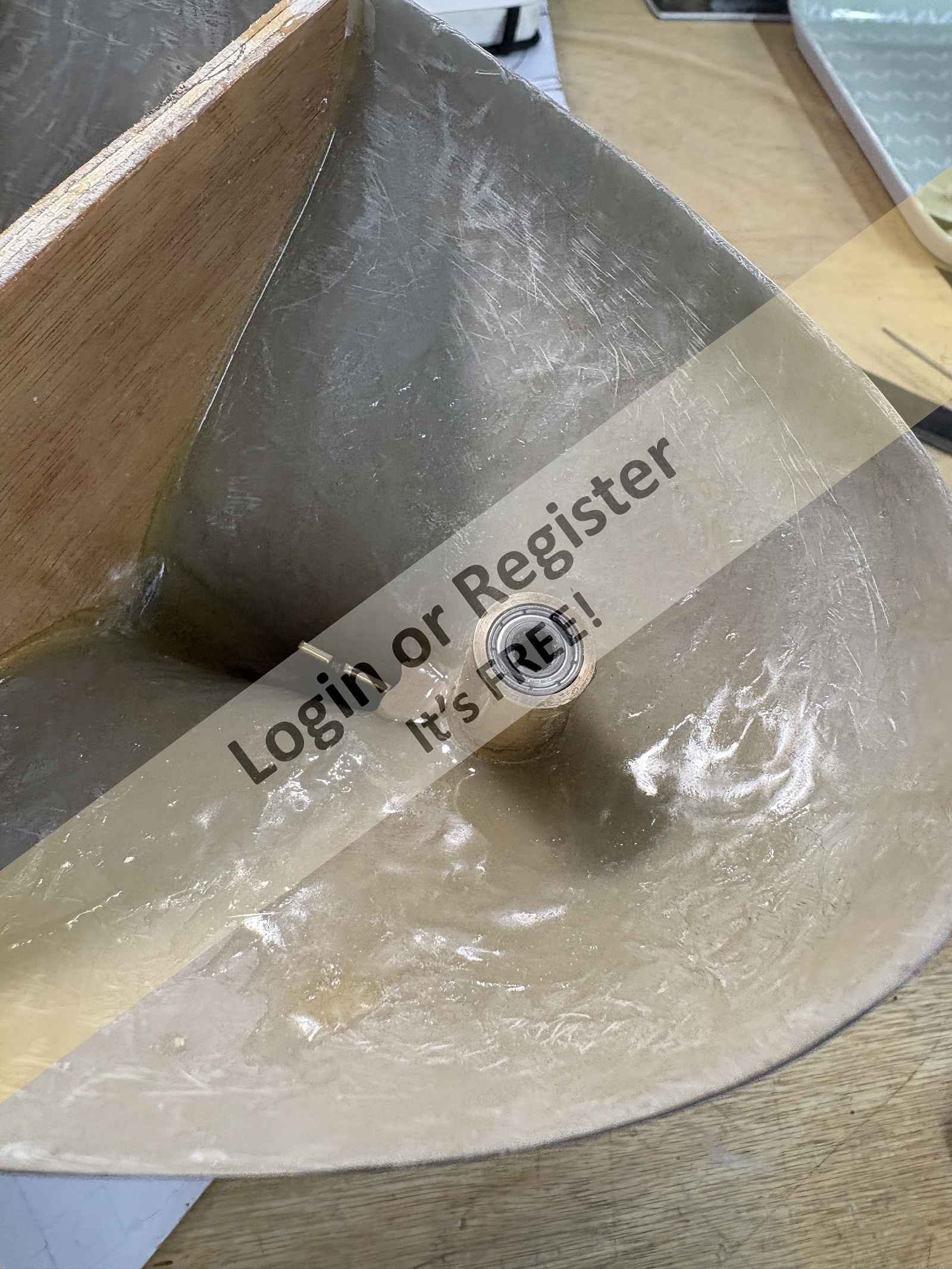

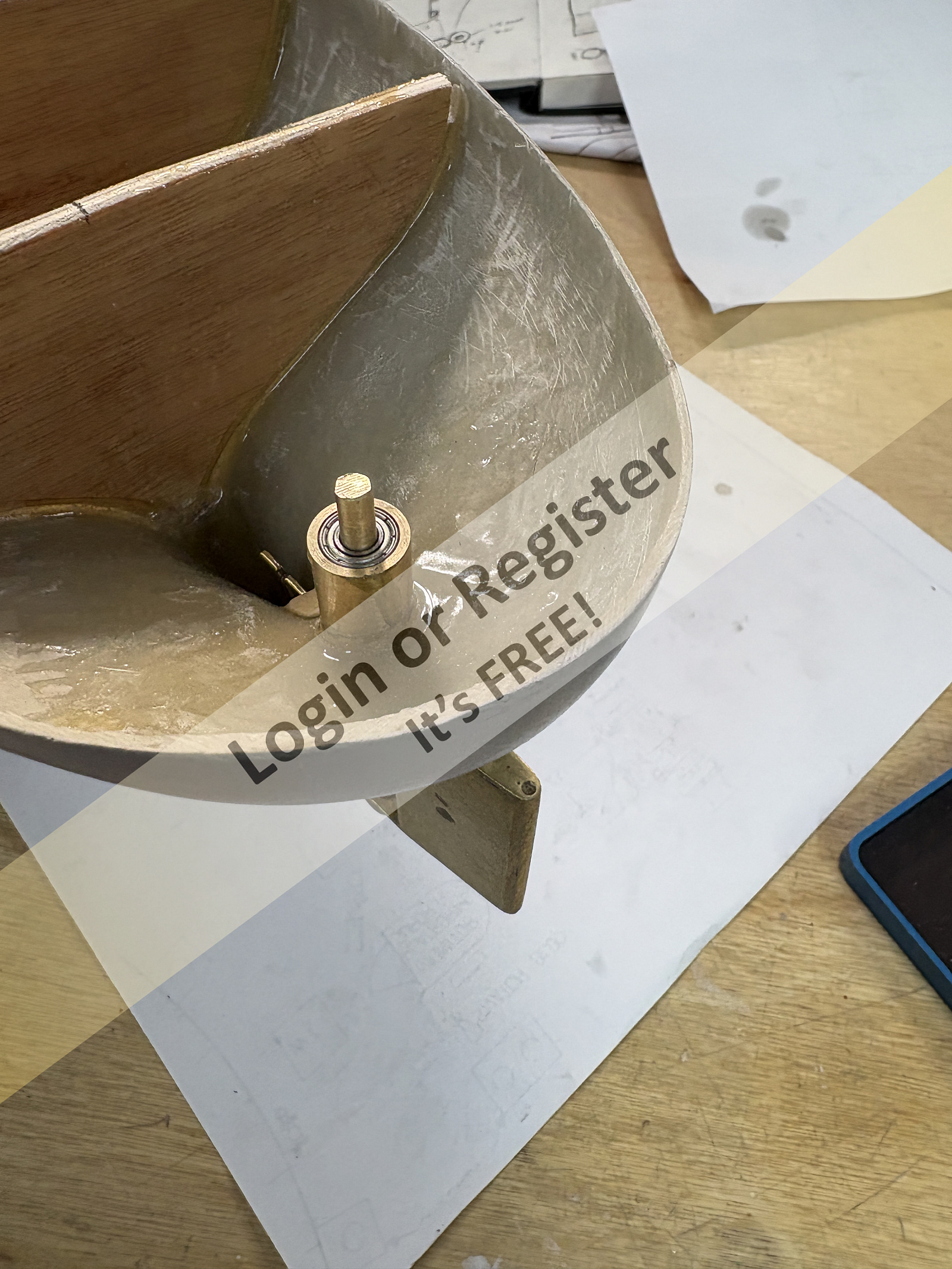

Bearing sleeve with two ball races and a shaft seal. Installed and bonded into place with resin.
▲
⟩⟩
chugalone100
EdW
PhilH
stevedownunder
ChrisF
📝 Points system
26 days ago by 🇬🇧 Kevin55 ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 42 Views · 2 Likes
Flag
📝 Reply
Hi
Can someone explain how the points work.
On the list it has videos and pictures
I have added both but no points ?
TIA
Can someone explain how the points work.
On the list it has videos and pictures
I have added both but no points ?
TIA
▲
⟩⟩
Mike Stoney
hermank
📝 Möwe - Trawler
27 days ago by 🇬🇧 Kevin55 ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 7 Views · 14 Likes · 7 Comments
Flag
💬 Add Comment
This was my first build, present from the wife.
Not complex but it was interesting to start my hobby..
I think it was an Aero-Naut kit
Not complex but it was interesting to start my hobby..
I think it was an Aero-Naut kit
▲
⟩⟩
DWBrinkman
Trident73
GARTH
Mike Stoney
Ray
xtramaths
Northernflotsam
IanL1
Wolle
jumpugly
Ronald
hermank
cjanik001
chugalone100
📝 Rudder update
28 days ago by 🇬🇧 Kevin55 ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 69 Views · 11 Likes
Flag
💬 Add Comment

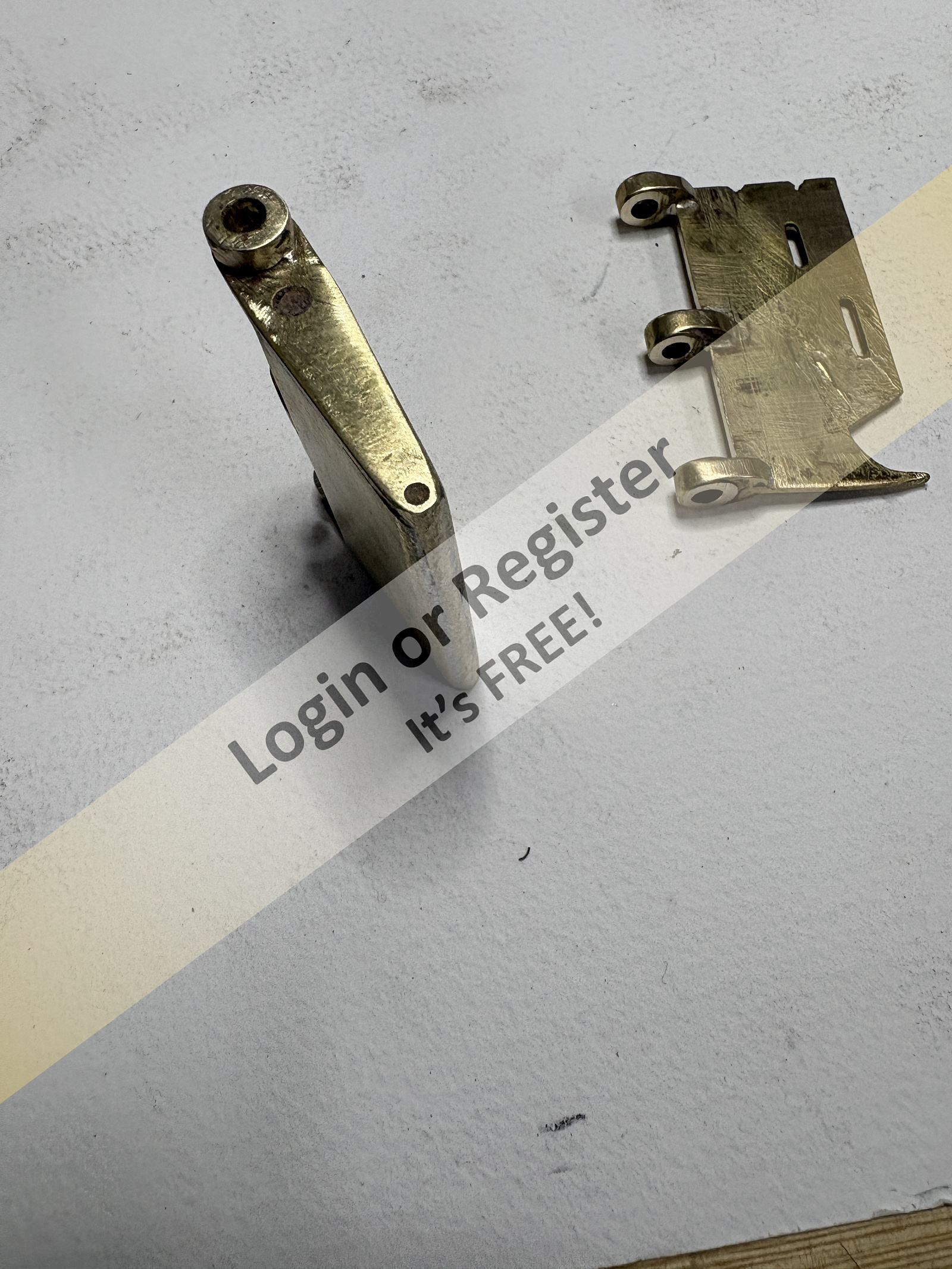

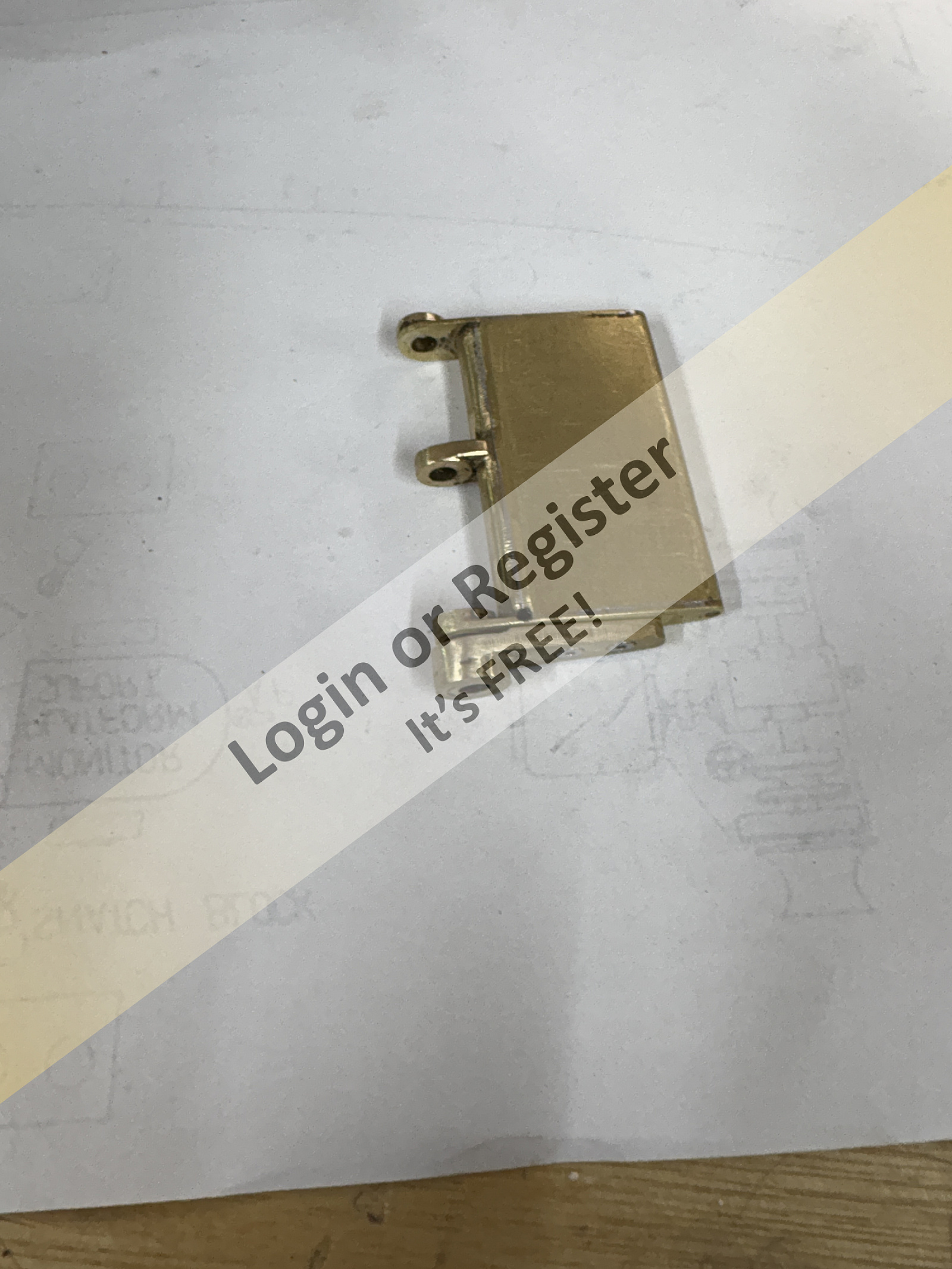

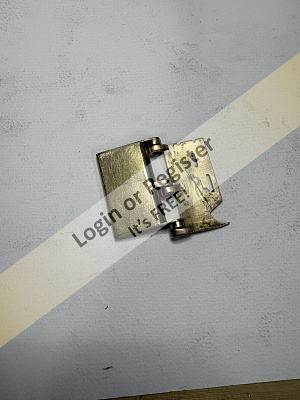

Second part of the rudder in its final stages before making the rudder stock and bearing sleeve.
The bearing sleeve is to have a shaft seal to stop the water from entering.

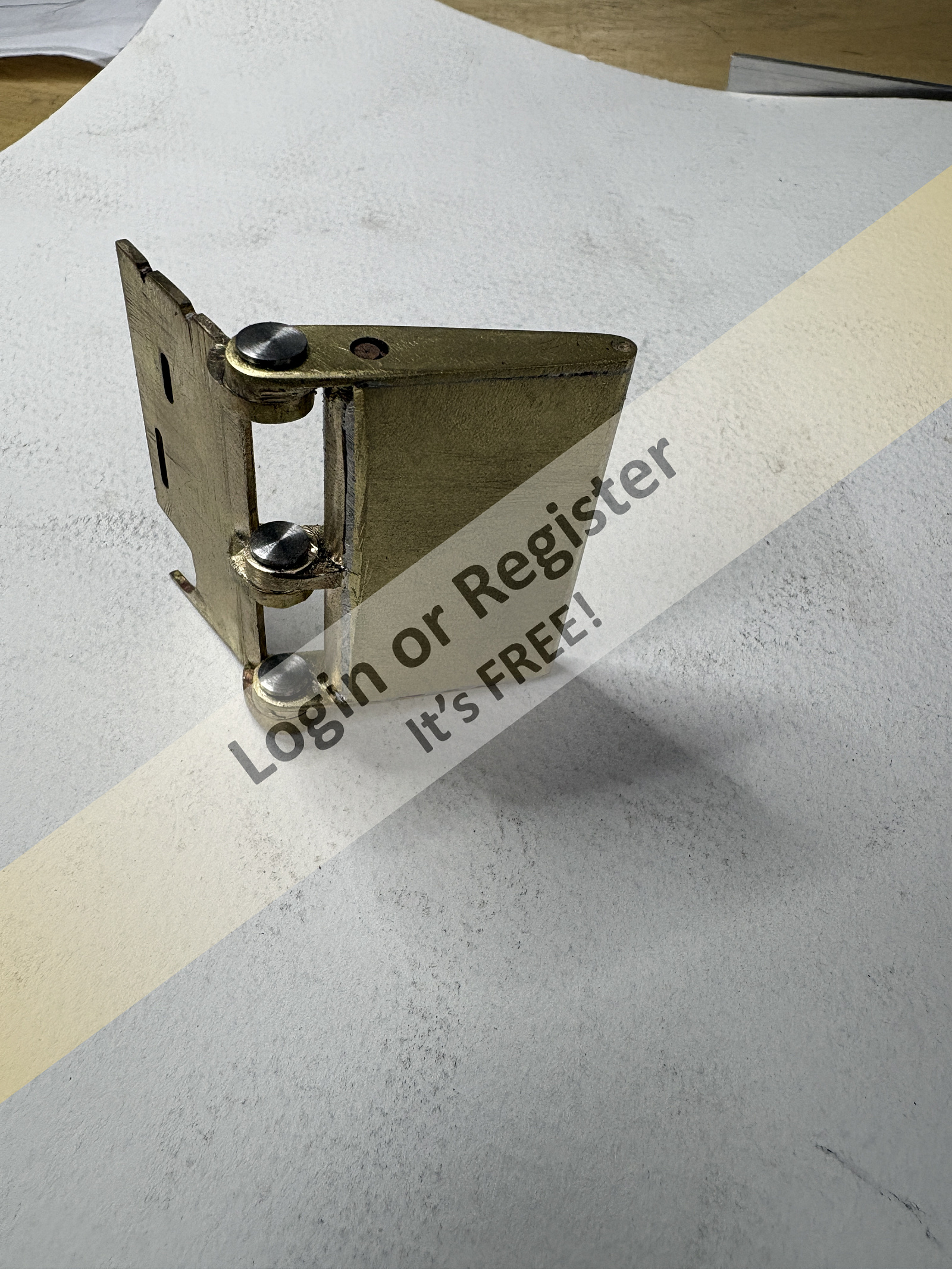

Bearing stub arbours added today
More soon..
The bearing sleeve is to have a shaft seal to stop the water from entering.
Bearing stub arbours added today
More soon..
▲
⟩⟩
chugalone100
Steve P
Mike Stoney
EdW
PhilH
AlessandroSPQR
LeeA
ChrisF
stevedownunder
pressonreguardless
GaryLC
💬 Re: Checking in the pond
29 days ago by 🇬🇧 Kevin55 ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 69 Views · 0 Likes
Flag
💬 Add Comment
Hi
Yes, the model is sitting high in the water which is ideal because of the items yet to be made and attached.
I am keeping an eye on the weight of components above the deck due to the hull being shallow.
Another battery and water pump have yet to be added for the fire monitor so this will help.
I have tried to contact others that have made this model with the fibreglass hull but to no avail.
Yes, the model is sitting high in the water which is ideal because of the items yet to be made and attached.
I am keeping an eye on the weight of components above the deck due to the hull being shallow.
Another battery and water pump have yet to be added for the fire monitor so this will help.
I have tried to contact others that have made this model with the fibreglass hull but to no avail.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 Working on the Rudder
1 month ago by 🇬🇧 Kevin55 ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 74 Views · 9 Likes
Flag
💬 Add Comment

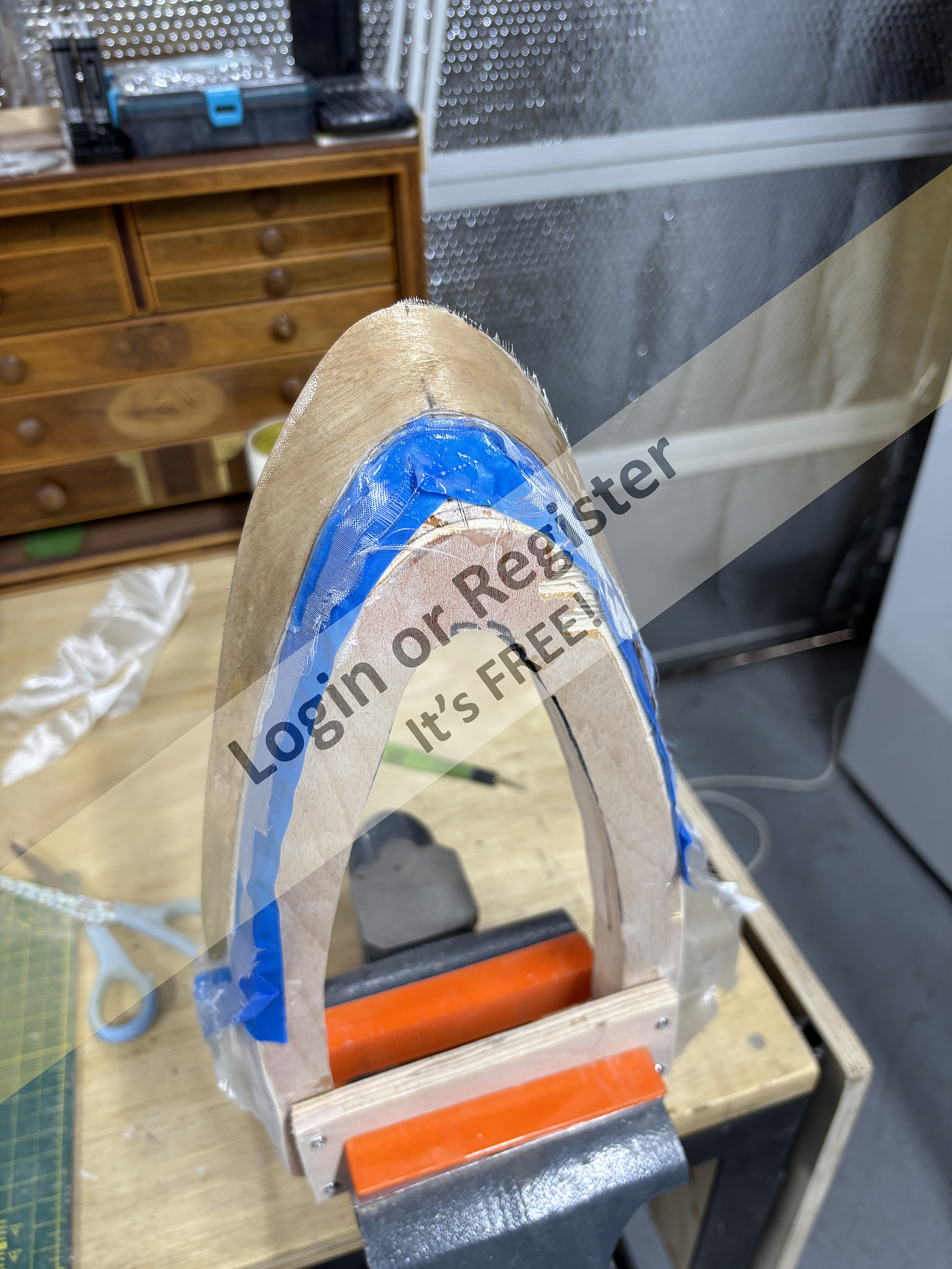

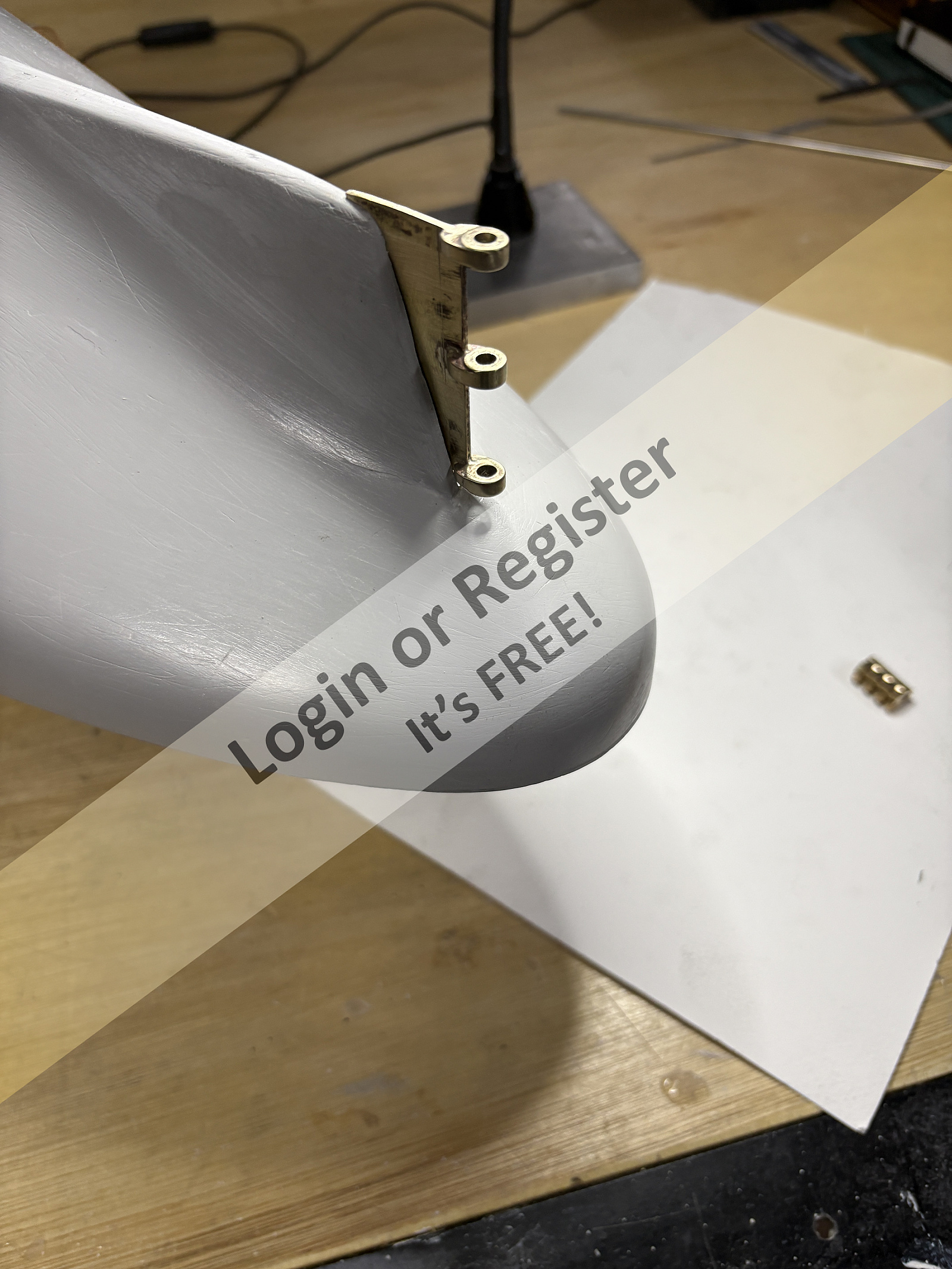

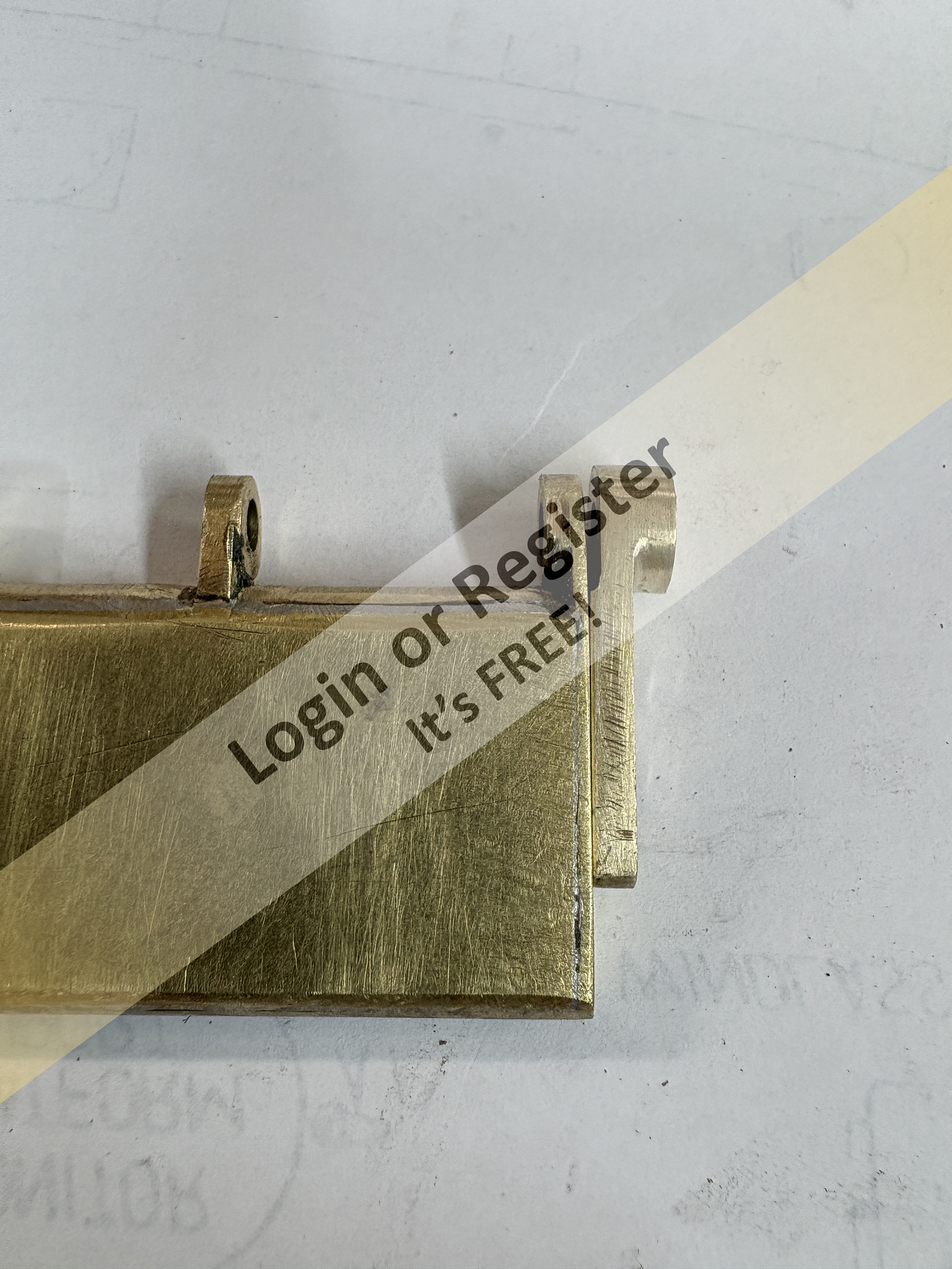

Started work on the rudder today and made some good progress.

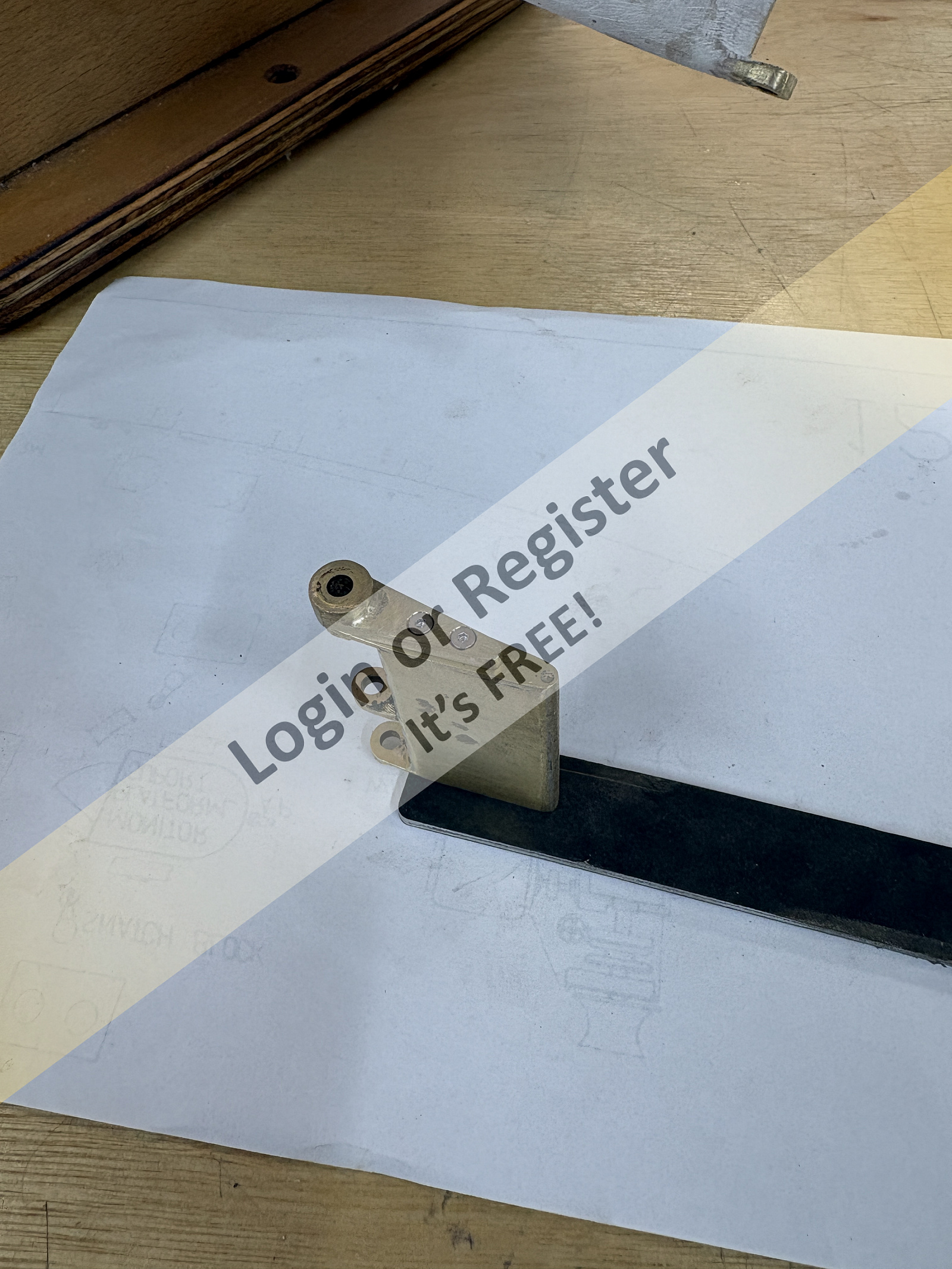

One half ready to bond into grp hull once I have the second half ready to test against it.
Plenty to do but I am trying to get into the habit of updating in small sections.
One half ready to bond into grp hull once I have the second half ready to test against it.
Plenty to do but I am trying to get into the habit of updating in small sections.
▲
⟩⟩
EdW
PhilH
AlessandroSPQR
LeeA
chugalone100
stevedownunder
hermank
GaryLC
pressonreguardless
💬 Re: Axial alignment of both paddle shafts
1 month ago by 🇬🇧 Kevin55 ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 79 Views · 5 Likes
Flag
💬 Add Comment

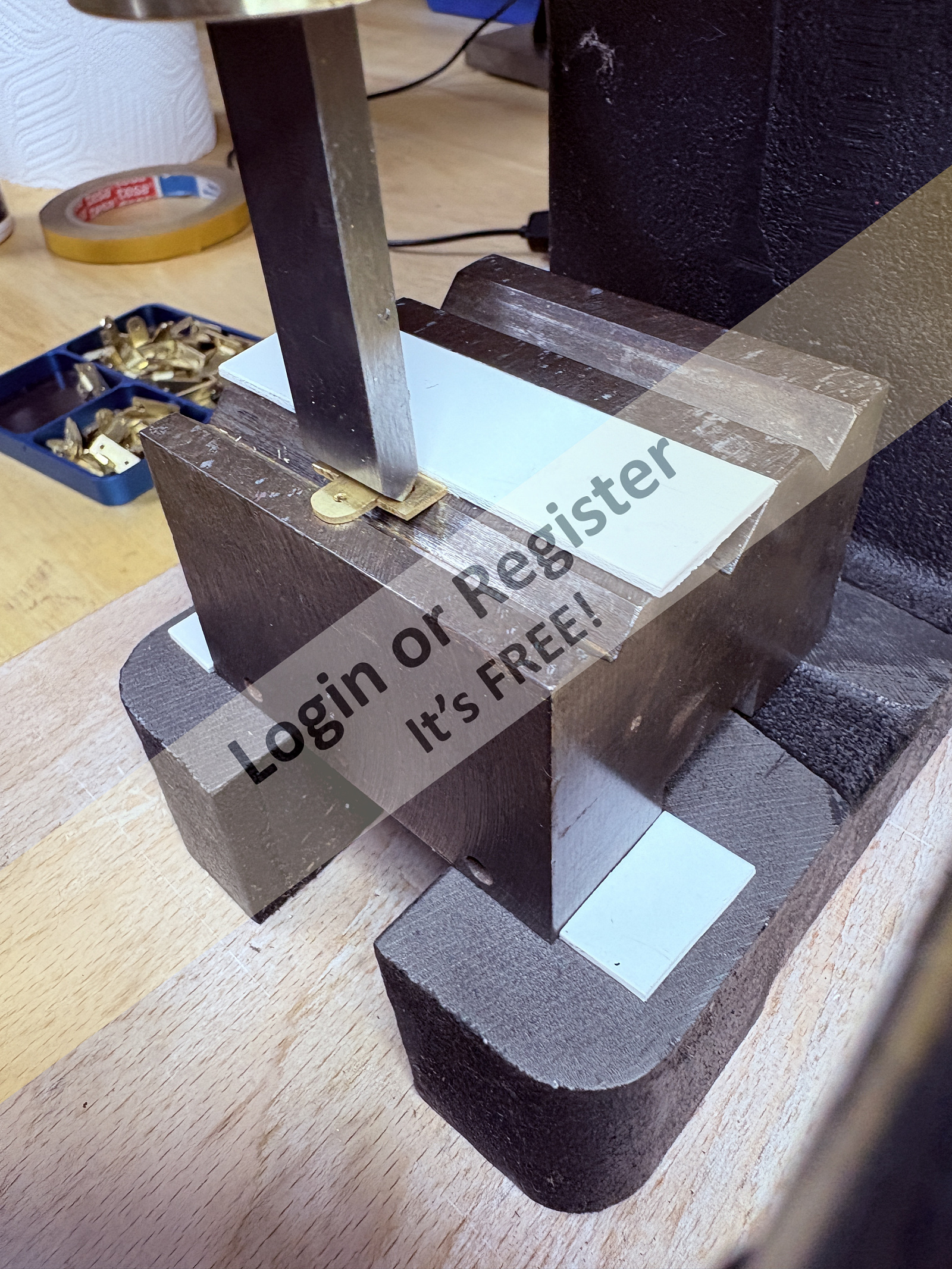

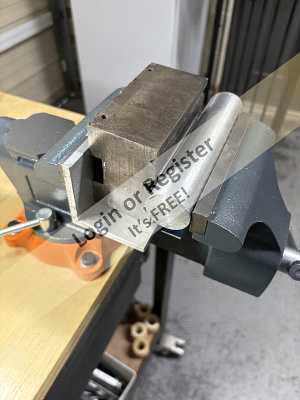

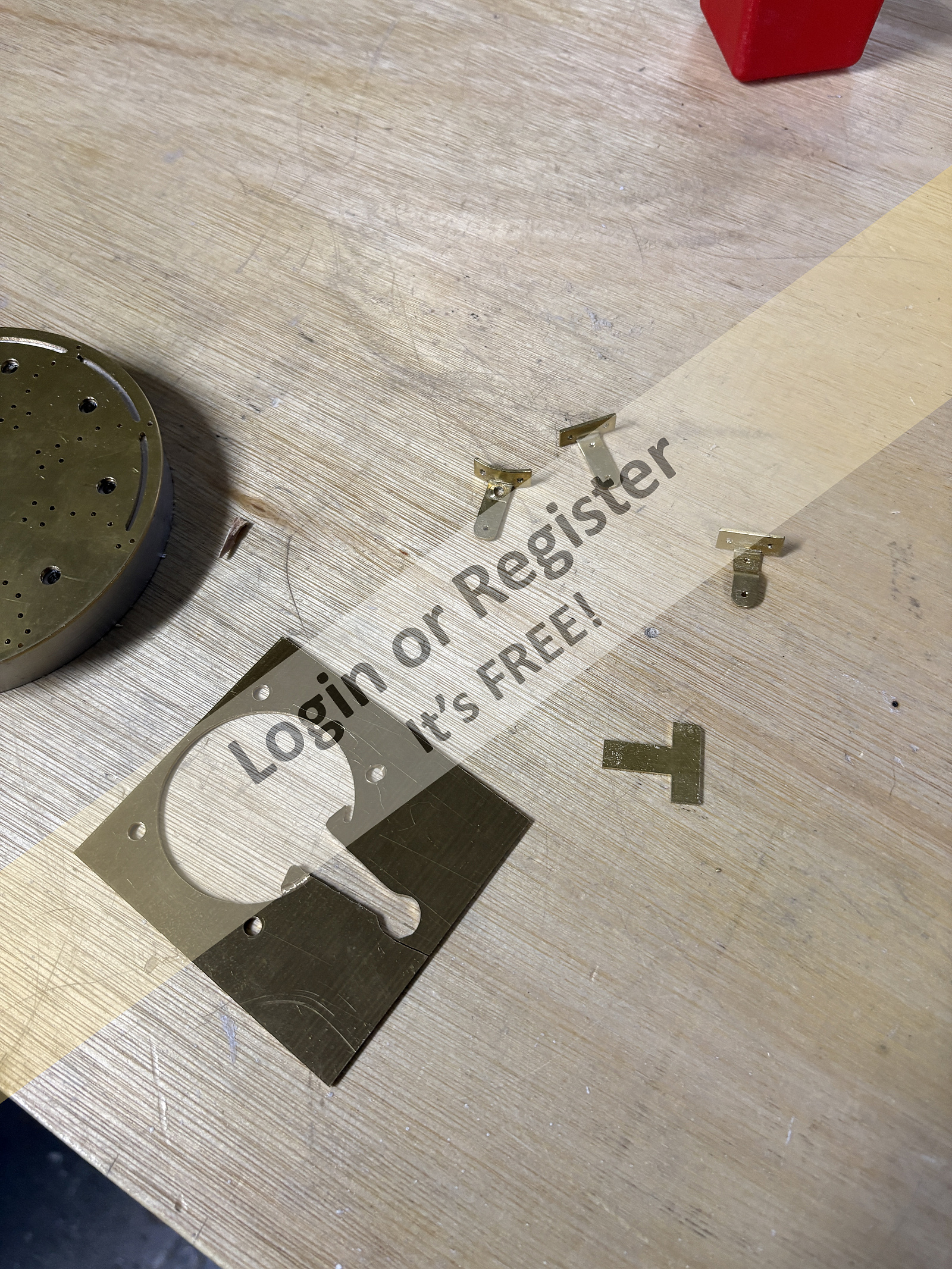

Some jigs and fixtures have been made to make some of the parts.
Simple Press tools and form tools have also been made to ensure uniformity. My milling machine and lathe both have digital read outs which have help enormously with the accuracy..
Simple Press tools and form tools have also been made to ensure uniformity. My milling machine and lathe both have digital read outs which have help enormously with the accuracy..
▲
⟩⟩
hermank
GaryLC
pressonreguardless
chugalone100
Ronald
📝 Axial alignment of both paddle shafts
1 month ago by 🇬🇧 Kevin55 ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 79 Views · 12 Likes · 2 Comments
Flag
💬 Add Comment

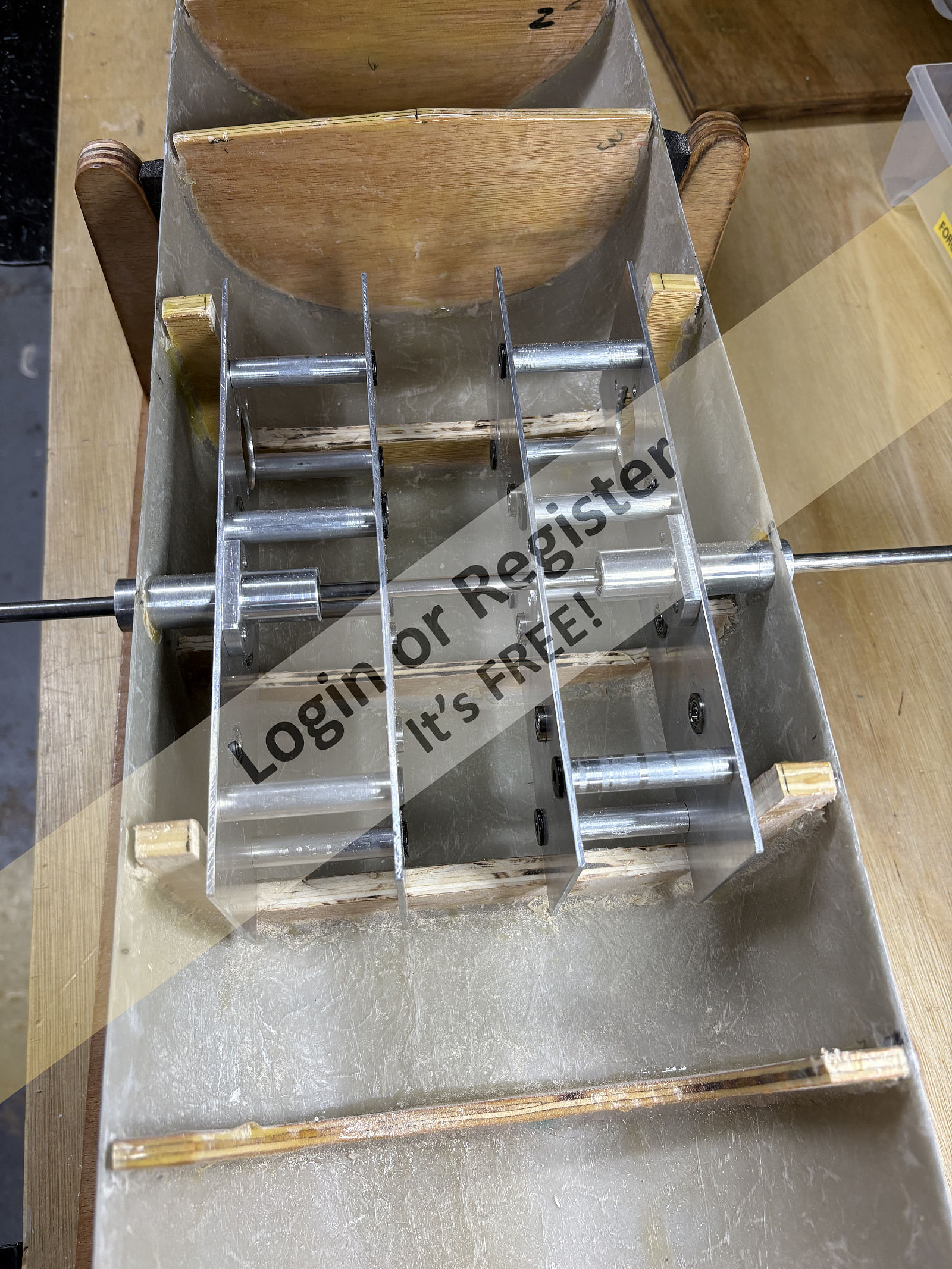

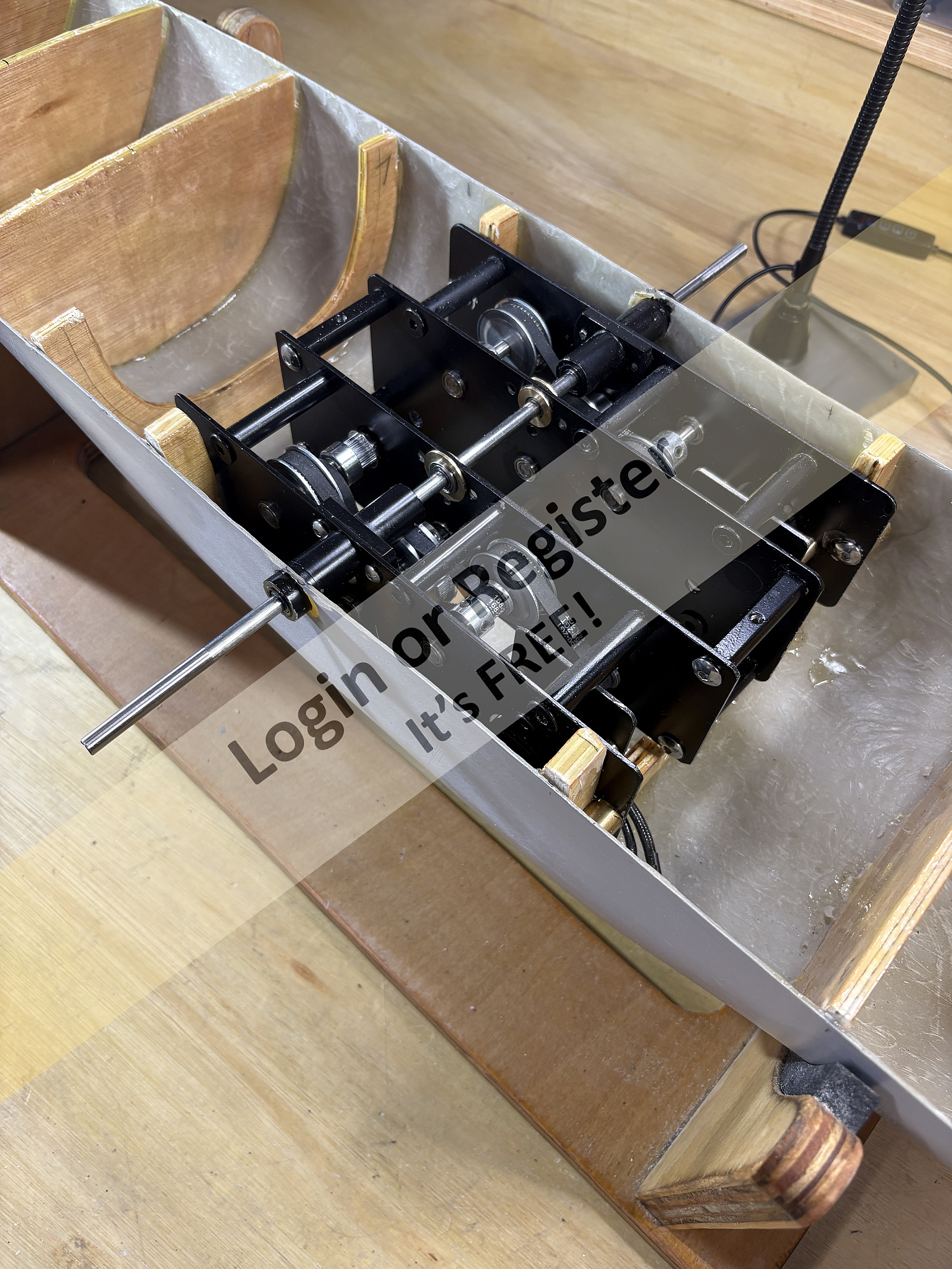

I have removed both of the paddle shafts from the gearboxes.
Then installed both of the gearboxes with a long setting shaft that passes through both l gearbox bearing assemblies.
This has aligned both gearboxes allowing them to be secured in the correct position. The long setting shaft can now be removed and the gearboxes removed and rebuilt.
The rest of the build can now proceed have reached this important stage.
Then installed both of the gearboxes with a long setting shaft that passes through both l gearbox bearing assemblies.
This has aligned both gearboxes allowing them to be secured in the correct position. The long setting shaft can now be removed and the gearboxes removed and rebuilt.
The rest of the build can now proceed have reached this important stage.
▲
⟩⟩
chugalone100
Mike Stoney
EdW
LeeA
pressonreguardless
Chum444
GaryLC
Ronald
DuncanP
hermank
stevedownunder
AlessandroSPQR
Login To
Remove Ads
Remove Ads
📝 Checking in the pond
1 month ago by 🇬🇧 Kevin55 ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 85 Views · 9 Likes · 3 Comments
Flag
💬 Add Comment

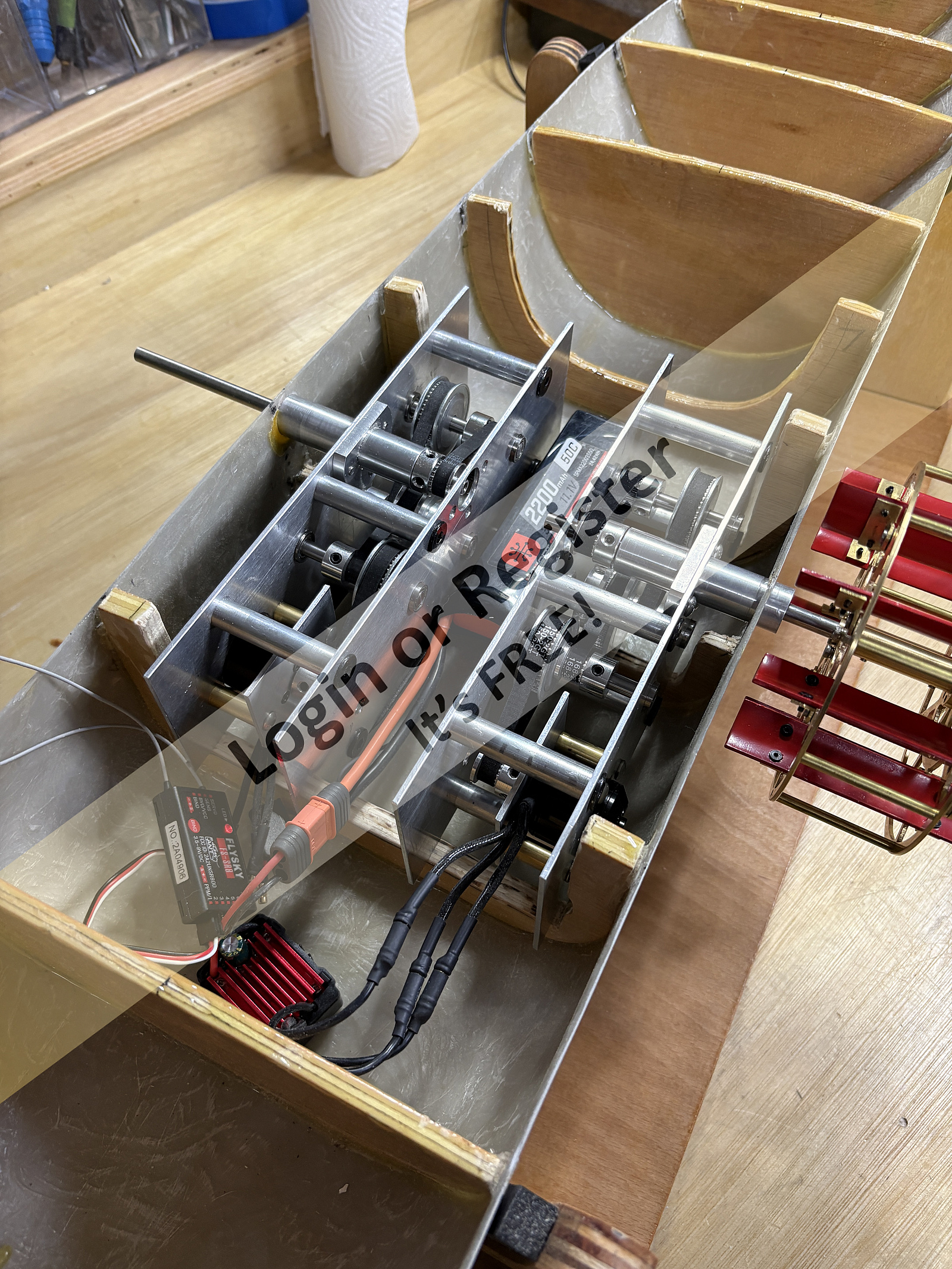

Both gearboxes and paddle wheels plus batteries and ESCs to check how it’s sitting…
▲
⟩⟩
Mike Stoney
EdW
cumbrae
Ronald
DuncanP
stevedownunder
GaryLC
hermank
pressonreguardless
📝 Paddle wheel and gearbox video
1 month ago by 🇬🇧 Kevin55 ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 87 Views · 4 Likes
Flag
💬 Add Comment
Last video showing the paddle wheels and reduction gearbox running slow.
▲
⟩⟩
stevedownunder
hermank
pressonreguardless
chugalone100
📝 Paddle Wheel test Tank
1 month ago by 🇬🇧 Kevin55 ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 82 Views · 8 Likes · 1 Comment
Flag
💬 Add Comment
Please excuse the video quality as I am not to good at this aspect.
Testing the paddle wheels before commencing with the final fit out of the two wheels and gearboxes.
Testing the paddle wheels before commencing with the final fit out of the two wheels and gearboxes.
▲
⟩⟩
Mike Stoney
Julio
stevedownunder
hermank
pressonreguardless
chugalone100
AlessandroSPQR
Madwelshman
📝 Painted paddle wheels
1 month ago by 🇬🇧 Kevin55 ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 72 Views · 11 Likes · 3 Comments
Flag
💬 Add Comment

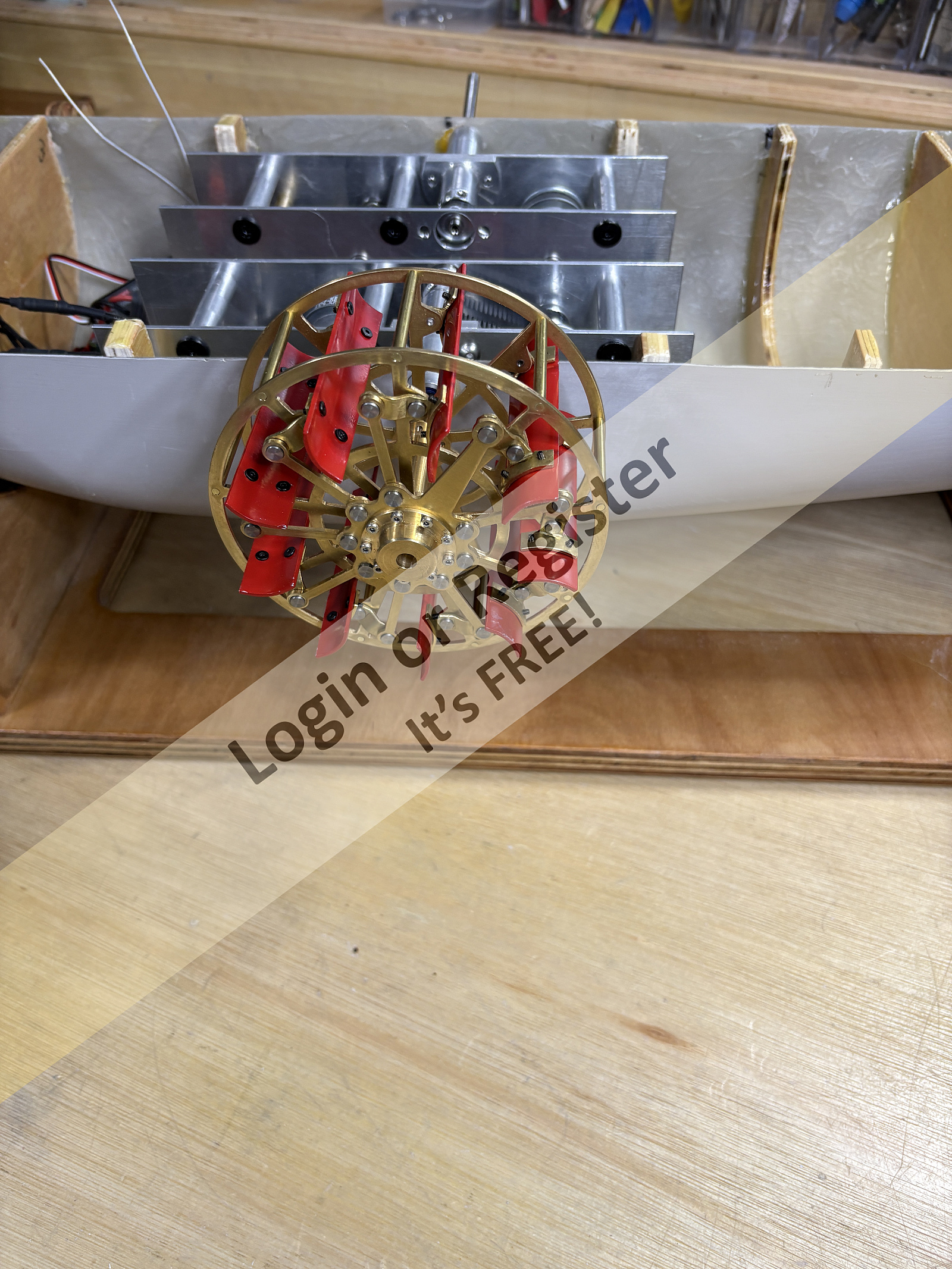

Paddles painted
Next to build a test tank to check feathering operation.
Next to build a test tank to check feathering operation.
▲
⟩⟩
EdW
GaryLC
Ronald
stevedownunder
LewZ
Madwelshman
AlessandroSPQR
chugalone100
hermank
Mike Stoney
pressonreguardless
📝 Assembly paddle wheels prior to final finishing
1 month ago by 🇬🇧 Kevin55 ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 74 Views · 6 Likes · 2 Comments
Flag
💬 Add Comment

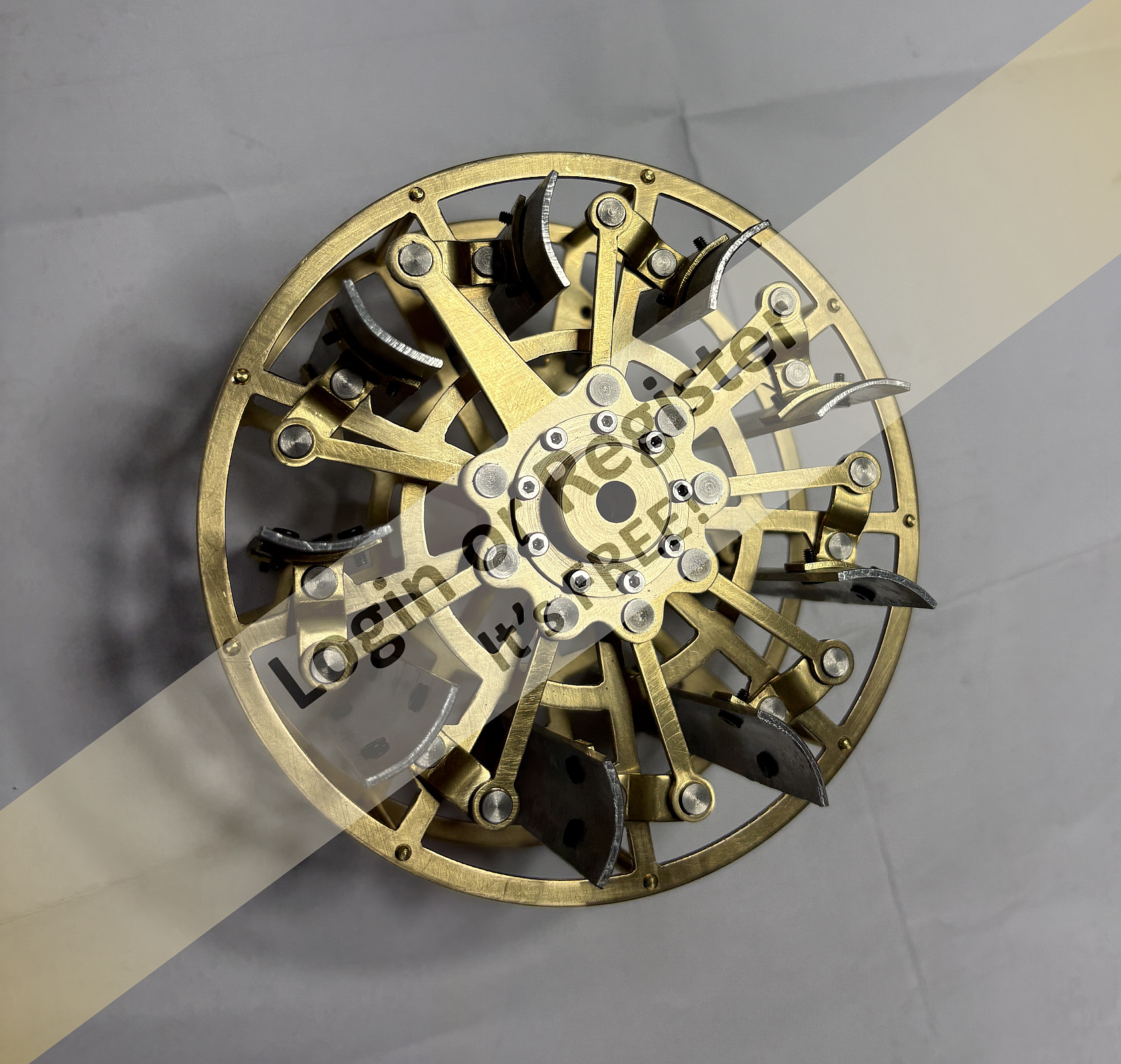

Paddle wheels assembled and riveted
Paddles will be painted next.
Paddles will be painted next.
▲
⟩⟩
Ronald
stevedownunder
AlessandroSPQR
hermank
PhilH
Mike Stoney

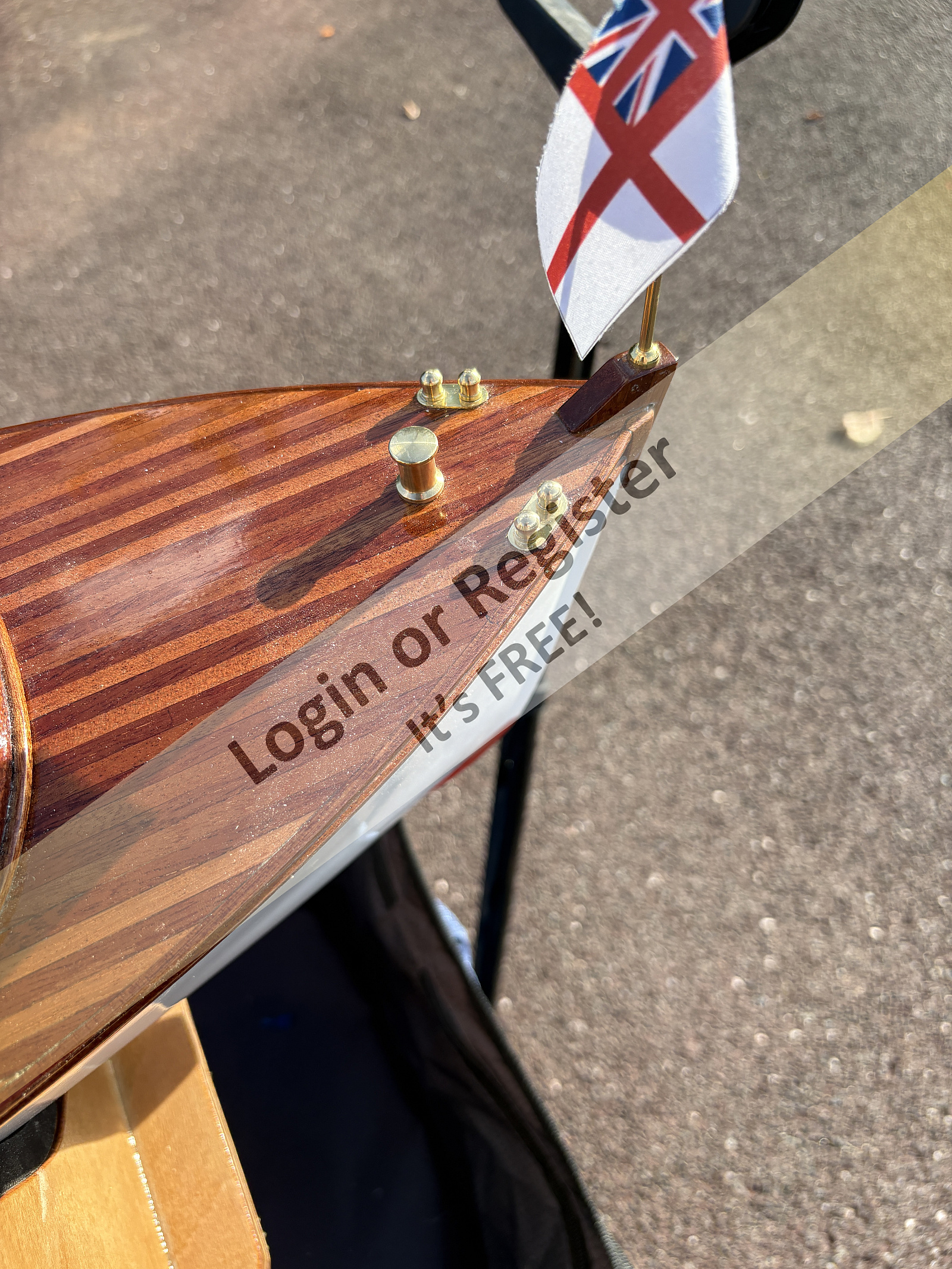

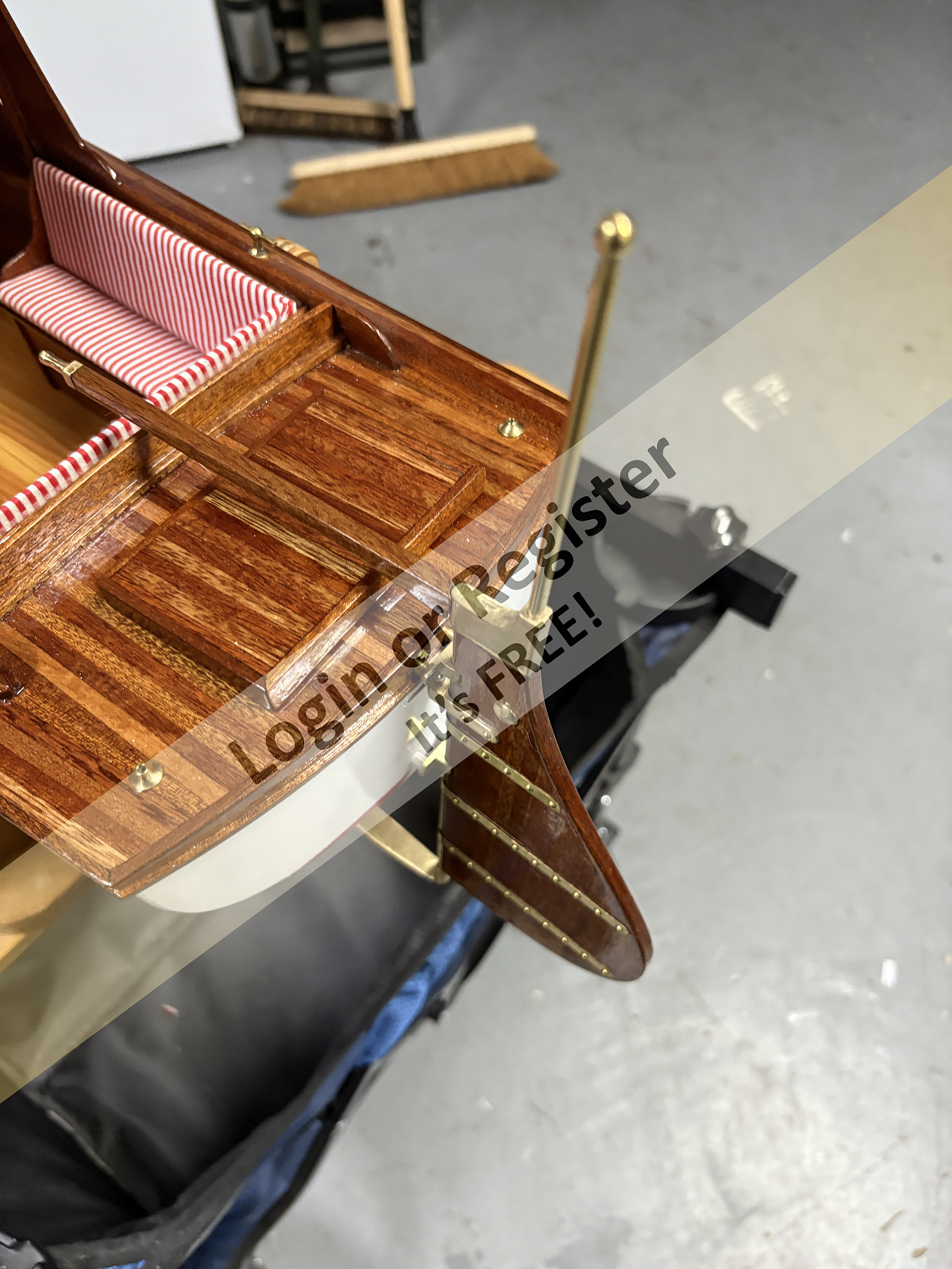

📝 Victorian Steam Launch
1 month ago by 🇬🇧 Kevin55 ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 11 Views · 16 Likes · 5 Comments
Flag
💬 Add Comment

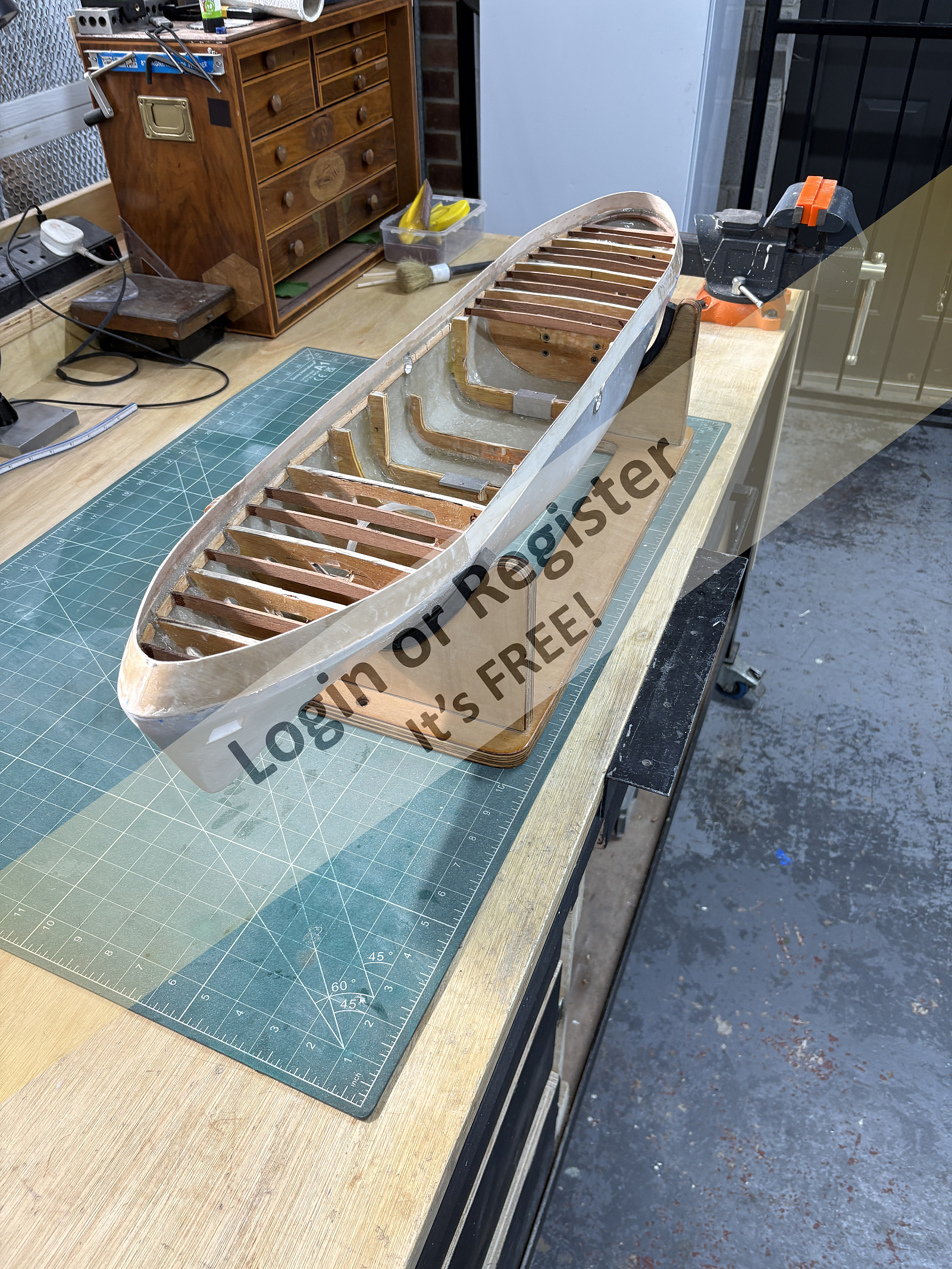

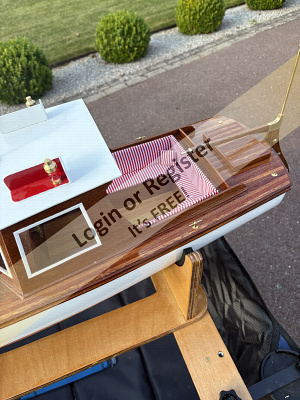

Built from scratch having just the vacuum formed hull from an old model.
The boiler and steam engine are faux as our club does not have permission from the local authorities to run real steam boats.
The Steam engine has been made to suit the space available. It runs via a 12v motor gearbox hidden behind the bulkhead see video.

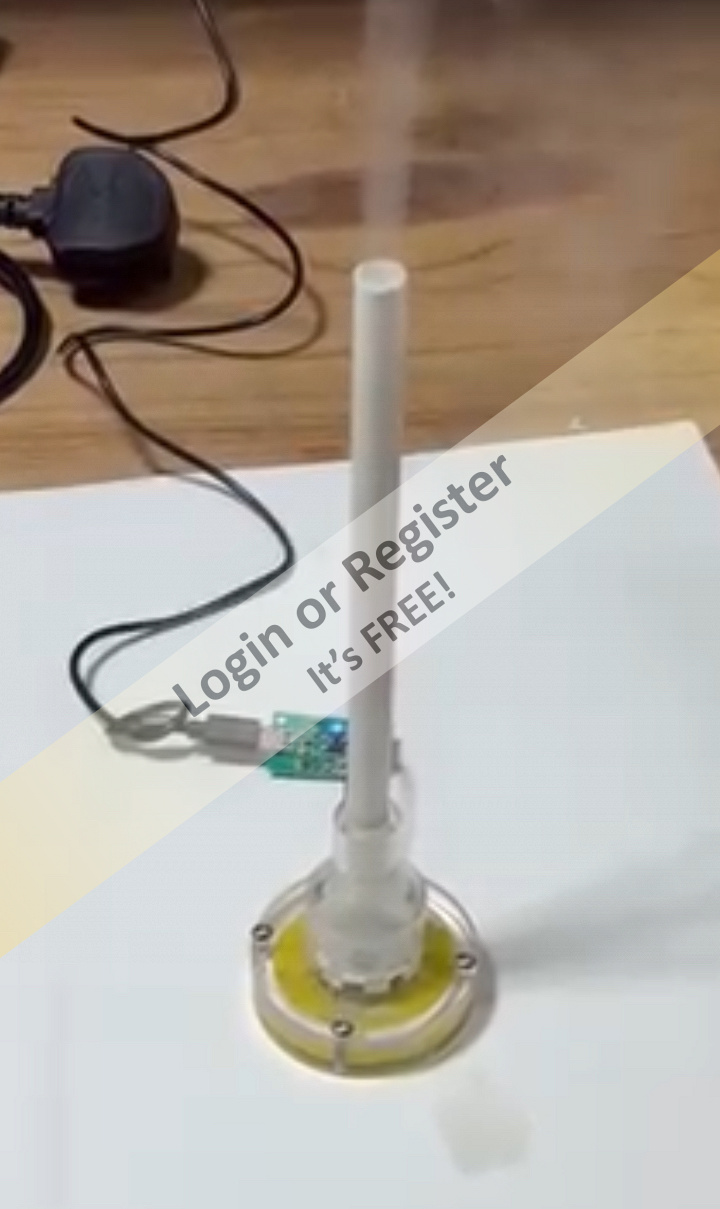

The boiler has also been made with some specific requirements to house the smoke generator. Filling the smoke generator with distilled water is via a removable screw cap.
The boiler sits on a base unit. when the unit is installed into the boat power is via Magnetic Pogo Pin Connectors.
The boiler and steam engine are faux as our club does not have permission from the local authorities to run real steam boats.
The Steam engine has been made to suit the space available. It runs via a 12v motor gearbox hidden behind the bulkhead see video.
The boiler has also been made with some specific requirements to house the smoke generator. Filling the smoke generator with distilled water is via a removable screw cap.
The boiler sits on a base unit. when the unit is installed into the boat power is via Magnetic Pogo Pin Connectors.
▲
⟩⟩
Ronald
BarryS
LeeA
Ray
xtramaths
pressonreguardless
IanL1
jumpugly
chugalone100
DWBrinkman
Willem
Newby7
roycv
GaryLC
hermank
zooma
📝 Assembly of the gearboxes
1 month ago by 🇬🇧 Kevin55 ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 74 Views · 11 Likes · 2 Comments
Flag
💬 Add Comment

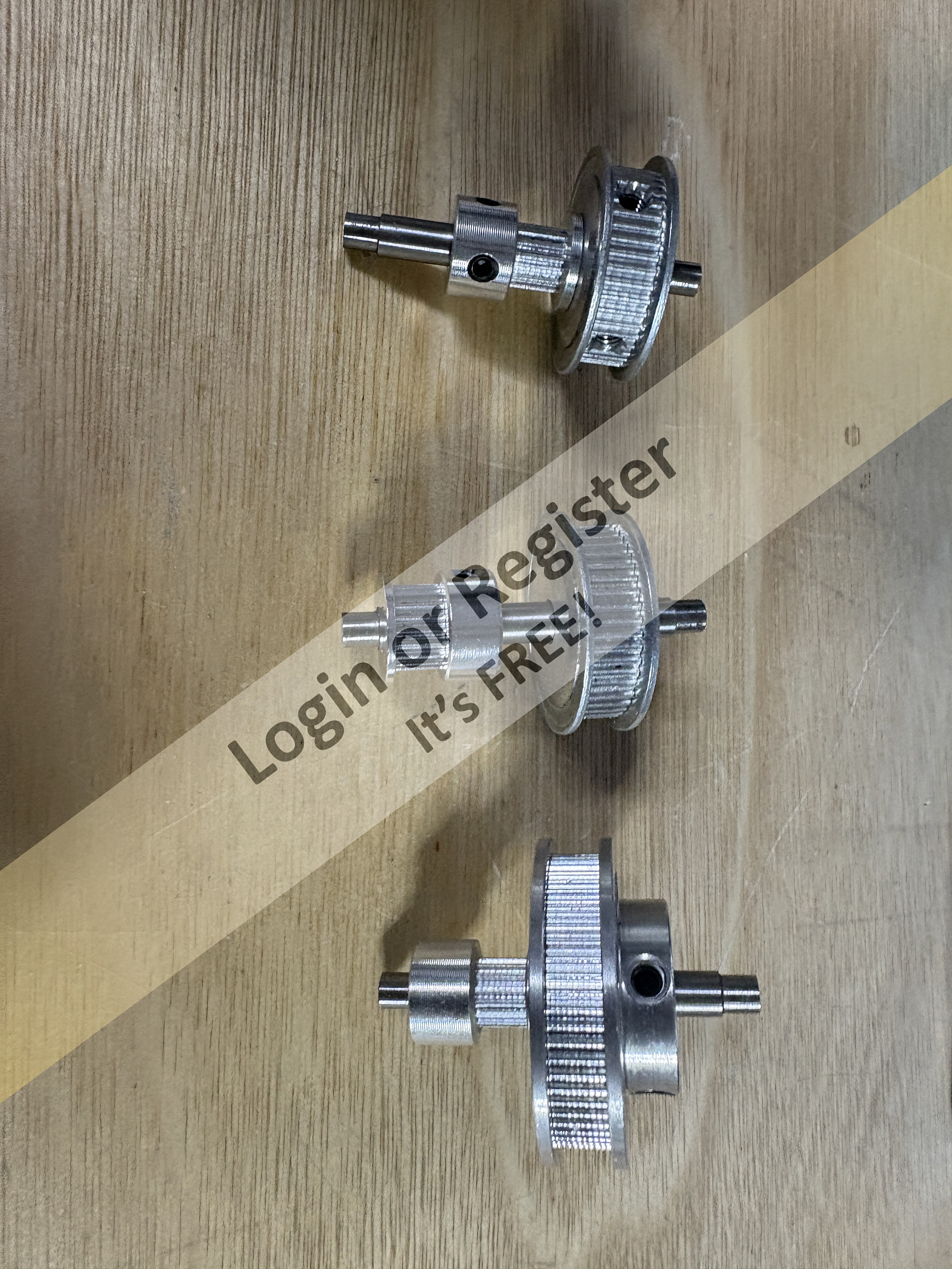

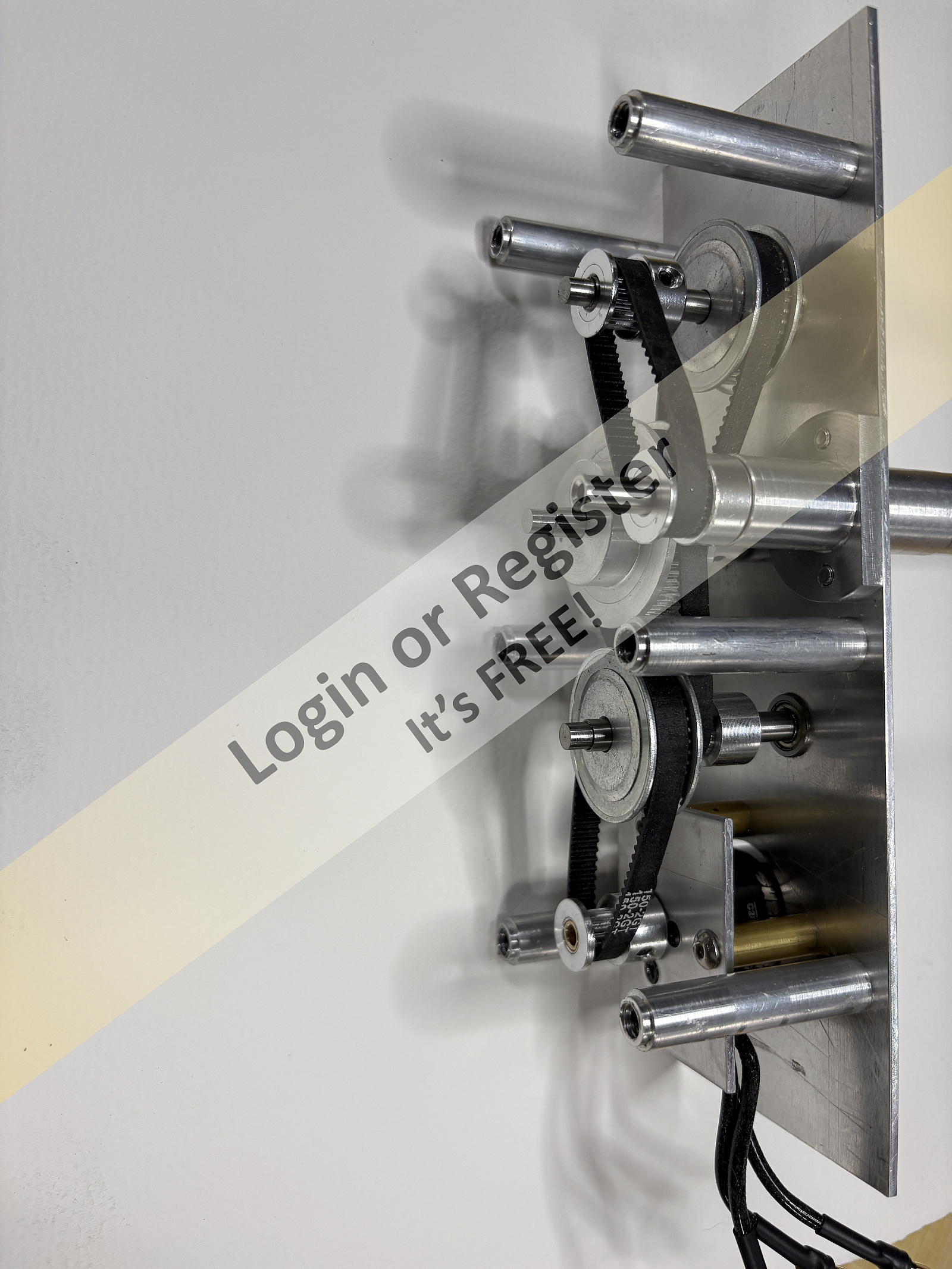

Machined parts for gearboxes assembled with standard timing pulley's / toothed belts.
Test fit into the hull prior to finishing.
Test fit into the hull prior to finishing.
▲
⟩⟩
Ronald
stevedownunder
cenbeth
AlessandroSPQR
chugalone100
Mike Stoney
Madwelshman
hermank
zooma
PhilH
GaryLC

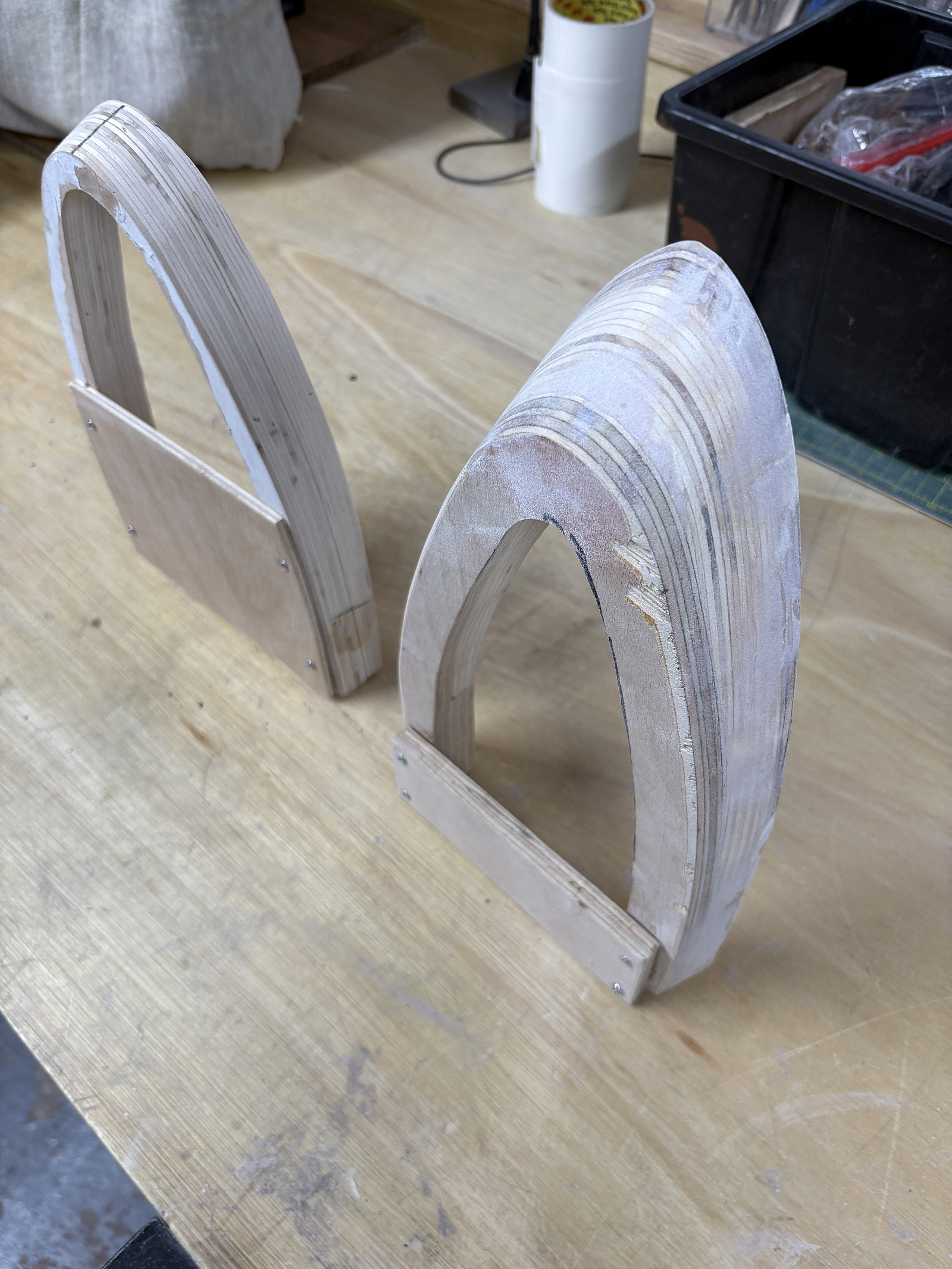

📝 Making the paddle wheels
1 month ago by 🇬🇧 Kevin55 ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 77 Views · 8 Likes · 3 Comments
Flag
💬 Add Comment

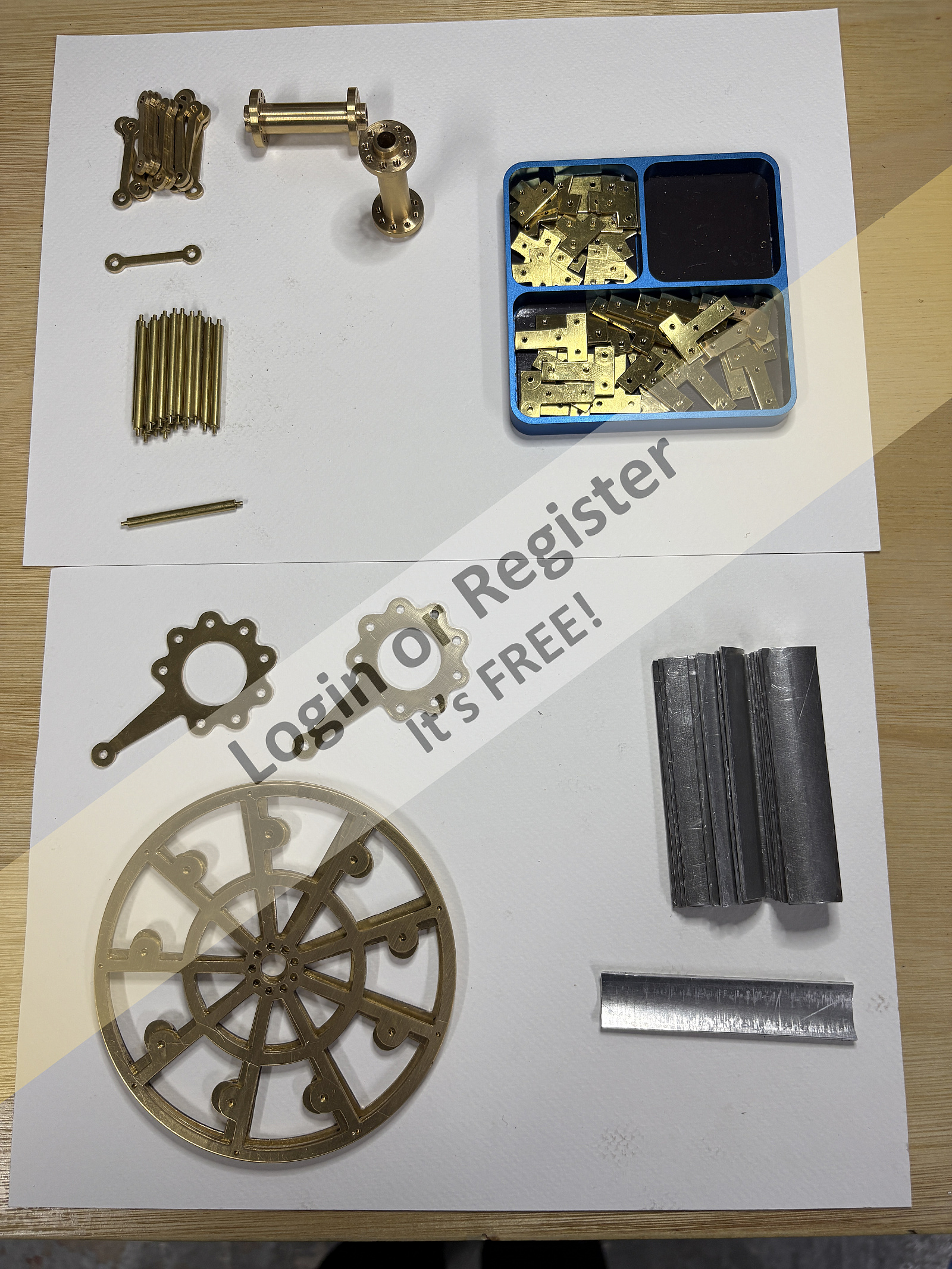

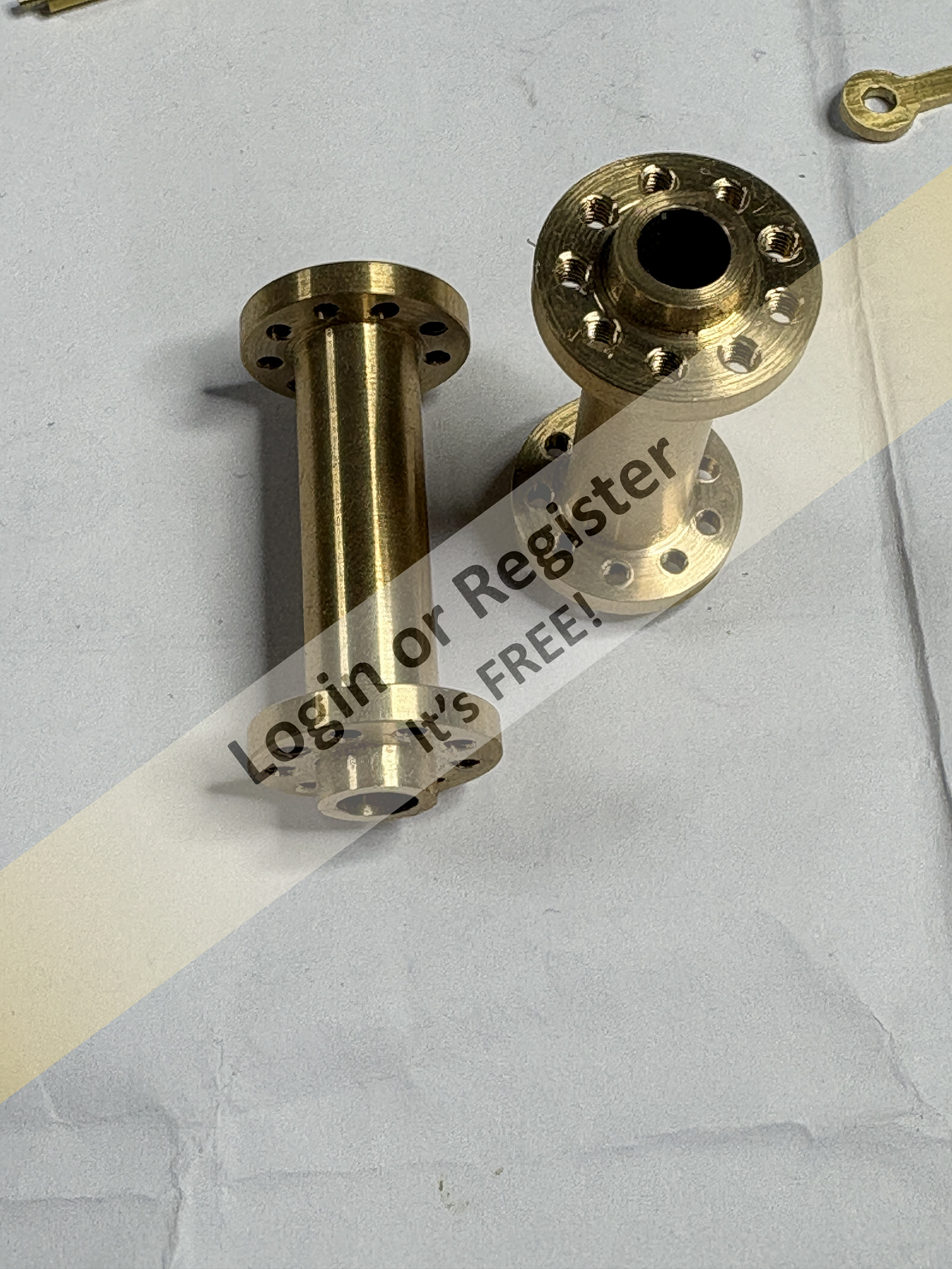

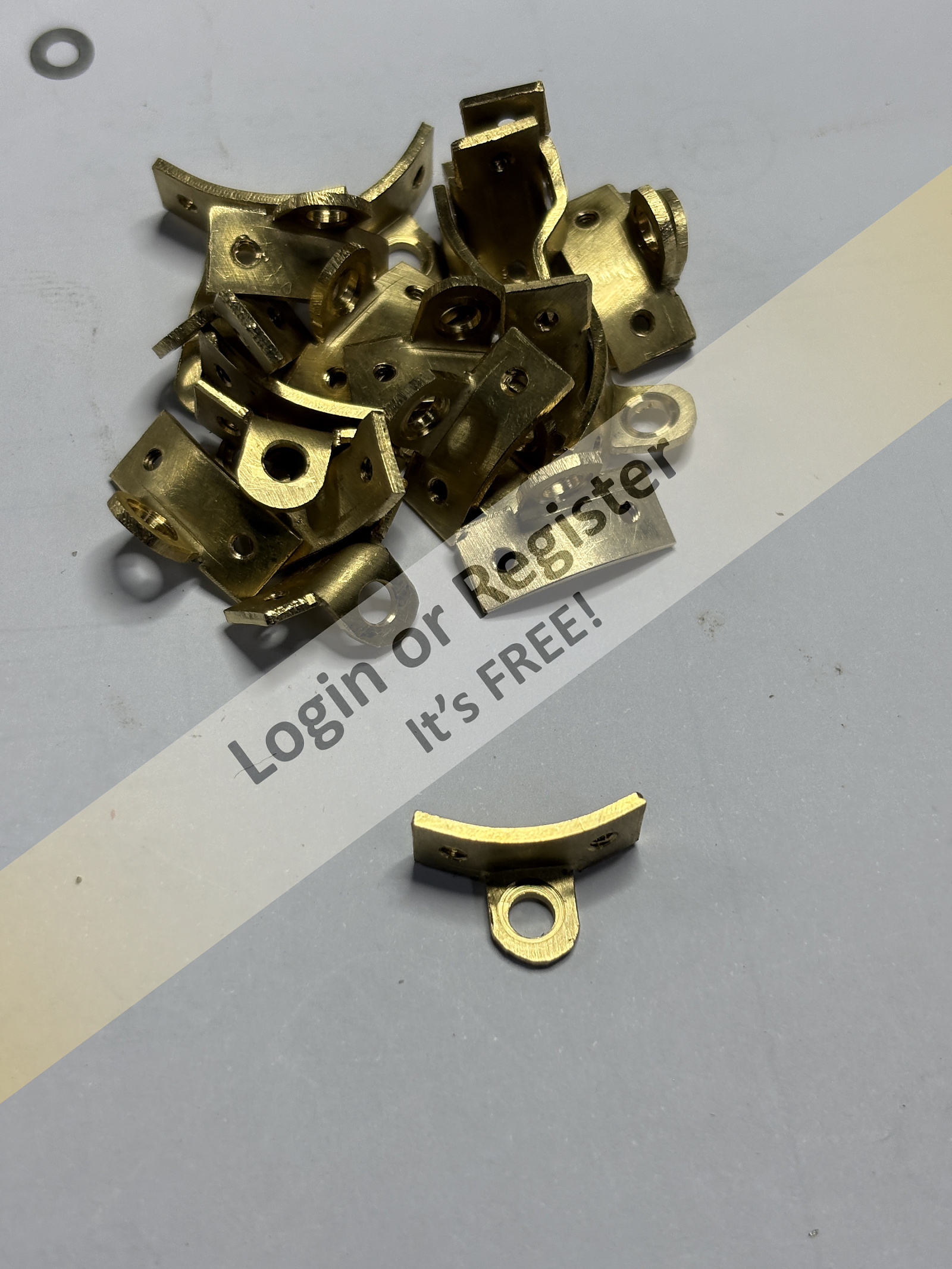

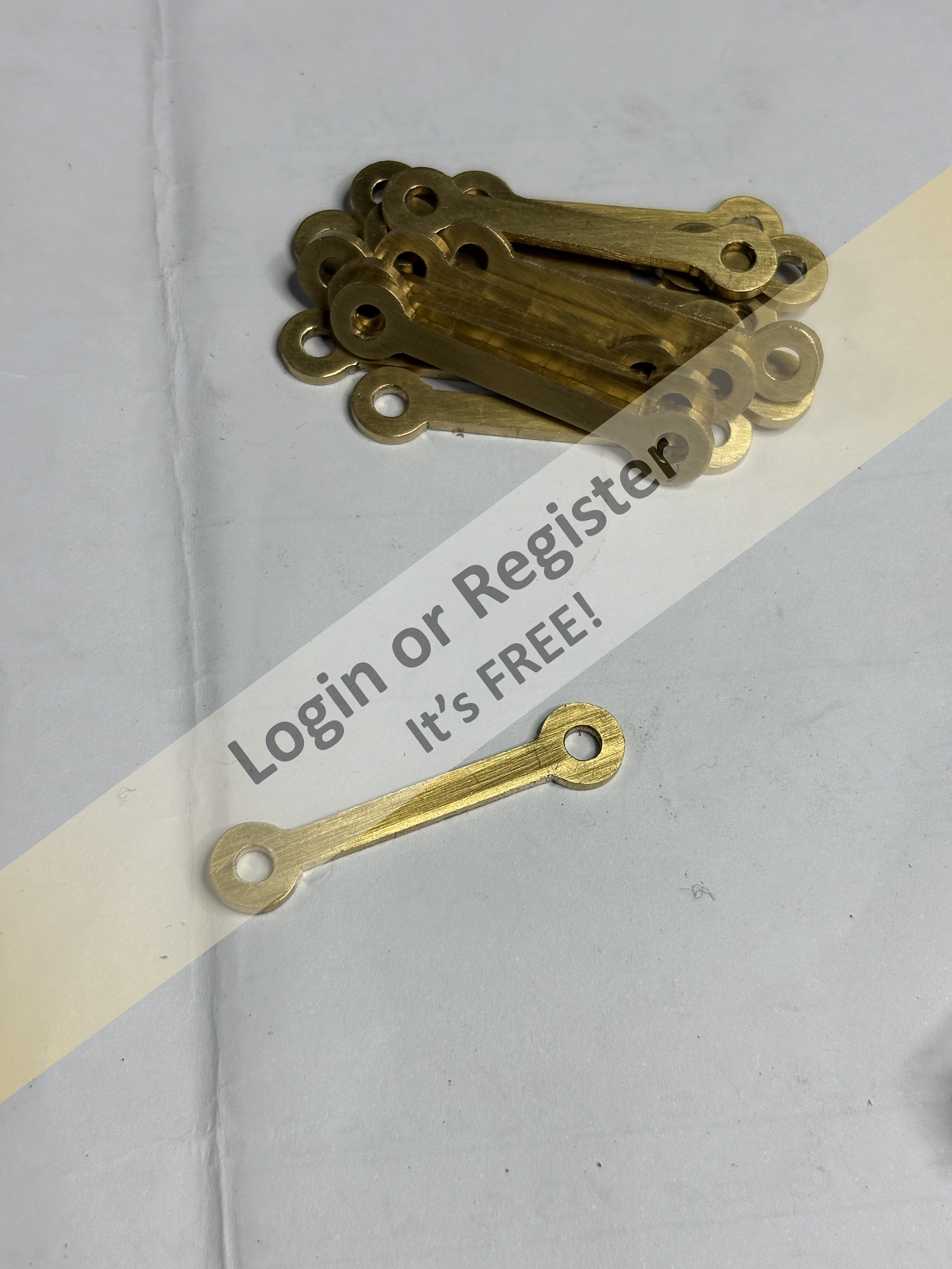

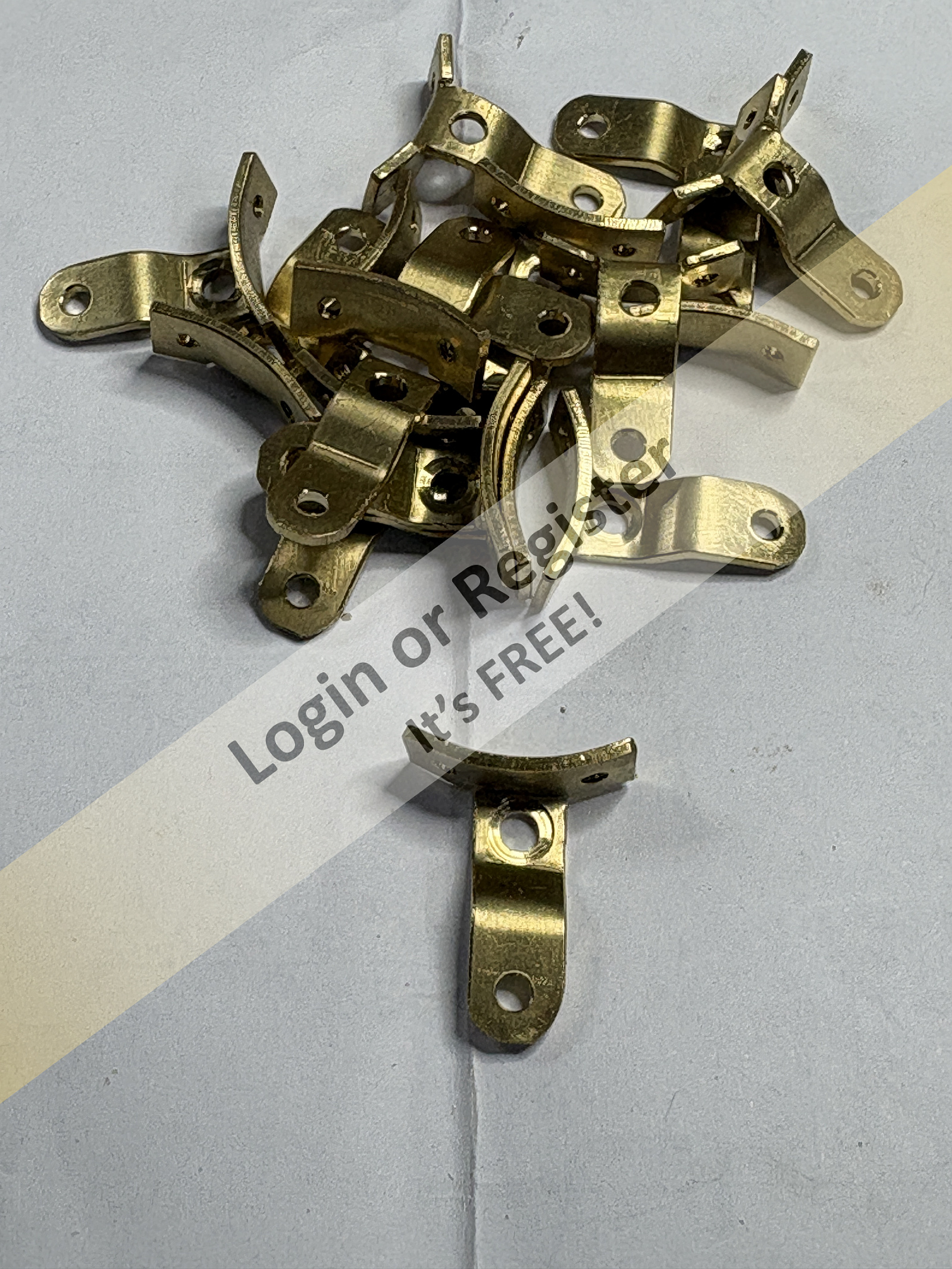

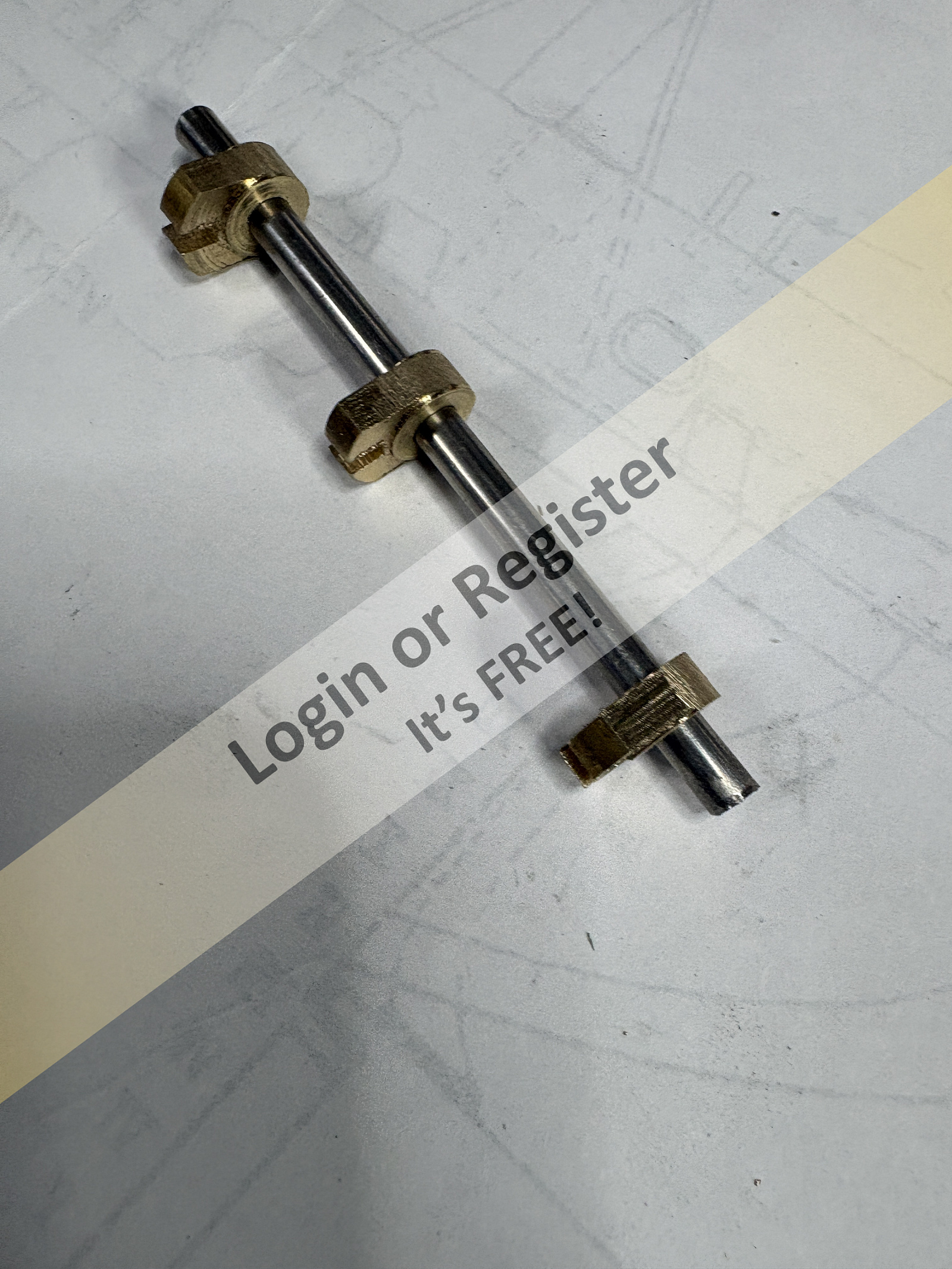

A few pictures showing the parts / assembly in progress.
