    Registered
    6th Nov 2020
    Last Online
    8th Mar 2021
    mistyoptic
    Member Stats
    Stats
    Member No.#6038
    RegisteredπŸ“…6th Nov 2020
    Last OnlineπŸ“…8th Mar 2021
    CityπŸ“Ipswich
    CountryπŸ‡¬πŸ‡§United Kingdom
    Gender♂️Male
    AgeπŸ‘Ά79
    PostsπŸ’¬108
    FollowersπŸ“£0
    Likes ReceivedπŸ‘316

    πŸ’¬ Send Private Message
    Members Following
    Follow mistyoptic
    mistyoptic hasn't any followers yet
    0 Followers
    Recent Activity

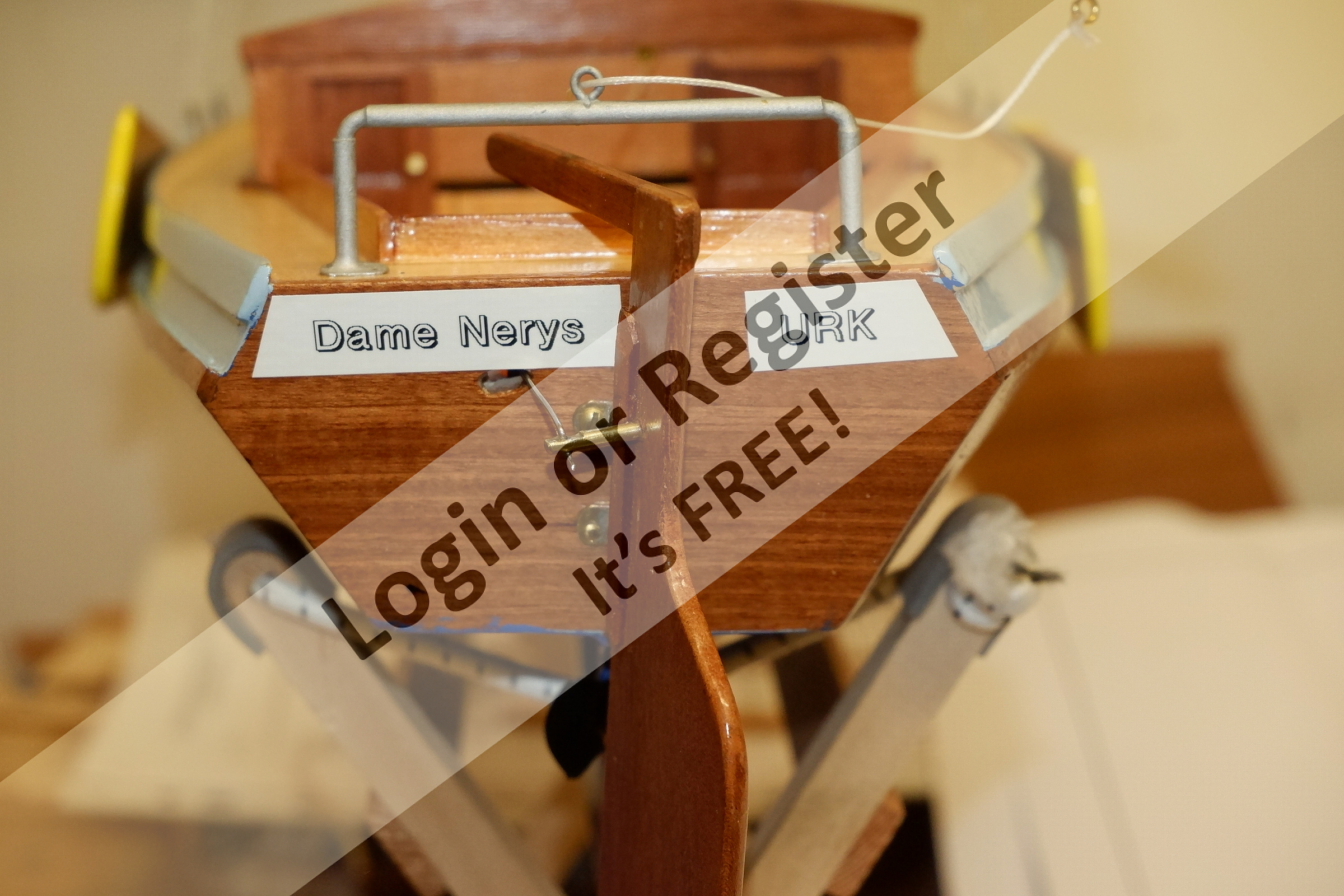

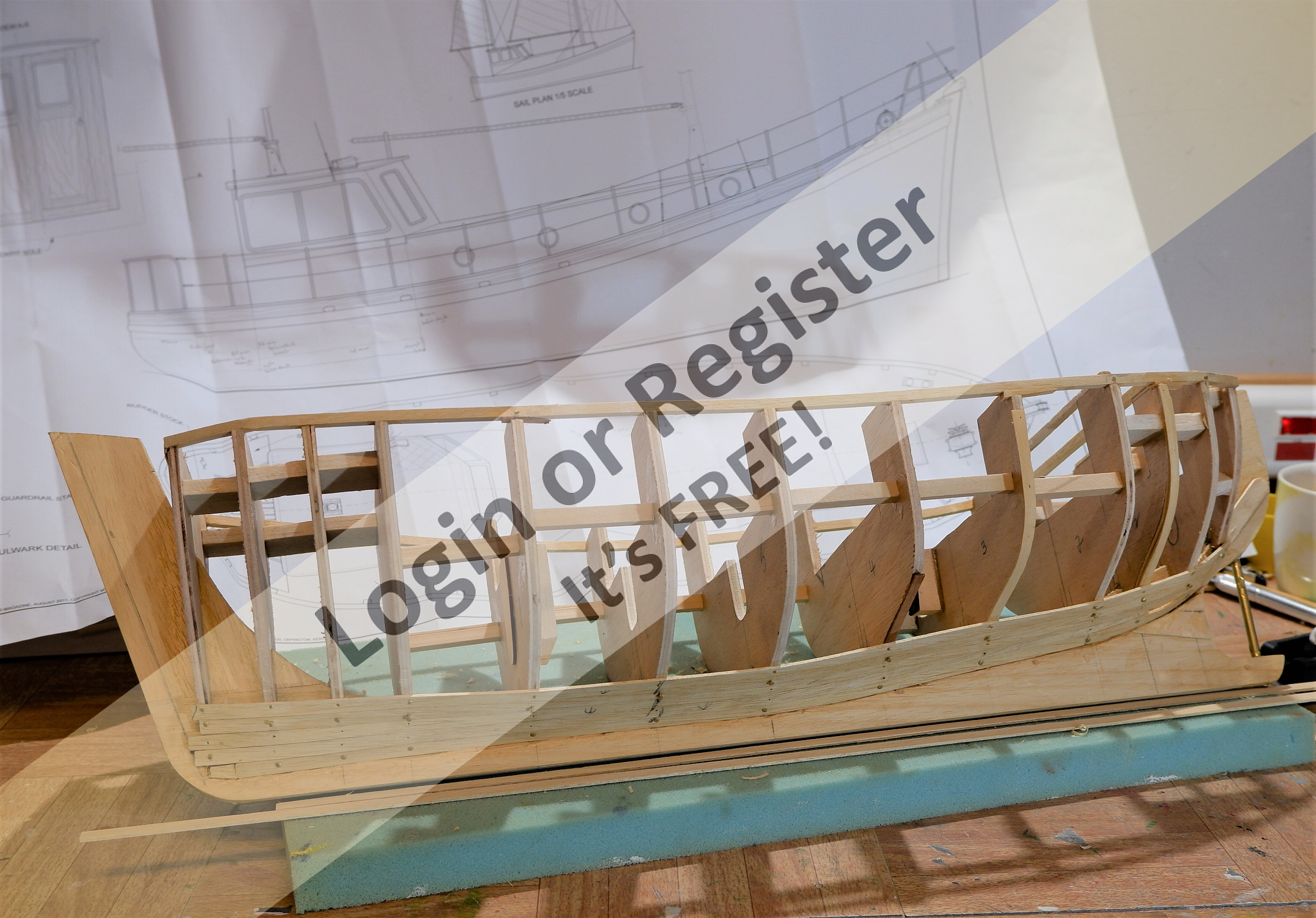

    Liked Re: Painting the wheelhouse continues... 8 hours ago
    Liked Painting the wheelhouse continues... 22 hours ago
    Liked Mental Health & Wellbeing Volunteers 2 days ago
    Liked Mental Health & Wellbeing Volunteers 2 days ago
    Liked Re: Pilot 40 3 days ago
    Liked Pilot 40 3 days ago

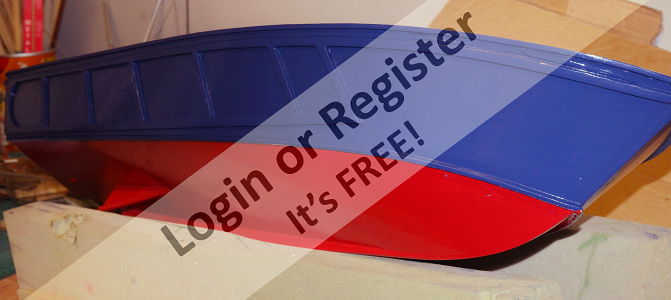

    Liked Re: Ready for painting 6 days ago
    Warrant Officer
    Ranks Points
    Fleet Admiral 10,000
    Admiral 8,000
    Vice Admiral 6,000
    Rear Admiral 5,000
    Commodore 4,000
    Captain 3,000
    Commander 2,500
    Lieutenant Commander 2,000
    Lieutenant 1,600
    Sub-Lieutenant 1,200
    Midshipman 900
    Warrant Officer 600
    Chief Petty Officer 1st Class 450
    Chief Petty Officer 2nd Class 300
    Petty Officer 1st Class 200
    Petty Officer 2nd Class 150
    Master Seaman 100
    Leading Seaman 50
    Able Seaman 20
    Recruit 0
    284 Points Away From Midshipman!
    Points
    ActivityWorthAwarded
    πŸ‘ Likes (rcv'd)1316
    πŸ’¬ Forum260
    ✍️ Comments2102
    ✏️ Blog484
    πŸ“· Photos44
    πŸŽ₯ Videos100
    πŸ“ Place80
    🚀 Harbour840
    πŸ“ Guestbook100
    😊 Avatar1010
    616 Total Points
    United Kingdom
    Signature
    Geoff L.
    About
    Just turned 79, Have been sailing Model Boats since about 1980, Founded Woodbridge Model Boat Club in 1982.
    Members Harbour

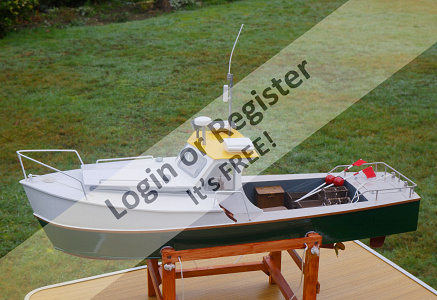

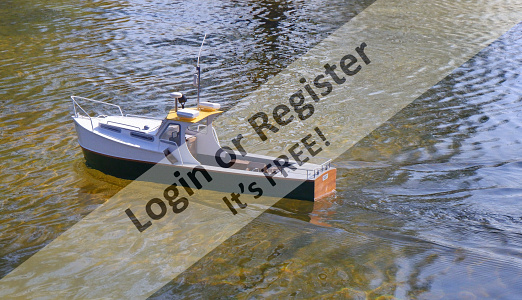

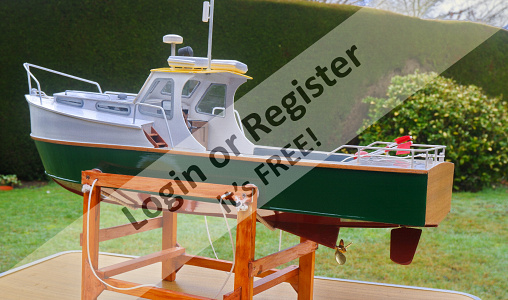

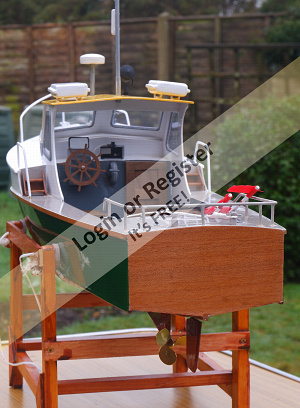

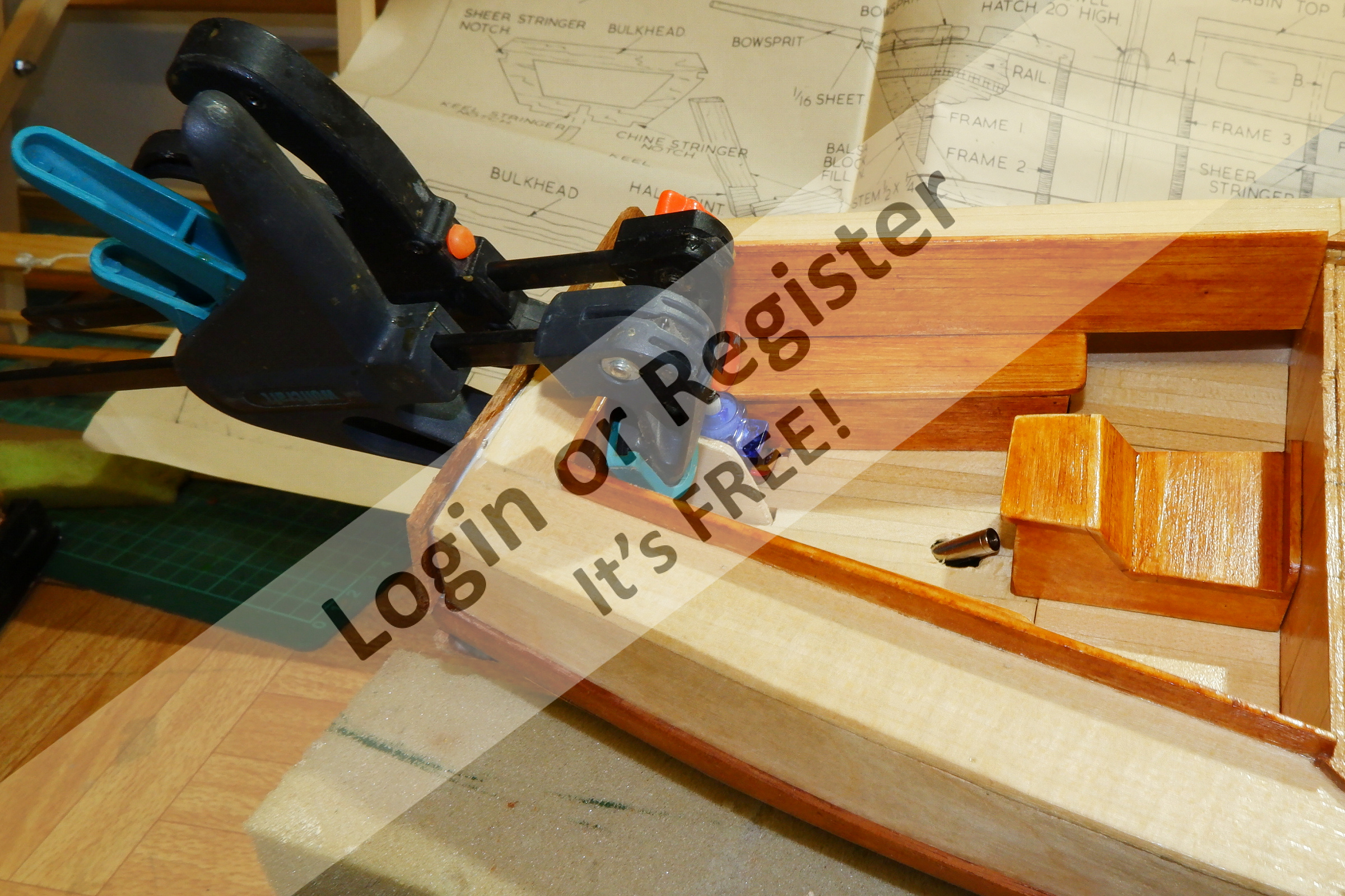

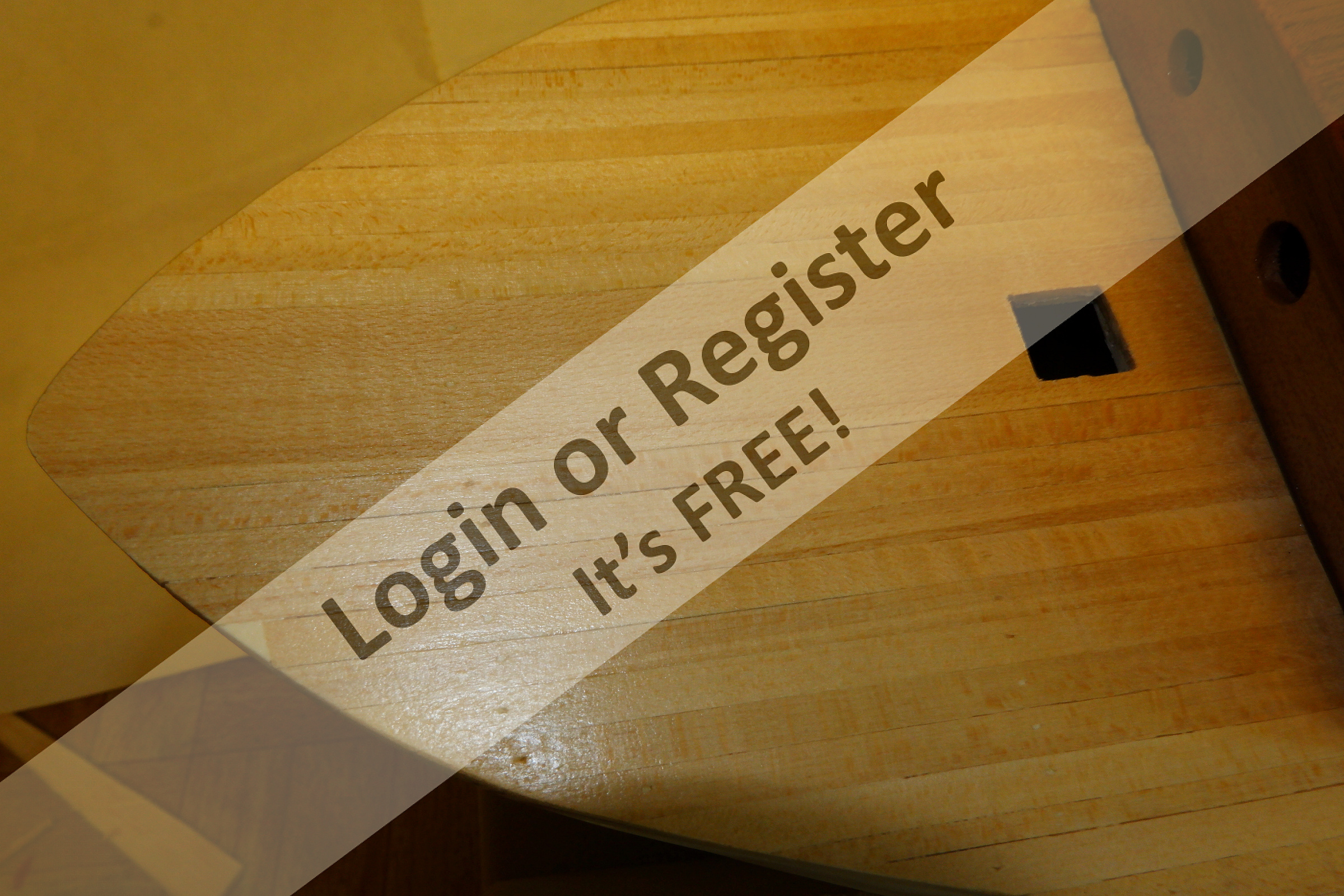

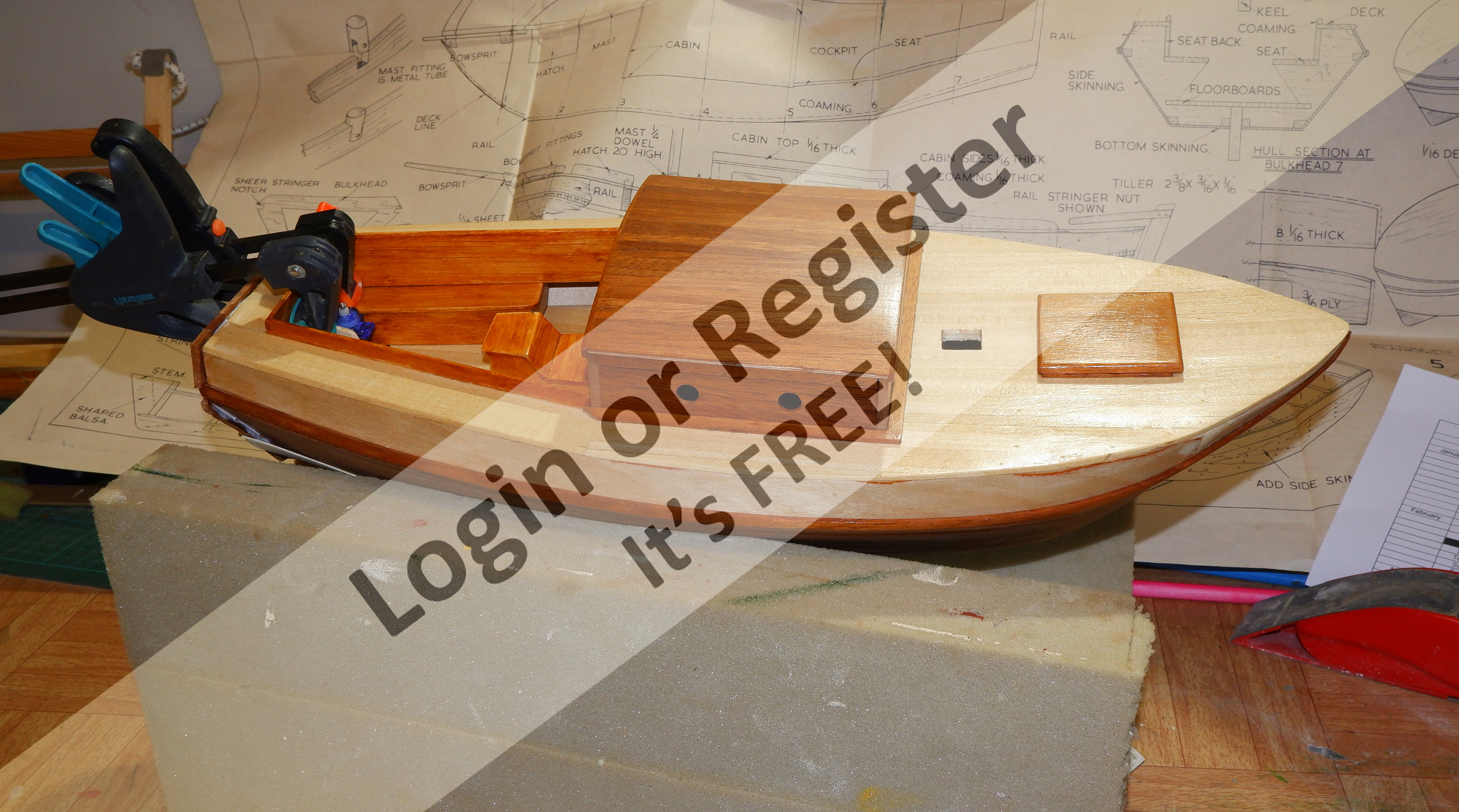

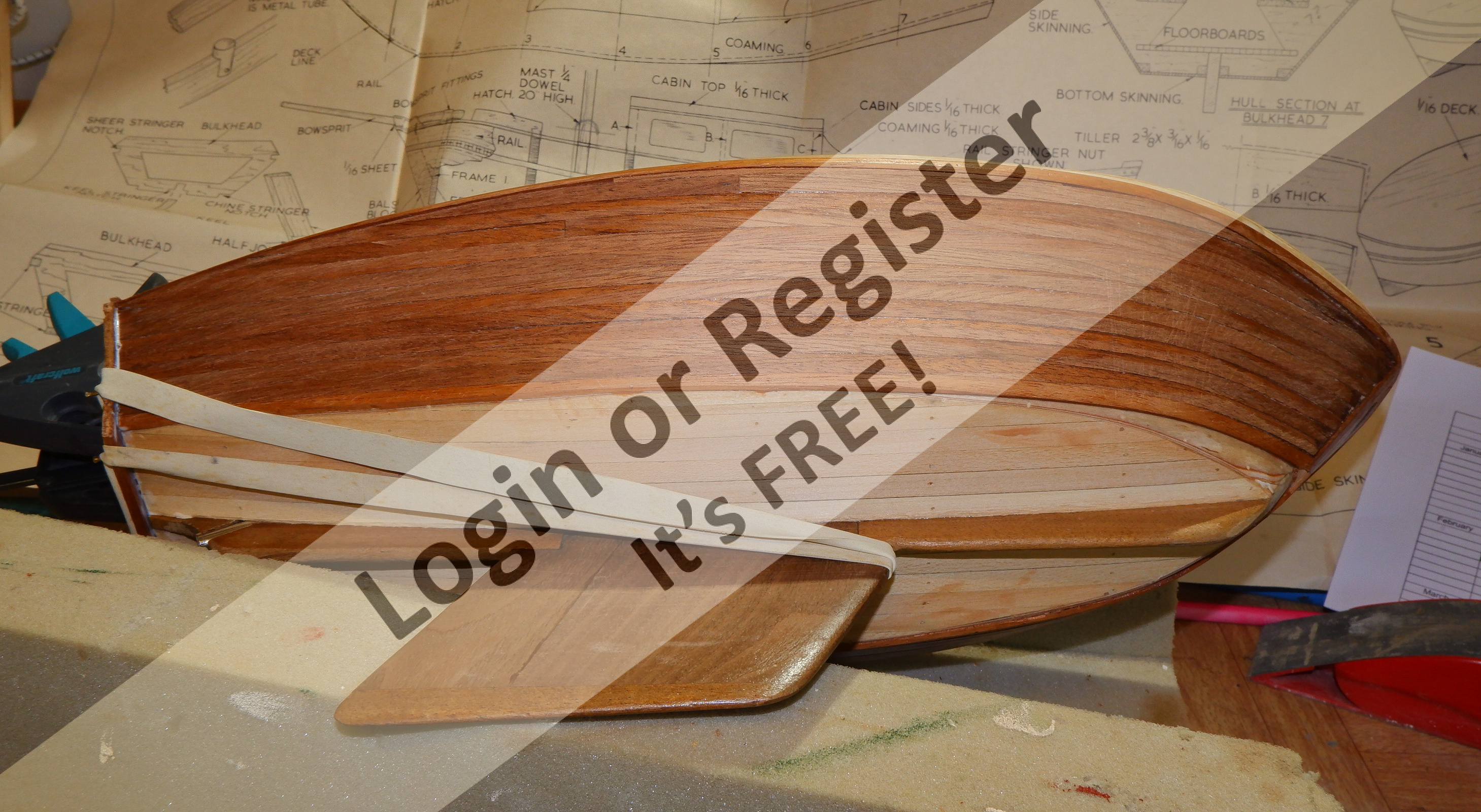

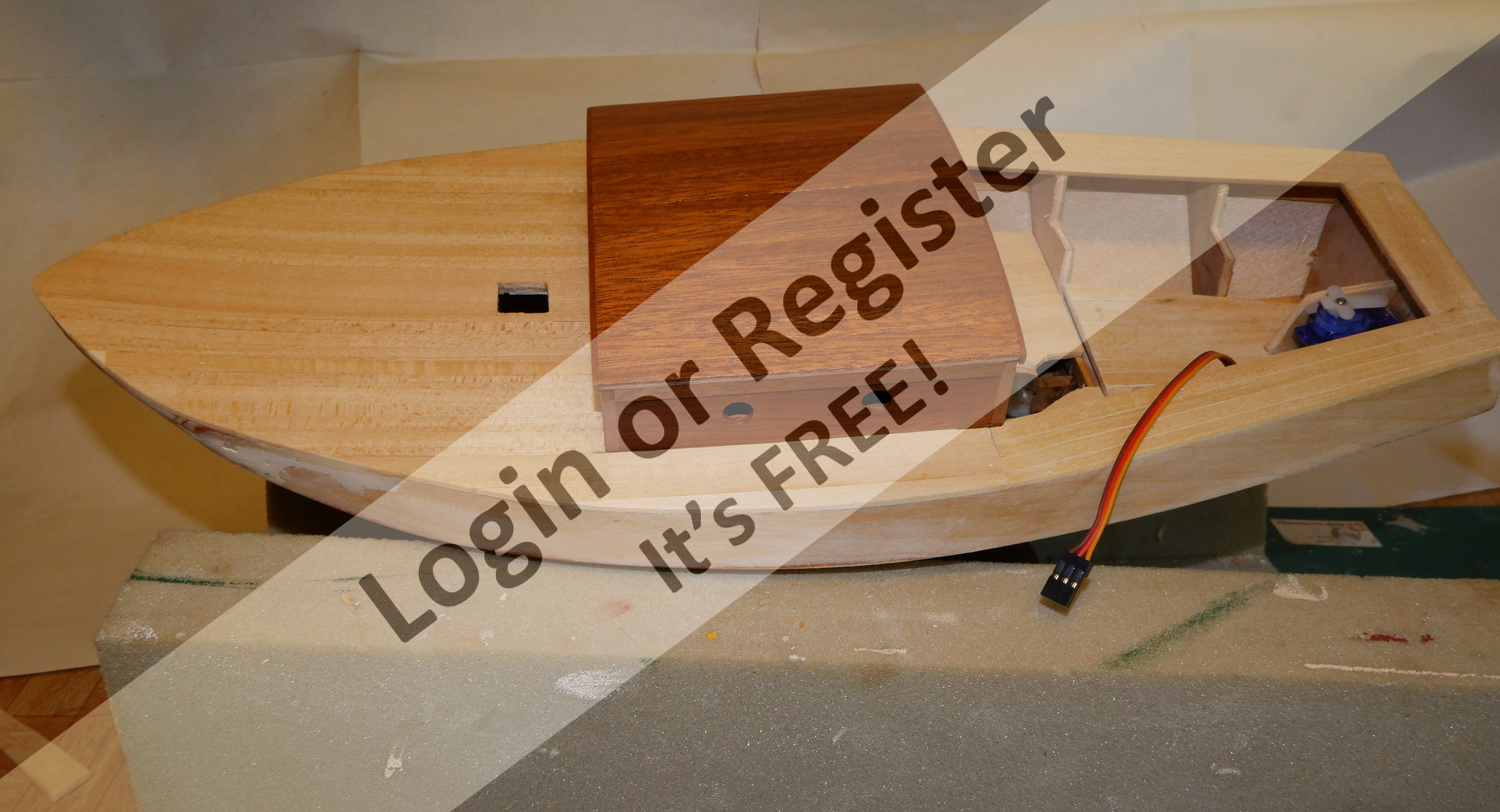

    HAKITS MORSTON

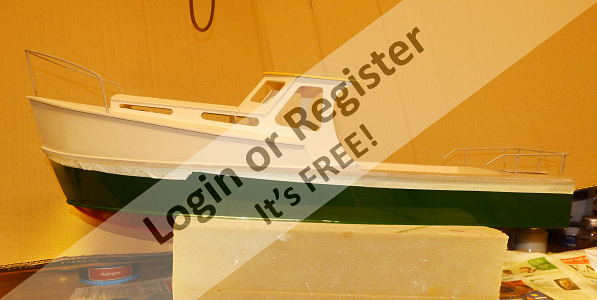

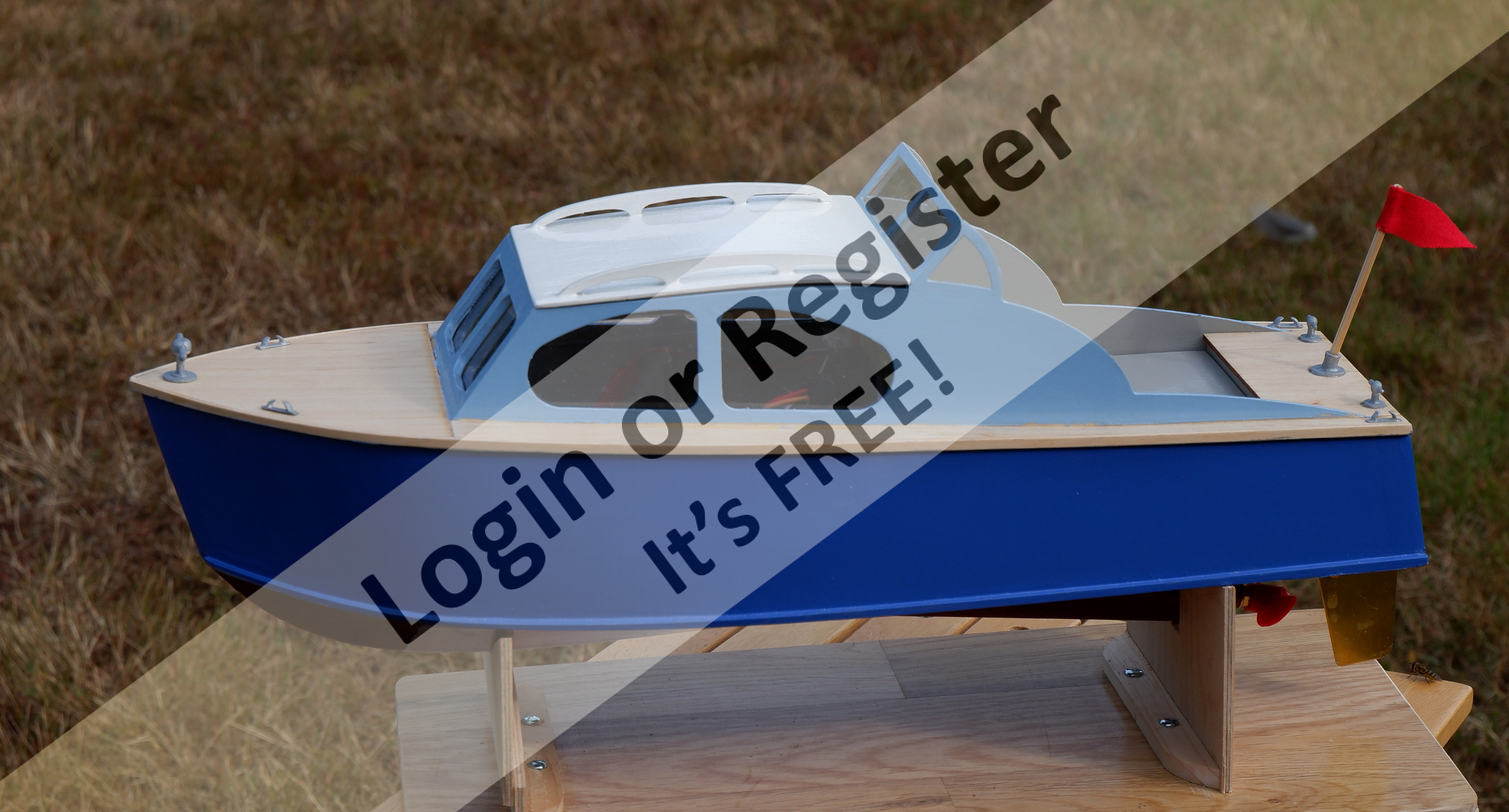

    The finished result of my building blog, an HAKITS Morston, a fishing boat design and this model based on a Sea Angling boat sailing out of Whitby. Yet to be sailed. Geoff

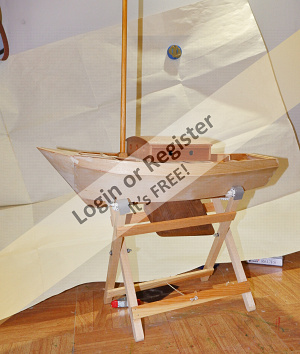

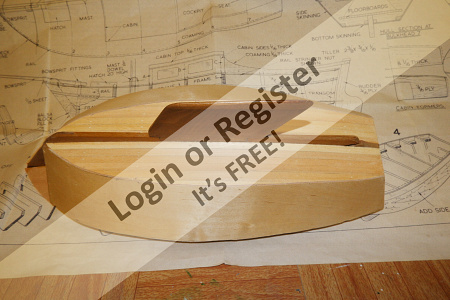

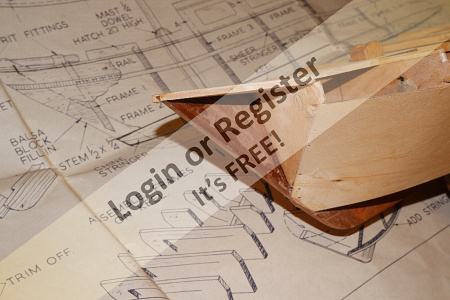

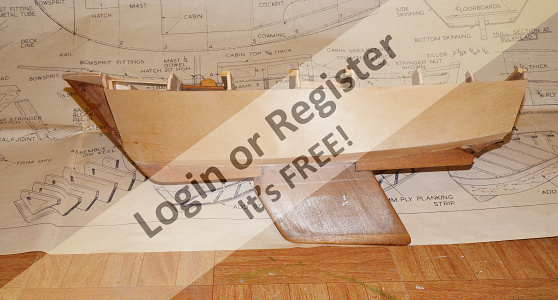

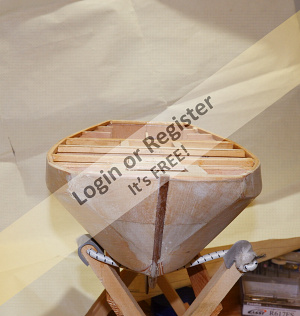

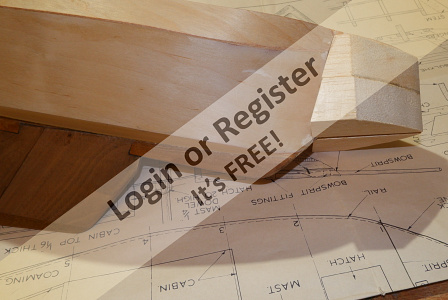

    Small Scratch Built Yacht
    Again a 1980's picture at Woodbridge, this time a scratch built small yacht from a free plan. Fixed sails, rudder only
    Solarcraft Dolphin
    Picture here of a Solarcraft Dolphin I was sailing on the pond at Woodbridge during the 1980's

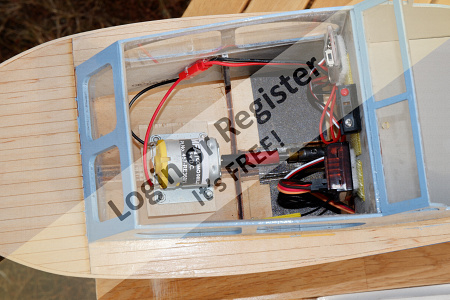

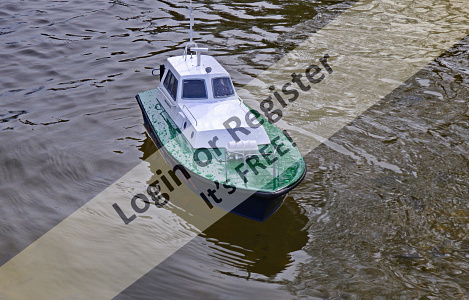

    Aeronaut DIVA
    A recently completed project during lockdown. A super kit to build from Aeronaut, with accurate laser cutting mahogany double sided ply for upper hull and superstructure. ample space for RC gear. Have yet to put in on the water due to current UK situation. Fitted MFA RE385 5 pole motor.

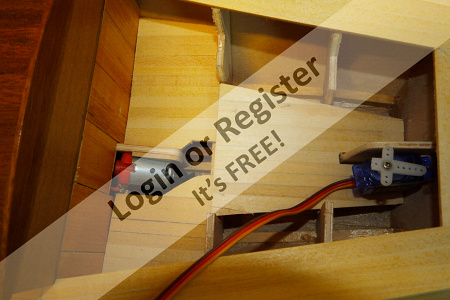

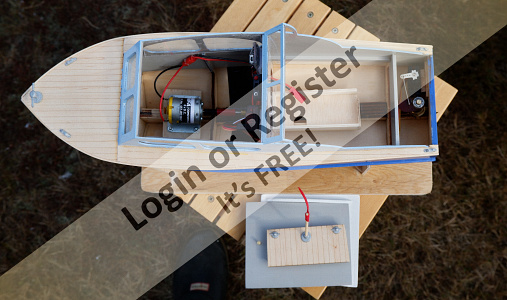

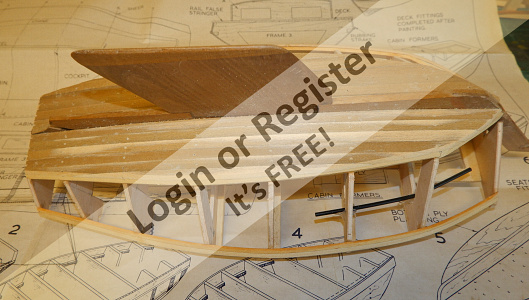

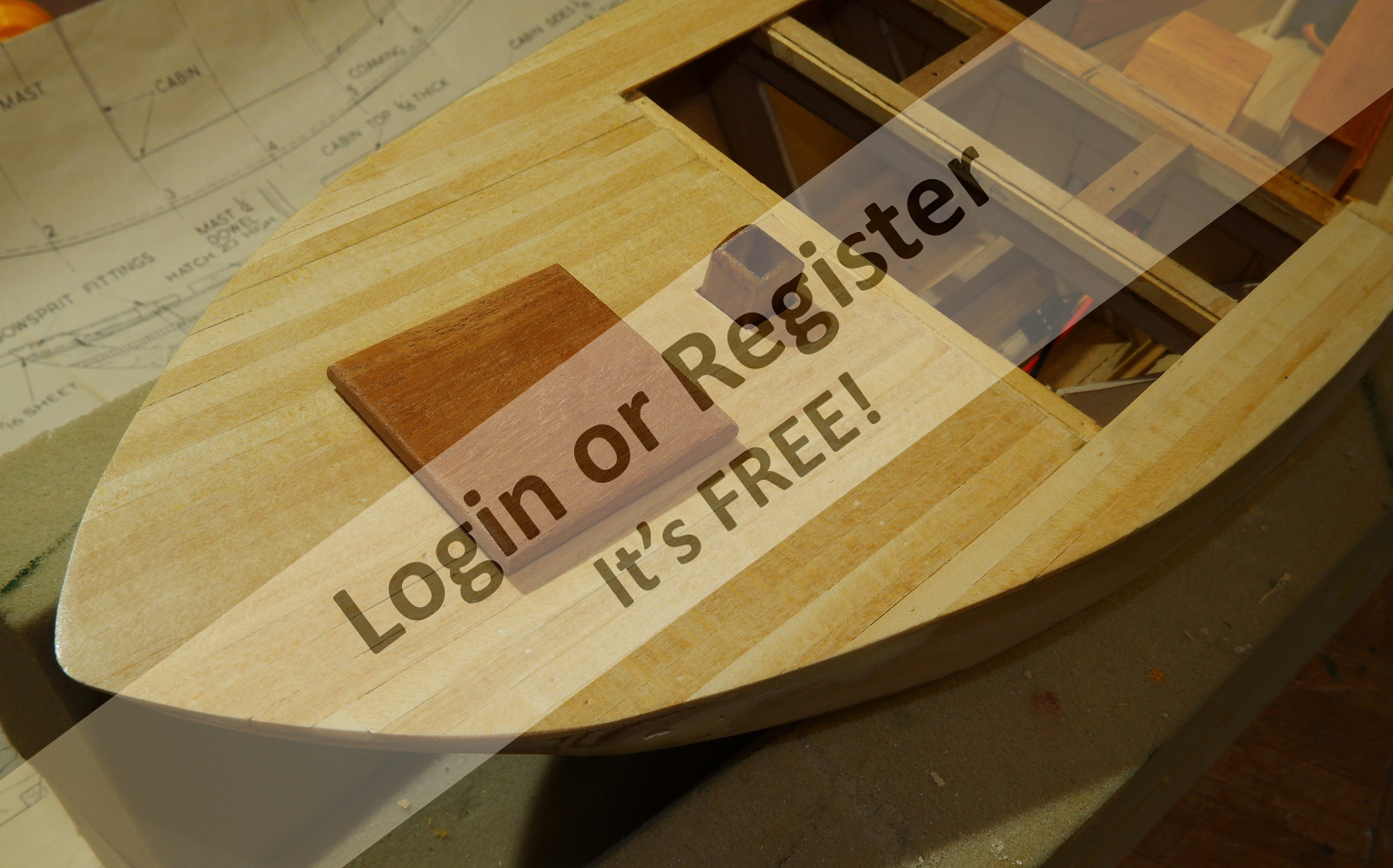

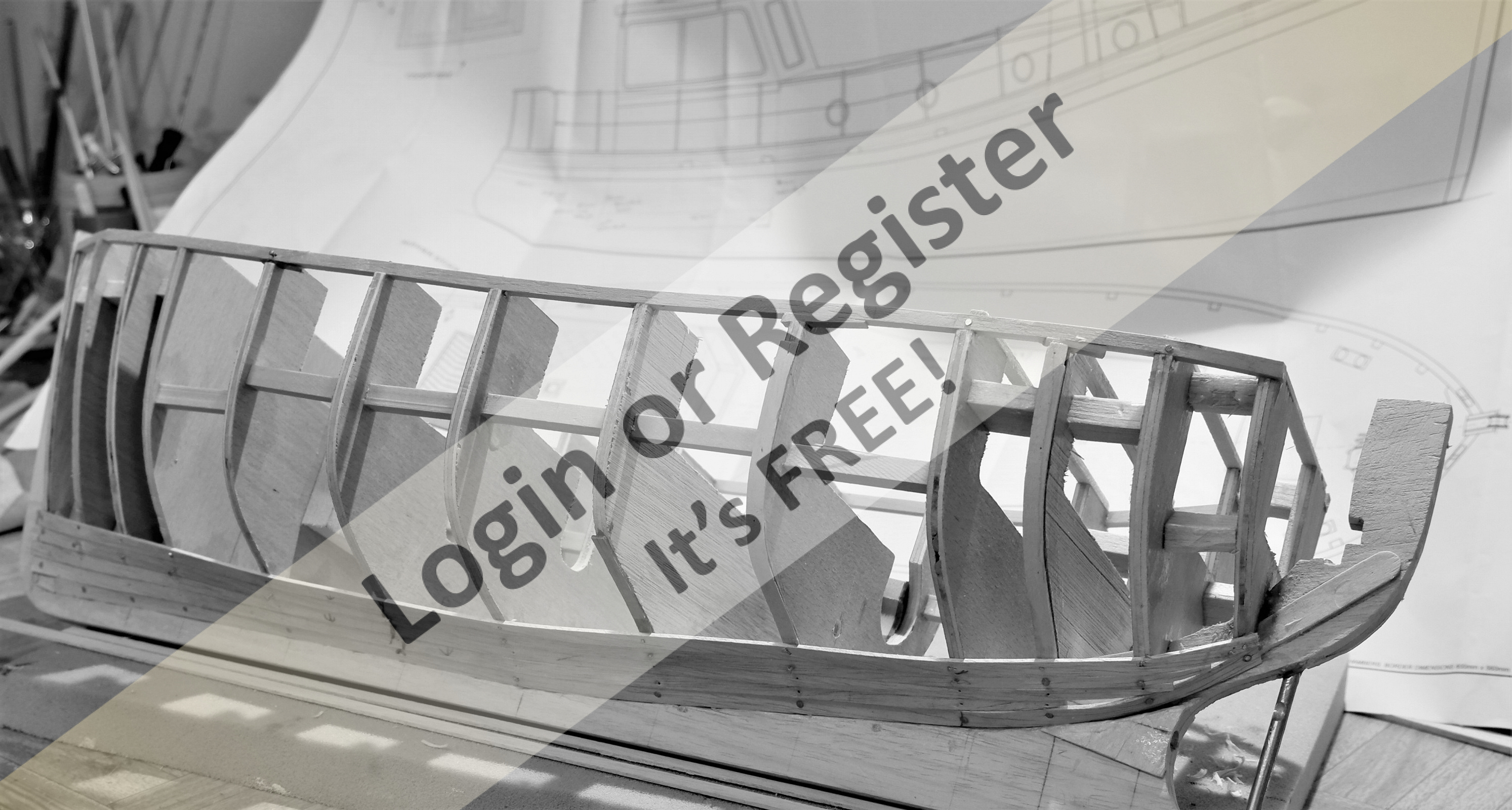

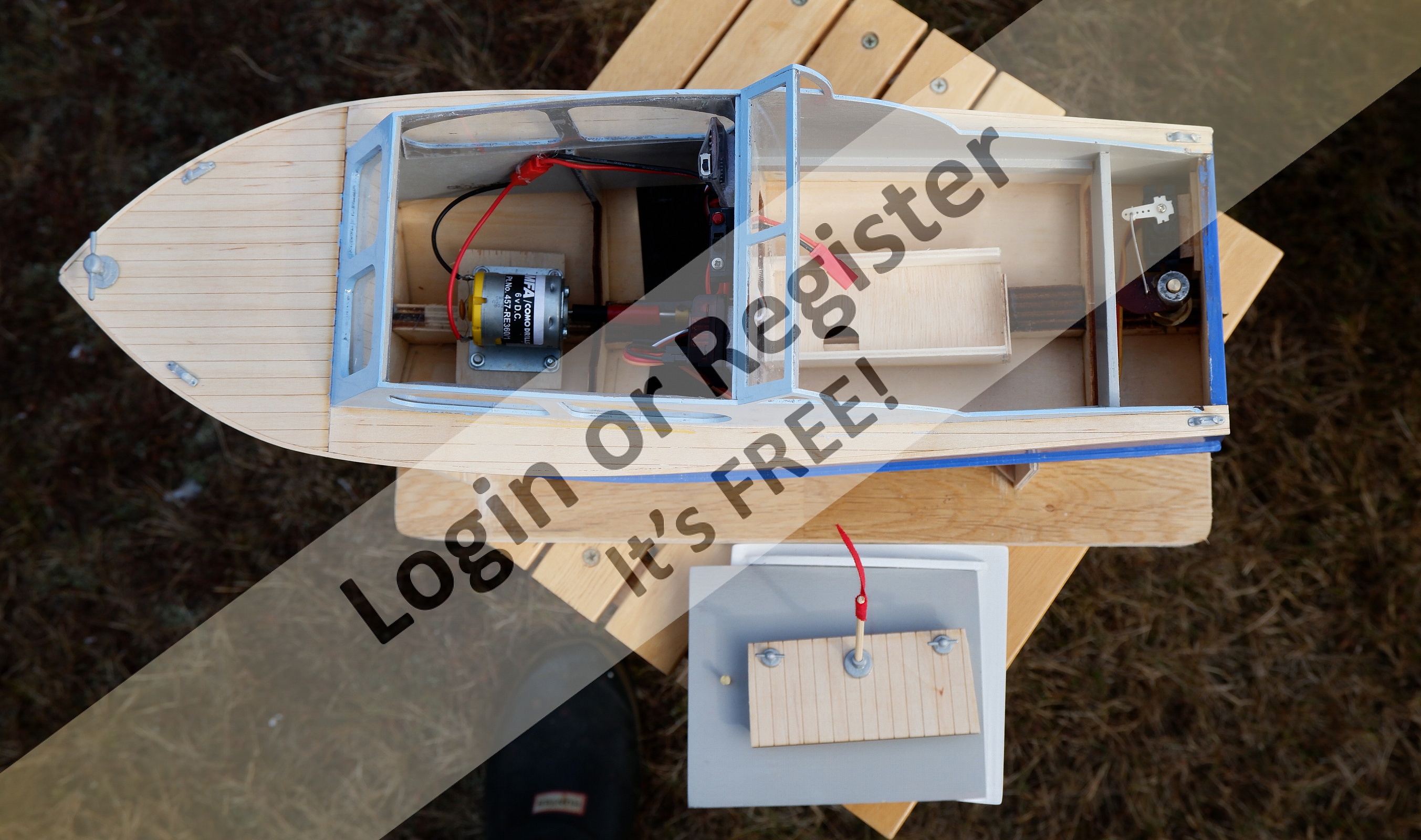

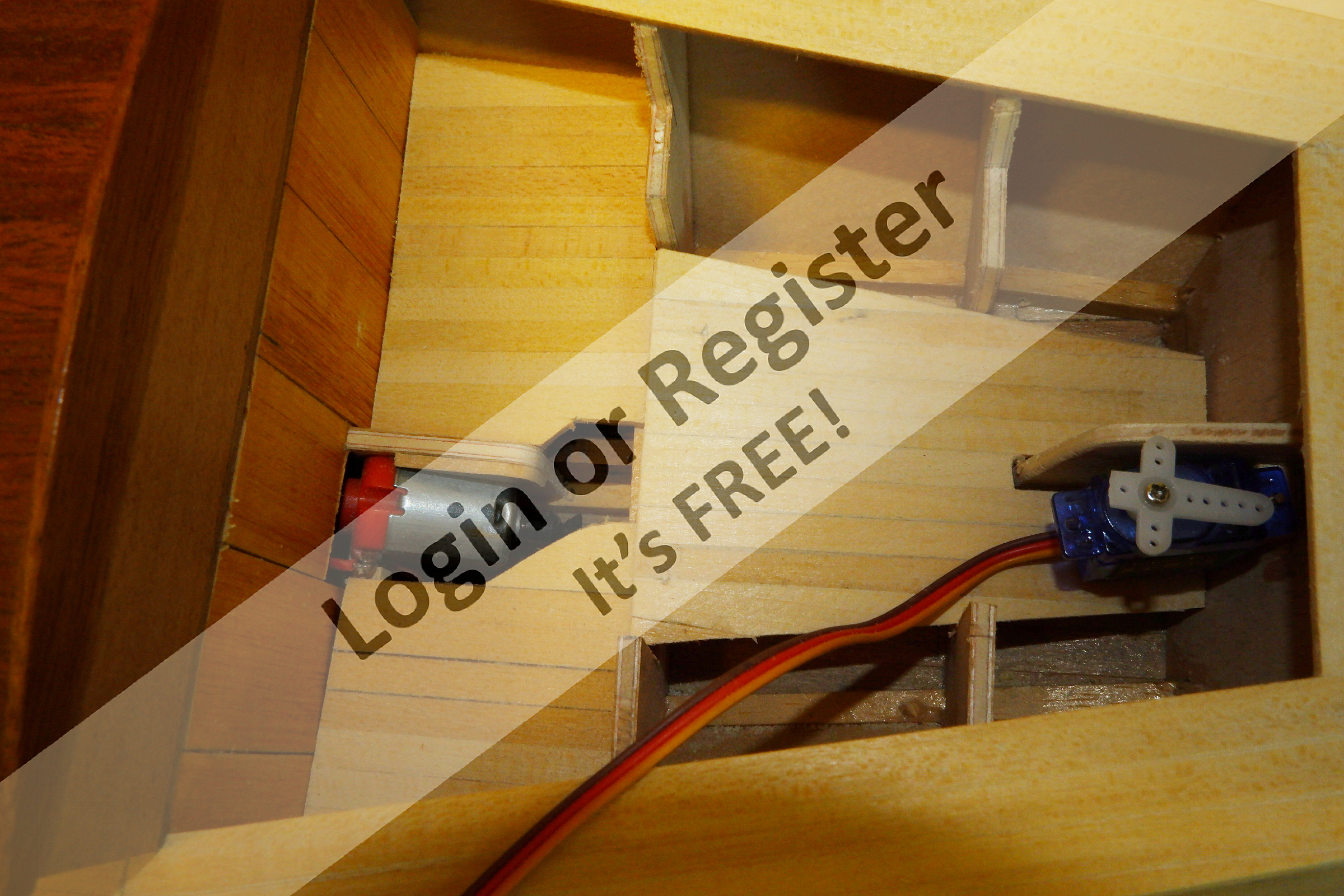

    Mantua Mincio

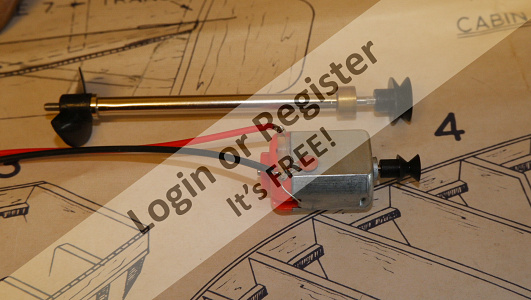

    My first model boat build for about 30 years. Mincio is all wood construction with balsa planked on frames and clad with mahogany planking. a simple boat to build and sail. Very small motor 280, which drives small two bladed prop. Kit comes with motor, shaft and prop and rudder and all deck fittings. I use a small pond so the size is ideal and looks good on the water, not swift but goes well. small rubber band drive between motor and prop shaft. I change the band on each sailing as I have experienced transmission failure mid pond on one occasion!
    Recent Posts

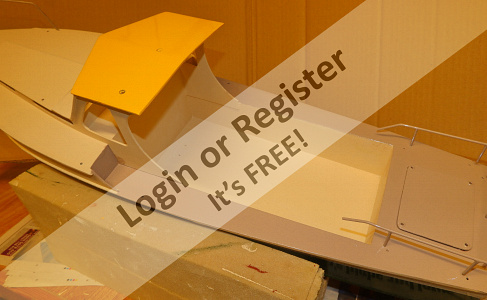

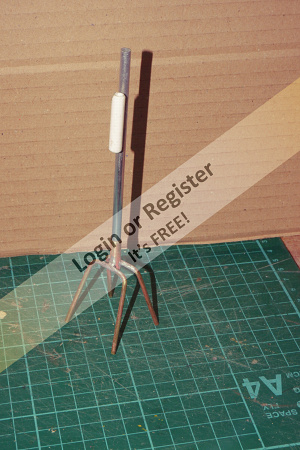

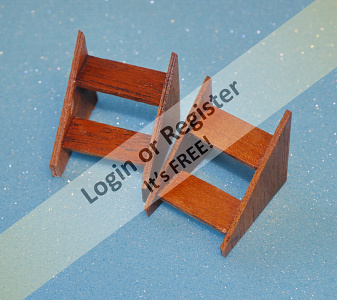

    πŸ’¬ Re: Painting the wheelhouse continues...
    22 hours ago by mistyoptic ( Warrant Officer)
    Flag
    Incredible detail and hours of work, thank you for posting and the inspiration. I regret my impatience does not let me spend time on such detail, but am getting more into it now, Thanks again

    Geoff
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 16 Views
    1
    πŸ“ Mental Health & Wellbeing Volunteers
    2 days ago by mistyoptic ( Warrant Officer)
    Flag
    It seems to me that we are all suffering from high blood pressure, it it the model boat building? I had a double bypass in 2000 and was put on BP medication, an ACE inhibitor, and have been on the same prescription from that day to this, 20mg. my BP is stable at the same rate as it was in 2000. I have a slow heart rate around 60bpm. I did try beta blockers but only stuck them for about 10 days, my motivation just went underground, just a cough with ACE tablets. ( Gets me a seat to myself on the bus!) Get well soon Nerys Geoff
    πŸ‘ Like
    πŸ“ Reply
    πŸ‘€ 25 Views
    2
    πŸ’¬ Re: Pilot 40
    3 days ago by mistyoptic ( Warrant Officer)
    Flag
    Is looking good, hope it goes well with two motors.
    Geoff
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 20 Views

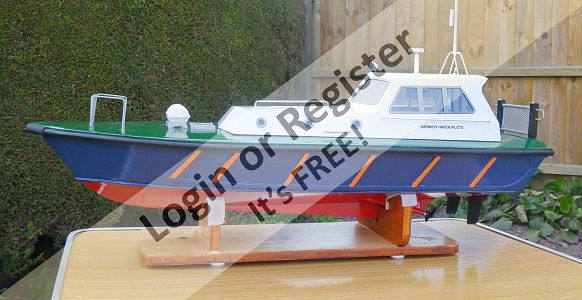

    πŸ“ HA KITS PILOT LAUNCH Larger Version.
    5 days ago by mistyoptic ( Warrant Officer)
    Flag
    View All

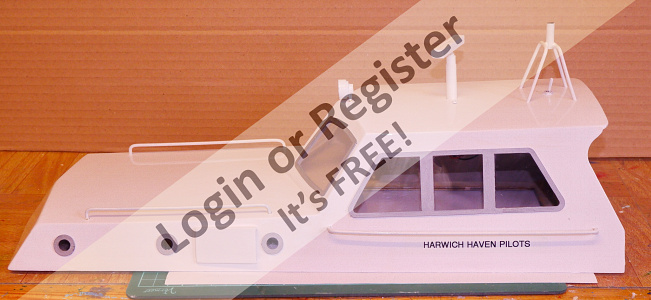

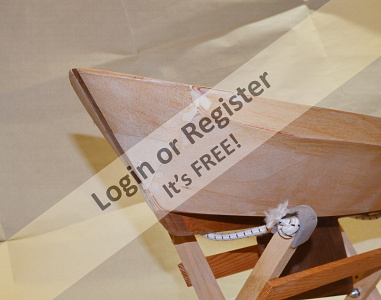

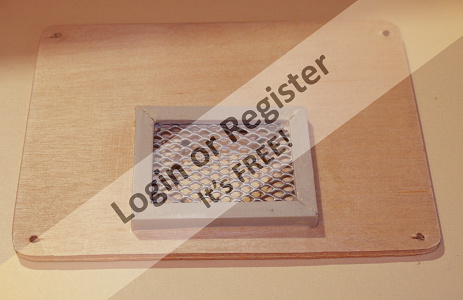

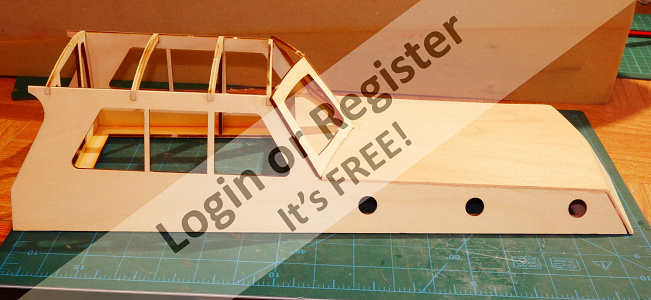

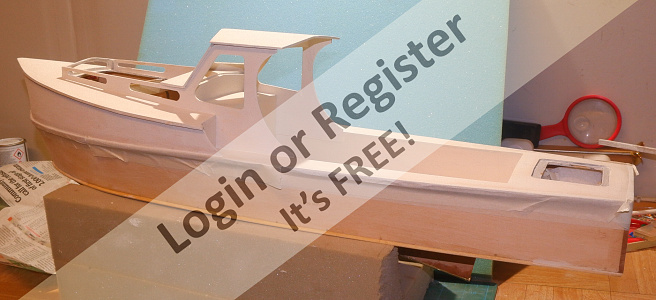

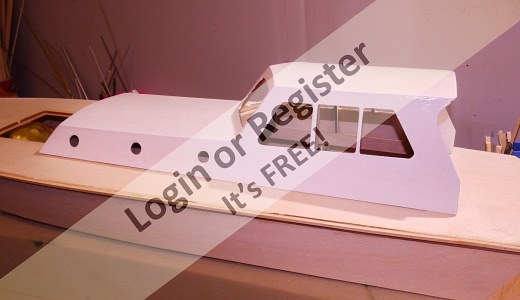

    SIDESKINS AND CABIN.

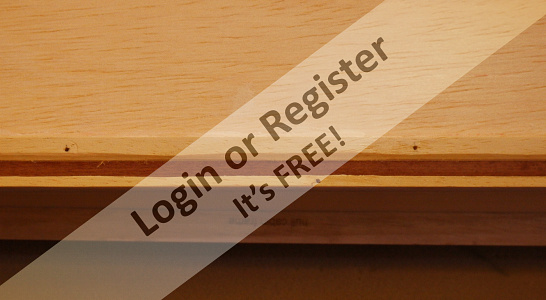

    After the demanding, (for me) fitting of the two motors and aligning with propshafts it was now time to add the sideskins to the hull. This is a fairly straightforward hull to skin and the design ensures that the shape is maintained through the formers and the lower skins already being in place. It is one of those tasks that demands more than two hands, clamps and taping to get the skin into place all round so that the glue adheres to the ply skin along the whole length top and bottom. Pulling the ply into the bow again resorted to using small woodscrews as a temporary hold, to be withdrawn and holes filled when the glue has set overnight. As an enhancement to the kit, I flattened the ply join at the bow and fixed a mahogany stem piece to give a sharp stem and to cover the ends of the ply grain. I do not like end grain of plywood to be exposed under the waterline and so have fixed a capping strip along the length of the keel to cover the grain here.

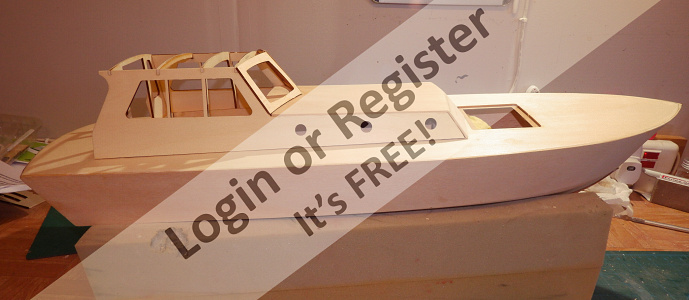

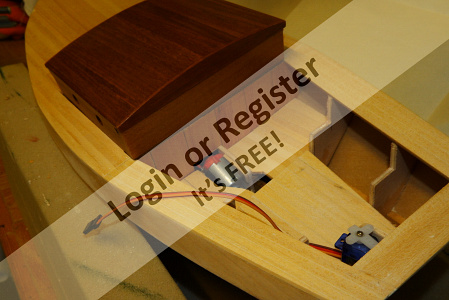

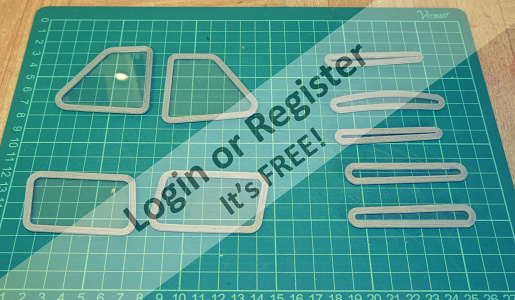

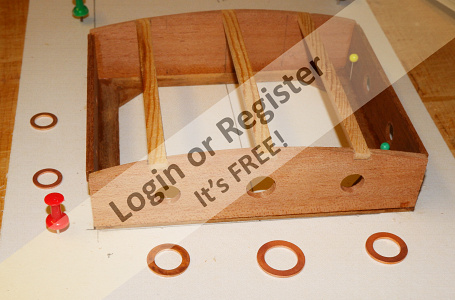

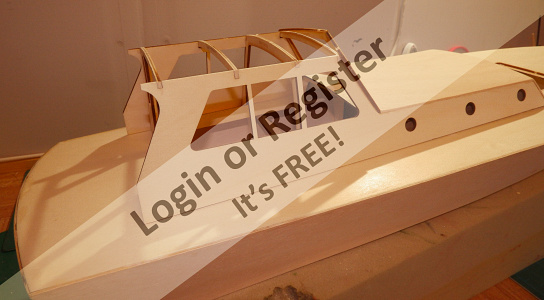

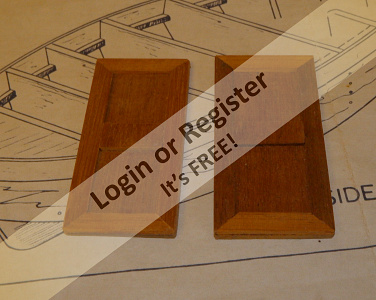

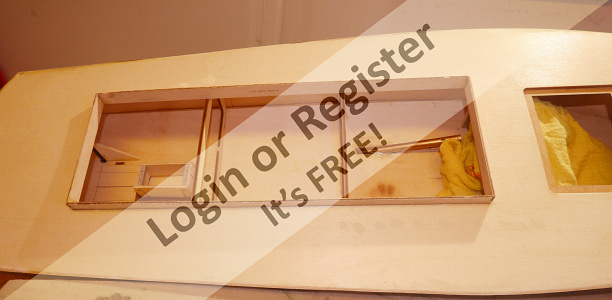

    With the hull well on the way, the next stage was to build the cabin, which is built on a base which surrounds raised edges to the β€˜hold’. Formers are slotted into the base frame and then the cabin sides glued to the formers. The cabin can now be removed from the deck and the building continued on the flat surface of the bench. This is a good feature to the design which enables work on the cabin and final touches to the hull to be carried on. The forward roof of the cabin is fixed and then the front window frames, when the glue has dried on this, the top cabin rook can be fixed. The roof has a curvature, so clamping was necessary, and easily executed by using the tops of the window apertures as a fixing point. The cabin will be a removable feature to allow access to the hold for attention to speed controllers, and batteries. This is a generous area and should present no problem in getting these components into place.

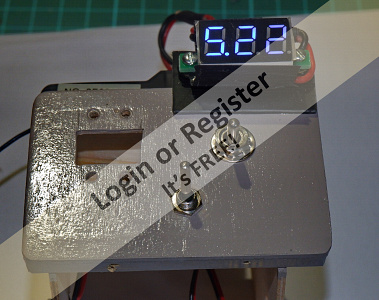

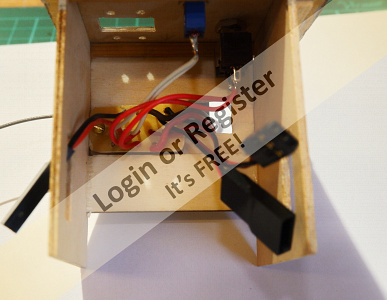

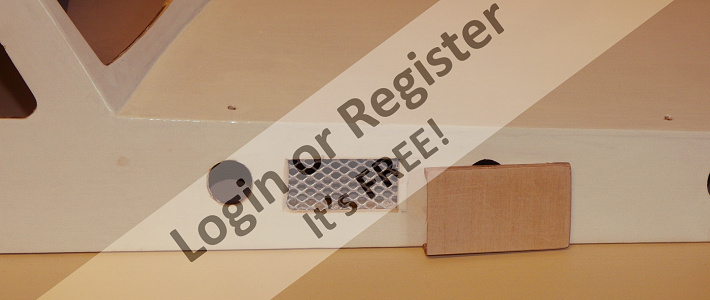

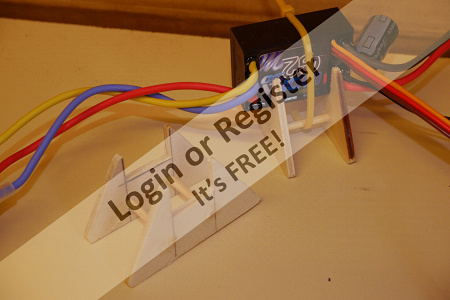

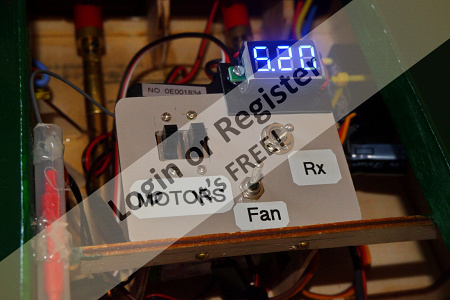

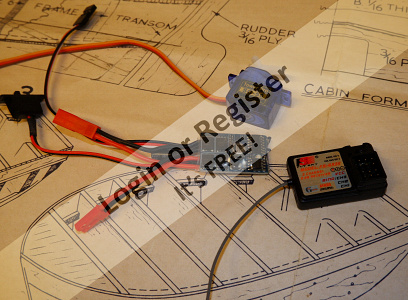

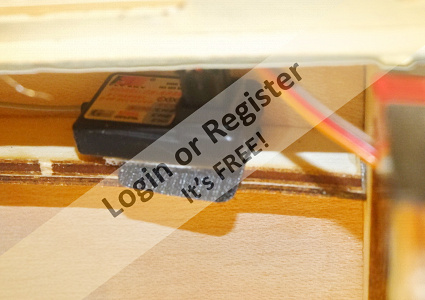

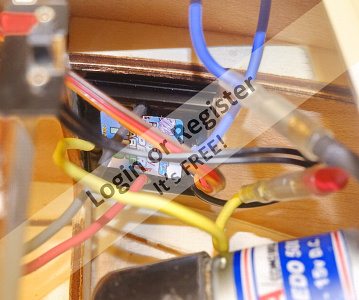

    It is my plan to run both controllers through a Y lead from the Rx motor channel, both esc to have +ve disconnected and the receiver run from a separate 4.8v Rx pack. This battery will also power the cooling fan near to the motors. The Hydra 30amp controllers have an on off switch and each will have its own supply from a 7.2v Nimh 2000mah. There will be a control centre for the two esc switches, the fan switch and the Rx switch. Batteries will be connected directly to its esc. Having run this set up on the bench all seems to work fine with a neutral point which stops both motors.

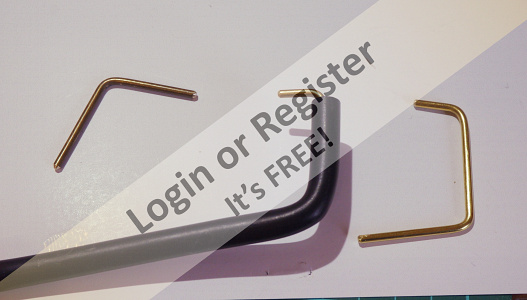

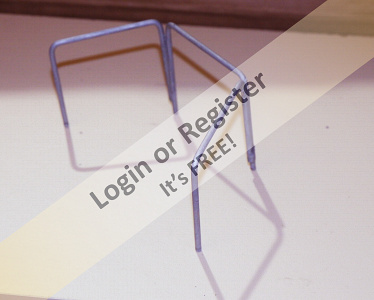

    Next stage is to start thinking about what features I will install on the deck and superstructure and I am aiming to run a rubber buffer around the deck as in the picture.
    https://www.holyheadmarine.co.uk/wp-content/uploads/2013/06/...

    All for now, Geoff.
    https://www.holyheadmarine.co.uk/wp-content/uploads/2013/06/Harwich-3.jpg
    πŸ”—
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ‘€ 21 Views
    4
    1
    πŸ“ Mental Health & Wellbeing Volunteers
    9 days ago by mistyoptic ( Warrant Officer)
    Flag
    Glad to hear you are back home Ian, and hope your recovery with be complete in due course. Best Wishes Geoff.
    πŸ‘ Like
    πŸ“ Reply
    πŸ‘€ 44 Views
    1
    πŸ’¬ Re: Window and roof
    10 days ago by mistyoptic ( Warrant Officer)
    Flag
    Coming along nicely Treve, keep at it.

    Geoff
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 65 Views
    πŸ“ HAKITS- PILOT LAUNCH-LARGER VERSION.
    12 days ago by mistyoptic ( Warrant Officer)
    Flag
    View All

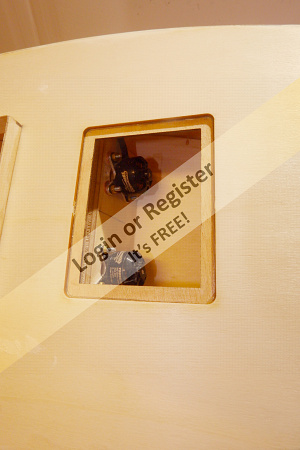

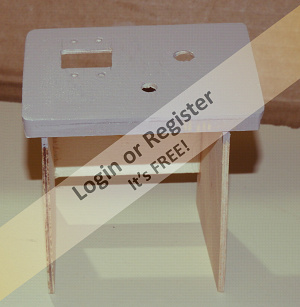

    THE MOTOR PLATE AND INSTALLATION OF MOTORS.

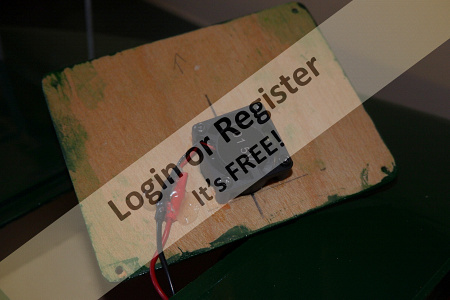

    The power units will be two small brushless motors, (Overlander) rated at 140 watts each. The plan is to fit them to a single motor plate made from mainly ply but some balsa. During the years that I flew electric model aircraft I found that Liteply, although as the name suggests, is light but has very little strength when used to hold motors or servos, especially where it has to be drilled for screws. I developed a way of laminating thinner ply with balsa and when glued, clamped in a press to dry and harden. The result is a lamination much stiffer and stronger than a plywood of the same thickness. In fact, a piece of 6mm balsa between a sandwich of 2mm ply may as well be bricks and mortar!
    Using this technique, I prepared the laminations for assembly to give the plate. The build up was, 2mm ply plate, 2mm balsa plate, grain long ways, .8mm ply plate, 2mm balsa plate, grain vertical and finally the other outer edge 2mm ply. These laminations were glued with gorilla wood glue and then clamped firmly between to bits of board in the wooden jaws of my wood working vice. In the morning I released a plate which could almost have been steel! If I were selling this product, I would say that the balsa laminations dampen vibration and sound, but it may be only fancy!
    By mounting the two motors on the one plate it is essential that complete accuracy is required if the motors are to run true to the propshafts, also the motor plate must be at a complimentary angle to the propshafts and the motor drives exactly spaced to the centre of the prop shafts.
    The drive shafts exit the deck at an angle of 18deg. and I scratched for a long time with protractors and the number of degrees etc, I did not resort to log tables or sines and cosines but by simply doing a dry fit I found that the angle was the same, 18deg, this was because the plate was angled to the vertical and the shafts to the horizontal. Life became less stressful again. The plate was marked with the projection of the propshafts at the point where the plate would be. To ensure accuracy of the motor mounting in the plate a 3 mm hole was drilled at the point marked, this is the diameter of the motor shaft and then with the spindle through this hole, the star fixing plate was clamped in place, with the motor attached and the four mounting holes drilled for the 3mm screws being used. When this had been done the motor was removed and the centre hole enlarged to 20mm to give airway to the motor. I had made up wooden brackets which straddled the former where the plate was to be mounted and these slotted so that the plate would be the correct distance from the end of the propshaft. When all had been dry tested the plate was epoxied in place. I would like to claim a complete success, but one of the motors had to have a very fine shim inserted at the top just to line up comfortably with the shaft. Other wise the job is done. The rudder tubes were also inserted at this point so that the side skins can be fixed as the next job.

    Geoff
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 33 Views
    4

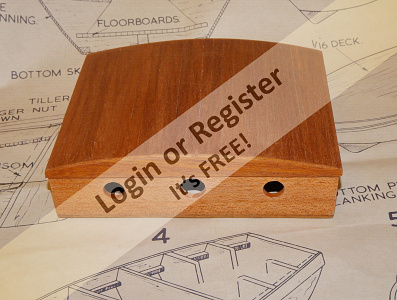

    πŸ’¬ Re: Morston - H A Kits (small version) Cabin fun
    13 days ago by mistyoptic ( Warrant Officer)
    Flag
    Treve, I think you will probably find that the hatch will sir comfortably in place during sailing, unless you reach considerable speed!
    Keep up the good work.
    Geoff
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 68 Views
    1
    πŸ“ Mental Health & Wellbeing Volunteers
    14 days ago by mistyoptic ( Warrant Officer)
    Flag
    So sorry to hear you have suffered badly with Covid recently, hope that your recovery will be complete.
    Best wishes, Geoff.
    πŸ‘ Like
    πŸ“ Reply
    πŸ‘€ 37 Views
    πŸ“ Mental Health & Wellbeing Volunteers
    14 days ago by mistyoptic ( Warrant Officer)
    Flag
    Nerys, So sorry to hear of your present incapacity and do hope you will be making progress soon. I do heed your warning about getting old, but regret that this is out of my hands, but I am valuing each day now and you, and this site, have given me so much to stimulate my activities. Please, please recover soon and get back to your building.
    With all best wishes Geoff.
    πŸ‘ Like
    πŸ“ Reply
    πŸ‘€ 36 Views
    3
    πŸ“ Mental Health & Wellbeing Volunteers
    15 days ago by mistyoptic ( Warrant Officer)
    Flag
    Hope he continues to make progress and that he can make a good recovery. Best wishes
    Geoff.
    πŸ‘ Like
    πŸ“ Reply
    πŸ‘€ 41 Views
    1
    πŸ’¬ Re: HAKITS MORSTON
    17 days ago by mistyoptic ( Warrant Officer)
    Flag
    Thank you for the compliment
    Geoff
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 32 Views
    πŸ’¬ Re: HAKITS MORSTON
    17 days ago by mistyoptic ( Warrant Officer)
    Flag
    Thank you for the compliment
    Geoff
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 41 Views
    1

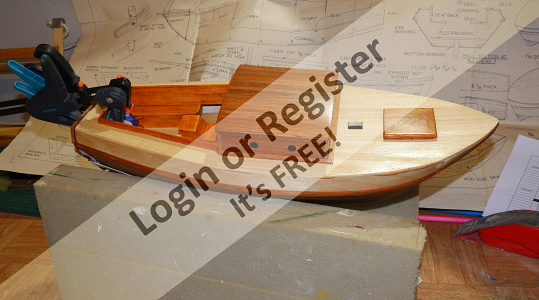

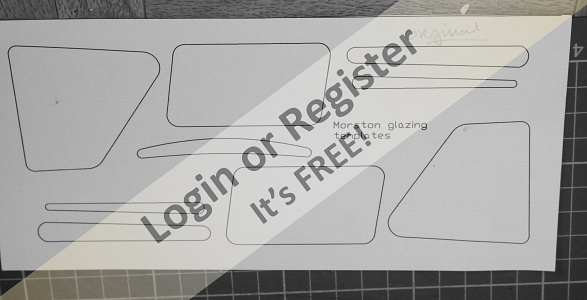

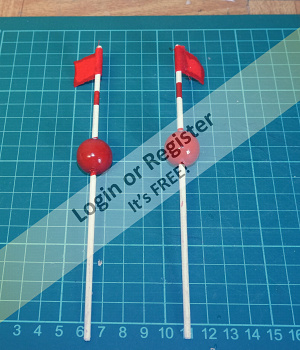

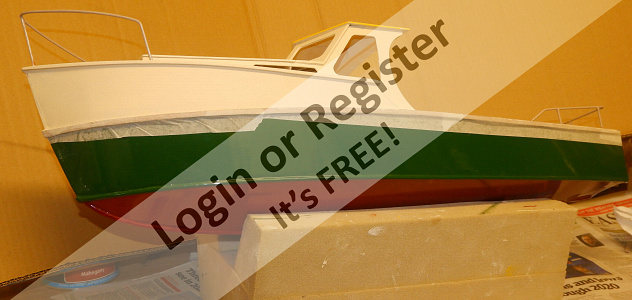

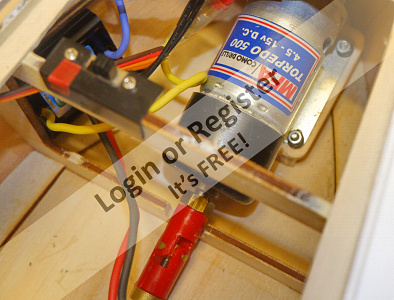

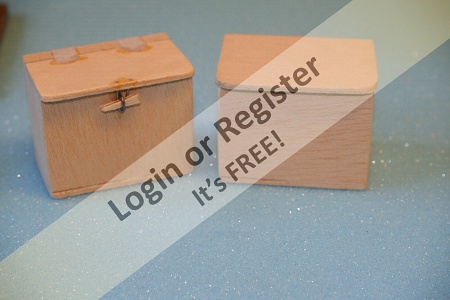

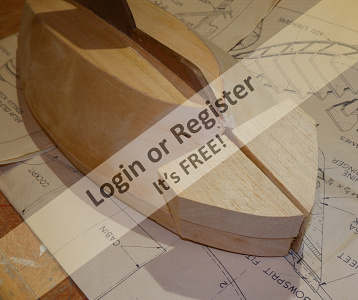

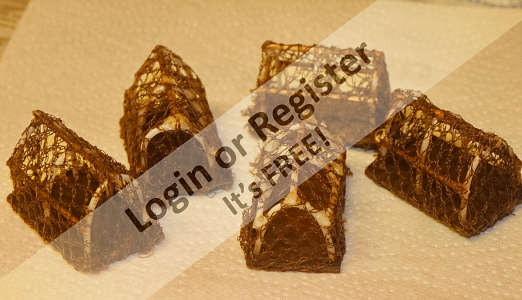

    πŸ“ HAKITS MORSTON
    17 days ago by mistyoptic ( Warrant Officer)
    Flag
    View All

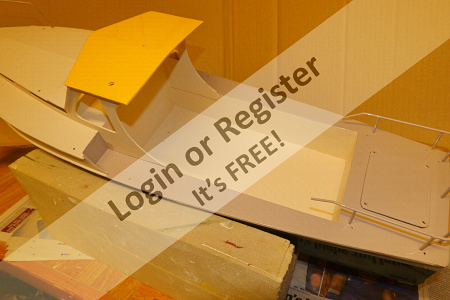

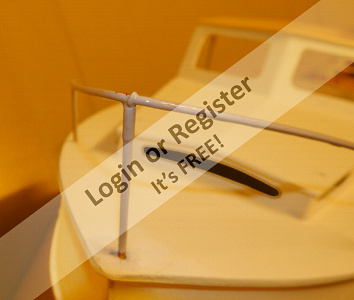

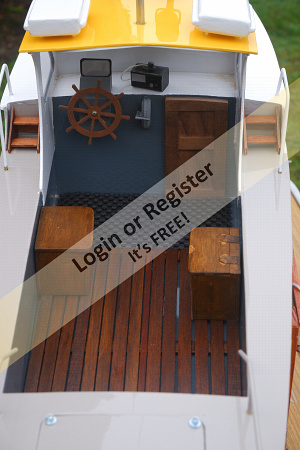

    The finished result of my building blog, an HAKITS Morston, a fishing boat design and this model based on a Sea Angling boat sailing out of Whitby. Yet to be sailed.
    Geoff
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ‘€ 7 Views
    6
    5
    πŸ“ HAKITS- PILOT LAUNCH-LARGER VERSION.
    19 days ago by mistyoptic ( Warrant Officer)
    Flag
    View All

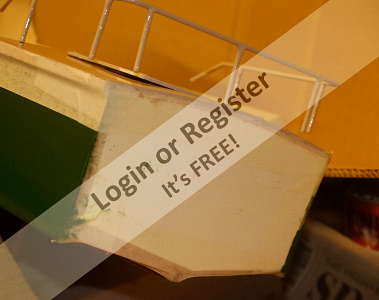

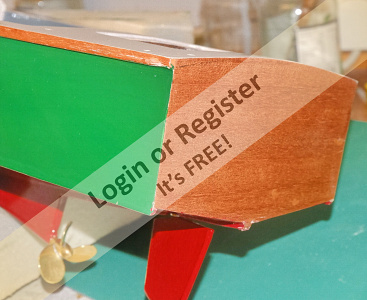

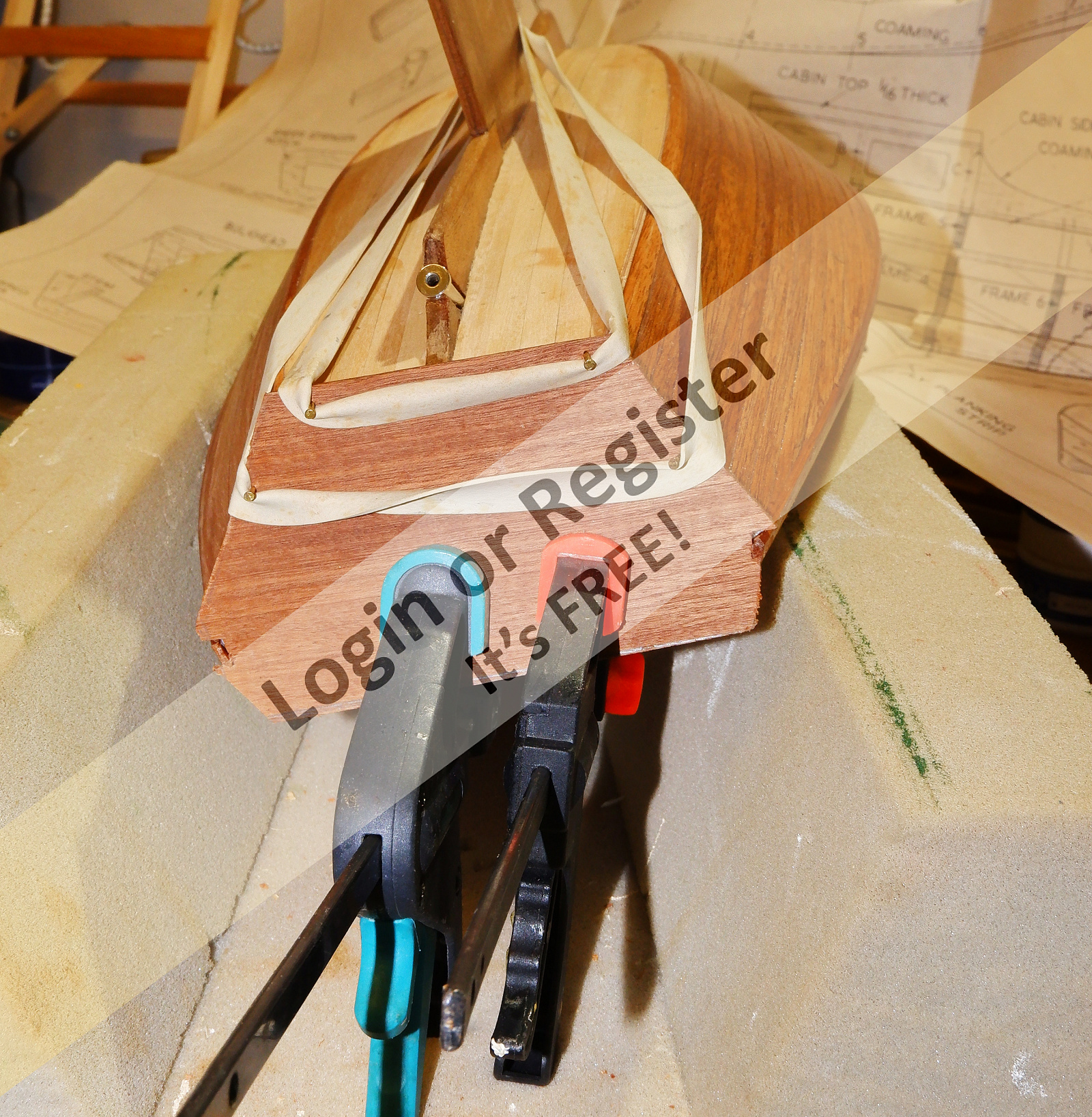

    The Transom and Bottom skins.

    Having made provision for the installation of the rudders and Propshafts it was time to move on to fixing the transom and bottom skins.
    The transom is a broad piece of liteply which bends quite evenly to follow the curve in top deck and the two straight edges of the lower deck. I must say that I did go against the instructions in the kit here which say, fit the transom to the end of the lower deck and the underside of the upper deck. In dry fitting it was found to be difficult to get the transom to fit under the deck and at the same time follow the curve of the deck. There was no component on the underside of the deck to prevent the transom slipping further under the deck without then following the line of the deck. As there was adequate material to fit the transom on the outside edge of the upper deck. I did this and am happy with the result, in that the transom now has a good fit with the upper deck and the curve has been followed faithfully. I wonder if the handbook has misquoted this operation.
    Having been left for a day it was time to sand of the surplus off the transom all round and then fit one of the lower skins to the hull. The accuracy of the shaping of the liteply skin needs little trimming and it was soon ready to attach to the hull. Using Gorilla Glue all mating surfaces were coated and the laying on began. The rudder tube outlet drilled in the skin gives a clear indication as to it's exact location. The attachment, to a large extent can be made by using spring clamps but I must say that a one point, I nearly lost an ear to a flying clamp which had catapulted itself from the model and crashed into the window. In the points where a bit more pressure is required and where clamps will not stay put, I used one small wood screw, which will later be withdrawn, and some wooden cocktail stick nails as used on my Morston kit. After three hours it all seems secure but will leave overnight to harden and then fix the other side another day. Since the last blog I have been experimenting with adapting an old servo to be a radar scanner driver. This was quite simple to do and just soldered two wires to the motor terminals and cut the stop lug off the output shaft. On trial with one alkaline AAA cell this was still going strong after 4 hours and is rotating at 15rpm. Perhaps a little faster than normal but near enough for jazz.

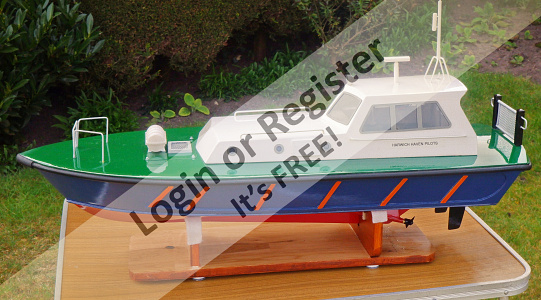

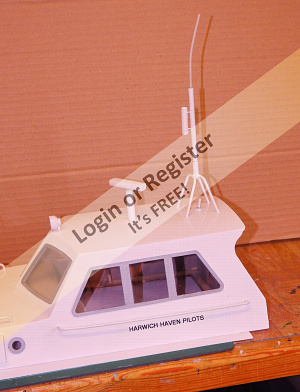

    Having scanned the net for pictures of Pilot Launches I find that my nearest, the Port of Harwich has two good examples that I may follow.
    https://www.maritimejournal.com/news101/vessel-build-and-mai...

    Although, as the crow flies Harwich is only 9.6 miles from my home, the road journey is 29.8 miles.
    https://www.maritimejournal.com/news101/vessel-build-and-maintenance/vessel-launch/hha-pilot-launches-pursue-perfection
    πŸ”—
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ‘€ 41 Views
    6
    1

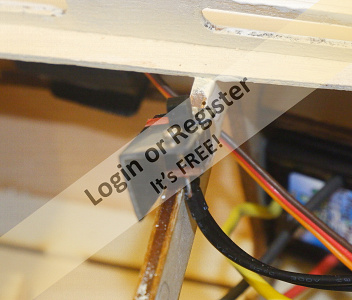

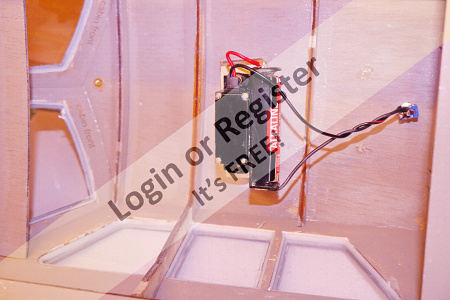

    πŸ’¬ Re: Installing the Lighting.
    23 days ago by mistyoptic ( Warrant Officer)
    Flag
    Why not use a single cell, AA or AAA, alternatively the forward voltage drop across a diode is about 0.7v, 3 or 4 in series would drop the voltage to either 2.7v or 2.00v .
    Geoff.
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 87 Views
    3
    πŸ“ HAKITS- PILOT LAUNCH-LARGER VERSION.
    23 days ago by mistyoptic ( Warrant Officer)
    Flag
    View All

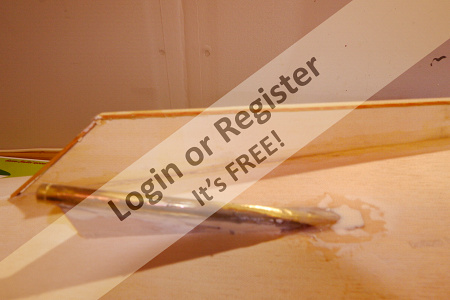

    Fitting the Propshafts.

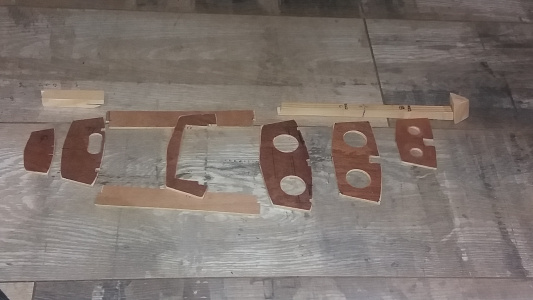

    The model is designed for twin propshafts and motors and this option has been followed. The lower deck is already cut with a slot for the shaft as is one former and the outer bottom skin on either side. Like the rudder fixing, the shaft, will refer as singular although there are two, is held between two formers with spacers between. In the kit three spacers are provided which suit a 6mm shaft and the cut-outs in the hull formers and the slots in the deck are at this width . I had opted for the Caldercraft standard shafts, which at the length required come as 8mm diameter. To accommodate this wider diameter it was necessary to cut another spacer of 2mm to go alongside the three provided in the kit. This was no problem and again could be cut from waste from the laser cut sheets. These spacers as can be seen from the pic are shaped to give the correct angle to the propshaft, and to align with motors and hull exit hole. The four formers were now glued together to give an 8mm spacer and these were then glue between the propshaft inner and outer formers. A bottom and top spacer were created. The process I used was to glue the inner former and the lower spacer in place and then next day when this was set, took a round file, max diameter by coincidence, 8mm, and carefully followed the angle of the spacer to enlarge the hole in the former and the slot in the deck to take the larger shaft. The deck slot ends needed to be angled in line with the shaft angle. When all was a snug, but smooth fit, the top spacer and outer former were glued in place. When the glue had set sufficiently the shaft was withdrawn to be refitted in place later. The same process was followed on the other side, taking care to ensure that the propshafts at the motor end were at exactly the same height from the deck, a wooden jig was used to assist here. It will be important that the two shafts and motors are exactly aligned, although universal joints with be used as drive connectors, it is essential, with these smaller motors, that no energy is lost driving misaligned shafts.
    The accompanying pics show the process and finished work. Note that in the pic showing the two propshafts in place, it is the camera that has bent them not me!!
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ‘€ 47 Views
    6
    1
    πŸ’¬ Re: HAKITS- PILOT LAUNCH-LARGER VERSION.
    24 days ago by mistyoptic ( Warrant Officer)
    Flag
    Super, Hope mine comes out as well as that., thanks for posting
    Geoff.
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 52 Views
    1
    πŸ“ HAKITS- PILOT LAUNCH-LARGER VERSION.
    25 days ago by mistyoptic ( Warrant Officer)
    Flag
    View All

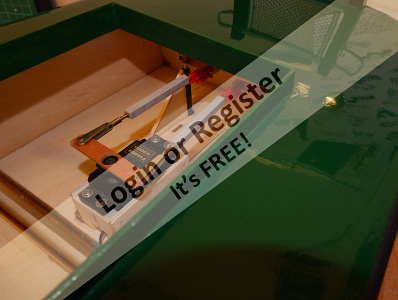

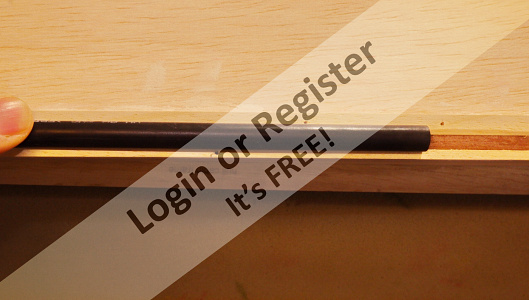

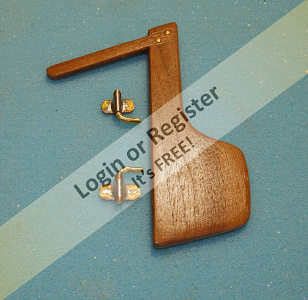

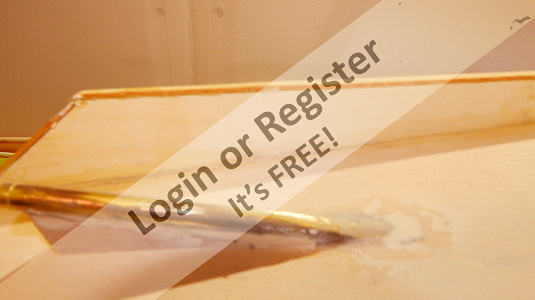

    The Twin Rudders continued.
    Since last time I have removed the deck from the board with formers attached and turned it over and fitted the upper deck, a straightforward task. As the formers have curved tops it is essential to make sure that the deck is glued to them across the whole width so that the deck takes on the same curvature, making sure that the deck meets and is securely glued to the outer points of the formers, also make sure that the deck is fitted centrally on the formers, this can be checked along the formers to ensure that it is placed centrally. I also marked the centre of the deck to ensure that it fitted centrally at the last former. I had pinned the centre of the deck to the bow former so that it stayed put while the rest of the deck was lined up. I must say that the accuracy of the parts of this model and the way they fit together does help in keeping the builders work accurate and furthermore it seems to demand accuracy from the builder, acting as a mentor in its own way.

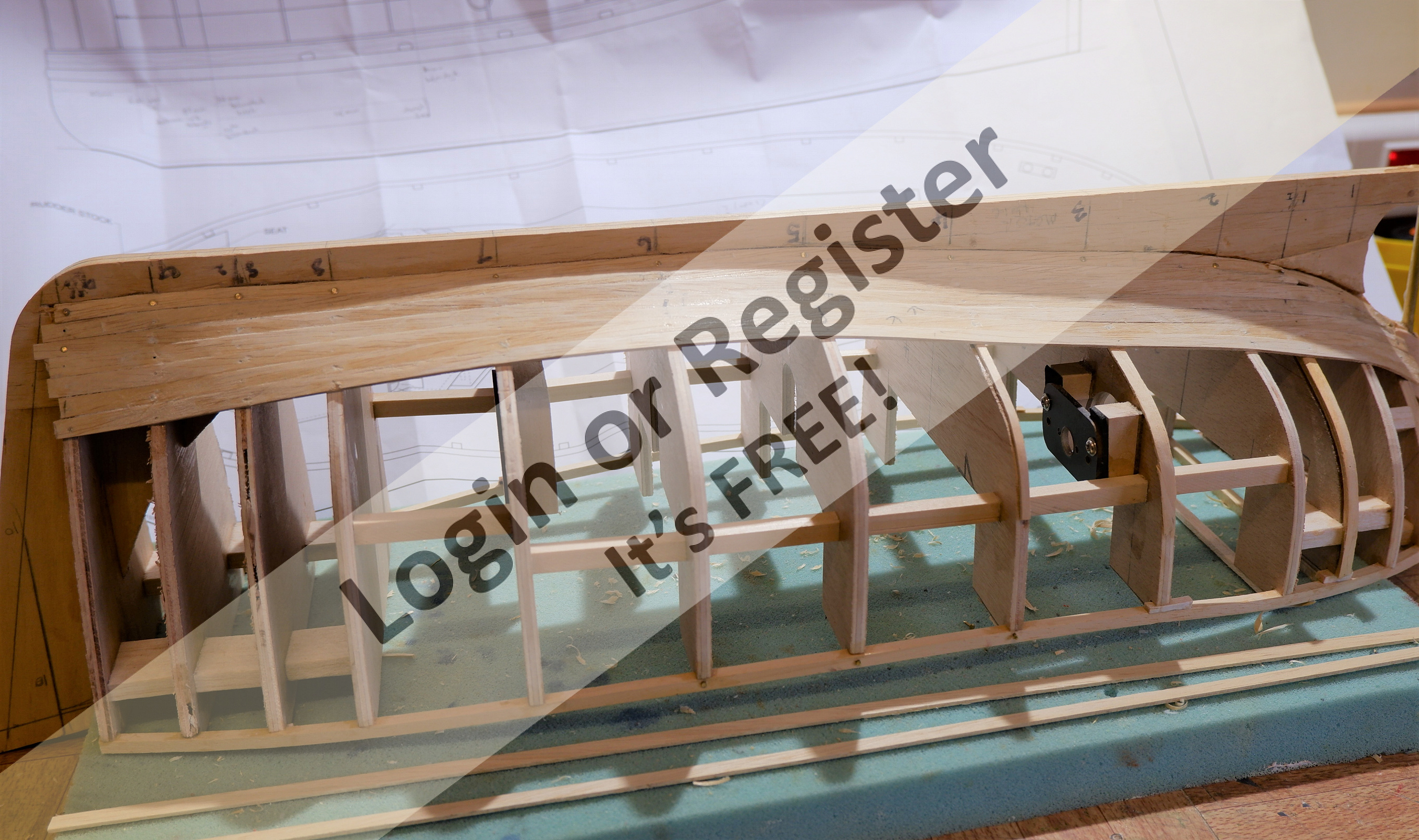

    With the hull now upside down on the deck, I have started to use a slab of plastic foam under the hull, firstly to give it a bit of stability on account of the curved deck and also to protect the deck from bruising by chippings or anything else that may be on the bench.
    The lower formers were now glued in place, simply done and it was time to think about how the twin rudders would work to my own arrangement. I have devised my own way of building the rudder and linkage assembly because I have the time to do this, but the components mentioned in the handbook will be adequate and work well, so if you are pushed for time with an impatient son or grandson waiting by your elbow, then use the commercial components.

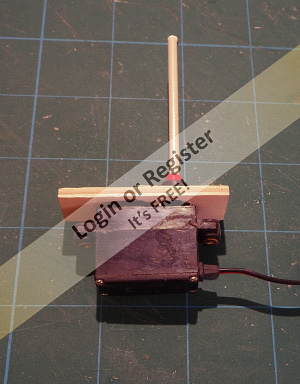

    As I mentioned in the last entry, I have planned to use a Futaba standard servo mounted in an upright position and working a push pull action on the rudders with their arms facing inwards. A test run had proved that this should work.
    So, it was now a question of mounting the rudder tubes and rudders into the hull. In the kit, a former is placed in the lower side of the hull either side of the hole where the rudder is to be fixed. The holes are already cut in the lower deck and the outer hull skin so again all lines up easily. These formers were used, and I made up a softwood spacer with a 6mm hole drilled vertically to line up with the hole in the deck and put the formers in place and glued with the spacer in between.
    The rudders and the tubes I have made from stock, it is a bit like a scrapheap challenge, all were made from materials I had accumulated over the years. The whole thing is rather composite with the outer tube from 6mm o/d carbon fibre tube into which was placed an inner liner of brass tubing, another length of brass tubing which fitted snugly inside this was cut into three bearing lengths of 10mm, to be place at top centre and bottom of the rudder shaft which fitted snugly inside this tubing and will be fixed at the final points with Ca. The rudder blades were made from thin brass sheet epoxied together to give a suitable thickness and then slotted and soldered to the rudder shaft. All this fits together like a Russian Doll. When fitted the spaces between the centre bearing and the top and bottom bearings will be filled with Vaseline for waterproofing and smooth running. (Service intervals will be 500 hours!) The protruding part of the Carbon Fibre tube inside the hull can be supported by an upright. Note the one shown is a cut-out from the cabin windows and proves ideal for this, also they are an exact right-angle and can be used as a square in spots where other squares cannot reach!
    Having done all this a dry fit in the hull with the servo and the linkages was completed and I am pleased to say I have a smooth and positive rudder action. The linkages were made from servo control wire with an adjustable quick link at the servo end and a fixed wire at the rudder end held in place with a swingkeeper. (Slec) The main arm of the linkage was from 4mm sq plastic.
    Sorry if this wordage is a bit complicated but I hope the pics will make all clear.
    Next Time – Fitting the Prop shafts.
    Geoff.
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ‘€ 56 Views
    8
    4

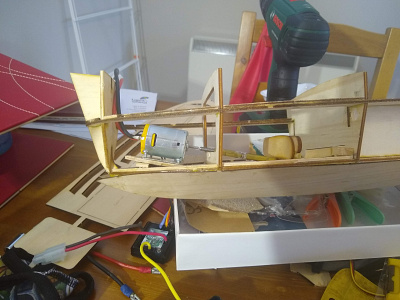

    πŸ’¬ Re: Pilot 40
    25 days ago by mistyoptic ( Warrant Officer)
    Flag
    Garth, looks like a nice finish and have looked at ESC on Robotshop site, Seems to be very open with a lot of components, which look like they may need air flow. Perhaps a plastic project box meant for electronics or just a lightweight plywood box, I think I would try to give it some airspace, epoxy will coat it but may not keep it cool.
    Geoff
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 52 Views
    3
    πŸ“ HAKITS- PILOT LAUNCH-LARGER VERSION.
    28 days ago by mistyoptic ( Warrant Officer)
    Flag
    View All

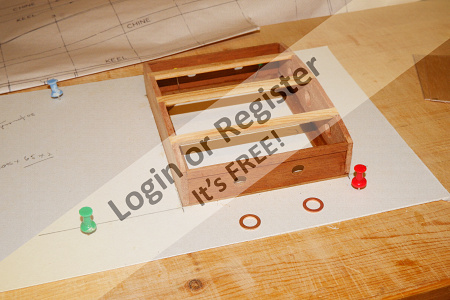

    Thinking about the twin Rudders.

    The first part of the build had been done, the deck pinned to the board and the formers added, checking all securely glued and at right angles to the deck. The next step is to remove the structure from the board and glue on the upper deck, but I wanted to make sure that the twin rudders would work efficiently and smoothly. I had selected, from stock, a Futaba standard servo, which would power both rudders using a push pull movement. The servo to be mounted vertically because there is ample room to do this, in fact this boat is so roomy you can almost get inside and walk around.

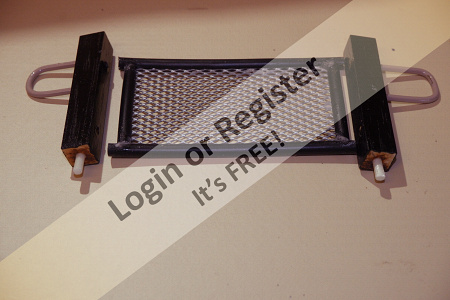

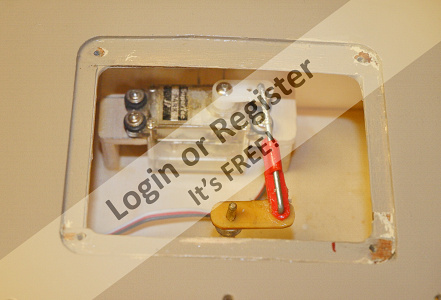

    I have chosen to make my own rudders and rudder tubes because the height of a commercial rudder would possibly not be high enough to reach the level of the servo top. More of this later. So, to take advantage of the top deck not yet being fitted, I made a mock-up with balsa and fixed the servo arm to this and the rudders arms just to make sure that the geometry of the push pull arrangement would work, and it did. A servo box was then made from ply and using a surround stuck this to the lower deck with epoxy. Obviously, it will be necessary to ensure accuracy in fitting all this in place, so the deck was marked and measured. I have arranged for the distance from the pivot of the rudder arm to the linkage hole, to be identical with the pivot to link hole on the servo so a 1:1 gearing is applied. The extender to the servo arm is cut from PC Circuit Board as are the rudder arms with a brass collet soldered to the copper side. I am just about ready to take the structure off the board and fit the upper deck. I include a pic of my glue pot arrangement as mentioned in last blog.
    Geoff.
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ‘€ 64 Views
    7
    1
    πŸ’¬ Re: HAKITS- PILOT LAUNCH-LARGER VERSION.
    28 days ago by mistyoptic ( Warrant Officer)
    Flag
    Hello and thank you for your comment. I am not sure that 2 6v SLA would fit comfortably in the Morston, it would need to be the larger version and the equipment space in that model is situated under the hatch at the font of the boat and too much extra weight there would give an imbalance in the water. There is much more headroom in the Pilot Launch and the equipment space is toward the back of the boat but this is a twin-engined model and you may not want to tackle this just now. If you want a definite answer please e mail HAkits they will be pleased to advise. or simply buy a smaller Lipo or Nimh battery.
    Best wishes
    Geoff.
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 64 Views
    3
    πŸ’¬ Re: HAKITS- PILOT LAUNCH-LARGER VERSION.
    30 days ago by mistyoptic ( Warrant Officer)
    Flag
    Thanks for your encouragement Treve, am pressing on while the snow continues to fall on Suffolk.
