    Deans's Marine 63' ASR restoration
    4 Posts ยท 5 Followers ยท 4 Photos ยท 18 Likes
    Began 4 months ago by
    Warrant Officer
    United Kingdom
    Follow This Thread
    Not currently following
    > Click to follow
    Latest Post 3 months ago by
    Warrant Officer
    United Kingdom
    Most recent posts shown first   (Show Oldest First) (Print Booklet)
    ๐Ÿ“ Success!
    3 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง Oxford-Dave ( Warrant Officer)
    โœง 53 Views ยท 5 Likes
    Flag
    ๐Ÿ’ฌ Add Comment
    I took the ASR to the Oxford model boat club's Thursday afternoon session at the pond, and it behaved perfectly. It seemed a little faster, and definitely quieter, but the move forward of the motor by an inch and a half has made very little difference.
    I took two 2S 2900 mah lipos, changed them over after about 90 minutes on the water.
    Sometimes it is hard to beat a good simple boat that simply works as it should.

    Login To
    Remove Ads

    ๐Ÿ“ coupling trouble solved (hopefully!)
    3 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง Oxford-Dave ( Warrant Officer)
    โœง 82 Views ยท 6 Likes ยท 3 Comments
    Flag
    ๐Ÿ’ฌ Add Comment
    Following the submerged branch incident last Sunday, the broken coupling has been removed (that was the easy part!) and the motor mount prised way from its original position and fixed in place about 1 1/2" further forward (that was the difficult part!) in order to be able to use a Huco double coupling.
    All installed, runs smoothly, and the current draw when coupled to the shaft is about one amp more than the motor on its own.
    Weather permitting, it'll be back on the water tomorrow.

    ๐Ÿ’ฌ Re: coupling trouble solved (hopefully!)
    3 months ago by ๐Ÿ‡ฆ๐Ÿ‡บ stevedownunder ( Commodore)
    โœง 37 Views ยท 3 Likes
    Flag
    Thanks for the link DG, wow what a site!

    Great to hear your test run went without any problems.

    Cheers,
    Stephen.
    Login To
    Remove Ads

    ๐Ÿ’ฌ Re: coupling trouble solved (hopefully!)
    3 months ago by ๐Ÿ‡ฆ๐Ÿ‡บ stevedownunder ( Commodore)
    โœง 57 Views ยท 3 Likes
    Flag
    Hi DG,
    That is a very nice looking double universal and runs very smoothly, I would also be interested in where it was sourced from.

    Cheers,
    Stephen.
    ๐Ÿ’ฌ Re: coupling trouble solved (hopefully!)
    3 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง Oxford-Dave ( Warrant Officer)
    โœง 66 Views ยท 3 Likes
    Flag
    DG - that short double coupling looks very interesting - and very smooth in the video. May I ask where you found it? Looks ideal for my boats with not enough space to install a double Huco coupling.
    ๐Ÿ“ Coupling trouble
    4 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง Oxford-Dave ( Warrant Officer)
    โœง 90 Views ยท 1 Like ยท 2 Comments
    Flag
    ๐Ÿ’ฌ Add Comment
    I took the ASR out to the local club in Oxford last Sunday and, unfortunately, hit a submerged branch which broke the coupling between motor and prop shaft.
    I changed the broken component that evening, a fairly tricky operation as it required the motor to be removed, and there isn't much room for tools and fingers in that hull.
    Having changed the coupling and replaced the motor in the boat, I started to think that the coupling broke rather easily, so removed the motor again this evening, carefully cut away the motor mount (managed to get it out without damaging the thin GRP hull), so tomorrow will glass in a new motor mount about 1 1/2" further forward to allow me to use a more substantial coupling. It will also move the c/g further forward, which will help as it sits a little stern heavy in the water.
    Next club day is Thursday, but I am visiting my daughter & granddaughter tomorrow, so might be taking a different boat out on Thursday, unless I have time to put the new mount in tomorrow evening.

    ๐Ÿ’ฌ Re: Coupling trouble
    4 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง Oxford-Dave ( Warrant Officer)
    โœง 86 Views ยท 1 Like
    Flag
    I have several metal couplings but haven't used any for the reason given in a recent post - too noisy.
    To get the ASR back on the water quickly, I will use a pair of Huco couplings with a joining link.
    I will buy some Raboesch couplings (similar to the Huco) for the Motor Gun Boat and the Tsekoa.
    Just need to find the energy to re-install the motor mount in the MGB this evening.
    ๐Ÿ’ฌ Re: Coupling trouble
    4 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง Oxford-Dave ( Warrant Officer)
    โœง 88 Views ยท 2 Likes
    Flag
    Yes the new coupling will be a double, much easier to get it running smoothly, but the replacement will be a lot more robust than the original. The plastic 'ears' that join the sections of the small grey coupling broke quite easily. I understand the concept of a deliberate weak link to protect the motor, but I think I am using a more powerful motor than the coupling was designed for.
    The replacement will be two of the red Huco couplings with a joiner between them, I've used them like this for years and never had any trouble with them. I'll add a photo when I get the motor back in place.
    ๐Ÿ“ Deans's Marine 63' ASR restoration
    4 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง Oxford-Dave ( Warrant Officer)
    โœง 141 Views ยท 6 Likes ยท 8 Comments
    Flag
    ๐Ÿ’ฌ Add Comment
    Thirty plus years ago I built a British Power Boats co. Motor Gun Boat from the Dean's Marine kit, and sailed it all around the south of England at various shows. I sadly sold it when I was moving abroad, but never forgot the great little boat.

    Last December, I was shown a Dean's 63ft ASR (same hull as the MGB both in model and full size versions) which the oxford model boat club was selling as it had been donated in order to help the club raise funds.

    The motor (540), ESC and rudder servo plus Tx & Rx were removed by another member of the club and a little money changed hands.

    Got it home, and started working on it. Obviously, I needed to replace the drive and radio components, as the prop shaft and stern tube simply fell out when I picked it up - I think it was held in mainly by the motor coupling!

    The coaming around the deck edge had definitely seen better days and was held together but patches of plasticard. I moved the entire coaming and replaced it, with a light wooden strip to help it sit against the edge of the deck.

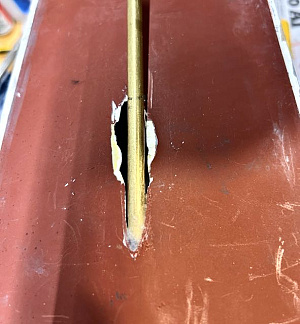

    I then turned my attention to the stern tube. I had a spare of the same size (bought a while ago from Steve at Model Boat Bits) and set about removing the mass of filler that was intended to hold it in place. Once the filler was removed, a rather large hole was revealed.

    At this point, I visited Dean's Marine for their Christmas open day and bought a second MGB kit, as I still wanted to replace my old one and also because the dimensions for mounting the prop shaft, etc. were the same for both the MGB & the ASR.

    I have followed Ron Dean's advice and added an inner stern tube support as a precaution. Just a piece of 1/8th ply held in place with microballons and cyano.

    Two months or so later, I now have the ASR hull ready for the final placement of the battery tray & radio gear, which shouldn't take long. I will then make a start on its sibling the MGB.

    ๐Ÿ’ฌ Re: Deans's Marine 63' ASR restoration
    4 months ago by ๐Ÿ‡จ๐Ÿ‡ฆ Ronald ( Fleet Admiral)
    โœง 103 Views ยท 1 Like
    Flag
    Found this old photo

    Note the flak protection on and around the wheelhouse, the Thompsons beside the front corner of the wheelhouse and the canvas spray shied aft near the rear gun position.
    Login To
    Remove Ads

    ๐Ÿ’ฌ Re: Deans's Marine 63' ASR restoration
    4 months ago by ๐Ÿ‡จ๐Ÿ‡ฆ Ronald ( Fleet Admiral)
    โœง 111 Views ยท 3 Likes
    Flag

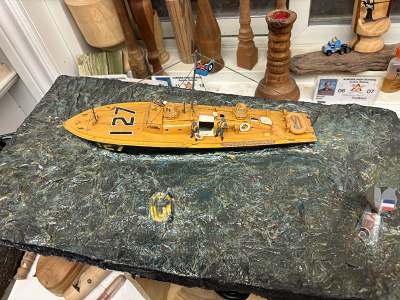

    I did a pile of research when building the 1/72 static version. But itโ€™s not accessible on my iPhone.
    ๐Ÿ’ฌ Re: Deans's Marine 63' ASR restoration
    4 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง Oxford-Dave ( Warrant Officer)
    โœง 112 Views ยท 1 Like
    Flag
    I am not sure what years these were in use, as my reference books are focussed on the motor gun boats and motor anti submarine boats. Most of the British Power Boat co.'s 63ft boats seem to have served from 1940 until the end of the war.
    ๐Ÿ’ฌ Re: Deans's Marine 63' ASR restoration
    4 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง Oxford-Dave ( Warrant Officer)
    โœง 112 Views ยท 2 Likes
    Flag
    That's a great picture - and the best part is that my model has the same angle and forward part of the hull out of the water at full speed.
    I will try to get some action pictures of my ASR at speed soon,
    ๐Ÿ’ฌ Re: Deans's Marine 63' ASR restoration
    4 months ago by ๐Ÿ‡จ๐Ÿ‡ฆ Ronald ( Fleet Admiral)
    โœง 113 Views ยท 2 Likes
    Flag

    https://www.dynagen.co.za/eugene/whale.html
    ๐Ÿ’ฌ Re: Deans's Marine 63' ASR restoration
    4 months ago by ๐Ÿ‡จ๐Ÿ‡ฆ Ronald ( Fleet Admiral)
    โœง 113 Views ยท 1 Like
    Flag
    Nice work. Do you know what period of WWII your model represents? There were several variations of this vessel.
    ๐Ÿ’ฌ Re: Deans's Marine 63' ASR restoration
    4 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง Oxford-Dave ( Warrant Officer)
    โœง 116 Views ยท 0 Likes
    Flag
    Today I have adjusted the prop shaft to allow a small amount of extra fore and aft movement, and spent an hour or more looking for the programming card for the ESC without success. I had it only a week or so ago when I set it up, but it has vanished completely. In the end, I changed the ESC for another, and I now have full power reverse, essential for stopping in a hurry (such as the concrete bank of the pond suddenly jumping out in front of my boat).
    ๐Ÿ’ฌ Re: Deans's Marine 63' ASR restoration
    4 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง Oxford-Dave ( Warrant Officer)
    โœง 118 Views ยท 5 Likes
    Flag
    As is the way with these things, having spent time on and off for the last month or two, last night I realised there was nothing left to do but try it on the water.

    I took it to my club's water in Oxford, and after a test float with the battery in it which revealed it was floating close to the water line and didn't leak, so it took a lap or two around the pond, after which I checked for water ingress and found it completely dry.

    I then spent the next couple of hours enjoying the realistic performance from the ASR with its 2836 1000kv brushless out runner and 2 cell 2900 mah lipo.

    Great boat on the water, and a good looker as well.
