📝 MAS 562 update
7 months ago by 🇬🇧 CB90 (
Captain)
Captain)✧ 37 Views · 7 Likes · 4 Comments
Flag
💬 Add Comment
Hi shipmates,

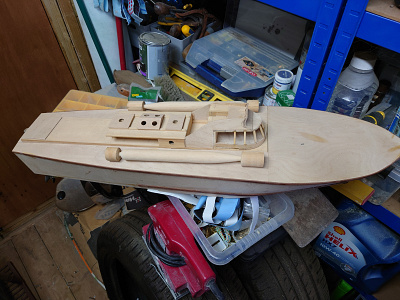

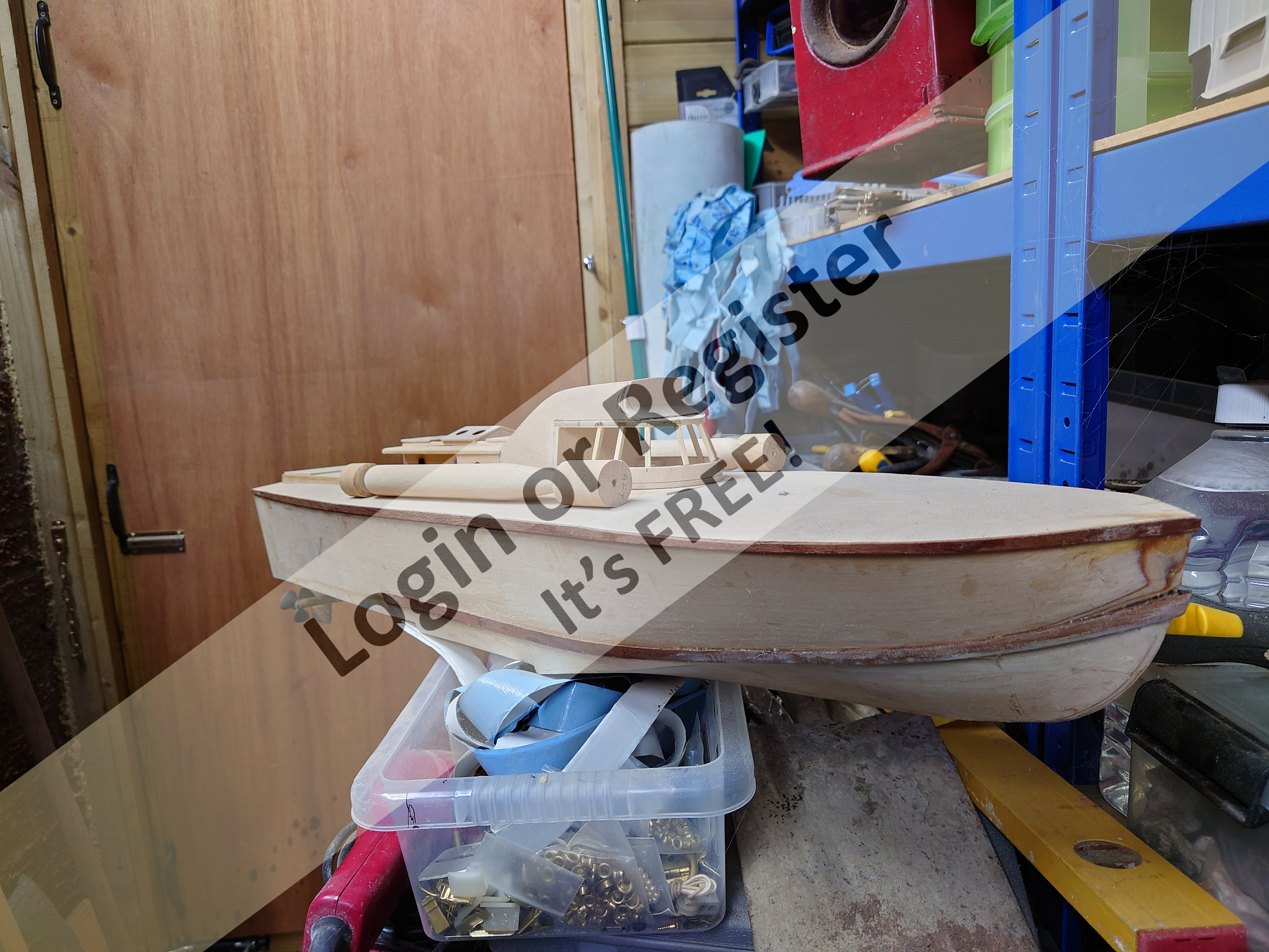

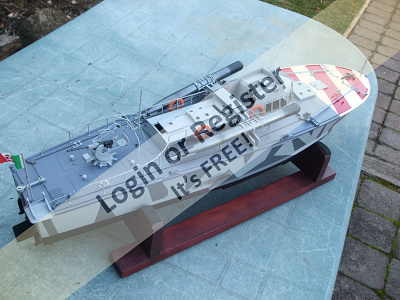

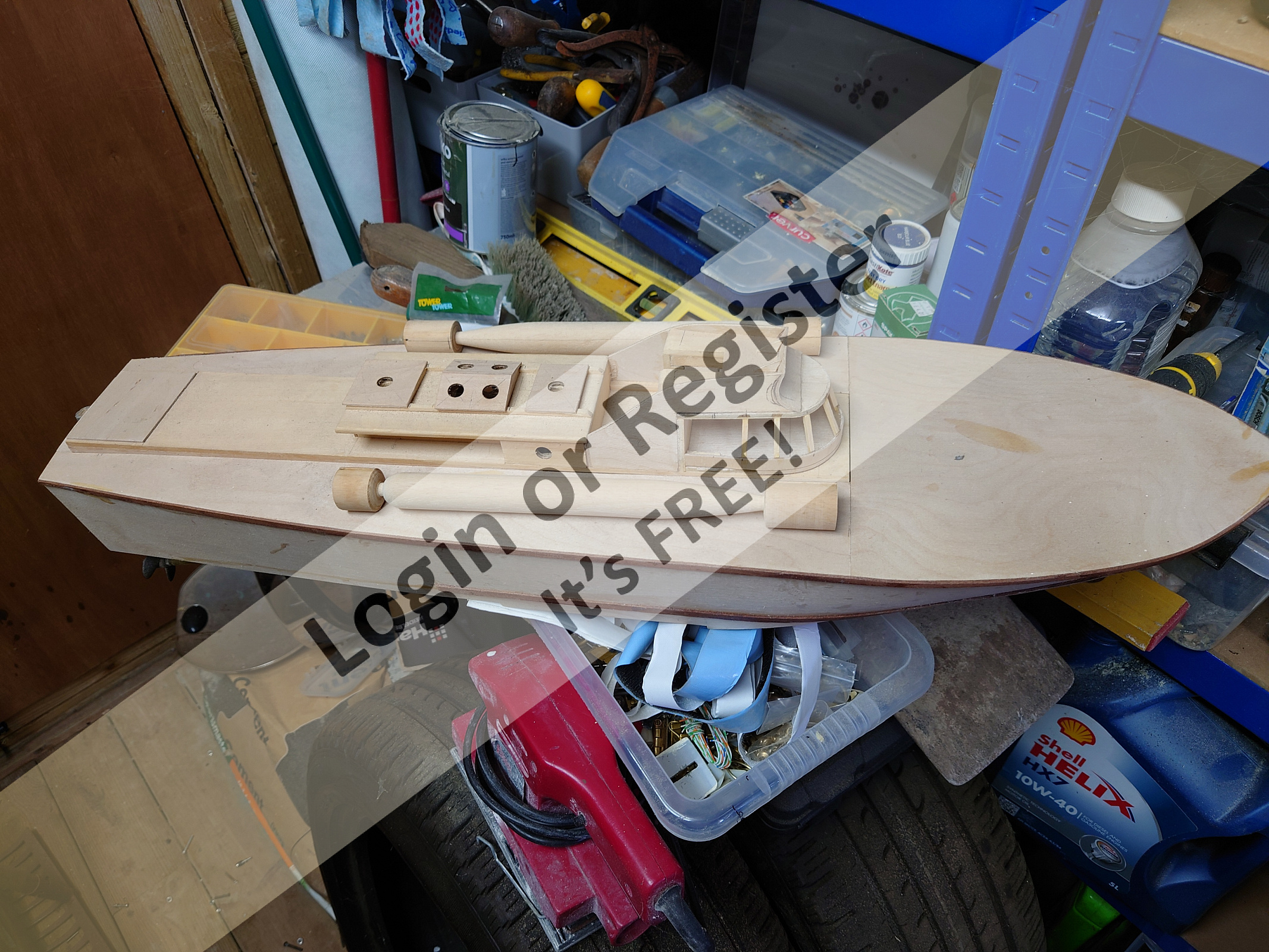

Couple of pictures of it current state of the MAS 562.
My Father turned the two torpedoes, but have not touched for a while.
Too many boats not enough time💔😭
Regards Roy
Couple of pictures of it current state of the MAS 562.
My Father turned the two torpedoes, but have not touched for a while.
Too many boats not enough time💔😭
Regards Roy
▲
⟩⟩
BOATSHED
EdW
peterd
Len1
hermank
Commodore-H
AlessandroSPQR
|
💬 Re: MAS 562 update
4 months ago by 🇦🇺 grahams (
 Leading Seaman)✧ 18 Views · 4 Likes
Flag
My MAS Boat at 1/24 scale f/g hull.
▲
⟩⟩
Len1
BOATSHED
MartinW
peterd
|
|
Login To
Remove Ads 💬 Re: MAS 562 update
7 months ago by 🇮🇹 AlessandroSPQR (
 Vice Admiral)✧ 34 Views · 0 Likes
Flag
Thanks so much Roy.
▲
⟩⟩
No likes yet
This member will receive 1 point for every like received |
|
💬 Re: MAS 562 update
7 months ago by 🇬🇧 CB90 (
Captain)✧ 35 Views · 1 Like
Flag
Hi Alessandro,

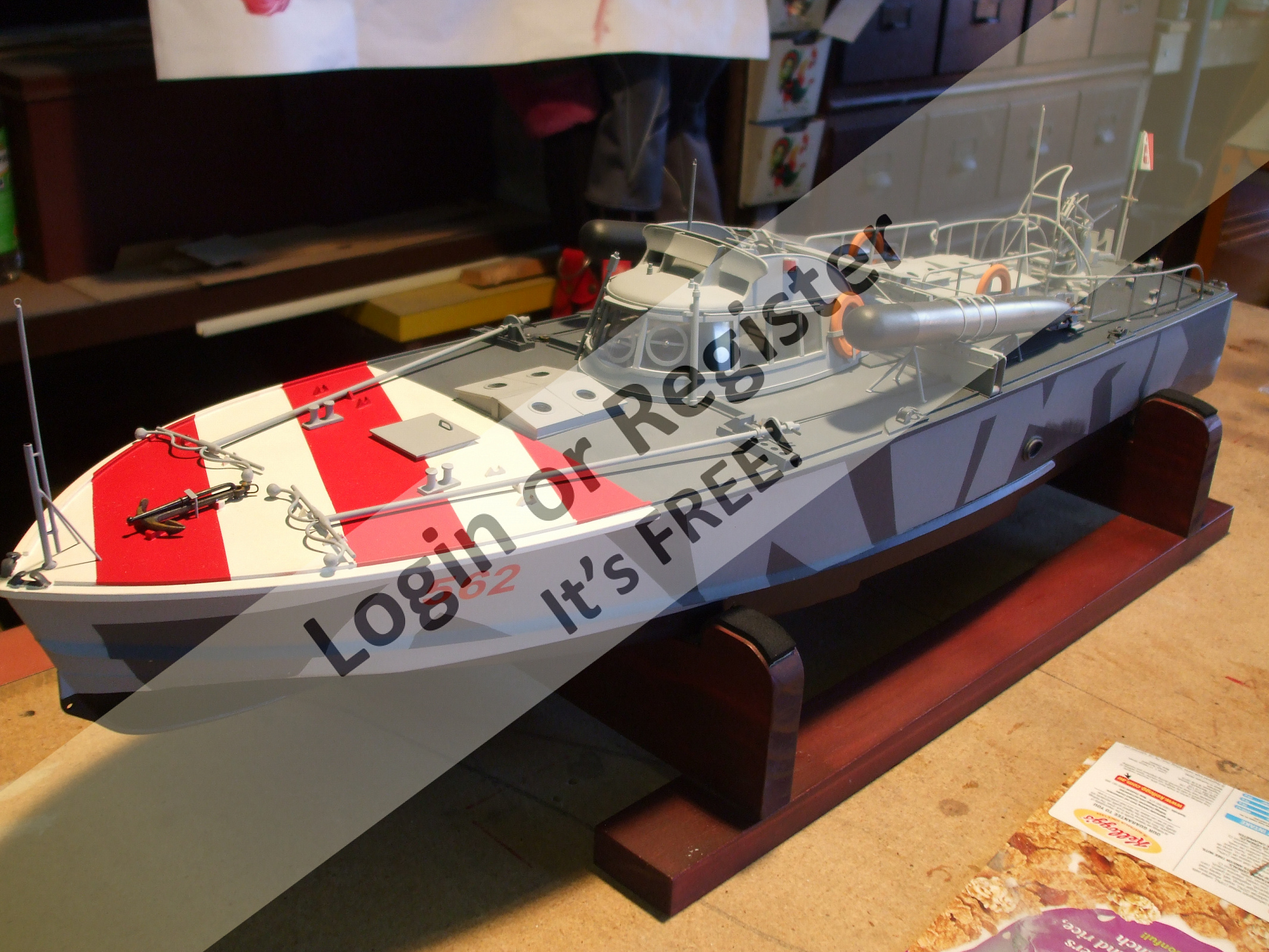

The length of the model is 75cm ad beam is 20.2cm the propellers are 35mm cw and ccw they are near to scale size. The boat is heavy for its size so is unlikely to plan with the old DC motors that I installed. I would suggest a larger model around 90cm more room for motors and batteries and better buoyancy. I would use lipos and brushless motors and it will run well on the plan, construct with 1mm ply. If you want a small, and easy to construct model I would suggest a plastic kit made by Italeri discontinued but some left in UK see link to Amazon
▲
⟩⟩
AlessandroSPQR
|
|
💬 Re: MAS 562 update
7 months ago by 🇮🇹 AlessandroSPQR (
Vice Admiral)✧ 36 Views · 0 Likes
Flag
Hi Roy, complete and exceptional information, very good.
Could you tell me what length your model has and what diameter the propellers have? If you also want the weight. I know I could calculate them from the actual measurements by applying the scaling factor, but I don't want to. I would like, if possible, the measurements provided by you. The propellers may not be to scale (legitimate choice but I'm interested to know). Can I include your model data in my listing? ▲
⟩⟩
No likes yet
This member will receive 1 point for every like received |
Login To
Remove Ads
Remove Ads
📝 WWII Italian MAS 562
6 years ago by 🇬🇧 CB90 ( Captain)
Captain)✧ 41 Views · 3 Likes
Flag
💬 Add Comment

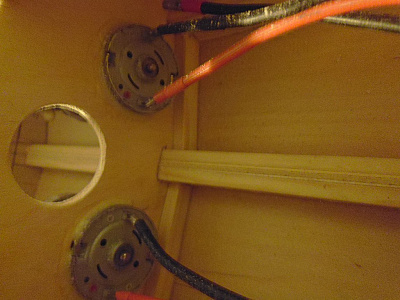

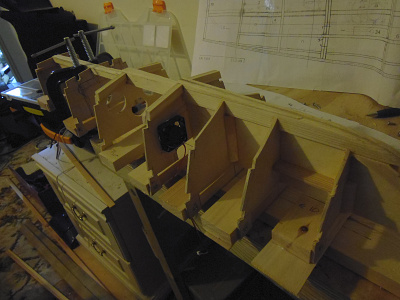

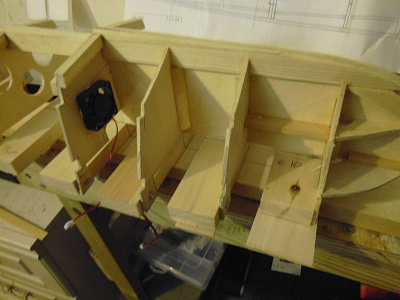

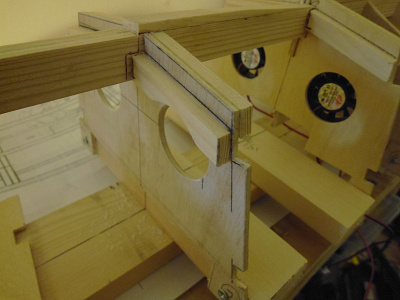

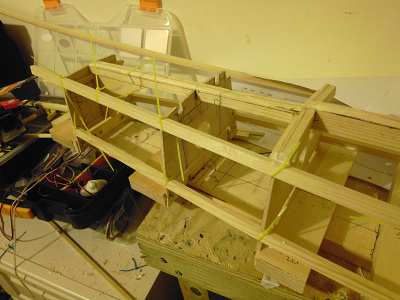

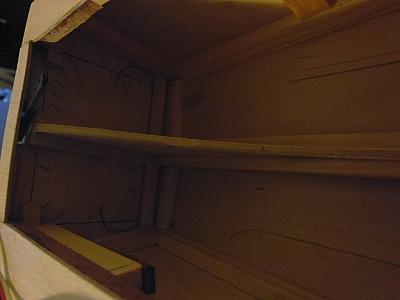

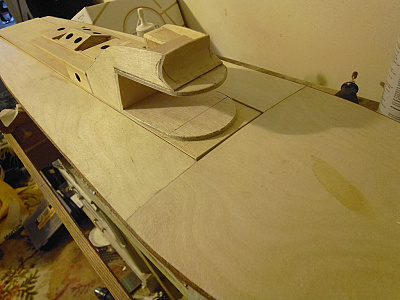

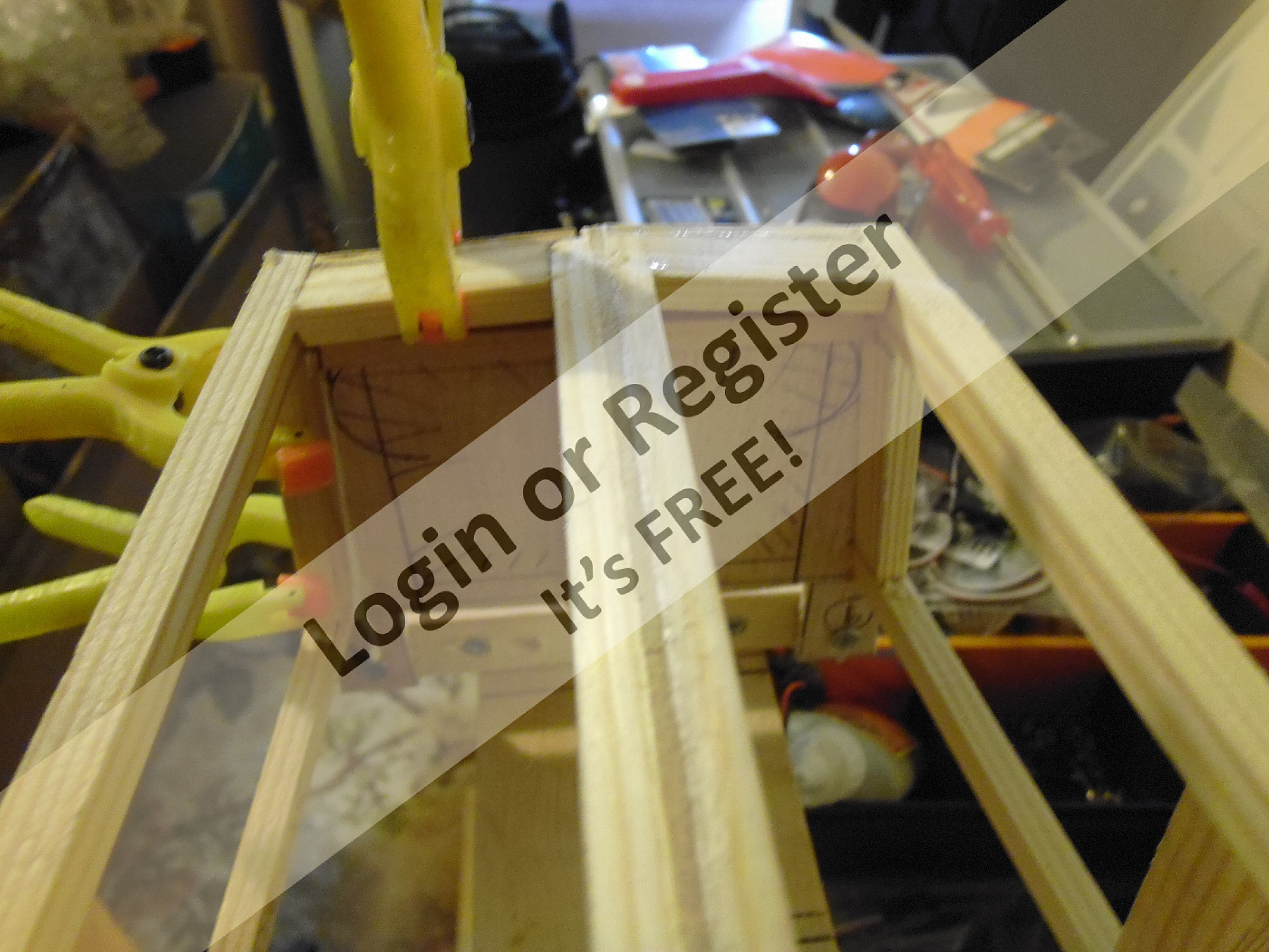

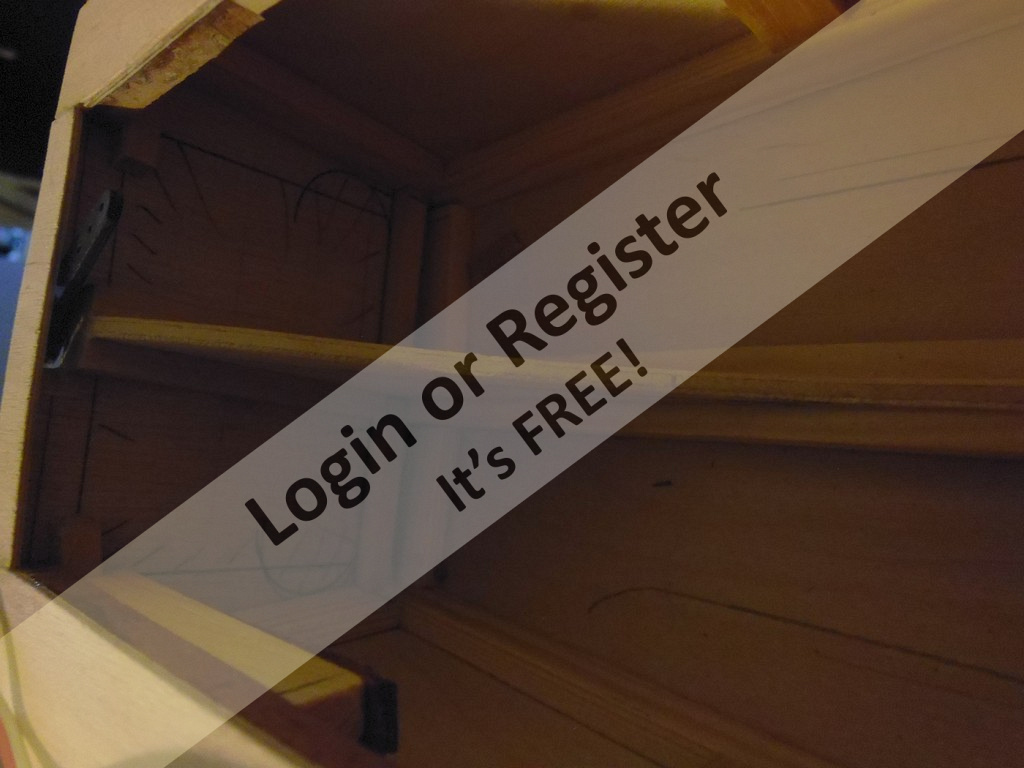

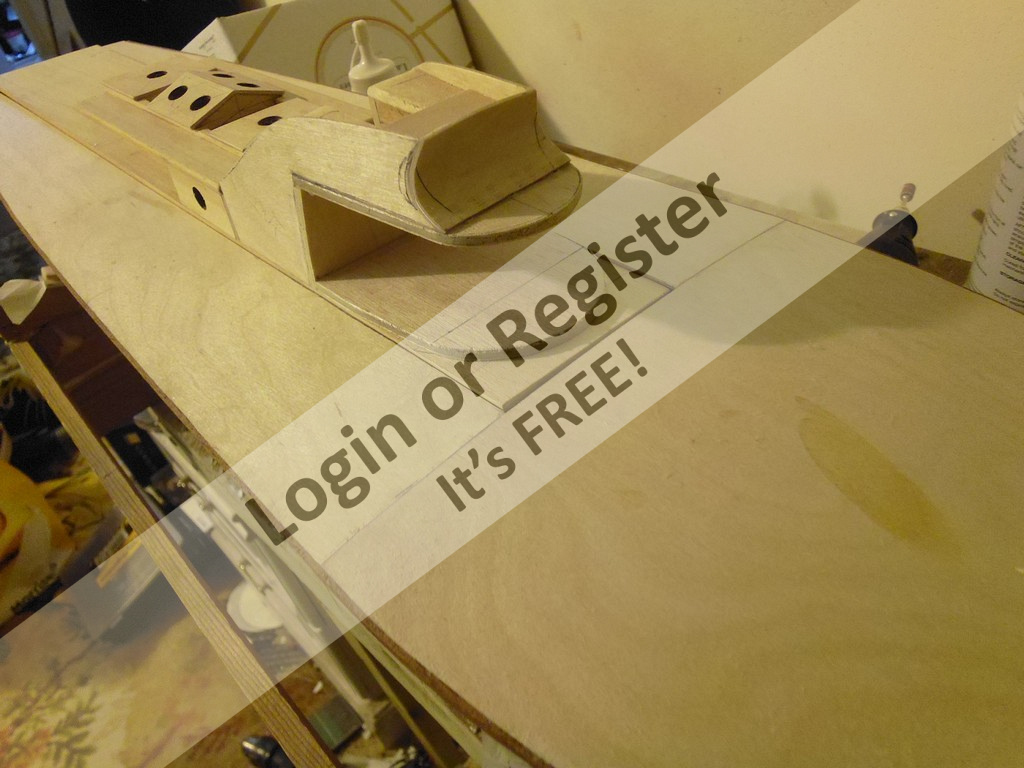

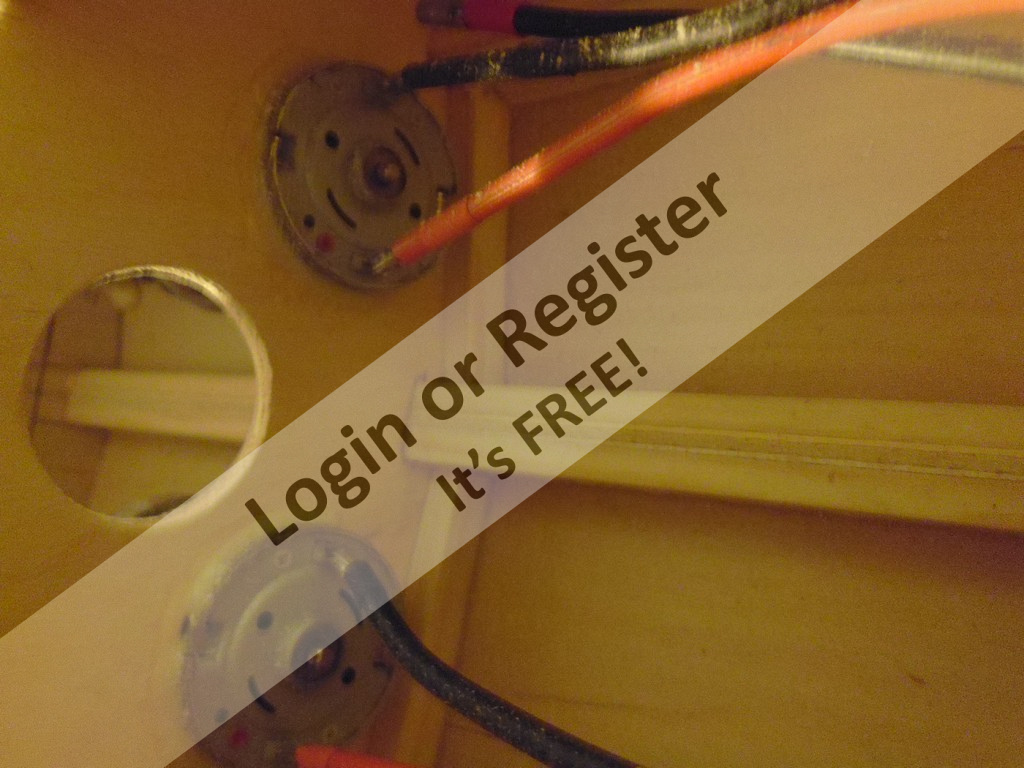

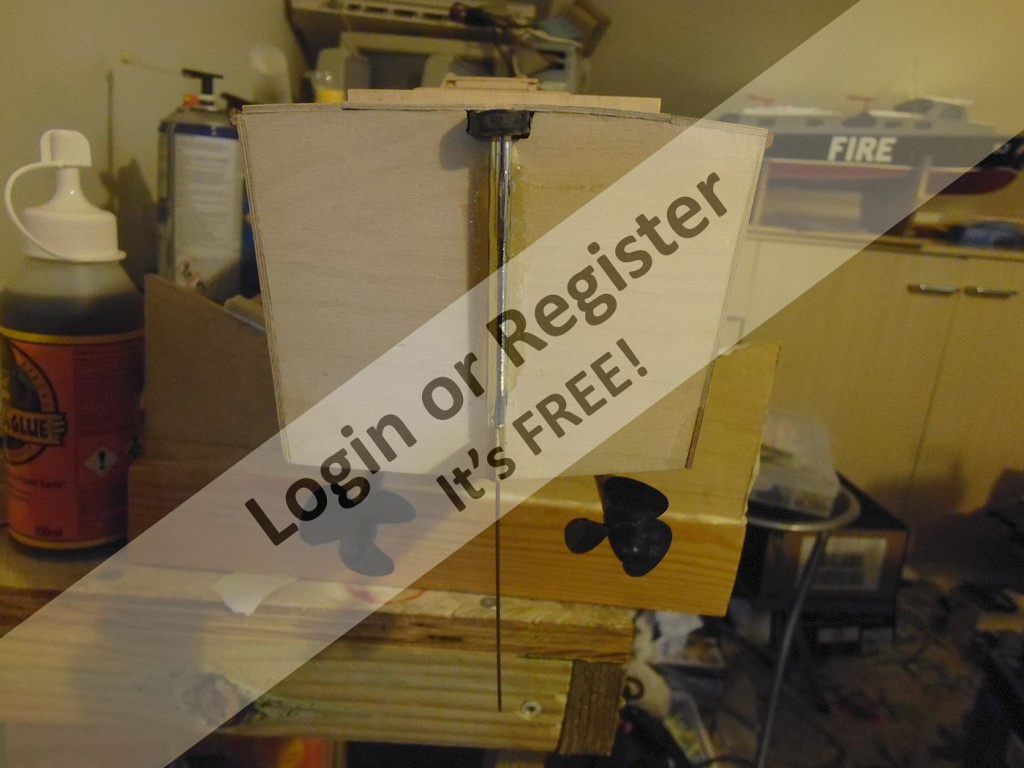

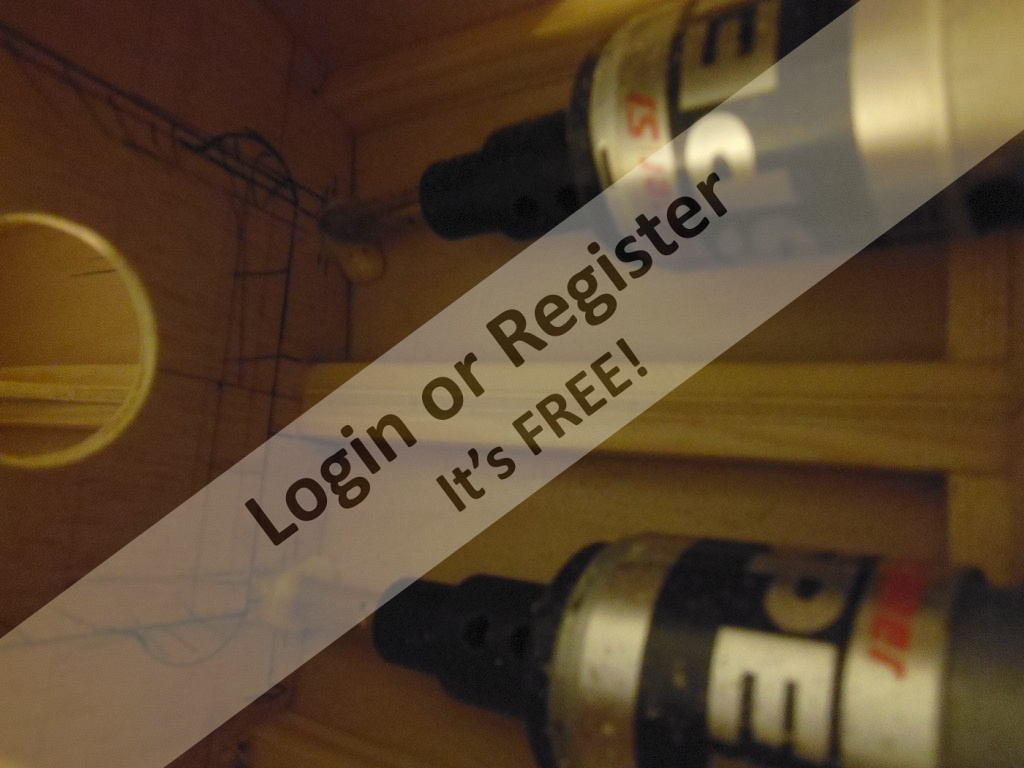

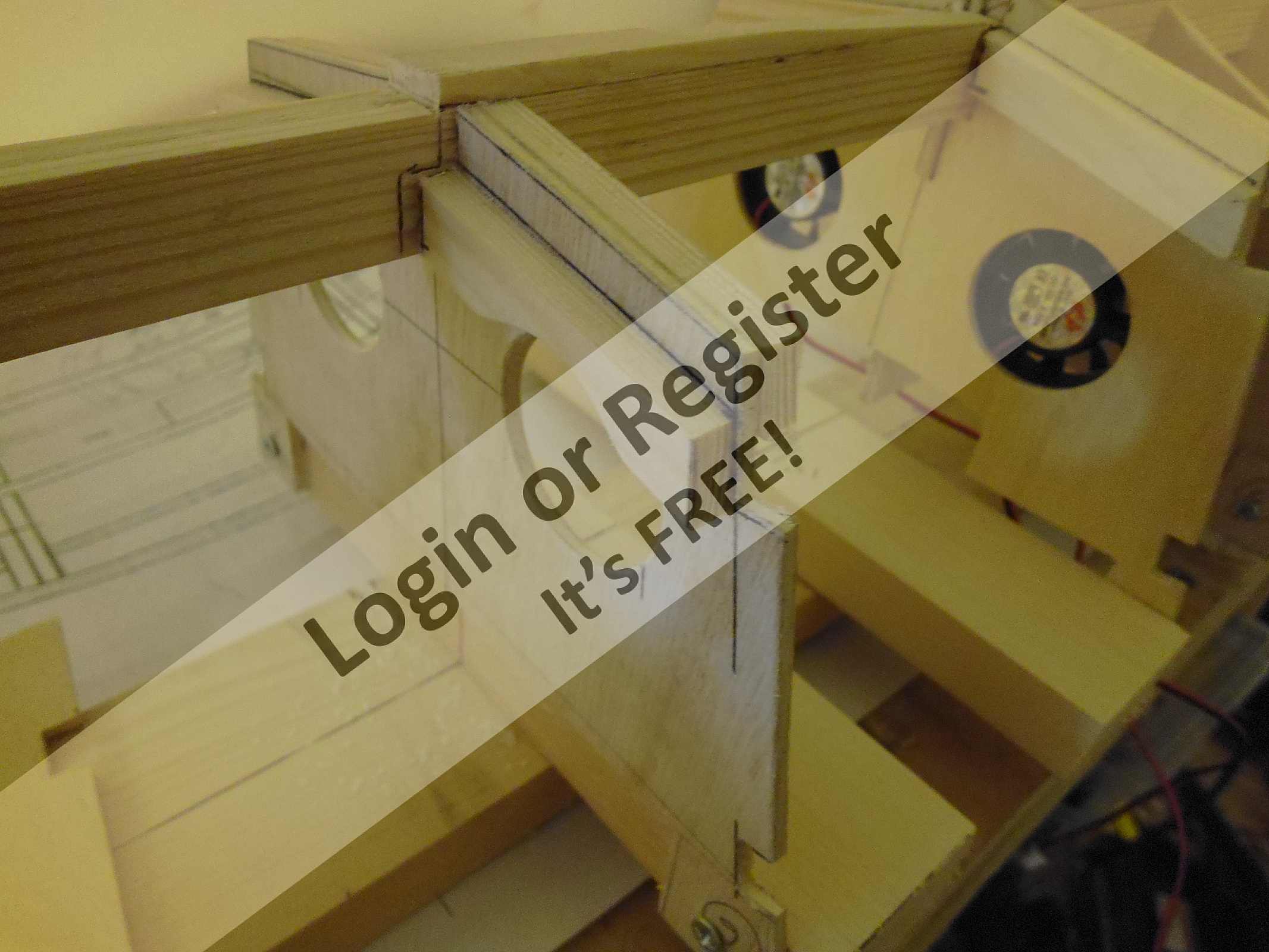

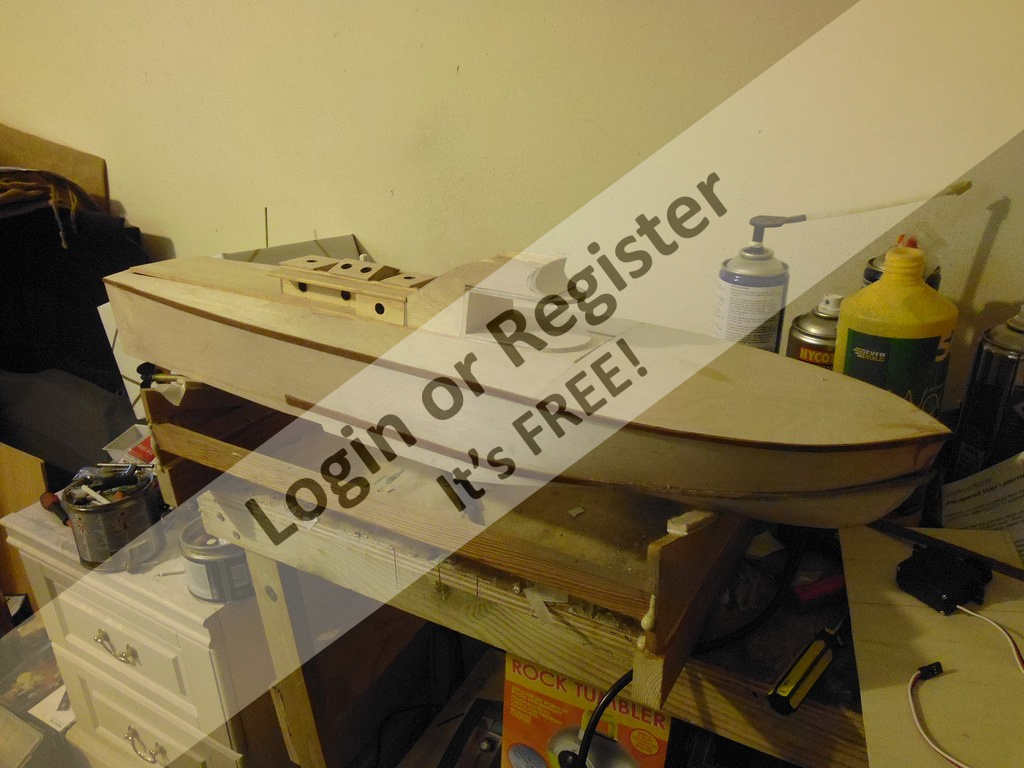

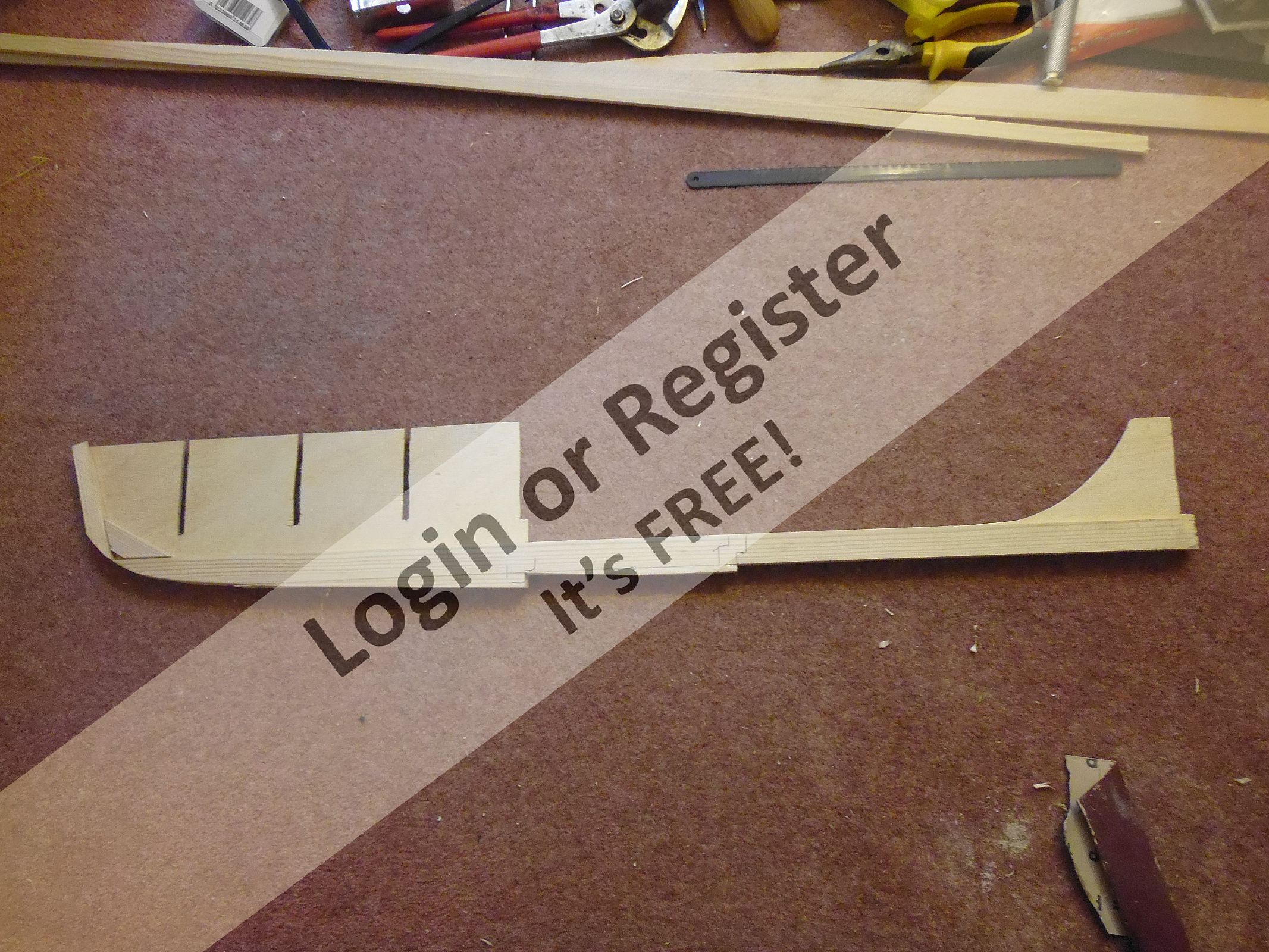

Skinned the frames added deck and splash rail also started on cabin and superstructure, added rudder and installed twin brushed Graupner 600 motors via Graupner style direct couplings.

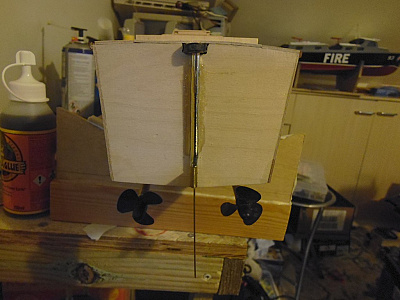

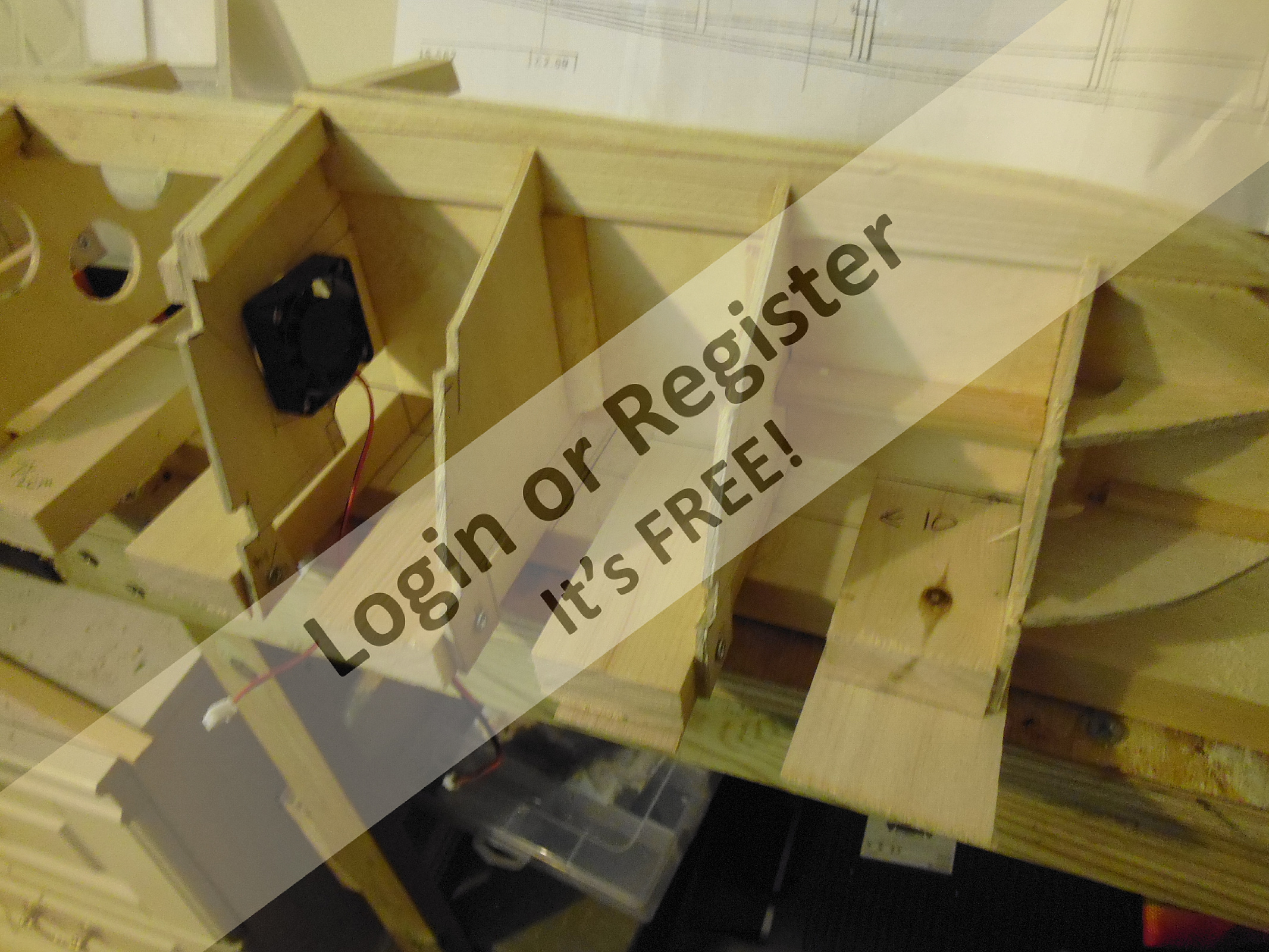

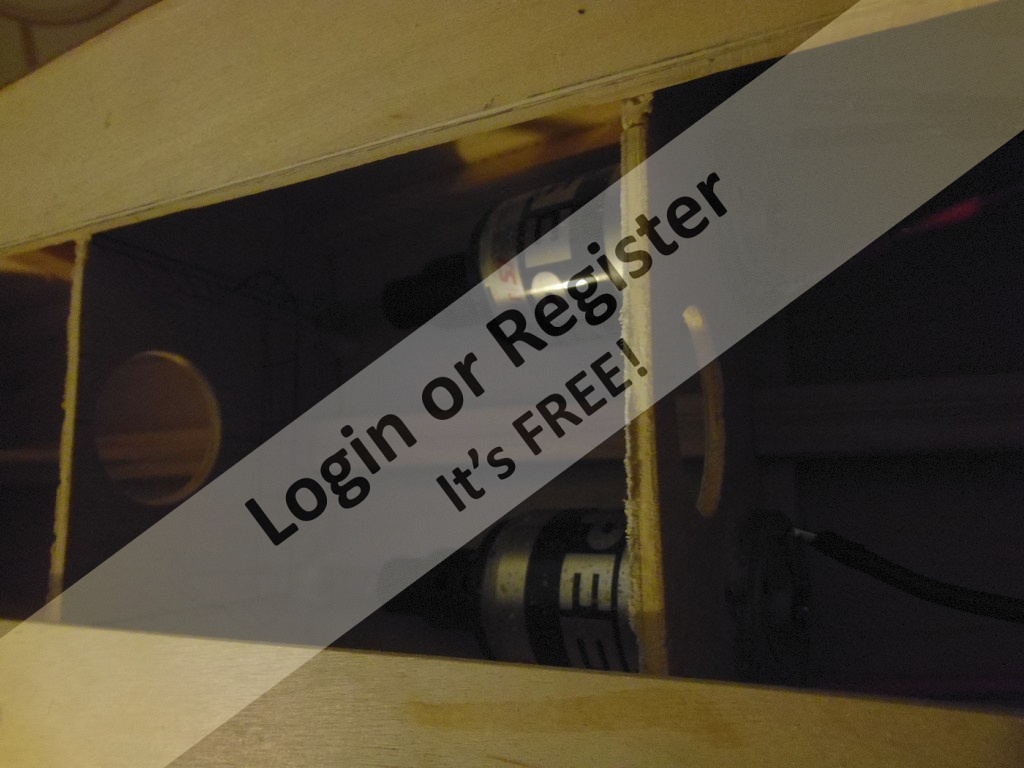

Motor mounting system through a bulkhead gives extra support to motors which mount on to end of the shafts.
currently adding a rudder servo mount, as rudder is a close copy of the real boat's and still functional.
Motor mounting system through a bulkhead gives extra support to motors which mount on to end of the shafts.
currently adding a rudder servo mount, as rudder is a close copy of the real boat's and still functional.
▲
⟩⟩
hermank
AlessandroSPQR
glioxima
📝 WWII Italian MAS 562
7 years ago by 🇬🇧 CB90 ( Captain)
Captain)✧ 46 Views · 8 Likes · 1 Comment
Flag
💬 Add Comment
MAS 562 (Motoscafo Armato Silurante: Torpedo Armed Motorboat)
While Browsing the internet I came across a free plan dated 1969 if a italian Motor torpedo boat
I found the craft interesting as it had a stepped hull, and this looked like a challenge, so more research and historical digging.
Built in 1941 by Baglietto, Varazze: built of wood (mahogany).
Baglietto, Varazze: built MAS 561 through to MAS 570
MAS
Baglietto class 500, 4th series"
Displacement 27.8 tons
Displacement max 28 tons
Length 18.7m
Width 4.7m
Draught 1.5m
Propeller shafts 2
Machinery isotta Fraschini petrol engines and Alfa Romeo or Cararo cruising petrol engines
Power, h.p. 2000 or 2300 / 140 or 100
Max speed 43 to 46 knots
Fuel tank 1.5 tons
Endurance 350 nautical miles at 42 knots
Armament 1 x - 13.2/76 or 1 x - 20/65 Breda 1940,
2 x 450mm Torpedoes ,
6 - 10 x Depth charges
Crew complement 13 persons

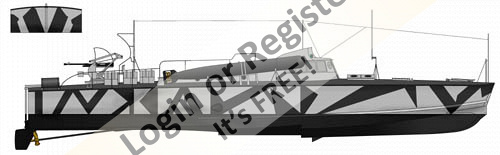

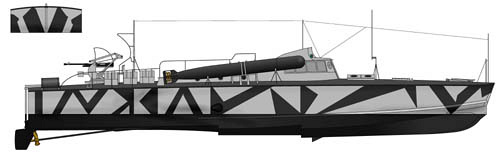

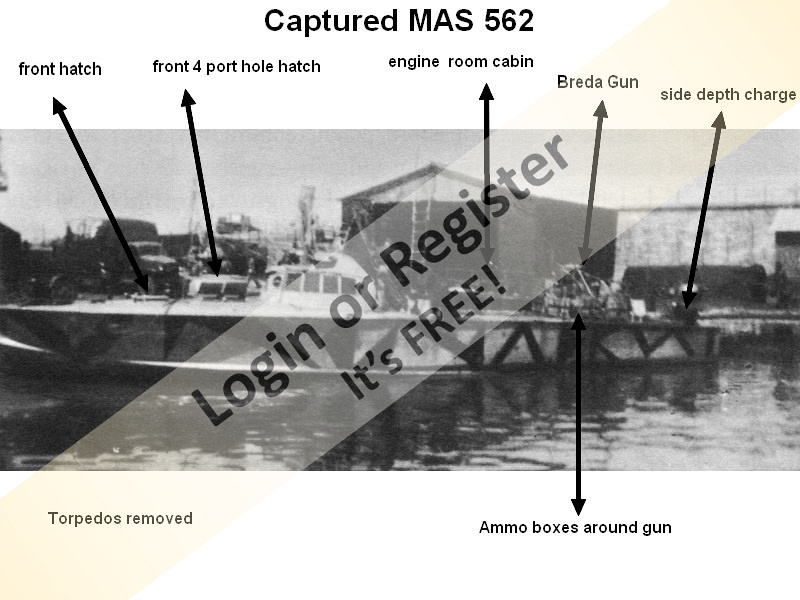

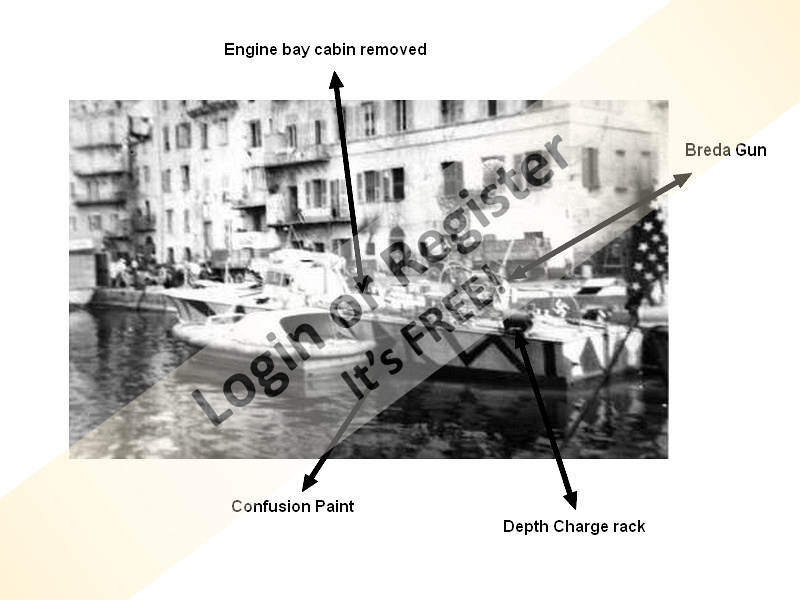

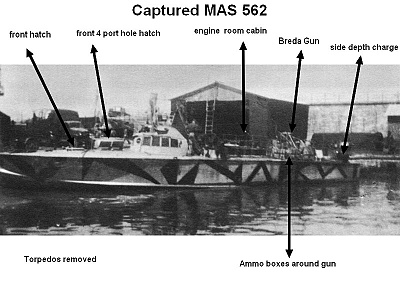

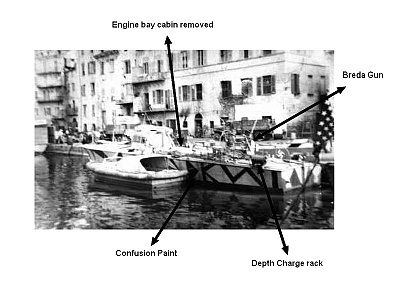

MAS 562, was captured by Germans 9/9/1943, transferred to RSI, was painted in disorientation camouflage, was captured by American PT' boats on June 30, 1944 and PT 306 towed the prize into Bastia. it was painted in disorientation camoflarge
It is one of the few to have survived the war and passed to the italian Guardia di Finanza in the 1950's. in 1940 there were 48 MAS 500-class units.
The plan shows the gun on a box platform not the case on the real boat.
Making this boat so small has been a bit of a challenge.
Running gear 2x Graupner 600 8.4v about 70watts each at rated voltage.
2x shafts 2x opposite turning propellers (2 or 3 bladed)
3 blades on real boat. 35-40 mm
2x ESC
1 or 2 Batteries

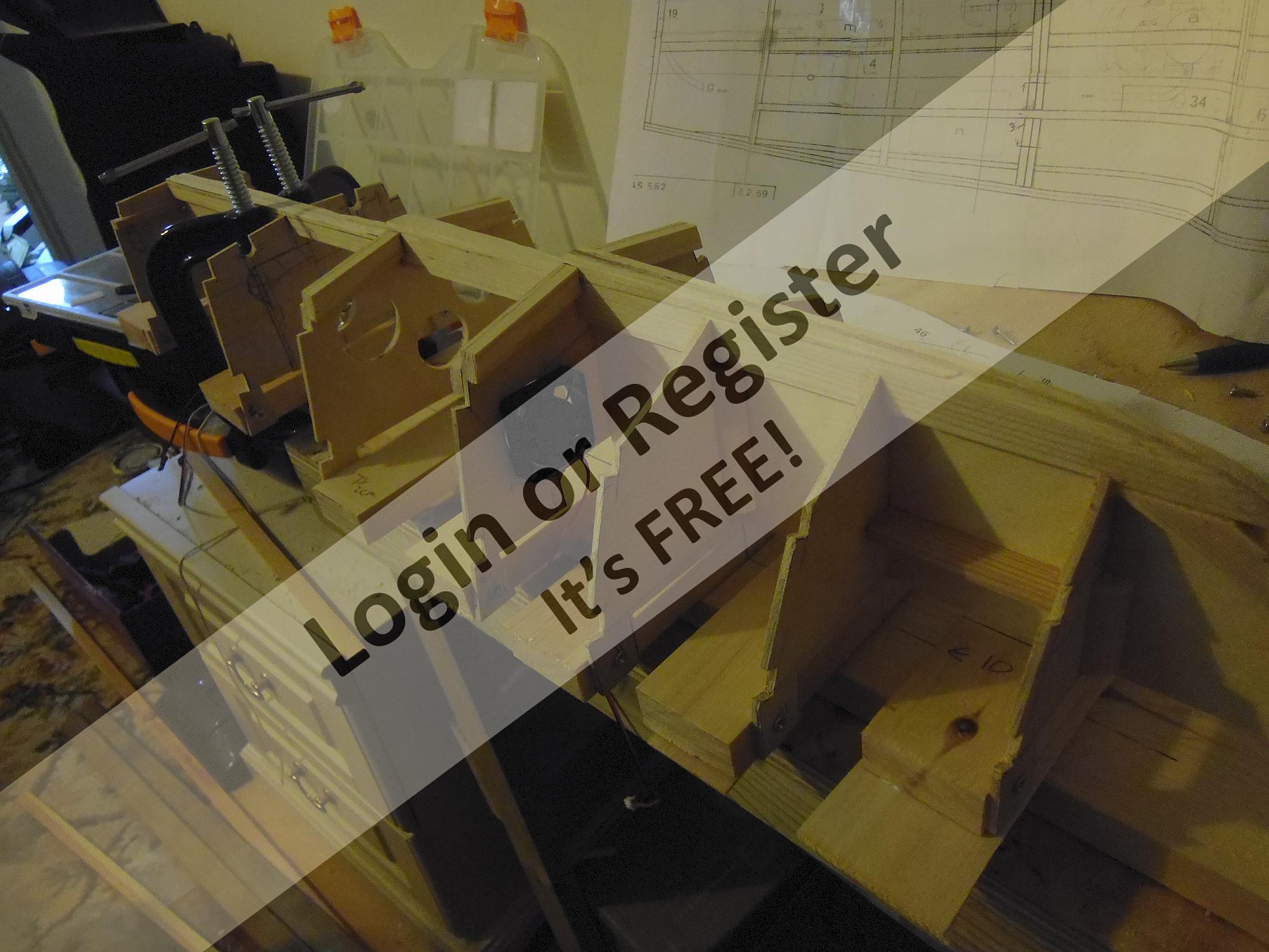

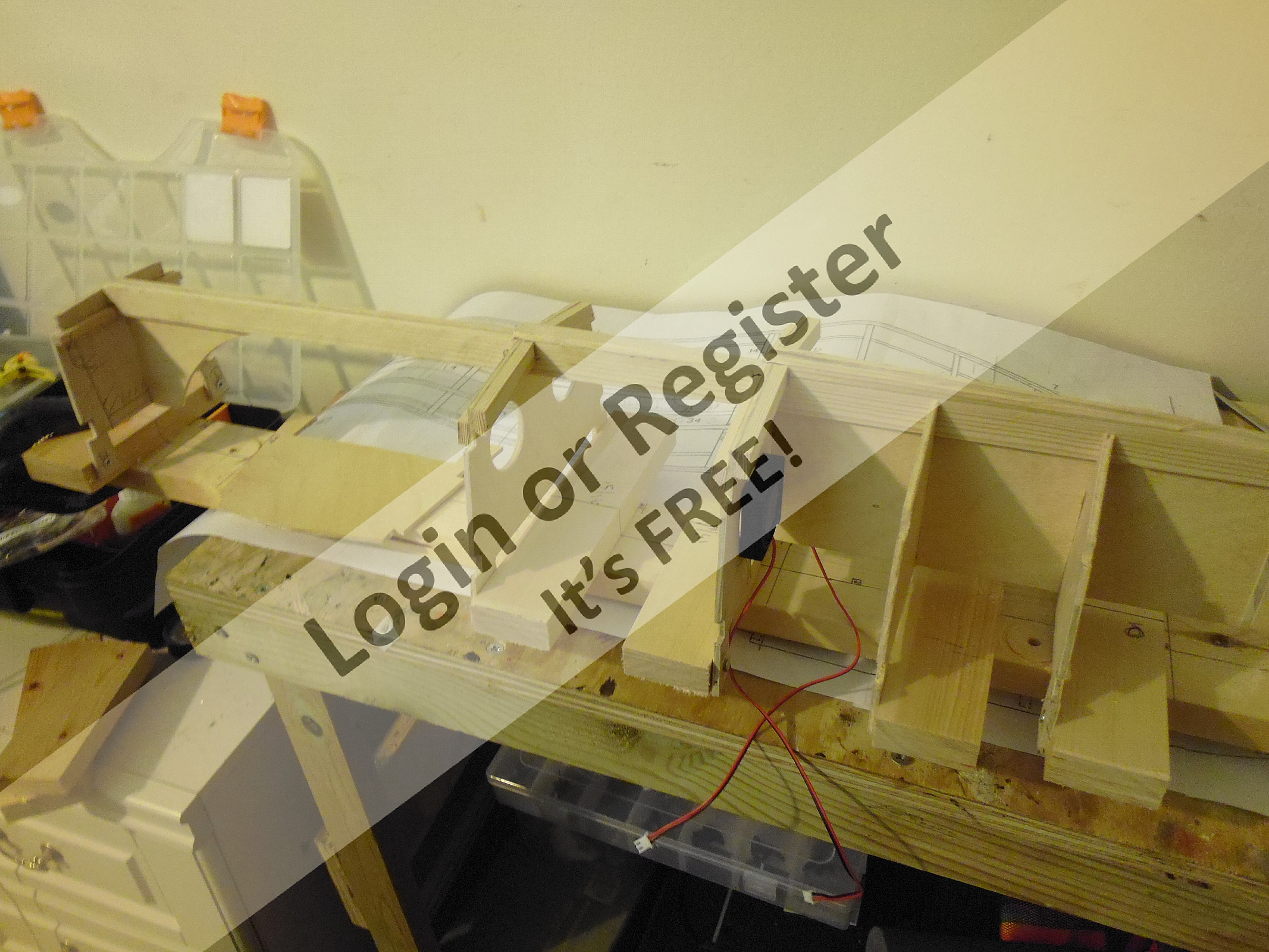

The Model after studying plans and photographs I could see a few things that I could add to the plans.
A cambered deck

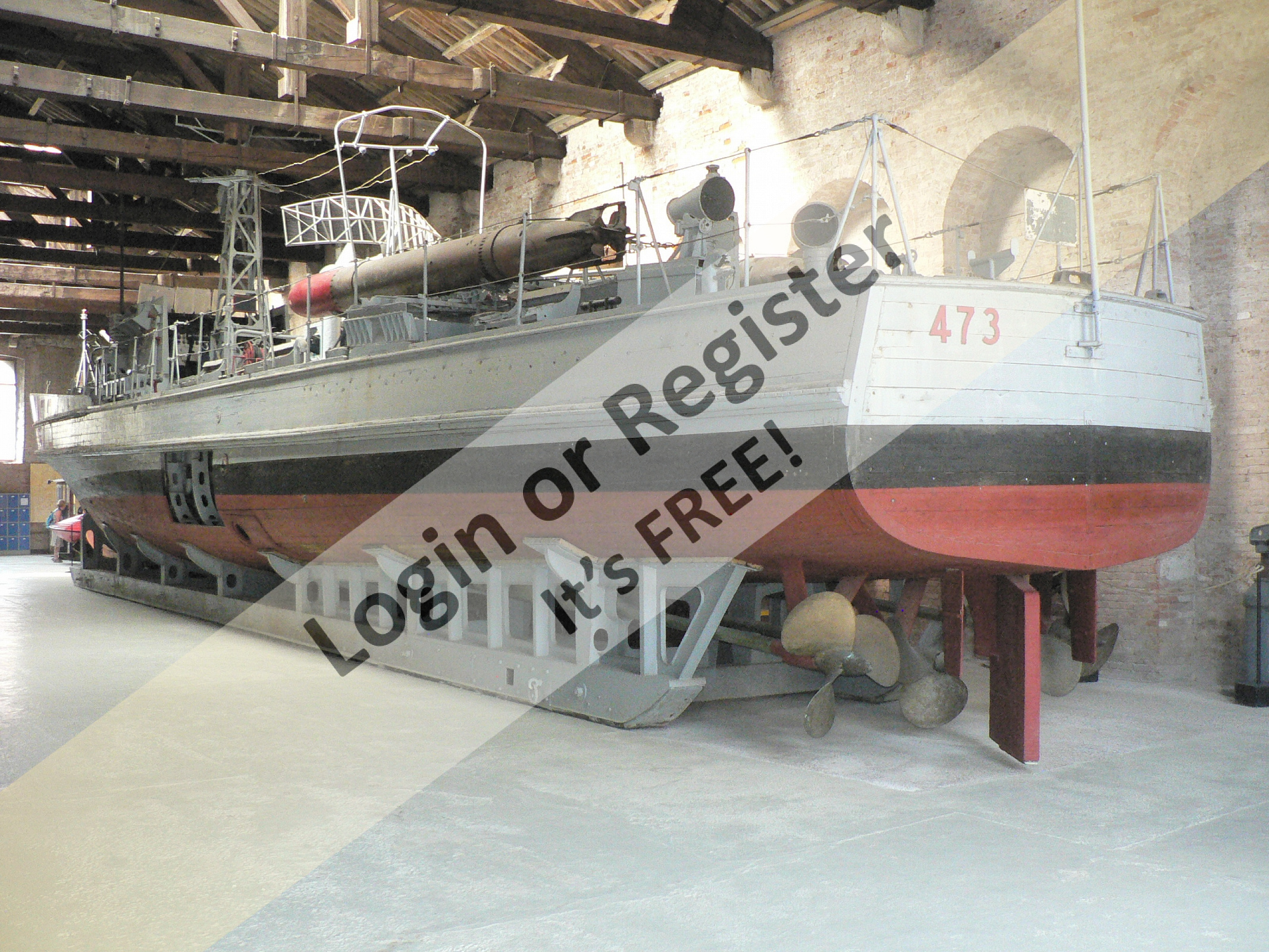

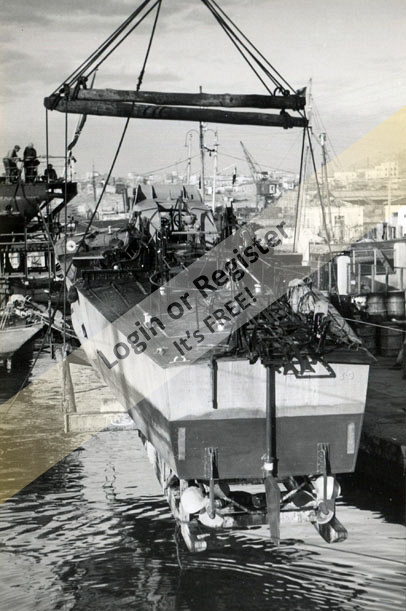

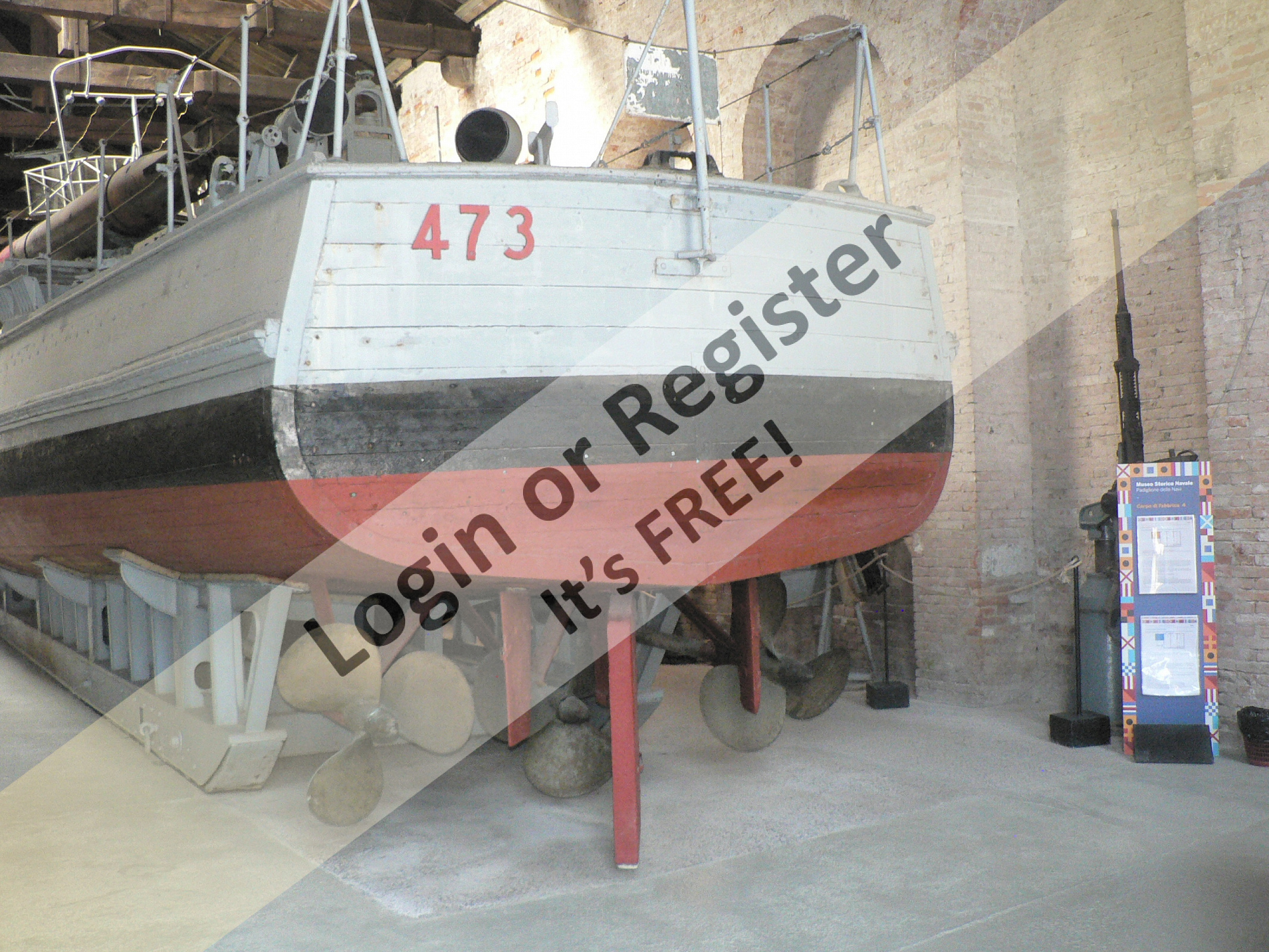

A revised transom shape (not square)

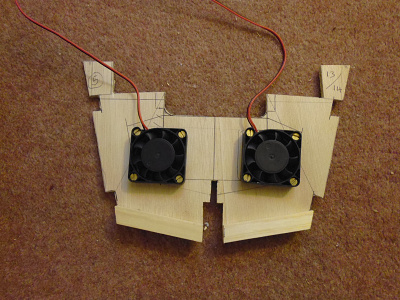

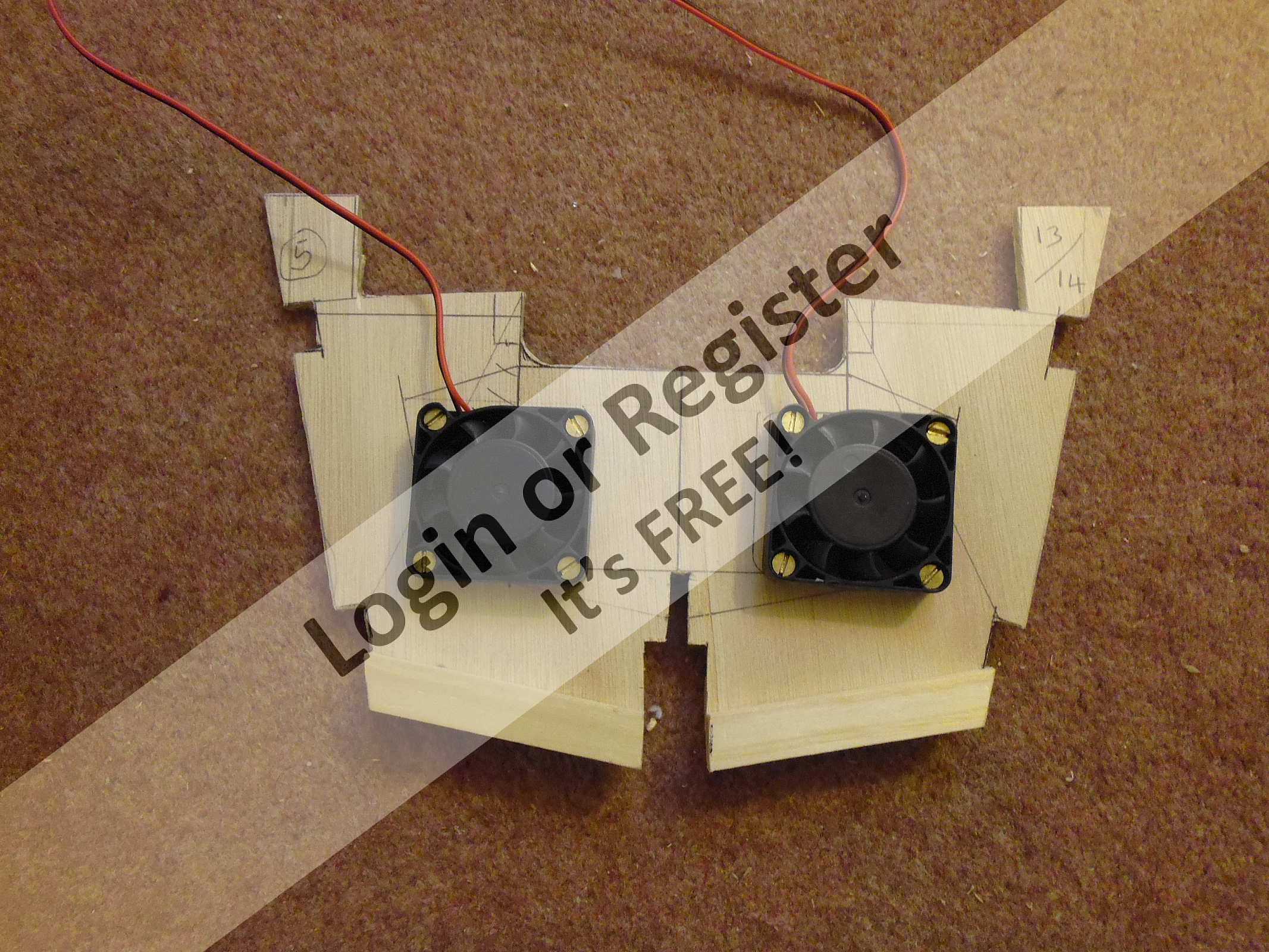

Two propshaft and two electric motors with air cooling.
A reduction in the number of frames /ribs as the boat I was going to make was only 29in (83cm) long.
the three main problems with the hull where :-
the new frame positions and
the thickness of the stringers the wood I used was too thick 12mm x 6mm for a small boat
Correct gun and position.

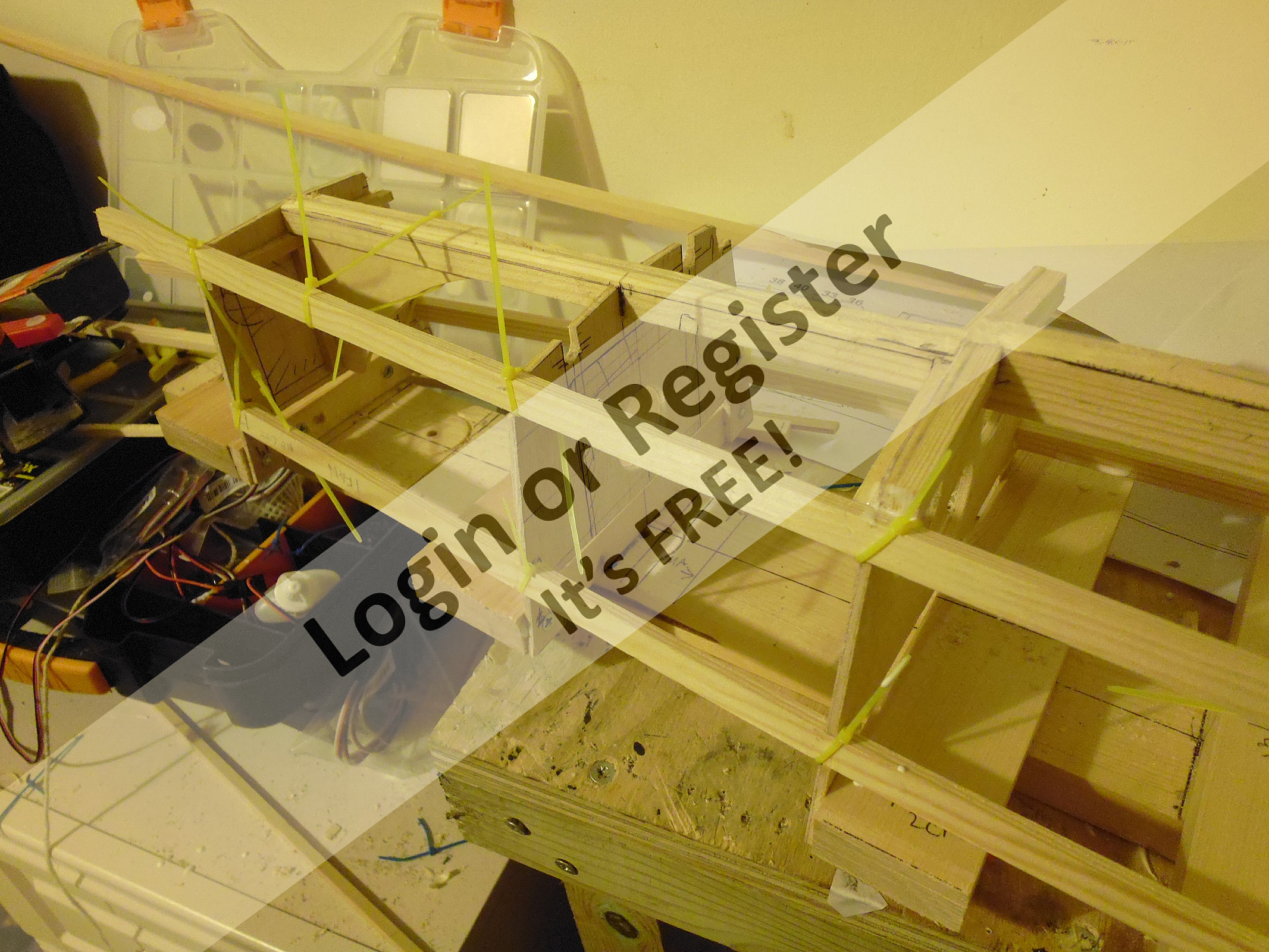

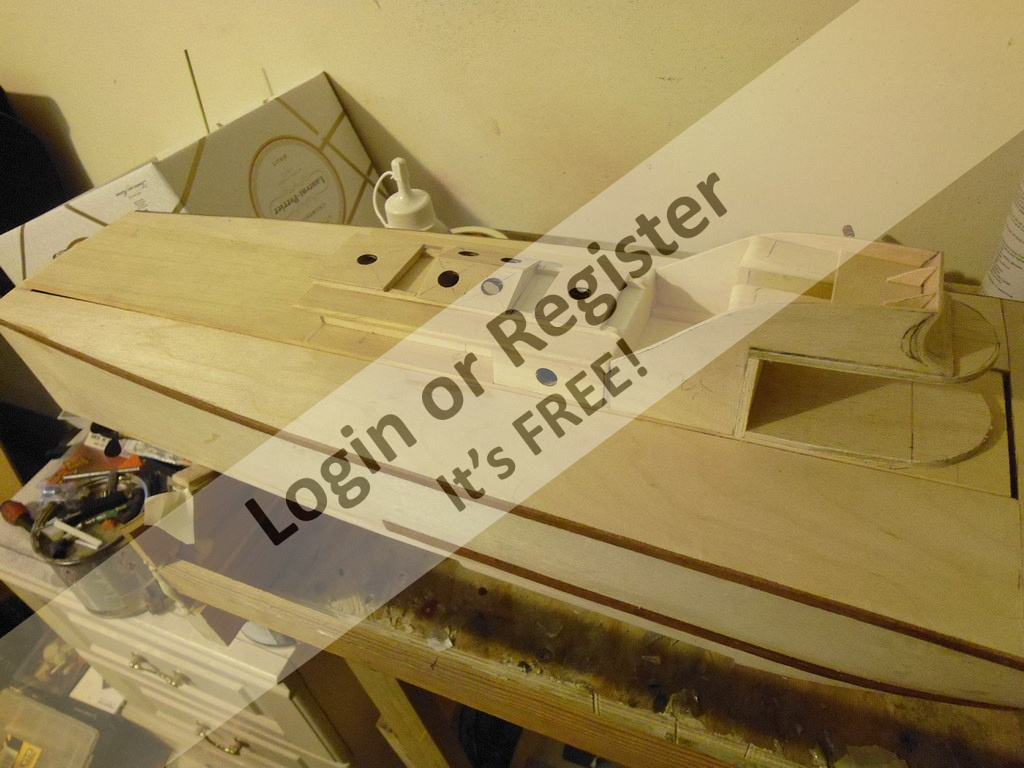

The Hull is now skinned I will upload some photos soon.
While Browsing the internet I came across a free plan dated 1969 if a italian Motor torpedo boat
I found the craft interesting as it had a stepped hull, and this looked like a challenge, so more research and historical digging.
Built in 1941 by Baglietto, Varazze: built of wood (mahogany).
Baglietto, Varazze: built MAS 561 through to MAS 570
MAS
Baglietto class 500, 4th series"
Displacement 27.8 tons
Displacement max 28 tons
Length 18.7m
Width 4.7m
Draught 1.5m
Propeller shafts 2
Machinery isotta Fraschini petrol engines and Alfa Romeo or Cararo cruising petrol engines
Power, h.p. 2000 or 2300 / 140 or 100
Max speed 43 to 46 knots
Fuel tank 1.5 tons
Endurance 350 nautical miles at 42 knots
Armament 1 x - 13.2/76 or 1 x - 20/65 Breda 1940,
2 x 450mm Torpedoes ,
6 - 10 x Depth charges
Crew complement 13 persons
MAS 562, was captured by Germans 9/9/1943, transferred to RSI, was painted in disorientation camouflage, was captured by American PT' boats on June 30, 1944 and PT 306 towed the prize into Bastia. it was painted in disorientation camoflarge
It is one of the few to have survived the war and passed to the italian Guardia di Finanza in the 1950's. in 1940 there were 48 MAS 500-class units.
The plan shows the gun on a box platform not the case on the real boat.
Making this boat so small has been a bit of a challenge.
Running gear 2x Graupner 600 8.4v about 70watts each at rated voltage.
2x shafts 2x opposite turning propellers (2 or 3 bladed)
3 blades on real boat. 35-40 mm
2x ESC
1 or 2 Batteries
The Model after studying plans and photographs I could see a few things that I could add to the plans.
A cambered deck
A revised transom shape (not square)
Two propshaft and two electric motors with air cooling.
A reduction in the number of frames /ribs as the boat I was going to make was only 29in (83cm) long.
the three main problems with the hull where :-
the new frame positions and
the thickness of the stringers the wood I used was too thick 12mm x 6mm for a small boat
Correct gun and position.
The Hull is now skinned I will upload some photos soon.
▲
⟩⟩
hermank
AlessandroSPQR
glioxima
reilly4
cenbeth
Colin H
figtree7nts
Donnieboy
|
💬 WWII Italian MAS 562
6 years ago by 🇬🇧 Elsrickle (
 Warrant Officer)✧ 42 Views · 2 Likes
Flag

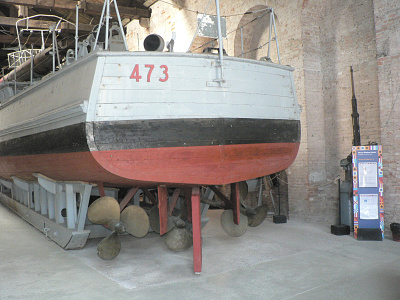

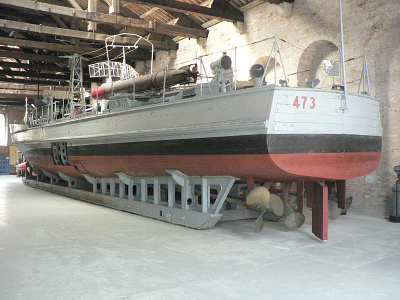

I would like to build MAS 473 any idea where I can get the plans with the curved stern an in photo
▲
⟩⟩
