    Another Orca Sarik Hobbies plans
    26 Posts ยท 10 Followers ยท 130 Photos ยท 190 Likes
    Began 1 year ago by
    Warrant Officer
    United Kingdom
    Follow This Thread
    Not currently following
    > Click to follow
    Latest Post 4 months ago by
    Warrant Officer
    United Kingdom
    Most recent posts shown first   (Show Oldest First) (Print Booklet)
    ๐Ÿ“ Part 26 Bit of Colour
    4 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง quattroo ( Warrant Officer)
    โœง 26 Views ยท 10 Likes
    Flag
    ๐Ÿ’ฌ Add Comment
    so now most of the main parts are completed i decided to paint the main colours and also dirty it up a touch
    so colour is Seasick Green apparently well i ordered some and eeerrrr it was almost i luminous so took it all off again and went with ivory white then a dirty green was effect before using satin coat over the top
    probably not correct but hey look for yourself i dont think it turned out half bad also to note door now attached and working
    still miles and miles to go but getting there slowly

    Login To
    Remove Ads

    ๐Ÿ“ Part 25 Bow Pulpit
    4 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง quattroo ( Warrant Officer)
    โœง 26 Views ยท 5 Likes
    Flag
    ๐Ÿ’ฌ Add Comment
    Here is where i have made the Bow pulpit from brass wire and a small bit of brass sheet to hold the uprights in place lots of pictures viewed here to get this as best i could i then cut a piece of ply and heat grooved some planks to give the effect this was then stained dark and resined over and finally satin coated then work out how to attached it all to the hull overall went really well to it could be removed later if ness i did this with just a couple of black screws

    ๐Ÿ“ part 24 mast
    6 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง quattroo ( Warrant Officer)
    โœง 52 Views ยท 13 Likes ยท 1 Comment
    Flag
    ๐Ÿ’ฌ Add Comment
    i have now painted it and smoothed off in prime grey and refitted looks a lot better now โ›ต

    ๐Ÿ’ฌ Re: part 24 mast
    5 months ago by ๐Ÿ‡บ๐Ÿ‡ธ Isaac ( Lieutenant)
    โœง 42 Views ยท 2 Likes
    Flag
    Good step. Looking forward to the final painting


    Isaac
    ๐Ÿ“ Part 23 Mast
    6 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง quattroo ( Warrant Officer)
    โœง 63 Views ยท 11 Likes ยท 4 Comments
    Flag
    ๐Ÿ’ฌ Add Comment

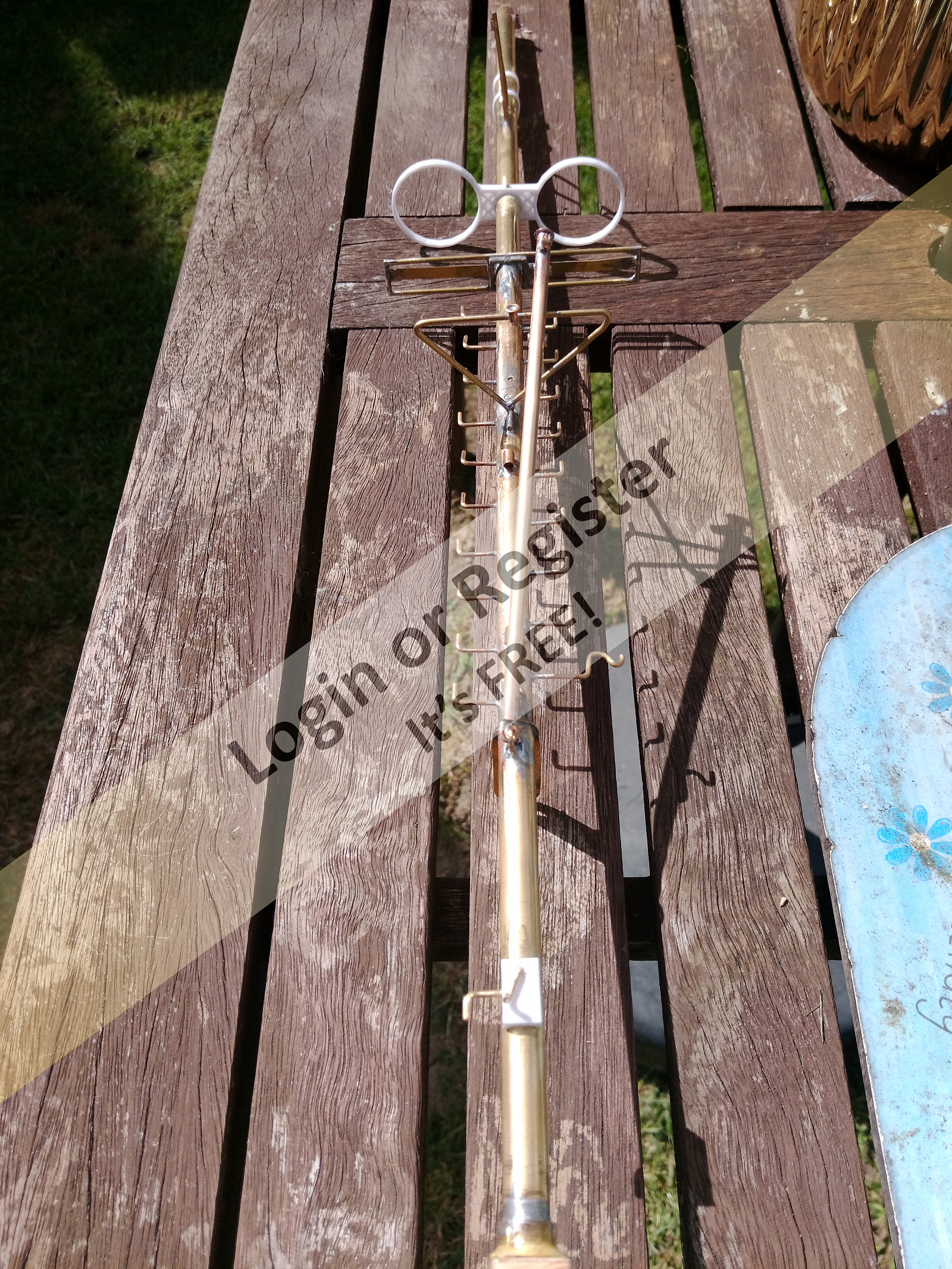

    Here is were i went a bit creative adding features to the mast and going off the film boat the top marker lights and the support rings and the winder mechanism i 3d printed everything else is brass wire and tube 6mm for the rear boom with some odd scraps added holes are drilled ready to take wiring , next will be to smooth down all solder and prime .๐Ÿ‘

    ๐Ÿ’ฌ Re: Part 23 Mast
    6 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง quattroo ( Warrant Officer)
    โœง 52 Views ยท 5 Likes
    Flag
    to be fair after all that brass it isn't that heavy and with previous testing its going to need a lot of lead in the hull to get it to sit correctly once finished
    Login To
    Remove Ads

    ๐Ÿ’ฌ Re: Part 23 Mast
    6 months ago by ๐Ÿ‡ฎ๐Ÿ‡น AlessandroSPQR ( Vice Admiral)
    โœง 62 Views ยท 4 Likes
    Flag
    Hi Quattroo, I really like your work.

    Aren't you afraid that a brass mast could raise the boat's center of gravity too much and reduce transverse stability?
    ๐Ÿ’ฌ Re: Part 23 Mast
    6 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง flaxbybuck ( Captain)
    โœง 59 Views ยท 5 Likes
    Flag
    I really like your adventurous spirit. I bet you had a lot of fun doing these details. ๐Ÿ˜‰
    ๐Ÿ’ฌ Re: Part 23 Mast
    6 months ago by ๐Ÿ‡บ๐Ÿ‡ธ Hhager2 ( Sub-Lieutenant)
    โœง 65 Views ยท 5 Likes
    Flag
    In an interview heard the orca actors were sea sick on every boat shot. The captainโ€™s great rage scene he was really bad that day n in pain. He did the scene n threw up at the end. You might add seasick bucket on the bridge
    ๐Ÿ“ Part 22 Mast
    6 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง quattroo ( Warrant Officer)
    โœง 63 Views ยท 6 Likes
    Flag
    ๐Ÿ’ฌ Add Comment
    Now for the moment of truth lets fit it to the superstructure and floor as seen in the three pictures it has gone on quite well and is removable
    to note the wooden block base also has a 10 mm hole through it this is so i can run any electrics i want down the main mast tube and out the bottom for connection for marker lights and the rear lamp

    ๐Ÿ“ Part 21 Mast
    6 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง quattroo ( Warrant Officer)
    โœง 63 Views ยท 7 Likes
    Flag
    ๐Ÿ’ฌ Add Comment

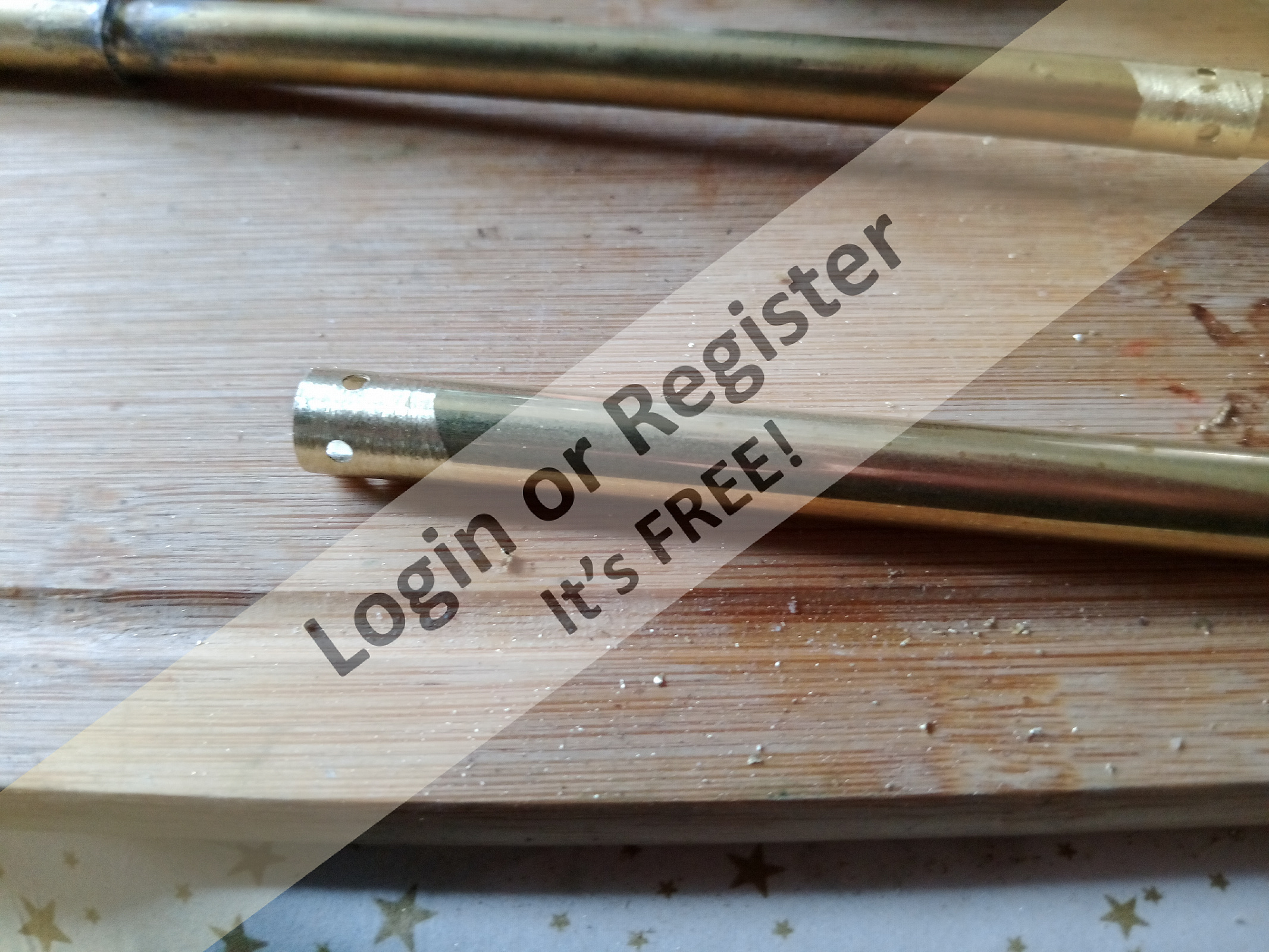

    the next thing was to get the mast to the correct length so just soldering it would not do because a soon as you knock it it'll break so what i did was drill holes in both ends of the joining parts rolled a bit of brass sheet inside slid on the other end of the mast and coated the inside and out with flux blow torch and some solder and let it flow through the holes and around the join and hey hey one piece Pic 1 shows the hols and the rolled sheet pic 2 shows the other tube with the holes ready for fitment pic 3 ready for flux pic 4 joined pic 5 full length.

    ๐Ÿ“ Part 20 Mast
    6 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง quattroo ( Warrant Officer)
    โœง 63 Views ยท 5 Likes
    Flag
    ๐Ÿ’ฌ Add Comment
    So i have ordered a load of brass tube and assorted wire and bits and bobs there is a plan for the mast on the Sarik plans but i have not followed them instead i have just gone off photos of the film boat not exactly to scale but i think it works firstly like everything else i've done for far i wanted to be able to take this off for repairs and cleaning in the future so a bit of thinking i came up with this idea 10mm brass tube i could only seem to get this in 300mm lengths so a bit of joining would be Req . PIC 1 i have attached the tube to a brass mast base and attached that to a wooden block which i have put two bolts to screw this to the floor pic 2 you can see i have attached a brass plate this sits neatly on the cabin roof again with a bolt through it ๐Ÿ‘

    ๐Ÿ“ Part 19
    6 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง quattroo ( Warrant Officer)
    โœง 63 Views ยท 7 Likes
    Flag
    ๐Ÿ’ฌ Add Comment
    well after a we bit of mental block time i have got back to the Sarik Orca not a lot has gone on with the main Hull and Super structure apart from it now being smoothed off and primed all in Grey come on i hear you say get the feck on with it ๐Ÿ˜‚๐Ÿคฃ

    ๐Ÿ“ Part 18 marker lights and control panel
    1 year ago by ๐Ÿ‡ฌ๐Ÿ‡ง quattroo ( Warrant Officer)
    โœง 80 Views ยท 8 Likes ยท 1 Comment
    Flag
    ๐Ÿ’ฌ Add Comment

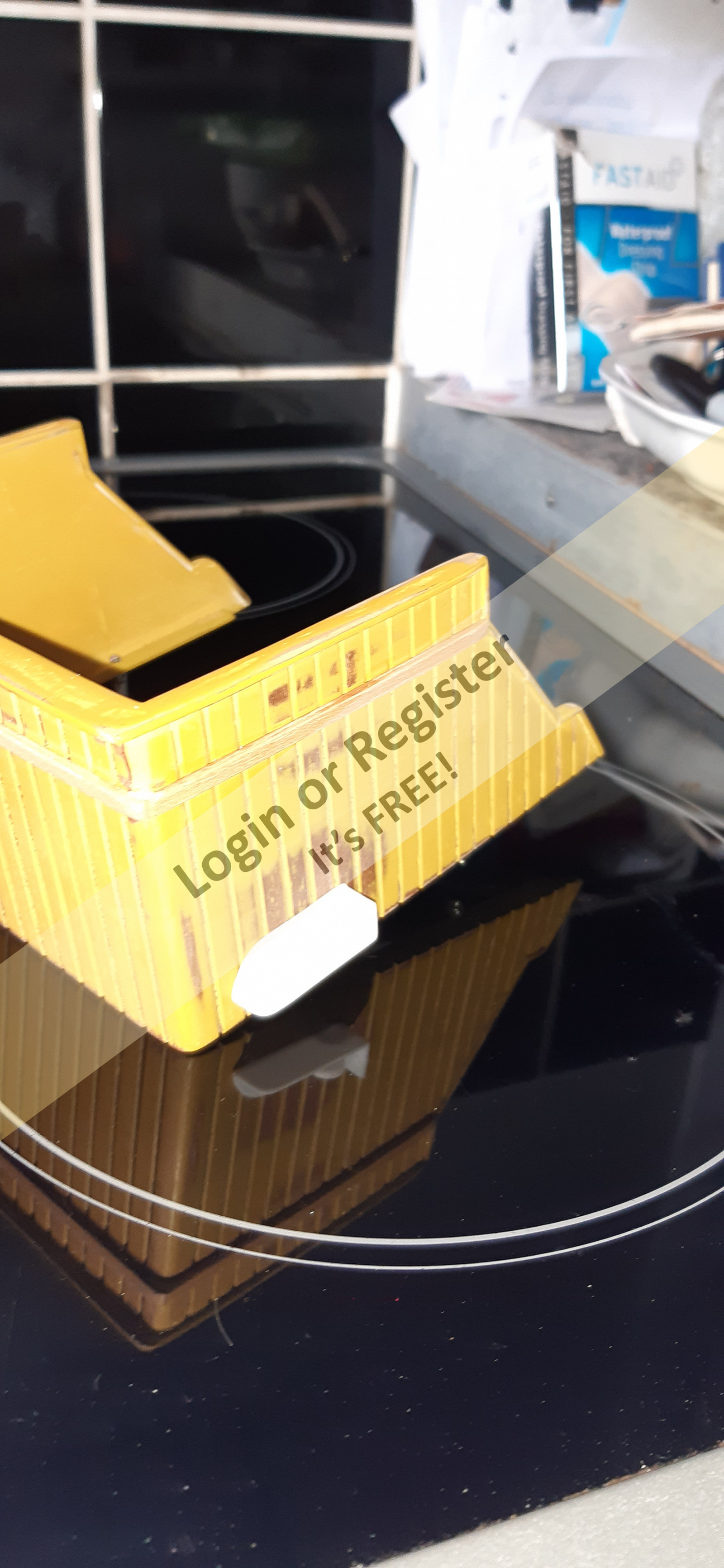

    so i am lucky enough to have a 3d printer so i thought lets get it involved with the build so first addition is the marker lights and blinkers easy enough as seen in the pics it will be lit so holes drilled into the fly bridge sides to let the bulbs in also and with the film version there is a metal tube running from the fly-bridge through the roof down to the internal controls so ive simulated this with a printed tube and then drilled a hole in the cabin roof the idea here is so any electrical s up here ie marker lights and the control panel and the spot light wires can all be hidden and routed through here which will come out at the bottom of the cabin๐Ÿ‘or thats the plan a
    .. i have also measured up and printed a control panel and shelving for the fly-bridge as you can see it incorporates skirting so you wont see were the marker light wires will run

    ๐Ÿ’ฌ Re: Part 18 marker lights and control panel
    1 year ago by ๐Ÿ‡ฌ๐Ÿ‡ง Doogle ( Rear Admiral)
    โœง 82 Views ยท 4 Likes
    Flag
    Very nicely done, looking forward to seeing her finished. My Orca is presently awaiting a refit in the "shipyard "after some electrical issues and a near fire ๐Ÿ”ฅ ๐Ÿ˜œ
    ๐Ÿ“ part 17 flying bridge
    1 year ago by ๐Ÿ‡ฌ๐Ÿ‡ง quattroo ( Warrant Officer)
    โœง 92 Views ยท 13 Likes ยท 1 Comment
    Flag
    ๐Ÿ’ฌ Add Comment
    i have now started to construct the flying bridge basic ply construction the a bit of mahogany planking on the outside with some trimming i will on the next part install the marker light carriers and control column and shelf at the front the idea was to install this permanent to the super structure roof but i have decided to bolt it down so i can remove later if ever needed๐Ÿ‘

    ๐Ÿ’ฌ Re: part 17 flying bridge
    1 year ago by ๐Ÿ‡ฌ๐Ÿ‡ง Doogle ( Rear Admiral)
    โœง 89 Views ยท 2 Likes
    Flag
    She's coming along nicely ๐Ÿ‘Œ
