36 ft Northern Bay sport fisherman
11 Posts · 5 Followers · 29 Photos · 73 Likes
Began 3 months ago by
United StatesFollow This Thread
Not currently following
> Click to follow
> Click to follow
Latest Post 3 days ago by
| Most recent posts shown first (Show Oldest First) | (Print Booklet) |
📝 “Housekeeping” continues
3 days ago by 🇺🇸 Chum444 (
Commodore)
Commodore)✧ 16 Views · 3 Likes
Flag
💬 Add Comment
The pieces are beginning to come together.

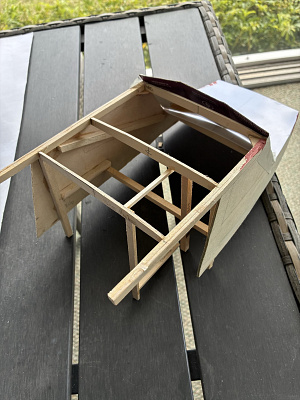

1. Second windscreen construction after badly messing up the first attempt.
2. Some final fitting required & then on to the windows.
3.The framing for the house bulkheads worked out as intended.
4. Look closely & you can see a lift strake was added (P&S) at the turn of the bilge.The 1:1 has a longer strake inboard of the bilge strakes. I’ll probably add those also. The hull now gets out of the hole which before the addition of the strakes & a reduction of ballast weight in the bow it could not do.
1. Second windscreen construction after badly messing up the first attempt.
2. Some final fitting required & then on to the windows.
3.The framing for the house bulkheads worked out as intended.
4. Look closely & you can see a lift strake was added (P&S) at the turn of the bilge.The 1:1 has a longer strake inboard of the bilge strakes. I’ll probably add those also. The hull now gets out of the hole which before the addition of the strakes & a reduction of ballast weight in the bow it could not do.
▲
⟩⟩
hermank
EdW
jumpugly
Login To
Remove Ads
Remove Ads
📝 House assembly framing
14 days ago by 🇺🇸 Chum444 ( Commodore)
Commodore)✧ 29 Views · 6 Likes
Flag
💬 Add Comment

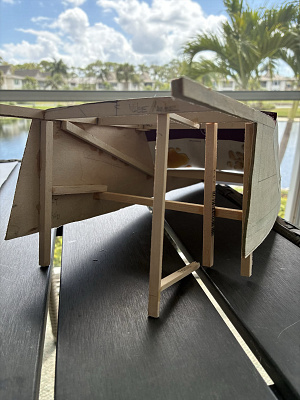

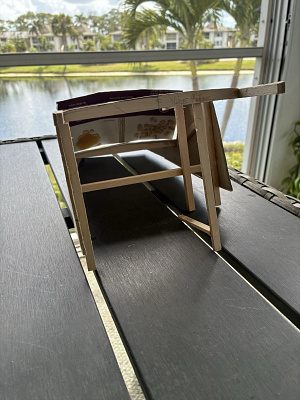

After several days of contemplation I derived a method to frame the house assembly for the bulkheads. Very rigid yet allows above deck structure to be easily removed for access.
▲
⟩⟩
LeeA
Steve P
hermank
jumpugly
chugalone100
pressonreguardless
📝 Housework
21 days ago by 🇺🇸 Chum444 ( Commodore)
Commodore)✧ 31 Views · 5 Likes
Flag
💬 Add Comment

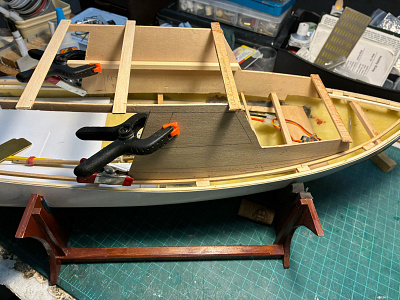

Starting to construct & install wheelhouse/trunk cabin. In second photo you can see the difference between the Stbd & port wheelhouse lengths. Third photo shows the coaming; fourth shows falseworks in place to pull house sides into position so roof beams can be placed.
▲
⟩⟩
EdW
jumpugly
pressonreguardless
hermank
chugalone100
📝 Southern Florida boatyard hull 2
1 month ago by 🇺🇸 Chum444 ( Commodore)
Commodore)✧ 36 Views · 4 Likes
Flag
💬 Add Comment

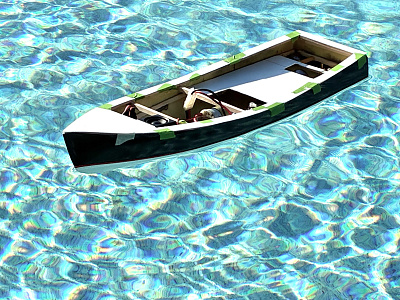

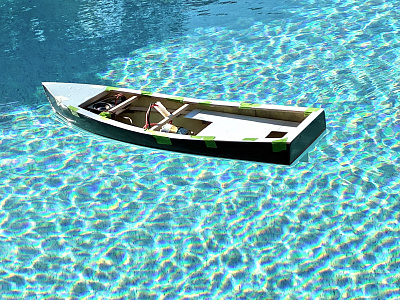

The yard has become busy! The second hull, the 36 ft Northern Bay splashed today.
- deck & gunnels (1/16 in styrene) dry fit
- with battery fwd a few oz ballast required aft
- no leaks
- unlike the Wasque 26 this one is very fast
- twitchy steering needs exponential adjustment
- deck & gunnels (1/16 in styrene) dry fit
- with battery fwd a few oz ballast required aft
- no leaks
- unlike the Wasque 26 this one is very fast
- twitchy steering needs exponential adjustment
▲
⟩⟩
pressonreguardless
ChrisF
chugalone100
hermank
📝 Last gasp before maiden splash in warm weather
2 months ago by 🇺🇸 Chum444 ( Commodore)
Commodore)✧ 54 Views · 8 Likes
Flag
💬 Add Comment
A few more things done before we head to the warm weather.
1. Into the ballast test tank the other day. No leaks & initial ballast set. 16.5 oz in the stern. With 12 os NIMH an additional 9os of lead ballast. Right now float weight about 4 lbs. Might be a bit light.
2. Gloss black hull, white anti foul paint on bottom & red boot top.

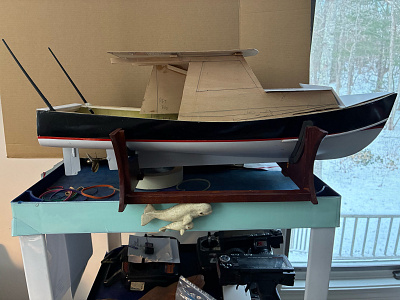

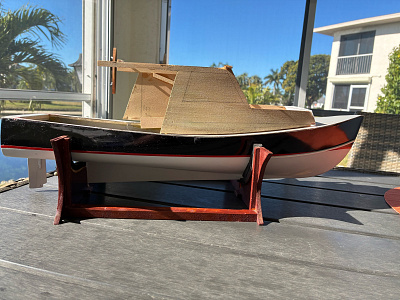

3. Profile view.
1. Into the ballast test tank the other day. No leaks & initial ballast set. 16.5 oz in the stern. With 12 os NIMH an additional 9os of lead ballast. Right now float weight about 4 lbs. Might be a bit light.
2. Gloss black hull, white anti foul paint on bottom & red boot top.
3. Profile view.
▲
⟩⟩
pressonreguardless
chugalone100
EdW
AlessandroSPQR
hermank
LeeA
Ronald
jumpugly
📝 Gaining strength & shape
2 months ago by 🇺🇸 Chum444 ( Commodore)
Commodore)✧ 63 Views · 9 Likes
Flag
💬 Add Comment
Building the structural elements. One of my favorite parts.

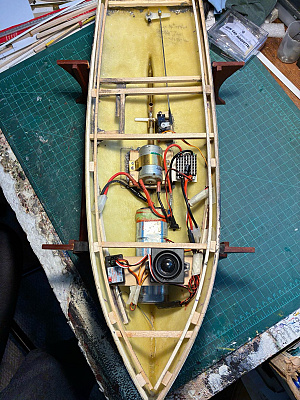

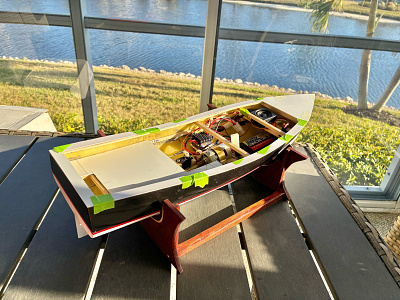

1. Framing for the cockpit sole. Running gear in
place.

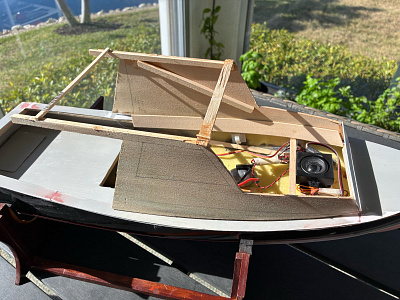

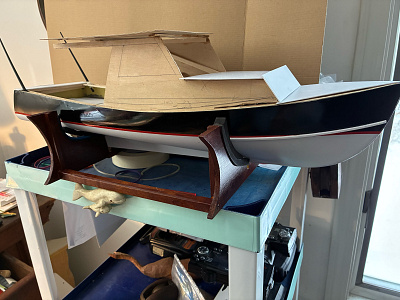

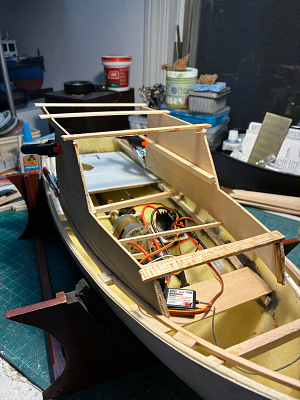

2. False works balsa strips to temporarily form
house.

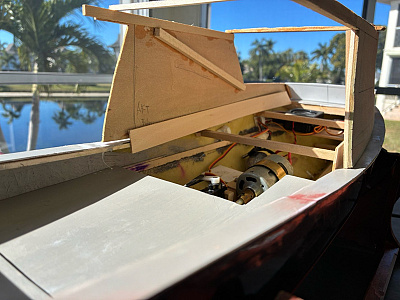

3. Another view. Allows me to determine rough
size of other components; windscreen, etc.
1. Framing for the cockpit sole. Running gear in
place.
2. False works balsa strips to temporarily form
house.
3. Another view. Allows me to determine rough
size of other components; windscreen, etc.
▲
⟩⟩
chugalone100
premecekcz
LeeA
AlessandroSPQR
hermank
EdW
jumpugly
ChrisF
Hhager2
📝 Shooting blanks
3 months ago by 🇺🇸 Chum444 ( Commodore)
Commodore)✧ 66 Views · 10 Likes
Flag
💬 Add Comment
Piecing things together in a temporary way.

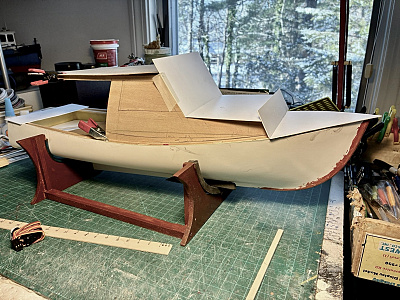

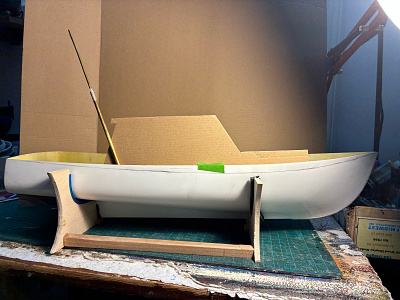

1 & 2 Making up blank pieces for final finishing &
placement while in Florida.
3 Shear clamps in place. All part of deciding
where to set running gear & what parts to
make removable for access.
1 & 2 Making up blank pieces for final finishing &
placement while in Florida.
3 Shear clamps in place. All part of deciding
where to set running gear & what parts to
make removable for access.
▲
⟩⟩
chugalone100
premecekcz
LeeA
AlessandroSPQR
Hhager2
Mike W
SimonB2
hermank
jumpugly
EdW
📝 Alum solder
3 months ago by 🇺🇸 Chum444 ( Commodore)
Commodore)✧ 74 Views · 2 Likes
Flag
💬 Add Comment
Thank you HS. I was not aware of that. It would certainly simplify construction.👍
▲
⟩⟩
hermank
AlessandroSPQR
📝 Massing study

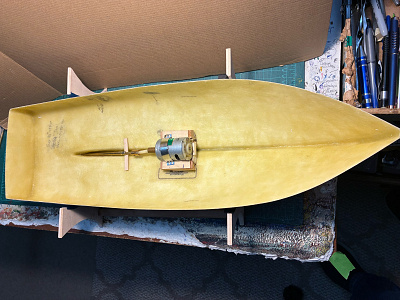

3 months ago by 🇺🇸 Chum444 ( Commodore)
Commodore)✧ 79 Views · 7 Likes
Flag
💬 Add Comment

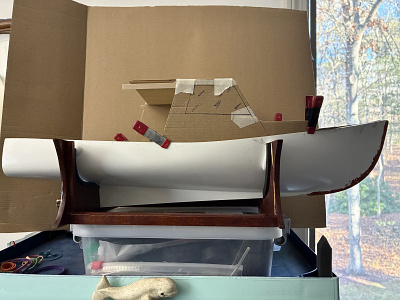

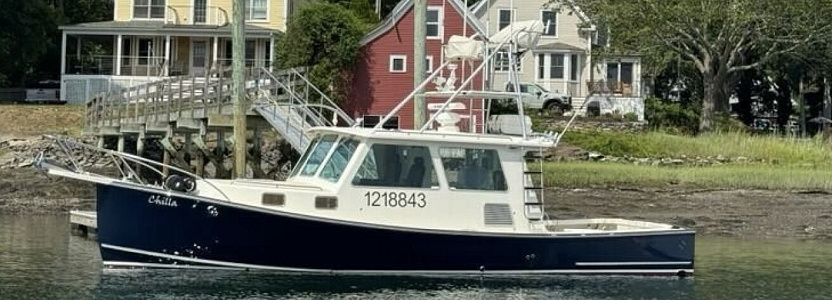

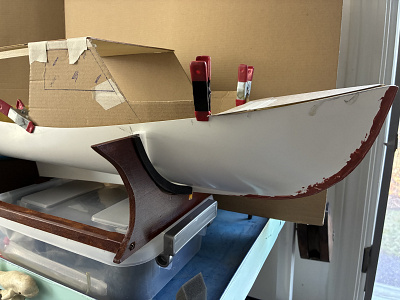

Since the hull I use is not an exact match of the hull of the 1:1 I typically end up with a non-standard scale rather than 1/12, 1/24, etc. My builds therefore involve a lot of TLAR. So I typically like to do a massing study to determine if the odd scale components I’m working with Looks About Right & are in the right position.
If you look really close you can see I’ve modified the shear line.
If you look really close you can see I’ve modified the shear line.
▲
⟩⟩
jbkiwi
Mike W
AlessandroSPQR
chugalone100
jumpugly
hermank
RodC
📝 Tower
3 months ago by 🇺🇸 Chum444 ( Commodore)
Commodore)✧ 103 Views · 5 Likes · 2 Comments
Flag
💬 Add Comment

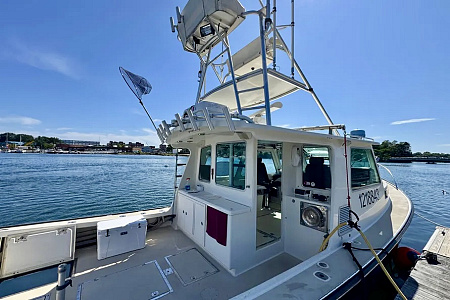

The half tower will be among the challenges. It will be aluminum tubing to keep everything above the gunnels as light as is structurally possible. Aluminum tubing means no soldering so have to think about how to connect the pieces.
▲
⟩⟩
AlessandroSPQR
RodC
hermank
Cashrc
LeeA
|
💬 Re: Tower
3 months ago by 🇺🇸 Hsailer (
 Leading Seaman)✧ 74 Views · 2 Likes
Flag
There is solder and flux for aluminium. It has a low temperature melting point. It can be obtained in small quantities. It is frequently used to connect the wires inside stereo headphones.
Good Luck ▲
⟩⟩
hermank
Chum444
|
|
💬 Re: Tower
3 months ago by 🇺🇸 Cashrc (
 Fleet Admiral)✧ 100 Views · 3 Likes
Flag
Hi Bill…maybe drill, pin and epoxy or CA? Or maybe a thin wall brass tubing if you can find it in the right size. Plastic rod might work as well, or a combo of different materials.
Cash ▲
⟩⟩
RodC
hermank
Chum444
|
