Hi Eric,
Even the best “stuffing box” will be defeated by a leak in the hull 🤣
…but I am pleased that you have found the cause of the leak…..and that you now seal the prop and rudder shafts to prevent any water ingress - always the best policy.
Bob.
Even the best “stuffing box” will be defeated by a leak in the hull 🤣
…but I am pleased that you have found the cause of the leak…..and that you now seal the prop and rudder shafts to prevent any water ingress - always the best policy.
So.. fellow sailors and builders, I’m extremely grateful for all your input and I’m really pleased it’s been helpful to others too, a great discussion! I have a confession however.. after all that, it turns out that there was a crack in the hull of the tug!! I can’t flippin believe it. I followed the advice re the nylon washers with the grub-screw collar and got the propshaft all greased up, then tightened everything up, I even greased the rudder post just in case.. did a bath test - and water started coming in straight away! I checked round underneath and immediately saw the crack 😳 it’s now sealed up and waiting for the sealant to dry before testing again. Will report back concerning the prop shaft but I’m pretty sure it’s watertight 😜😜 Thankd again, Eric
So.. fellow sailors and builders, I’m extremely grateful for all your input and I’m really pleased it’s been helpful to others too, a great discussion! I have a confession however.. after all that, it turns out that there was a crack in the hull of the tug!! I can’t flippin believe it. I followed the advice re the nylon washers with the grub-screw collar and got the propshaft all greased up, then tightened everything up, I even greased the rudder post just in case.. did a bath test - and water started coming in straight away! I checked round underneath and immediately saw the crack 😳 it’s now sealed up and waiting for the sealant to dry before testing again. Will report back concerning the prop shaft but I’m pretty sure it’s watertight 😜😜 Thankd again, Eric
Thanks, Toradog, for explaining this to me.
I think I'm exaggerating with the precautions; even less precautions are enough to keep water out.
I know I'm asking a lot, but if you'd like, feel free to do so. Do you have photos detailing how you built yours?
Please only post them if you have them. Don't go crazy looking for them. You've already been too patient.
Thanks, Toradog, for explaining this to me.
I think I'm exaggerating with the precautions; even less precautions are enough to keep water out.
I know I'm asking a lot, but if you'd like, feel free to do so. Do you have photos detailing how you built yours?
Please only post them if you have them. Don't go crazy looking for them. You've already been too patient.
Alesandro,
To be honest with you, I would only use a cup seal or an o-ring seal if the model's stuffing box were really deep. Maybe 6 inches or so. All other time, I simply use grease in the stuffing box and a nylon washer on the inboard end of the stuffing box, held in place with a wheel collar.
KISS principal.😊
Alesandro,
To be honest with you, I would only use a cup seal or an o-ring seal if the model's stuffing box were really deep. Maybe 6 inches or so. All other time, I simply use grease in the stuffing box and a nylon washer on the inboard end of the stuffing box, held in place with a wheel collar.
KISS principal.😊
Thanks, Toradog, for your replies.
You write: "
In your drawing of the shaft seal, if you were to mount an O-ring between two of the bearings, your water leakage would be zero."
But in reality, I don't have any leaks.
Furthermore, I would never disassemble the propeller shaft because, even if possible, it's too complex. I wouldn't do it even for small leaks.
Luckily, not even a drop gets in.
However, if I wanted to build another system myself, would you recommend I also install the O-ring? Where exactly?
I ask because I can never be too careful, but perhaps I'm exaggerating.
You say to place it between the two bearings, but which ones exactly, since there are three.
Wouldn't it be better to place it (where possible) between the last bearing and the plastic cap?
This protects the bearing furthest aft.
You write: "
In your drawing of the shaft seal, if you were to mount an O-ring between two of the bearings, your water leakage would be zero."
But in reality, I don't have any leaks.
Furthermore, I would never disassemble the propeller shaft because, even if possible, it's too complex. I wouldn't do it even for small leaks.
Luckily, not even a drop gets in.
However, if I wanted to build another system myself, would you recommend I also install the O-ring? Where exactly?
I ask because I can never be too careful, but perhaps I'm exaggerating.
You say to place it between the two bearings, but which ones exactly, since there are three.
Wouldn't it be better to place it (where possible) between the last bearing and the plastic cap?
This protects the bearing furthest aft.
Alessandro,
Here a a couple of links:
You should be able to find comparable items on your side of the Pond.
https://www.mcmaster.com/products/u-cup-seals/
https://www.dubro.com/products/nickel-plated-dura-collars
The Thrust bearing is nothing more that a nylon washer that runs between the wheel collar and the end of the stuffing box. The wheel collar simply holds the washer against the stuffing box, but without excessive drag.
cheers
The Thrust bearing is nothing more that a nylon washer that runs between the wheel collar and the end of the stuffing box. The wheel collar simply holds the washer against the stuffing box, but without excessive drag.
cheers
I'm posting this message with a significant delay due to translation.
The different perspectives you two, ToraDog and GrantH, have had are very interesting to me.
I find ToraDog's advice very useful and GrantH's observations very stimulating.
Actually, I'll add a side note: ToraDog, could you give me some specific commercial advice (even direct links if you'd like) on the sealing systems, such as the thrust bearings, you mentioned?
I'm asking because so far I've used homemade methods that have worked, but I'd like to have other ready-made alternatives. I'd also like to be sure we're talking about the same thing.
Returning to the substance of your discussion, I have to say that in the past I've encountered a major problem with the method recommended by Grant.

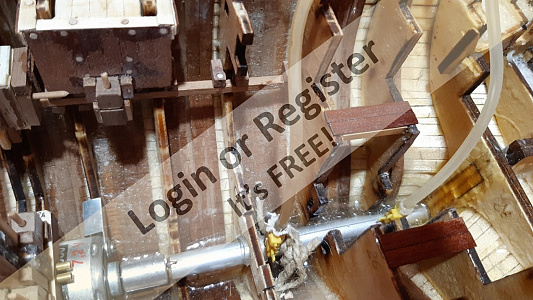

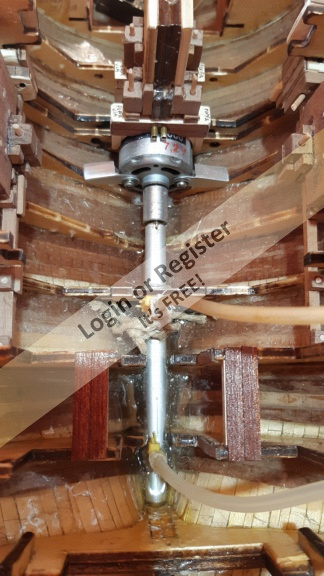

One of my first approaches to building the propeller shaft drive was precisely the one Grant suggested.
Today I would have simply bought a ready-made propeller shaft online, but back then I racked my brains.

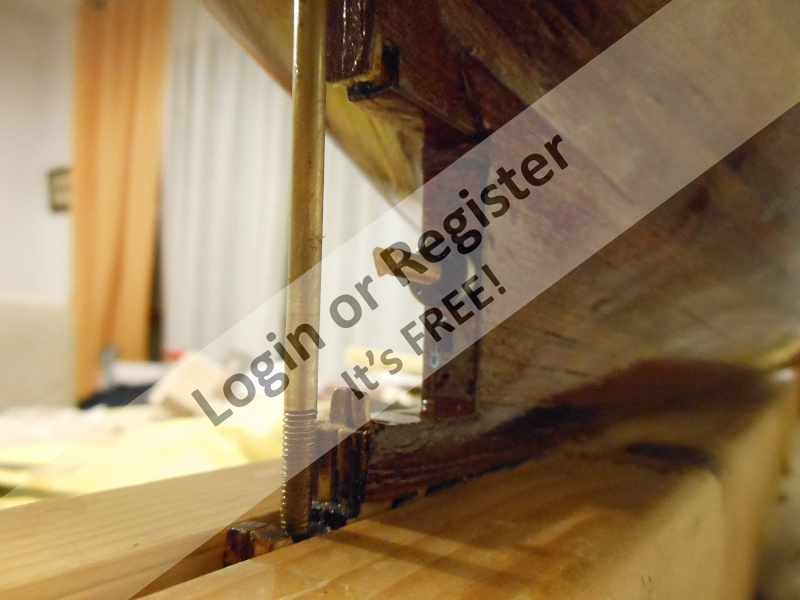

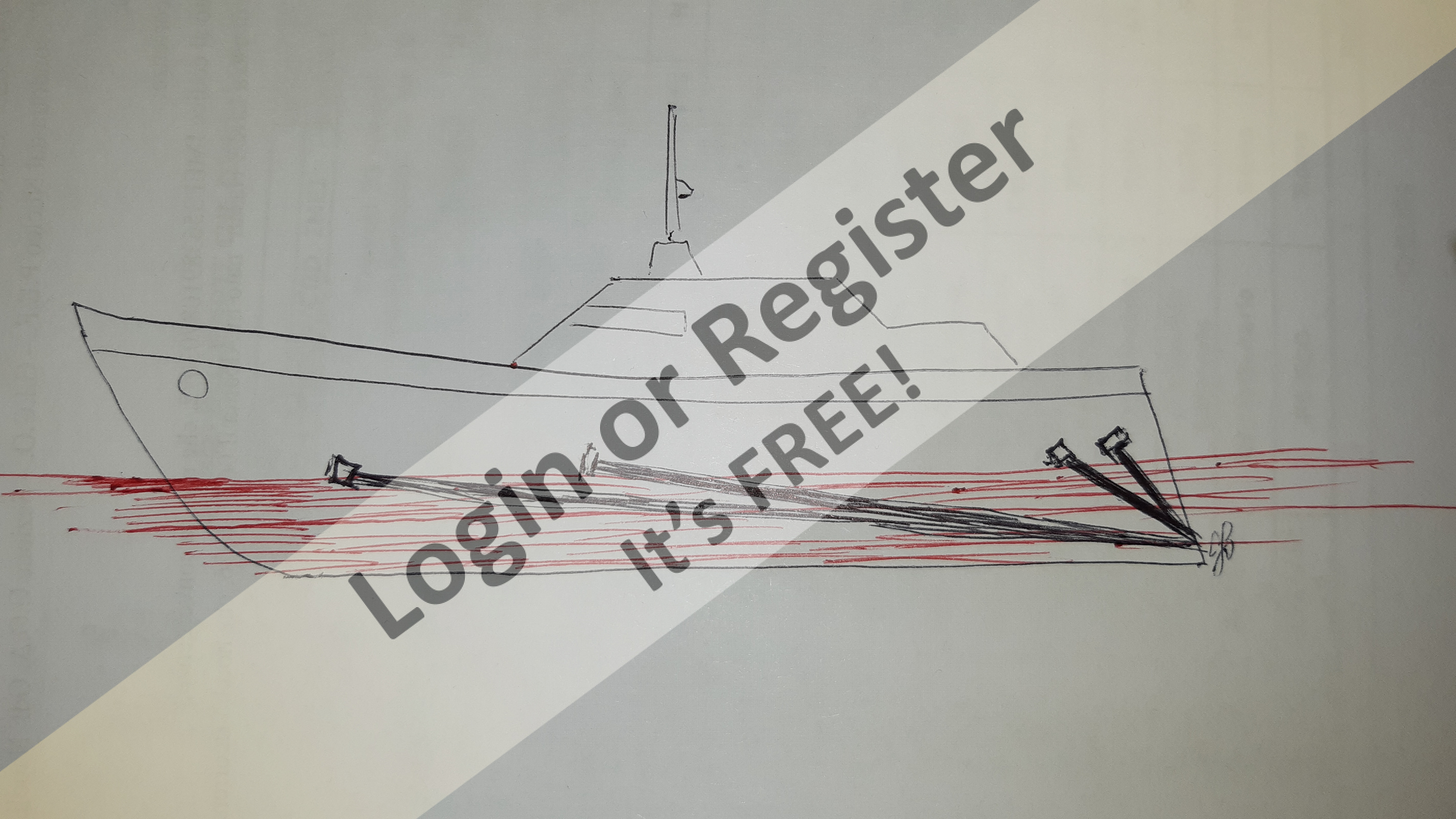

I found that placing one end of the propeller shaft tube above the waterline causes the shaft to tilt excessively with respect to the keel (or the surface of the water).
To prevent the angle between the propeller shaft and the keel from being too great (which would cause the propeller to point too low), you have to move the engine forward and lengthen the shaft.
This is what I tried (if I can find photos, I'll attach them to better explain what I mean and what I did).
This method proved unsuccessful, and I immediately abandoned it because such a long shaft created excessive noise, an unbearable clang, and a very high current draw (despite the propeller spinning freely and not in the water).

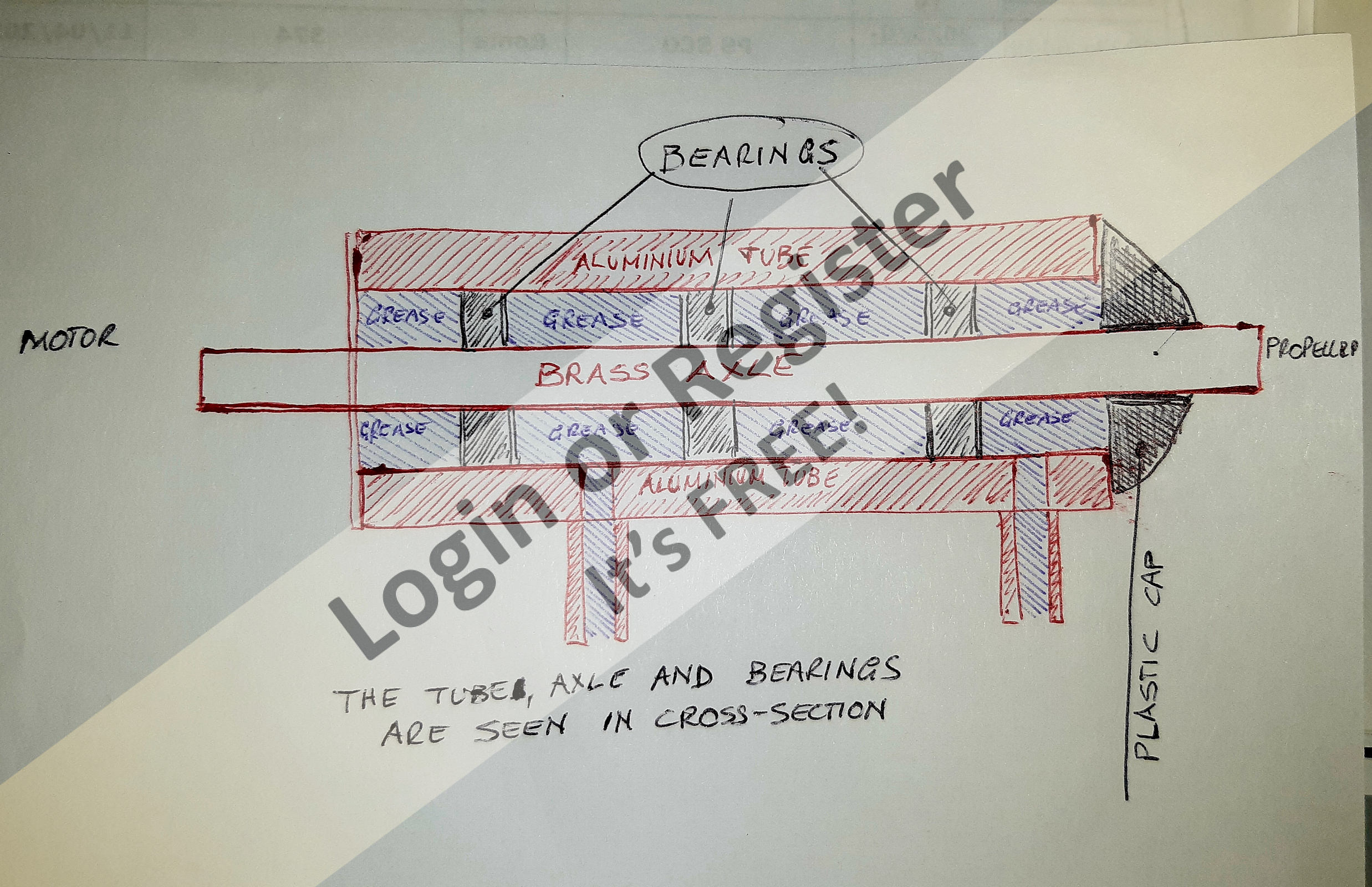

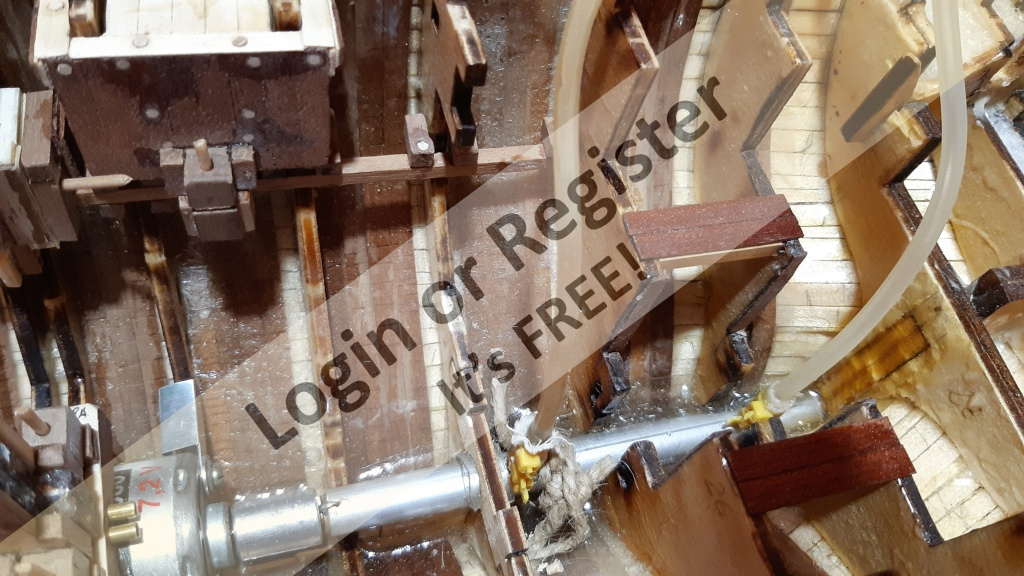

To prevent water from entering the hold, I use a homemade method (see attached photos).

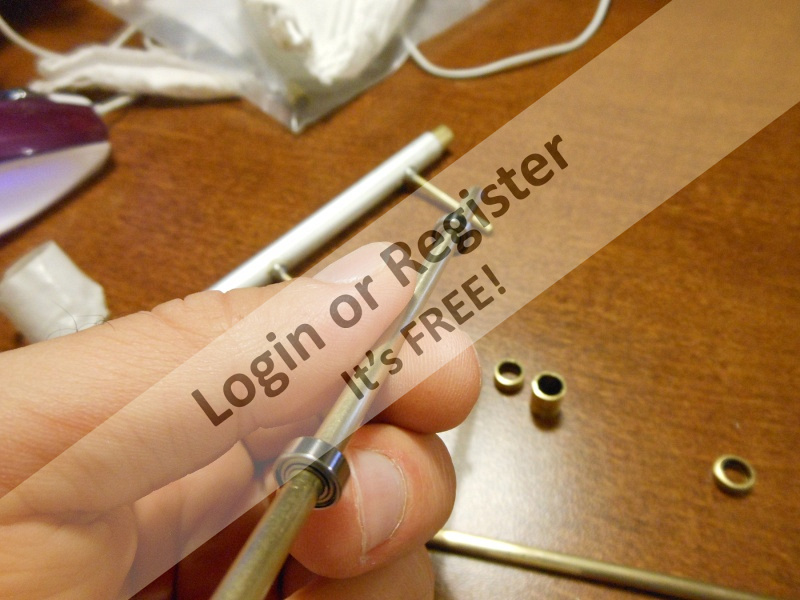

The propeller shaft rotates inside the tube, supported by three bearings; the tube is filled with grease.
In this specific case, the shaft is a 4 mm diameter brass rod. The bearings have a 4 mm internal diameter and an 8 mm external diameter. The tube containing the bearings, spacers, grease, and shaft is made of aluminum and has an 8 mm internal diameter and a 10 mm external diameter.
At the point where the brass propeller shaft exits the hull, there is a small perforated plastic protective cap with an additional feature.
As you can see in the drawing, water can hardly penetrate three bearings. This has never happened before, but anything is possible. However, even if I don't have any problems with water entering the hold, I run the risk of water coming into contact with the bearings and damaging them, which is why it's important to add and top up with grease.

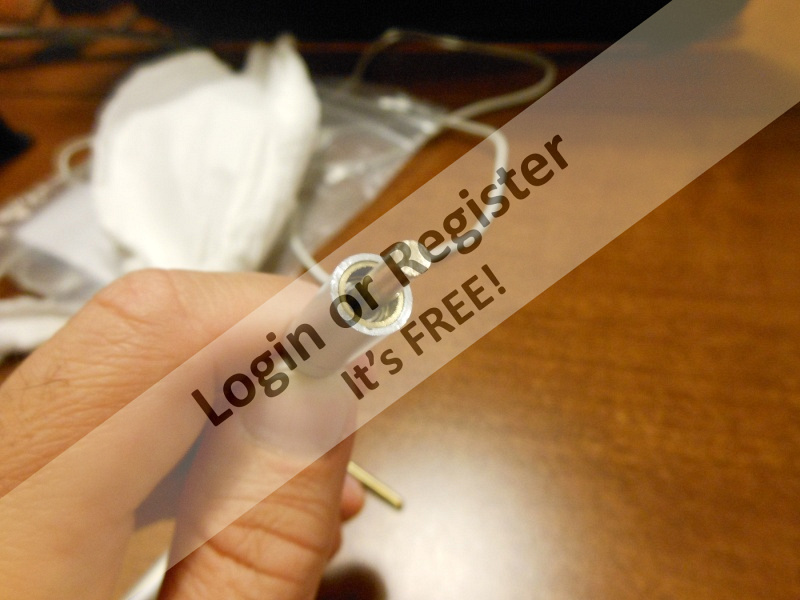

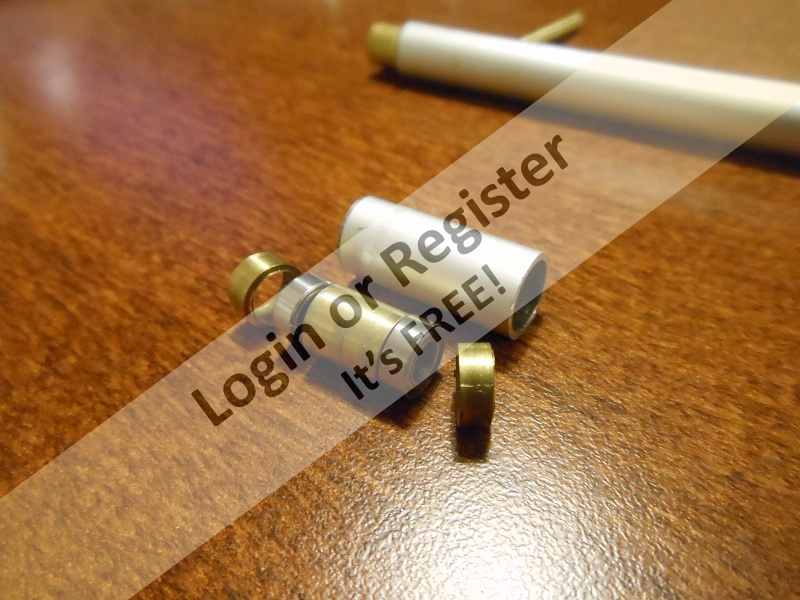

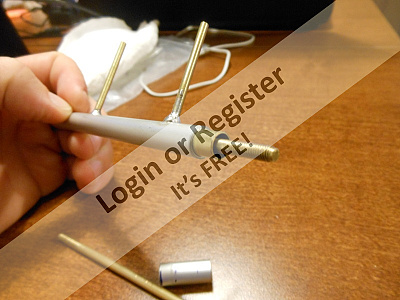

[{"id":"177627056014","name":"177627056014","caption":"","url":"https:\/\/model-boats.com\/media\/177627056014\/l","thumbUrl":"https:\/\/model-boats.com\/media\/177627056014\/s","isImage":false,"ext":"file"},{"id":"177627074978","name":"177627074978","caption":"","url":"https:\/\/model-boats.com\/media\/177627074978\/l","thumbUrl":"https:\/\/model-boats.com\/media\/177627074978\/s","isImage":false,"ext":"file"},{"id":"177627076396","name":"177627076396","caption":"","url":"https:\/\/model-boats.com\/media\/177627076396\/l","thumbUrl":"https:\/\/model-boats.com\/media\/177627076396\/s","isImage":false,"ext":"file"},{"id":"177627078665","name":"177627078665","caption":"","url":"https:\/\/model-boats.com\/media\/177627078665\/l","thumbUrl":"https:\/\/model-boats.com\/media\/177627078665\/s","isImage":false,"ext":"file"},{"id":"177627079679","name":"177627079679","caption":"","url":"https:\/\/model-boats.com\/media\/177627079679\/l","thumbUrl":"https:\/\/model-boats.com\/media\/177627079679\/s","isImage":false,"ext":"file"},{"id":"177627081374","name":"177627081374","caption":"","url":"https:\/\/model-boats.com\/media\/177627081374\/l","thumbUrl":"https:\/\/model-boats.com\/media\/177627081374\/s","isImage":false,"ext":"file"},{"id":"177627082379","name":"177627082379","caption":"","url":"https:\/\/model-boats.com\/media\/177627082379\/l","thumbUrl":"https:\/\/model-boats.com\/media\/177627082379\/s","isImage":false,"ext":"file"},{"id":"177627055944","name":"177627055944","caption":"","url":"https:\/\/model-boats.com\/media\/177627055944\/l","thumbUrl":"https:\/\/model-boats.com\/media\/177627055944\/s","isImage":false,"ext":"file"},{"id":"177627083584","name":"177627083584","caption":"","url":"https:\/\/model-boats.com\/media\/177627083584\/l","thumbUrl":"https:\/\/model-boats.com\/media\/177627083584\/s","isImage":false,"ext":"file"}]
I'm posting this message with a significant delay due to translation.
The different perspectives you two, ToraDog and GrantH, have had are very interesting to me.
I find ToraDog's advice very useful and GrantH's observations very stimulating.
Actually, I'll add a side note: ToraDog, could you give me some specific commercial advice (even direct links if you'd like) on the sealing systems, such as the thrust bearings, you mentioned?
I'm asking because so far I've used homemade methods that have worked, but I'd like to have other ready-made alternatives. I'd also like to be sure we're talking about the same thing.
Returning to the substance of your discussion, I have to say that in the past I've encountered a major problem with the method recommended by Grant.
One of my first approaches to building the propeller shaft drive was precisely the one Grant suggested.
Today I would have simply bought a ready-made propeller shaft online, but back then I racked my brains.
I found that placing one end of the propeller shaft tube above the waterline causes the shaft to tilt excessively with respect to the keel (or the surface of the water).
To prevent the angle between the propeller shaft and the keel from being too great (which would cause the propeller to point too low), you have to move the engine forward and lengthen the shaft.
This is what I tried (if I can find photos, I'll attach them to better explain what I mean and what I did).
This method proved unsuccessful, and I immediately abandoned it because such a long shaft created excessive noise, an unbearable clang, and a very high current draw (despite the propeller spinning freely and not in the water).
To prevent water from entering the hold, I use a homemade method (see attached photos).
The propeller shaft rotates inside the tube, supported by three bearings; the tube is filled with grease.
In this specific case, the shaft is a 4 mm diameter brass rod. The bearings have a 4 mm internal diameter and an 8 mm external diameter. The tube containing the bearings, spacers, grease, and shaft is made of aluminum and has an 8 mm internal diameter and a 10 mm external diameter.
At the point where the brass propeller shaft exits the hull, there is a small perforated plastic protective cap with an additional feature.
As you can see in the drawing, water can hardly penetrate three bearings. This has never happened before, but anything is possible. However, even if I don't have any problems with water entering the hold, I run the risk of water coming into contact with the bearings and damaging them, which is why it's important to add and top up with grease.
Thanks Tora! The drawing however, is not mine (internet). My drawings are on my PC. Anyone looking for ideas for stopping boxes you can search the internet. They're even drawings to help make a short stuffing box to retrofit a boat that doesn't have one.
Lew
Thanks Tora! The drawing however, is not mine (internet). My drawings are on my PC. Anyone looking for ideas for stopping boxes you can search the internet. They're even drawings to help make a short stuffing box to retrofit a boat that doesn't have one.
Lew
LewZ is on the money with his description and drawing.
In almost all cases his system will work beautifully. To help keep grease in the tube, one can add a washer and set collar( or stop collar) to the prop shaft just snug enough to block grease from coming out.
A couple of other methods, hat's off to bubbleheads(submarine builders): both use o-rings. What is important is to fit an o-ring that just barely touches the shaft, ie, it o-ring ID is just a few, may .010 of an inch smaller than the OD of the shaft. The same applies to metric. one system uses compression fittings that allow the adjustment of pressure of the o-ring onto the shaft. the fitting can be soldered or epoxied to the stuffing box. Then the o-ring placed on the shaft and the compression nut added over it.
Another variation uses brass tubing. Here, using various sizes of tubing, a housing is made that retains an 0-ring between smaller diameter tubing, placed inside an other brass tube "case". The case is then placed over the stuffing box and shaft. In both cases, grease can also be used, but if done correctly, it should not be needed. Beware that it is the water in the stuffing box that lubricates the o-rings and therefore the shafts should not be run "out of water" for any length of time or at any speed.
Another method one can use is to use actual cup seals, just like the crankshaft seal on your car/truck motors. Very small diameter ones can be challenging to find, but they exist. Again, a brass tube house is made(cut and the seal placed into the housing) with the open pressure side facing the water pressure. The water again lubricates the seal. On subs that use the Engel system and pressurize their hulls during ballasting, back to back seals will keep the water out and the pressure within the hull.
I'lll work on some diagrams.
Remember to KISS. It does not take much to keep water out of our boats.
LewZ is on the money with his description and drawing.
In almost all cases his system will work beautifully. To help keep grease in the tube, one can add a washer and set collar( or stop collar) to the prop shaft just snug enough to block grease from coming out.
A couple of other methods, hat's off to bubbleheads(submarine builders): both use o-rings. What is important is to fit an o-ring that just barely touches the shaft, ie, it o-ring ID is just a few, may .010 of an inch smaller than the OD of the shaft. The same applies to metric. one system uses compression fittings that allow the adjustment of pressure of the o-ring onto the shaft. the fitting can be soldered or epoxied to the stuffing box. Then the o-ring placed on the shaft and the compression nut added over it.
Another variation uses brass tubing. Here, using various sizes of tubing, a housing is made that retains an 0-ring between smaller diameter tubing, placed inside an other brass tube "case". The case is then placed over the stuffing box and shaft. In both cases, grease can also be used, but if done correctly, it should not be needed. Beware that it is the water in the stuffing box that lubricates the o-rings and therefore the shafts should not be run "out of water" for any length of time or at any speed.
Another method one can use is to use actual cup seals, just like the crankshaft seal on your car/truck motors. Very small diameter ones can be challenging to find, but they exist. Again, a brass tube house is made(cut and the seal placed into the housing) with the open pressure side facing the water pressure. The water again lubricates the seal. On subs that use the Engel system and pressurize their hulls during ballasting, back to back seals will keep the water out and the pressure within the hull.
I'lll work on some diagrams.
Remember to KISS. It does not take much to keep water out of our boats.
I make my stuffing boxes this way:
1. Start with the prop shaft, from where the motor is connected to it out to where the propeller is mounted.
2. Make two short pieces of copper tubing, that will slip over the prop shaft and into the outer tube. (Sleeve bearing in drawing.)
3. Make the outer tube a little shorter than the propeller shaft.
4. Solder the short pieces of copper tubing inside each end of the outer tube.
5. Make a "T" connection by soldering a short piece of copper tubing vertically to the outer tubing, inside the hull. (First drill a hole into the outer tubing.) This will be your filling tube.
Make sure you remove all of the burrs, and that the shafts are straight and true. The propeller shaft should now run freely inside the stuffing box. I usually fill my stuffing box with petroleum jelly.
Some people like to make short stuffing boxes, but I like to make them as long as possible, but not too long that the shaft may flex while running.
Lew
[{"id":"177624557220","name":"177624557220","caption":"","url":"https:\/\/model-boats.com\/media\/177624557220\/l","thumbUrl":"https:\/\/model-boats.com\/media\/177624557220\/s","isImage":false,"ext":"file"}]
1. Start with the prop shaft, from where the motor is connected to it out to where the propeller is mounted.
2. Make two short pieces of copper tubing, that will slip over the prop shaft and into the outer tube. (Sleeve bearing in drawing.)
3. Make the outer tube a little shorter than the propeller shaft.
4. Solder the short pieces of copper tubing inside each end of the outer tube.
5. Make a "T" connection by soldering a short piece of copper tubing vertically to the outer tubing, inside the hull. (First drill a hole into the outer tubing.) This will be your filling tube.
Make sure you remove all of the burrs, and that the shafts are straight and true. The propeller shaft should now run freely inside the stuffing box. I usually fill my stuffing box with petroleum jelly.
Some people like to make short stuffing boxes, but I like to make them as long as possible, but not too long that the shaft may flex while running.
Thank you all for your detailed replies and helpful responses, I really appreciate it! I’m intrigued as to what a ‘stuffing box’ is – could someone please enlighten me?
Thank you all for your detailed replies and helpful responses, I really appreciate it! I’m intrigued as to what a ‘stuffing box’ is – could someone please enlighten me?
Tora, perhaps a sketch might help describe ideal seals for prop shafts. I have no issues as all my boats have stuffing boxes. However a sketch might help those with prop shaft leak issues.
Lew
Tora, perhaps a sketch might help describe ideal seals for prop shafts. I have no issues as all my boats have stuffing boxes. However a sketch might help those with prop shaft leak issues.
Lew
Grant,
My post was an extreme example, but having run rc subs for 20+ years, and I am a new comer to the hobby, it is easy to seal a shaft without excessive drag on the shaft.
Grant,
My post was an extreme example, but having run rc subs for 20+ years, and I am a new comer to the hobby, it is easy to seal a shaft without excessive drag on the shaft.
Water creep up rudder posts is mainly due to waves higher than the top of the rudder post Commonly occurs when going in reverse and creating a wave at the stern or sailing in choppy waters
Water creep up rudder posts is mainly due to waves higher than the top of the rudder post Commonly occurs when going in reverse and creating a wave at the stern or sailing in choppy waters
I don't think you can compare the engineering on a full size naval combat submarine to our models! Any O ring seal must incur friction on the shaft or it is not watertight. Friction will wear it and the leak will recur. No friction=leak. Friction will require more power to rotate the shaft which means more drain on battery. O rings are at best a short term fix.
I don't think you can compare the engineering on a full size naval combat submarine to our models! Any O ring seal must incur friction on the shaft or it is not watertight. Friction will wear it and the leak will recur. No friction=leak. Friction will require more power to rotate the shaft which means more drain on battery. O rings are at best a short term fix.
Correct Tora! I've even seen water creep up rudder posts where the top is above the water line. Likely due to pressure spun off the prop. The best way is a good designed stuffing box. Virtually maintenance free - add some lube every few years.
Lew
Correct Tora! I've even seen water creep up rudder posts where the top is above the water line. Likely due to pressure spun off the prop. The best way is a good designed stuffing box. Virtually maintenance free - add some lube every few years.
With al due respect, the comment that sealing a horizontal shaft below the waterline is "virtually" impossible, is not actual.
Modern nuc subs regularly operate at +1000 ft depths, which if my calculator is accurate, would mean a 436 psi at the shaft seal. They go down and come back up, most of the time.
Model sub builders use a range of seals that very successfully keep their pressure hulls dry. I have a seal that I have been using for 25+ years with changing, nor leakage.
Surface craft are not subject to a fraction of the pressures that model subs encounter.
A simple O ring will easily seal a horizontal shaft and, if fitted correctly, with not incur undue drag upon the prop shaft, while keeping water out of the hull.
With al due respect, the comment that sealing a horizontal shaft below the waterline is "virtually" impossible, is not actual.
Modern nuc subs regularly operate at +1000 ft depths, which if my calculator is accurate, would mean a 436 psi at the shaft seal. They go down and come back up, most of the time.
Model sub builders use a range of seals that very successfully keep their pressure hulls dry. I have a seal that I have been using for 25+ years with changing, nor leakage.
Surface craft are not subject to a fraction of the pressures that model subs encounter.
A simple O ring will easily seal a horizontal shaft and, if fitted correctly, with not incur undue drag upon the prop shaft, while keeping water out of the hull.
First off is this just a straight shaft running through a straight tube? If not is it a shaft running through a stuffing box? Answer these questions before trying to proceed with a cure.
Lew
First off is this just a straight shaft running through a straight tube? If not is it a shaft running through a stuffing box? Answer these questions before trying to proceed with a cure.
Lew
This is a virtually impossible problem to cure with shaft seals/grease, assuming, the problem is not leakage around the shaft tube as it exits the hull. The only true cure is to relay the shaft tube at an angle with the inboard end above the waterline.
This is a virtually impossible problem to cure with shaft seals/grease, assuming, the problem is not leakage around the shaft tube as it exits the hull. The only true cure is to relay the shaft tube at an angle with the inboard end above the waterline.
Eric
If you have already removed the shaft and packed it with grease as best you can then should have sealed the shaft. Perhaps is worth looking at some other more remote possibilities. There may be a break in the seal between the shaft tube and the hull. In my experience I have seen this once, after we re-greased the shaft multiple times we put a cup of water in the hull and positioned the hull so the water was covering where the shaft exits the hull. It did not leak until we jiggled shaft. Once identified it was easily sealed.
My other left field suggestion is that the shaft tube may be split or ruptured. Again this is extremely rare and you would be able to find some tell tale grease.
Hope this may be of some help or at least something to cross off the list.
If you have already removed the shaft and packed it with grease as best you can then should have sealed the shaft. Perhaps is worth looking at some other more remote possibilities. There may be a break in the seal between the shaft tube and the hull. In my experience I have seen this once, after we re-greased the shaft multiple times we put a cup of water in the hull and positioned the hull so the water was covering where the shaft exits the hull. It did not leak until we jiggled shaft. Once identified it was easily sealed.
My other left field suggestion is that the shaft tube may be split or ruptured. Again this is extremely rare and you would be able to find some tell tale grease.
Hope this may be of some help or at least something to cross off the list.
Sorry, I missed ToraDog's response while I was translating and writing because the page hadn't been updated yet.
Excellent advice from TD, who has a wealth of experience.
I assume the problem has already been addressed (I had also considered a possible leak near the pipe).
If the water is passing through the pipe, however, all of TD's suggestions are excellent.
I can only think of one other system, but I would only use it as a last resort and only after carefully assessing the distance between the propeller and the outlet hole, because it's not always possible.
Sorry, I missed ToraDog's response while I was translating and writing because the page hadn't been updated yet.
Excellent advice from TD, who has a wealth of experience.
I assume the problem has already been addressed (I had also considered a possible leak near the pipe).
If the water is passing through the pipe, however, all of TD's suggestions are excellent.
I can only think of one other system, but I would only use it as a last resort and only after carefully assessing the distance between the propeller and the outlet hole, because it's not always possible.
Great purchase, Eric, you've made a fantastic gift.
As for the water infiltration, you should be able to pinpoint the critical point. If it's around the propeller shaft tube, I'd resin the area from the inside.
If the water is seeping right into the hole where the shaft rotates (which is quite strange if there's enough grease), you'll need to approach it differently.
Can you take some photos of the inside and outside of the propeller?
Great purchase, Eric, you've made a fantastic gift.
As for the water infiltration, you should be able to pinpoint the critical point. If it's around the propeller shaft tube, I'd resin the area from the inside.
If the water is seeping right into the hole where the shaft rotates (which is quite strange if there's enough grease), you'll need to approach it differently.
Can you take some photos of the inside and outside of the propeller?
Eric,
There are a number of ways to achieve what you seek, from simple to complex. The latter involves actually using cup seals, this is regularly used by submarine drivers, the o-ring in the stuffing box is another effective method, but your model is already built so it may be impractical. Grease in the stuffing box, especially if added via a grease tube, can be very effective. One way to increase that effectiveness is to place a nylon washer over the shaft, on the inboard end of the stuffing box, and hold it snug against the stuffing box with a shaft collar. This really helps to prevent the grease from being pushed out of the SB by water pressure.
I am sure there are many more suggestions out there and hope someone else will add.
Eric,
There are a number of ways to achieve what you seek, from simple to complex. The latter involves actually using cup seals, this is regularly used by submarine drivers, the o-ring in the stuffing box is another effective method, but your model is already built so it may be impractical. Grease in the stuffing box, especially if added via a grease tube, can be very effective. One way to increase that effectiveness is to place a nylon washer over the shaft, on the inboard end of the stuffing box, and hold it snug against the stuffing box with a shaft collar. This really helps to prevent the grease from being pushed out of the SB by water pressure.
I am sure there are many more suggestions out there and hope someone else will add.

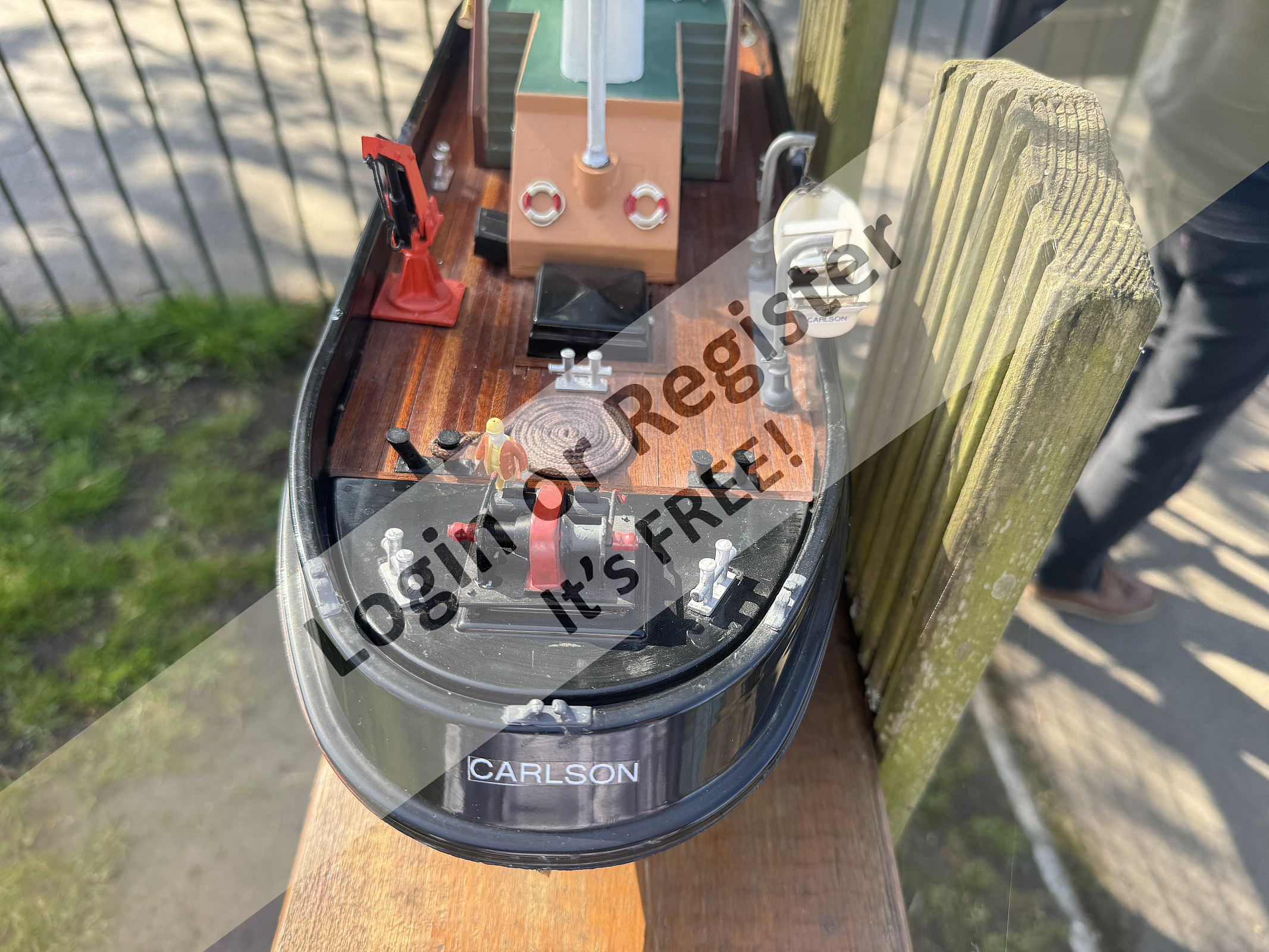

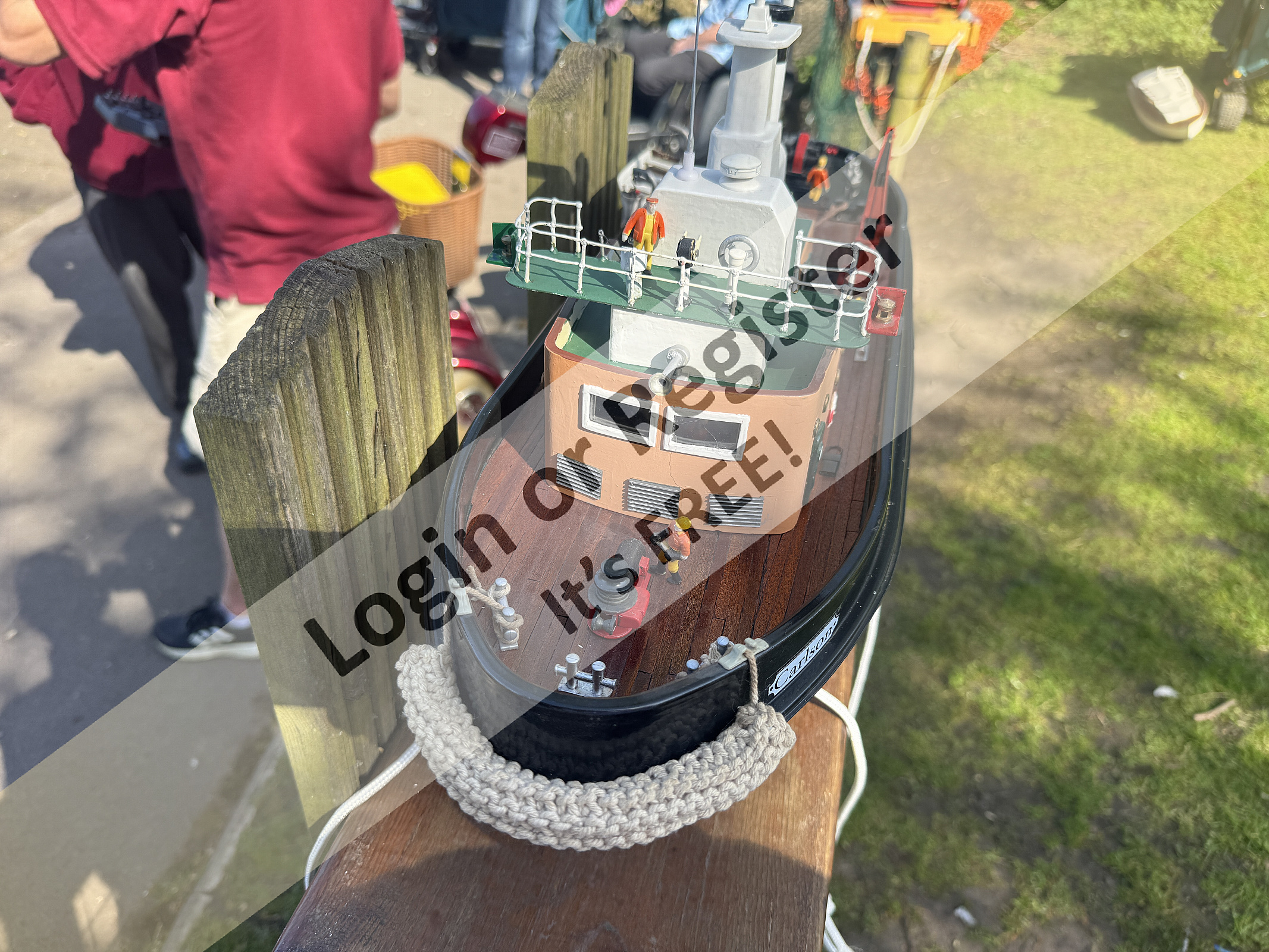

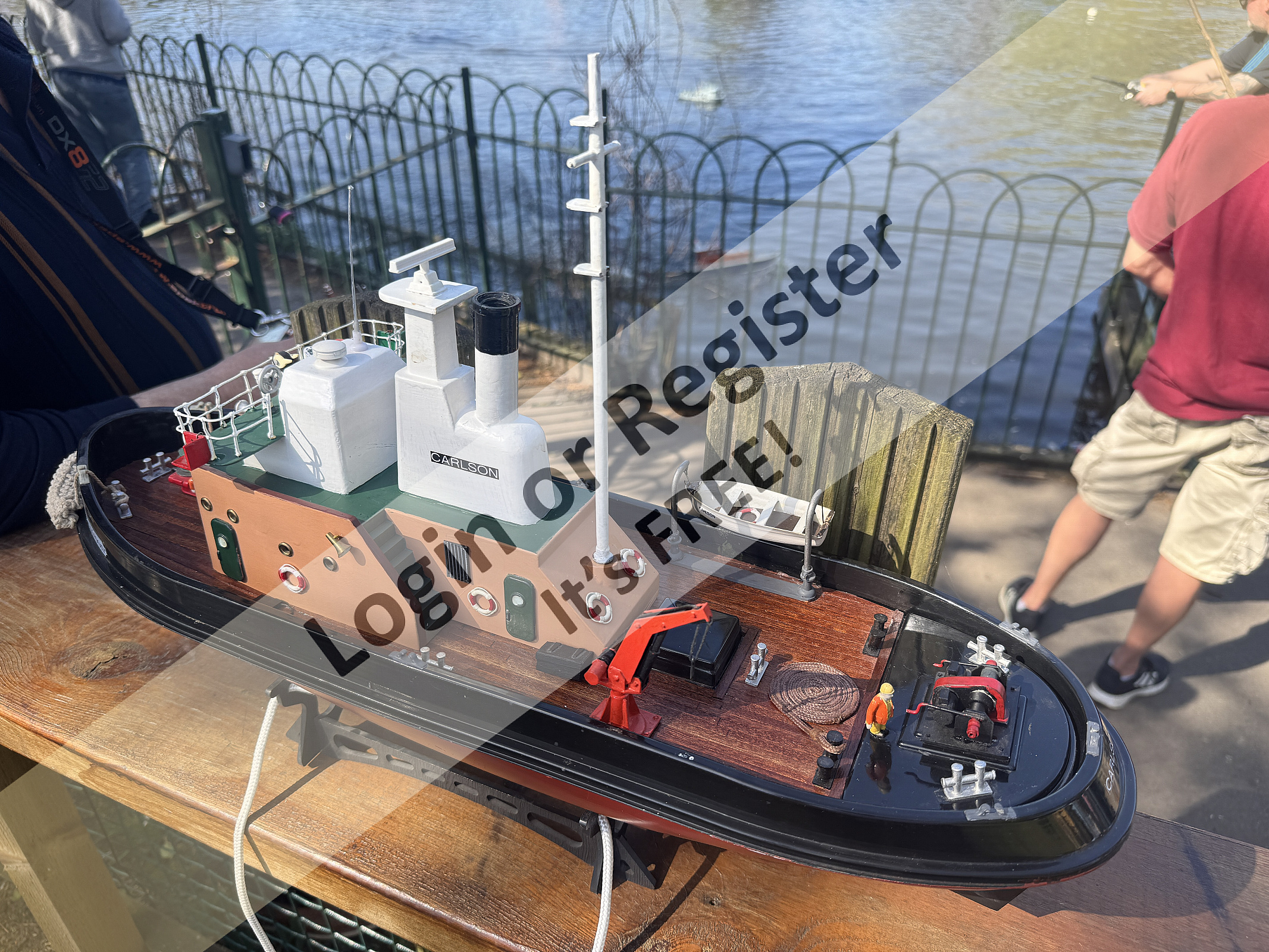

Hi all, I’ve acquired a lovely little Carlson tug for my godson (aged 7) however the prop shift is nearly horizontal and appears to be leaking into the boat. Any suggestions for preventing the ingress? I’ve used some pro shaft grease already… thanks in advance, Eric
[{"id":"177598989484","name":"177598989484","caption":"","url":"https:\/\/model-boats.com\/media\/177598989484\/l","thumbUrl":"https:\/\/model-boats.com\/media\/177598989484\/s","isImage":false,"ext":"file"},{"id":"177598989554","name":"177598989554","caption":"","url":"https:\/\/model-boats.com\/media\/177598989554\/l","thumbUrl":"https:\/\/model-boats.com\/media\/177598989554\/s","isImage":false,"ext":"file"},{"id":"177598989687","name":"177598989687","caption":"","url":"https:\/\/model-boats.com\/media\/177598989687\/l","thumbUrl":"https:\/\/model-boats.com\/media\/177598989687\/s","isImage":false,"ext":"file"}]
Hi all, I’ve acquired a lovely little Carlson tug for my godson (aged 7) however the prop shift is nearly horizontal and appears to be leaking into the boat. Any suggestions for preventing the ingress? I’ve used some pro shaft grease already… thanks in advance, Eric
