    Billing Calypso
    13 Posts ยท 10 Followers ยท 40 Photos ยท 113 Likes
    Began 2 months ago by
    Commodore
    United Kingdom
    Follow This Thread
    Not currently following
    > Click to follow
    Latest Post 1 day ago by
    Commodore
    United Kingdom
    Most recent posts shown first   (Show Oldest First) (Print Booklet)
    ๐Ÿ“ Start of upper deck
    1 day ago by ๐Ÿ‡ฌ๐Ÿ‡ง Doogle ( Commodore)
    โœง 14 Views ยท 5 Likes
    Flag
    ๐Ÿ’ฌ Add Comment
    "Escaped into the garage for a bit more today. Bridge/wheelhouse starting to take shape, decking started to be laid on the top. Slow ๐ŸŒ progress

    Login To
    Remove Ads

    ๐Ÿ“ Next level
    4 days ago by ๐Ÿ‡ฌ๐Ÿ‡ง Doogle ( Commodore)
    โœง 20 Views ยท 8 Likes
    Flag
    ๐Ÿ’ฌ Add Comment
    Now that part of the superstructure on the main deck is in place, I've been able to put in the supports which sit on either side for the top deck which in turn will have the bridge, funnel etc on. "Slowly slowly ๐ŸŒ, catchy monkey ๐Ÿ’ " as the saying goes; bridge and aft cabin have started to be assembled so that I can get an idea of how they will "sit" on the deck. I've started to lay the planking with this in mind, going to be a long job as I need to mark out where additional bits go on the deck. Obvious at the moment as it's all printed, but of course this will disappear once the planks are in place, doh!๐Ÿ˜›. Good thing is the sister in law is over with her husband from the Netherlands, so whilst they sleep, I can get on with some more, every cloud etc etc ๐Ÿ˜‚

    ๐Ÿ“ Deck complete
    8 days ago by ๐Ÿ‡ฌ๐Ÿ‡ง Doogle ( Commodore)
    โœง 36 Views ยท 8 Likes ยท 1 Comment
    Flag
    ๐Ÿ’ฌ Add Comment
    First deck now laid and stained. Now started on building some of the superstructure. Finally starting to get my head around the plans ๐Ÿค” as not exactly forthcoming with information, maybe this has changed over the past 20yrs from when they were originally printed. Discovered that the initial fitting of the superstructure wasn't great as it was making access to the rc rather tight as it didn't marry up with the precut holes in the deck plus the precut sides of the structure were smaller. A bit of out of the box thinking and this issue now resolved. Doors ๐Ÿšช cut out of the plastic sheet and applied in position. When dry, I can then drill out the window ๐ŸชŸ and fit the portholes. Then spray and fit the glass before fixing in place. Additional lighting to hopefully fixed in place. And bless his little socks, Doogle still wakes me up at 4am โฐ๏ธ, so I get a little bit done before I go to work.

    ๐Ÿ’ฌ Re: Deck complete
    8 days ago by ๐Ÿ‡บ๐Ÿ‡ธ jumpugly ( Captain)
    โœง 34 Views ยท 4 Likes
    Flag
    This is EXCELLENT!!! ๐Ÿ‘๐Ÿ˜Š
    ๐Ÿ“ Deck
    18 days ago by ๐Ÿ‡ฌ๐Ÿ‡ง Doogle ( Commodore)
    โœง 56 Views ยท 14 Likes ยท 3 Comments
    Flag
    ๐Ÿ’ฌ Add Comment

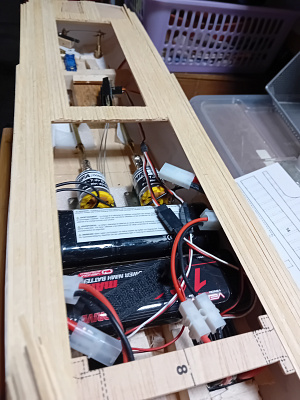

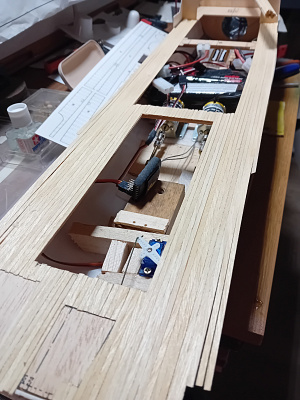

    Started to lay the deck down this morning before going to work. Doogle, bless his little paws ๐Ÿพ is getting on a bit now (14 yrs) and generally my day "starts" around 4.30am with him needing to go out in the garden. Sometimes if I'm especially blessed it's even earlier. So I decided to try and get some more done whilst the good lady was still asleep ๐Ÿ˜ด ๐Ÿ’ค. Finished laying the deck this evening, when dry, I can sand lightly and tidy up the edges. Maybe that's tomorrow's early session. Night night everyone, sweet dreams ๐Ÿ˜ด

    ๐Ÿ’ฌ Re: Deck
    17 days ago by ๐Ÿ‡ฌ๐Ÿ‡ง Fred ( Lieutenant Commander)
    โœง 44 Views ยท 6 Likes
    Flag
    Hi Doogle
    That is a nice clean layout you have done, not the rats nest like mine, one thing I would say is that you may like to change the battery connectors to say an XT60 or a Deans connector, I have found them to be a lot better than the Tamiya one's.
    Fred
    Login To
    Remove Ads

    ๐Ÿ’ฌ Re: Deck
    18 days ago by ๐Ÿ‡ฌ๐Ÿ‡ง flaxbybuck ( Captain)
    โœง 49 Views ยท 5 Likes
    Flag
    Aw, he's adorable. The boat looks good too ! ๐Ÿ˜‰
    ๐Ÿ’ฌ Re: Deck
    18 days ago by ๐Ÿ‡ฎ๐Ÿ‡น AlessandroSPQR ( Rear Admiral)
    โœง 55 Views ยท 4 Likes
    Flag
    Hi Doogle, very good. You're making good progress, but what an early riser you are!
    You're staring at the bridge, so is this the final battery and motor setup?
    Check if you can easily remove the batteries with the deck in place.
    ๐Ÿ“ 1st test run and ballast
    23 days ago by ๐Ÿ‡ฌ๐Ÿ‡ง Doogle ( Commodore)
    โœง 65 Views ยท 8 Likes ยท 1 Comment
    Flag
    ๐Ÿ’ฌ Add Comment
    Spent the morning taking my wife to a hospital appointment and having taken the day off managed to make a bit more progress. Batteries now moved forward, rudder servo has been relocated / initial blonde ๐Ÿ‘ฑโ€โ™€๏ธ ๐Ÿ˜ณ moment rectified (probably not the last) and hey presto - it works ๐Ÿ˜†. No leaks, always a bonus, still a bit noisy but hopefully this will quieten down when more superstructure is added. Strengthening bearers have been added to the lower deck as it's a bit bendy- most likely due to the age of the model ๐Ÿ˜ณ.

    ๐Ÿ’ฌ Re: 1st test run and ballast
    22 days ago by ๐Ÿ‡ฎ๐Ÿ‡น AlessandroSPQR ( Rear Admiral)
    โœง 64 Views ยท 5 Likes
    Flag
    Hi Dogle, the noise is there but it seems acceptable to me.
    It is very important that no water gets inside and it seems to me that it turns well both to the right and to the left.
    If you've found the right setup you're in a good place.
    ๐Ÿ“ Two steps forward
    25 days ago by ๐Ÿ‡ฌ๐Ÿ‡ง Doogle ( Commodore)
    โœง 66 Views ยท 6 Likes ยท 2 Comments
    Flag
    ๐Ÿ’ฌ Add Comment

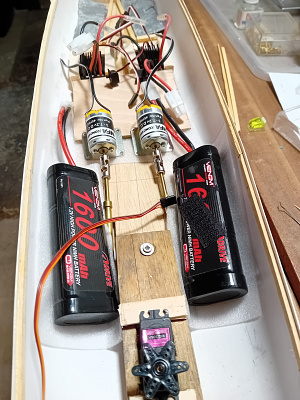

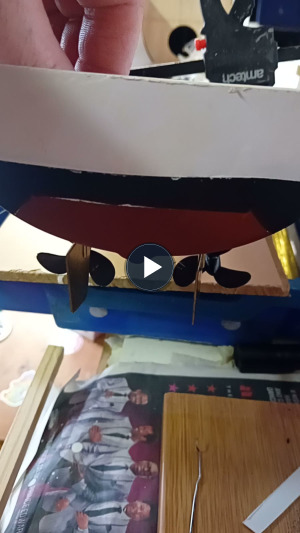

    Now the universal joints have arrived, I can start to finish of the internals so to speak . 2 x 380 brushed motor installed and all working. Tried to cut out the vibration noise generated by the prop shafts where they go through the plastic hull, a lot quieter than originally now acceptable but unable to eliminate it anymore..
    Then it all went pear shaped so to speak.initially it seemed a good idea to locate the batteries forward so as to help with ballast - then realised that with the deck on I wouldn't get full access. Plan B, move towards the stern, finally plan C; place batteries in front of the motor's. Success ๐Ÿ˜. Had a little time this evening whilst my wife was on a group chat, rookie school boy error - rudders not working properly, finally realised I need to offset the servo and it will work. It's been a long day, starting at 4am and now tired, need sleep before 4am comes around again . Once I have got everything in place properly I can update the details. Night night ๐ŸŒƒ

    ๐Ÿ’ฌ Re: Two steps forward
    18 days ago by ๐Ÿ‡ฌ๐Ÿ‡ง Fred ( Lieutenant Commander)
    โœง 48 Views ยท 4 Likes
    Flag
    Hi Doogle
    I don't know if you would be interested, I have used a mixer in mine, the one that I used was from Forge Electronics, at a cost of ยฃ30, I have found that this one works the best for me.

    https://scalewarship.com/index.php?route=product/product&path=496&product_id=139
    ๐Ÿ’ฌ Re: Two steps forward
    25 days ago by ๐Ÿ‡ฎ๐Ÿ‡น AlessandroSPQR ( Rear Admiral)
    โœง 66 Views ยท 4 Likes
    Flag
    Hi Dogle, I'm glad you got the universal joints.
    Waiting for parts, when you have the desire and time to build, can be frustrating.
    Thanks for the details and the description of the various problems.
    ๐Ÿ“ Let there be light
    1 month ago by ๐Ÿ‡ฌ๐Ÿ‡ง Doogle ( Commodore)
    โœง 74 Views ยท 10 Likes ยท 3 Comments
    Flag
    ๐Ÿ’ฌ Add Comment

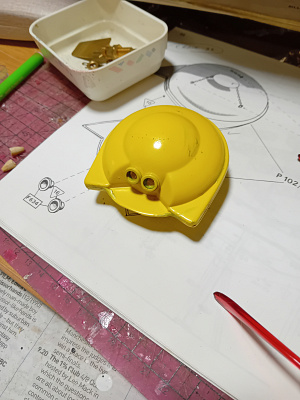

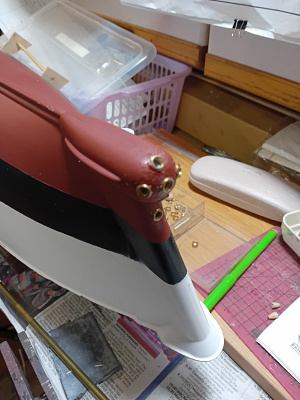

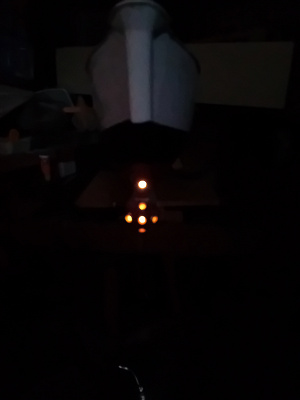

    Slowly but surely, we're getting there. Bought some lights for the grand sum of ยฃ1.00 and thought I'd see what the forward underwater observation chamber looked like lit up. Happy with the initial result. Question is - can these be wired up to run from the rx/txt and if so how? Always seem to struggle with the electronics, then again I enjoy learning ๐Ÿ˜‰ ๐Ÿ˜€. If not, I'll keep them as they are and the batteries can act as additional ballast ๐Ÿ˜

    ๐Ÿ’ฌ Re: Let there be light
    1 month ago by ๐Ÿ‡ฌ๐Ÿ‡ง Fred ( Lieutenant Commander)
    โœง 71 Views ยท 8 Likes
    Flag

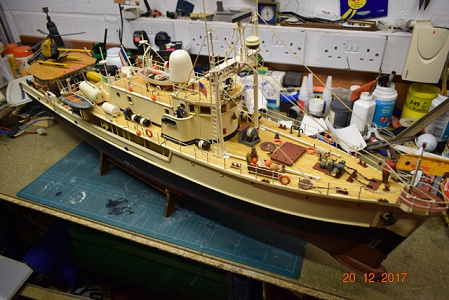

    Just going off topic for a moment, this is my Calipso, going to start swapping out the old grain of wheats for LED's
    Fred
    Login To
    Remove Ads

    ๐Ÿ’ฌ Re: Let there be light
    1 month ago by ๐Ÿ‡ง๐Ÿ‡ช hermank ( Captain)
    โœง 75 Views ยท 5 Likes
    Flag
    Google
    Thatโ€˜s how the Calipso should be lighted!!
    Well done๐Ÿ‘๐Ÿ‘๐Ÿ‘๐Ÿ‘๐Ÿ‘๐Ÿ‘
    ๐Ÿ’ฌ Re: Let there be light
    1 month ago by ๐Ÿ‡ฌ๐Ÿ‡ง Fred ( Lieutenant Commander)
    โœง 73 Views ยท 6 Likes
    Flag
    Hi Doogle
    That is looking good, as for the lights yes you can work the lights from a T/X, I use a RC Remote Controlled AUX on/Off Electronic Switch JST Male & Female Cables UK that I got off ebay for ยฃ4.20, eBay item number:386898806536, or you can find them on the Component shop under Action switches.
    Hope that this is of some help

    https://www.componentshop.co.uk/p115-micro-single-switcher.html.html
    ๐Ÿ“ Rudder servo
    1 month ago by ๐Ÿ‡ฌ๐Ÿ‡ง Doogle ( Commodore)
    โœง 87 Views ยท 7 Likes ยท 1 Comment
    Flag
    ๐Ÿ’ฌ Add Comment

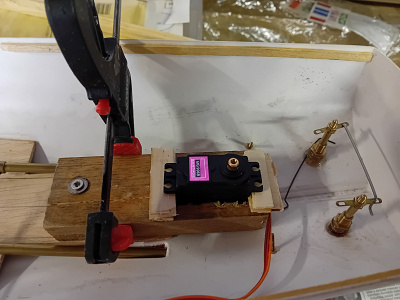

    Managed to place rudder servo in position this evening, now waiting for glue to dry before finishing off. It's going to be a long build ๐Ÿ˜Š

    ๐Ÿ’ฌ Re: Rudder servo
    1 month ago by ๐Ÿ‡บ๐Ÿ‡ธ Peejay ( Sub-Lieutenant)
    โœง 80 Views ยท 3 Likes
    Flag
    Very nice!
    ๐Ÿ“ Prop shaft
    2 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง Doogle ( Commodore)
    โœง 95 Views ยท 8 Likes
    Flag
    ๐Ÿ’ฌ Add Comment

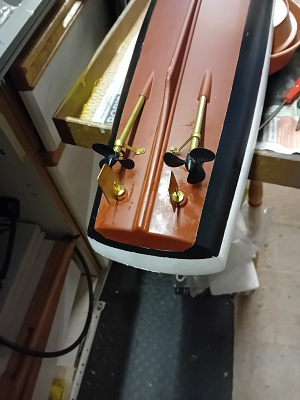

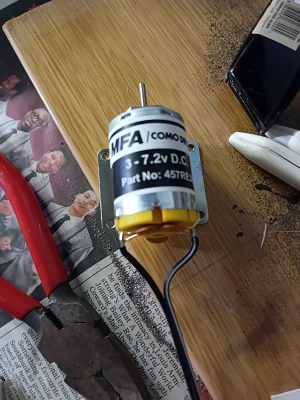

    380 motor x 2 arrived this afternoon, prop shafts and rudders installed ๐Ÿ˜€.
    Sometimes it feels like an old mfi cupboard to build, instructions are not the greatest, almost like you look at the illustrations and then make your own mind up as to which part is the correct one๐Ÿคฃ. Going to be a long build with work commitments etc, hey ho ๐Ÿ˜€

    ๐Ÿ“ Helicopter
    2 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง Doogle ( Commodore)
    โœง 102 Views ยท 7 Likes ยท 1 Comment
    Flag
    ๐Ÿ’ฌ Add Comment

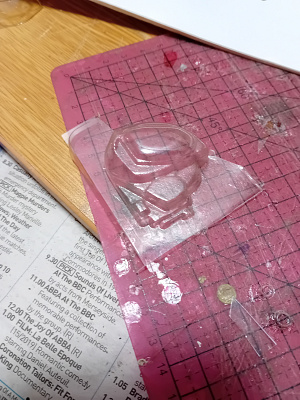

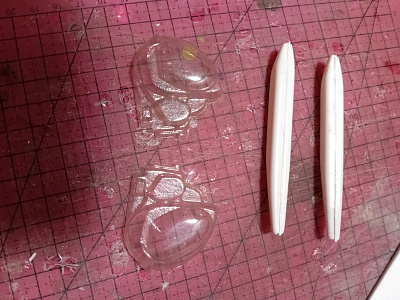

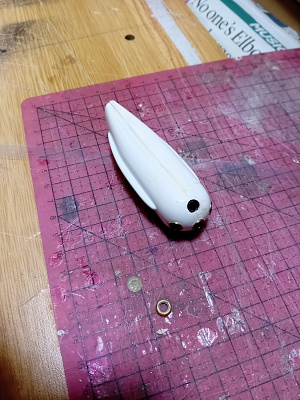

    Managed to cut out the main body in 2 halves plus the floats. The body shell is pretty basic and no interior as such, so I'll be getting my thinking cap on to see what I can make.

    ๐Ÿ’ฌ Re: Helicopter
    2 months ago by ๐Ÿ‡บ๐Ÿ‡ธ Hhager2 ( Midshipman)
    โœง 98 Views ยท 4 Likes
    Flag
    That is a Hughes heli you should be able to find pics on line. I believe there is an Rc heli that type available it should be right size. Many years ago I had one maybe on eBay That would be fun to have Rc one
    Show 3 More Posts
