Automatic Bilge Pump for RC Boats
2 Posts · 6 Followers · 4 Photos · 23 Likes
Began 7 months ago by
United StatesFollow This Thread
Not currently following
> Click to follow
> Click to follow
Latest Post 7 months ago by
| Most recent posts shown first (Show Oldest First) | (Print Booklet) |
📝 Parts for bilge pump
7 months ago by 🇺🇸 LewZ (
Rear Admiral)
Rear Admiral)✧ 33 Views · 3 Likes
Flag
💬 Add Comment
Pump (3-5V submersible) - I see the same on Amazon (2 for $7 US) the link below. Temu is even cheaper.
TIP120 Darlington available everywhere (~1$ US).
Tubing is 3/16 inch dia. (Tygon, aquarium, etc) .
Resistor 2K ohm I used a 2.2 K ohm (OK).
Breadboard - most anywhere electronics are sold.
Wires, small gauge. I used only black and red pairs to keep wires together.
Connectors - common small red battery type.
Plastic parts - If anyone has access to an FDM 3D printer, I can send you the STL files via email.
Lew
Florida, USA
TIP120 Darlington available everywhere (~1$ US).
Tubing is 3/16 inch dia. (Tygon, aquarium, etc) .
Resistor 2K ohm I used a 2.2 K ohm (OK).
Breadboard - most anywhere electronics are sold.
Wires, small gauge. I used only black and red pairs to keep wires together.
Connectors - common small red battery type.
Plastic parts - If anyone has access to an FDM 3D printer, I can send you the STL files via email.
Lew
Florida, USA
▲
⟩⟩
Len1
Mike Stoney
RNinMunich
📝 Automatic Bilge Pump for RC Boats
7 months ago by 🇺🇸 LewZ ( Rear Admiral)
Rear Admiral)✧ 81 Views · 20 Likes · 8 Comments
Flag
💬 Add Comment

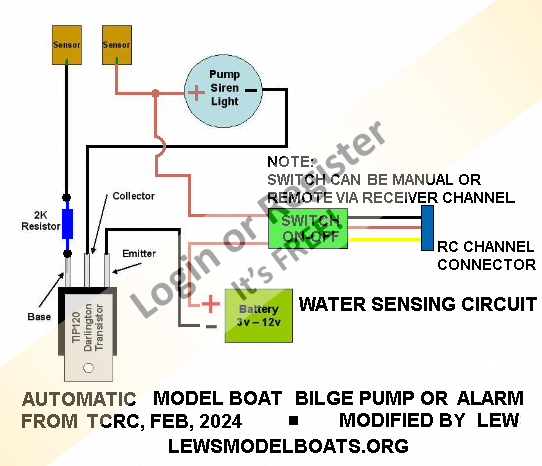

I just finished putting together a circuit, testing it and creating a video for an automatic bilge pump. This circuit can also be used to trigger a warning light or noise/sound.
Easy to build and inexpensive. The video shows the pump working. Enjoy!
Lew
Florida ☀️😎, USA
Easy to build and inexpensive. The video shows the pump working. Enjoy!
Lew
Florida ☀️😎, USA
▲
⟩⟩
MartinH2
Chum444
jbkiwi
stevedownunder
Graham93
Len1
boatmam
Isaac
RNinMunich
Commodore-H
ToraDog
RossM
Fred
River Rat
BarryS
flaxbybuck
Colin H
EdW
hermank
Mike Stoney
|
💬 Re: Automatic Bilge Pump for RC Boats
7 months ago by 🇺🇸 Len1 (
 Lieutenant)✧ 37 Views · 0 Likes
Flag
another home run Lew. Thanks. Len
▲
⟩⟩
No likes yet
This member will receive 1 point for every like received |
|
Login To
Remove Ads 💬 Re: Automatic Bilge Pump for RC Boats
7 months ago by 🇨🇦 RossM (
 Lieutenant Commander)✧ 49 Views · 3 Likes
Flag
In a sailboat in stiff breeze, WET, is a fact of life.
MAN THE PUMPS!!😮 ▲
⟩⟩
Len1
Mike Stoney
RNinMunich
|
|
💬 Re: Automatic Bilge Pump for RC Boats
7 months ago by 🇺🇸 Isaac (
 Sub-Lieutenant)✧ 51 Views · 1 Like
Flag
Lew
That is a nice tutorial. I like it. In my case, my boats are all relatively slow and calm running ( no speedsters ). So the use of a bilge is rare. I had a couple of instances where water from above went into the inner compartments directly as a result of waves. However, since all my boats are large and have multi compartments, I would need multiple pumps. Keep it going, love to hear more on tips and improvements. 👍👍👍 Isaac ▲
⟩⟩
Len1
|
|
💬 Re: Automatic Bilge Pump for RC Boats
7 months ago by 🇳🇿 jbkiwi (
 Fleet Admiral)✧ 65 Views · 6 Likes
Flag
Hi Lew,

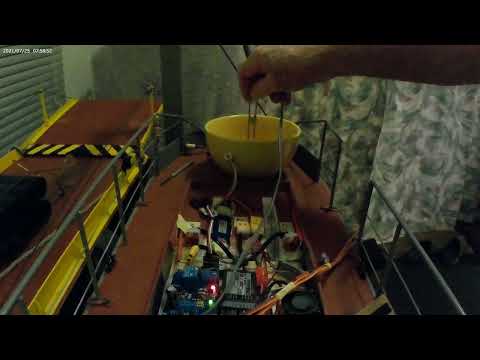

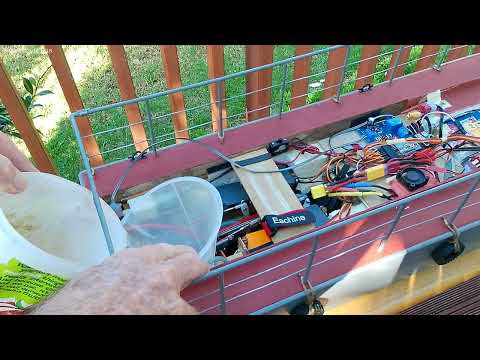

did a similar thing last year in my Russian jet workboat model, using a water level switch from Ali Express. Probes (different lengths) were made from stainless windscreen wiper inserts which sit in a well in the stern of the boat. The switch unit is seen on the port side operating (LED on/off) It's automatic and was needed due to the leaks in the multi directional valve box I made for the jet unit. Pump was originally just on a switch (kept forgetting to turn it on😂) JB
▲
⟩⟩
stevedownunder
Len1
Isaac
AlessandroSPQR
RossM
RNinMunich
|
|
💬 Re: Automatic Bilge Pump for RC Boats
7 months ago by 🇺🇸 ToraDog (
 Captain)✧ 56 Views · 1 Like
Flag
Beautifully simple Lew. Would you care to list your components for us? Where would you put a fuse or breaker in your circuit?
▲
⟩⟩
Len1
|
|
💬 Re: Automatic Bilge Pump for RC Boats
7 months ago by 🇨🇦 RossM (
Lieutenant Commander)✧ 60 Views · 1 Like
Flag
Definitely on my build it list. Thanks Lew
▲
⟩⟩
Len1
|
|
💬 Re: Automatic Bilge Pump for RC Boats
7 months ago by 🇬🇧 flaxbybuck (
Captain)✧ 64 Views · 1 Like
Flag
Nice one Lew. This is just the sort of thing I wish to install in one of my boats. At present the pump is operated by a switch controlled by the transmitter, and it is complete guess work as to whether the bilges need pumping or not. 😉
▲
⟩⟩
Len1
|
|
💬 Re: Automatic Bilge Pump for RC Boats
7 months ago by 🇮🇹 AlessandroSPQR (
 Vice Admiral)✧ 69 Views · 1 Like
Flag
Interesting and useful. Good boy.
▲
⟩⟩
