    ๐Ÿ“ Info for Vosper Crash Tenders and Air ea Resue
    5 years ago by 4clubs ( Midshipman)
    Flag
    View All

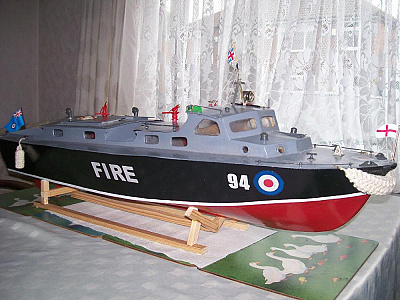

    Some Information for all those "Fire Boat" guys.
    For the superstructure colour which can be described as RAF Barley grey (don't quote me on that, could be something else) I have used a variety of paints In the past. The best I came up with Involved using Dulux house hold paint and mixing It to match the colour but the nearest match In the modelling world would be Tamiya XF-19 Sky Grey, the second nearest Is Humbrol 64.
    You may require a semI gloss varnish to get an closer match. There were only two Vosper crash tenders ever built were numbered 93 and 94, and these numbers were painted white. One final note which I have noticed with other RAF vessels In model form, the roundel on the bow of a crash tender should not have the yellow outer ring, the yellow ring signifies an air sea rescue boat In the RAF air sea rescue service not a marine craft section boat to which the crash tenders belong to.
    Hope this helps.

    The two boats In the class 93 & 94 of the 46ft Crash & Rescue tenders were constructed by Vosper Ltd of Portsmouth In1952 for the R.A.F.

    The hulls were of double skin mahogany on birch plywood framing. Powers was from two Rover Metorite engines of 375 hp each, This was a 8 cylinders V type engine of 18 litres Drive was to 2 X 3 blade props (both rotating the same way) Giving a top speed of 28 knots
    Fire fighting was from two 3.5' fire monitors that could spray water of foam. The power for the pumps was from a Ford V8 engine to give 5-600 g.p.m. This pump was also be used as a salvage pump.
    For rescue work she was fitted with a spring tow hook, line throwing equipment and rockets, stretchers and a portable davit.
    The two craft were taken Into service In 1952-53 at Calshot. They spent many year as experimental craft for It Is alleged that they were designed to complement the SARO princess flying boats that spent many years at Calshot. The craft were reported to have startling acceleration and could stop In there own length once the automatic 7 sec time delay came Into effect on the reverse gear. They had a turning circle of three boat lengths at 28,5 knots.
    Both boats were sold from service In 1958. The two boats In the class 93 & 94 of the 46ft Crash & Rescue tenders were constructed by Vosper Ltd of Portsmouth In1952 for the R.A.F.

    The hulls were of double skin mahogany on birch plywood framing. Powers was from two Rover Metorite engines of 375 hp each, This was a 8 cylinders V type engine of 18 litres Drive was to 2 X 3 blade props (both rotating the same way) Giving a top speed of 28 knots
    Fire fighting was from two 3.5' fire monitors that could spray water of foam. The power for the pumps was from a Ford V8 engine to give 5-600 g.p.m. This pump was also be used as a salvage pump.
    For rescue work she was fitted with a spring tow hook, line throwing equipment and rockets, stretchers and a portable davit.

    Both boats were sold from service In 1958.

    boat house
    engine
    fire monitors
    flying boats
    gloss
    hull
    humbrol
    model
    model boats
    paint
    plywood
    prop
    roundel
    speed 600
    spray
    superstructure
    tamiya
    vessel
    vosper
    wood
    port
    tow
    power boat
    mahogany
    wood boat
    sea star
    model world
    water pump
    bow
    crash tender
    paints
    monitors
    water line
    fire boat
    air boat
    rc boat
    varnish
    gloss white
    marine esc
    fire monitor
    rc craft
    sea rover
    raf rescue
    built
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comments
    ๐Ÿ—ฃ๏ธ Share
    1
    ๐Ÿ’ฌ Info for Vosper Crash Tenders and Air ea Resue
    5 years ago by Dave M ( Rear Admiral)
    Flag
    Please also look in the Plans and Docs section on this site for details and pictures of the actual 93 and 94 Boats
