    Remote Trim and Tilt for outboard motors
    by RudyM ๐Ÿ‡ฟ๐Ÿ‡ฆ ( Chief Petty Officer 2nd Class)
    ๐Ÿ“ฃ










    Click To
    Follow
    1 Post 3 Comments 0 Photos 8 Likes
    Most recent posts shown first   (Show Oldest First) (Print Booklet)
    ๐Ÿ“ Remote Trim and Tilt for outboard motors
    2 months ago by RudyM ( Chief Petty Officer 2nd Class)
    Flag
    View All
    The Azure Spirit is a speedboat with a 3D Printed outboard engine capable of being tilted via TX.
    It took a bit of brain-power to figure it out, but it does work.
    Instead of having a rudder servo fixed in position, the servo is mounted on a slider. See image A.
    A second servo or motor is then connected to the slider to turn a threaded rod. (I used a turnbuckle from the local hardware store, but a thread with greater pitch will be better as the movement will be quicker).
    The second servo (trim servo) must be fixed in position. In my case it is mounted aft.
    As the threaded rod rotates, the rudder servo is pushed to bow and the outboard is raised (pulled up).
    If rotation is reversed, the rudder servo is pulled aft and the weight of the engine lowers it into position.

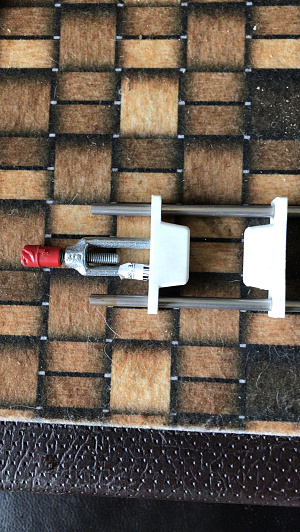

    Image A is the blank servo slider.

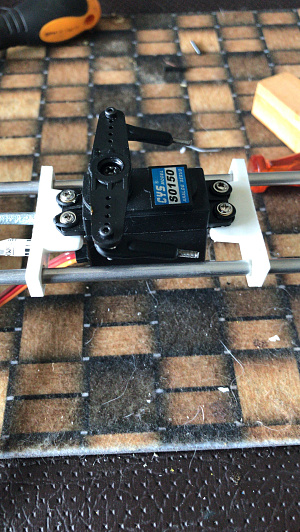

    Image B indicates the mounting of the rudder servo on the slider.

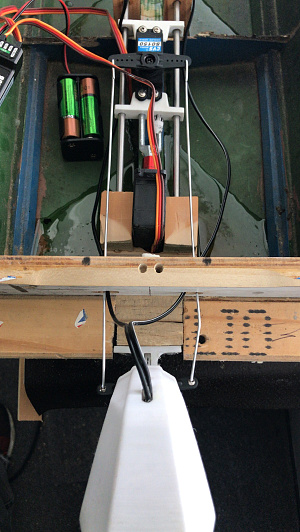

    Image C is the set-up.
    The last image indicates the steering links. For testing, I used braising rods. Put you can use a pull cable if the motor is heavy enough to drop on its own.

    Here is a video clip to show the speed of movement.
    https://youtu.be/seUSMUgK1VE
    https://youtu.be/seUSMUgK1VE
    ๐Ÿ”—
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comments
    ๐Ÿ‘€ 63 Views
    8
    3
    ๐Ÿ’ฌ Re: Remote Trim and Tilt for outboard motors
    2 months ago by Julio ( Master Seaman)
    Flag
    Hi RudyM:
    A great project and a very well executed job. Thanks for sharing!!
    ... even more, it has given me some good ideas for competition outboards...๐Ÿคฃ๐Ÿคฃ๐Ÿ˜‰๐Ÿ˜‰๐Ÿ˜‰๐Ÿ˜‰๐Ÿ˜‰๐Ÿ˜‰
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 22 Views
    1
    ๐Ÿ’ฌ Re: Remote Trim and Tilt for outboard motors
    2 months ago by Colin H ( Vice Admiral)
    Flag
    Great idea, and executed superbly. Thanks for sharing, cheers Colin.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 60 Views
    2
    ๐Ÿ’ฌ Re: Remote Trim and Tilt for outboard motors
    2 months ago by DWBrinkman ( Warrant Officer)
    Flag
    Very clever! Great job.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 68 Views
    1
