    Graupner Taucher Wulf….again!!!
    by Cashrc πŸ‡ΊπŸ‡Έ ( Commodore)
    πŸ“£










    Click To
    Follow
    7 Posts 14 Comments 0 Photos 33 Likes
    Most recent posts shown first   (Show Oldest First) (Print Booklet)

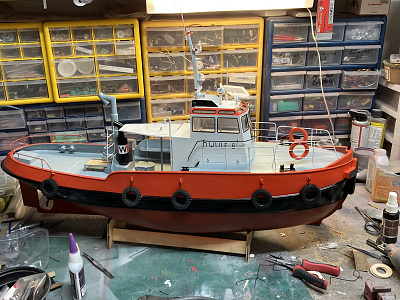

    πŸ“ Rails and details
    10 days ago by Cashrc ( Commodore)
    Flag
    View All

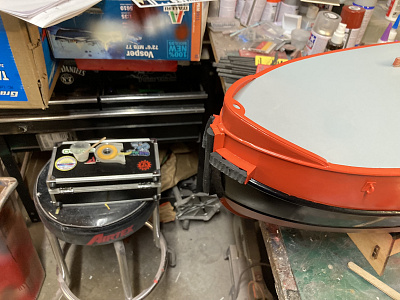

    Hi y’all. I’ll keep this brief, as I need to get to sleep. I installed the front bumper housings and rubber pads a few days ago, then started on soldering up the railings. I wanted to get her in the water this weekend, but I know if I rush it I’ll make a mess of it, so…breathe deep and take my time!

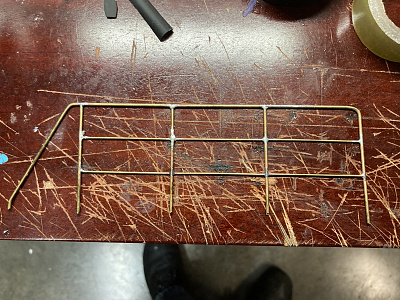

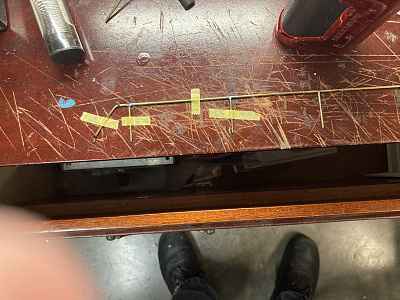

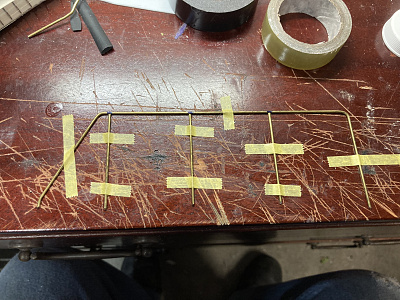

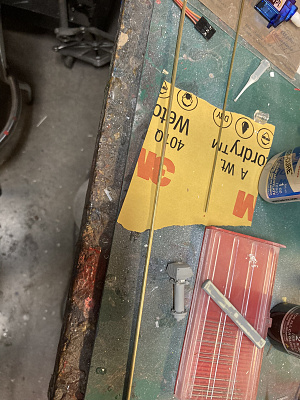

    I’ve got the aft railing made up and painted, and 2 of the 4 fwd railings soldered up. I bent the main rail and used tape to jig up the supports and cross rails to keep everything steady while I soldered…the desk I’m using was my daughters, but she’s outgrown it and she did a fair bit of craftwork on it so now it’s daddy’s soldering/detail/charging station. Once all the rails are done, I’ll paint the fittings, then do a ballast check and final assembly, plus fix any budges I find.
    Cash
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 17 Views
    4

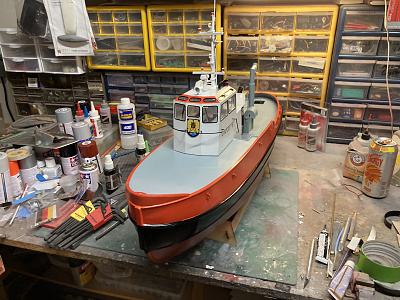

    πŸ“ Hullpaint! Gettin’ close!
    20 days ago by Cashrc ( Commodore)
    Flag
    View All

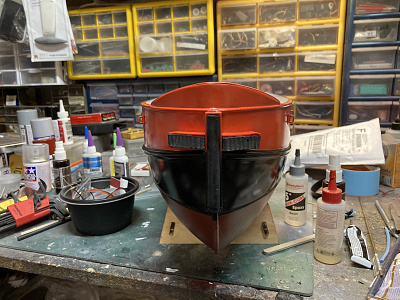

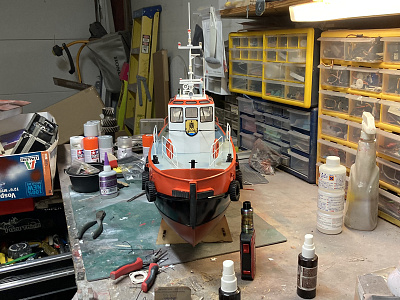

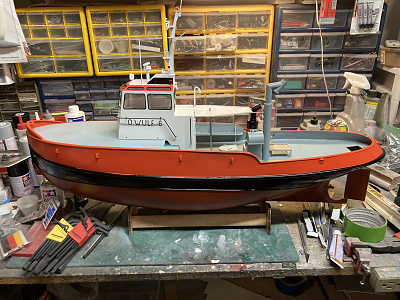

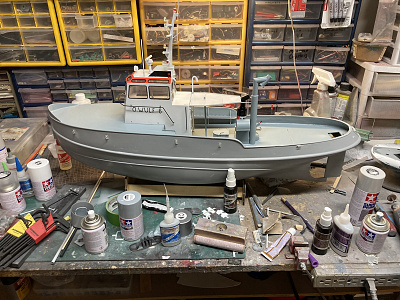

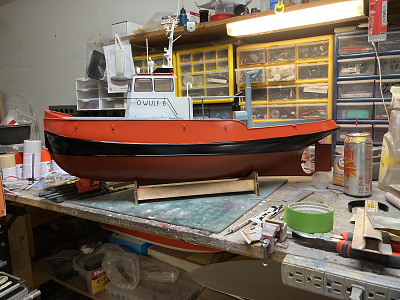

    So I spent today at my bench getting the hull ready for paint. I had one misadventure that I corrected, and thought I would stop at the upper hull paint, but the muse descended and I got it done. I need to touch up a couple of spots but I think she looks a sight better than the first boat. Anyway, now it’s time for ballast and balance check, and final details. She might, just might get wet this month!!
    Cash
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ‘€ 35 Views
    4
    1
    πŸ’¬ Re: Hullpaint! Gettin’ close!
    20 days ago by pressonreguardless ( Commander)
    Flag
    Coming along very nicely Cash.
    Looking forward to her Sea TrialsπŸ‘πŸ‘πŸ‘
    What's for Dinner?
    Trev
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 32 Views
    1

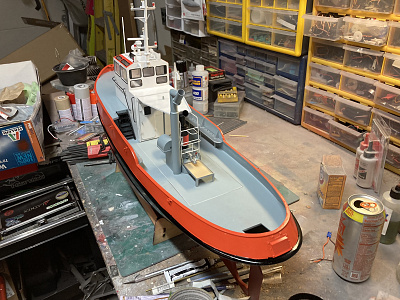

    πŸ“ Machinery done, seats in, almost time for hull paint!!
    21 days ago by Cashrc ( Commodore)
    Flag
    View All

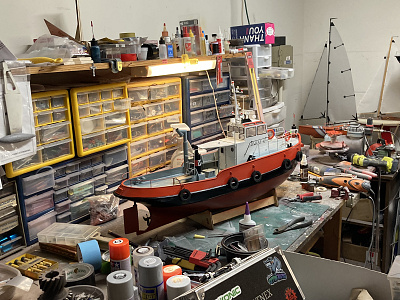

    Hi y’all. I’ll keep this short. The on deck machinery is done, ladder and cat walk built up and everything attached to the hatch. If you look you can see a tube running from the hatch thru the catwalk. Once you pull the hatch the catwalk is not supported in any way. When the hatch is installed there are locating pins that socket into the pilot house. I just decided that, due to new crew comfort and safety regs, a vent has to be provided from below decks to fresh air🀣🀣 Anyway, that tube keeps the catwalk from possibly bending once the hatch is removed.
    I have a few more things to do forward, then it’s ready for the paint shop.
    Cash
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ‘€ 38 Views
    4
    4
    πŸ’¬ Re: Machinery done, seats in, almost time for hull paint!!
    20 days ago by Cashrc ( Commodore)
    Flag
    Thanks Trev!!
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 35 Views
    πŸ’¬ Re: Machinery done, seats in, almost time for hull paint!!
    20 days ago by Cashrc ( Commodore)
    Flag
    I interviewed someone to be the captain but he came off as artificialβ€¦πŸ€£πŸ€£
    The boat is 1/20 scale. Most..no all of my boats to date are crewless. However, Fisher Price had a line of toys called Adventure People, think that might be a close match.
    Hope you find a crew bud!!
    Cash
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 35 Views
    πŸ’¬ Re: Machinery done, seats in, almost time for hull paint!!
    21 days ago by pressonreguardless ( Commander)
    Flag
    Nice work, CashπŸ‘πŸ‘
    Trev
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 37 Views
    1
    πŸ’¬ Re: Machinery done, seats in, almost time for hull paint!!
    21 days ago by roycv ( Midshipman)
    Flag
    Have you managed to recruit a crew yet? I had terrible trouble with one of my fishing boats, loads of interviews but some were too tall and others could'nt move their arms.
    One interviewee said the hours were dreadful with no time off and we hardly ever go fishing anyway!
    Managed to get a family together eventually, I will ask them if I can take a photo for posting.
    It's not as if I am a certain Mr. Musk either, as there is no signal out there for laptops anyway!

    Roy
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 41 Views
    1
    πŸ“ Deck painted, some deck machinery and another Casserole!!
    23 days ago by Cashrc ( Commodore)
    Flag
    View All

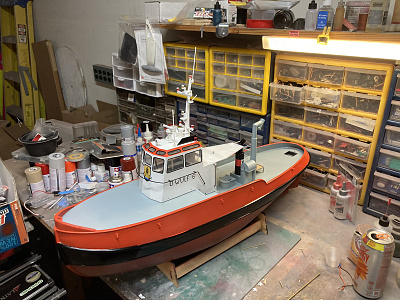

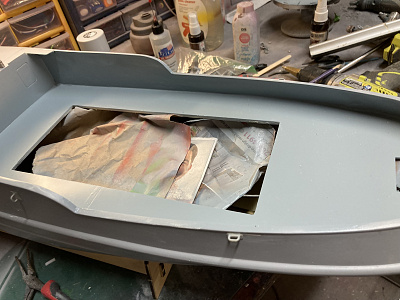

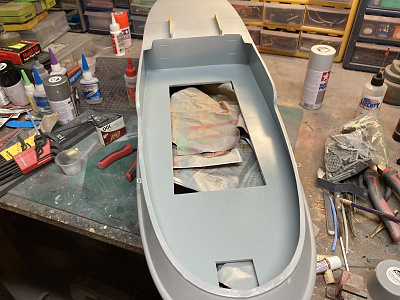

    Hi y’all. Took 3 days off from work got a bit done today. First off, the deck is installed. I had to raise the stern end up a bit to the correct height, this made my gap at the stern smaller and easier to fill. It also gave me a bit more clearance for the rudder linkage, as it was just scraping a bit, and I cannot have that. It looks much better than the first boat, but I still need some touching up in places.

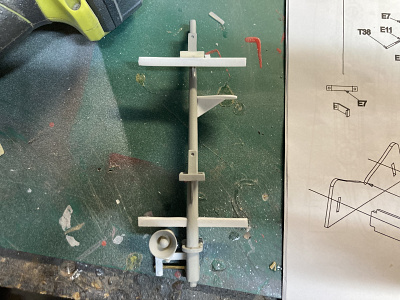

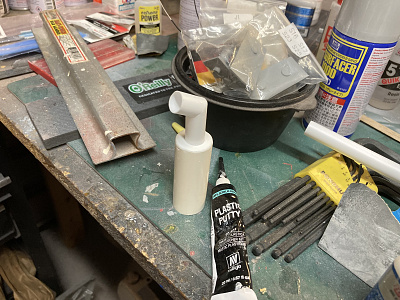

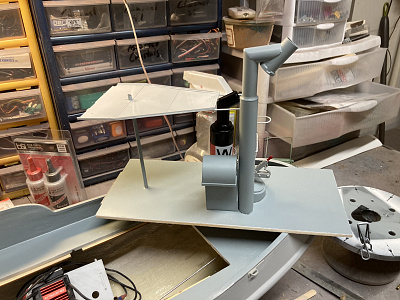

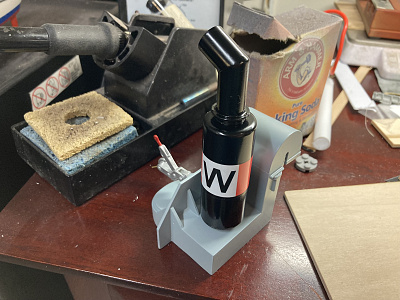

    The Taucher has deck machinery and most of that comes from the fittings kit, plus cut plastic and brass rod. I made the hatch much larger (useable) and I set it up so that all the machinery will come off with the hatch as a unit. There’s a vertical boiler, or heater, that gets built up from a tube with a lower and upper end cap and a molded exhaust pipe. There’s also a second exhaust that’s in the fittings kit. The end caps and exhaust were missing from the bag, which was sealed. This was one of the last kits sold in the US before Graupner gave up on kit making, so who knows what happened. Anyway, I decided to make my own fittings with the tubes from the kit and some scrap tubing I had in my plastic stash, plus a Lego that looked the part. They’re not perfect, but they’ll look ok. Next thing will be to fit and build up the hatch and catwalk, and assemble the machinery and test fit.
    Oh….I made a Tater Tot casserole for dinner😁
    Cash
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ‘€ 53 Views
    6
    2
    πŸ’¬ Re: Deck painted, some deck machinery and another Casserole!!
    22 days ago by Cashrc ( Commodore)
    Flag
    Same here Roy, was watching James Mays β€œOh Cook” a few months ago, always wondered what minced beef was. We call it ground beef.😊
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 45 Views
    πŸ’¬ Re: Deck painted, some deck machinery and another Casserole!!
    22 days ago by roycv ( Midshipman)
    Flag
    I live and learn, almost every day, just found the recipe for the Tater Tot casserole. In UK the 'tater tots' are sold as mini-crispy potatoes.
    Roy
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 52 Views
    2

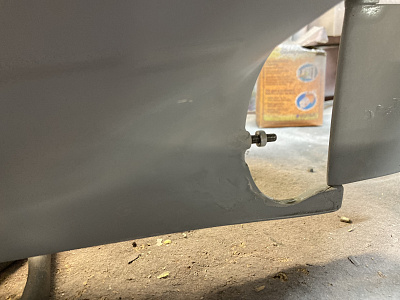

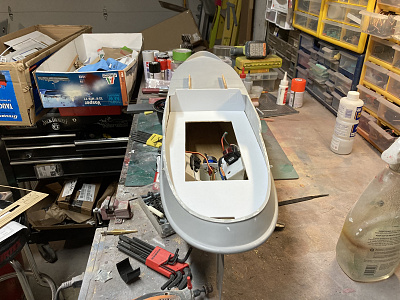

    πŸ“ Motor, rudder, shaft, deck and a casserole
    26 days ago by Cashrc ( Commodore)
    Flag
    View All
    Hi y’all. Got an update on the Taucher. I got the motor, electronics, rudder and deck installed.

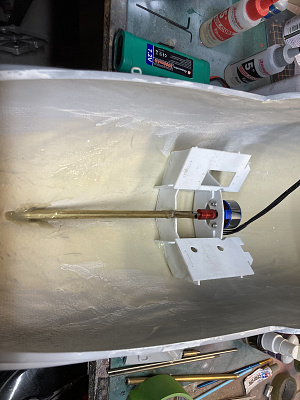

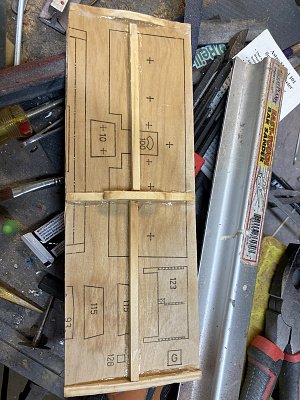

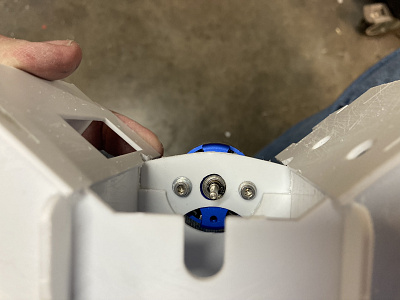

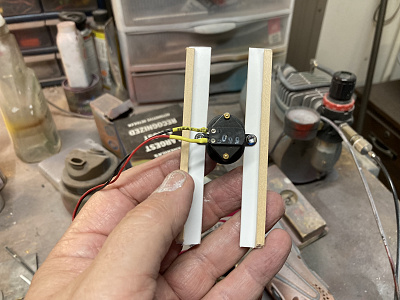

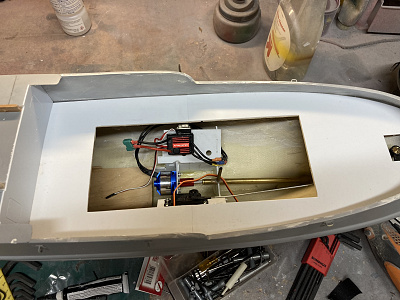

    I did the motor mount first. Now, the Taucher uses a neat motor mount/electronics mount which works nicely, but it does take up a bit too much room across the beam, and you have to modify it for mounting a brushless outrunner. I used a Zippkits 650 kv motor, which if I figured correctly should be fine for power, as the last boat used a 540 brushed with a 2.5 planetary gearbox.

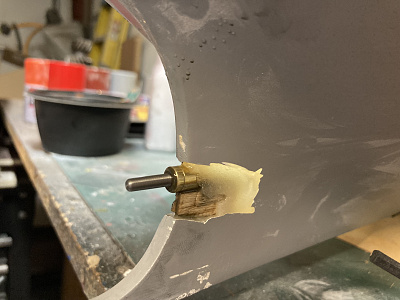

    I had no joy mounting the aft end of the tube. Last time I used a Caldercraft fineline tube, this time I used a standard diameter tube, same size as the kit provided unit but better quality-it’s a Harbor Models unit.long story short the exit for the tube is very narrow, and I made a good mess drilling it, damaging the hull in the process. I read in a build log that the tube reall needs to be about 6-8 mm higher, so I notched out the damaged area with my dremel, taped both sides and filled with epoxy from the inside. Oh, I had tacked the tube in place with a piece of balsa before. One the epoxy set I filled, sanded, then glassed over the repair and sanded again then primer. It looks better than I had hoped!!

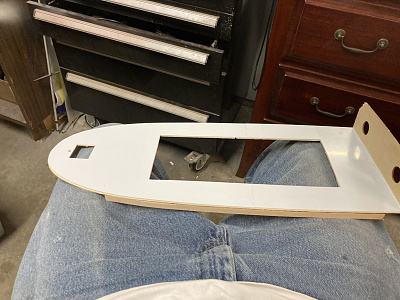

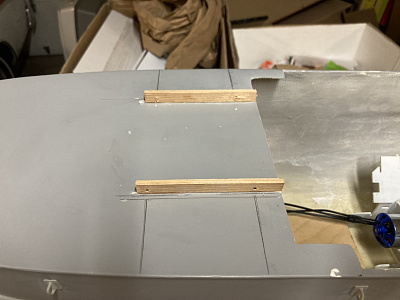

    Once I got the rudder mounted and the underdeck electronics done I made mounting rails for the wheelhouse. I then turned my attention to the deck. The original deck was an abysmal fit, and so is this one. However, I did much more jigging, fitting and sanding before I glued it in. Also, I built up the deck including the plastic upper deck, instead of trying to glue the plastic down after the wood bottom was in place. I also cut myself a larger, usable hatch. I took my time fitting it and it came out much better than before. I still have some gaps to fill, especially at the stern, but it’s better.
    Once that was done I went inside and made a King Ranch casserole for dinner..πŸ˜€
    Cash
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ‘€ 64 Views
    6
    4
    πŸ’¬ Re: Motor, rudder, shaft, deck and a casserole
    23 days ago by Cashrc ( Commodore)
    Flag
    Thanks Trev!!!
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 54 Views
    1
    πŸ’¬ Re: Motor, rudder, shaft, deck and a casserole
    26 days ago by pressonreguardless ( Commander)
    Flag
    Good progress on the boat Cash.
    That Casserole looks GreatπŸ‘πŸ‘πŸ‘
    Trev
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 59 Views
    1
    πŸ’¬ Re: Motor, rudder, shaft, deck and a casserole
    26 days ago by Cashrc ( Commodore)
    Flag

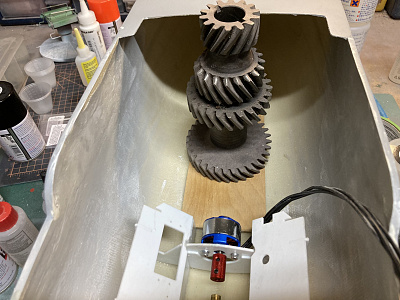

    Good God JB I hope not!! I know the original boat needed 9-10 pounds of ballast. The gear cluster makes a fine weight for making sure glued parts stay put.
    As an aside, even though my Hawk drives well with the 4 speed auto, I really miss the 3 speed manual with overdrive…
    Cheers!!
    Cash
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 58 Views
    πŸ’¬ Re: Motor, rudder, shaft, deck and a casserole
    26 days ago by jbkiwi ( Fleet Admiral)
    Flag
    Looking good Cash, like the gear cluster ballast, are you sure it will need that much?😁

    JB
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 61 Views
    1

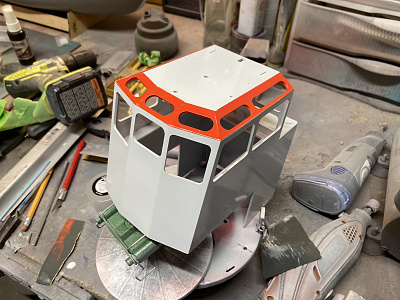

    πŸ“ Cabin Completed
    1 month ago by Cashrc ( Commodore)
    Flag
    View All

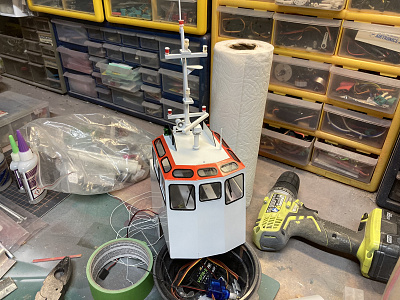

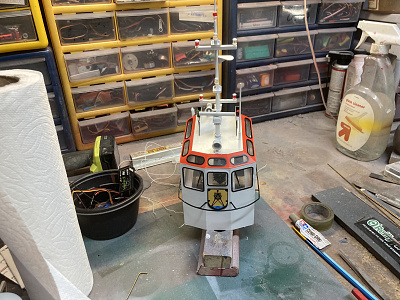

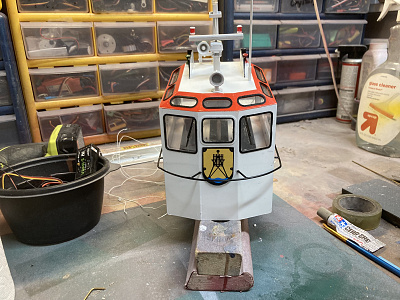

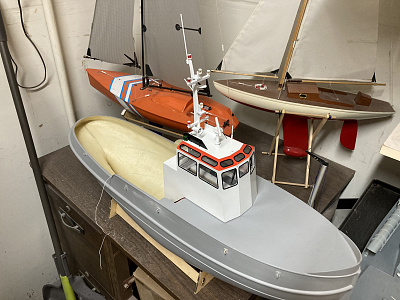

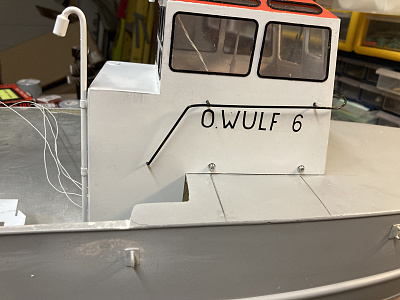

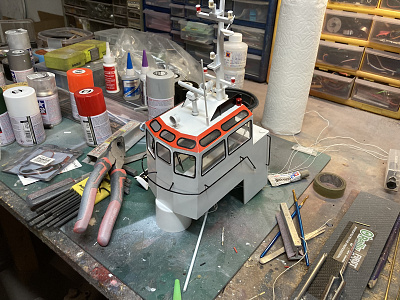

    Hi y’all. I have got the cabin completed. To me this was one of the more difficult jobs of the build as it’s a different way of building, coupled with paint, sometimes sketchy parts fit, and the mods I made for radar and lights. However, I’m very pleased with the way it turned out. I shortened the radar antenna to clear a taller, more scale like aerial on the port side. I made up the vent pipe, installed the railings and side decals, I added the forward crest to a 2mm placard and installed that on the forward wall of the cabin just below the windows. Mast is detailed and done. The next time I post will be hull prep and internals.
    Cash
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 78 Views
    4

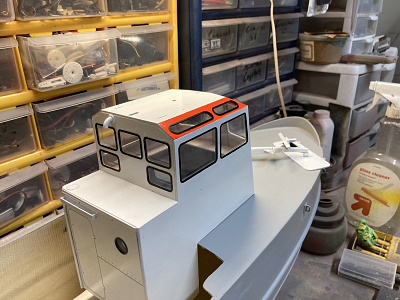

    πŸ“ Graupner Taucher Wulf….again!!!
    1 month ago by Cashrc ( Commodore)
    Flag
    View All

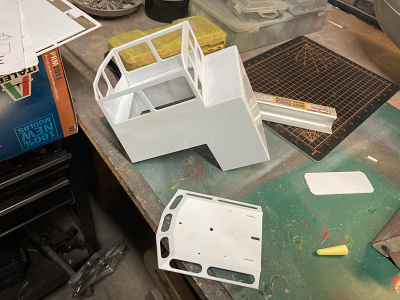

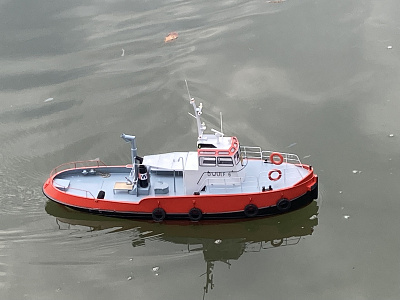

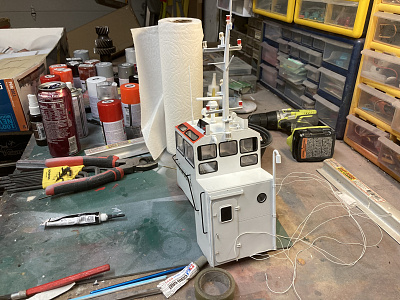

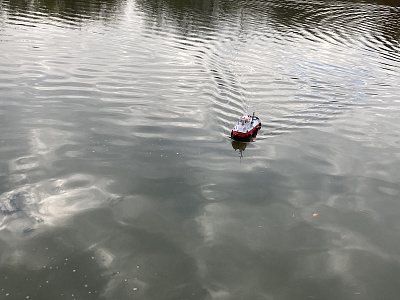

    Hi y’all. A few years ago I built a Graupner Taucher Wulf from their β€œEasy Build Up” kit. If any of y’all followed the build you’ll note that A: I was in over my head at that time and B: I was not happy with the results. It ran well, but I did not have the experience to finish it right, and the horrid instructions didn’t help. That was my 2nd attempt at scale boat modeling, the first was a Krick Felix, which turned out nicely. Now, several years later…I traded for another, NIB Graupner Wulf. I want another shot at it!🀣

    Knowing now the pitfalls of this kit, and the experience I’ve had building over the past 4 years, have led me to take the instructions as loose guidelines. The cabin gave me the most trouble, so I started with that.

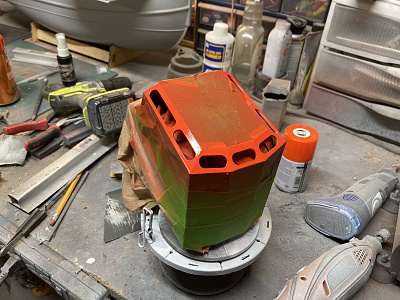

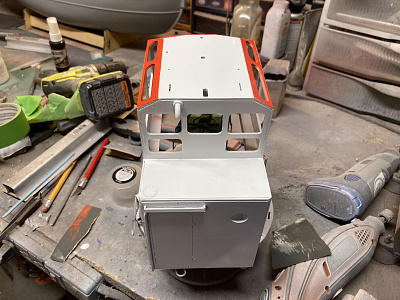

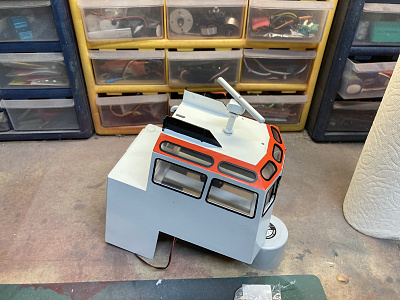

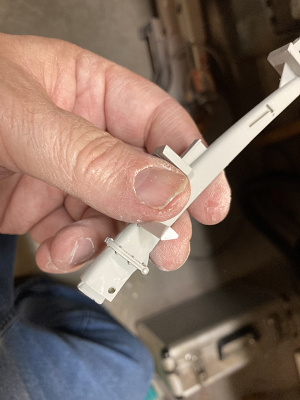

    I took my time building the main structure. It’s supposed to fold together then glued, in reality the fold lines are very fragile. I took my time, sanded to fit and it came out better. I’m using my Tamiya paints and primer, and I’m pleased so far with the results. I’ve added a working radar, but instead of using a mini servo to drive the antenna, I decided to go with an old Robbe geared motor that was designed to be used for special functions, and an Apex rc switch. This allows me to turn the radar on and off from the transmitter, and the geared motor drives it at a nice scale speed. Now, the Tauchers radar is mounted on a tube. To make this work I had to cut the antenna off the resin fitting, drill it down the centerline, and install a brass tube. The motor is mounted low in the center of the cabin, and a brass rod goes up thru the tube to which the antenna is fitted. I used a piece of Sullivan pushrod as a coupler from the rod to the motor. Works like a champ!! I also set the cabin up with working nav lights.

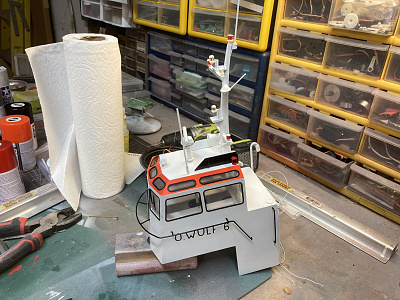

    The pictures I have now show the radar with a slightly too long radar antenna, I shortened the side aerial to clear it, but I trimmed the radar today to clear and fitted a longer aerial as per the plans. I’ll have pics of that when I’m done making up and fitting the railings.
    Cash

    https://youtu.be/OqyfUg08T1U
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ‘€ 113 Views
    5
    3
    πŸ’¬ Re: Graupner Taucher Wulf….again!!!
    20 days ago by mturpin013 ( Vice Admiral)
    Flag
    Your video didn't work for me?
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 32 Views
    πŸ’¬ Re: Graupner Taucher Wulf….again!!!
    23 days ago by RonH ( Chief Petty Officer 2nd Class)
    Flag
    Great ide😊
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 52 Views
    πŸ’¬ Re: Graupner Taucher Wulf….again!!!
    1 month ago by wingsounds13 ( Leading Seaman)
    Flag
    Cash was in over his head, so he's doing it again. πŸ˜€ I saw it Sunday and it's looking (mostly) pretty good so far. Thing is that he's not done with it yet. πŸ˜›

    J.P.
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ‘€ 103 Views
    1
