    HMCS Sackville - WWII Corvette
    by gordc πŸ‡¨πŸ‡¦ ( Able Seaman)
    πŸ“£










    Click To
    Follow
    2 Posts 9 Comments 11 Photos 6 Likes
    Most recent posts shown first   (Show Oldest First) (Print Booklet)
    πŸ“ HMCS Sackville - WWII Corvette
    2 years ago by gordc ( Able Seaman)
    Flag
    View All

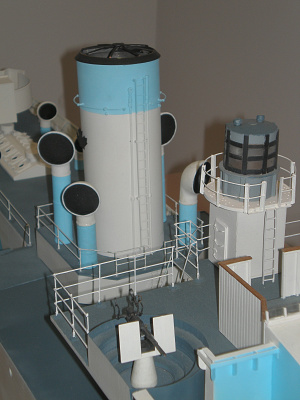

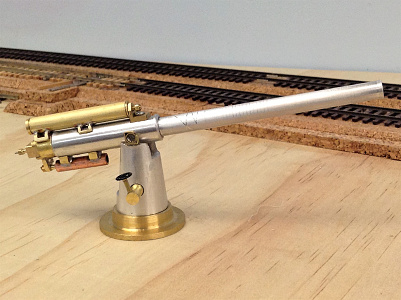

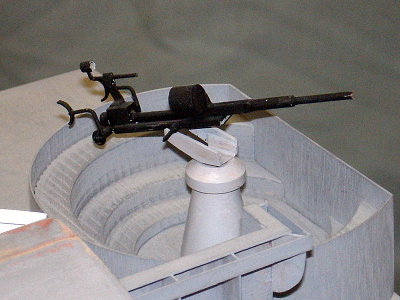

    I haven't made a lot of progress in the past year but the funnel is ready for painting and I'm pleased with how the 4-inch gun has turned out.

    Sea trials did not go well last summer. I had no success with the boiler - the burner still gave me trouble. I tried different sized jets but it still took over 30 minutes to get up steam and by then the fuel tank was empty. I'll build a larger tank before next summer.

    paint
    steam
    build
    corvette
    boiler
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    πŸ“ HMCS Sackville - WWII Corvette
    3 years ago by gordc ( Able Seaman)
    Flag
    View All

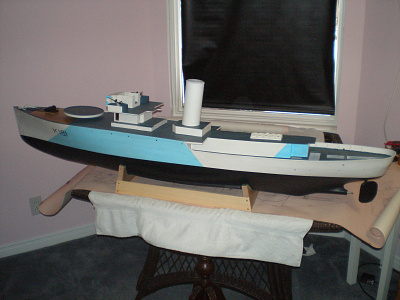

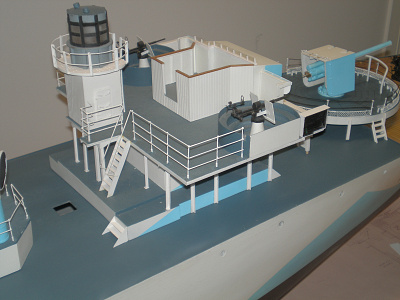

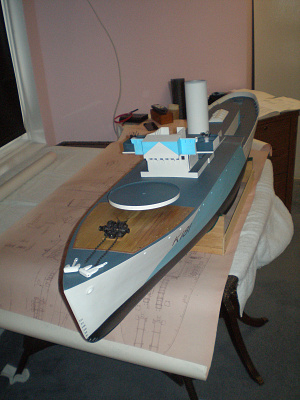

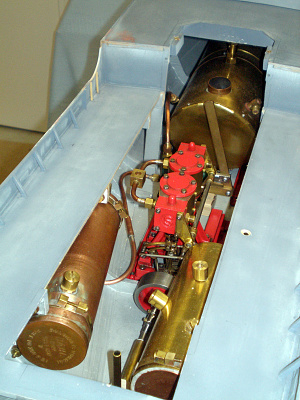

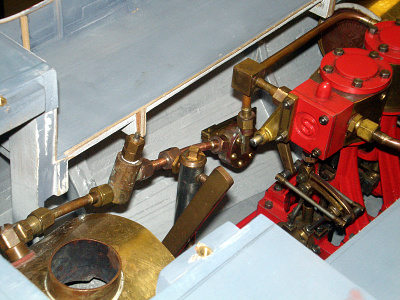

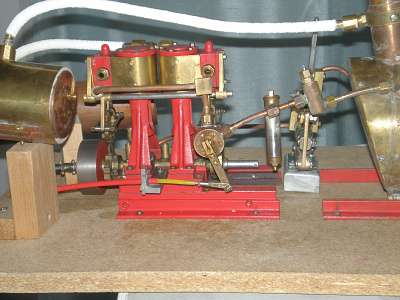

    About 25 years ago I started building a Stuart Turner double 10 steam engine and soon after, I decided to build a boat to put it in. The photos show how far I've got.

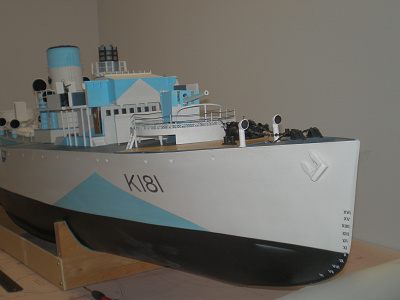

    It's a model of a WWII corvette, HMCS Sackville. The original ship has been restored and is on display in Halifax, Nova Scotia.
    I've built it to a scale of 5/16" to the foot in order to have a displacement of roughly 40 pounds, which I figured I would need to accommodate the steam plant. it has an overall length is 65" and a 10" beam. The 5/16" scale also means that I have to make all the fittings for the boat from scratch. I'm working on the 4" gun right now.

    I had the hull in the water for the first time last September and discovered that the pitch of the propeller needed increasing and that the boiler couldn't make enough steam to keep the engine running at 600 rpm. The boat just sat there going nowhere.

    I've increased the propeller pitch and enlarged the burner orifice on the centre-flue boiler to increase the heat input, so I hope to do better this summer.

    fittings
    prop
    hull
    steam
    model
    engine
    boat show
    display
    build
    ship
    pt boat
    scratch
    propeller
    corvette
    show
    16 scale
    steam boat
    boiler
    built
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ—£οΈ Share
    6
    9
    πŸ’¬ HMCS Sackville - WWII Corvette
    3 years ago by cenbeth ( Chief Petty Officer 1st Class)
    Flag
    Hi
    This looks interesting. What size boiler are you using and what sized burner?
    Edward

    corvette
    boiler
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    2
    πŸ’¬ HMCS Sackville - WWII Corvette
    3 years ago by Dave M ( Vice Admiral)
    Flag
    Good sized model. Be good to see the finished model on the water in steam.
    Dave

    steam
    model
    corvette
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    πŸ’¬ HMCS Sackville - WWII Corvette
    3 years ago by RNinMunich ( Fleet Admiral)
    Flag
    EXcellent, real Model Engineering πŸ‘
    Not fair though! Your Corvette is 20 cm longer than my Pocket Battleship Graf Spee πŸ˜‰ of my H class destroyer Hotspur. Looking forward to the video .....

    model
    engine
    ship
    corvette
    video
    battleship
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    1
    πŸ’¬ HMCS Sackville - WWII Corvette
    3 years ago by gordc ( Able Seaman)
    Flag
    View All

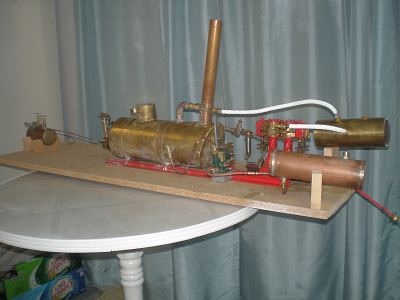

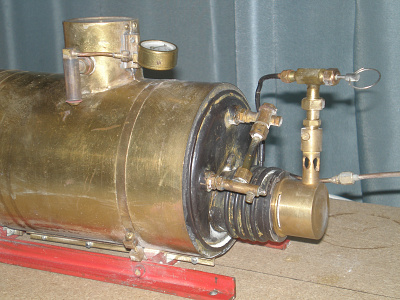

    The boiler is 10 inches long and 4 inches in diameter. I designed it using the guidelines in one of Martin Evans' model engineering books. The centre flue is roughly 2 inches in diameter. The boiler volume is just over 1 litre to the top of the gauge glass.

    I bought the ceramic burner from Maccsteam. After lighting with gas, I switch to a liquid propane/butane mixture which turns to vapour in the evaporating coil on the outside of the flue.

    prop
    model
    engine
    switch
    lighting
    corvette
    glass
    boiler
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    3
    πŸ’¬ HMCS Sackville - WWII Corvette
    2 years ago by taffy ( Leading Seaman)
    Flag
    looks fantastic, how long to finish and fully running on water?

    regards TaffyπŸ‘πŸ‘

    corvette
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    1
    πŸ’¬ HMCS Sackville - WWII Corvette
    2 years ago by figtree7nts ( Rear Admiral)
    Flag
    Great project thanks for sharing!
    Wish you much success with it!

    corvette
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    1
    πŸ’¬ HMCS Sackville - WWII Corvette
    2 years ago by gordc ( Able Seaman)
    Flag
    Hi Taffy, thanks for the support. if I can't sort the boiler out this summer, I'll admit defeat and finish the ship as a static model.
    Here's hoping.

    model
    ship
    corvette
    boiler
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    πŸ’¬ HMCS Sackville - WWII Corvette
    2 years ago by RNinMunich ( Fleet Admiral)
    Flag
    Hi gord(on?), so far so goodπŸ‘ For heaven sakes DON'T GIVE UP! 😲
    If all else fails - use bloody great nails!! πŸ˜‰
    In this case perhaps a half decent brushed motor, the 'Flowers' weren't greyhounds anyway 😁 More power to your boiler, Cheers Doug 😎

    motor
    brush
    corvette
    brushed motor
    boiler
    brushed
    nails
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    πŸ’¬ Re: HMCS Sackville - WWII Corvette
    4 months ago by gordc ( Able Seaman)
    Flag
    View All
    It's been about 18 months since my last post. I've finally got the boiler steaming - the burner raised the 1.1 litres of water in the boiler to a pressure of 50 psi in about 20 minutes. I hope to conduct sea trials in the next few weeks. I'll post a video if my efforts are successful.

    I got sidetracked last summer building the whaleboat. I bought second-hand copies of Harold Underhill's books on how to build plank-on-frame models and followed his instructions.
