Krick Lisa M
15 Posts · 1 Follower · 24 Photos · 12 Likes
Began 12 years ago by
United KingdomFollow This Thread
Not currently following
> Click to follow
> Click to follow
Latest Post 11 years ago by
| Most recent posts shown first (Show Oldest First) | (Print Booklet) |
📝 Krick Lisa M
11 years ago by 🇬🇧 GrahamSmith (
Leading Seaman)
Leading Seaman)✧ 5 Views · 0 Likes
Flag
💬 Add Comment
I've glued the bits of the superstructure together. The front windows were a bit of a b*gger - they didn't fit very well, so I ended up making the centre one out of separate pieces of wood.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
Login To
Remove Ads
Remove Ads
📝 OOOOPS!
11 years ago by 🇬🇧 GrahamSmith ( Leading Seaman)
Leading Seaman)✧ 6 Views · 1 Like
Flag
💬 Add Comment
Oh, dear! it turned out that with the servo mounted where it was, the horn was just a tad too high and would catch on the underside of the well deck. So I had to re-site it and attach it with a "snake"
▲
⟩⟩
sandkb
📝 All In place
11 years ago by 🇬🇧 GrahamSmith ( Leading Seaman)
Leading Seaman)✧ 6 Views · 1 Like · 2 Comments
Flag
💬 Add Comment
Here the motor and steering servo have been mounted properly. The motor is as near in line with the prop shaft as possible.
All wood bits have been yacht-varnished before being glued in.
The speed controller is a Mtroniks Viper 20.
All wood bits have been yacht-varnished before being glued in.
The speed controller is a Mtroniks Viper 20.
▲
⟩⟩
sandkb
|
💬 All In place
11 years ago by 🇬🇧 GrahamSmith (
Leading Seaman)✧ 5 Views · 0 Likes
Flag
eh????
▲
⟩⟩
No likes yet
This member will receive 1 point for every like received |
|
💬 All In place
11 years ago by 🇺🇸 MDBarnes (
 Recruit)✧ 5 Views · 0 Likes
Flag
I no longer have plans for the American Scout.
▲
⟩⟩
No likes yet
This member will receive 1 point for every like received |
📝 Modification
11 years ago by 🇬🇧 GrahamSmith ( Leading Seaman)
Leading Seaman)✧ 6 Views · 1 Like
Flag
💬 Add Comment
Since I'm fitting a 540 motor, I needed to mount the motor further forward, and therefore the battery had to go further back.
▲
⟩⟩
sandkb
📝 Working bits
11 years ago by 🇬🇧 GrahamSmith ( Leading Seaman)
Leading Seaman)✧ 6 Views · 1 Like
Flag
💬 Add Comment
This is what the motor and battery mounts are supposed to look like.
▲
⟩⟩
sandkb
📝 Rudder mount
11 years ago by 🇬🇧 GrahamSmith ( Leading Seaman)
Leading Seaman)✧ 6 Views · 1 Like
Flag
💬 Add Comment

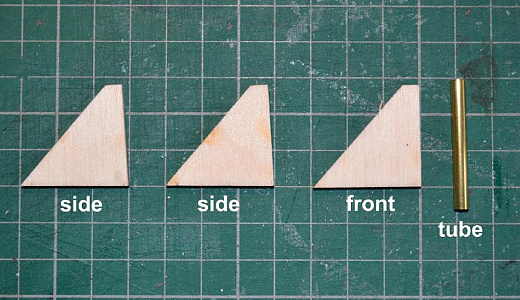

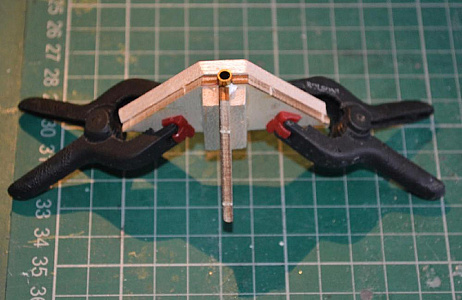

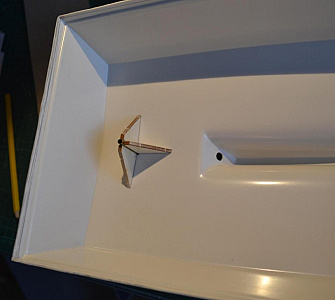

The rudder mount is made out of three pieces of wood glued to the tube. in the event, I decided to reinforce it with extra wood.
▲
⟩⟩
sandkb
📝 Detail of coaming
11 years ago by 🇬🇧 GrahamSmith ( Leading Seaman)
Leading Seaman)✧ 5 Views · 0 Likes
Flag
💬 Add Comment

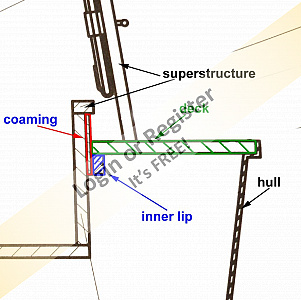

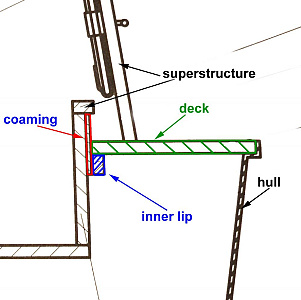

Here's how the coaming attaches
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 Coaming
11 years ago by 🇬🇧 GrahamSmith ( Leading Seaman)
Leading Seaman)✧ 6 Views · 1 Like
Flag
💬 Add Comment

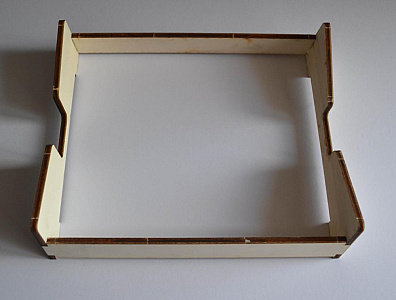

Then the coaming is attached to the inside of the lip (see diagram in next post)
▲
⟩⟩
sandkb
📝 Deck underside
11 years ago by 🇬🇧 GrahamSmith ( Leading Seaman)
Leading Seaman)✧ 6 Views · 1 Like
Flag
💬 Add Comment

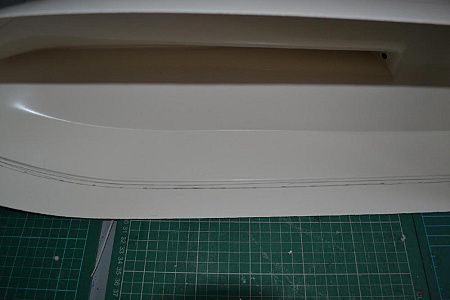

There's a set of wood strips to fit round the underside of the opening in the deck:
▲
⟩⟩
sandkb
📝 Hull and deck
11 years ago by 🇬🇧 GrahamSmith ( Leading Seaman)
Leading Seaman)✧ 6 Views · 1 Like
Flag
💬 Add Comment

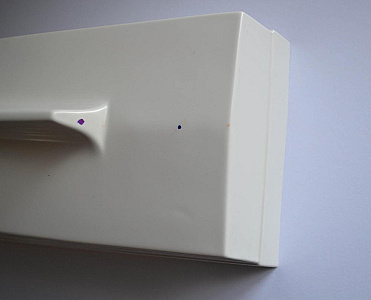

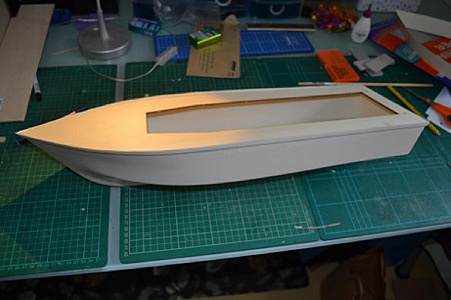

The deck sits nicely in the "shelf"
▲
⟩⟩
sandkb
