I dont know why , I dont how but this year at start of May I start with my friends a challenge or competition if you want. The point is to build a motor yacht named ALICA. Comapny which sale the plans make 20% rabat so it was perfect timing for this competition.

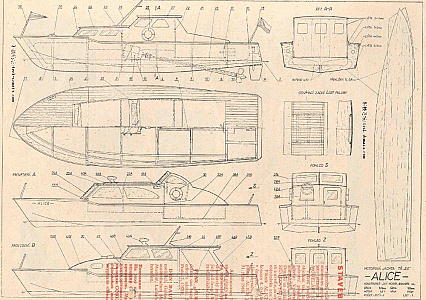

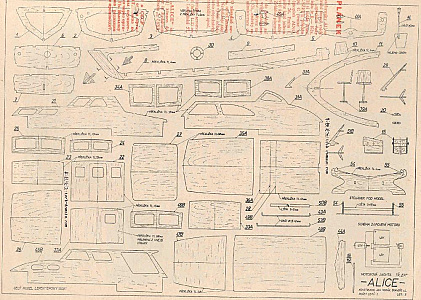

Here some pics of construction plans...

For first this challenge was preparet for new and young modellers. As you can see on attached plans, the construction of this boat is pretty simple. For more interest is possible to chosse from three super structures. Till September we just prepare beginers for building with explanations about constructions and material. From first of September we start with building. First thing was re-drawing of some parts in plans. Model is drawed like model for EX500 class. That means, its not a radio controled model.

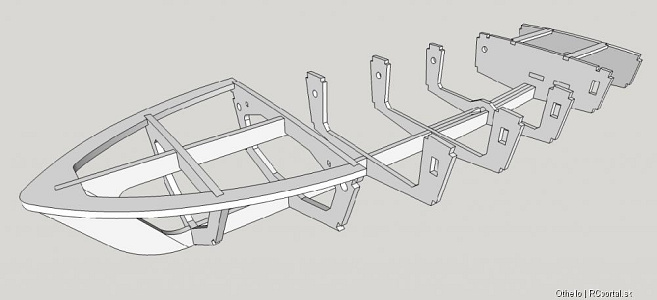

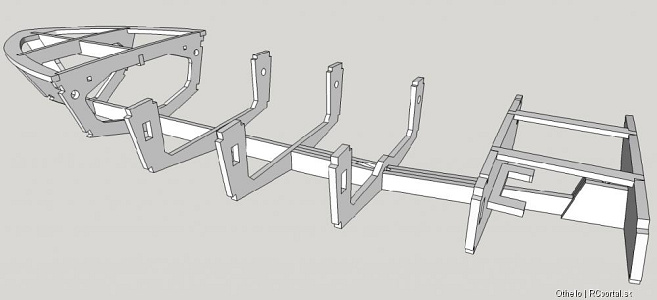

We re-draw all ribs and kiel in sketchup which must be prepared for rudder servo and rc components.

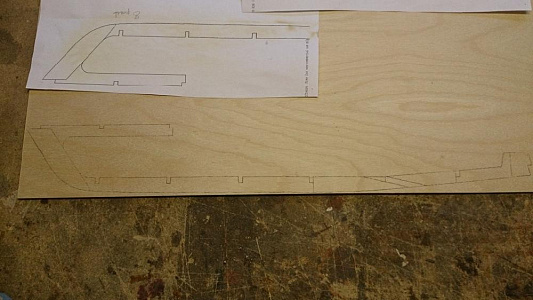

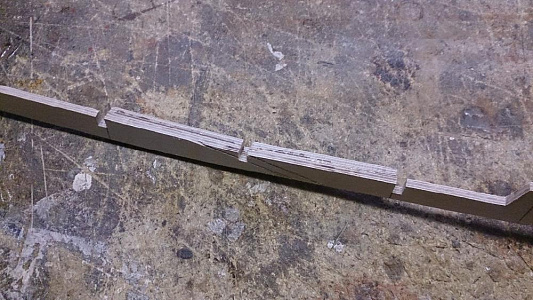

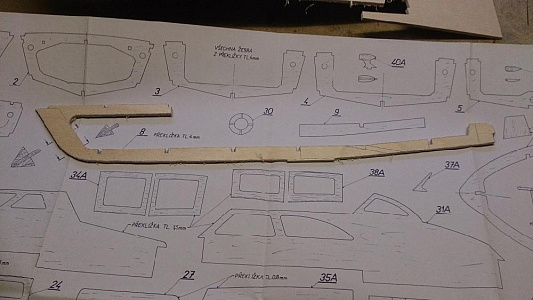

many guys use parts cutted by plasma cutter or CNC miller. For old timers like me is the best the fret saw. For transfering of lines from plans on plywood I use the copies of plan maded with laser copy maschine. I put it on the plywood with the lined side and then with iron I melt the printer collor and transfer the lines on the plywood. I stard with cutting of the kiel rib which is maded from four parts.

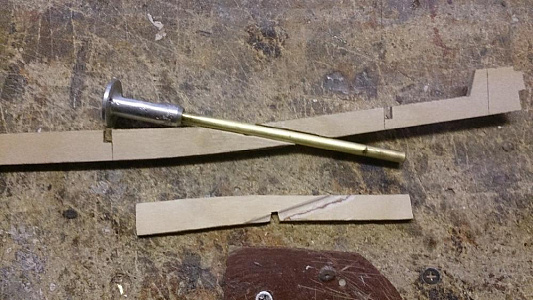

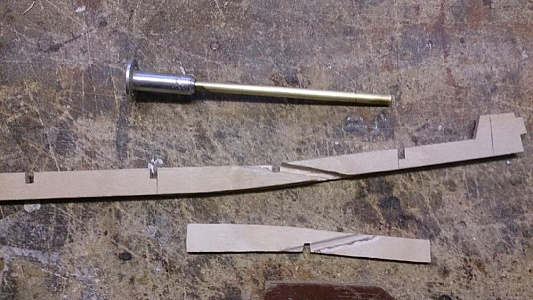

The kiel still in one piece is complletly cutted and sanded. Two pieces of support parts for kiel and shaft hole must be glued together with kiel sequentially. For first must be glued support on one side, then must be cutted out the hole for shaft. After that can be glued on place the second support from other side of the kiel. After drying can be the hole ajusted for the shaft. Please do not glue the shaft in the kiel in this time.
The same procedure is used for rudder shaft.
