There is also a guy called Fred Bloor, his website is www.rainbowcoloured.co.uk
He does a plans CD that has some interesting detail. I've not seen a plan with the correct nose shape yet though.
Cheers
Wayne

Well, I've been quite busy on the 1/4 scale Bluebird K7...
Cheers
Wayne

Cheers John👍

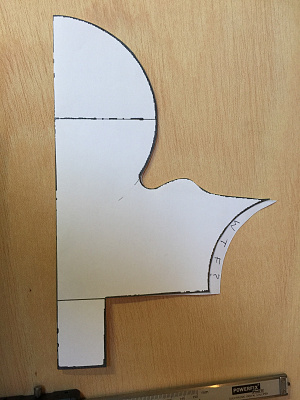

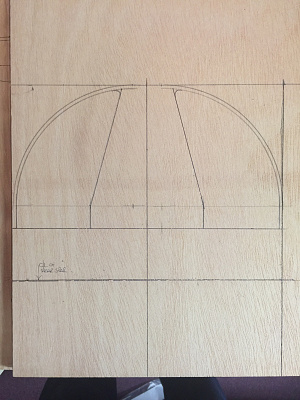

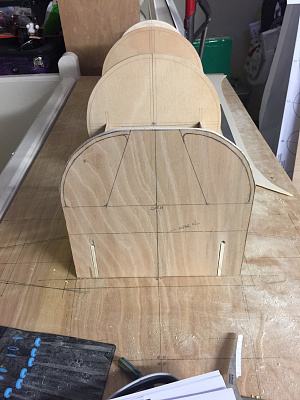

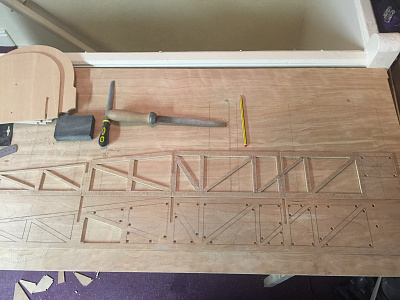

I'll be cutting out the inside of all the bulkheads next & then I'll glue the structure together, I'm planning on using epoxy but if anyone has any suggestions of a better glue I'm all ears.
I'm going to make the spars out of 1mm thick titanium, I'll get the bits laser cut by a mate & I know a very good welder, I just need to draw them up first...
Cheers
Wayne

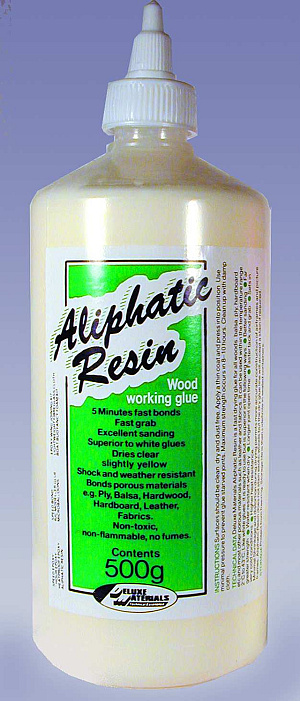

Thanks, I've not seen this stuff before, I'll have to do some research, sounds ideal if it does what it says on the label.
Cheers
Wayne

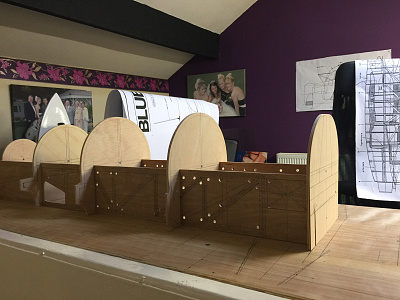

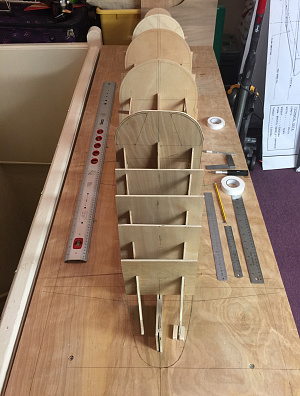

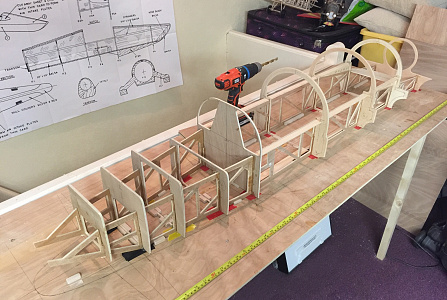

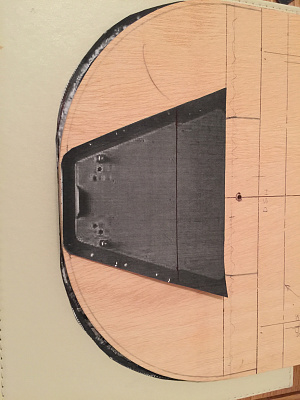

Been busy this weekend, managed to get all the bulkheads finished off & I've finally glued all the structure together🤓👍
More strengthening to be added this week & I'll try & tidy up the glued joints.
I'm still trying to work out how I can easily remove the engine cover yet still remain watertight but not fly off at speed. I've got a few ideas involving lots of magnets & a remotely operated latch, I've made a start by glueing a flange along the outside of the main frame. For my plan to work, I'll need to add a half bulkhead in between the air intake & the first bulkhead & another butting up against the the last bulkhead before the transom, they will be the split lines. I'll then have to find a way to strengthen up the removable section so I can cut it free.
I'll. keep you posted.
Cheers
Wayne

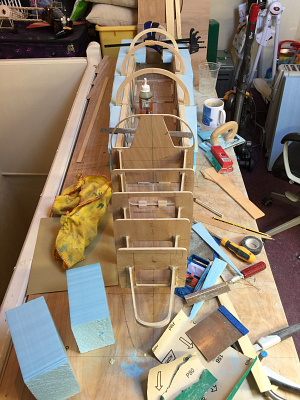

I've finished off tidying up the glued joints & ive put a fillet of epoxy around all 4 sides of each joint.

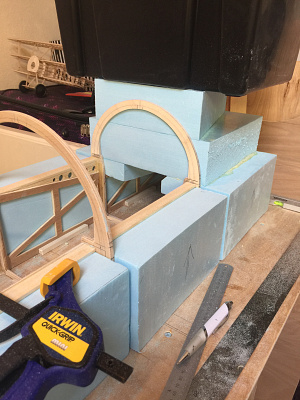

I've also just started cutting the blue foam, as you can imagine there is dust absolutely everywhere, I may just have convinced the Mrs to let me have a shed at last!!!

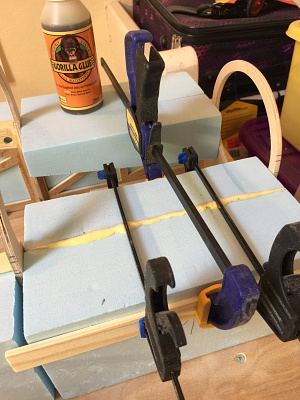

I found a a few videos on YouTube comparing different foam glues, gorilla glue had good reviews so so I got some.
You apply it sparingly on one side of the joint & water (yes water) to the other side, press the joint together & leave for a couple of hours, the glue actually turns to foam & sticks like a good un!!!
Cheers
Wayne

Cheers Dave, my finger is well & truly pulled out!!!
Thanks
Wayne

I bought a load of Neodymium magnets for another project last year, they are really good. I want to use a mechanical catch to keep the lid on but I want to use the magnets to keep pressure on an o-ring to keep things nice & water tight. it's only early days yet, if I can get out of work early one day I'll pop to a local locksmith to see what he has on the catch front, nothing small enough at B&Q. I'd like to operate it remotely, there is an area at the bottom of the tail that could be used to open the catch.
Cheers
Wayne

Hi Chris, I'm on a mission with K7, I guess I won't stop building them until I'm really happy...

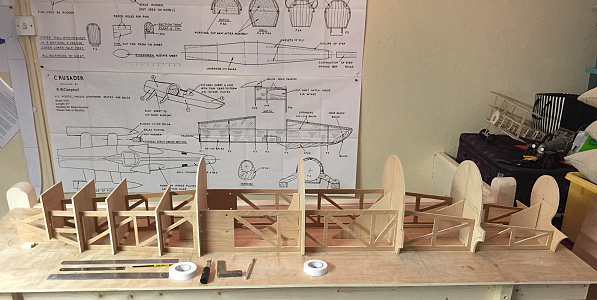

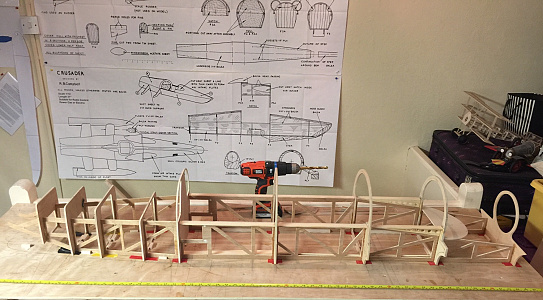

I've got Crusader up on the wall so I can subliminally learn the shape, when I get spare time I'll make a start on a 1/12 scale version & make my mistakes on that, then maybe build a 1/4 scale version, a few years away though.
Cheers
Wayne

There's a 1/4 scale Bluebird K7 in there somewhere, honest!!!
