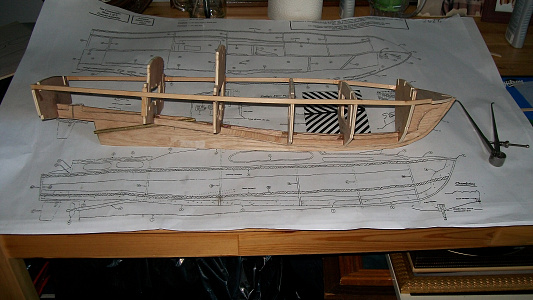

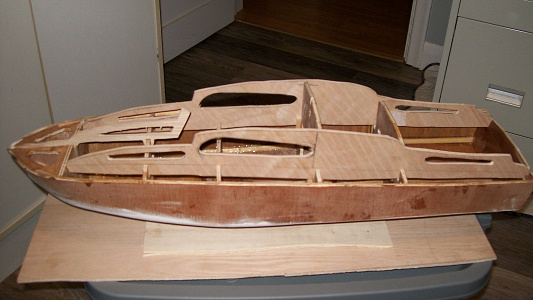

Thanks to a fellow in Tasmania I got plans for sea commander no names please took a week for my print shop to make plans size 24''in length I wanted to build the model in a scale that is manageable & easy to transport to the pond . Used 1/4 inch ply for ribs & cut them on my Drumel saw that's about 30 years old , so old I can't find blades any more in Canada
[{"id":"1507663584","name":"1507663584.jpg","caption":"","url":"https:\/\/model-boats.com\/media\/1507663584\/l","thumbUrl":"https:\/\/model-boats.com\/media\/1507663584\/s","isImage":true,"ext":"jpg"}]
Thanks to a fellow in Tasmania I got plans for sea commander no names please took a week for my print shop to make plans size 24''in length I wanted to build the model in a scale that is manageable & easy to transport to the pond . Used 1/4 inch ply for ribs & cut them on my Drumel saw that's about 30 years old , so old I can't find blades any more in Canada

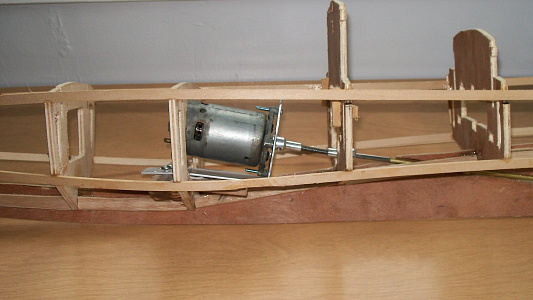

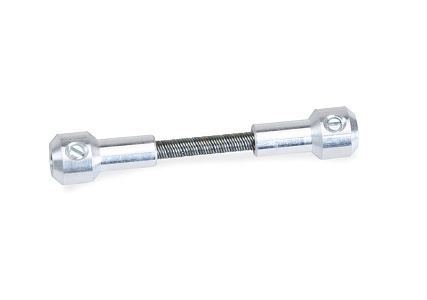

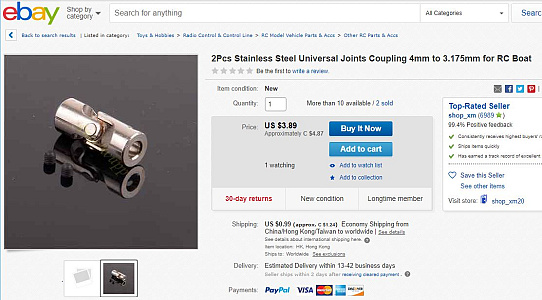

I had some 12 volt motor out of Black & Decker drills so I will use one I find that if motor isn't installed early it becomes very difficult to mount motors in a completed hull .Line up to shaft & couplings . the other thing is I us a Graupner flex coupling . They work great only problem they are no long available any where .
[{"id":"1507836654","name":"1507836654.jpg","caption":"","url":"https:\/\/model-boats.com\/media\/1507836654\/l","thumbUrl":"https:\/\/model-boats.com\/media\/1507836654\/s","isImage":true,"ext":"jpg"}]
I had some 12 volt motor out of Black & Decker drills so I will use one I find that if motor isn't installed early it becomes very difficult to mount motors in a completed hull .Line up to shaft & couplings . the other thing is I us a Graupner flex coupling . They work great only problem they are no long available any where .

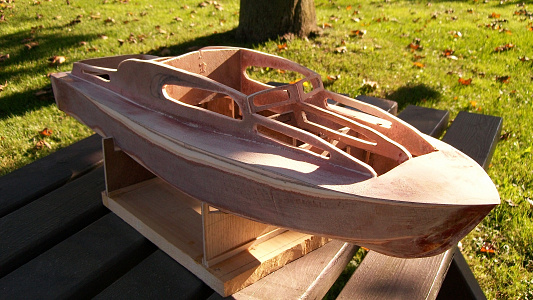

Had a little time & the weather was great so worked outside putting the hull skins on I used Door skin mahogany .A sheet was about $ 9.00 Canadian Next time I use Oak Door skin That's about $23.00 a sheet . Have to now take my time & smooth all the parts .I also sealed the inside of hull with a 2 part finishing epoxy.
[{"id":"1508200054","name":"1508200054.jpg","caption":"","url":"https:\/\/model-boats.com\/media\/1508200054\/l","thumbUrl":"https:\/\/model-boats.com\/media\/1508200054\/s","isImage":true,"ext":"jpg"}]
Had a little time & the weather was great so worked outside putting the hull skins on I used Door skin mahogany .A sheet was about $ 9.00 Canadian Next time I use Oak Door skin That's about $23.00 a sheet . Have to now take my time & smooth all the parts .I also sealed the inside of hull with a 2 part finishing epoxy.

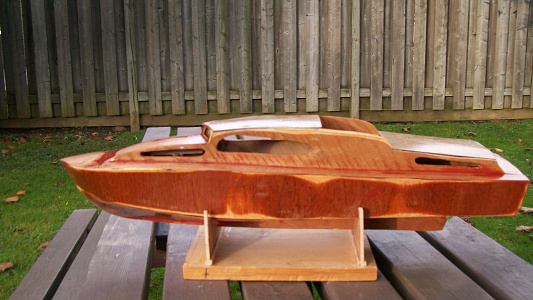

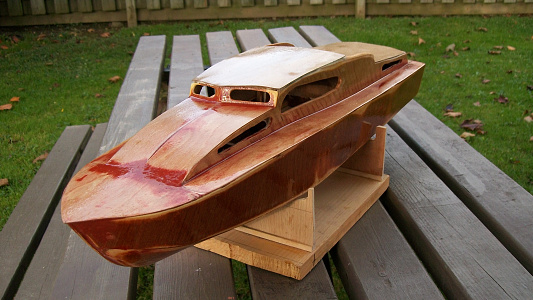

Continued with my project Sea commander hull sheets on deck on & lots of sanding for a smooth finish . Used a clear finishing epoxy it had a lot of bubbles after it dried so more sanding needed .Also made the rudder & shaft from brass rod & tube .
[{"id":"1508704942","name":"1508704942.jpg","caption":"","url":"https:\/\/model-boats.com\/media\/1508704942\/l","thumbUrl":"https:\/\/model-boats.com\/media\/1508704942\/s","isImage":true,"ext":"jpg"}]
Continued with my project Sea commander hull sheets on deck on & lots of sanding for a smooth finish . Used a clear finishing epoxy it had a lot of bubbles after it dried so more sanding needed .Also made the rudder & shaft from brass rod & tube .
I've seem to be obsessed with this build so I need to slow down a little .
[{"id":"1508966874","name":"1508966874.jpg","caption":"","url":"https:\/\/model-boats.com\/media\/1508966874\/l","thumbUrl":"https:\/\/model-boats.com\/media\/1508966874\/s","isImage":true,"ext":"jpg"},{"id":"1508966838","name":"1508966838.jpg","caption":"","url":"https:\/\/model-boats.com\/media\/1508966838\/l","thumbUrl":"https:\/\/model-boats.com\/media\/1508966838\/s","isImage":true,"ext":"jpg"}]

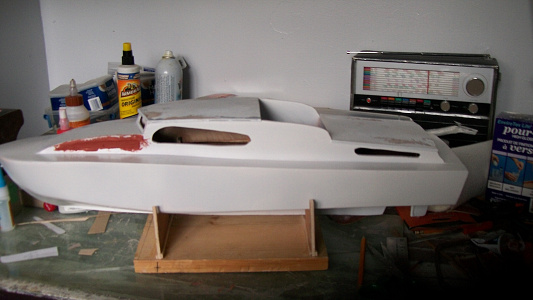

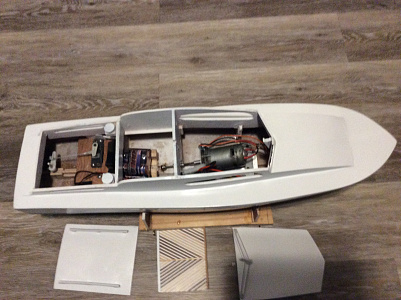

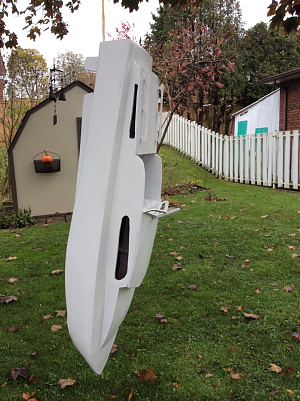

Put a little paint on my Sea Commander model to see any problems .The I realized front windows would be hard to install so filled them in . The rear cabin & front cabin tops where very difficult to make them sealed & removable but with a little effort got them on .
[{"id":"1509379213","name":"1509379213.jpg","caption":"","url":"https:\/\/model-boats.com\/media\/1509379213\/l","thumbUrl":"https:\/\/model-boats.com\/media\/1509379213\/s","isImage":true,"ext":"jpg"},{"id":"1509379249","name":"1509379249.jpg","caption":"","url":"https:\/\/model-boats.com\/media\/1509379249\/l","thumbUrl":"https:\/\/model-boats.com\/media\/1509379249\/s","isImage":true,"ext":"jpg"}]
Put a little paint on my Sea Commander model to see any problems .The I realized front windows would be hard to install so filled them in . The rear cabin & front cabin tops where very difficult to make them sealed & removable but with a little effort got them on .
I know it's a little late but here's my Drumall saw with a rib for the Sea Commander #22 . its so old I can't find saw blades any more .Got 3 blades left
[{"id":"1509558023","name":"1509558023.jpg","caption":"","url":"https:\/\/model-boats.com\/media\/1509558023\/l","thumbUrl":"https:\/\/model-boats.com\/media\/1509558023\/s","isImage":true,"ext":"jpg"}]
I know it's a little late but here's my Drumall saw with a rib for the Sea Commander #22 . its so old I can't find saw blades any more .Got 3 blades left

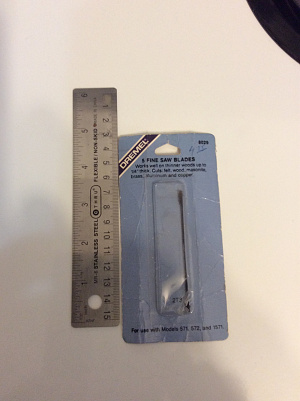

Thanks for all the replies on saw blades I broke down and use the E-Bay site . I wasn't looking that hard for these until today the cost was $31.52 most was shipping from the U.S. Got two packs I guess I'll have enough for 20 years
[{"id":"1509573530","name":"1509573530.jpg","caption":"","url":"https:\/\/model-boats.com\/media\/1509573530\/l","thumbUrl":"https:\/\/model-boats.com\/media\/1509573530\/s","isImage":true,"ext":"jpg"}]
Thanks for all the replies on saw blades I broke down and use the E-Bay site . I wasn't looking that hard for these until today the cost was $31.52 most was shipping from the U.S. Got two packs I guess I'll have enough for 20 years
Added the windscreen & railings on back deck . I want to have tinted windows & a U-Tube video was looked at. So I have to get some Smoke paint from the hobby store tomorrow .
[{"id":"1509911495","name":"1509911495.jpg","caption":"","url":"https:\/\/model-boats.com\/media\/1509911495\/l","thumbUrl":"https:\/\/model-boats.com\/media\/1509911495\/s","isImage":true,"ext":"jpg"},{"id":"1509911520","name":"1509911520.jpg","caption":"","url":"https:\/\/model-boats.com\/media\/1509911520\/l","thumbUrl":"https:\/\/model-boats.com\/media\/1509911520\/s","isImage":true,"ext":"jpg"}]
Added the windscreen & railings on back deck . I want to have tinted windows & a U-Tube video was looked at. So I have to get some Smoke paint from the hobby store tomorrow .

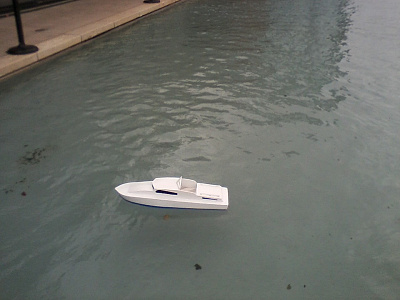

Nov.13 2017 Spencers pool is being drained for winter skate rink so rushed Sea Commander for a pool try out & shake down . still needs windows & some deck accessories . One of the members suggested to get some tint from a shop that tints car windows & got some tint film for free thanks for that idea . Hope the winter flies by so summer sailing can start again .
[{"id":"1510267514","name":"1510267514.jpg","caption":"","url":"https:\/\/model-boats.com\/media\/1510267514\/l","thumbUrl":"https:\/\/model-boats.com\/media\/1510267514\/s","isImage":true,"ext":"jpg"},{"id":"1510267512","name":"1510267512.jpg","caption":"","url":"https:\/\/model-boats.com\/media\/1510267512\/l","thumbUrl":"https:\/\/model-boats.com\/media\/1510267512\/s","isImage":true,"ext":"jpg"}]
Nov.13 2017 Spencers pool is being drained for winter skate rink so rushed Sea Commander for a pool try out & shake down . still needs windows & some deck accessories . One of the members suggested to get some tint from a shop that tints car windows & got some tint film for free thanks for that idea . Hope the winter flies by so summer sailing can start again .
