    Emerald - "Round the Word" ocean racing yacht.
    by East-RN ๐Ÿ‡ฌ๐Ÿ‡ง ( Leading Seaman)
    ๐Ÿ“ฃ










    Click To
    Follow
    1 Post 5 Comments 22 Photos 0 Likes
    Most recent posts shown first   (Show Oldest First) (Print Booklet)
    ๐Ÿ“ Emerald - "Round the Word" ocean racing yacht.
    10 months ago by East-RN ( Leading Seaman)
    Flag
    View All
    Purchased new in kit form, from Robbe. 1998.
    Specifications:-
    Overall length: 1380mm.
    Overall beam: 360 mm.
    Draught: 300 mm.
    Mast height: 1800 mm.
    Overall height: 2200 mm.
    Standard sail area: 80 square dm.
    Sail area with Genoa: 94 square dm.
    Total displacement: 12 kg.
    Ballast: 8 kg.
    Scale: 1:10
    Control
    Robbe Futaba F14 Marine transmitter / receiver.
    Channel 1 - Rudder servo.
    Channel 2 - Spare.
    Channel 3 - Genoa sail servo.

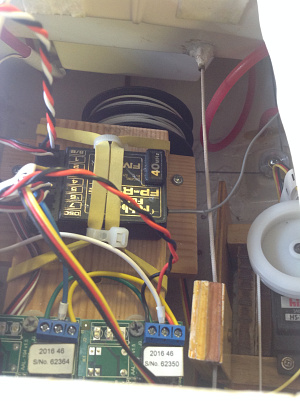

    Genoa switch module - fitted between the stick potentiometer
    and the transmitter channel 3 Socket.
    (Reverses the Genoa sail servo for Port or
    Starboard tack.)
    Channel 4 - Main sail servo.
    Channel 5 - Auxiliary 3 position switch - up position.
    Channel 6 - Auxiliary 3 position switch - down position.

    Receiver channel 5 - Mono Memory relay module. To drive the
    Blister motor out, to raise the Genoa Sail Clew.
    Receiver channel 6 - Mono Memory relay module. To drive the
    Blister motor in, to tighten the Genoa Sail Clew.

    Recently recovered from the back of the shed, where it has been in hibernation. Now I am retired and have some free time, it is under a review and refurbishment. New paint on the deck and upper hull (above the waterline). Solid state relay modules added, to replace the micro switches, operated from a cam on a servo (replacing analogue channel 2 with on/off channels 5 and 6).

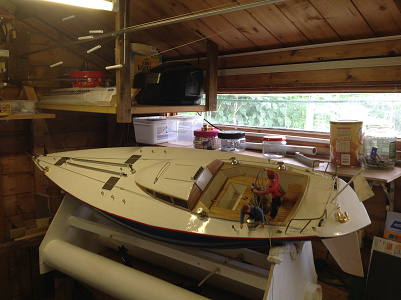

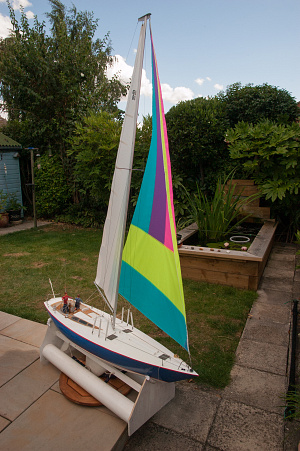

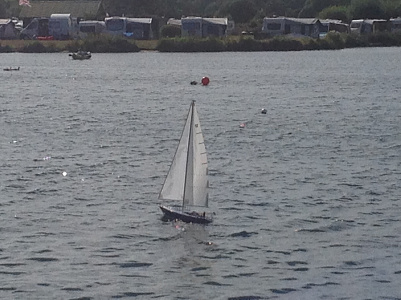

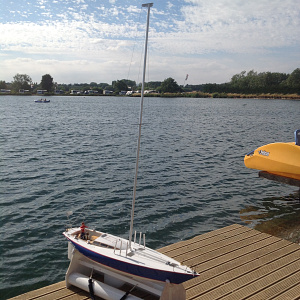

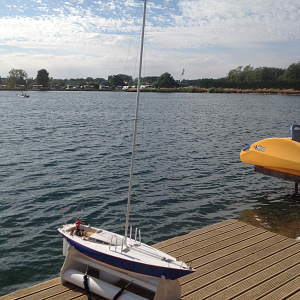

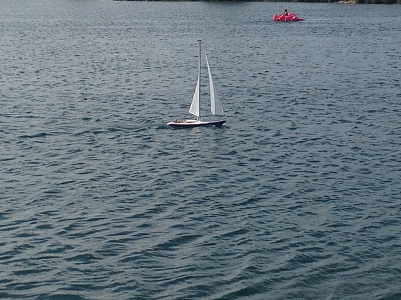

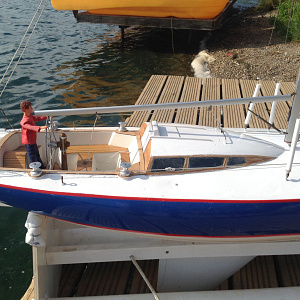

    Pictures show the sea trials after the 10 year hibination.
    The Genoa Module had failed in the carbon potentiometers. No replacement available, so found a local electronics repairers, who changed the potentiometers for ยฃ10.00.

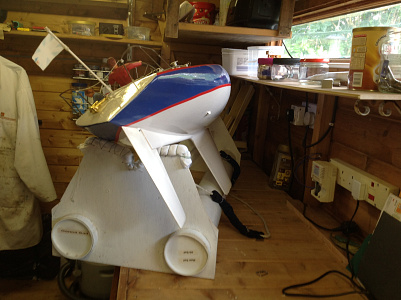

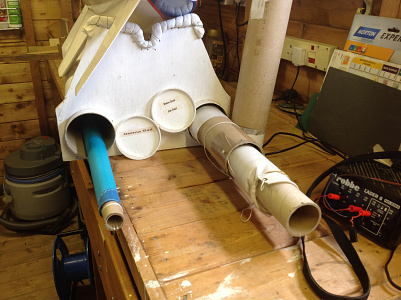

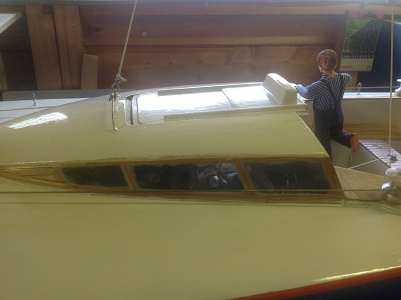

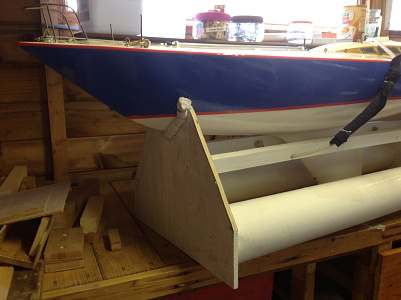

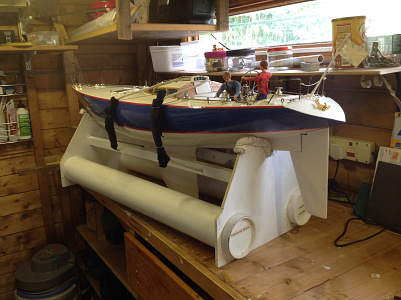

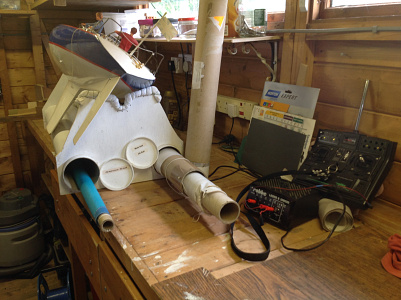

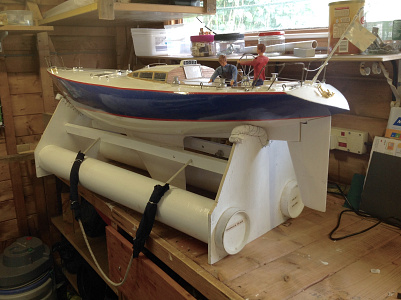

    The carrying cradle was designed to hold the sails, and secure the yacht while rigging at the waters edge. Also acts as a dry dock, while working inside the hull.
    When the repaired module is fitted, and the Genoa sail is operational, I will post detailed video of the Genoa sail winch and Blister motor and their operation while sailing.

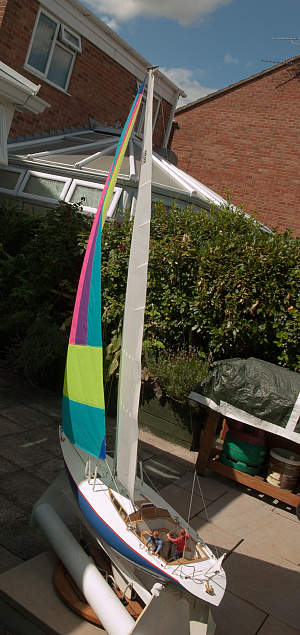

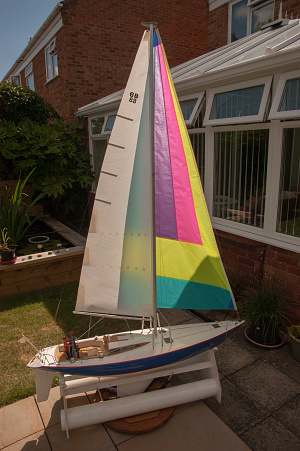

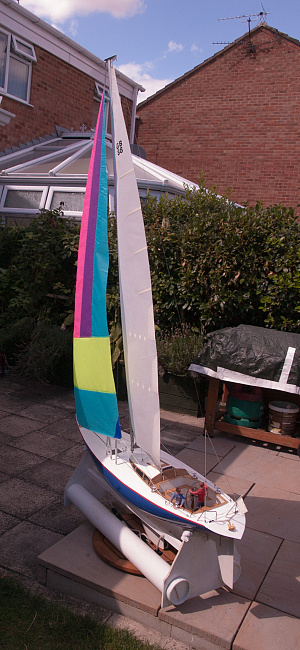

    Genoa Sail Pictures added.

    paint
    motor
    yacht
    hull
    sailing
    switch
    kit
    starboard
    port
    rudder
    deck
    dry dock
    refurbish
    robbe
    sail receiver
    transmitter
    sail
    show
    waterline
    12 scale
    video
    rigging
    channel
    servo
    futaba
    auxiliary
    winch
    water line
    sails
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comments
    ๐Ÿ—ฃ๏ธ Share
    5
    ๐Ÿ’ฌ Emerald - "Round the Word" ocean racing yacht.
    10 months ago by NPJ ( Warrant Officer)
    Flag
    Great stuff Ray. Really good idea with sail storage.

    Wondered why the tubes were so large when I saw the first image..................

    There surely are others about lets hear from them.

    Be back to you shortly.

    All the best.

    NPJ

    yacht
    sail
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    3
    ๐Ÿ’ฌ Emerald - "Round the Word" ocean racing yacht.
    10 months ago by East-RN ( Leading Seaman)
    Flag
    View All
    Auto Bailout Modification.
    1. I drilled small holes in the lower corners of the cockpit wells, opposite each other. These were then connected together with some small brass tube. This was to allow the water to flow from the front cockpit to the rear cockpit. (See pictures 1 and 2).
    2. Two more holes were drilled in the rear cockpit, in the outer corners further aft. these were fitted with brass tube stubs. These were to take the plastic tube, which runs to the nozzles fitted into the hull (see picture 3 and 4).
    3. To ensure the water would not flow into the boat, while stationary, the tubes were run through small eyelets on the under side of the deck(see picture 5).

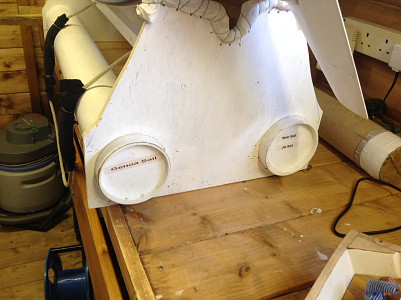

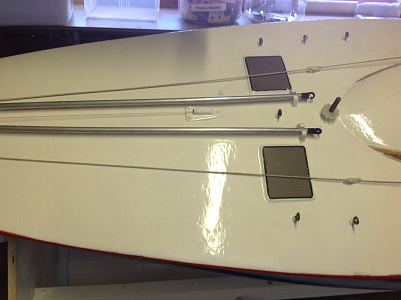

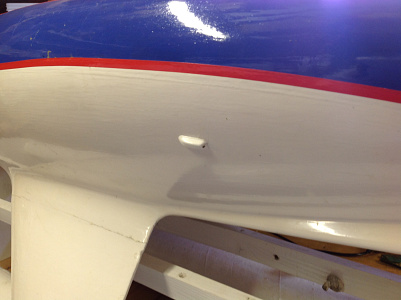

    4. Small holes were drilled in the hull and brass tubes were cut and bent, so that they would pass down through the hole in the hull, and lay flush against the hull, with the opening facing aft(see picture 6 and 9).
    5. On the outer hull, the tube is built up, and covered in a cone shape, so the tube opening is the widest part of the cone and flush( see picture 7 & 8).
    6. When the tubes are fitted to the stubs on the aft cockpit, and the cockpit secured in the yacht, the bale out is complete.
    Principle:
    While the boat is still and on an even keel, the cockpit floor is above the waterline, the tubes raise up to the deck level which prevents the water from flowing up and into the yacht.
    When the yacht starts to move under sail, the water flowing over the outlet nozzle is forced out by the cone, and creates a small vacuum at the nozzle opening, which draws any water in the cockpit through the tube and out through the nozzle.
    During a gust or strong winds, the yacht will heel over more. This will bring all the cockpit water to the lower side bailout tube, and be drawn out by the vacuum.
    When the yacht slows, and becomes even keeled, the cockpit will have been emptied.
    During heavy gusts, I found that the yacht will heel excessively, and if the waves are high enough, the cockpit will take some water over the deck. This is why I fitted the bailout device. So after a long sail in heavy weather, a long cruise back to shore on a broad reach and more even keel, will ensure the cockpit is dry.
    Happy Cruising

    outlet
    yacht
    hull
    drill
    deck
    cockpit
    wind
    sail
    waterline
    weather
    brass tube
    keel
    nozzle
    water line
    cover
    built
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    3
    ๐Ÿ’ฌ Emerald - "Round the Word" ocean racing yacht.
    10 months ago by NPJ ( Warrant Officer)
    Flag
    Now that is really neat.

    Will be putting that on the list of 'upgrades' for definite.

    NPJ.

    yacht
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    ๐Ÿ’ฌ Emerald - "Round the Word" ocean racing yacht.
    10 months ago by East-RN ( Leading Seaman)
    Flag
    View All
    Main Sheet Modification:
    Yachts of this nature, would be fitted with a Traveller, which would be used to help shape the Main Sail. Also, the route of the main sheet, has a lot of twists and turns to get out of the cabin and up to the Boom. Plus, it has to pass through the tube and bend at its edge.
    The starting point of the control would be from the cockpit, especially if it is a Single Handed yacht. The ideal place for the traveller, would be on the roof of the cabin. To keep physical disruption to a minimum, I decided to use the original boom running gear pulleys.
    The termination of the MainSheet would now be at the traveller on the cabin.

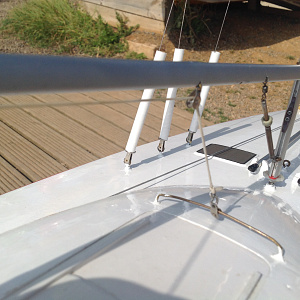

    1. The cleat was removed from the cockpit, and the eye bolt was replaced by an S hook, screwed to the cockpit deck( see picture 1).
    2. A hole was drilled in the cockpit, adjacent to the cabin hatch, and in a direct line with the main Sheet control system. This will allow the main Sheet to pass directly from the cleat. Through the pulley assembly (withought going round the pulley), and straight aft to the cockpit.

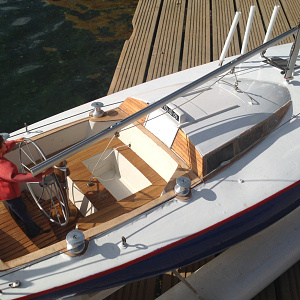

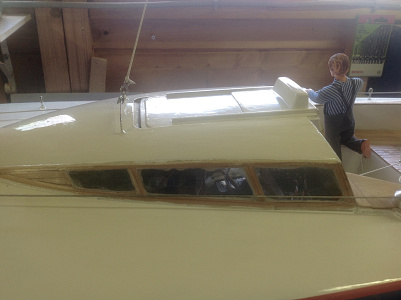

    3. A brass tube was glued into the hole, flush with the cockpit surface and extending inside, towards the mainsheet control system (see pictures 1 and 2).

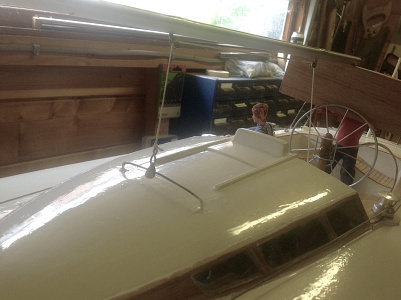

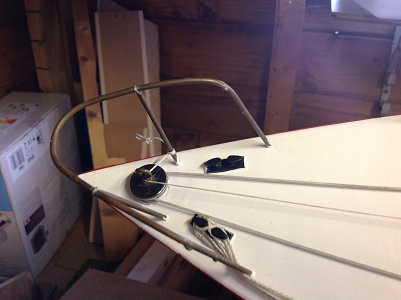

    4. The Traveller was formed from a length of brass rod, (approx 300mm long), formed to the same curve as the cabin roof. Slide the pulley onto the rod so that it runs freely. Make a 90 degree bend at each end, the length of the traveller apart. These 2 legs will pass down into the cabin roof, leaving about 10 mm for the pulley to run from end to end. Plus about 10mm at each end of the rod, which will be bent up against the inside of the roof and glued.
    (see picture 3 & 4).

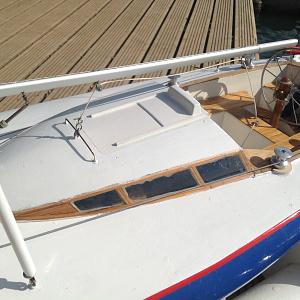

    5. Mark the cabin roof where the traveller is to be mounted. I chose to mount the traveller directly under the boom pulley.

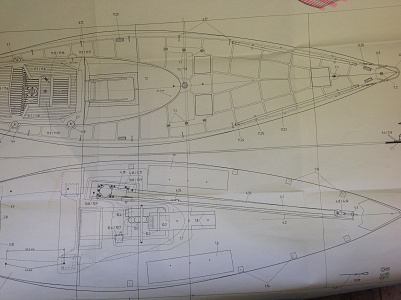

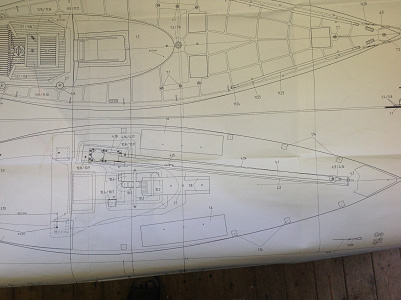

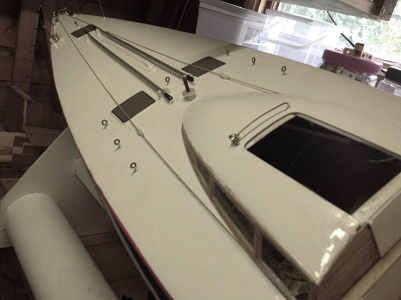

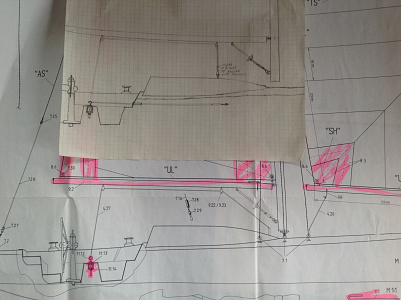

    I have made a revised sketch which is taken from the original plans for guidance. See picture 5.

    Note: make sure the pulley is mounted on the rod between the two bends.

    6. Drill the holes in the cabin, pass the ends of the rod through the holes. I put a 10mm piece of wood under the traveller rod, next to the hole. This allows you to hold it securely, while you bend the rod out, on the inside of the cabin. Apply plent of glue or resin to secure it. Do the same at the other end of the rod, and leave to set.

    With the cockpit removed, and the mainsheet control system in place, take the free end of the main sheet and pass it through the new hole in the cockpit. The cockpit can be secured by the 4 locking pulleys.
    Now pass the mainsheet through the S hook and up to the boom. Adjust the S hook to suitable angle.
    When the yacht is rigged, the mainsheet is passed up to the end of the boom pulley, along the boom, over the pulley and down to the traveller pulley.
    With the tx/ex active, pull the mainsheet right in, and the trim set right out (this allows for final tightening).Secure the mainsheet to the eye of the pulley, ( I use a figure of 8 knot ). Now adjust the trim on the joystick to pull the main Sail tight.
    Finally, run the servo right out, and back in a few times, to make sure it works properly.
    Move the boat round so the wind cones from a different angle, and watch the traveller as the sail is pulled in and out.
    Now you are ready to sail.
    May your wake be long and straight.
    Ray ๐Ÿ˜Ž
