    H.Sw.H.S. Visby
    by Rowen ๐Ÿ‡จ๐Ÿ‡ฆ ( Commander)
    ๐Ÿ“ฃ










    Click To
    Follow
    13 Posts 28 Comments 0 Photos 34 Likes
    Most recent posts shown first   (Show Oldest First) (Print Booklet)
    ๐Ÿ“ H.Sw.M.S.Visby
    1 month ago by Rowen ( Commander)
    Flag
    Have reached a point where can conclude this yearโ€™s test program. This will allow building to restart next winter.

    Points are:

    1) Installed a 2S cell, which proves to be more than adequate. The model is controllable and has adequate speed, sufficient to produce an excessive bow wave.
    2) Had spent some time trying to locate and resolve leaks. This has been successful and leakage, whilst still exceeding conventional vessels, is not unreasonable.
    3) The audible water leak detector was effective, but irritating. Once the bilge pump had removed any water, it stayed on until the hull had dried. Am going to replace buzzer with flashing lights. I can then see when water builds up, but others do not hear it. Not so obtrusive.
    4) Cooling system works.

    Have tried and adjusted every system, and am satisfied they work properly.
    A boating buddy, Garth took a video which has just been posted in the Media Gallery. It shows the model in action. It also shows my lack of dexterity with waterjets and reverse bucket selection. And, in this installation, their rapid response.
    Model now drying out in storage until winter. Obviously last blog for a while.
    Can now concentrate on sailing other models rather than building!
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 17 Views
    3
    ๐Ÿ“ H.Sw.M.S Visby
    2 months ago by Rowen ( Commander)
    Flag
    View All
    Beautiful sunny day with a strong onshore breeze. Considered the model would drift inshore if it failed, so decided to try it.
    The water surface was too rough to accurately establish if the ballast changes were correct, but if not they seem close.

    The waterjets work well. Plan to try a 2S battery next time, as think 3S tends to overpower.
    Rough water made it difficult to examine the waterjet action. There is plenty of power and the bow wave, even on one jet, is higher than scale.

    The foredeck was loose fitting, allowing considerable water ingress.
    Had adopted the suggestion from another modeler to fit a coffer dam ahead of the jets. This contains jet leakage in the stern area where it can be drained by the bilge pump.
    However, water splashed under the foredeck collecting in the hull forward of the dam, into an area where the pump does not reach.
    Was surprised just how much water had collected in the forward hull, significantly affecting the waterline.

    Also, could not confirm if the impellor rotation was correct. I like to use the Tx โ€Elevonโ€ steering function, although this tends to disguise the rotation commands. Determining rotation even when the propellers can be seen is rotating is misleading, when hidden it becomes even difficult.
    Tried adjusting the Tx functions, but the wind and waves obscured the effect. Back on the bench determined one was reversed. Now corrected.

    Would like to retain the convenience of Elevon control where both screws are controlled by one Tx lever. Wondering though if it would be better to control waterjets by the more traditional twin lever set-up. Planning the next test to explore this.

    One problem with waterjets is that there is minimal reverse function. Reverse is usually achieved by redirecting the flow using a reverser bucket.
    Also, the control reaction to reverse the model with the lever does not work. Trying to think of a way to overcome this.
    Currently, the reverse bucket needs selecting first and then motor forward again. No longer intuitive. With practice this might become easier to remember, hope so.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comments
    ๐Ÿ‘€ 56 Views
    3
    2
    ๐Ÿ’ฌ Re: H.Sw.M.S Visby
    2 months ago by Rowen ( Commander)
    Flag
    View All
    Thanks JB,
    Have the three position switch on my Tx, but cannot see it doing much.
    The jet is essentially "through flow" when deselected and then, when reversed, a flap obscures the forward flow and redirects it through an aperture in the underside of the body. This reverses the flow.
    Steering is by rotating the nozzle. The functions appear to reflect those on the KaWeMa ones originally fitted.
    Rotating the nozzles using the Tx "rudder" function and reversing the flows using a single throw switch. This is ganged to operate two servos, one per nozzle.
    Did consider using a three position switch or a rotary one, but did not see any advantage.
    Rowen
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 44 Views
    ๐Ÿ’ฌ Re: H.Sw.M.S Visby
    2 months ago by jbkiwi ( Fleet Admiral)
    Flag
    Hi Rowen, with jet units there are usually 3 stages when using the reversing bucket,-neutral, forward and reverse. Neutral is a position where the boat stays still with the motor idling in forward (the bucket is neither in forward or reverse). You can achieve this by using a rotary switch to operate the bucket through the 3 stages. With a jet boat, the motor runs all the time, and all stopping, moving and steering is done with the bucket.

    If you only want forward and reverse, the flap switch is the best to use for that. Very few jet boats have clutches as there is usually no need for normal boats,- only complicates a simple system and adds weight.

    JB
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 49 Views
    ๐Ÿ“ H.Sw.M.S. Visby
    2 months ago by Rowen ( Commander)
    Flag
    View All
    Reviewed the several attempts made to ensure a leak free jet installation. Decided waterjets have so many potential leak paths might be a good idea to fit a bilge pump.

    Had a suitable pump salvaged from a scrap electric garden sprayer. Original idea was to activate the pump using the water alarm, but decided that was too complex at this stage. An automatic action might also obscure the leakage rate and negate desires to maintain system redundancy.
    Have now installed an alarm as one feature and can activate the pump with a second RC switch. Once trials are complete, may revert to making this pump automatic. Hope by then to have gained enough confidence in the leak correction.

    Another change was to replace the horizontal flat styrene panel, added earlier to accommodate the waterjets, with a perspex one. Can now observe the jet operation without dismantling. Once did this to another model, it does aid troubleshooting.

    Spring is approaching and the ice has largely gone, so tried the first open water sail. Objectives are to check and see if the leak treatments worked dynamically and try all jet movements in actual operation. Will also give an insight into the ballast and waterline relationship.

    The temperature was only + 3C, but thought a double layer of woad would provide enough thermal protection. The last visit to our site showed no ice, but we had forgotten the effect of wind!
    A northerly wind had blown a thick layer of ice into the dock. Fortunately, there were several inches of open water alongside the dock edge. Enough to do many of the planned maneuvers.

    Was able to establish:
    1) Base ballast requirements and that the waterjets worked. They move a lot of water and suspect the model will be overpowered. Might be better with 2 not 3S power.
    2) The reverse operation and linkage work.
    3) The cooling system works, although the bilge pump requires priming first.
    4) Leakage rate was lower than expected and the water alarm not activated. Seems the sealing efforts have achieved some success.

    Waiting now for the ice to move out so can resume with the more ambitious tests.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 62 Views
    1
    ๐Ÿ“ H.Sw.M.S Visby
    3 months ago by Rowen ( Commander)
    Flag
    View All

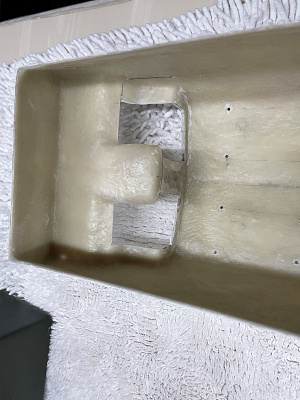

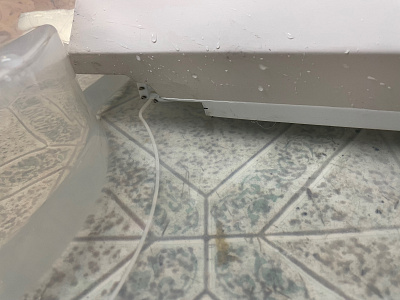

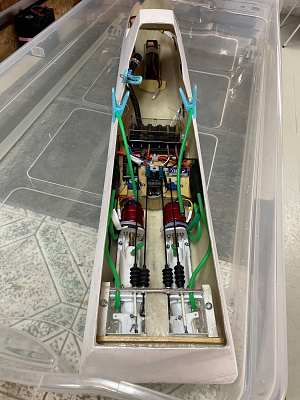

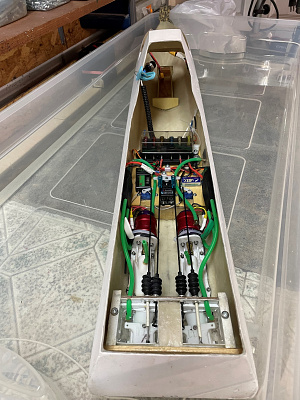

    My wife noticed me trying to check for leaks using a wallpaper tray to partially immerse the hull. Our indoor test tank had been replaced with a shower recently.
    Was offered the use of a large, plastic underbed storage box. This is deep enough to allow the waterjets to be properly immersed to check for leaks. Horror! Water entered in an almost continuous bead from the joint between one jet intake and hull.

    Originally had built up a bed of silicon around each jet to hull joint. Was hoping the silicon would cure around the jets to create the seal. Suspect the retention screws had relaxed as the silicon set, slightly releasing the joint. Water then seeped through.

    Did not want to remove the jet to reseal it, so searched my local auto store for ideas. Permatex make a โ€œFlowableโ€ thin, clear, silicon sealant that is designed to run into joints by capillary action, cure and seal them. It is really intended for windscreen and similar applications. Hoped it might work here.

    A bead was run around all the hull / jet joints, inside and out, and left to cure. On retest, the major leak was solved, so now searched for any lesser ones. Water was seeping up some of the retaining bolt threads and coming out around the head washers. Treated them with thread sealant and retightened. Almost no leakage.

    Decided to retighten the nuts a final time and retest. Water now seeped in from one of the jet bodies!
    Closely examined the installation and discovered a hairline crack in this 3D printed item. The body has right angled surfaces, which mount to the stern and hull bottom.
    Think my tightening induced a bending moment, thus the crack.
    Did not consider the fasteners were overtightened, but perhaps they were. Wonder if 3D items are not as robust as more traditional components and need careful installation. Thoughts anybody.

    Removed the nozzle and worked flexible silicone sealer into and around the crack- it sealed. Relaxed the fasteners on both waterjets and retested. Overall seepage is minimal.
    Think will watch what happens and, if necessary, change the damaged jet body next winter when the project will be completed.

    Feel confident now starting the open water program once the lakes open up.
    Also noticed the jets move considerable amounts of water and that the cooling system works. Do not need an extra pump and can plumb directly overboard.
    The hull rides stern heavy and bow light, all within โ€œtrim balancingโ€ expectations.

    This experience reinforces a decision made after an earlier model had sunk on the maiden voyage. ALWAYS fit a water alarm until confident the model performs safely.
    Not a bad idea to leave it fitted permanently either.

    To be continued when open water is available.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 78 Views
    2
    ๐Ÿ“ H.Sw.M.S.Visby
    3 months ago by Rowen ( Commander)
    Flag
    View All
    Now confirmed the waterjet controls operate properly.
    Removed all components to reinstall the waterjets with sealant.

    Fitted a flexible pipe to direct cooling water from each nozzle fitting into the rear of the hull. This flexible tube can be seen at each side of the nozzles and then through the stern bulkhead and into the ESC. The coolant then continues to each respective motor.

    Have not puzzled out the outboard discharge yet. There are several discharge points available on this model, am hoping to use one per side. If the coolant flow is inadequate can incorporate a pump if needed.

    This would be the last opportunity to ensure all the supporting structure was fitted properly and to install the wiring and electrical system. Much of this can be removed if required in the future.

    Plans are to get the hull into the water this summer. The planned test runs should reveal any issues which can then be resolved before the finish is applied.
    Will then park the hull to become my next winter project.

    As this is my first venture into waterjets, am impatient to see the model on the water.
    The attached picture shows our favourite sailing location. Easy to appreciate that the next blog instalments may be some time off!
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 84 Views
    3
    ๐Ÿ“ H.M. Sw S. Visby
    4 months ago by Rowen ( Commander)
    Flag
    View All
    The moment of truth!
    The first of what will prove to be several trial installations. Will not bore readers with a description of all, but jump to the final version.

    The hull mods described previously both allow the jets to operate in steering and direction; they also provide access to the operating linkages through the removable cover panel. This proved to be a godsend as can now make linkage adjustments without jet removal.

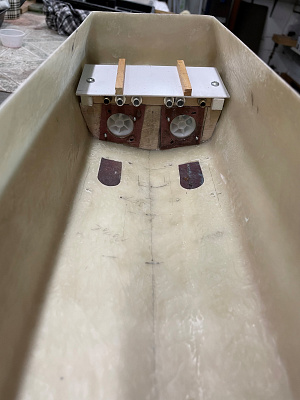

    First step was to locate the water jets onto the stern bulkhead. Because of the size of the jets experimented to see where they would fit. Due to the hull and linkage layouts the range of choices was limited. They very much fit where they fit!
    Fortunately, this is very close to where the drawings show them.

    Had been advised the jet units should be fitted to the bottom of the hull first, then into the stern bulkhead. Once located, the bulkhead can be drilled to accept the nozzle. The mounting hardware holes in the bulkhead and the hull can now be drilled.

    Drilled the holes, located the jets and bolted them in position. Continued to install more bolts in the hull and stern until the jets were firmly located.

    Fitted the steering and reversing actuating linkages next.

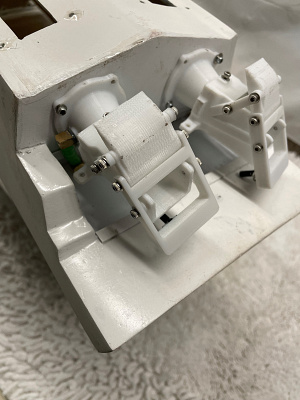

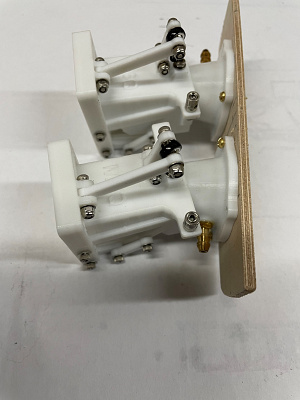

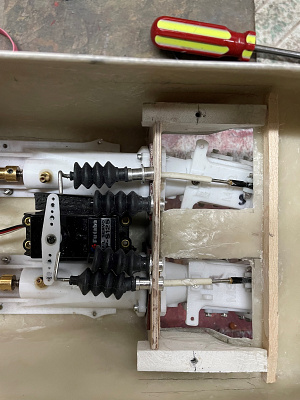

    Started with the steering, as shown on the attached picture. None of the rods supplied with the jets were long enough for my installation. Used scrap bicycle spokes, suitably reworked, instead.
    A used sail winch servo was considered to have enough torque to handle both steering nozzles, was installed between them.

    Used a couple of smaller servos, one to operate each reversing bucket. These were wired in parallel, so could use one Rx channel to control both. Again, used modified bicycle spokes as actuating rods.

    The bucket must remain capable of being moved by the steering control. To allow this, cut the reversing bucket spoke and inserted both ends into a flexible nylon sleeve. Movement for steering and reversing can now take place simultaneously.

    After observing a number of dry runs, concluded the linkages work with the minimum of deflection and can control both functions.
    Used the Tx โ€œEnd pointโ€ range limiting function to ensure all the servos โ€œbottomedโ€ electrically, not by mechanical interference.

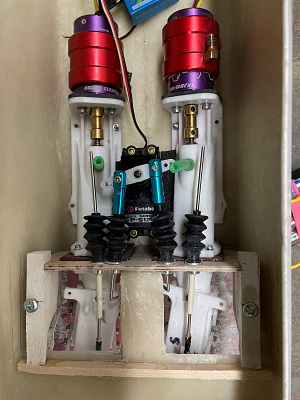

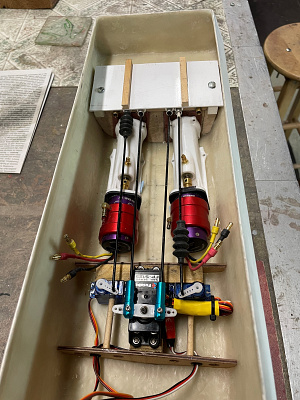

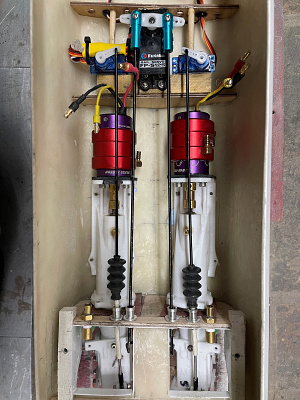

    The pictures show the installation.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comments
    ๐Ÿ‘€ 96 Views
    5
    1
    ๐Ÿ’ฌ Re: H.M. Sw S. Visby
    4 months ago by pressonreguardless ( Midshipman)
    Flag
    Looks Great. Very anxious to see her in operation๐Ÿ‘๐Ÿ‘
    Trev
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 88 Views
    ๐Ÿ“ H.Sw.M.S.VISBY
    4 months ago by Rowen ( Commander)
    Flag
    View All
    Happy days - hull arrived, looks good.

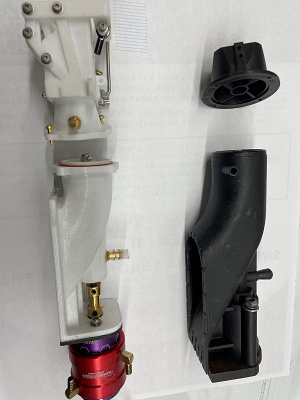

    Can now fully explore the waterjet installation. Had decided to buy waterjets that were fully functional with both steering and reverse to emulate the real vessel.

    The smallest could find was 22mm dia. For some reason was thinking as 28 mm jets would fit, 22 would also fit. Quickly established that as 28mm will not fit a 1:72 scale Visby class hull, neither will a 22 mm!

    So, could either sacrifice full functionality and buy smaller jets without the reverse function, or modify the hull to accommodate the 22mm jets already purchased.

    After reviewing the jets and comparing them to the hull, decided that with some courage to tackle the hull mutilation, 22 mm jets could be fitted. The body of the jet unit is fitted under and forward of the stern, so it would not be readily apparent.
    This class of vessel also has a recess in the nozzle mounting bulkhead forward of the stern. By enlarging this, the jet and associated linkages looked as if they could be squeezed in. The side profile would be unaffected, hiding these modifications.

    Carefully marked the hull to determine the areas that required cutting out. As this became apparent, became more confident in the planned modifications.
    Using a Dremel tool started cutting, well inside the perimeter of the area marked.
    After each cut offered the jets up to the hull, to ensure the cuts would be extended only by the minimum.

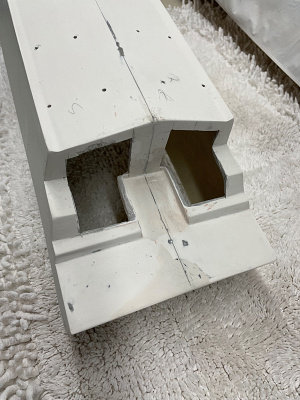

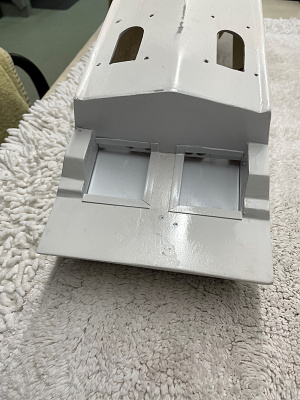

    The final picture shows the modified hull. The flat panel above the nozzle apertures is now removeable and gives access so the linkages can be maintained and adjusted from above. The rear bulkhead, where the nozzles will be fitted remained much as it was, so buoyancy and stability are not be affected.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 105 Views
    2
    ๐Ÿ“ H.Sw.M.S Visby
    5 months ago by Rowen ( Commander)
    Flag
    View All
    The hull is now in transit, also found a set of drawings that show the stern details more accurately. There is a recess in the stern between the nozzles and had hoped to be able to fit linkages through this, above the waterline.

    The drawings enabled taking the wooden former previously used to mount the jet nozzles and add horizontal top pieces straddling the recess. This gives the principal items of the installation. Was apparent the waterjets could only just be squeezed in, so made the top pieces out of clear perspex to observe the various layouts.

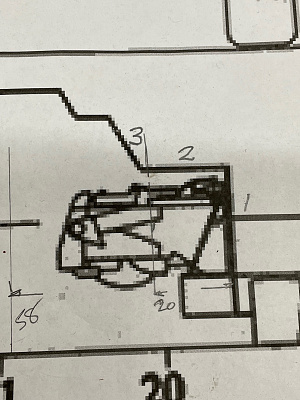

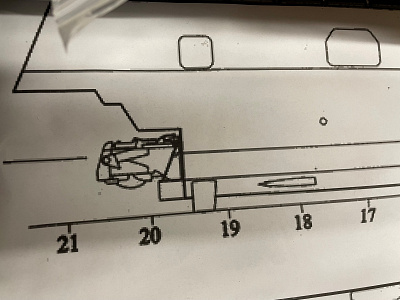

    Photo # 1 shows the stern side elevation; # 1 is the stern face, # 2 the top horizontal piece and # 3 inclined stern face. Photo # 2 shows the nozzles mounted on the wood stern face and Photo #3 with the clear top pieces added.

    The steering linkages look straightforward and expect to be able to link each nozzle to opposite sides of a single servo crank. The servo will be fitted forward inside the hull. The links will be above the waterline and sealed simply. Photo # 3 mocks this up.

    The reversing mechanism is another matter! Whatever link arrangement is fitted it must allow adequate lateral movement to allow the nozzles to swing easily for steerage.

    Had three basic ideas to do this:
    1) The crank mechanism on top of the nozzle originally fouled the underside of the horizontal piece. Had already decided the crank could be dispensed with by using a direct acting link. Unfortunately, there is not enough space for this link without drilling holes very close to the waterline, leaving insufficient space for an effective seal.

    2) Next idea was to mount inverted, individual servos on top of the horizontal piece. The shafts would protrude through so could fit a servo arm that acted on the short link to each nozzle. Not enough space for this. The nozzles fit too closely to the underside surface to allow an arm to be installed and to then move freely. This can be discerned in the closest (Port) nozzle on Photo 3.

    3) Only simple idea, as these nozzles are longer than the original, is to lift the crank rod and drill through the rear face, mounting a servo on the inside. Rather like the outboard (Stbd) nozzle in Photo 3. This would add a visible external link and not be scale. It would considerably simplify the installation and maintenance though, also would lift the linkage holes so they are well clear of the waterline. The links would also be under the stern, hidden from most observers.

    There are several permutations on each of these ideas, but until can try on the hull will not modify anything.

    Has anybody any other ideas?
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 107 Views
    2
    ๐Ÿ“ H.M.Sw S Visby
    5 months ago by Rowen ( Commander)
    Flag
    The hull is in transit, have also found a set of drawings that show the stern details more accurately. There is a recess in the stern between the nozzles and had hoped to be able to fit linkages through this, above the waterline. Did not previously know the dimensions.

    The drawings enabled taking the wooden former had previously mounted the jet nozzles on and add horizontal top pieces straddling the recess. Now had the principal items of the installation. Was apparent these waterjets could only just be squeezed in, so made the top pieces out of Perspex to observe the various layouts.

    Photo # 1 shows the stern side elevation; # 1 is the stern face, # 2 the top horizontal piece and # 3 inclined stern face. Photo # 2 shows the nozzles mounted on the wood stern face and Photo #3 with the Perspex top pieces added.

    The steering linkages look straightforward and expect to be able to link each nozzle to opposite sides of a single servo crank. The servo will be fitted forward inside the hull. The links will be above the waterline and sealed simply. Photo # 3 mocks this up.

    The reversing mechanism is another matter! Whatever link arrangement is fitted it must allow adequate lateral movement to allow the nozzles to swing easily for steerage.

    The crank mechanism on top of the nozzle originally fouled the underside of the horizontal piece. Had already decided the crank could be dispensed with by using a direct acting link. Unfortunately, there is not enough space for this link without drilling holes very close to the waterline, leaving insufficient space for an effective seal.

    Next idea was to mount inverted, individual servos on top of the horizontal piece. The shafts would protrude through so could fit a servo arm that acts on the short link to each nozzle.
    Not enough space for this. The nozzles fit too closely to the underside surface to allow an arm to be installed and to also move freely. This can be discerned in the closest (Port) nozzle on Photo 3.

    Only straightforward idea, as these nozzles are longer than the original, is to lift the crank rod and drill through the rear face, mounting a servo on the inside. Rather like the outboard (Stbd) nozzle in Photo 3.
    This would add a visible external link, not to scale. It would considerably simplify the installation and maintenance.
    ce though, also lift the linkage holes so they are well clear of the waterline. The links will also be under the stern, hidden from most observers.

    There are several permutations on each of these ideas, but until can try on the hull will not modify anything.

    Has anybody any other suggestions?
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 108 Views
    1
    ๐Ÿ“ H. Sw. M. S. Visby
    5 months ago by Rowen ( Commander)
    Flag
    View All
    Started to assemble the other major components.

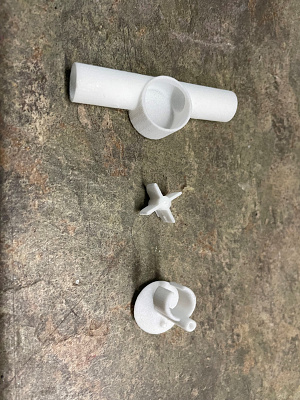

    The use of a 3D printed bow thruster was suggested on this website. Purchased one from Shapeways, it duly arrived and looks good.
    Was apprehensive when it was shipped by UPS that would be stung with an extra โ€œBrokerage feeโ€, as is levied by DHL. Fortunately, not.
    Just need to obtain the motor and gears now. The requisite items are usefully listed by Shapeways.

    Accumulating the necessary servos, fuse block, Rx, BEC items etc. so these are ready when required. One of the problems with buying from the Orient is extended delivery times. The impact can be minimized by planning and purchasing ahead.

    Placed an order for the hull so, apart from getting fully prepared for the project, am planning to hold off building until all my other projects are complete.

    Will restart this blog once building commences.
    Until then, a Merry Christmas and Happy New Year to all my readers.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comments
    ๐Ÿ‘€ 131 Views
    4
    5
    ๐Ÿ’ฌ Re: H. Sw. M. S. Visby
    4 months ago by pressonreguardless ( Midshipman)
    Flag
    Only in America, Land of Opportunity๐Ÿคฃ๐Ÿ˜‚๐Ÿคฃ๐Ÿ˜‚
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 88 Views
    ๐Ÿ’ฌ Re: H. Sw. M. S. Visby
    5 months ago by Rowen ( Commander)
    Flag
    Could well be! My stuff comes by air, allegedly. When tracked it usually flies direct to Toronto so avoids the US.
    No reason why that problem could not arise here though. Rather more of a challenge to throw things out of an aircraft!!
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 121 Views
    ๐Ÿ’ฌ Re: H. Sw. M. S. Visby
    5 months ago by jbkiwi ( Fleet Admiral)
    Flag
    Hi Rowen, perhaps this is why the postal service is slow up your way ?

    https://www.youtube.com/watch?v=zN0CXUEMwjg

    https://www.youtube.com/watch?v=Ssuhlfl4hws

    JB
    https://www.youtube.com/watch?v=zN0CXUEMwjg
    ๐Ÿ”—
    https://www.youtube.com/watch?v=Ssuhlfl4hws
    ๐Ÿ”—
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 120 Views
    1
    ๐Ÿ’ฌ Re: H. Sw. M. S. Visby
    5 months ago by Rowen ( Commander)
    Flag
    Hi Toradog, hope you feel better now!
    Am likewise fed up of shipping companies. In Canada they have now included the โ€œfloods in BCโ€ as another reason for delays, even if your package is airfreight!
    The legacy of COVID will be milked for years.
    Glad you enjoy the blog, most of my projects are coming to a halt as parts are in the mail!
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 126 Views
    1
    ๐Ÿ’ฌ Re: H. Sw. M. S. Visby
    5 months ago by ToraDog ( Sub-Lieutenant)
    Flag
    Rowen,
    Looking fantastic. I hope you will allow me a short rant.
    DHL is now charging a "breakage fee"? Shapeways dded a processing and and handling fee that is a percentage of the order, UPS and FED EX no longer guarantee delivery by stated dated, and the US Post Office has gone back to the Pony Express. Not to mention that every company is using COVID as an excuse not to fill orders in a timely manner.
    Besides the lives lost, which will never be overcome, we have not even begun to realize how much this pandemic has, and will forever, change our lives.
    Sorry Rowen, Keep your build flowin'.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 126 Views
    2
    Show 3 More Posts


    About This Website
    Terms of Service
    Privacy Policy
    Cookies used in this website are gluten free, wheat free and dairy free. By using this website you agree to our use of cookies. More Info
