📝 Connectors
5 months ago by 🇬🇧 flaxbybuck (
Captain)
Captain)✧ 34 Views · 4 Likes · 4 Comments
Flag
💬 Add Comment

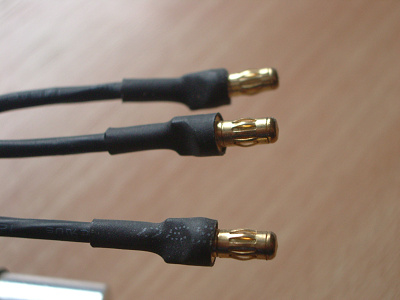

My latest Turnigy brushless motor, a 4240, 740 has banana type plugs moulded on to the three leads which connect to the ESC. See picture. The pins of these plugs are 3mm diameter.
I would like to know what these are. Are they 3mm bullet connectors ? I need to know what they are so I can buy the other half, otherwise I will be snipping them off and using a Wago connector block instead.
Thanks for your help 😉
I would like to know what these are. Are they 3mm bullet connectors ? I need to know what they are so I can buy the other half, otherwise I will be snipping them off and using a Wago connector block instead.
Thanks for your help 😉
▲
⟩⟩
Isaac
hermank
Len1
AlessandroSPQR
|
💬 Re: Connectors
5 months ago by 🇬🇧 flaxbybuck (
Captain)✧ 17 Views · 1 Like
Flag
Thanks for your reply CB90.
After carefully measuring the diameter of the plugs again I ordered a number of the 3.5mm size. Thankfully this proved to be correct, and I have now soldered the females onto the ESC leads. 😉 ▲
⟩⟩
Isaac
|
|
Login To
Remove Ads 💬 Re: Connectors
5 months ago by 🇺🇸 Isaac (
 Sub-Lieutenant)✧ 31 Views · 1 Like
Flag
Do not snip them. Those are common connectors for electric motors and ESCs.
If your ESC does not have those connectors, you can purchase them online for a set. My opinion. Isaac ▲
⟩⟩
Len1
|
|
💬 Re: Connectors
5 months ago by 🇬🇧 Trident73 (
 Midshipman)✧ 37 Views · 3 Likes
Flag
Alternatively you could remove the heat shrink on the plugs, de-solder the plugs from the leads and then re-solder the leads direct to the esc leads making sure to slip 3 new bits of heat shrink over the joins. I have often done that on my planes. If the motor spins the wrong way then de-solder two joints and swap them over. Takes longer to write than actually do 😊
▲
⟩⟩
Len1
AlessandroSPQR
flaxbybuck
|
|
💬 Re: Connectors
5 months ago by 🇬🇧 CB90 (
Captain)✧ 34 Views · 5 Likes
Flag
Gold-Plated 3.0mm Banana Plug Bullet Connector for ESC Motor Lipo Battery.
there are various sizes from 2mm to 8mm diameter. link below copy and past into browser ▲
⟩⟩
hermank
Len1
flaxbybuck
Trident73
AlessandroSPQR
|
