    Tippecanoe T37 Build
    23 Posts ยท 9 Followers ยท 84 Photos ยท 129 Likes
    Began 2 months ago by
    Petty Officer 1st Class
    United States
    Follow This Thread
    Not currently following
    > Click to follow
    Latest Post 3 days ago by
    Petty Officer 1st Class
    United States
    Most recent posts shown first   (Show Oldest First) (Print Booklet)
    ๐Ÿ“ More Videos
    3 days ago by ๐Ÿ‡บ๐Ÿ‡ธ Collie ( Petty Officer 1st Class)
    โœง 15 Views ยท 4 Likes ยท 1 Comment
    Flag
    ๐Ÿ’ฌ Add Comment
    I got to go sailing again and managed to get a couple more videos. Turns out it's really hard to record and operate RC controls at the same time, so my sailing isn't the best. I'm very impressed with how maneuverable the T37 is, and how fantastic it is at close hauled sailing.

    I only had about 4mph winds today, I can't wait to see how this little boat does with 10+mph!

    ๐Ÿ’ฌ Re: More Videos
    2 days ago by ๐Ÿ‡จ๐Ÿ‡ฆ Ronald ( Fleet Admiral)
    โœง 10 Views ยท 1 Like
    Flag
    Be sure to use a lanyard around your neck and attached to your transmitter, and one on your IPhone or recording device. The 1st choice is to have another person do your video recording, but if that is not possible then using a lanyard will make filming easier as one or the other device will be hands-free with no concern of dropping it in the water.
    Login To
    Remove Ads

    ๐Ÿ“ The Maiden Voyage
    10 days ago by ๐Ÿ‡บ๐Ÿ‡ธ Collie ( Petty Officer 1st Class)
    โœง 39 Views ยท 13 Likes ยท 8 Comments
    Flag
    ๐Ÿ’ฌ Add Comment
    After about four months of building, I finally had my maiden voyage! It was a very gusty day which was not ideal, my boat ended up heeling over more than I would like and getting just a little water in it, but nothing major. I'll be coating the inside of the hatches with a light layer of petroleum jelly out of an abundance of caution, but I don't think it's really necessary. Overall, I'm very happy with my kit from Tippecanoe and would highly recommend them to anyone looking for a kit like this!

    ๐Ÿ’ฌ Re: The Maiden Voyage
    6 days ago by ๐Ÿ‡ฎ๐Ÿ‡น AlessandroSPQR ( Fleet Admiral)
    โœง 21 Views ยท 0 Likes
    Flag
    Hi Collie, thanks for the reply.
    I enjoy Googling the lakes and ponds posted on this site. I usually succeed, but not in this case, because I saw there are so many in Huntsville and around the Tennessee River.
    It must be beautiful where you are.
    Login To
    Remove Ads

    ๐Ÿ’ฌ Re: The Maiden Voyage
    8 days ago by ๐Ÿ‡บ๐Ÿ‡ธ Collie ( Petty Officer 1st Class)
    โœง 25 Views ยท 0 Likes
    Flag
    Alessandro,

    This is a local pond here in Huntsville, Alabama. We're fortunate to have some beautiful parks in this area.

    I'm hoping to get more video sometime soon, whenever I have both free time and favorable wind conditions.
    ๐Ÿ’ฌ Re: The Maiden Voyage
    8 days ago by ๐Ÿ‡บ๐Ÿ‡ธ Collie ( Petty Officer 1st Class)
    โœง 25 Views ยท 1 Like
    Flag
    Mike,

    The T37 is designed as a one class racing boat, so it has a pretty clever sheeting system in my opinion. It starts at a loop under the deck, then goes through this brass servo arm and to the back of the boat. From there it goes through a brass tub that takes it topsides to a post, then to the booms themselves. Controlling the swing of the servo arm controls how far in the sails are sheeted. I programmed the servo so that it swings in an arc that has the sails fully sheeted in when the radio stick is down all the way, and the sails are fully out when the stick is up all the way. Hope this helps.
    ๐Ÿ’ฌ Re: The Maiden Voyage
    10 days ago by ๐Ÿ‡จ๐Ÿ‡ญ Mike Stoney ( Rear Admiral)
    โœง 33 Views ยท 2 Likes
    Flag
    Hi Collie,

    Beautiful model, congratulations!

    Can you tell me how you solved the problem of steering the sails?
    I'm very interested in any ideas . . .
    Crafty greetings
    Michel-C.
    ๐Ÿ’ฌ Re: The Maiden Voyage
    10 days ago by ๐Ÿ‡บ๐Ÿ‡ธ jumpugly ( Vice Admiral)
    โœง 37 Views ยท 3 Likes
    Flag
    Tisโ€™ a beautiful sight! Well done!!!
    ๐Ÿ‘๐Ÿ˜Š
    ๐Ÿ’ฌ Re: The Maiden Voyage
    10 days ago by ๐Ÿ‡ฎ๐Ÿ‡น AlessandroSPQR ( Fleet Admiral)
    โœง 42 Views ยท 2 Likes
    Flag
    Excellent navigation, I liked the turn.
    I would have preferred more minutes of video.
    The location is also beautiful. Where is it?
    ๐Ÿ’ฌ Re: The Maiden Voyage
    10 days ago by ๐Ÿ‡จ๐Ÿ‡ฆ Ronald ( Fleet Admiral)
    โœง 39 Views ยท 3 Likes
    Flag
    Maiden voyage looks like it was a success. Enjoy it with pride of your accomplishment.
    ๐Ÿ’ฌ Re: The Maiden Voyage
    10 days ago by ๐Ÿ‡ฆ๐Ÿ‡บ peterd ( Sub-Lieutenant)
    โœง 38 Views ยท 2 Likes
    Flag
    She looks like a nice fast yacht. Looks impressive downwind. Great job.
    ๐Ÿ“ Rigging and Painting
    10 days ago by ๐Ÿ‡บ๐Ÿ‡ธ Collie ( Petty Officer 1st Class)
    โœง 39 Views ยท 4 Likes ยท 1 Comment
    Flag
    ๐Ÿ’ฌ Add Comment
    I've been moving lately and pretty bad at posting updates, but over the past few weeks I got the boat painted (don't judge me I used rattle cans) with a cool looking green and white striped patterns. I also got all of the rigging for the sails done and the servos set up to control them.

    ๐Ÿ’ฌ Re: Rigging and Painting
    10 days ago by ๐Ÿ‡จ๐Ÿ‡ฆ Ronald ( Fleet Admiral)
    โœง 39 Views ยท 1 Like
    Flag
    Looks fine.
    ๐Ÿ“ Day 19
    2 months ago by ๐Ÿ‡บ๐Ÿ‡ธ Collie ( Petty Officer 1st Class)
    โœง 41 Views ยท 4 Likes
    Flag
    ๐Ÿ’ฌ Add Comment
    August 10, 2025

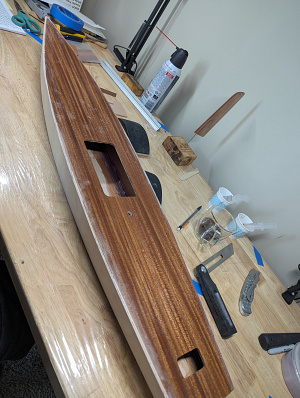

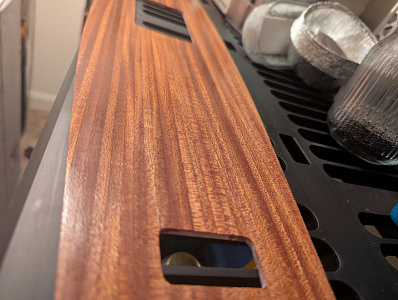

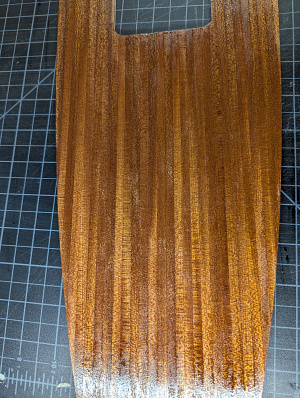

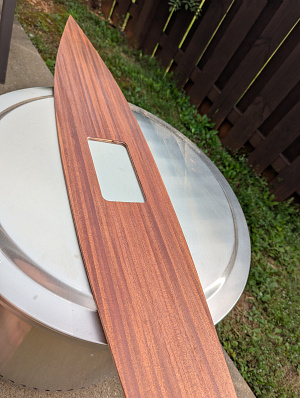

    Today was an exciting day! I always dread the step of varnishing woodworking projects, but I can't deny that the results are incredibly satisfying. I sanded down the hull sides, deck and deck hatches all the way to 320 grit and thoroughly tack-clothed all of the dust of, then I very carefully applied the first coats of varnish to the boat. It needs to cure overnight, but I plan to do several coats throughout the week after work if I can find the time.

    While the varnish dries, I attached the main boom to the sail and added the carbon fiber collars to keep the boom ring and vang from sliding around the mast. Bending these wires out of the stainless steel rod was a bit of a pain, but with some patience I got them in placed. The main boom also has the vinyl grommets for rigging adjustments just like the jib boom.

    ๐Ÿ“ Day 18
    2 months ago by ๐Ÿ‡บ๐Ÿ‡ธ Collie ( Petty Officer 1st Class)
    โœง 41 Views ยท 4 Likes
    Flag
    ๐Ÿ’ฌ Add Comment
    August 3rd, 2025

    I forgot to take pictures, but I did a little bit of work last Sunday. I waterproofed the hatches by putting a thin coat of epoxy all over the top and bottoms. Then I applied a coat around the coamings, making sure to coat over the tops of the small magnets to hopefully keep them in place a little better over time. I put a layer of plastic wrap over the coamings, then weighed down the hatches on top. This made sure the epoxy set up in a way that the hatches would still fit and even gave me a really good seal. We'll see just how good of a fit it is when she takes sail for the first time

    While that set up, I assembled the booms per the instructions. This was the first bit of rigging I got to do and it was kind of exciting! The booms are made of carbon fiber with vinyl grommets used for adjustment points for the rigging. A couple brass rings are lashed to the underside as well. I only have a picture of the jib boom for this update.

    ๐Ÿ“ Day 17
    2 months ago by ๐Ÿ‡บ๐Ÿ‡ธ Collie ( Petty Officer 1st Class)
    โœง 43 Views ยท 4 Likes
    Flag
    ๐Ÿ’ฌ Add Comment
    August 2, 2025

    I haven't had much time until today to work on this unfortunately. I made up the main hatch and got all of the magnets glued into place today. Then I used some leftover veneer to plank the tops to match the deck and it turned out really nice in my opinion. The magnets hold the hatch on tight so hopefully it'll keep most of the water out.

    Next I'm planning on coating the hatches inside and out with a thin layer of clear epoxy to waterproof them, then I'll varnish the veneer to make it really pretty when I do the deck.

    ๐Ÿ“ Day 16
    2 months ago by ๐Ÿ‡บ๐Ÿ‡ธ Collie ( Petty Officer 1st Class)
    โœง 45 Views ยท 6 Likes
    Flag
    ๐Ÿ’ฌ Add Comment
    July 25, 2025

    I really like the idea of using magnets to attach the hatches since it helps me keep them a really low profile. I got some neodymium magnets off Amazon to play with. I tried several different methods of placing the magnets but didn't like any of them until I tried just making the coaming slightly bigger and glued the magnets directly to the deck, then I used a shim to raise the matching magnets and glued them directly to the hatch ceiling. This was a nice way to do it in my mind because then the magnets line themselves up with their pairs perfectly on their own. I made sure to rough up the surface of all of the magnets with sandpaper for better adhesion and later on I'll go over all of them with a thin layer of epoxy to secure them into place better.

    I used 10 magnet pairs for the rudder hatch and it holds it on there very securely, but I guess we won't know just how good it is until it sails.

    ๐Ÿ“ Day 15
    2 months ago by ๐Ÿ‡บ๐Ÿ‡ธ Collie ( Petty Officer 1st Class)
    โœง 52 Views ยท 5 Likes ยท 1 Comment
    Flag
    ๐Ÿ’ฌ Add Comment
    July 22, 2025

    I had hatches on the mind today at work so I mocked something up when I got home with some scrap plywood. It's not pretty by any means, but it gives me an idea of what I'm working with. Even with just throwing this together, it's still a very nice fit that stays together almost with friction. Now I just need to find a way to embed some magnets when they arrive tomorrow and I think I'll have a good solution. Thanks for all of the suggestions everyone.

    ๐Ÿ’ฌ Re: Day 15
    2 months ago by ๐Ÿ‡จ๐Ÿ‡ฆ Ronald ( Fleet Admiral)
    โœง 53 Views ยท 4 Likes
    Flag
    My hatches use wire to secure them just as Gary Webb showed in his video on making watertight hatches. Consider making your hatch coaming a bit higher and using the wire.
    ๐Ÿ“ Day 14
    2 months ago by ๐Ÿ‡บ๐Ÿ‡ธ Collie ( Petty Officer 1st Class)
    โœง 61 Views ยท 8 Likes ยท 2 Comments
    Flag
    ๐Ÿ’ฌ Add Comment
    July 21, 2025

    The mast post set up perfectly level with a slight rake and the rudder post is lined up nicely with the keel without the rudder being epoxied into place now. I'm very happy with how this build is going, it's nice to be able to see the full height and length at last.

    Now I'm on to deciding what to do for the hatches. The problem is I don't have a whole lot of clearance because the main sheet will run from a barney post aft of the hatch over the top and to a brass U in the deck. I mocked everything up with some thread before I start gluing anything down to get an idea of what I have to work with. The kit plans call for a mylar sheet over the hatch so clearance isn't really a problem, but I have a lot of leftover veneer planks so I think it would be nice to build a custom hatch.

    I made a sort of cross section with basswood and it looks like I'll have room for a 1/8" basswood coaming with a scrap piece of 1/8" plywood on top. I was planning on basically following Gary Webb's video linked below, but with the hatch being so low profile I won't have enough clearance to use the pins that he does. Does anyone have any ideas on a good way to attach the hatches so they stay secured to the deck while underway?



    ๐Ÿ’ฌ Re: Day 14
    2 months ago by ๐Ÿ‡จ๐Ÿ‡ฆ Ronald ( Fleet Admiral)
    โœง 60 Views ยท 3 Likes
    Flag
    I use clear hockey tape to keep hatches on and water out
    ๐Ÿ’ฌ Re: Day 14
    2 months ago by ๐Ÿ‡ฉ๐Ÿ‡ช RNinMunich ( Fleet Admiral)
    โœง 65 Views ยท 5 Likes
    Flag
    Hi Collie,
    A lot of the guys here, me included, use neodymium magnets (ca 5mm diameter) to hold hatches and cabin roofs on.
    Cheers, Doug๐Ÿ˜Ž
    ๐Ÿ“ Day 13
    2 months ago by ๐Ÿ‡บ๐Ÿ‡ธ Collie ( Petty Officer 1st Class)
    โœง 85 Views ยท 5 Likes ยท 1 Comment
    Flag
    ๐Ÿ’ฌ Add Comment
    July 20, 2025

    Now we're caught up to present day for the build log. I'll try to keep posting as I progress still.

    Two items on the agenda today: the rudder post and the mast post.

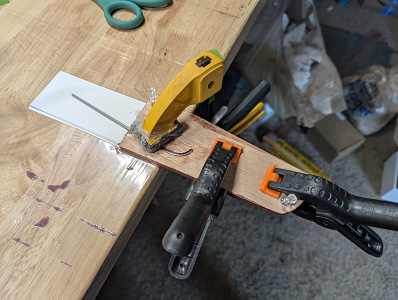

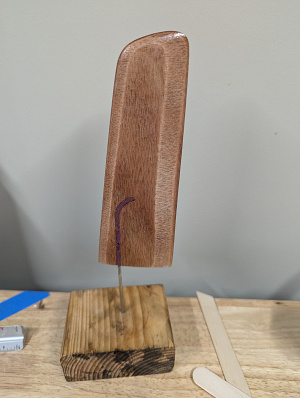

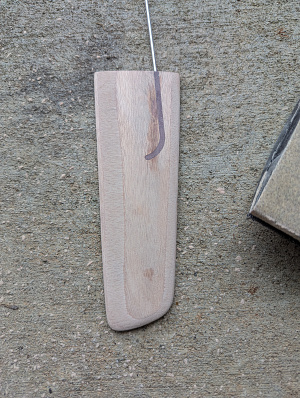

    I started with the rudder post. I used a spare piece of plywood to make a holder for the rudder shaft while I epoxied in the rudder shaft. The shaft is a carbon fiber tube with a rubber gasket to help waterproof. Just like with the keel, I made sure the boat was level on my workbench before starting. I also waxed the rudder shaft so it hopefully won't stick if any epoxy gets on it. Using both the makeshift plumb bob and the keel, I lined up the rudder so it was perfectly in line with the keel and then epoxied it into place.

    After letting that sit for a few hours, I came back and started on the mast post. The T37 has a larger 4" carbon fiber tube that goes into the boat for the mast to slide in to. I shortened the mast post so it would only stick up about 1/16" from the deck when glued into place. With a couple of levels and a bevel tool I did a trial run of gluing the post down. I made sure the mast would end up perfectly vertical with a slight tilt aft. Then I put a blob of thickened epoxy on the bottom of the hull for the post to sit on. I roughened up the post a little so the epoxy would adhere better before all of this.

    ๐Ÿ’ฌ Re: Day 13
    2 months ago by ๐Ÿ‡ฉ๐Ÿ‡ช RNinMunich ( Fleet Admiral)
    โœง 90 Views ยท 3 Likes
    Flag
    Welcome aboard Collie๐Ÿ‘
    Looks like you're off to a good flying start๐Ÿ˜‰
    Cheers, Doug๐Ÿ˜Ž
    Show 13 More Posts
