Episode: Introduction
This is series of episodes will be about the features and updates of the SSMBC (Tampa Bay Area, Florida) Portable Dock System (PDS) I will post information on the original design and build of the PDS as well as requirements of have a PDS for the SSMBC.
First is why. Operating (R/C) model boats are fun to build and run. But take that to the next level. How do we improve that? We have a pond, OK? We have a floating dock for launching and retrieval; Nice. Every once and a while we have a few buoys (markers); Getting a little better. Now comes docks! Wow, how many of you "captains" out there would like to maneuver through a docking system? I know I like it. (Think it we ignite some of our casual members to come or entice new members to join?)
In March of 2014 I built most of the PDS with my son's help. There we no videos or even instructions on how to build a PDS back then. Only a few photos and videos that showed little to no detail on they were built.
It was fun to operate the boats but what a headache to setup for our two hour meets. Trudging through thick mud on the ponds bottom was very difficult. Trying to flat the sections out and attach them together while leaning over the docks edge was still an issue. ("No swimming".)
Thought: Why not assemble them on land gradually pushing them into the pond? How about a better way to attach them to the shore? I already made them stackable to ease storage and transport.
And that folks is where I am today. Most of the thinking was done. Now I am in the update phase. For two days (I'm 81, not as fast as I used to be) I have been not only updating the PDS but doing some badly need maintenance and strengthening.

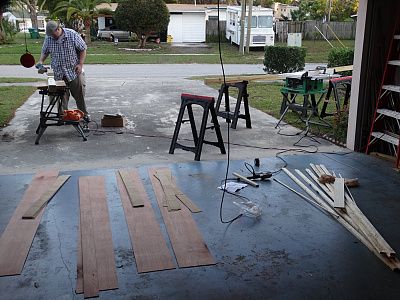

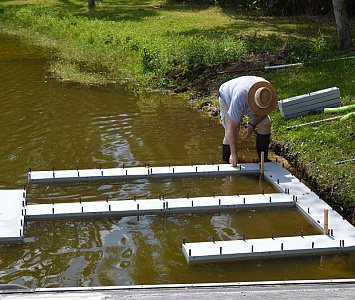

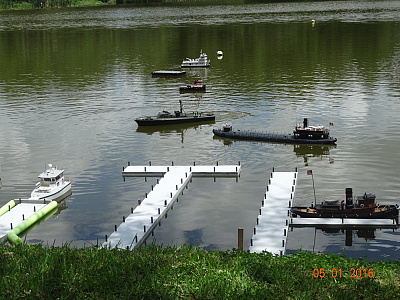

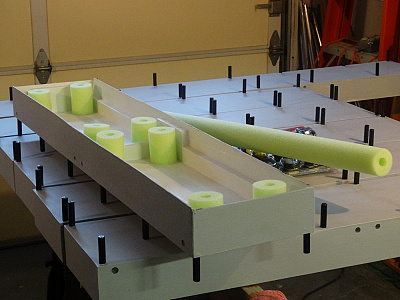

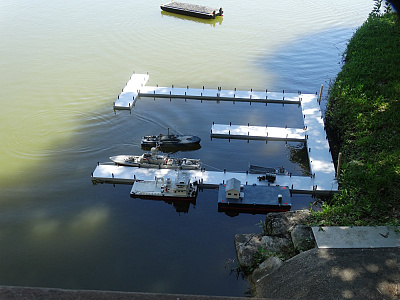

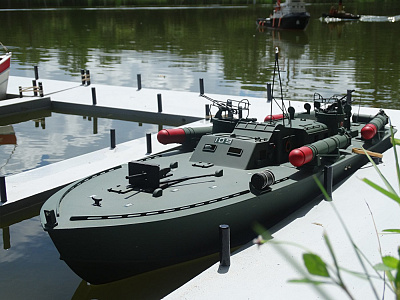

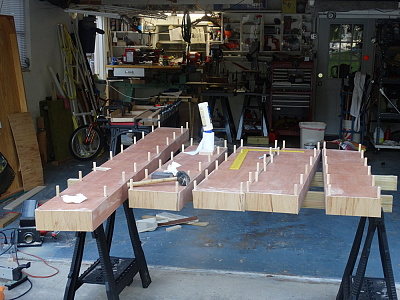

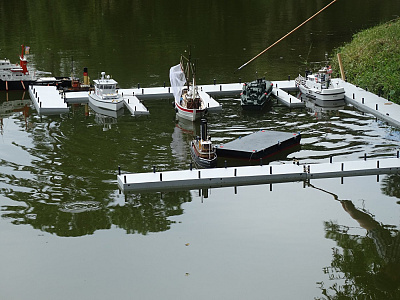

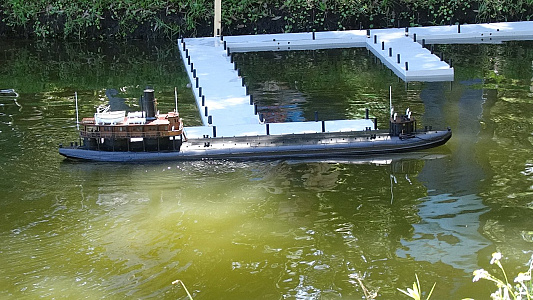

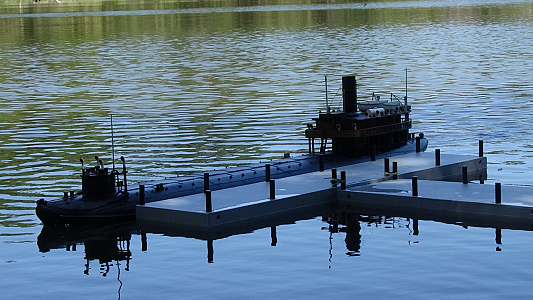

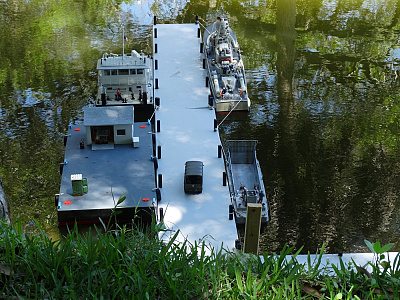

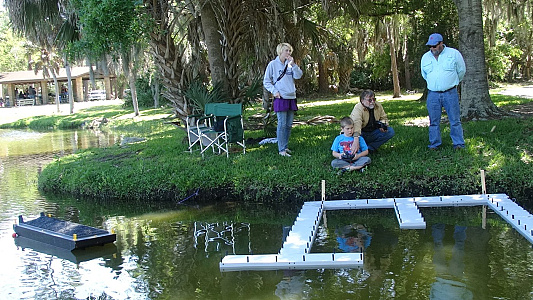

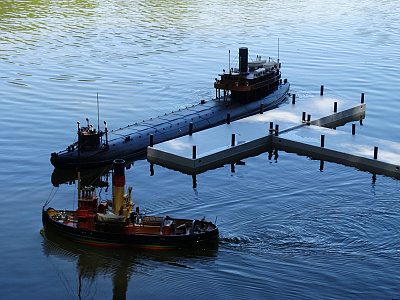

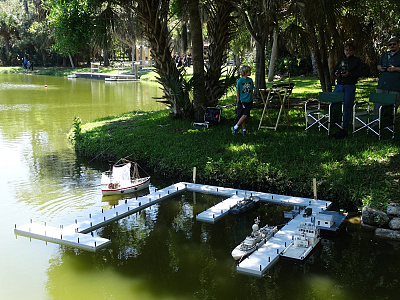

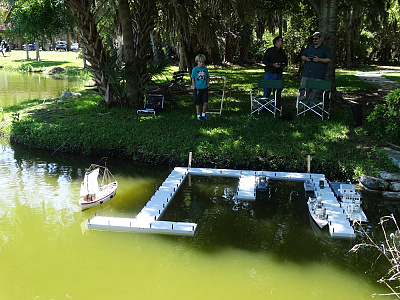

The photos I am posting now are the original build of the PDS. They are simplistic, no additional details. (Some details may be added later.) You can see that the sections can be positioned for a variety of configurations.
In upcoming episodes I will add more information and photos. so others can see what we have done. Nothing hidden, all information. And, of course, suggestions are welcomed.
Lew
SSMBC event coordinator
[{"id":"176569065945","url":"https:\/\/model-boats.com\/media\/176569065945\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569065945\/s","name":"176569065945","caption":""},{"id":"176569071534","url":"https:\/\/model-boats.com\/media\/176569071534\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569071534\/s","name":"176569071534","caption":""},{"id":"176569073320","url":"https:\/\/model-boats.com\/media\/176569073320\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569073320\/s","name":"176569073320","caption":""},{"id":"176569081186","url":"https:\/\/model-boats.com\/media\/176569081186\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569081186\/s","name":"176569081186","caption":""},{"id":"176569086660","url":"https:\/\/model-boats.com\/media\/176569086660\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569086660\/s","name":"176569086660","caption":""},{"id":"176569086864","url":"https:\/\/model-boats.com\/media\/176569086864\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569086864\/s","name":"176569086864","caption":""},{"id":"176569086941","url":"https:\/\/model-boats.com\/media\/176569086941\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569086941\/s","name":"176569086941","caption":""},{"id":"176569087030","url":"https:\/\/model-boats.com\/media\/176569087030\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569087030\/s","name":"176569087030","caption":""},{"id":"176569087544","url":"https:\/\/model-boats.com\/media\/176569087544\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569087544\/s","name":"176569087544","caption":""},{"id":"176569087537","url":"https:\/\/model-boats.com\/media\/176569087537\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569087537\/s","name":"176569087537","caption":""},{"id":"176569087670","url":"https:\/\/model-boats.com\/media\/176569087670\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569087670\/s","name":"176569087670","caption":""},{"id":"176569087630","url":"https:\/\/model-boats.com\/media\/176569087630\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569087630\/s","name":"176569087630","caption":""},{"id":"176569087865","url":"https:\/\/model-boats.com\/media\/176569087865\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569087865\/s","name":"176569087865","caption":""},{"id":"176569111983","url":"https:\/\/model-boats.com\/media\/176569111983\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569111983\/s","name":"176569111983","caption":""},{"id":"176569112893","url":"https:\/\/model-boats.com\/media\/176569112893\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569112893\/s","name":"176569112893","caption":""},{"id":"176569115280","url":"https:\/\/model-boats.com\/media\/176569115280\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569115280\/s","name":"176569115280","caption":""},{"id":"176569142710","url":"https:\/\/model-boats.com\/media\/176569142710\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569142710\/s","name":"176569142710","caption":""},{"id":"176569143985","url":"https:\/\/model-boats.com\/media\/176569143985\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569143985\/s","name":"176569143985","caption":""},{"id":"176569152923","url":"https:\/\/model-boats.com\/media\/176569152923\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569152923\/s","name":"176569152923","caption":""},{"id":"176569163944","url":"https:\/\/model-boats.com\/media\/176569163944\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569163944\/s","name":"176569163944","caption":""},{"id":"176569218373","url":"https:\/\/model-boats.com\/media\/176569218373\/l","thumbUrl":"https:\/\/model-boats.com\/media\/176569218373\/s","name":"176569218373","caption":""}]
"Port Seminole" a SSMBC portable dock system for R/C model boats
Episode: Introduction
This is series of episodes will be about the features and updates of the SSMBC (Tampa Bay Area, Florida) Portable Dock System (PDS) I will post information on the original design and build of the PDS as well as requirements of have a PDS for the SSMBC.
First is why. Operating (R/C) model boats are fun to build and run. But take that to the next level. How do we improve that? We have a pond, OK? We have a floating dock for launching and retrieval; Nice. Every once and a while we have a few buoys (markers); Getting a little better. Now comes docks! Wow, how many of you "captains" out there would like to maneuver through a docking system? I know I like it. (Think it we ignite some of our casual members to come or entice new members to join?)
In March of 2014 I built most of the PDS with my son's help. There we no videos or even instructions on how to build a PDS back then. Only a few photos and videos that showed little to no detail on they were built.
It was fun to operate the boats but what a headache to setup for our two hour meets. Trudging through thick mud on the ponds bottom was very difficult. Trying to flat the sections out and attach them together while leaning over the docks edge was still an issue. ("No swimming".)
Thought: Why not assemble them on land gradually pushing them into the pond? How about a better way to attach them to the shore? I already made them stackable to ease storage and transport.
And that folks is where I am today. Most of the thinking was done. Now I am in the update phase. For two days (I'm 81, not as fast as I used to be) I have been not only updating the PDS but doing some badly need maintenance and strengthening.
The photos I am posting now are the original build of the PDS. They are simplistic, no additional details. (Some details may be added later.) You can see that the sections can be positioned for a variety of configurations.
In upcoming episodes I will add more information and photos. so others can see what we have done. Nothing hidden, all information. And, of course, suggestions are welcomed.

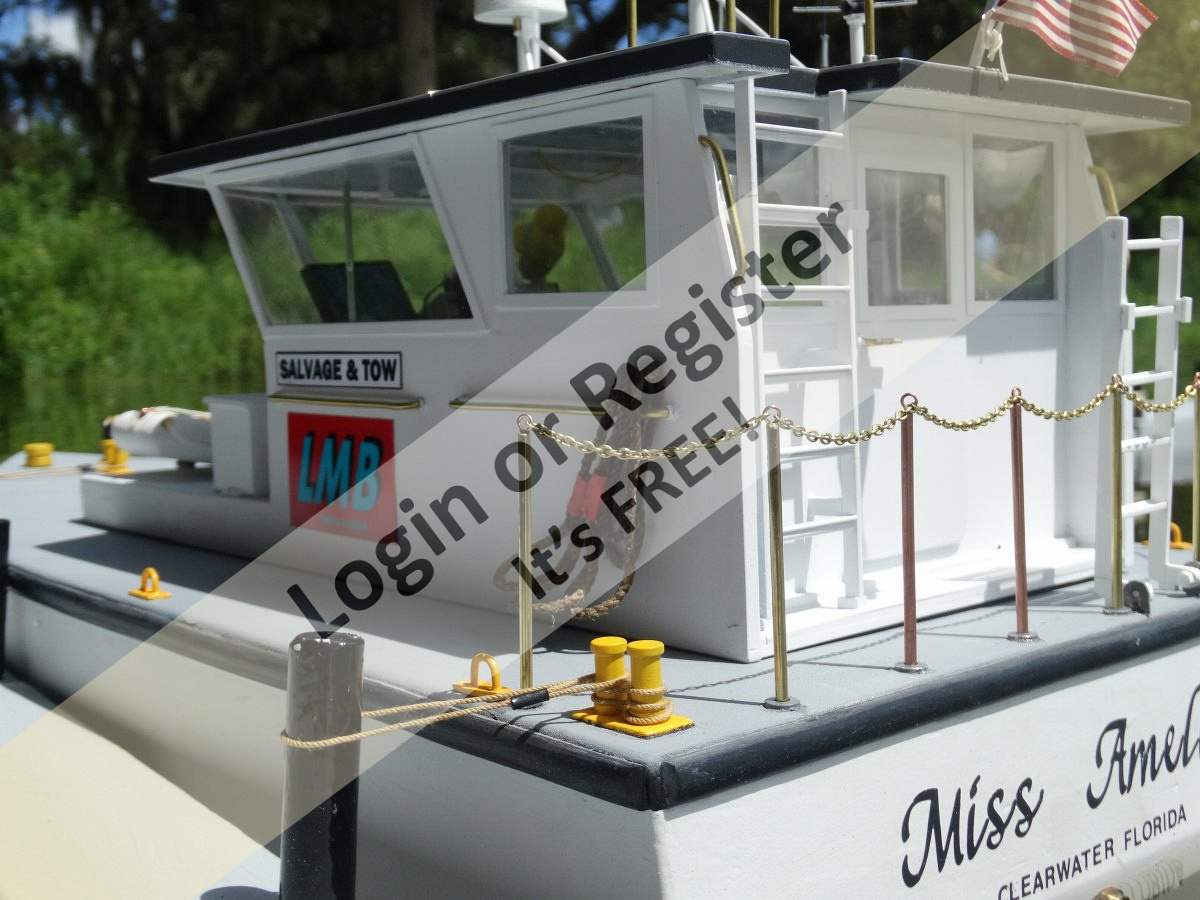

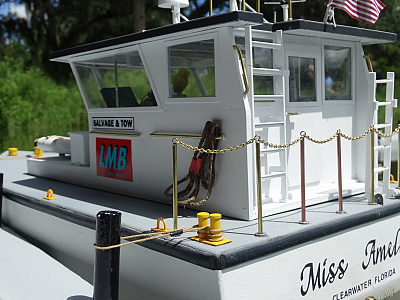

Ronald, about tying boats to the dock. Right now we watch the wind and dock the boat accordingly using the wind (as best we can). I guess some can make their own methods of tying off. Perhaps a servo operating a loop to catch and release to mooring bit. Other methods could be used such as long poles with loops that can be placed. another could be some sort of catch mechanism on the dock sections themselves. With so many different styles of boats (including height above the water, railings, etc.) the later would be difficult. The first thought would probably be the best, however the pole idea is feasible. Depends on the distance from the shore.
Lew, how do you keep vessels from floating around after being run? Or do these get retrieved and only keep pre-tied models at the wharf for public viewing?
Lew!!!!!
The WWF offices were right near my house and we used to see a bunch of the old timers poking around; Sargent Slaughter, Jimmy Snuka, Bulldog Brower, The Iron Sheik...etc. Met Hulk once up close, he was a monster, but amazingly soft spoken. But, the all-time monstrosity was Andre the Giant. Rode on the freight elevator with him at Sound One in NYC, the elevator dropped noticeably when he got on with me. His head was as big as a basketball! And his hands were as big as Easter hams.
Amazing individuals, one and all!!!

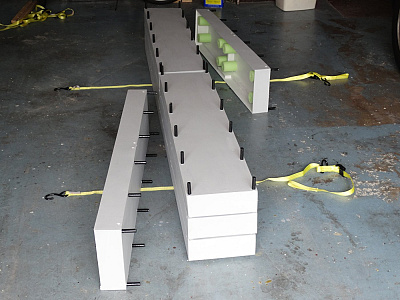

Connecting the dock sections are simple: Elastic bands. Each dock section has multiple posts, one on each corner and several along the length. Spacing is about the same so that any section can connect to other sections, not only at the ends but anywhere where there are posts. Example "L", "T", "X" layouts and more configurations can be made.
