    Lines plan
    8 Posts · 5 Followers · 5 Photos · 26 Likes
    Began 8 months ago by
    Trillium
    Chief Petty Officer 1st Class
    Canada
    Follow This Thread
    Not currently following
    > Click to follow
    Latest Post 8 months ago by
    RodC
    Lieutenant Commander
    Canada
    ( Newest Posts Shown First )
    RodC
    Lieutenant Commander
    🇨🇦 Canada
    📝 Lines plan
    8 of 8: 8 months ago
    24 Views · 3 Likes
    Flag
    Country: 🇨🇦 Canada
    Online: 2 days ago
    😊 View Profile
    💬 Send PM
    💵 Gift a Membership
    Thankyou Ronald...now i seem to recall something called "lofting"🤗
    ▲
    VA3ROD
    Login To
    Remove Ads

    Ronald
    Fleet Admiral
    🇨🇦 Canada
    📝 Lines plan
    7 of 8: 8 months ago
    23 Views · 4 Likes
    Flag
    Country: 🇨🇦 Canada
    Online: 40 minutes ago
    😊 View Profile
    💬 Send PM
    💵 Gift a Membership

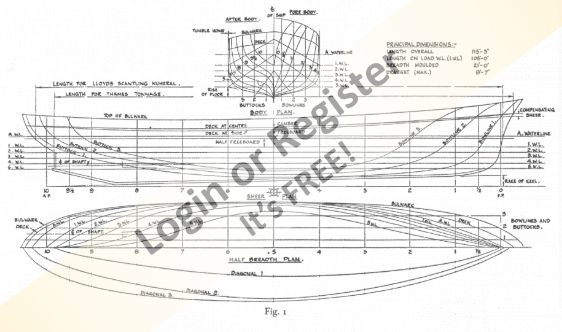

    Here Rod, these are another type Plan this is for a Ville Class Tug.

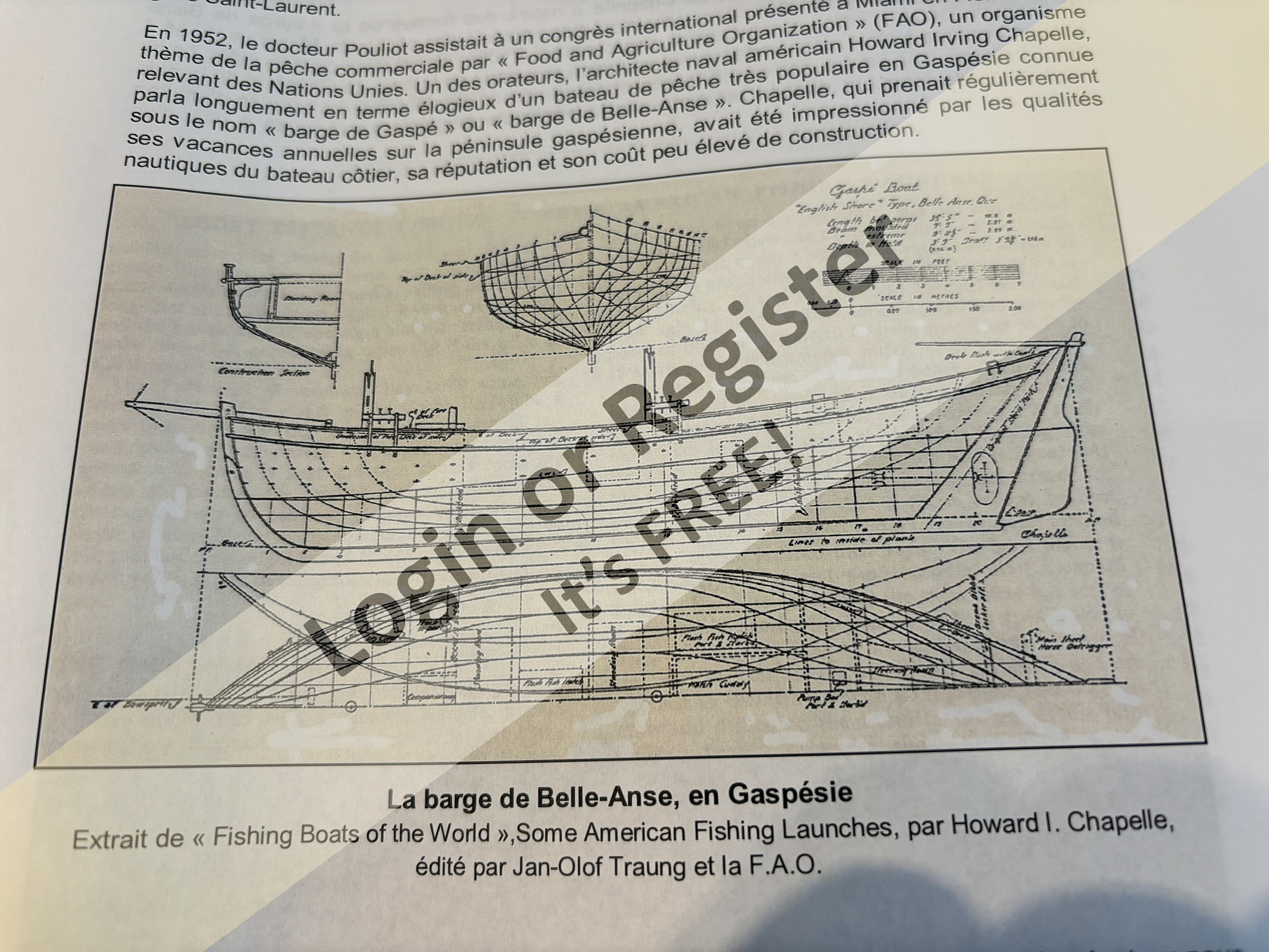

    Here are Plans for Fishing Launch

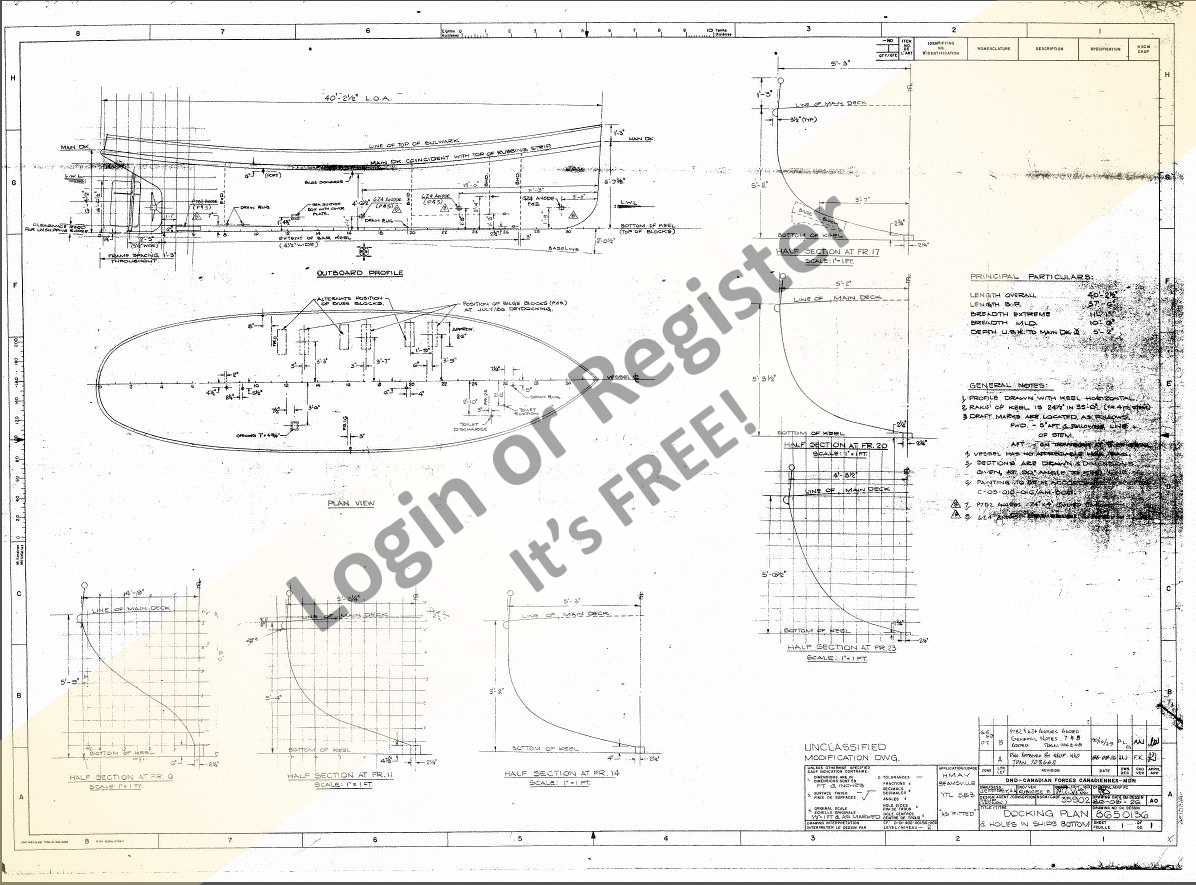

    Final a Half hull with deck drawing and partial Line Plan
    ▲
    LewZ
    Vice Admiral
    🇺🇸 United States
    📝 Lines plan
    6 of 8: 8 months ago
    30 Views · 5 Likes
    Flag
    Country: 🇺🇸 United States
    Online: 7 hours ago
    😊 View Profile
    💬 Send PM
    💵 Gift a Membership
    "Lines plans" are drawings derived from cross sections of the hull and are typically front, side, and bottom views. Finding a set for a specific not so common older ship probably will be difficult at best and one might have to settle for a "close enough" plan.
    Lew
    ▲
    Lew Zee (LewsModelBoats.org)
    RodC
    Lieutenant Commander
    🇨🇦 Canada
    📝 Lines plan
    5 of 8: 8 months ago
    30 Views · 3 Likes
    Flag
    Country: 🇨🇦 Canada
    Online: 2 days ago
    😊 View Profile
    💬 Send PM
    💵 Gift a Membership
    Ok, what is a "lines plan"??
    ▲
    VA3ROD
    Trillium
    Chief Petty Officer 1st Class
    🇨🇦 Canada
    📝 Lines plan
    4 of 8: 8 months ago
    31 Views · 3 Likes
    Flag
    Country: 🇨🇦 Canada
    Online: 7 hours ago
    😊 View Profile
    💬 Send PM
    💵 Gift a Membership
    The vessel in question is the Isle of Man ferry "Ben-my-chree" of 1927. I found two sources for the plans I need, but neither of them had the lines plan. Nor did they have the lines plans for their close sisters "Lady of Mann" 1930 and "Mona's Queen", 1934.
    My google searching has displayed many pictures and sketches of a counter stern, but no lines plans. There was one body plan shown, but that was for a single screw vessel, not twin screw.
    ▲
    LewZ
    Vice Admiral
    🇺🇸 United States
    📝 Lines plan
    3 of 8: 8 months ago
    40 Views · 2 Likes
    Flag
    Country: 🇺🇸 United States
    Online: 7 hours ago
    😊 View Profile
    💬 Send PM
    💵 Gift a Membership
    Try searching "counter stern" then select "images" on Google or your search engine. There are plenty of drawings there.
    Lew
    Florida ⛱️, USA ❤️
    ▲
    Lew Zee (LewsModelBoats.org)
    ToraDog
    Commodore
    🇺🇸 United States
    📝 Lines plan
    2 of 8: 8 months ago
    40 Views · 3 Likes
    Flag
    Country: 🇺🇸 United States
    Online: 19 days ago
    😊 View Profile
    💬 Send PM
    💵 Gift a Membership
    Can you be a bit more specific about which plans you want? Such as the vessel?
    ▲
    Trillium
    Chief Petty Officer 1st Class
    🇨🇦 Canada
    📝 Lines plan
    1 of 8: 8 months ago
    38 Views · 3 Likes
    Flag
    Country: 🇨🇦 Canada
    Online: 7 hours ago
    😊 View Profile
    💬 Send PM
    💵 Gift a Membership
    Does anyone have a lines plan for a twin-screw vessel with a counter stern? I have all the plans I need to build a scale model, except the lines plan. If someone has a lines plan I'm hoping I can tweak it to suit my model.
    ▲
