thanks, I have been updating my Smaragd for the last years to make her as I would like. Almost running out of ideas apart from making new main sail and jib.
Apart from that hoping for some nice sailing moments,, for now I think its too cold🤔
Apart from that hoping for some nice sailing moments,, for now I think its too cold🤔
▲
⟩⟩
Colin H
Login To
Remove Ads
Remove Ads
📝 Robbe Smaragd
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 73 Views · 1 Like
Flag
📝 Reply
good morning, as in the picture a pretty simple setup for a Genoa control.
the green line is the loop, it rolls on and off at the same time moving the line towards one side and the other.
the red line is the control to extend the sheet from the sail. in order to sail tight to the wind or for the wind.
on the green sheet there is a ring fixed. all the way extended to one side it is on the end point. When the green line moved to the other side it is on the end point on the other side.
through the ring the red line can move tight or wide.
for the dragon as this is a smaller boat, check out YouTube Genoa on Micro Magic. You will see easy options also !
the green line is the loop, it rolls on and off at the same time moving the line towards one side and the other.
the red line is the control to extend the sheet from the sail. in order to sail tight to the wind or for the wind.
on the green sheet there is a ring fixed. all the way extended to one side it is on the end point. When the green line moved to the other side it is on the end point on the other side.
through the ring the red line can move tight or wide.
for the dragon as this is a smaller boat, check out YouTube Genoa on Micro Magic. You will see easy options also !
▲
⟩⟩
Colin H
📝 Robbe Smaragd
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 64 Views · 1 Like
Flag
📝 Reply

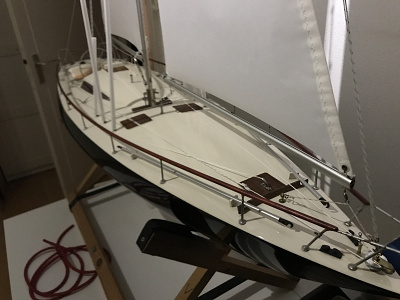

The wooden handrails now in mahogany stain waiting for clearcoat finish.
▲
⟩⟩
Colin H
📝 Robbe Smaragd
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 68 Views · 1 Like
Flag
📝 Reply
Nice to hear the ladies are seaworthy ! Is there anyone with a functioning blister?
▲
⟩⟩
Martin555
📝 Robbe Smaragd
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 72 Views · 1 Like
Flag
📝 Reply
Nice ! Three big ladies in a row 😀. Are they all seaworthy ? I am interested in your control setup and sail combinations !
▲
⟩⟩
Martin555
💬 Re: 1 meter "open class"
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 17 Views · 1 Like
Flag
💬 Add Comment
Hi there. It started as wooden strips on wooden frame but decided to wrap it with epoxy. I took out the wooden parts and put in a few foam frames for stiffness.
Balsa wood and foam for the deck and epoxy finish.
After this small fairing and spray in a nice metallic topcoat.
The rig is made by a company in Germany specific for this modell.
Balsa wood and foam for the deck and epoxy finish.
After this small fairing and spray in a nice metallic topcoat.
The rig is made by a company in Germany specific for this modell.
▲
⟩⟩
Martin555
📝 Robbe Smaragd
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 79 Views · 4 Likes
Flag
📝 Reply
inside view of servo controls for genua or blister.
the white frame in which the servos are mounted is the new version of the old situation where every servo had his own foundation.
now I can remove the complete set in one time for maintenance if necessary.
the white frame in which the servos are mounted is the new version of the old situation where every servo had his own foundation.
now I can remove the complete set in one time for maintenance if necessary.
▲
⟩⟩
Colin H
Scratchbuilder
Ronald
Martin555
📝 Greek Kaiki sailboat
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 7 Views · 3 Likes
Flag
💬 Add Comment
self built out of epoxy foam : Greek Kaiki sailing boat.
intention to be able to raise the jib and mainsail. powered by motor and propellor.
small servo to extent a fishing boom on the side.
intention to be able to raise the jib and mainsail. powered by motor and propellor.
small servo to extent a fishing boom on the side.
▲
⟩⟩
TonyAsh
Colin H
Martin555
📝 1 meter "open class"
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 7 Views · 4 Likes · 4 Comments
Flag
💬 Add Comment
self built 1 mtr open class.
light and fast
light and fast
▲
⟩⟩
jbkiwi
neill
Martin555
Nonsuch
📝 Robbe Smaragd
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 79 Views · 3 Likes
Flag
📝 Reply
just a video which shows the movement from the genua or blister from p-side to sb-side
controlled by one servo, in my case a Hitec with a big winch wheel.
controlled by one servo, in my case a Hitec with a big winch wheel.
▲
⟩⟩
Colin H
Scratchbuilder
Martin555
📝 Robbe Smaragd
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 83 Views · 0 Likes
Flag
📝 Reply
battery is 9,6 V 2300 Mah can be charged with normal charger, usually sold in packets.
speed control is hobby king 45 ampere, I cut of the wires for speedcontrol of motor.
speed control is hobby king 45 ampere, I cut of the wires for speedcontrol of motor.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
Login To
Remove Ads
Remove Ads
📝 Robbe Smaragd
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 72 Views · 1 Like
Flag
📝 Reply
yes of course Mike,
will take a bit of time, but I will sent you the info.
don't worry about another brand, if it smells the same it does the same !
will take a bit of time, but I will sent you the info.
don't worry about another brand, if it smells the same it does the same !
▲
⟩⟩
Martin555
📝 Robbe Smaragd
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 71 Views · 1 Like
Flag
📝 Reply
hi agent,
the cracks look like through the paint system on top of the ABS. (plastic hull) see if you can determine if the paint around a crack is loose from the plastic. (with knife you can cut carefully) if the paint is loose, you will have to remove everything. (best basis to start from)
after that, good degreasing and a suitable spray primer (motip or so) and colour it with laquer to your desire.
about the transmitter, or fix up the old one or buy a new set with enough channels ( I have six with Graupner MZ 10C) but more brands are available.
the cracks look like through the paint system on top of the ABS. (plastic hull) see if you can determine if the paint around a crack is loose from the plastic. (with knife you can cut carefully) if the paint is loose, you will have to remove everything. (best basis to start from)
after that, good degreasing and a suitable spray primer (motip or so) and colour it with laquer to your desire.
about the transmitter, or fix up the old one or buy a new set with enough channels ( I have six with Graupner MZ 10C) but more brands are available.
▲
⟩⟩
Martin555
📝 Robbe Smaragd
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 66 Views · 1 Like
Flag
📝 Reply
Robbe smaragd servo control for blister / genua
servo with white winch wheel : main sail , jib,
servo with black (smaller wheel) : genua & blister widen or tighten
Servo with black (big) wheel : genua and blister change position port of sb-side
Servo with arm: blister upwards to create curve or tight to create straight
one more servo for rudder not in the video
servo with white winch wheel : main sail , jib,
servo with black (smaller wheel) : genua & blister widen or tighten
Servo with black (big) wheel : genua and blister change position port of sb-side
Servo with arm: blister upwards to create curve or tight to create straight
one more servo for rudder not in the video
▲
⟩⟩
Martin555
📝 Robbe Smaragd
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 65 Views · 1 Like
Flag
📝 Reply
hey,
I use a 9,6 v ni-mh battery pack and a speed controller to reduce the power to 6v.
( i have no motor and propellor by the way, the ESC is only to reduce the power )
if you only use main sail and jib and rudder, a 4x 1,5V battery pack with normal batteries are sufficient for a complete afternoon sailing. ( I did this before I started with the genua and blister ) with ordinary batteries it works fine ( and cheap..... I am dutch ).
for the genua and blister I needed more power and I decided to change to battery pack rechargeable.
I use a 9,6 v ni-mh battery pack and a speed controller to reduce the power to 6v.
( i have no motor and propellor by the way, the ESC is only to reduce the power )
if you only use main sail and jib and rudder, a 4x 1,5V battery pack with normal batteries are sufficient for a complete afternoon sailing. ( I did this before I started with the genua and blister ) with ordinary batteries it works fine ( and cheap..... I am dutch ).
for the genua and blister I needed more power and I decided to change to battery pack rechargeable.
▲
⟩⟩
Martin555
📝 Robbe Smaragd
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 68 Views · 1 Like
Flag
📝 Reply
hey Jim, as far as my knowledge goes for the rigs, a genua is a 'straight sail which pull a little further backwards than the mast.
a jib stays in front of the mast when moving from ps to sb-side.
A blister is like a genua, but is curves upwards also , so it looks like a spinnaker.
( it also has to do with the m2 of the sails itself by the way)
so to control the blister you need
a servo to move from sb- side
a servo to extent or pull the sheet itself
a servo to extent or pull the fwd part of the sail to make it more round.
( for the genua you only need the first two servos)
I hope there are sailers who can give the correct names for the items that I described but I did my best 😆)
a jib stays in front of the mast when moving from ps to sb-side.
A blister is like a genua, but is curves upwards also , so it looks like a spinnaker.
( it also has to do with the m2 of the sails itself by the way)
so to control the blister you need
a servo to move from sb- side
a servo to extent or pull the sheet itself
a servo to extent or pull the fwd part of the sail to make it more round.
( for the genua you only need the first two servos)
I hope there are sailers who can give the correct names for the items that I described but I did my best 😆)
▲
⟩⟩
Martin555
📝 Robbe Smaragd
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 72 Views · 1 Like
Flag
📝 Reply
haha, came out of hibernation. contact me if you need more info . Good luck with the rebuilt !
I see you have the same blister in your package. The controls of it are old days insights so this can really be improved.
i have all the drawings, if you need any.
I see you have the same blister in your package. The controls of it are old days insights so this can really be improved.
i have all the drawings, if you need any.
▲
⟩⟩
Martin555
📝 Robbe Smaragd
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 71 Views · 1 Like
Flag
📝 Reply
hello, I came across the same situation and decided to cut off the top (thicker part) of the railing stanchions, remove the wires and put on a wooden cap rails (round 6mm).
Now the sheets from the genua and the blister slide over the cap rails.
Now the sheets from the genua and the blister slide over the cap rails.
▲
⟩⟩
Martin555
📝 Robbe Smaragd
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 67 Views · 1 Like
Flag
📝 Reply
about the whole "smaragd" project, is here a link what was done until now. In dutch, but the images will give an impression.
▲
⟩⟩
Martin555
📝 Robbe Smaragd
3 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 67 Views · 3 Likes
Flag
📝 Reply
hey there,
i have recently refitted my smaragd, all the 'old' electronics out and completely restyled.
also the blister as seen on the picture is in working condition.
Wooden cap rails installed.
so,
if you need any advice, PM me
gr Freek
i have recently refitted my smaragd, all the 'old' electronics out and completely restyled.
also the blister as seen on the picture is in working condition.
Wooden cap rails installed.
so,
if you need any advice, PM me
gr Freek
▲
⟩⟩
jbkiwi
Martin555
Graham93
📝 Robbe Smaragd
4 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 63 Views · 1 Like
Flag
📝 Reply
Maybe you saw mine ? From topic two years ago ?
▲
⟩⟩
kevinsharpe
Login To
Remove Ads
Remove Ads
💬 Endeavour Model near Paris
5 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 56 Views · 1 Like
Flag
💬 Add Comment
magnificent !
▲
⟩⟩
marky
📝 Smaragd
5 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 25 Views · 6 Likes
Flag
💬 Add Comment
A nice afternoon and 5 bft with Gopro on board !
at the end of the day nothing damaged, ( but on the limit ..)
at the end of the day nothing damaged, ( but on the limit ..)
▲
⟩⟩
philcaretaker
doghouse
GaryLC
Ronald
TOWN3810
Donnieboy
📝 smaragd
5 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 25 Views · 5 Likes
Flag
💬 Add Comment
a compilation of a nice sailing afternoon in west kapelle (the netherlands) with a view underwater
▲
⟩⟩
doghouse
GaryLC
TOWN3810
Joe727
Donnieboy
📝 "smaragd"
5 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 24 Views · 4 Likes
Flag
💬 Add Comment
here my robbe smaragd in heavy wind conditions !
sails like a beauty 😁 for an old big lady !
sails like a beauty 😁 for an old big lady !
▲
⟩⟩
doghouse
TOWN3810
Donnieboy
Joe727
📝 "juliette"
5 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 25 Views · 4 Likes
Flag
💬 Add Comment
my first graupner carina named "juliette" under attack by crabs 😁
▲
⟩⟩
Brightwork
BOATSHED
doghouse
Donnieboy
📝 IRC 88 stock maritime (robbe sirius)
5 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 23 Views · 1 Like
Flag
💬 Add Comment
refitted Robbe Sirius IRC 88 (by stock maritime) completely new electronics and fittings, resprayed in 2k polyurethane topcoat
▲
⟩⟩
Donnieboy
📝 (Yacht) Graupner Carina
5 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 13 Views · 3 Likes
Flag
💬 Add Comment
my 2nd graupner Carina, with a modern appearance (9/10)
▲
⟩⟩
Madwelshman
Donnieboy
figtree7nts
📝 (Yacht) "juliette"
5 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 11 Views · 1 Like
Flag
💬 Add Comment
original Graupner carina named "juliette" the 1st one I built. wanted to be a classic model. (9/10)
▲
⟩⟩
Donnieboy
📝 (Yacht) DMI 'Pirat"
5 years ago by 🇳🇱 Smaragd ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 11 Views · 1 Like
Flag
💬 Add Comment
Classic modell, in the 70's sold under the name DMI pirat. a full wooden sailboat without RC controls.
the keel was extended to improve stability.
In the 90's the wooden strips from the hull were so dried out, that I had to fill it complete with epoxy and sprayed the uniform 'baby blue'color.
After a long period in the attic , it saw daylight again and the sails needed to be replaced.
Now it is a static model with sailing capacities. (7/10)
the keel was extended to improve stability.
In the 90's the wooden strips from the hull were so dried out, that I had to fill it complete with epoxy and sprayed the uniform 'baby blue'color.
After a long period in the attic , it saw daylight again and the sails needed to be replaced.
Now it is a static model with sailing capacities. (7/10)
▲
⟩⟩
figtree7nts
Login To
Remove Ads
Remove Ads
