    New Project S91
    6 Posts · 10 Followers · 54 Photos · 26 Likes
    Began 5 months ago by
    Chief Petty Officer 2nd Class
    United States
    Follow This Thread
    Not currently following
    > Click to follow
    Latest Post 1 month ago by
    Chief Petty Officer 2nd Class
    United States
    Most recent posts shown first   (Show Oldest First) (Print Booklet)
    📝 Update …on S91 project…
    1 month ago by 🇺🇸 BW3 ( Chief Petty Officer 2nd Class)
    ✧ 44 Views · 5 Likes · 5 Comments
    Flag
    💬 Add Comment

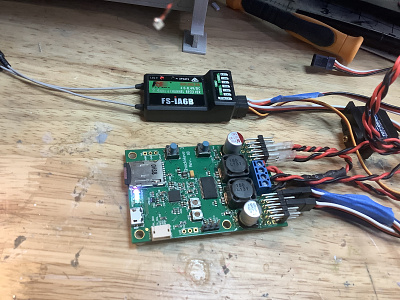

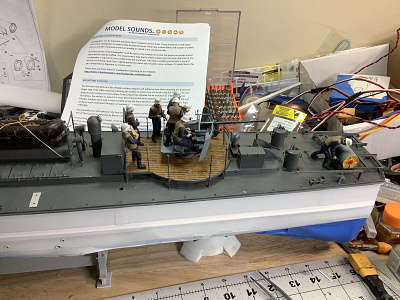

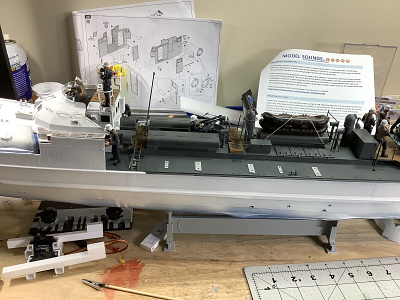

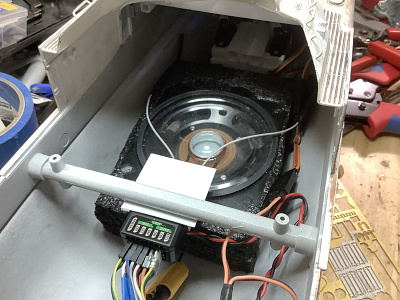

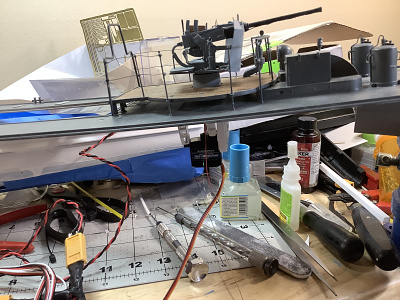

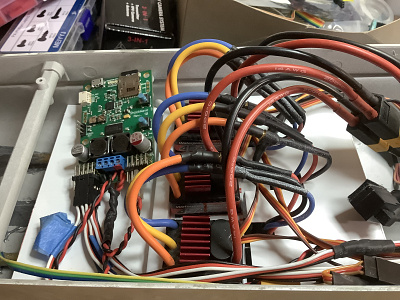

    Well things are progressing slow , life does that at times , tho a bit of procrastination can be made if honest …lol ..I have done more detailed work and finalizing things as to hull access , and component mounting/ locations …one thing I have added that was not on my original build plan is a sound board and LED muzzle flash .

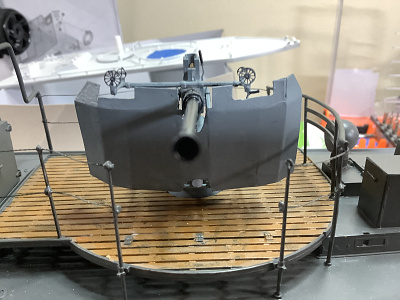

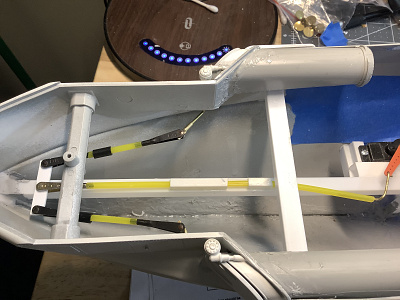

    I am very excited to get this in and see and hear it on the water . My only regret is where I am adding muzzle flash to the 40mm Bofors in the stern that I have reto fitted the LED . I feel if I had installed it at its build time I could have run the fine wiring better , but we do the best we can . What is nice is that the sound board has proportional Throttle Diesel engines, 20 mm bust , 40 mm Bofors bust and Torpedo launch ,with warning siren ,…as an added feature the LED out puts for the engine’s exhaust, and the weapons are synchronized to the sound of each , so you can have exhaust flash , and muzzle flash when the sound for each is activated.
    Hope all are well , Good Building and Best to All
    Bill. G.

    💬 Re: Update …on S91 project…
    1 month ago by 🇧🇪 hermank ( Warrant Officer)
    ✧ 29 Views · 0 Likes
    Flag
    Must be detailled instead of « détaillé e » language problem wit the i phone 😂😂😂
    Login To
    Remove Ads

    💬 Re: Update …on S91 project…
    1 month ago by 🇧🇪 hermank ( Warrant Officer)
    ✧ 29 Views · 0 Likes
    Flag
    Beautifull model and very détaillée👍👍👍👏👏
    💬 Re: Update …on S91 project…
    1 month ago by 🇺🇸 BW3 ( Chief Petty Officer 2nd Class)
    ✧ 27 Views · 0 Likes
    Flag

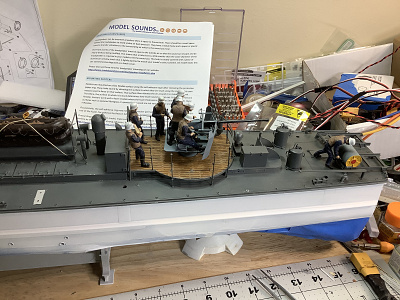

    I found Model Sounds inc. online , they have a wide selection of sounds and for a small fee can customize your sounds and has the option to purchase software to make your own customized sounds . Their system can be optimized to be removable and placed in different models. I have found them to be very helpful and worth the consideration when choosing to add a sound system .
    Bill G.
    💬 Re: Update …on S91 project…
    1 month ago by 🇺🇸 ToraDog ( Lieutenant Commander)
    ✧ 35 Views · 0 Likes
    Flag
    Very nice. What are you using for the LED/Sound board?
    💬 Re: Update …on S91 project…
    1 month ago by 🇺🇸 AllDayFunHobbies ( Recruit)
    ✧ 41 Views · 0 Likes
    Flag
    Love all the boat traffic on the site I created. Anybody know me?😀 Keep it up, I was US Navy 4 years on DD752, Destroyer, Alfred Cunningham, based in Long Beach, CA 1959 to 1963. Now live So Cal. Call me Marty.
    Login To
    Remove Ads

    📝 More details , but not much in the way of workings …
    3 months ago by 🇺🇸 BW3 ( Chief Petty Officer 2nd Class)
    ✧ 77 Views · 6 Likes · 3 Comments
    Flag
    💬 Add Comment

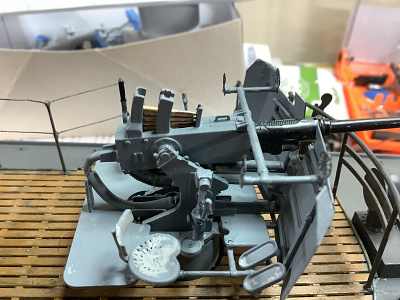

    Have been more interested of late in details crude as they may be …..just have not wanted to get back into getting the running parts mounted and set …I am considering getting a sound system and found one online that I think I will like , it will depend on the sound sample I have requested and just how much it will be ,,,they offer the start , variable throttle and shut down of the 3 Mercedes diesels , and possible independent control ? of each , torpedo launch , a 20 mm burst of fire , and standard 37 mm firing , but I think they can switch that out for a 40 mm Bofers . Also along side as part of the system is a LED out put for simulated exhaust and gun flash …The wonders that money and technology can do ….

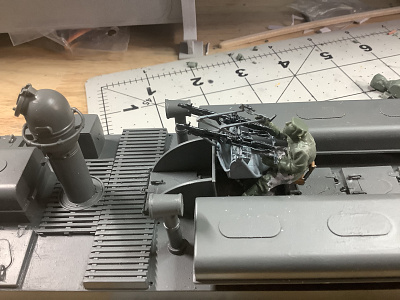

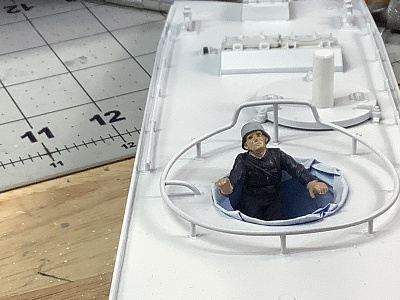

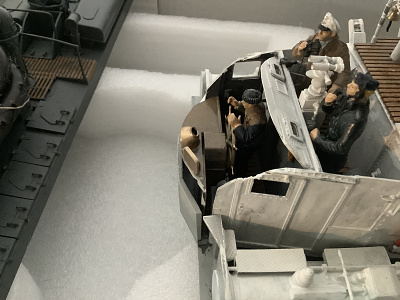

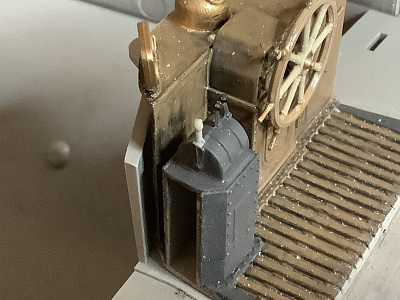

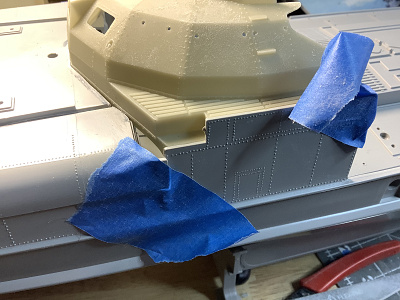

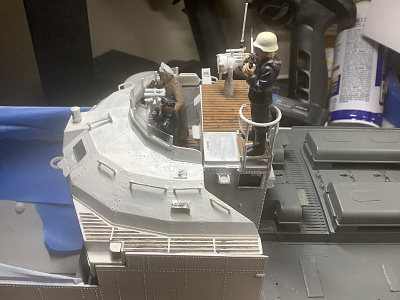

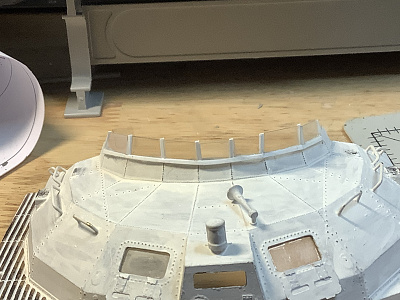

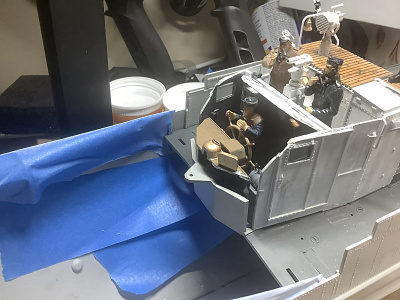

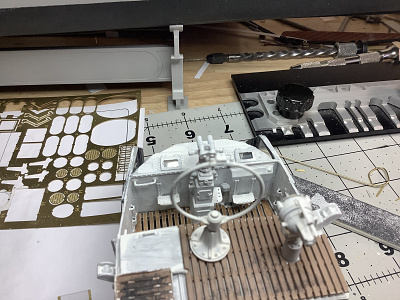

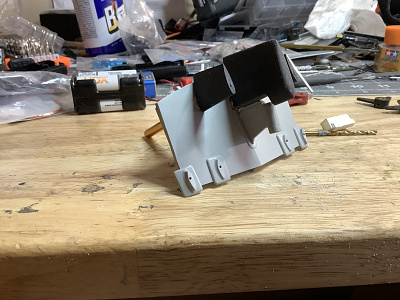

    It took a bit of fitting and I went at it slowly but I finally got the refit armored kalotte, the kits original helms dash was about 1/8” to far forward to allow the kalotte to fit as required , that and the deck house needed to be trimmed back ….from that point it becomes detail work adding grab rails, and spray guards etc etc …

    The trouble with closeups it shows just how bad I paint ….but at 6’ or 60 mph it will look ok ….sadly it’s the best I am able to do …oh to have my hands back …

    💬 Re: More details , but not much in the way of workings …
    3 months ago by 🇺🇸 Len1 ( Warrant Officer)
    ✧ 62 Views · 1 Like
    Flag
    you are doing a great job and remember what has already been said, you are doing it for you and whatever you do is OK.
    Len
    PS, I wish I could do as I preach. LOL😊
    Login To
    Remove Ads

    💬 Re: More details , but not much in the way of workings …
    3 months ago by 🇺🇸 Cashrc ( Commodore)
    ✧ 81 Views · 4 Likes
    Flag
    BW that looks good to me, you’re doing a grand job on her. I like it!
    Just remember, you’re building her for you. And, like Doug said, she’s a warship…she’s not going to be perfect unless you’re going for that “just launched” look. Your paint looks good to me.
    Cash
    💬 Re: More details , but not much in the way of workings …
    3 months ago by 🇩🇪 RNinMunich ( Fleet Admiral)
    ✧ 83 Views · 4 Likes
    Flag
    "The trouble with closeups it shows just how bad I paint ..."
    Rhubarb BW😉Looks pretty damn good to me.👍
    Remember; these boats were war machines not luxury yachts.
    They were also very hard worked, probably more than any other type of surface vessel in the Kriegsmarine.
    The painting served two purposes; primarily prevention of rust, or perhaps better said rot and corrosion. I believe that the hulls were constructed of wood on aluminium (aluminum for you😉) frames.
    Secondary camouflage. Several Dazzle type paint schemes were tried.
    Bit pointless really, considering the noise the Merc engines must have made and the luminescence of the 40knot wake at night!
    Great build so far, looking forward to seeing (and hearing🙉) S91 in action on the wet stuff.
    Cheers, Doug😎
    PS: had much fun in the nineties working on some successors to the S Boats; Type TNC45 45m FACs. In service with the Ecuadorian Navy based in Guayaquil. Muy divertido (much fun)😁 Had basically the same hull design, prop and rudder layout as the S-Boote.
    Both types were designed and built by the Lürssen Werft. Now part of German Shipyards GmbH. I still have the GA plans of the TNC45 if anyone's interested?
    Pic attached of one of the 3 Seawolf Class TNCs that I worked on in Guayaquil.
    Cheers, Doug 😎
    📝 Progress….
    4 months ago by 🇺🇸 BW3 ( Chief Petty Officer 2nd Class)
    ✧ 100 Views · 5 Likes
    Flag
    💬 Add Comment

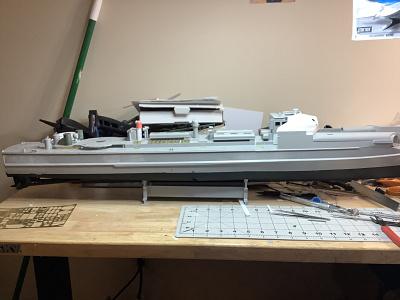

    It been a bit and I have made some headway but not so much in the way of getting to the water , more of detail work …

    📝 Project S-91
    5 months ago by 🇺🇸 BW3 ( Chief Petty Officer 2nd Class)
    ✧ 117 Views · 4 Likes
    Flag
    💬 Add Comment

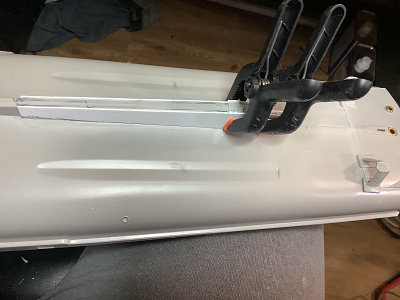

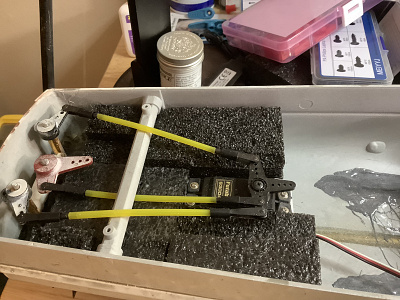

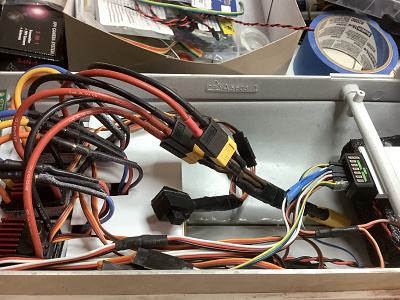

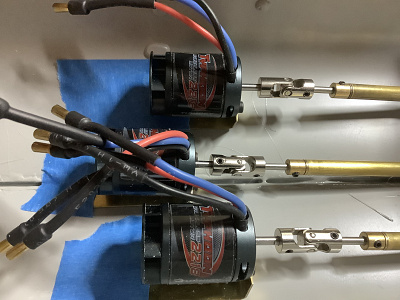

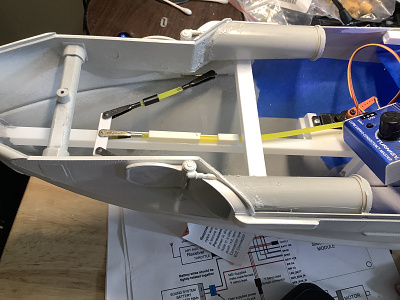

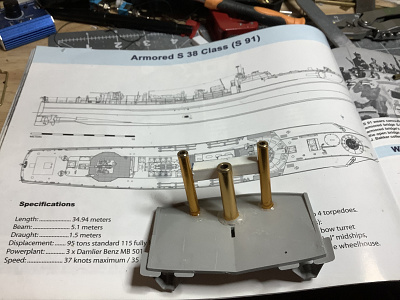

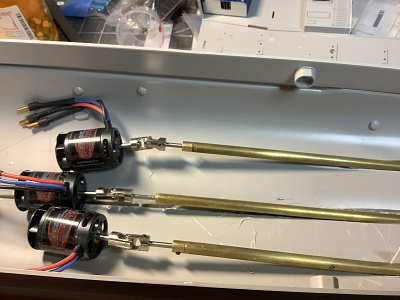

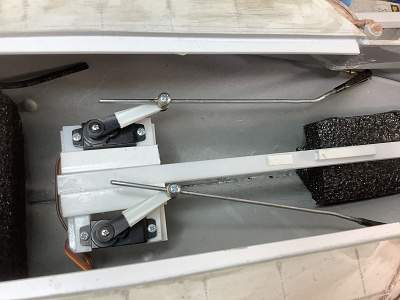

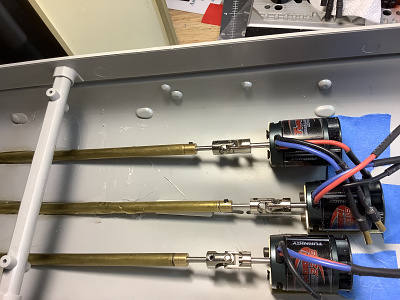

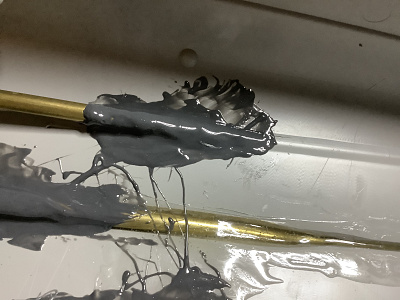

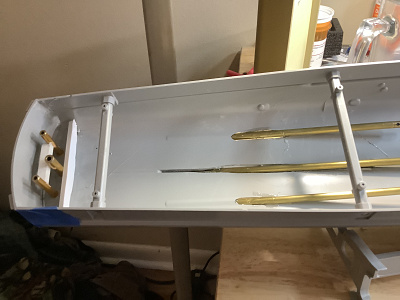

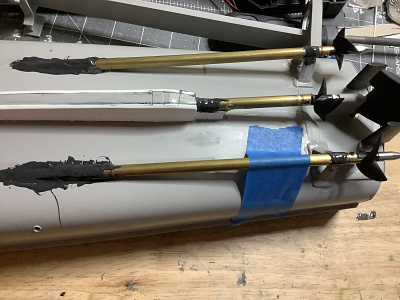

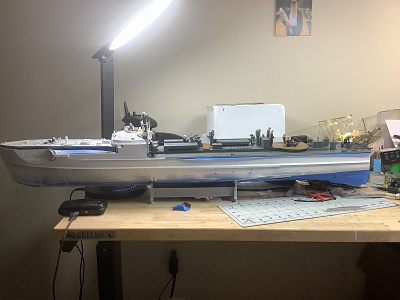

    Well made a little progress, I have fitted the commercial propeller shafts and rudder shafts , I hope some day to have the ability to make my own better than what I can currently do. As you can see in the photos I have temporarily have the motor placement , my plan is to put a removable shelf over the drive shafts and mount the speed controls , and receiver there given the amount of hull access this model has I can easy place the largest batteries in front of the motors and still adjust for trim based on my S-100. My S-100 has 3 1100kv motors on 2 3C pack , layout and available room did not let me add the 3rd battery, tho I may also be near the hull to waterline limit …The S-91 has 3 2218 motors left over from my Vosper builds , I felt during tub testing that they were a bit to hot for the hulls and went with 1800kv motors , a much wiser choice .

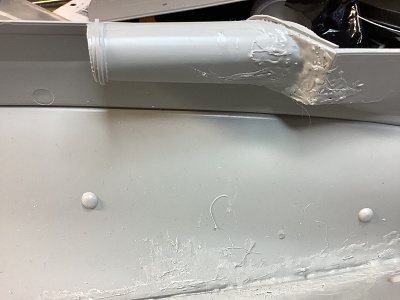

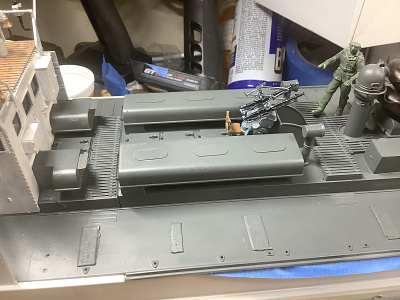

    I continue to work the hull fitting in decks and the armored bridge modifications and have set the torpedo tube , but in my haste and enthusiasm did not paint the inside first as planned ..I have trimmed them back and will mount torpedo heads inside and have the ends closed off water tight , with the planned operating doors you should see the torpedoes in the tube and ready for launch . The Deck it self I have decided not to cut it , if only for the fact it will make the mounting of a clean look to the railings and it will give better water tight seal and access if and when needed by letting the deck flex at the mid point. The issue being that the bridge area is more problematic with designing both access and water tightness than I currently want to attempt. I foolishly gave my local hobby shop my short? Wish list and given as they jokingly replied that they had a health insurance bill …magically came up with one off the list , …I was ok until an unexpected bill came in …so that scream you heard was the plastic being bent …😬, Ah we only live once and I can think of worst things to spend on …add another S-100 to the stash….😈
    BG

    📝 New Project S91
    5 months ago by 🇺🇸 BW3 ( Chief Petty Officer 2nd Class)
    ✧ 138 Views · 1 Like
    Flag
    💬 Add Comment

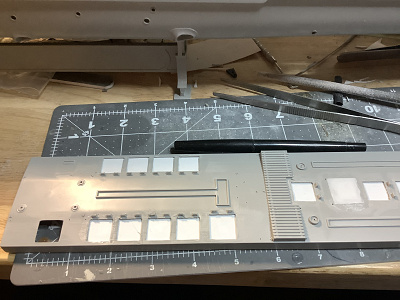

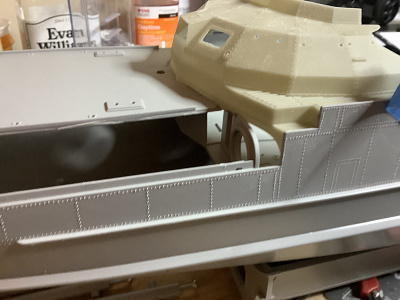

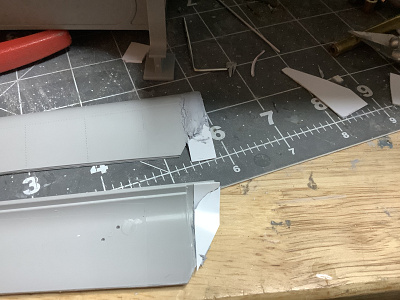

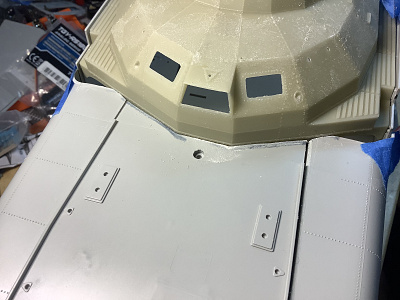

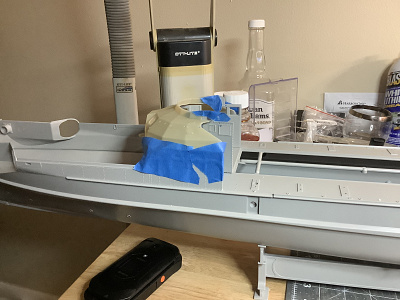

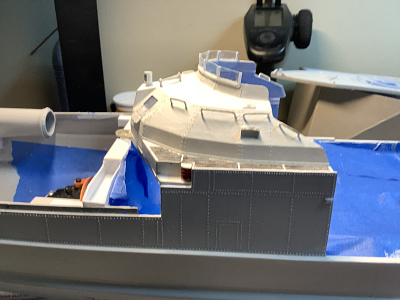

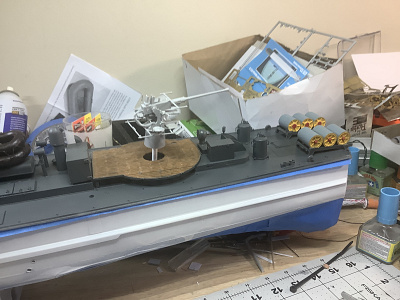

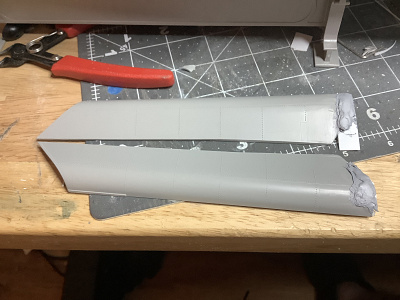

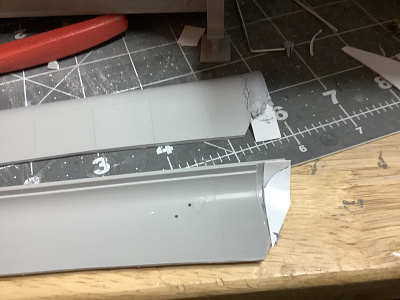

    From my build of the S-100, several issues I ran into I will try to correct on this build , the first being access and fit to the bow area, I begin by cutting the side armor over the torpedo tubes , this is to give a better fit and better water proofing to the boat also to make easier fitting to the modified bridge area . Due to the design of the S-38 type it affords me better access amidships for batteries, and maintenance. The biggest issue will be fitting the after market armored kalotte to the kits current bridge lay out.
    I am still not sure if I will cut the main deck just forward of the depth charge racks to give access to the rudder area ,,,it seems most likely tho ..

    📝 New Project S91
    5 months ago by 🇺🇸 BW3 ( Chief Petty Officer 2nd Class)
    ✧ 138 Views · 5 Likes
    Flag
    💬 Add Comment

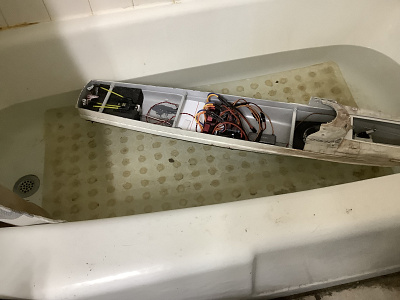

    It has been a bit from my last build(s) …and after a short break of building other kits non-RC and not boat related I have thrown myself into another build after my efforts on the RC conversion of Lindbergh’s Blue Devil Destroyer, a Fletcher class and odd scale are proving to require much more thought to get it to run to a satisfactory to my liking …it is a very narrow hull and much to top heavy to the point where my last outing with her bring her in was more akin to beaching a fish she laid on her side ….😞😖

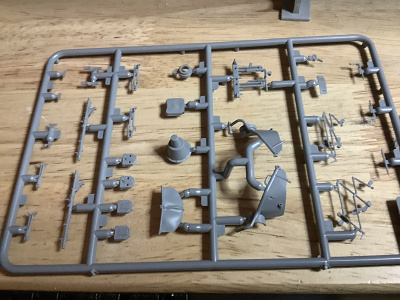

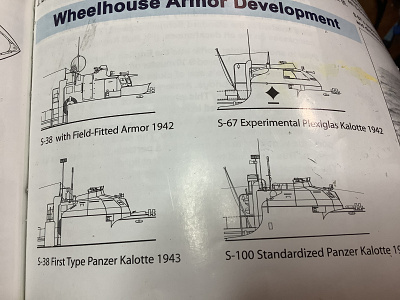

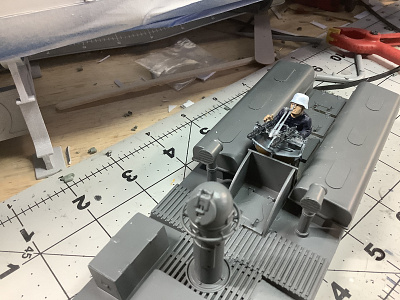

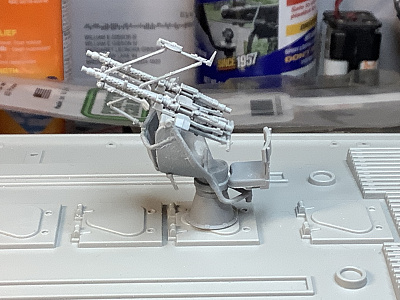

    Enough on that ,I was able to get an Italeri S-38 kit from my local hobby shop , and looking through my reference book on schnellboots , S91 caught my eye . This is a S38 type refitted with an armored kalotte. I am disappointed in Italeri on two reasons, the first is my fault in not understanding how to get or buy extra and or replacement parts for their kits ….I am at a loss as to how to work through their system ? …second is that the S38 does not have the standard armament of the mid ship Zwillingssockel of twin MG’s for aircraft defense, but they do include the later bow tube gun …Luckily, ICM does have a 1/35 scale of this mount as a kit , very detailed , at at the very limits of my ability due to my disability and lack of feeling in my hands . …I close with a few pictures and will answer why I am building the S91 as I am …much is due to the experience I gained in the long build of my S100…
