Krick Paula | Work / Crane Boat
3 Posts · 4 Followers · 9 Photos · 9 Likes
Began 2 months ago by
United KingdomFollow This Thread
Not currently following
> Click to follow
> Click to follow
Latest Post 17 days ago by
| Most recent posts shown first (Show Oldest First) | (Print Booklet) |
📝 January Update
17 days ago by 🇬🇧 Heners2332 (
Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 19 Views · 1 Like · 2 Comments
Flag
💬 Add Comment
With slow progress in January not a lot has happened! The servo tray has been constructed and the deck hatch fitted. The servo tray will be installed once the Propshaft has been bonded to the hull. The servo on its side will
Be used to operate the crane movement and the other servo is steering.
Be used to operate the crane movement and the other servo is steering.
▲
⟩⟩
hermank
|
💬 Re: January Update
16 days ago by 🇬🇧 Heners2332 (
Petty Officer 2nd Class)✧ 12 Views · 0 Likes
Flag
Hi Chum, no I do not as the servo tray strengthens the rear wall when stuck and the deck makes the hull rather rigid if I do strengthen it would just be a singular wooden strut on the bow.
▲
⟩⟩
No likes yet
This member will receive 1 point for every like received |
|
💬 Re: January Update
16 days ago by 🇺🇸 Chum444 (
 Commodore)✧ 18 Views · 2 Likes
Flag
Do you plan on strengthening the ABS hull?
▲
⟩⟩
Heners2332
hermank
|
Login To
Remove Ads
Remove Ads
📝 Rudder & Propshaft Drilling
2 months ago by 🇬🇧 Heners2332 ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 45 Views · 5 Likes
Flag
💬 Add Comment
Today we have drilled out the holes for both Propshaft and rudder, 6 and 4mm respectively. It is best to drill around 0.5mm more than specified in my opinion, as filing of that amount is otherwise necessary.
Attached are photos of drilling and the finished product with rudder and shaft loosely installed.
I also recommend drilling a small pilot hole, of 2 or 3 mm to ensure the larger drill bit drills straight and accurately.

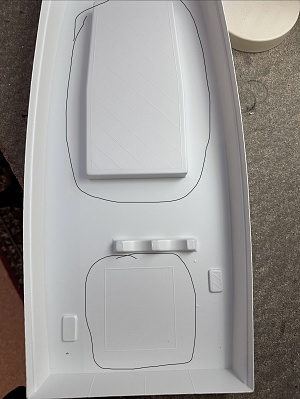

The next stage is cutting out the deck ( the hatched areas which I have circled in the image). These will be the superstructure and servo access points.
Attached are photos of drilling and the finished product with rudder and shaft loosely installed.
I also recommend drilling a small pilot hole, of 2 or 3 mm to ensure the larger drill bit drills straight and accurately.
The next stage is cutting out the deck ( the hatched areas which I have circled in the image). These will be the superstructure and servo access points.
▲
⟩⟩
hermank
thadlietz
Rookysailor
Chum444
jumpugly
📝 Krick Paula | Work / Crane Boat
2 months ago by 🇬🇧 Heners2332 ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 71 Views · 3 Likes · 5 Comments
Flag
💬 Add Comment
Kit Build bought from Krick. Formerly a Robbe Kit but now known as Romarin by Krick.
72cm length with a 600 motor ( eventually!)
72cm length with a 600 motor ( eventually!)
▲
⟩⟩
thadlietz
hermank
RodC
|
💬 Re: Krick Paula | Work / Crane Boat
2 months ago by 🇬🇧 Heners2332 (
Petty Officer 2nd Class)✧ 52 Views · 2 Likes
Flag
Jumpugly, yes! That’s what I must do, if I could find any rubber strips 😂
▲
⟩⟩
hermank
jumpugly
|
|
Login To
Remove Ads 💬 Re: Krick Paula | Work / Crane Boat
2 months ago by 🇺🇸 jumpugly (
 Admiral)✧ 52 Views · 3 Likes
Flag
This where I get out the self-stick velcro pads (fabric side) and cut them to size to line the tops of the stand. Just an old habit if mine.
👍😉 ▲
⟩⟩
hermank
AlessandroSPQR
Heners2332
|
|
💬 Re: Krick Paula | Work / Crane Boat
2 months ago by 🇬🇧 Heners2332 (
Petty Officer 2nd Class)✧ 61 Views · 2 Likes
Flag
RodC, unsure but the battery is around 600g as it is a 6v Lead Acid as per Kricks recommendation.
▲
⟩⟩
hermank
thadlietz
|
|
💬 Re: Krick Paula | Work / Crane Boat
2 months ago by 🇨🇦 RodC (
 Lieutenant Commander)✧ 67 Views · 5 Likes
Flag
72cm=28-3/8" for our America-anchored friends.
How much will it weigh with battery installed ?? A respectable L.O.A., easily transportable ▲
⟩⟩
thadlietz
Heners2332
Chum444
DuncanP
hermank
|
|
💬 Re: Krick Paula | Work / Crane Boat
2 months ago by 🇬🇧 Heners2332 (
Petty Officer 2nd Class)✧ 71 Views · 6 Likes
Flag
Today we started the project by constructing the stand, it is made out of Laser cut plywood and is therefore a very precise cut. Once the parts were removed we sanded down and glued together. It forms a well constructed and sturdy stand for the boat.
Not an exciting start, but Step 0 is always required!
▲
⟩⟩
EdW
thadlietz
DuncanP
PhilH
hermank
RodC
|
