    LISA M Motor Yacht
    2 Posts ยท 2 Followers ยท 5 Photos ยท 14 Likes
    Began 1 month ago by
    Commander
    United Kingdom
    Follow This Thread
    Not currently following
    > Click to follow
    Latest Post 18 days ago by
    Commander
    United Kingdom
    Most recent posts shown first   (Show Oldest First) (Print Booklet)
    ๐Ÿ“ Slow progress!
    18 days ago by ๐Ÿ‡ฌ๐Ÿ‡ง DuncanP ( Commander)
    โœง 28 Views ยท 4 Likes ยท 1 Comment
    Flag
    ๐Ÿ’ฌ Add Comment

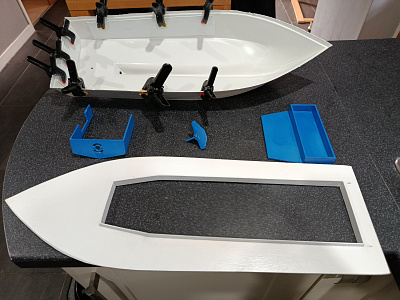

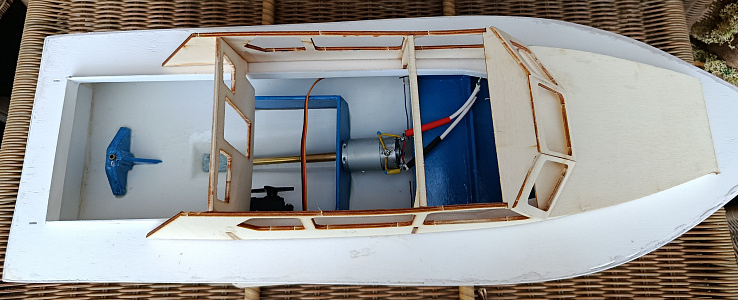

    Slow progress as I've been dragged into doing some decorating! Anyway the internal motor mount, battery box, and rudder post have had 3 coats of sanding sealer and 3 coats of blue spray paint. I've also on the advice of Chum, I've added some strengthening to the ABS hull using 1.5mm plastikcard and hard plastic glue which smells like contact glue!

    ๐Ÿ’ฌ Re: Slow progress!
    18 days ago by ๐Ÿ‡บ๐Ÿ‡ธ Chum444 ( Commodore)
    โœง 32 Views ยท 3 Likes
    Flag
    +++ I would also add a couple of beams from port to starboard after you have figured out the layout of running gear. Make sure their position doesnโ€™t limit access to any component you may need to access in the future.
    ๐Ÿ“ LISA M Motor Yacht
    1 month ago by ๐Ÿ‡ฌ๐Ÿ‡ง DuncanP ( Commander)
    โœง 74 Views ยท 10 Likes ยท 2 Comments
    Flag
    ๐Ÿ’ฌ Add Comment

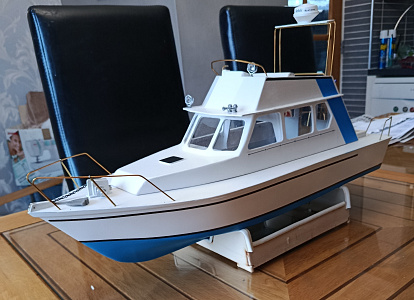

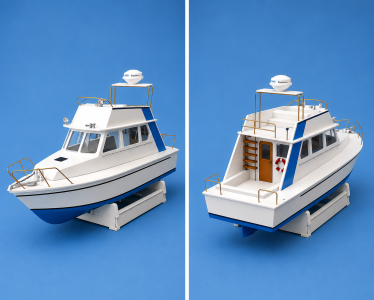

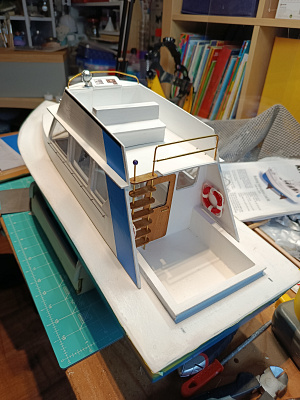

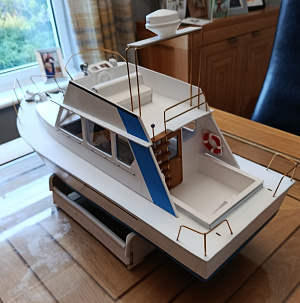

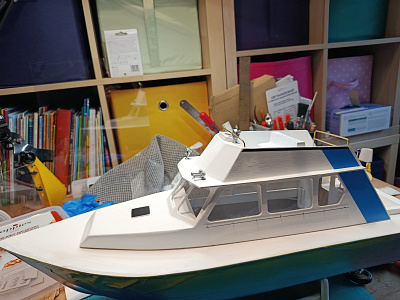

    I've bought the above kit to keep me busy during these dark dank winter months. Originally I had planned to build a 880mm (34.6") Bluebird of Chelsea plank on frame kit. It is a famous pleasure craft built for Sir Malcolm Campbell and took part in rescuing soldiers from the beaches of Dunkirk under 'Operation Dynamo' in 1940. Unfortunately much to my bitter disappointment only the larger 52" version now is available which is too big for myself.
    I'm hoping some kit builder will make a kit of this craft at about 36" so in the meantime here goes with LISA M

    The kit has an ABS hull (a bonus for my hands these days!) and laser cut plywood parts. The kit also comes with an electric motor so all you need is a servo and speed control plus the usual R/C gear and battery.

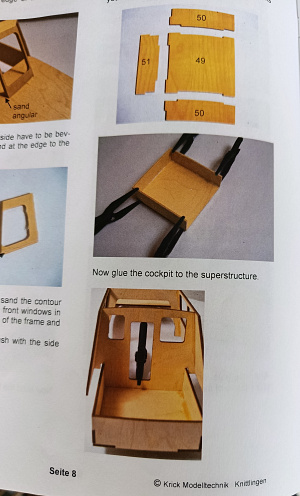

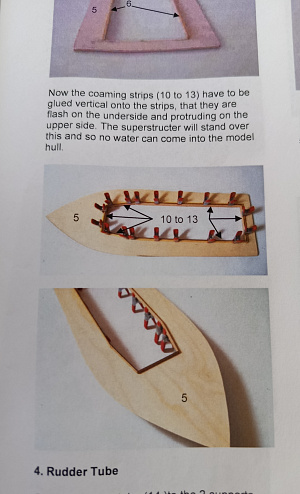

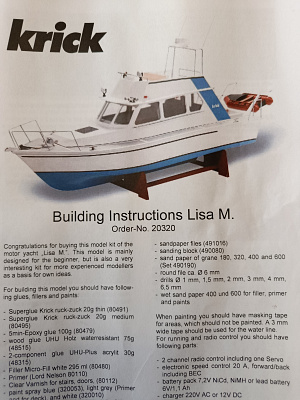

    A set of English instructions were also provided which are a reasonable translation with the odd error here and there! I feel they could be a bit more specific in places so study the photos.

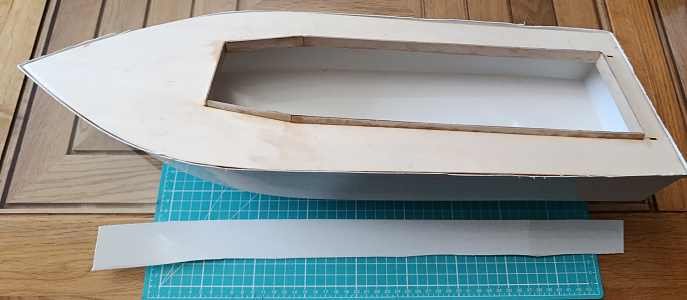

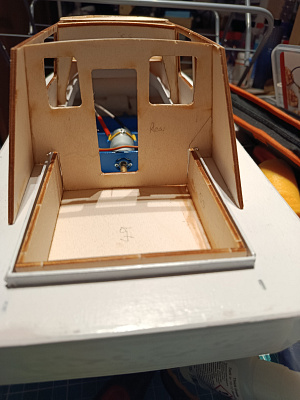

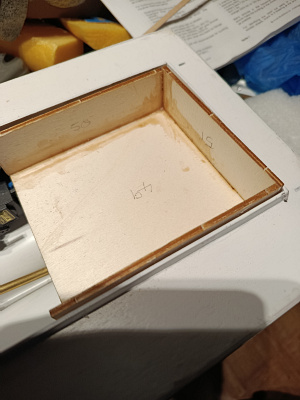

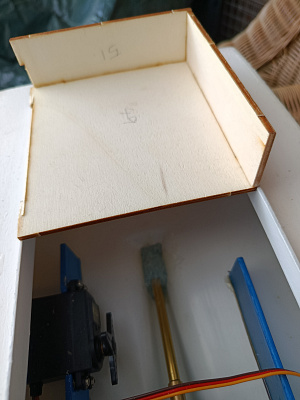

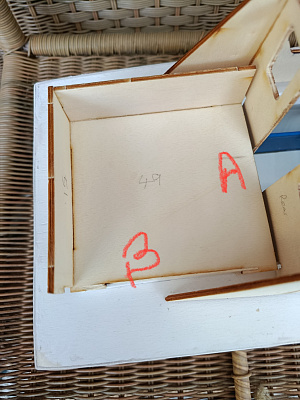

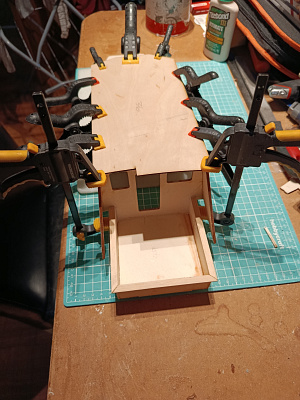

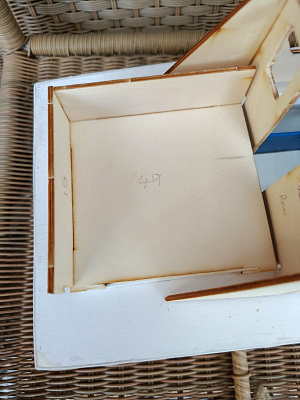

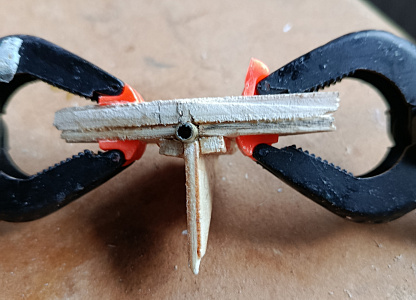

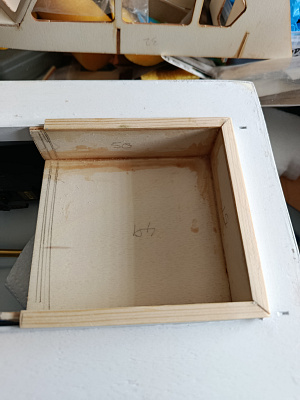

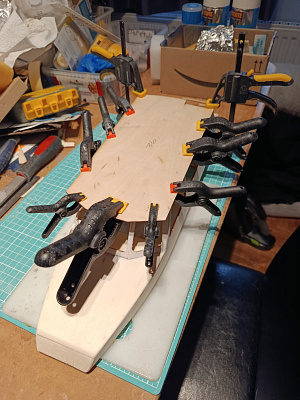

    The ABS hull comes with about 1 1/4" (about 300mm) extra height above the deck level which needs cutting down to be about 2mm above the temporary fitted deck level. This wasn't that easy but in the end I used a pair of tin snips to cut it which proved to be better than using a Stanley Knife. I have drilled and filed the holes in the ABS hull for the prop shaft tube and rudder tube. I've now assembled the deck coaming, motor mount, battery box and supports for the rudder tube. Next job is to waterproof the deck on both sides, and all the other assembled plywood parts. Having seen another blog, I've decided to strengthen the wood around the rudder tube by using an offcut from the wood provided for the boat stand. I will smooth the edges when the glue has set!

    ๐Ÿ’ฌ Re: LISA M Motor Yacht
    1 month ago by ๐Ÿ‡ฌ๐Ÿ‡ง DuncanP ( Commander)
    โœง 73 Views ยท 2 Likes
    Flag
    Thanks Chum for that advice. I'll have a look at possibly reinforcing without adding too much weight. ๐Ÿ˜Š
    ๐Ÿ’ฌ Re: LISA M Motor Yacht
    1 month ago by ๐Ÿ‡บ๐Ÿ‡ธ Chum444 ( Commodore)
    โœง 76 Views ยท 3 Likes
    Flag
    You might choose to reinforce the hull itself to prevent bending & twisting. ABS hulls are rather weak structurally.

    ๐Ÿ‘๐Ÿ‘
