    Flying Scotsman. Iron paddle tug
    by Hillro πŸ‡¬πŸ‡§ ( Midshipman)
    πŸ“£










    Click To
    Follow
    5 Posts 13 Comments 25 Photos 34 Likes
    Most recent posts shown first   (Show Oldest First) (Print Booklet)
    πŸ“ Update of project
    29 days ago by Hillro ( Midshipman)
    Flag
    View All

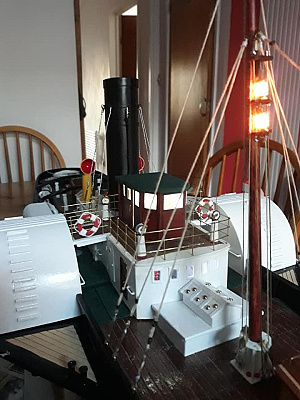

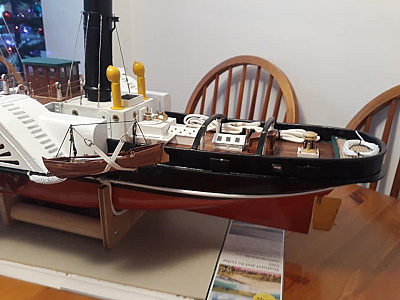

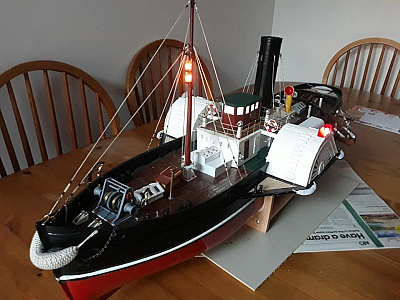

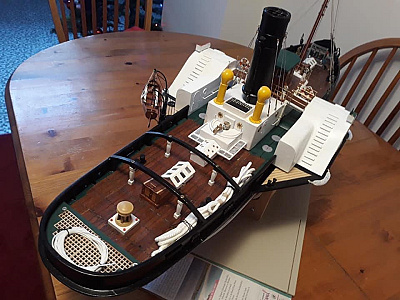

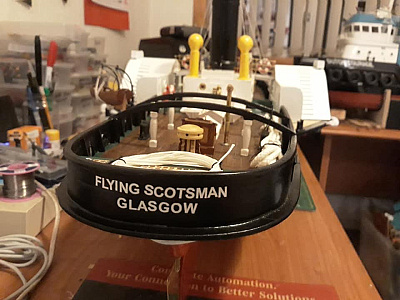

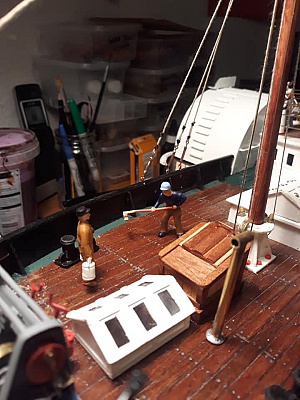

    I just remembered that I have not continued the build of this project.
    As you can see from the photographs that it is now complete.
    Almost 100% scratch built.
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ—£οΈ Share
    11
    8
    πŸ’¬ Re: Update of project
    29 days ago by Colin H ( Commodore)
    Flag
    A beautiful paddle tug, extremely well made and fitted out,
    The lovely detail has breathed life in to it, a refreshingly smart boat.
    Hope to see it in action on the water, well done and be very proud of what you have done.
    Cheers Colin.
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    3
    πŸ’¬ Re: Update of project
    29 days ago by Nerys ( Commodore)
    Flag
    A superb model with wonderful attention to detail. You should be very proud of her. I look forward to seeing her on the water. A real credit to you.

    Cheers, Nerys
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    2
    πŸ’¬ Re: Update of project
    29 days ago by RNinMunich ( Fleet Admiral)
    Flag
    Very nicely done Hilly (πŸ˜‰)
    Good to see a working boat actually being workedπŸ‘
    Cheers, Doug 😎
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    2
    πŸ’¬ Re: Update of project
    28 days ago by Martin555 ( Fleet Admiral)
    Flag
    Very nice.
    You have put a lot of work in to her and it has payed off.
    Well done.

    Martin555.
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    1
    πŸ’¬ Re: Update of project
    28 days ago by Newby7 ( Sub-Lieutenant)
    Flag
    Very nicely fitted out paddler and scratch to boot .
    Rick
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    2
    πŸ’¬ Re: Update of project
    28 days ago by jbkiwi ( Vice Admiral)
    Flag
    Excellent job, especially from scratch !
    JB
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    2
    πŸ’¬ Re: Update of project
    28 days ago by Joe727 ( Lieutenant Commander)
    Flag
    Hello,
    Nice work on a real classic tug! I have always liked these Tugs and enjoyed reading about them and their history. It's really great to see your completed model! Thanks for the great photos. πŸ‘πŸ‘
    Joe😎
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    1
    πŸ’¬ Re: Update of project
    25 days ago by Alannicholls ( Leading Seaman)
    Flag
    Awesome. Love the detailing, especially considering scratch built. I applaud your patience, perseverance and attention to detail.
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    1
    πŸ“ Planking the hull.
    1 year ago by Hillro ( Midshipman)
    Flag
    View All

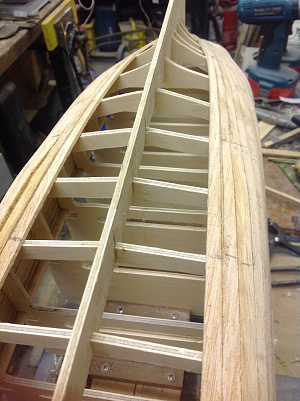

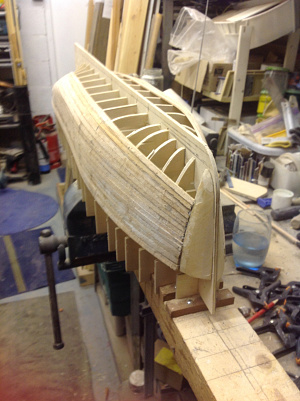

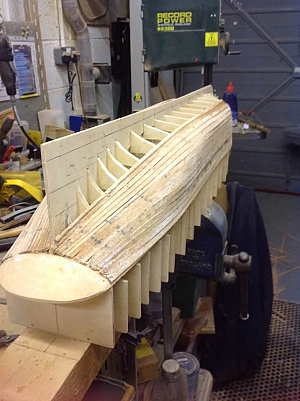

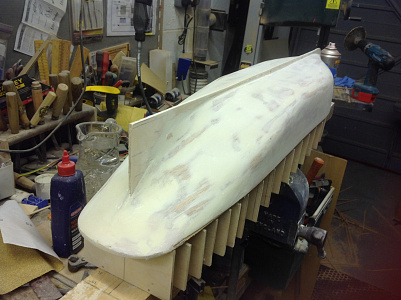

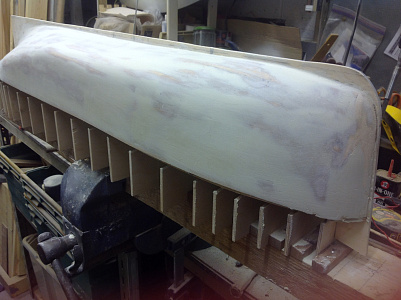

    After shaping the frames to the hull profile and glueing shaped lime wood block to the bow and the stern, planking started at deck level.
    I happen to have a length of lime plank. So using a bandsaw cut lengths approx 2mmx10mmx a bit longer than the boat. I planked each side two planks at a time, glueing and pinning to each frame. Where required I soaked the ends of the planks to assist in the bending. Planks were shaped as required. Ones close to the keel needed a lot of trial and error. This all took a bit of time (4 planks a night).

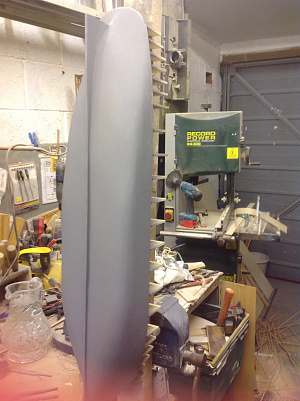

    Once the planking was complete, the hull was sanded to smooth out the plank transitions and any bumps. The hull was then coated with car body filled, sanded, etc until happy with finish. A couple of coats of grey primer was applied using spray cans.

    spray cans
    primer
    Machine
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ—£οΈ Share
    9
    2
    πŸ’¬ Re: Planking the hull.
    1 year ago by mturpin013 ( Captain)
    Flag
    A very impressive build, what will the power unit be?

    Machine
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    πŸ’¬ Re: Planking the hull.
    1 year ago by Hillro ( Midshipman)
    Flag
    electric motor with 12volt battery.

    Machine
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    πŸ“ Preparing the frames for the hull
    1 year ago by Hillro ( Midshipman)
    Flag
    View All

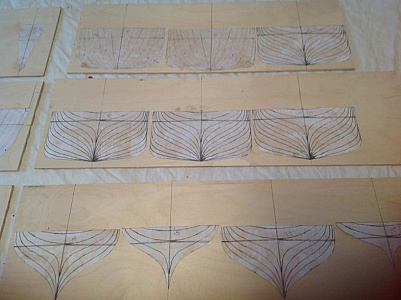

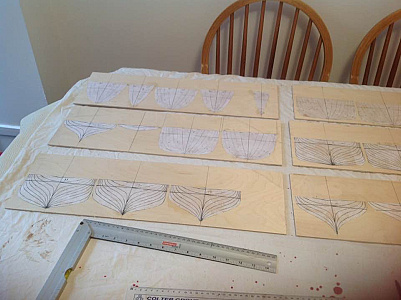

    The drawings came with the hull profiles to scale so I photocopied them enough times to when cut out gave a template for each one.

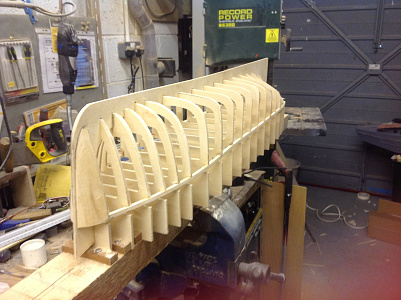

    I decided to build the hull upside down so I marked out the templates to allow for this and to allow the frames to be cut when the hull is complete.

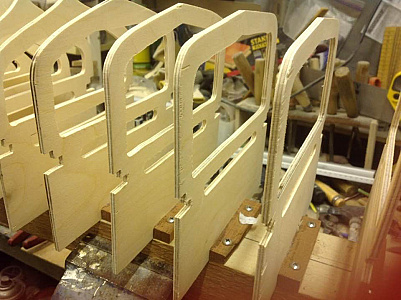

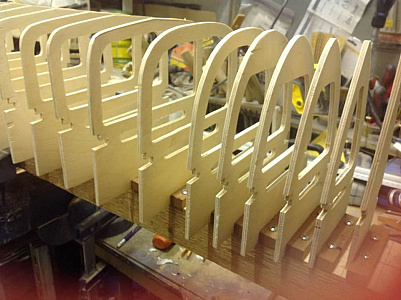

    The frames were made from 4mm Birch Plywood. Templates glued to the plywood and cut out using a scroll saw.The interiors of the frame were also cut out where there was sufficient material to allow a 10mm web.

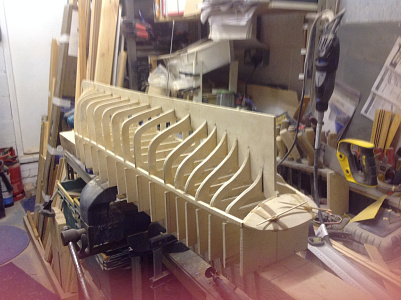

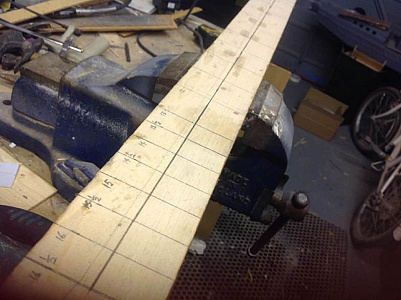

    A 50x75mm batten was marked out from the drawing for the frame positions. frames had blocks glued to them to allow the fixing of them to the batten.
    The keel was also cut out from 4mm plywood and glued to the frames.

    frames
    Templates
    50x75mm
    Wall
    Floor
    Tile
    Flooring
    Room
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    5
    πŸ“ Manufacturing of Paddles
    1 year ago by Hillro ( Midshipman)
    Flag
    View All

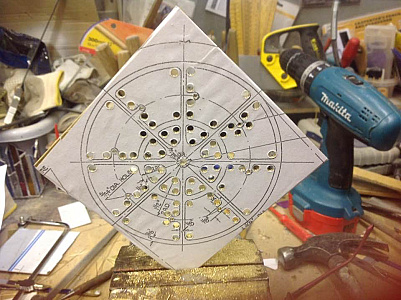

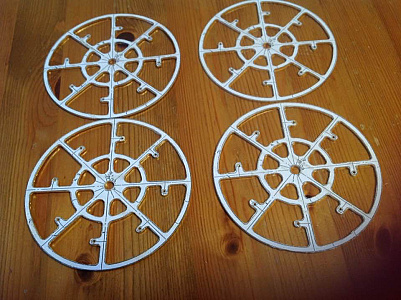

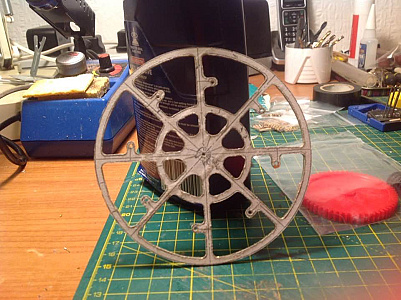

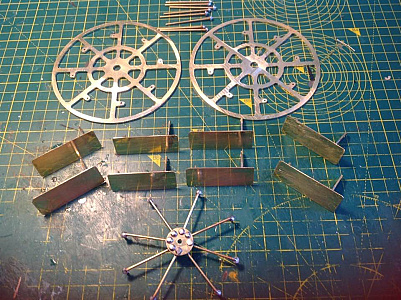

    I started with the paddles. Main reason was that I was not sure the final product would work. I ordered all the brass parts using eBay and google. Templates were photo copied from the drawing (paddle frames) and stuck to 1/32 brass sheet.
    Centre punched all the points that needed to be drilled. Holes drilled used a jewellers saw to cut out the frames and finish off using files. I had not done anything like this before but patience was need to replace all the broken blades. I note that the saw came with 120 blades.

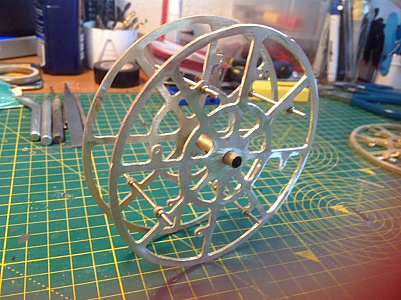

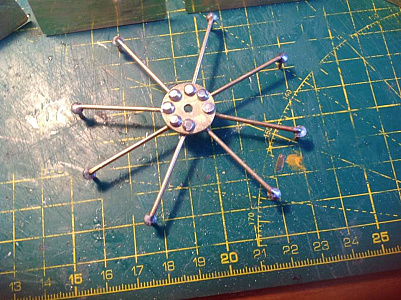

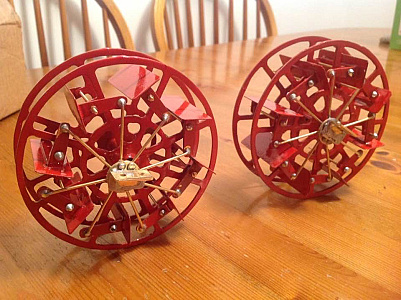

    I then made all the paddles, the spider gear, etc using soft soldering technique. The wheels were then assembled and tested. small adjustments had to be made with a file as some of the paddles were fouling each other. Disassembled them and painted them using car spray paint. I was quite pleased with the paddles so could start thinking about the tug hull.
    ,

    product
    saw
    blades
    Templates
    spider gear
    Electronics
    Space
    Circle
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ—£οΈ Share
    6
    2
    πŸ’¬ Re: Manufacturing of Paddles
    1 year ago by stevedownunder ( Petty Officer 1st Class)
    Flag
    Hi Hillro,
    I like the feathering paddles, how are you going to set the offset for the linkage wheel, are you making a jig?
    Very nice work.
    Cheers,
    Stephen.

    feathering paddles
    Electronics
    Space
    Circle
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    πŸ’¬ Re: Manufacturing of Paddles
    1 year ago by Hillro ( Midshipman)
    Flag
    hi I am not quite sure what you mean about jigs. I just followed the drawings.
    The finished paddle needed a bit of adjustment with a file to improve some clearances. I could send you a photo of drawings if required.
    .

    Electronics
    Space
    Circle
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    πŸ“ Flying Scotsman. Iron paddle tug
    1 year ago by Hillro ( Midshipman)
    Flag
    View All
    This is a scratch build using plans from Brown,Son &Ferguson Ltd. plans come on three A1 sheets which include hull profiles, plan and elevation views, and details of two types of paddles. A straight forward one and paddles fitted which an excentric mechanism. The latter is supposed to be the most efficient with the paddles turned to maintain max area to the water.
    While researching found this web site with more detail. However the text is in German but it has loads of detailed drawings in PDF format.
    http://www.john-tom.com/RcShip/Strongbow%20Paddle%20Steamer/...
    Research showed that lots of these tugs were built in the late 1800, using the same design. My build was named because it was one of the last built for a Glasgow shipping company.
    Taken from tynetugs web site
    Name: FLYING SCOTSMAN
    Launched: 12/09/1898
    Completed: 1898
    Builder: JP Rennoldson & Sons, South Shields
    Yard Number: 188
    Dimensions: 177grt, 29nrt, 118.0 x 20.1 x 10.1ft
    Engines: SL1cyl (38.25 x 56ins), 90nhp, 400ihp
    Engines By: JP Rennoldson & Sons, South Shields
    Propulsion: Paddle
    Construction: Iron
    Reg Number: 108767
    History:
    1898 Clyde Shipping Co Ltd; registered at Glasgow
    13/05/1948 Christopher & Richard Jennings, London; renamed CAMBRIAN
    16/01/1951 Broken up
    Comments: Last paddle tug built for the Clyde Shipping Co
    1898: Cost Β£4650
    25/08/1939 to 16/10/1939: On War Department service
    13/05/1948: Sold for conversion to a yacht. Subsequently abandoned at Oban
    16/01/1951: Arrived at Troon for breaking up
    http://www.john-tom.com/RcShip/Strongbow%20Paddle%20Steamer/StrongbowPlansComplete.pdf
    πŸ”—

    sheets
    yacht
    Vehicle
    Boat
    Watercraft
    Ship
    Convoy rescue ship
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ—£οΈ Share
    3
    1
    πŸ’¬ Re: Flying Scotsman. Iron paddle tug
    1 year ago by figtree7nts ( Vice Admiral)
    Flag
    That's going to be a nice looking Paddle Tug when she's completed!

    Paddle Tug
    Vehicle
    Boat
    Watercraft
    Ship
    Convoy rescue ship
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
