    pressonreguardless
    Sub-Lieutenant
    ๐Ÿ“ SoCoBoaters

    Warning: Undefined variable $CONFIG_status in /homepages/28/d580901040/htdocs/hobbyland/sys_files/ajax/list_posts.php on line 270
    Flag
    Country: ๐Ÿ‡บ๐Ÿ‡ธ United States
    Online: 8 hours ago
    ๐Ÿ˜Š View Profile
    ๐Ÿ’ฌ Send PM
    Precisely๐Ÿ‘
    1
    dave976
    Sub-Lieutenant
    ๐Ÿ“ SoCoBoaters

    Warning: Undefined variable $CONFIG_status in /homepages/28/d580901040/htdocs/hobbyland/sys_files/ajax/list_posts.php on line 270
    Flag
    Country: ๐Ÿ‡ฌ๐Ÿ‡ง United Kingdom
    Online: 49 minutes ago
    ๐Ÿ˜Š View Profile
    ๐Ÿ’ฌ Send PM
    When I used the ferries over the river Mersey the landing stages were cantilevered and the gaps covered with sliding plates. Water moves so you do need to allow your floating stages to rise and fall. I agree with pressonregardless and see you are adopting a similar system. Make sure the gap for the joints allows for the maximum wave size movement and use a hinged plate to cover the gap. There will be quite some pressure on the mountings so I suggest you do a trial with one to see if it needs to be made stronger. If I remember correctly the floating pontoons were attached to shore with heavy anchor chains.
    Looking forward to see your finished product
    dave976
    1
    Fodigo
    Able Seaman
    ๐Ÿ“ SoCoBoaters

    Warning: Undefined variable $CONFIG_status in /homepages/28/d580901040/htdocs/hobbyland/sys_files/ajax/list_posts.php on line 270
    Flag
    Country: ๐Ÿ‡บ๐Ÿ‡ธ United States
    Online: 2 days ago
    ๐Ÿ˜Š View Profile
    ๐Ÿ’ฌ Send PM

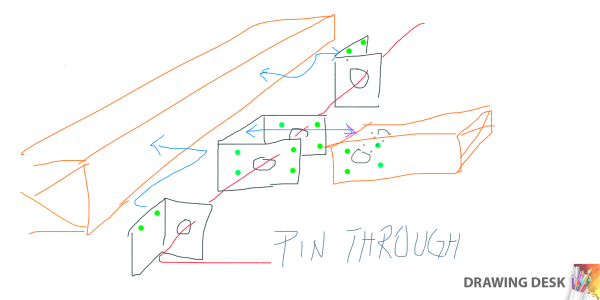

    Got it. So something like this? Looks like that could certainly work. Fast assembly too. I like it! ๐Ÿ‘
    1
    pressonreguardless
    Sub-Lieutenant
    ๐Ÿ“ SoCoBoaters

    Warning: Undefined variable $CONFIG_status in /homepages/28/d580901040/htdocs/hobbyland/sys_files/ajax/list_posts.php on line 270
    Flag
    Country: ๐Ÿ‡บ๐Ÿ‡ธ United States
    Online: 8 hours ago
    ๐Ÿ˜Š View Profile
    ๐Ÿ’ฌ Send PM

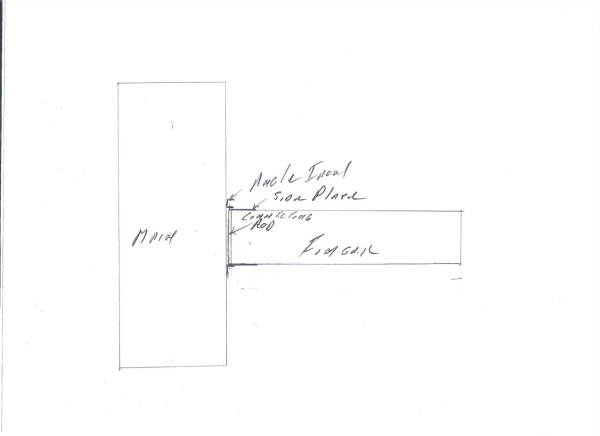

    Hi Fodigo,
    Attached are a couple of Sketches.
    Good Luck.
    Trev
    Fodigo
    Able Seaman
    ๐Ÿ“ SoCoBoaters

    Warning: Undefined variable $CONFIG_status in /homepages/28/d580901040/htdocs/hobbyland/sys_files/ajax/list_posts.php on line 270
    Flag
    Country: ๐Ÿ‡บ๐Ÿ‡ธ United States
    Online: 2 days ago
    ๐Ÿ˜Š View Profile
    ๐Ÿ’ฌ Send PM
    Ha! Ok. Good luck! ๐Ÿฟ Iโ€™m ok with rudimentary. Have an old mechanical engineering background so I can interpret a lot of whats-its ๐Ÿ˜‰
    1
    pressonreguardless
    Sub-Lieutenant
    ๐Ÿ“ SoCoBoaters

    Warning: Undefined variable $CONFIG_status in /homepages/28/d580901040/htdocs/hobbyland/sys_files/ajax/list_posts.php on line 270
    Flag
    Country: ๐Ÿ‡บ๐Ÿ‡ธ United States
    Online: 8 hours ago
    ๐Ÿ˜Š View Profile
    ๐Ÿ’ฌ Send PM
    Sorry no Pics. Will try to do a sketch.๐Ÿ˜‚๐Ÿ˜‚
    drawing skills are pathetic at best
    1
    Fodigo
    Able Seaman
    ๐Ÿ“ SoCoBoaters

    Warning: Undefined variable $CONFIG_status in /homepages/28/d580901040/htdocs/hobbyland/sys_files/ajax/list_posts.php on line 270
    Flag
    Country: ๐Ÿ‡บ๐Ÿ‡ธ United States
    Online: 2 days ago
    ๐Ÿ˜Š View Profile
    ๐Ÿ’ฌ Send PM
    Will be looking into it. Thanks for the ideas! ๐Ÿ‘ Send me a couple pics if you have too.
    1
    pressonreguardless
    Sub-Lieutenant
    ๐Ÿ“ SoCoBoaters

    Warning: Undefined variable $CONFIG_status in /homepages/28/d580901040/htdocs/hobbyland/sys_files/ajax/list_posts.php on line 270
    Flag
    Country: ๐Ÿ‡บ๐Ÿ‡ธ United States
    Online: 8 hours ago
    ๐Ÿ˜Š View Profile
    ๐Ÿ’ฌ Send PM
    I used to use side plates with holes on the fingers and angle iron with holes on the mains. They were then connected with rods thru the holes. Have you considered PVC for the dock material?
    1" thick material is available at Lumber yards. It can be milled to size. The other option would be to coat the lumber with penetrating epoxy.
    Trev
    Fodigo
    Able Seaman
    ๐Ÿ“ SoCoBoaters

    Warning: Undefined variable $CONFIG_status in /homepages/28/d580901040/htdocs/hobbyland/sys_files/ajax/list_posts.php on line 270
    Flag
    Country: ๐Ÿ‡บ๐Ÿ‡ธ United States
    Online: 2 days ago
    ๐Ÿ˜Š View Profile
    ๐Ÿ’ฌ Send PM
    No- the docks need to be transported to and from the lakes. (Bummer). In dock building I have made 3. Iโ€™ve used various types of ways to connect the dock pieces to make it as simple as possible (hook and pin- but if someone throws a wake close they can come off) to screw pins (that work great but take time to assemble/disassemble). The new idea will take a bit of manufacturing and installing but quite simply, drop pins is the best way to explain it. Material has been the second part of the undertaking. Originally, the pictures of the docks are wood with styrofoam under to float it and each fiberglass wrapped. But itโ€™s costly. As is wood nowadays. And wood warps after time.
    1
    pressonreguardless
    Sub-Lieutenant
    ๐Ÿ“ SoCoBoaters

    Warning: Undefined variable $CONFIG_status in /homepages/28/d580901040/htdocs/hobbyland/sys_files/ajax/list_posts.php on line 270
    Flag
    Country: ๐Ÿ‡บ๐Ÿ‡ธ United States
    Online: 8 hours ago
    ๐Ÿ˜Š View Profile
    ๐Ÿ’ฌ Send PM
    I shall be following your progress, as a former Marina Manager, dock design and building was an important aspect of my job. Although your Marina is in miniature there are similarities. Are you able to leave the docks in all summer?
    Trev
