Recent Posts
📝 Paul Freshney
3 years ago by 🇬🇧 Chiefpurser (
Leading Seaman)
Leading Seaman)✧ 43 Views · 1 Like
Flag
📝 Reply
R.I.P. Paul.The country loses another good modeller.
▲
⟩⟩
stevedownunder
Login To
Remove Ads
Remove Ads
💬 Re: H.S.L.
4 years ago by 🇬🇧 Chiefpurser ( Leading Seaman)
Leading Seaman)✧ 21 Views · 2 Likes
Flag
💬 Add Comment
Hi Martin downloaded video and after 55 minutes told me wrong format which was a pity as it was a good video, and the photo on the beginning was the beginning of the video. Strange..
▲
⟩⟩
Scratchbuilder
Martin555
📝 H.S.L.
4 years ago by 🇬🇧 Chiefpurser ( Leading Seaman)
Leading Seaman)✧ 22 Views · 3 Likes · 4 Comments
Flag
💬 Add Comment
Had a full sea trial last week, delighted with all results, please see video. Best results on throttle just about half speed ahead, but much more fun on full speed.
▲
⟩⟩
MouldBuilder
edd
Carlos
💬 Re: Canadian coast guard vessel
5 years ago by 🇬🇧 Chiefpurser ( Leading Seaman)
Leading Seaman)✧ 1 View · 0 Likes
Flag
💬 Add Comment
Hi look under icebreakers on you tube, a wealth of information on there. Also under coast guard cutters American / Canadian/ Russian/ Finland etc.regards jim
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
💬 Re: Canadian coast guard vessel
5 years ago by 🇬🇧 Chiefpurser ( Leading Seaman)
Leading Seaman)✧ 2 Views · 1 Like
Flag
💬 Add Comment
Hi John, thanks for comments.the plans came from traplet I believe. I still have my plans from this build. Plus a bit of a build blog. I would be willing to sell them. Also I spent four years cracking ice,in Canada,Finland and Russia as you can guess I was in the merchant navy. The pilot boat is mine as well. Regards Jim
▲
⟩⟩
JOHN

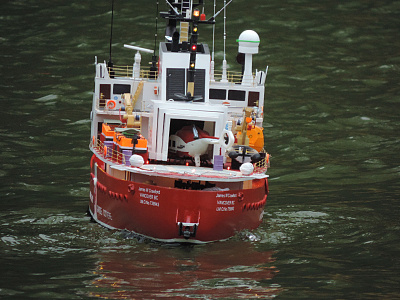

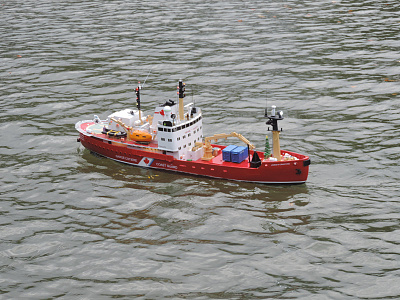

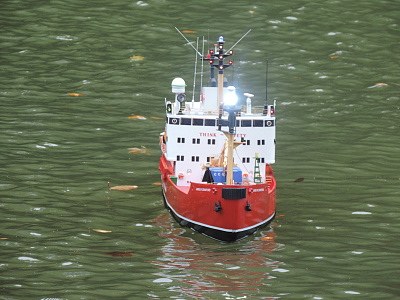

📝 Canadian coast guard vessel
5 years ago by 🇬🇧 Chiefpurser ( Leading Seaman)
Leading Seaman)✧ 9 Views · 8 Likes · 4 Comments
Flag
💬 Add Comment
Scratch built from plans increased by 170% motors are Hecterperms props are prop shop.crane is macs moulding everything else is scratch built. Has nav lights , n.u.c
Require pilot, have dangerous cargo onboard,anchor light, towing lights blue flashing ice braking, accommodation and helipads lights, requires two genies running haha.and two very brute Eden searchlights with l.e.d. On/off with tx
Require pilot, have dangerous cargo onboard,anchor light, towing lights blue flashing ice braking, accommodation and helipads lights, requires two genies running haha.and two very brute Eden searchlights with l.e.d. On/off with tx
▲
⟩⟩
seafarer
Donnieboy
JOHN
tugboatcliff
BrianMason
MouldBuilder
RNinMunich
Rowen
📝 1/12th Trent Lifeboat
9 years ago by 🇬🇧 Chiefpurser ( Leading Seaman)
Leading Seaman)✧ 1 View · 0 Likes
Flag
📝 Reply
Hi, I have in mine two outlander 4250 and a kv of 900, I run each one on three Lipo cells (11.1v) they have been in the boat over six years and I have never had a bit of bother with them,I run props of 45mm on the motors boat weighs around 20 lbs and comes on the plane within 6/8 feet. Twin HOBBYKING esc of 60amps works very well. Hope this helps regards jim
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received

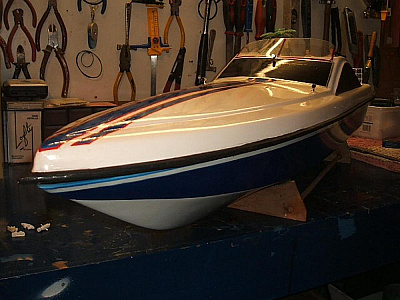

📝 (Pleasure Craft) Jet boat
10 years ago by 🇬🇧 Chiefpurser ( Leading Seaman)
Leading Seaman)✧ 1 View · 0 Likes
Flag
💬 Add Comment

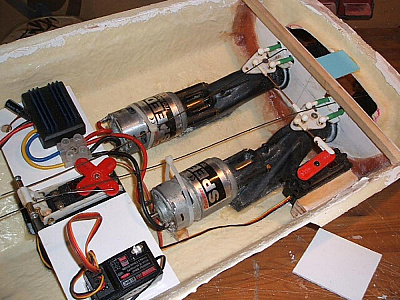

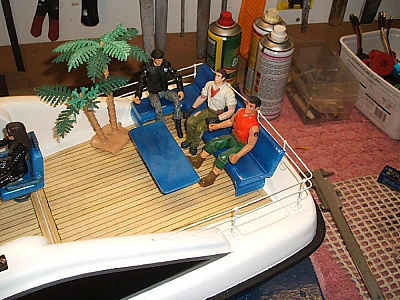

Units taken out of another boat. Bought new one but had to remove sloping stern. New one was perpendicular, as units are 90 degrees from input to output. Once fitted and tested rest of boat was fitted out with planked deck and crew members, rails and other bits . The lighting consists of nav lites and the pods on the stern are lit up with blue LEDs The system works on a three channel system. One motors on a y lead, steering the nozzles and reversing buckets. Turns extremely tightly considering the size of the boat, all in all a nice little project (Motor: Graupner 900 x 2) (ESC: Electronize ) (7/10)
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
💬 Motors and speed controllers
11 years ago by 🇬🇧 Chiefpurser ( Leading Seaman)
Leading Seaman)✧ 14 Views · 0 Likes
Flag
💬 Add Comment
Just fitted two 90amp esc from the hobbyking range work my 900 watt motors a treat, and come pre programmed. Or programme them yourself if you can count the dots and dashes like a radio operator. Dont buy the hobbyking card they dont work, see comments if you go on the site....
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
💬 46 Inch Crash Tender
11 years ago by 🇬🇧 Chiefpurser ( Leading Seaman)
Leading Seaman)✧ 14 Views · 0 Likes
Flag
💬 Add Comment
most model shops do it, I have also seen it in B. & Q or you could use normal varnish and put johnson baby powder in it, which is basically sanding sealer.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 (Working Vessel) Micheal B. Hope
11 years ago by 🇬🇧 Chiefpurser ( Leading Seaman)
Leading Seaman)✧ 1 View · 0 Likes
Flag
💬 Add Comment
Own design, built several years ago, had one major refit which meant vessel cut in half.Power produced by Bosch windscreen wiper motors which enables me to push four very large and heavy coal barges. With 22 accommodation,and 14 navigation lights which can be lit up in various combinations she lights up the sailing area quite well. The barges can also be pushed in various combinations. (Motor: Bosch windscreen wiper) (ESC: Electronize) (5/10)
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
Login To
Remove Ads
Remove Ads
💬 Stardust
11 years ago by 🇬🇧 Chiefpurser ( Leading Seaman)
Leading Seaman)✧ 5 Views · 0 Likes
Flag
💬 Add Comment
HI thanks for the comments. No problems with buoyancy only 6oz lead to bring her upright, a bit tender but will be adding a further 16 oz of ballast before next outing. She will weigh 18 lbs. transport is not a problem back seat of the car. Lifting and lowering into lake with two strops. This is not really a big model. I have one at 58 inches. We sail in several locations in Scarborough, North Yorkshire. My next model is already on the stocks and will be a jet boat a bit like a super doper cabin cruiser, own design and scratch built as per stardust. Regards jim
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 Stardust
11 years ago by 🇬🇧 Chiefpurser ( Leading Seaman)
Leading Seaman)✧ 5 Views · 0 Likes · 2 Comments
Flag
💬 Add Comment
HI fellow model leers.this is my latest model.Built in 1926' for the Ffyfe(bananas) family. Originally it was run on steam,but in 1939 converted to diesel,this was kept until 1957 when all the staterooms were replaced by cargo holds . She was then made into a feeder bringing eleven thousand boxes from Rotterdam to Southampton. She was scrapped in the seventies.my model of her was from 1926 the scale is approx 1/30th her length is 48 inches including bowsprit, and has a beam of 10 inch amidships. She is totally scratch built, plank on frame, all the decks are individually planked with black card in between , wheel house and all other parts are mahogany. She runs on a decaperm geared motor @ 6 volts, and the lighting system consists of 10 accommodation lights, port and starboard , wheelhouse, and both mast headlights,the large saloon skylight is also lit up with a set of disco lights on a separate circuit. The funnel houses a heavy duty smoke unit switched on by switching unit.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
💬 USCG 52' MLB Triumph
11 years ago by 🇬🇧 Chiefpurser ( Leading Seaman)
Leading Seaman)✧ 4 Views · 0 Likes
Flag
💬 Add Comment
HI sorry this is not my boat. Mine is the Tamar lifeboat.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
💬 1/12 RNLI Arun Class Joy and John Wade
11 years ago by 🇬🇧 Chiefpurser ( Leading Seaman)
Leading Seaman)✧ 5 Views · 0 Likes
Flag
💬 Add Comment
Looks a nice job. interior looks good. Are you going brushless/lipo ? To me that is the way to go for performance, and as long as you don't go too mad with long runs the batteries can last quite a while. Regards .
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
💬 Eric f.plaxton
11 years ago by 🇬🇧 Chiefpurser ( Leading Seaman)
Leading Seaman)✧ 6 Views · 0 Likes
Flag
💬 Add Comment
Many thanks , Yes I like the colour scheme as well. I have several projects I would like to start one being the jet drive boat. as I already have the jet drives in the drawer for the last 12 months,regards Jim clark
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 Eric f.plaxton
11 years ago by 🇬🇧 Chiefpurser ( Leading Seaman)
Leading Seaman)✧ 8 Views · 2 Likes · 3 Comments
Flag
💬 Add Comment
This model was built from a model slipway Tamar kit. it was modified substantially.all rails are soldered brass. info was from the website of Peterhead R.N.L.I. Station were there are excellent photos. The models engines are thumper motors 4240' at 900kv and run on three cell lipos @ 5000ma. Which give me at least an hour. With a speed of at least 10 mph, which lifts her bow out of the water,way passed the bow thruster , which is a graupner 400. Radar works through an old servo . Flashing blue light on mast. Running and accommodation lights. These boats are normally red below waterline however Scarborough life boats have always been white below the waterline. The crew are star war figures modified with plastic putty and a sharp knife. Not an easy build but very enjoyable. Eric Plaxton was the chairman of plaxtons coaches, and platoons building services. He left 9 million pounds to the boro of Scarborough, and 3 million to scarborough R.N.L.I., for a new boat .
▲
⟩⟩
doghouse
baloo
📝 The fast one
11 years ago by 🇬🇧 Chiefpurser ( Leading Seaman)
Leading Seaman)✧ 6 Views · 0 Likes
Flag
💬 Add Comment
Fibre glass Arrawana 22 inches less than a kilo,brushless 3600 kv 60 amp esc runs on 11.1v 3cell . Pretty fast but still exp with props
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
💬 USCG 52' MLB Triumph
11 years ago by 🇬🇧 Chiefpurser ( Leading Seaman)
Leading Seaman)✧ 4 Views · 0 Likes
Flag
💬 Add Comment
HI model looks very well constructed,nice to see a good model, how did you get the plans.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
