1:12 scale Arun lifeboat (Hand rail stanchions) Part one.

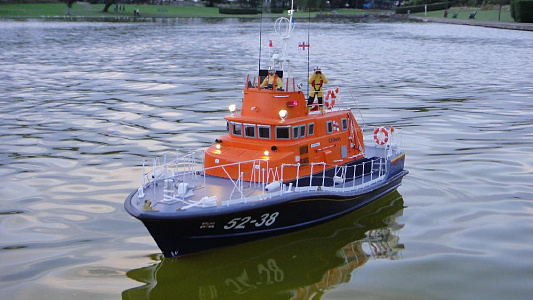

Hi everyone, this is my first venture into the realms of writing an article so please be patient. I have swapped from gas boats to scale boats about 3 years ago and am enjoying the new challenge. I joined a club and there is a wealth of knowledge to be had and gracefully shared by my new friends, however one of my biggest problems is I like big boats! I have just finished a 1.12 scale

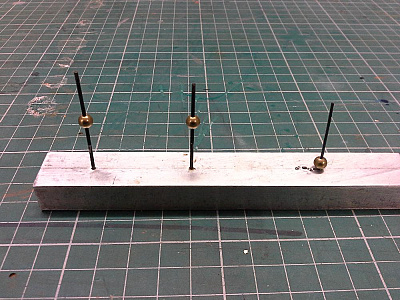

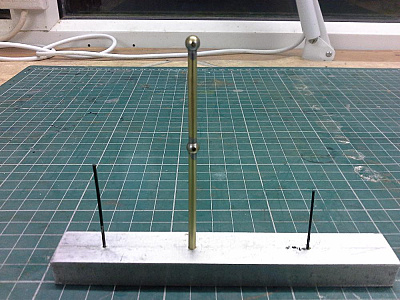

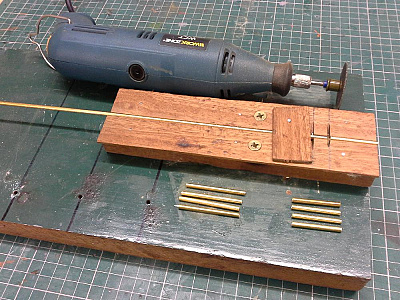

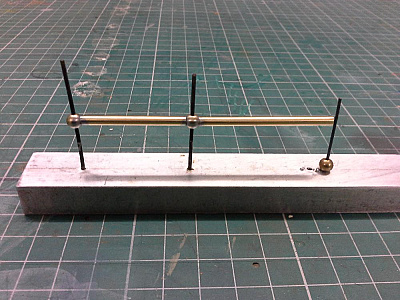

Waveney and have already purchased a 1.12 scale Arun to build over the next year or so. I have searched the Internet and all model outlets known to man to find good quality hand rail stations at 1:12 scale (not white metal!!) and can't find any! SO.....I decided to make my own and this is how I've made them! Using a white metal 1:12 stanchion as a guide for spacing etc; I purchased a couple of metres of 3mm brass tube, and 100 brass beads 5mm dia (from a great shop called tackle bits 2010 on ebay) I made a jig to cut the tube to size (pic 1) and then made several assembly jigs until I settled on this one (pic 2) It's simple to make using 1mm rod and a block of aluminium. Start by putting a bead on each rod and then putting the cut length of tube in between (pic 3) you can slide all the pieces to make sure they are in line, then apply flux to the joints that are to be soldered and heat with a flame and solder, that's it! As simple as that. Allow to cool and slide off the jig , Polish with wire wool and you're done (pic4) The principle can obviously be applied to different scales making life easier for those of you wanting something better than is available through the shops. Will hopefully post more as the project progresses. Thanks .
