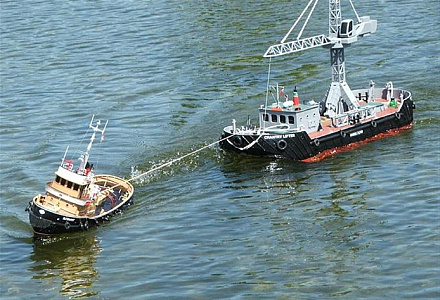

Tug from a fleet tender kit
the next job was to sort out a working towing winch for this I have used a Robbe unit with a geared motor, she Is ftted with two caldercraft 900 size motors and direct drive to 70mm props the motors turn a 3,000 rpm.

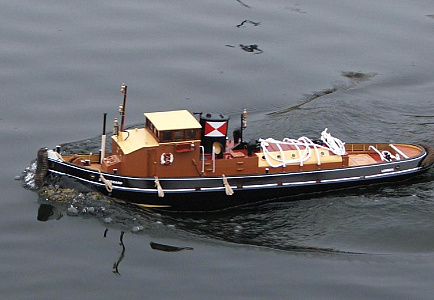

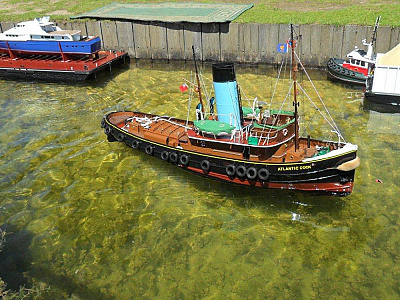

the rest of the build and painting followed on with the sea trial run at our lake on the 17th april all went very well.
modeltugman
11 years ago
1 Post
1 Follower
0 Likes
A 1/24th scale Mirium Moran
This Is a build that Is ongoing at the present time.
Moran towage have let me have a set of plans for this tug, she Is a typical American Harbour tug and twin screw..

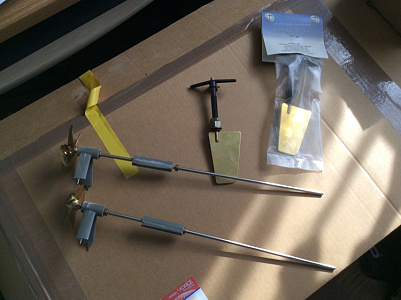

the model Is built at 1/2" to the foot, which gives amodel of 54" long with a beam of a massive 16", I have decided to fit It with two kort nozzles of 4.125" dia with props of 4" dia, and I shall be using two 12volt M.G. Roadster cooling fan motors , which came from E bay at ยฃ30 each brand new.
The fist thing that I did was to get the pland blown up to 1/24th scale at the local print shop.

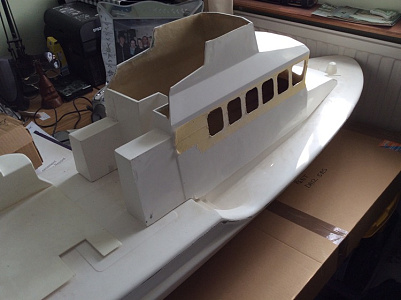

then I transferred the hull lines to card cut them out and assembled on the bench to make sure that all was straight and fair.
modeltugman
11 years ago
1 Post
0 Followers
1 Like

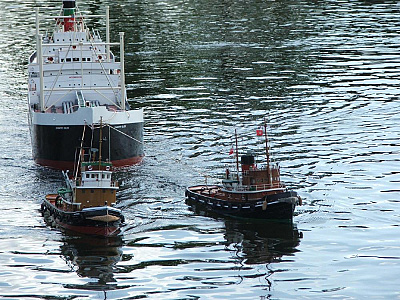

A 16 Ft tanker towboat
this Is about the 16ft towboat that I built for our club Chantry model club (chantrymodelboatclub.co.uk)
she Is 16ft long and 2ft wide,she has no bottom In the cargo spaces but has a 4" block of foam fitted up under the decks along her entire length.in each section.
she Is made up of the bow and sfern each 3ft long and 5 tank sections 2ft x 2ft,each section has 4 brackets one end and 4 slots the other.the brackets fit Into the coresponding slots and then two pins fit down through the deck and lock each section Into place.
she Is made of 6 sheets of 6mm plywood .
she also has her own motor and control gear so can be used simply as a big model.
each section can be removed on Its own so that we can reduce her length If we want a small shorter tow.
