HMCS GLENSIDE
10 Posts · 12 Followers · 31 Photos · 69 Likes
Began 6 months ago by
CanadaFollow This Thread
Not currently following
> Click to follow
> Click to follow
Latest Post 5 months ago by
| Most recent posts shown first (Show Oldest First) | (Print Booklet) |
📝 Drive assembly update
5 months ago by 🇨🇦 Double Rum (
Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 28 Views · 3 Likes
Flag
💬 Add Comment
I decided to change the drive arrangement. Instead of the wooden blocks for the motor bed i decided to use aluminum angle plate. I made the bearing plate adjustable to bring the thrust bearing end play to a minimum. Now I need to make a nylon thrust washer for the forward end of the thrust bearing assembly.
I think it should operate pretty good.
I think it should operate pretty good.
▲
⟩⟩
Scratchbuilder
Colin H
Doogle
Login To
Remove Ads
Remove Ads
📝 Drive assembly/ motor mounts
5 months ago by 🇨🇦 Double Rum ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 41 Views · 5 Likes · 1 Comment
Flag
💬 Add Comment
Today I’m working on the motor mounts. I will drill holes in the mounts then epoxy studs in the holes. Then the motor will be secured with nuts. The motor is a 550 aristo craft Manuchi 550.
It should be ok with the 2.5” prop I think.
It should be ok with the 2.5” prop I think.
▲
⟩⟩
stevedownunder
Colin H
Scratchbuilder
chugalone100
Doogle
|
💬 Re: Drive assembly/ motor mounts
5 months ago by 🇬🇧 mturpin013 (
 Admiral)✧ 50 Views · 0 Likes
Flag
That's one large oil hole😜
▲
⟩⟩
No likes yet
This member will receive 1 point for every like received |
📝 TAIL SHAFT THRUST BEARING
5 months ago by 🇨🇦 Double Rum ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 50 Views · 9 Likes
Flag
💬 Add Comment

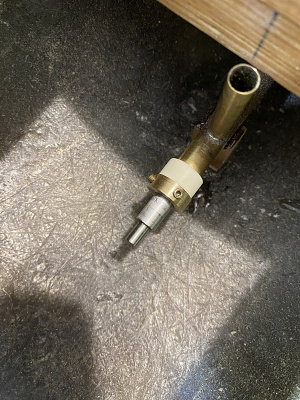

Hello, a little more progress. Today i made the shaft thrust bearing. Basically made from nylon and brass with two number 6-32 tpi set screws.
The nylon was bored with a shoulder inside to be a press fit on the stern tube. The brass bearing will press again the nylon face when in reverse. I need now to make forward bearing surface arrangement for the opposite side of the brass bearing. When completed there will be maybe.001” to .002” clearance between the nylon bearing face and the forward bearing face. Together with a little Vaseline this should keep most of the water out when she is running. I used the same arrangement in the Foundation Franklin and only a few drops of water come in when she is running.
The nylon was bored with a shoulder inside to be a press fit on the stern tube. The brass bearing will press again the nylon face when in reverse. I need now to make forward bearing surface arrangement for the opposite side of the brass bearing. When completed there will be maybe.001” to .002” clearance between the nylon bearing face and the forward bearing face. Together with a little Vaseline this should keep most of the water out when she is running. I used the same arrangement in the Foundation Franklin and only a few drops of water come in when she is running.
▲
⟩⟩
dave976
flaxbybuck
Len1
Doogle
Colin H
Scratchbuilder
BarryS
chugalone100
RNinMunich
📝 Prop Shaft
6 months ago by 🇨🇦 Double Rum ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 60 Views · 9 Likes · 3 Comments
Flag
💬 Add Comment

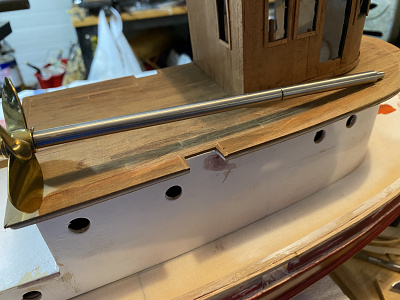

A little info on the prop shaft. It’s 316 stainless. I recycled the shaft as it was a shift rod in an old mercury outboard. It’s 5/16” in diameter and 9 inches long. I turned a 10- 32 thread on the prop end and the other end is 3/16” diameter.
When building the models I try to make the prop shaft diameter to scale with the original ship if possible.The groove you see in the shaft is the location of clip ring in its previous life in the outboard motor.
When building the models I try to make the prop shaft diameter to scale with the original ship if possible.The groove you see in the shaft is the location of clip ring in its previous life in the outboard motor.
▲
⟩⟩
dave976
chugalone100
RNinMunich
Doogle
Len1
Scratchbuilder
Colin H
flaxbybuck
BarryS
|
💬 Re: Prop Shaft
6 months ago by 🇬🇧 flaxbybuck (
 Lieutenant Commander)✧ 62 Views · 1 Like
Flag
I really like your approach to doing things, ie. making rather than buying pieces. Just watch out for the weight though !😉
▲
⟩⟩
Scratchbuilder
|
|
Login To
Remove Ads 💬 Re: Prop Shaft
6 months ago by 🇺🇸 BarryS (
 Chief Petty Officer 1st Class)✧ 58 Views · 0 Likes
Flag
I don't think you will break or bend that one!
Barry ▲
⟩⟩
No likes yet
This member will receive 1 point for every like received |
|
💬 Re: Prop Shaft
6 months ago by 🇺🇸 chugalone100 (
 Sub-Lieutenant)✧ 61 Views · 0 Likes
Flag
I love every step of your build.
You are creating a show case model.😎 ▲
⟩⟩
No likes yet
This member will receive 1 point for every like received |
📝 Deck work
6 months ago by 🇨🇦 Double Rum ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 60 Views · 5 Likes · 1 Comment
Flag
💬 Add Comment

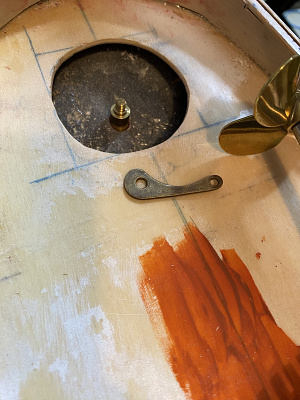

Today I made a wood ring to fit over the opening for the rudder access. It will be epoxied to the deck. The idea is to keep any water out of the hull that would go under the grating.
It’s a very simple job really. I turned it out on the lathe.
It’s a very simple job really. I turned it out on the lathe.
▲
⟩⟩
Doogle
Albert90
Colin H
BarryS
chugalone100
|
💬 Re: Deck work
6 months ago by 🇺🇸 BarryS (
Chief Petty Officer 1st Class)✧ 58 Views · 0 Likes
Flag
That is a good idea.
▲
⟩⟩
No likes yet
This member will receive 1 point for every like received |

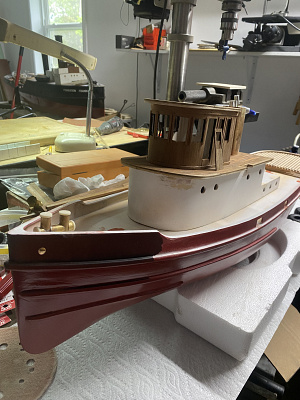

📝 Bottom Paint, Decking, Grating.
6 months ago by 🇨🇦 Double Rum ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 77 Views · 9 Likes · 4 Comments
Flag
💬 Add Comment

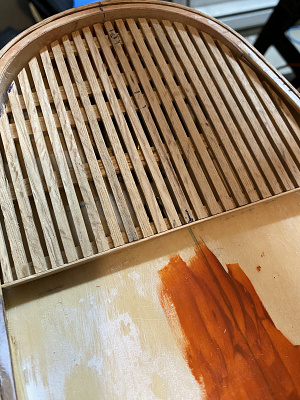

Hello all, a little more progress today. Finished installing the wood decking, just need to sand and seal it. Got the bottom painted today and did some work on the grating at the stern of the tug. Will be painting the sides of the hull black in a day or so.
She will not look newly painted for long as I like to weather my ships.
Tomorrow will be making deck fittings and forward winch and ships wheel.
She will not look newly painted for long as I like to weather my ships.
Tomorrow will be making deck fittings and forward winch and ships wheel.
▲
⟩⟩
Albert90
Len1
Doogle
Colin H
Scratchbuilder
hermank
Wolle
chugalone100
RNinMunich
|
💬 Re: Bottom Paint, Decking, Grating.
6 months ago by 🇳🇱 Albert90 (
 Petty Officer 1st Class)✧ 69 Views · 0 Likes
Flag
Good looking model! 👍
▲
⟩⟩
No likes yet
This member will receive 1 point for every like received |
|
Login To
Remove Ads 💬 Re: Bottom Paint, Decking, Grating.
6 months ago by 🇬🇧 Scratchbuilder (
 Vice Admiral)✧ 76 Views · 1 Like
Flag
Morning Double Rum.
Looking good and I await the next installment especially the weathering section when you get to it as I am interested in individual modeler’s adaptations on this aspect. 👍 Regards Bill ▲
⟩⟩
RNinMunich
|
|
💬 Re: Bottom Paint, Decking, Grating.
6 months ago by 🇩🇪 Wolle (
Sub-Lieutenant)✧ 78 Views · 0 Likes
Flag
Nice tractor, I like to sit down and watch
▲
⟩⟩
No likes yet
This member will receive 1 point for every like received |
|
💬 Re: Bottom Paint, Decking, Grating.
6 months ago by 🇺🇸 BarryS (
Chief Petty Officer 1st Class)✧ 74 Views · 2 Likes
Flag
The project is moving right along I see.
I am looking around your shop area. I see many of the same type of machinery that I have in my shop. I have two projects waiting for me to get back to them. I have been busy for a few weeks now doing things that I have been putting off on the house and property. Hopefully in another week or so I can get back to the workshop. Keep posting the progress as I want to follow along. I am always especially interested in the weathering and the methods used for that. I have never attempted weathering. Barry ▲
⟩⟩
hermank
Double Rum
|
📝 Wood decking/ Cabin Doors
6 months ago by 🇨🇦 Double Rum ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 81 Views · 6 Likes
Flag
💬 Add Comment

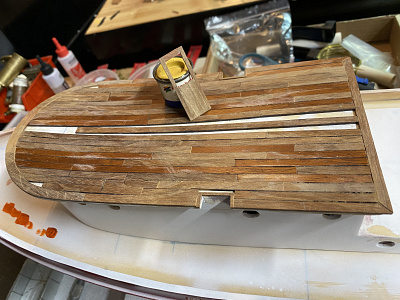

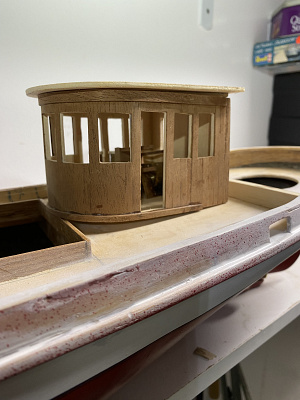

Hello, a little more progress. I’m currently adding wood decking to the upper deck. I found a piece of teak I had for many years so I decided to use it for this project. The Doors are made of teak also. They are .750 inches wide, .033” thick. Soon I will make the door knobs.
▲
⟩⟩
Colin H
hermank
RNinMunich
Doogle
Scratchbuilder
chugalone100
📝 Capstan and Funnel
6 months ago by 🇨🇦 Double Rum ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 91 Views · 7 Likes
Flag
💬 Add Comment

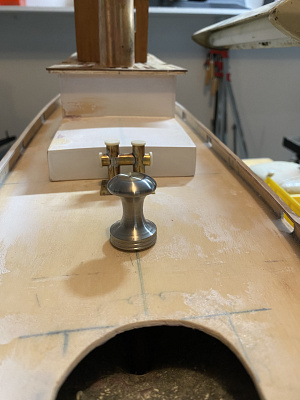

Made a little more progress today, made the capstan with a bronze insert on the top. I will probably paint it black other than the bronze top. Also started on the funnel made from brass sheet.
▲
⟩⟩
RNinMunich
BarryS
Scratchbuilder
Colin H
Doogle
hermank
chugalone100
📝 Towing Bitts/bollard
6 months ago by 🇨🇦 Double Rum ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 113 Views · 3 Likes
Flag
💬 Add Comment
Working on the Towing Bitts and Bollards. Made of brass tube and plate. I made the caps from plastic to save on the brass round stock.
▲
⟩⟩
Ronald
Scratchbuilder
Colin H
📝 HMCS GLENSIDE
6 months ago by 🇨🇦 Double Rum ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 112 Views · 13 Likes · 7 Comments
Flag
💬 Add Comment

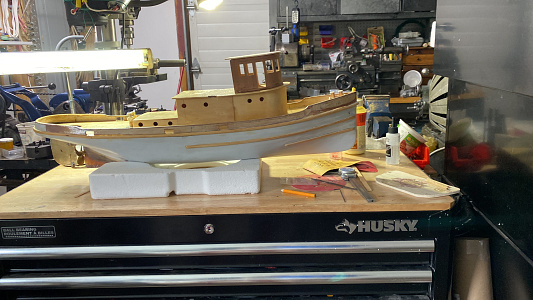

Hello everyone, I’m currently building 1/32nd model of the Canadian WW2 tug Glenside. The tug was built for the Canadian navy in the forties. Some of the Glen class tugs were sold to Foundation Maritime. I will be making this tug as per the Foundation colors where I have a model of the Foundation Franklin also. I will post pics as I progress in the build. The hull is from a fiberglass mold I made from a plug. The prop shaft is 1/4” stainless with brass tube and oilite bearings. The rudder is 1/16” brass plate with the rudder shaft silver soldered top and bottom.

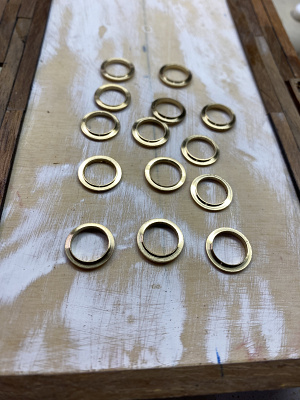

In currently doing several jobs at once , planking the top deck with teak. Making port lights etc.
In currently doing several jobs at once , planking the top deck with teak. Making port lights etc.
▲
⟩⟩
flaxbybuck
BarryS
Graham93
hermank
Newby7
RNinMunich
Chum444
chugalone100
Doogle
Wolle
ToraDog
Scratchbuilder
Colin H
|
💬 Re: HMCS GLENSIDE
6 months ago by 🇨🇦 Double Rum (
Chief Petty Officer 2nd Class)✧ 76 Views · 1 Like
Flag
Hello Barry, I did manufacture the propeller. I cut the blade’s from 1/16” brass sheet and used a jig to produce the curve of the blades. I then silver soldered them to the hub while holding them in a jig. I checked the blade mounted in the atlas lathe. It came out pretty good. It’s a lot cheaper than buying a prop. I’m looking forward to seeing your next project.
▲
⟩⟩
RNinMunich
|
|
Login To
Remove Ads 💬 Re: HMCS GLENSIDE
6 months ago by 🇺🇸 BarryS (
Chief Petty Officer 1st Class)✧ 88 Views · 2 Likes
Flag
She has some really nice lines to her. I will be watching with interest.
Did you also make the propeller? I can see silver solder lines where the blades meet the hub. Nice job! Barry ▲
⟩⟩
DonK
Scratchbuilder
|
|
💬 Re: HMCS GLENSIDE
6 months ago by 🇺🇸 Chum444 (
 Warrant Officer)✧ 106 Views · 0 Likes
Flag
👍👍
▲
⟩⟩
No likes yet
This member will receive 1 point for every like received |
|
💬 Re: HMCS GLENSIDE
6 months ago by 🇺🇸 chugalone100 (
Sub-Lieutenant)✧ 106 Views · 0 Likes
Flag
Beautiful and Elegant model.
▲
⟩⟩
No likes yet
This member will receive 1 point for every like received |
|
💬 Re: HMCS GLENSIDE
6 months ago by 🇬🇧 Doogle (
 Commander)✧ 108 Views · 0 Likes
Flag
Looking good, will be watching with interest for more photos 😊
▲
⟩⟩
No likes yet
This member will receive 1 point for every like received |
|
💬 Re: HMCS GLENSIDE
6 months ago by 🇬🇧 Scratchbuilder (
Vice Admiral)✧ 106 Views · 1 Like
Flag
Looking forward to this one 👍.
Looking good thus far. Bill ▲
⟩⟩
Double Rum
|
|
💬 Re: HMCS GLENSIDE
6 months ago by 🇺🇸 ToraDog (
Commander)✧ 109 Views · 2 Likes
Flag
This will be exciting to follow!
▲
⟩⟩
Double Rum
Scratchbuilder
|
