Venice water taxi
4 Posts · 8 Followers · 10 Photos · 36 Likes
Began 6 months ago by
GermanyFollow This Thread
Not currently following
> Click to follow
> Click to follow
Latest Post 4 months ago by
| Most recent posts shown first (Show Oldest First) | (Print Booklet) |
📝 Venice water taxi
4 months ago by 🇩🇪 Willem (
Petty Officer 1st Class)
Petty Officer 1st Class)✧ 12 Views · 0 Likes · 2 Comments
Flag
💬 Add Comment
Hello ian,
I purchased a plan from Gilberto Penzo . From this plan I only used the shape of the hull and the height of the cabin. The rest is copied from photos on the internet.

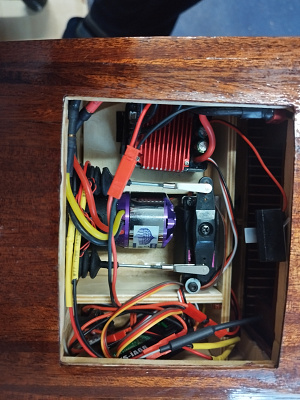

I have fitted a stern drive that is partly hidden in a flooded compartment behind the motor. In the rear, where the stern drive comes out of the hull, I designed a cover and 3D printed it.
With the stern drive I found that you have to grease it by appying grease into the small tube/pipe on top of the drive. This has nowhere been shown in any paper that I have seen.
Willem
I purchased a plan from Gilberto Penzo . From this plan I only used the shape of the hull and the height of the cabin. The rest is copied from photos on the internet.
I have fitted a stern drive that is partly hidden in a flooded compartment behind the motor. In the rear, where the stern drive comes out of the hull, I designed a cover and 3D printed it.
With the stern drive I found that you have to grease it by appying grease into the small tube/pipe on top of the drive. This has nowhere been shown in any paper that I have seen.
Willem
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
|
💬 Re: Venice water taxi
4 months ago by 🇳🇿 IanL1 (
 Midshipman)✧ 10 Views · 1 Like
Flag
Hi Willem, Coincidentally that's who I ended up getting plans from as well. My plans are different to yours as he sent me 4 full size sheets that covered the 1/10 scale so I was able to trace the frames etc directly. However to of the sheets were not of the same plans so I had a fair bit of off line design to do myself. Thankfully the internet helped and I am pleased with the outcome. I have yet to put the name on her and more on this subject once I have it so watch this space, as they say. I am sure other modellers will be interested as well. Cheers Ian
▲
⟩⟩
Willem
|
|
💬 Re: Venice water taxi
4 months ago by 🇩🇪 Willem (
Petty Officer 1st Class)✧ 12 Views · 0 Likes
Flag
Something went wrong with submitting the comment.
website of the plan ▲
⟩⟩
No likes yet
This member will receive 1 point for every like received |
Login To
Remove Ads
Remove Ads
📝 some progress with the taxiboat
4 months ago by 🇩🇪 Willem ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 25 Views · 11 Likes · 2 Comments
Flag
💬 Add Comment
Some progress with my taxi boat.

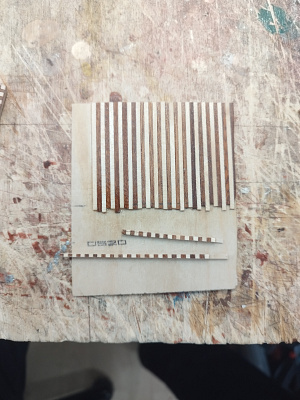

The steps make a nice detail. Implementing the windows was challenging: first the fittings and then gluing the "glass" without making a mess of it. I used a suction pen, used for handling SMDs, to hold and handle the glass.
Still need to add some handles and doors.
The boat is easy to steer, and the bow thruster is working fine.
The steps make a nice detail. Implementing the windows was challenging: first the fittings and then gluing the "glass" without making a mess of it. I used a suction pen, used for handling SMDs, to hold and handle the glass.
Still need to add some handles and doors.
The boat is easy to steer, and the bow thruster is working fine.
▲
⟩⟩
luckyduck
DuncanP
AlessandroSPQR
jbkiwi
Wolle
IanL1
ChrisF
Chum444
chugalone100
hermank
SouthportPat
|
💬 Re: some progress with the taxiboat
4 months ago by 🇮🇹 AlessandroSPQR (
 Fleet Admiral)✧ 17 Views · 0 Likes
Flag
Beautiful motorboat.
▲
⟩⟩
No likes yet
This member will receive 1 point for every like received |
|
💬 Re: some progress with the taxiboat
4 months ago by 🇳🇿 IanL1 (
Midshipman)✧ 23 Views · 0 Likes
Flag
Wow, for a minute I thought it was my boat. Looks good, especially in the water. I have yet to give mine a good run in open waters as I have only tested in our pool but its' not large enough to open her up. Did you use a stern drive unit or prop shaft and where did you source your plans from as I had great difficulty in getting hold of some. Cheers Ian
▲
⟩⟩
No likes yet
This member will receive 1 point for every like received |
📝 Update to your questions
6 months ago by 🇩🇪 Willem ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 32 Views · 4 Likes
Flag
💬 Add Comment
About the sterndrive, I believe this drive originaly comes from Graupner (G for Graupner), but this compagny doesn't exist anymore, only there sender/receivers survived.
I purchased my Sterndrive with Bauer-Modelle.com.

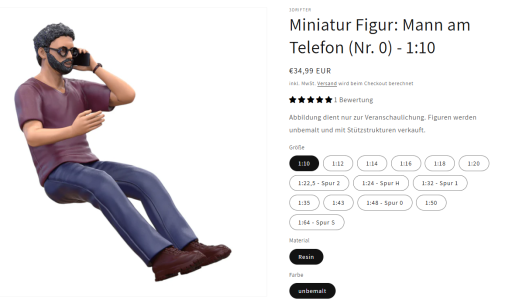

The driver is from 3drifter-miniatures.de
My original drawings came from Gilberto Penzo in Venice,
I purchased my Sterndrive with Bauer-Modelle.com.
The driver is from 3drifter-miniatures.de
My original drawings came from Gilberto Penzo in Venice,
▲
⟩⟩
chugalone100
SouthportPat
hermank
ChrisF
📝 Venice water taxi
6 months ago by 🇩🇪 Willem ( Petty Officer 1st Class)
Petty Officer 1st Class)✧ 67 Views · 21 Likes · 11 Comments
Flag
💬 Add Comment

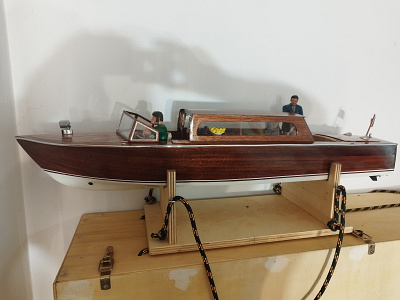

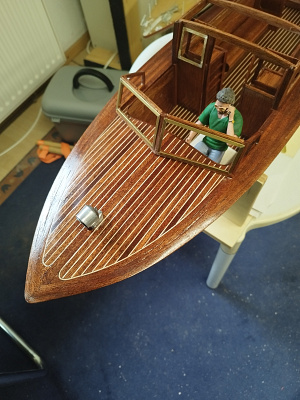

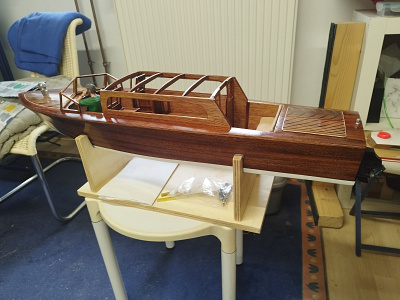

I'm building a Venice water taxiboat from scratch.

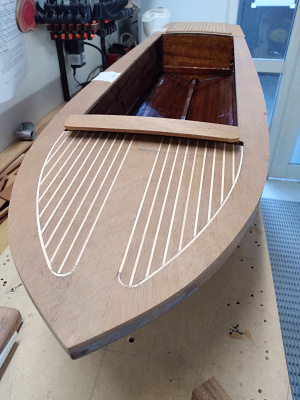

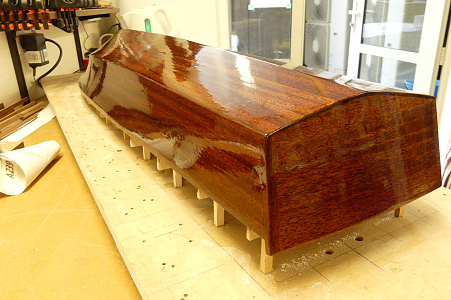

The hull has been build from triplex covered with mahagoni stripes.
There is still a lot of work to be done, but technics are working and I hope to get here on the water in the comming week.
The hull has been build from triplex covered with mahagoni stripes.
There is still a lot of work to be done, but technics are working and I hope to get here on the water in the comming week.
▲
⟩⟩
MartyV
Wolle
SouthportPat
Fred
IanL1
Len1
Ronald
peterd
ChrisF
xtramaths
chugalone100
Ray
TonyAsh
Frankiesays1953
hermank
Chum444
Mike Stoney
DWBrinkman
AlessandroSPQR
jumpugly
RNinMunich
|
💬 Re: Venice water taxi
6 months ago by 🇳🇿 IanL1 (
Midshipman)✧ 38 Views · 2 Likes
Flag
Chris, Your build looks great as well and I like the way you fitted in out inside. I had to keep it all in the rear engine space so it was all a bit tight. Good fun lining up the drive on the stern unit to get it correct, Cheers Ian
▲
⟩⟩
hermank
ChrisF
|
|
Login To
Remove Ads 💬 Re: Venice water taxi
6 months ago by 🇳🇿 IanL1 (
Midshipman)✧ 38 Views · 6 Likes
Flag
Hi Willem, Looks very good and well put together. Where did you get the driver from as I would one fopr my VWT. I have looked everywhere but to no avail. Regarding Chris's comment about the stern leg. I have used the same one and it siezed up up soon after water trial. When I went to the supplier I was told the warranty doesn't exist due to the Ukrane war as that is where the units were made and the business is no more. Disassembled and rebuilt with lubricant and now it spins freely. but yet to do full sea trial.

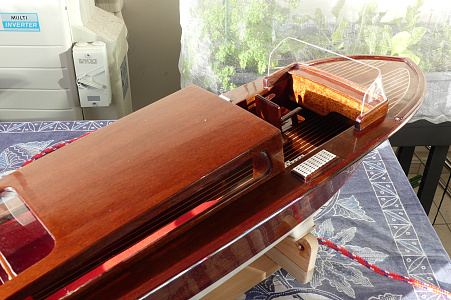

Willem keep us posted on your progress. I have attached a couple of photos of mine so far. Cheers Ian
▲
⟩⟩
Wolle
chugalone100
SouthportPat
hermank
ChrisF
Willem
|
|
💬 Re: Venice water taxi
6 months ago by 🇬🇧 ChrisF (
 Commodore)✧ 42 Views · 3 Likes
Flag
Hi Willem
Looks similar to mine, though mine is the G-Power 150. I struggled to find one small enough as well as my Huntress is at a scale of 1:12 so only 23" long. But this one was fine and I formed a recess in the transom to reduce the impact of the quite large housing. I noticed a year or so back that there was no stock on some of the stern-drives but was hoping they would be re-stocked again but having just looked at the site there are now no stern-drives at all and very few parts. Wishing now I'd bough another unit as a spare. I will have to limit the amount I use this boat and be very careful with it! Chris
▲
⟩⟩
chugalone100
hermank
IanL1
|
|
💬 Re: Venice water taxi
6 months ago by 🇨🇦 Ronald (
Fleet Admiral)✧ 44 Views · 2 Likes
Flag
Ron Bauer here in Canada 🇨🇦 interesting that there is another Bauer on here but that one is selling parts.
Not me !
▲
⟩⟩
SouthportPat
hermank
|
|
💬 Re: Venice water taxi
6 months ago by 🇩🇪 Willem (
Petty Officer 1st Class)✧ 44 Views · 3 Likes
Flag
Hi Chris,

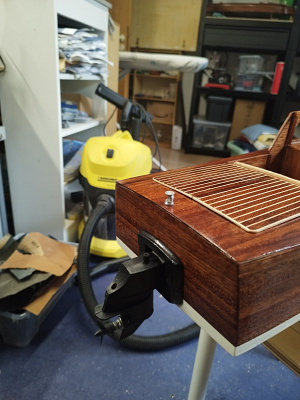

this Z-drive is realy purchased from Bauer, but I purchased the last available. This was the only available small enough to fit. Unfortunaly they are not produced anymore. I designed and printet a "canopy" to have a more clean look.
▲
⟩⟩
hermank
ChrisF
Ronald
|
|
💬 Re: Venice water taxi
6 months ago by 🇬🇧 ChrisF (
Commodore)✧ 52 Views · 2 Likes
Flag
Very nice. That looks like a Bauer-Modelle stern-drive? I used their smaller one in my Huntress build and it performs really well.
Chris ▲
⟩⟩
SouthportPat
hermank
|
|
💬 Re: Venice water taxi
6 months ago by 🇺🇸 chugalone100 (
 Lieutenant)✧ 53 Views · 3 Likes
Flag
Your Venice water taxi is spectacular. Great finish job.
This is AAA model. Congratulations. 😎 ▲
⟩⟩
SouthportPat
hermank
Mike Stoney
|
|
💬 Re: Venice water taxi
6 months ago by 🇺🇸 Chum444 (
 Captain)✧ 67 Views · 4 Likes
Flag
The vaporetta is a mainstay of transportation on the Grand Canal in Venice. Nice work on an interesting subject.
▲
⟩⟩
SouthportPat
Mike Stoney
AlessandroSPQR
hermank
|
|
💬 Re: Venice water taxi
6 months ago by 🇺🇸 DWBrinkman (
Commodore)✧ 71 Views · 4 Likes
Flag
Very nice! Beautiful boat.
Dave B ▲
⟩⟩
SouthportPat
Mike Stoney
AlessandroSPQR
hermank
|
|
💬 Re: Venice water taxi
6 months ago by 🇬🇧 luckyduck (
Lieutenant)✧ 72 Views · 4 Likes
Flag
A class build - looks the business.
▲
⟩⟩
SouthportPat
Mike Stoney
AlessandroSPQR
hermank
|
|
💬 Re: Venice water taxi
6 months ago by 🇺🇸 jumpugly (
 Vice Admiral)✧ 64 Views · 3 Likes
Flag
Simply…
▲
⟩⟩
Mike Stoney
hermank
AlessandroSPQR
|
