2,580 posts · Page 53 of 215Bugsworth Canal Basin, the head of navigation of the Peak Forest Canal, was the largest and busiest inland port on Britain’s narrow canal system and the only one to survive intact. Famous canal and tramway engineer, Benjamin Outram, built the 14 mile long Peak Forest Canal from Dukinfield to Bugsworth, although plans to extend to Chapel Milton via Whitehough were never realised. Construction of the six mile Peak Forest Tramway in 1795 linked Bugsworth Basin to the limestone and gritstone quarries in Derbyshire, and the canal linked Bugsworth to Manchester and the trans-Pennine canal network.
- flundleAble SeamanIts correct in every respect and its the correct texture too.Its correct in every respect and its the correct texture too. Every single part of the kit was drawn in 3D cad (123D Design) and produced on a Forms2 3D printer. Then everything was scaled down to 1/16th scale and thse are now available from Tony Bakewell, the new owner of Speedline Models. See facebook👍
Every single part of the kit was drawn in 3D cad (123D Design) and produced on a Forms2 3D printer. Then everything was scaled down to 1/16th scale and thse are now available from Tony Bakewell, the new owner of Speedline Models. See facebook👍Liked by Martin555

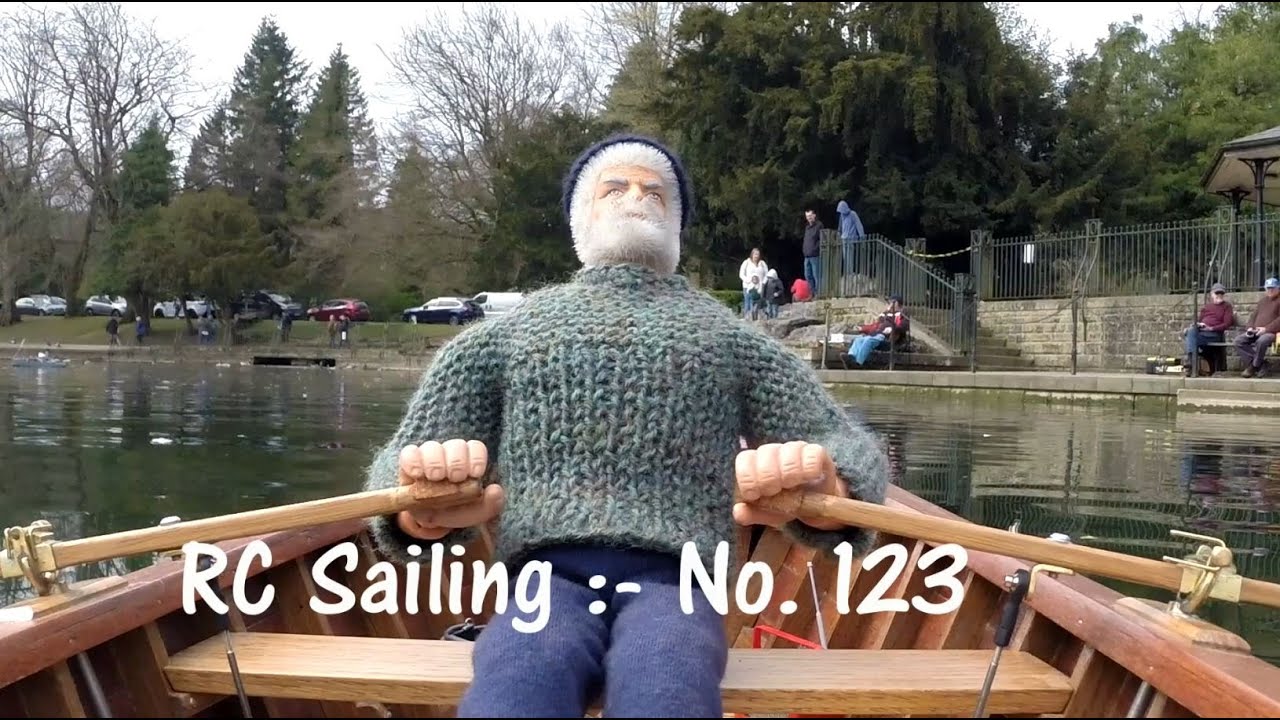

- Graham93Vice AdmiralHi Gary,Hi Gary, You might have something there! I think his expression probably has more to do with the threaded rod glued into his nether regions which attaches him to the thwart! 😂🤣 Graham93
You might have something there! I think his expression probably has more to do with the threaded rod glued into his nether regions which attaches him to the thwart! 😂🤣
Graham93 - RNinMunichFleet AdmiralI seem to remember warning you about that Graham 😮I seem to remember warning you about that Graham 😮 Same for Ben and the smoke for his pipe I suspect 😮😭 Whatever, good to see at least Bill in action again 👍 😎
Same for Ben and the smoke for his pipe I suspect 😮😭
Whatever, good to see at least Bill in action again 👍
😎Liked by Martin555

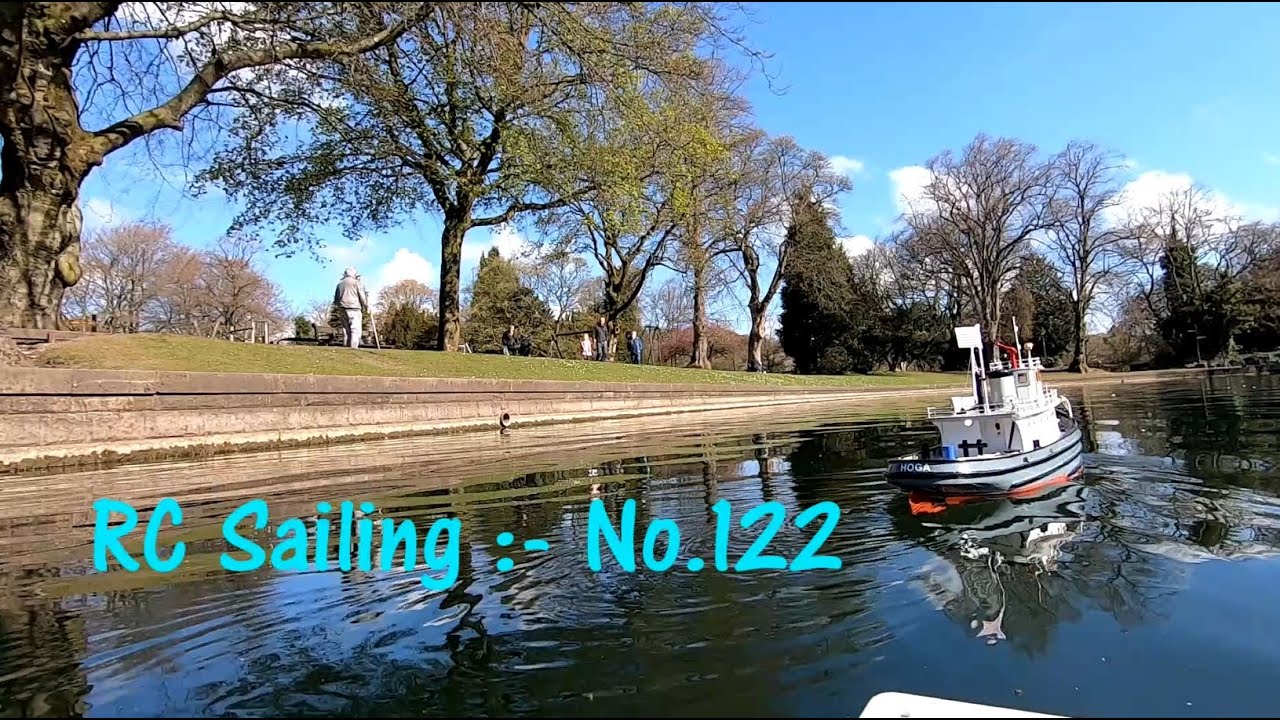

Billing Boats "Hoga" Pearl Harbor Tugboat.
- T33CNOSub-LieutenantThat is lovely. I built mine recently but opted for clear coat to make it interesting at shows. A picture from the maiden voyageThat is lovely. I built mine recently but opted for clear coat to make it interesting at shows. A picture from the maiden voyage[{"id":"162042053463","name":"162042053463","caption":"","url":"https:\/\/model-boats.com\/media\/162042053463\/l","thumbUrl":"https:\/\/model-boats.com\/media\/162042053463\/s","isImage":false,"ext":"file"},{"id":"162042066263","name":"162042066263","caption":"","url":"https:\/\/model-boats.com\/media\/162042066263\/l","thumbUrl":"https:\/\/model-boats.com\/media\/162042066263\/s","isImage":false,"ext":"file"}]Liked by Brightwork and Griss and
- GaryLCCaptainThat planked hull is a work of art, and can be appreciated for what it is and the work that went into it. Painting is for hiding mistakes and filler. Regards.That planked hull is a work of art, and can be appreciated for what it is and the work that went into it. Painting is for hiding mistakes and filler. Regards.

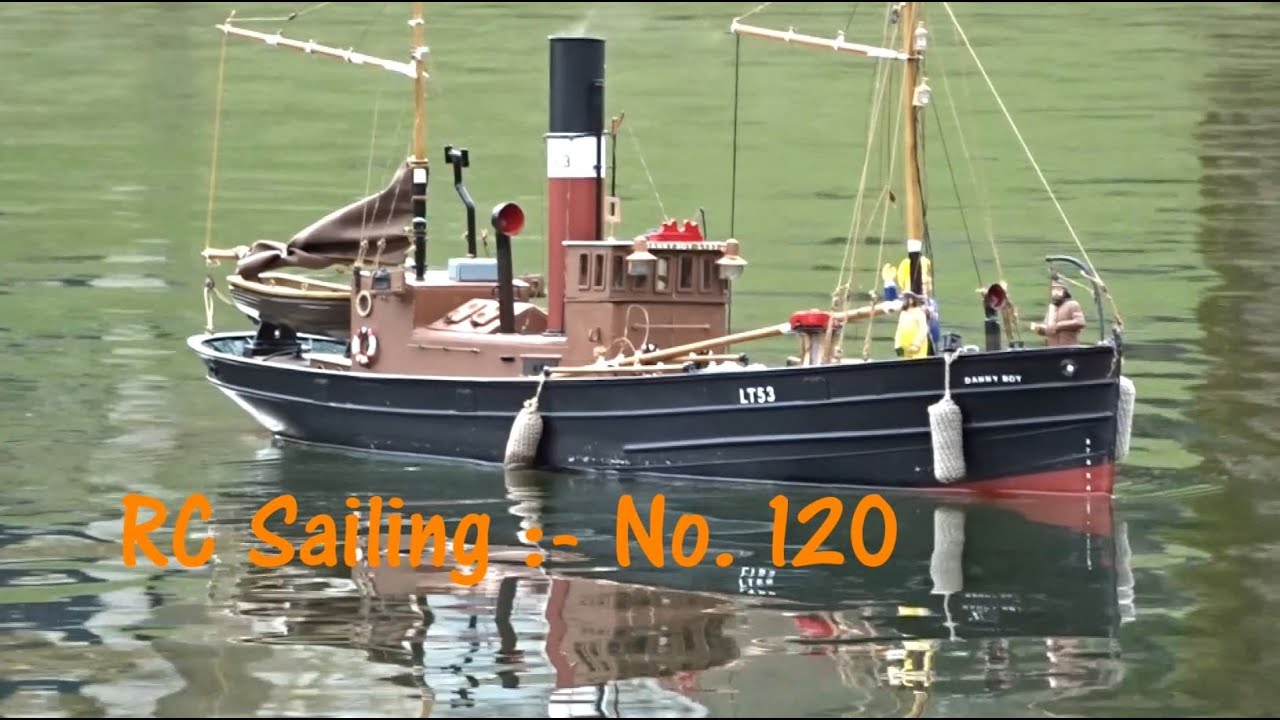

- GaryLCCaptainI like your boat a lot you have made a really good job of putting it together and it sails rather well also. But I am afraid that I must correct your comment if the fact it is a North Sea Drifter, and has never pulled a trawl net in its life to date. The nets were paid out over the side and could be a mile long in length, the net hung like a curtain with floats on the top, and the herring were caught by the gills and unable to escape. I also have the Mountfleet Danny Boy and will enclose a photo. Regards, GaryI like your boat a lot you have made a really good job of putting it together and it sails rather well also. But I am afraid that I must correct your comment if the fact it is a North Sea Drifter, and has never pulled a trawl net in its life to date. The nets were paid out over the side and could be a mile long in length, the net hung like a curtain with floats on the top, and the herring were caught by the gills and unable to escape. I also have the Mountfleet Danny Boy and will enclose a photo. Regards, Gary[{"id":"1549815374","name":"1549815374.jpg","caption":"","url":"https:\/\/model-boats.com\/media\/1549815374\/l","thumbUrl":"https:\/\/model-boats.com\/media\/1549815374\/s","isImage":true,"ext":"jpg"}]Liked by philcaretaker and stevedownunder and
- GaryLCCaptainI should have mentioned it has a gas-fired steam engine, and in order to obtain access the super-structure and the fish hold lifts off along with a large piece of the decking. Regards, Gary.I should have mentioned it has a gas-fired steam engine, and in order to obtain access the super-structure and the fish hold lifts off along with a large piece of the decking. Regards, Gary.Liked by Martin555
Roger
- jbkiwiFleet AdmiralLucky you built a strong boat Roger😁👍 She's running much better now and looks good. 100c will give you a truckload of power !! You can never have too much power👍😁Lucky you built a strong boat Roger😁👍 She's running much better now and looks good. 100c will give you a truckload of power !! You can never have too much power👍😁 JB
JB
After checking the boat over she was found to be unmarked and no bits missing, not bad to say she hit the pontoon at full speed, took off and plunged back in at the other side.
So the second run i started on the centre prop and then opened her up on the outer 2, she shot forward and immediately stalled, dead in the water. luckily i could reach her with the ponds barge pole to pull her to the side. i found the fuse had blown , i had fitted a 20amp mini flat fuse, i didn't have a 30amp only another 20amp which blew just as quick, upon opening up the outer props.
any ideas anyone or will a 30amp do the job, or a 2s battery? help any suggestions considered.
Roger
- Rogal118CaptainHi RonanHi Ronan Thanks for your input. Its starting to make sense now. I bit the bullitt and bought a lipo battery and charger. I ended with a spectrum smart 2200mhz,3s, 11.1v,100c.i had a choice of a 30c but thought it may not be man enough for 3 motors so looked at the 50c, but was out of stock, so i ended with the 100c it was the same price as the 50c anyway. The charger was a spectrum smart type to. This monitors the battery and hopefully does everything automatically. Once again thanks for your help and encouragement Roger
Thanks for your input.
Its starting to make sense now.
I bit the bullitt and bought a lipo battery and charger. I ended with a spectrum smart 2200mhz,3s, 11.1v,100c.i had a choice of a 30c but thought it may not be man enough for 3 motors so looked at the 50c, but was out of stock, so i ended with the 100c it was the same price as the 50c anyway. The charger was a spectrum smart type to. This monitors the battery and hopefully does everything automatically.
Once again thanks for your help and encouragement
Roger - RowenCaptainHi Roger,Hi Roger, You are learning well! A similar road to the one I travelled a couple of years ago. Hard to see the fuse block on my Brave now, but here is one am assembling for my next project. Got my fuse blocks off Banggood, they offer both 4 and 6 fuse ones. Used a 6 on the Brave as wanted a fuse per motor, currently using 30 A capacity. Should protect the 50 A ESCs. Bigger fuses and even re-settable ones can be fitted into the block if warranted. The home made buss bar and battery connector are visible. Hope this helps. Rowen 100C should be more that adequate, mine is 30C. You should be able to drive a welder with it too![{"id":"162014088467","name":"162014088467","caption":"","url":"https:\/\/model-boats.com\/media\/162014088467\/l","thumbUrl":"https:\/\/model-boats.com\/media\/162014088467\/s","isImage":false,"ext":"file"}]
You are learning well! A similar road to the one I travelled a couple of years ago.
Hard to see the fuse block on my Brave now, but here is one am assembling for my next project. Got my fuse blocks off Banggood, they offer both 4 and 6 fuse ones.
Used a 6 on the Brave as wanted a fuse per motor, currently using 30 A capacity. Should protect the 50 A ESCs. Bigger fuses and even re-settable ones can be fitted into the block if warranted.
The home made buss bar and battery connector are visible.
Hope this helps.
Rowen
100C should be more that adequate, mine is 30C. You should be able to drive a welder with it too!
Sea Scout built by Dad in the early sixties with a Taycol Target and 6V lead acid wet cells (very wet😡). Renovated and dragged into the 21st century over the last several months 😉
See Build Blog 'Sea Scout 'Jessica'' for details!
Motor: Propdrive 2830, 1000kV, 30mm 3 blade Raboesch prop. Quicrun 16BL30 (30A) ESC with BEC.
Tested with 3 battery types, all started with 99% measured capacity-
1. NiMh 4.2Ah 7.2V, nom. 408gm.
Result: Speed sedate (OK 😉scale river cruising!) No planing.
Max current: 3.6A
End status V / capacity left: At end of short run ca 3 mins. 7.78V 99%.
2. 2S LiPo 4.0Ah 7.4V nom. 257gm.
Result: Speed still sedate but due to lower batt weight at least the forefoot came out of the wet stuff! Max current: 4.1A
End status V / capacity left: At end of short run ca 3 mins. 8.25V 93%.
3. 3S LiPo 4.0Ah 11.1V nom. 315gm.
Result: Now we're getting somewhere!!😁
Good speed, manoeuvrability and planing 😊 Max current: 7.5A
End status: 11.95V 74% after several long runs, ca 20 mins total.
Estimated (extrapolated) endurance on a 4Ah LiPo around one hour - mostly 'full bore' - 'Pedal to the metal man' 😊
See also:
The competition!
Final run. (Beer was getting warm😁)
Cap'ns log entry:
Boat dead-weight w/o battery: 1.8kg.
Spray rails to be added!😲
Slight list to port to be trimmed.
Rudder servo to be reversed!!😲
Keel protection to be added: some scratches and flaking from stony sloping shore 🤔
Summary: much as expected👍 Forget anything less than 3S.
Anyone want to buy a batch (4) of new 2S 4Ah 45C Lipos? 'One careful owner'!
Happy boating people, Cheers Doug 😎
PS Many thanks to Camera girl Gisela 👍
Recorded in 1080p HD.
- RNinMunichFleet AdmiralHi Will,Hi Will, The videos were all taken at stage 3. 'Now we're getting somewhere' with the 3S LiPo. As depicted in the report there wasn't anything worth filming on either the 7.2V NiMh or the 7.4V 2S LiPo. Plod plod boring! I wasn't really surprised. I just wanted to know 😉 Cheers, Doug 😎
The videos were all taken at stage 3. 'Now we're getting somewhere' with the 3S LiPo.
As depicted in the report there wasn't anything worth filming on either the 7.2V NiMh or the 7.4V 2S LiPo. Plod plod boring! I wasn't really surprised. I just wanted to know 😉
Cheers, Doug 😎Liked by Madwelshman - MadwelshmanLieutenant CommanderI suspected it was on the 3s in the video.I suspected it was on the 3s in the video. Thanks for that Doug. Will
Thanks for that Doug.
Will
So to remedy this I moved the battery back a compartment, positioning it over the 3 motors , it was a tight squeeze, but fitted just.
This sat the stern down a little and the bow up and gave the impression of planeing, she still not fast enough though. the scale speed still doesn't look right.
I'm going to have to have a rethink on this one. having said all this though she looked well in the water if i say so my self.
Roger
