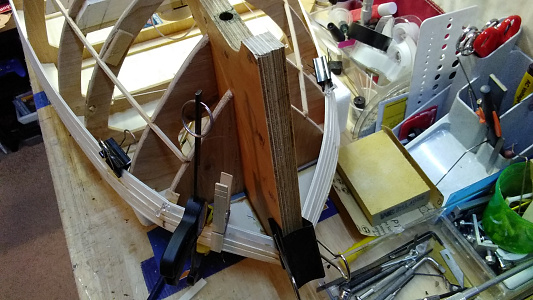

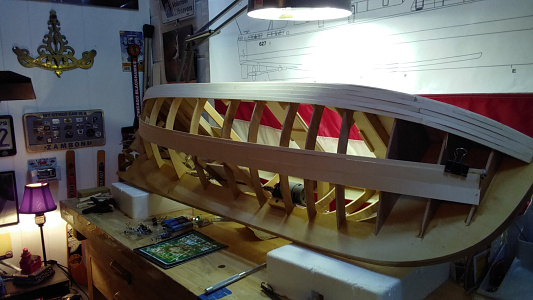

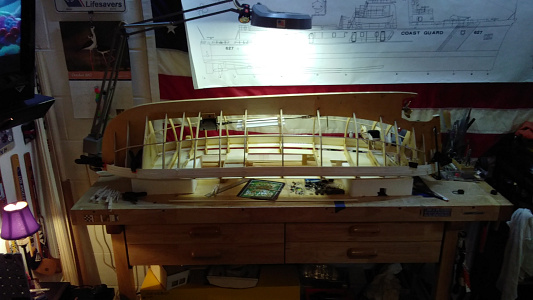

Laser cut kit from Barracuda RC Boats, N Carolina, USA. Baltic birch plywood false keel, ribs/frames, hull sheathing, deck and cabins. No formal plans; I was able to source a handful of B&W archival photos from the USCG website. Fortunately I was able to procure a motherload of archival photos and a few hard to read layout drawings from Mr. Timothy Dring, LCDR, USN (Ret.). He is co-author of "American Coastal Rescue Craft", which is the "bible" if you will, of such. I do sometimes thank the internet. I am certain that without his assistance, my efforts on this wouldn't have been as enjoyable.
The kit was also void of fittings, which I was aware of prior to purchase, so I invested in a 3D printer. That I've used to a limited degree, due to searching for parts in the correct file format is mind-numbing! I have globally sourced fittings; USA, UK, ASIA. As a matter of fact, the searchlights I got from this Model Boat Shop were 3D printed, and I was able to fit 5mm LEDs into them.
I'd like to get a couple more and put some superbright 12v LED drone lamps
in them for use on my 35" towboat. Many deck fittings are handmade when possible, the cleats and fairleads are from Cornwall Boats, UK. (Very reasonable & diverse source, if you didn't already know.)
I try to keep wood natural when detail allows it, as I never have enjoyed painting over natural grain. Her decks are covered with 1/16" scribed basswood sheathing from earthandtree.com, which is normally used for wainscoting dollhouse walls. All my boats that have wood decks are covered with scribed sheathing; I feel it makes 'em look "sexy". Believe it or not, the idea for wainscoting came from finding 3/16" at Hobby Lobby's
dollhouse department. A couple of feet x 3.5" was about $16, so I found a less expensive source that also had more selections (earthandtree.com)
The rail stanchions are 3/16" square dowels with 2 corners rounded over on the Dremel router table. Leaving their base square, I fit a square peg into a round hole with no glue to facilitate removal, and also for ease of replacing broken ones, which is inevitable. The rail is 1/16" brass rod that also is readily removable. The stern rail is stationary on the lower half, and the chain & wire stanchions are removable for towing ops.
The deck coamings and knuckle are African mahogany strips, other mahogany accents came from leftovers of a prior build. I also try on all my boats, to incorporate vintage leftover scribed sheathing salvaged from my late Father's builds, so I know he's got a part in my builds. Note-the raised deck section between the aft ladder trunk and towing bit is actually a laminated deckhouse he made for the Frigate Essex. Unfortunately, he was unable to build that kit due to Alzheimer's disease in his latter years.
(I blame that mostly on the hazardous fumes from the airplane "dope" & glue he used when building RC planes in the 60s & 70s.) I use polyurethane instead of resin due to COPD, 37 yrs of smoking, I quit 2.5 yrs ago.
The driveline consists of: 775 Johnson DC main (3500 RPM@12V), Harbor Models 4mm x 14" shaft w/brass stuffing box, Raboesch 75mm 5-blade brass wheel (not OEM), 5mm U-joint couplers, Dimart 320A fan-cooled ESC.

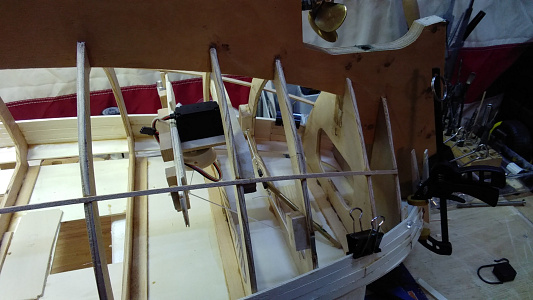

Handmade wooden teardrop rudder on a 3/8" sternpost, 1/4" tiller arm steered by a Halcion sail winch servo and cable system. Flysky 6 channel.
The nav lights and other illumination are Lighthouse 9v LEDs, also a GoolRC Receiver controlled flashing blue Law Enforcement light.

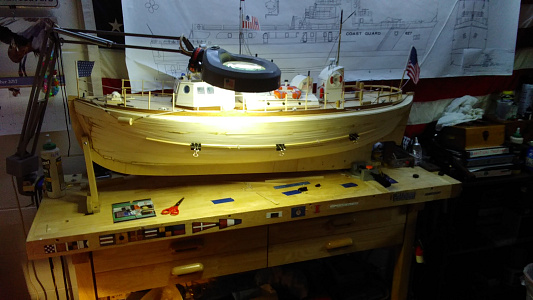

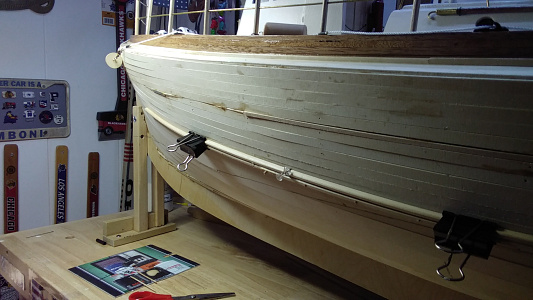

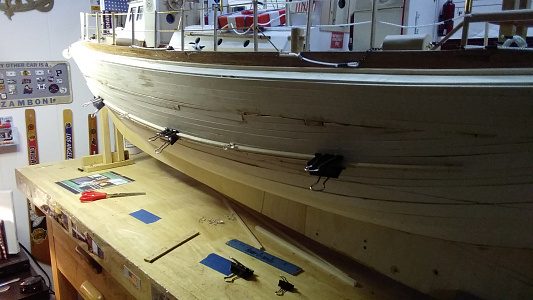

Obviously, I put the cart before the horse and completed the topsides and below deck before finishing the outer hull, but the Wx and season change dictated such. Can't wait for Spring!
