    Recent Posts
    ๐Ÿ’ฌ Re: Graupner Optimist 1978
    4 months ago by Delboy ( Leading Seaman)
    Flag
    Thanks for the memory jog. I had completely forgotten that I have had an unfinished optimist kit in the loft for 30 years.

    Time to have some building fun..
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    1
    ๐Ÿ“ 3D Printing.
    4 months ago by Delboy ( Leading Seaman)
    Flag
    It's mostly elbow grease to remove support material or stringing.

    ABS can be smoothed using acetone vapour but PLA requires chloroform. I don't know where you might get that.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    1
    ๐Ÿ“ CNC boat kits...?
    10 months ago by Delboy ( Leading Seaman)
    Flag
    Which is where laser cutting leaps to the fore with a tool diameter around 0.1 mm.

    The Cyclone is a pcb cutter which uses a taper-point tool so there is no offset.

    The goal is to mount a laser rather than a Dremel.

    Point taken on the smaller parts . My initial thought was that, with a larger platform, you could cut multiple parts from a larger piece of material in one pass. Unfortunately, you can't walk away from a laser cutter to let it get on with things as you can with a 3D printer. You are looking at a potential bonfire and the bigger the job, the longer you have to stand and watch it.

    parts
    dremel
    kit
    3d printer
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    ๐Ÿ“ CNC boat kits...?
    10 months ago by Delboy ( Leading Seaman)
    Flag
    Having built (well, assembled really) i am currently building a small CNC router with 3D printed parts. See https://reprap.org/wiki/Cyclone_PCB_Factory. Currently redesigning to be driven by GT2 belts and pulleys as I have some reservations about using 3D printed gears from the point of view of back-lash and wear.
    The stepper motors are driven from an Arduino Mega running the GRBL g-code interpreter.
    There are a host of free g-code generator tools to be found on the internet. Some of them are a bit "knife and fork" but there are some useful ones out there and there is lots of helpful information too.
    https://reprap.org/wiki/Cyclone_PCB_Factory.
    ๐Ÿ”—

    motor
    parts
    kit
    tools
    build
    arduino
    pulleys
    built
    stepper
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    ๐Ÿ“ CNC boat kits...?
    10 months ago by Delboy ( Leading Seaman)
    Flag
    Have a look at the Banggood website. They are selling A3 sized laser cutters for less than ยฃ200. it is sold as an engraver with a 2500 mW laser but this can be upgraded. it should cut ply up to 3mm albeit with multiple passes

    It comes as a kit with "Chinese" English instructions so you will need your modelling skills to assemble it.

    They are fairly flimsy as a stand-alone, but, if fixed to a stout MDF board, it should be sturdy enough

    website
    model
    kit
    web site
    instructions
    website upgrade
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    1
    ๐Ÿ“ CNC boat kits...?
    10 months ago by Delboy ( Leading Seaman)
    Flag
    Our local Makerspace has just acquired a laser cutter. The accuracy and clean nature of the cut are breathtaking. The edges are razor-sharp and the cut width is in the order of 0.1 mm.

    I know there are a few fossils out there who will huff and puff about new technology and extolling the virtues of half a Gillette razor blade but heed them not. Google Makerspace, find your local branch and join-up. if they haven't got a laser cutter they'll have a lot of other machinery which will enable to do far more than you can manage on your kitchen table.

    kit
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    ๐Ÿ“ Port holes
    1 year ago by Delboy ( Leading Seaman)
    Flag
    Well, he's 3D printed so I can scale him as needed. Scaled at 80 percent he turns out around 1/24. Scale it to around 55 percent and that should give you 1/32.

    port holes
    port
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    1
    ๐Ÿ“ Inspiration for beautiful boat builders ;-)
    1 year ago by Delboy ( Leading Seaman)
    Flag
    I was working on a contract for Digital Equipment Corp at Unterfoering and was staying at the other end of town at Westkreuz (Gaestehaus im Forum).

    I've had the Ultimaker for 2 or 3 years now. it's great for making the little things. Ship's wheel - 6 hours by hand, 1 hour on the printer. Design it once, print as many as you need. Bits and bollards, fairleads, funnels, ventilators - not cheap from the shop (if they have any) pennies on the printer.

    Best investment ever.

    build
    ship
    tow
    forum
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    1
    ๐Ÿ“ Inspiration for beautiful boat builders ;-)
    1 year ago by Delboy ( Leading Seaman)
    Flag
    Hi Doug,
    A phenomenal place, the Deutche Museum. I visited it when I was working in Munich back in '87/'88.

    I agree with the views on scratch building. it's the difference between Model Making and model assembly.

    Although, I have to say that, although my 3D printing has been poo-pooed in this forum as non-traditional - is anybody out there still using horse-hoof glue and bamboo strip - most of the stuff I print is self designed.

    All the hulls I have built have been hand built. I do have one kit with a moulded hull - a Graupner Optimist- it's been in the garage attic unfinished since 1993. I must get round to it one day. But before that, there's this Ferret plan in the MB mag. That looks interesting.....

    glue
    graupner
    hull
    model
    kit
    build
    scratch scratch
    scratch build
    forum
    built
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    1
    ๐Ÿ“ Port holes
    1 year ago by Delboy ( Leading Seaman)
    Flag
    View All
    -

    port holes
    port
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    ๐Ÿ“ Port holes
    1 year ago by Delboy ( Leading Seaman)
    Flag

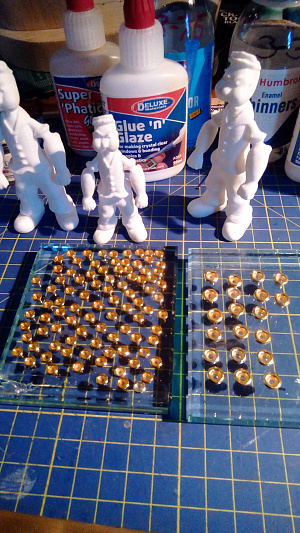

    At risk of appearing to teach monkeys to suck eggs or grandmas to climb trees...

    Upon pondering the subject of potholes; plans always show them as port holes and after-build photographs show them as painted black circles. I know what I prefer.

    On line purchases of brass port holes can be not cheap. I've found that normal brass eyelets with a blob of Deluxe Materials Glue 'n' Glaze in the hole dries to a passable imitation of the real thing.

    I appreciate that you are just swapping the painstaking painting of rows of black circles with painstakingly drilling a row of holes and gluing them in but if you question the sanity of building a miniature boat then it all seems quite normal.

    And if you have any issues, take them up with my mate Popeye.

    plans
    glue
    paint
    port holes
    sub
    port
    build
    drill
    show
    rc boat
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    ๐Ÿ“ Stuck in the middle.
    1 year ago by Delboy ( Leading Seaman)
    Flag
    You could always build a get-out-of-trouble springer tug model. So, when you get into trouble, you could send in the cavalry.

    model
    build
    tug
    springer
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    ๐Ÿ“ Crew
    1 year ago by Delboy ( Leading Seaman)
    Flag
    Well, you can always scale it on your slicer. I reckon that 80 percent is about 1/24 scale.

    crew
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    ๐Ÿ“ Crew
    1 year ago by Delboy ( Leading Seaman)
    Flag
    I can only speak for myself but I hate to see model boats tooling about with nobody on the bridge, like the Marie Celeste or a Philippine super tanker.
    So, i was very pleased to find this able bodied seaman that I can reproduce on my 3D printer.

    https://www.thingiverse.com/thing:2757066
    https://www.thingiverse.com/thing:2757066
    ๐Ÿ”—

    model boats
    model
    crew
    3d printer
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    ๐Ÿ“ What transmitter , receiver
    1 year ago by Delboy ( Leading Seaman)
    Flag
    Planet kit is cheap and cheerful, if it's still in production. it's not got the most bells and whistles but it's functional and at an affordable price.
    Take a look at the Howe's double page advert in MB magazine. They often have special deals.

    kit
    receiver
    transmitter
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    ๐Ÿ“ 3d printing
    2 years ago by Delboy ( Leading Seaman)
    Flag
    Oops! I just noticed that Jarvo suggested the same approach. Still, great minds, etc, eh Jarvo?

    Except that you just make the hole a 'cylinder' with a facet count of 6, i.e. hexagonal.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    ๐Ÿ“ 3d printing
    2 years ago by Delboy ( Leading Seaman)
    Flag
    I have been guilty of thinking along conventional lines. There's no need to cut a thread in the prop.
    Just design the prop with provision for a nut to be glued into it.

    glue
    prop
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    ๐Ÿ“ 3d printing
    2 years ago by Delboy ( Leading Seaman)
    Flag
    Whoa! Propellers are a serious 3D proposition!
    Not least as you can't have a threaded prop/shaft. Well, you could but it would be rat shit.
    Shall have to think about that one.

    I'm speaking from the design perspective, of course. The Machine does what it's told to do.

    prop
    propeller
    prop shaft
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    ๐Ÿ“ 3d printing
    2 years ago by Delboy ( Leading Seaman)
    Flag
    T'is the season of night school. Check out your local college of further education to see if they offer any 3D printing courses.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    1
    ๐Ÿ“ DRAGONFLITE 95 MAINSAIL LUFF RINGS
    2 years ago by Delboy ( Leading Seaman)
    Flag
    A looks about right, Les. That's how they are on my Dragon 65.

    sail
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    ๐Ÿ“ 3d printing
    2 years ago by Delboy ( Leading Seaman)
    Flag
    Everything is feasible. You have to realise the constraints of the system though. My printer has a maximum build volume of around 200x200x200 mm which is generous in the home printer category. Many are much smaller.
    So, to get a model of any size, you might have to cut it into blocks which are glued together after printing.

    glue
    model
    build
    system
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    2
    ๐Ÿ“ 3d printing
    2 years ago by Delboy ( Leading Seaman)
    Flag
    Sorry. That should be:
    Www.nesta.org.uk/uk-makerspaces-data
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    1
    ๐Ÿ“ 3d printing
    2 years ago by Delboy ( Leading Seaman)
    Flag
    If you don't have access to a 3D printer, it might be worth your while checking whether their is a local Maker space you can join. They will almost certainly have a 3D printer you can borrow and are likely to also have laser cutting, metal turning and milling, and a host of other facilities normally outside the pocket of the average modeller.
    We are just starting up our Maker space in Guernsey but to find out if you have one near you, check www.nesta.org.uk/uk-makerspace-data.

    model
    modeller
    model makers
    3d printer
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    2
    ๐Ÿ“ 3D printing
    2 years ago by Delboy ( Leading Seaman)
    Flag
    Hmm. Deja vu.
    I didn't miss the point. it's more that the point was poorly made. You don't rely on people to do everything for you except make the hull, draw the plans, etc etc. So the original statement was silly.

    I too am a pensioner with the obvious limited financial resources. I just have a 3D printer which I use for many purposes. So, you don't have the skills to use one. That's no big deal, I can't dance or juggle but still get along OK.

    The thread is about 3D printing and shouldn't be rat-holed because you don't have access to a printer.

    plans
    hull
    3d printer
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    2
    ๐Ÿ“ 3D printing
    2 years ago by Delboy ( Leading Seaman)
    Flag
    That's a fair comment but you could say the same about buying a pre-moulded hull or a kit. But, take it to its logical conclusion, do you fabricate your own plywood? Cultivate, and harvest your own balsa wood/bass wood/mahogany?
    Be a purist if that's what you want but is it right to sneer at others who find their own path to tread?

    hull
    wood
    plywood
    kit
    balsa wood
    fabricate
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    1
    ๐Ÿ“ 3D printing
    2 years ago by Delboy ( Leading Seaman)
    Flag
    Reprap is practically the industry standard for 3D printing.
    It doesn't say how large the print volume is, the Ultimaker is around 200 x 200 x 200 mm.
    The picture is difficult to read but it doesn't look as if it has a heated build plate in which case, you are going to need an enclosure of some sort to keep drafts out to avoid your prints warping.
    You can't argue with the price, though.

    build
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    ๐Ÿ“ 3D printing
    2 years ago by Delboy ( Leading Seaman)
    Flag
    As a post post script regarding your comment concerning printing parts to make the machine better. This is probably the case with most printers in this sort of price range but it's not arduous and, if you design the parts yourself using something like OpenSCAD then you you know that you have really earned that whisky nightcap.

    parts
    chine
    cad
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    ๐Ÿ“ 3D printing
    2 years ago by Delboy ( Leading Seaman)
    Flag
    As a post script, Cura allows you to print direct from your PC via a USB cable (supplied with the printer) or to write the GCode to an SD card which slots into the printer and from which you can select the file to print.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    ๐Ÿ“ 3D printing
    2 years ago by Delboy ( Leading Seaman)
    Flag
    I wasn't sure that the Ultimaker original+ is still available but I just checked and it is at 995 Euros.
    It comes as a flat-pack with all the necessary pieces and, with mine, a free spool of filament. The frame is made from high quality ply wood and the quality and accuracy of the laser cutting is astonishing although you might need to ease a few of the joints with sand paper for a not too snug fit. I sealed my frame with cellulose dope floor a quick-dry finish.
    The electronics and stepper motors are easy to fit as is the setting up of the transmission components although the latter are a bit fiddly.

    All in all, it was good fun building the beast.

    Printing with it is easy, you download the Cura program which will build your G-Code files from an STL file and allow you to set up the printing parameters for the job.

    I've had a few disasters but generally get good results with PLA printed at 205 degrees with a bed temperature of 50 degrees.
    I've found PLA from Rigid ink gives the best results but, to be honest, I haven't exactly 'played the field's with filament providers.


    One point in favour of Rigid ink is that, once you are on their email distribution list, they will send you hints and tips for printing which is a boon as Ultimaker don't provide a pilot's operating hand book or much further reading on it.

    Would I get another one? Probably, yes.

    motor
    pool
    wood
    build
    seal
    stepper
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share
    ๐Ÿ“ 3D printing
    2 years ago by Delboy ( Leading Seaman)
    Flag
    I've been using a 3D printer for 18 months now. Very useful for printing things like ship's wheels, bollards, etc.
    Thingiverse is a useful resource although, these days, every other design seems to be for a fidget spinner - very yawn inspiring.
    I design much of the stuff I print with OpensCAD, an open source (free) application but it helps to have a bit of computer programming experience to use it effectively.

    ship
    computer
    programming
    3d printer
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ—ฃ๏ธ Share


    About This Website
    Terms of Service
    Privacy Policy
    Cookies used in this website are gluten free, wheat free and dairy free. By using this website you agree to our use of cookies. More Info
