💬 Re: Here's another sportfish
6 months ago by 🇧🇹 Sakibian (
Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 293 Views · 0 Likes
Flag
💬 Add Comment
According to the motor, ESC is underpowered. I needed at least A 60A ESC.
Here, let's have a look at it.
Here, let's have a look at it.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
Login To
Remove Ads
Remove Ads

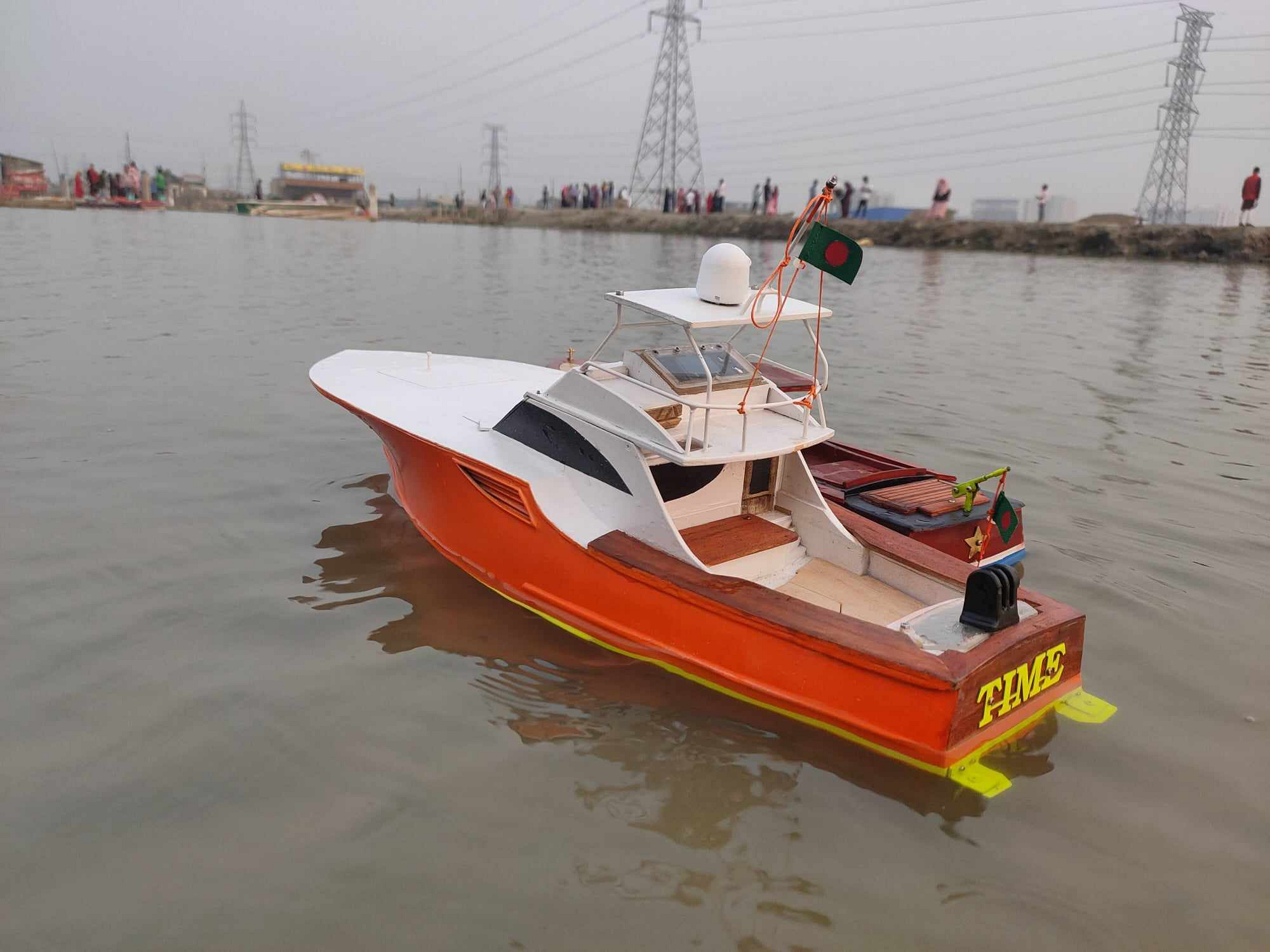

📝 Here's another sportfish
6 months ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 293 Views · 6 Likes · 2 Comments
Flag
💬 Add Comment
Single screw
1500mah 3s
2800kv inrunner water-cooled & 40A esc(underpowered ESC)
MG009 servo
Why can't i upload a video?
1500mah 3s
2800kv inrunner water-cooled & 40A esc(underpowered ESC)
MG009 servo
Why can't i upload a video?
▲
⟩⟩
Commodore-H
MartinW
EdW
RodC
Doogle
Scratchbuilder
💬 Re: Sportfish 24"
8 months ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 25 Views · 0 Likes
Flag
💬 Add Comment
Hey,@Chum444
I missed a part of your comment. The boat is scratch built. The hull was a paid SOLIDWORKS design and turned into a 3d printable file.
Everything but the hull is handmade, including the drive shafts.
I specially ordered for the flare 🎃🔥
Photo: Hull no 3
-Sakib
I missed a part of your comment. The boat is scratch built. The hull was a paid SOLIDWORKS design and turned into a 3d printable file.
Everything but the hull is handmade, including the drive shafts.
I specially ordered for the flare 🎃🔥
Photo: Hull no 3
-Sakib
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
💬 Re: Sportfish 24"
8 months ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 25 Views · 3 Likes
Flag
💬 Add Comment
Great observation,Chum444!
Yes, it was a stern heavy boat on the first trial. These are my first ever trial photos,i ran again but i don't have any other running photos.
Originally,i didn't plan for opto ESC's. But i had some opto ESC's (these are usually used in drones and very lightweight) and end up using a couple of those. But the original boat ESC's are a bit heavier and the plan was to use them for some weight.
Another problem i noticed,this was a small boat to use a 5200mah 3s lipo. I made a small space under the bridge section for the battery,and the 5200mah just fits. But it made the boat stern heavy while running fast.
One more thing,i added some steel balls to gain some stability under the bridge section+ beside the rudder's. Those made the boat stern heavy as well.
So ,now I'm trying fix them one by one. This was my first ever sportfish & made some silly mistakes,so i appreciate every little bit you guys suggest!
Here, I'm gonna leave some photos of hull no3. She's a better boat than this one. It has bigger and heavier motors(i had emax 2212 1400kv) , front ESC's which are heavy ,and battery space at the center.
I will try to upload a bunch of photos when i can.(it was a custom order) CHEER'S!
-Sakib
Yes, it was a stern heavy boat on the first trial. These are my first ever trial photos,i ran again but i don't have any other running photos.
Originally,i didn't plan for opto ESC's. But i had some opto ESC's (these are usually used in drones and very lightweight) and end up using a couple of those. But the original boat ESC's are a bit heavier and the plan was to use them for some weight.
Another problem i noticed,this was a small boat to use a 5200mah 3s lipo. I made a small space under the bridge section for the battery,and the 5200mah just fits. But it made the boat stern heavy while running fast.
One more thing,i added some steel balls to gain some stability under the bridge section+ beside the rudder's. Those made the boat stern heavy as well.
So ,now I'm trying fix them one by one. This was my first ever sportfish & made some silly mistakes,so i appreciate every little bit you guys suggest!
Here, I'm gonna leave some photos of hull no3. She's a better boat than this one. It has bigger and heavier motors(i had emax 2212 1400kv) , front ESC's which are heavy ,and battery space at the center.
I will try to upload a bunch of photos when i can.(it was a custom order) CHEER'S!
-Sakib
▲
⟩⟩
boatmam
MouldBuilder
jbkiwi
💬 Re: Sport yacht 19"
8 months ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 27 Views · 3 Likes
Flag
💬 Add Comment
@Chris
She goes flying at 75-80% throttle, can't do the full throttle. She's a bit too light, because of balsa wood.
I did put some bearing balls inside though,to gain some weight,it brought back some stability but still can't do the full throttle test. Oh,i did add a couple of stabilizers.
She goes flying at 75-80% throttle, can't do the full throttle. She's a bit too light, because of balsa wood.
I did put some bearing balls inside though,to gain some weight,it brought back some stability but still can't do the full throttle test. Oh,i did add a couple of stabilizers.
▲
⟩⟩
Colin H
ChrisG
Doogle
💬 Re: Sport yacht 19"
8 months ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 27 Views · 2 Likes
Flag
💬 Add Comment
Hello @Flaxby
Thanks for the comment.
Star, was inspired from a British p40 spirit yacht, which is a truly beautiful boat. I found some drawings of the p40 yacht and i did the drawing myself,yes. It's a hundred percent DIY job and i love to do it my my hands. It's a pleasure that I can't deny!
I will leave a photo of the original spirit yacht below my comment.
Cheers! - Sakib
Thanks for the comment.
Star, was inspired from a British p40 spirit yacht, which is a truly beautiful boat. I found some drawings of the p40 yacht and i did the drawing myself,yes. It's a hundred percent DIY job and i love to do it my my hands. It's a pleasure that I can't deny!
I will leave a photo of the original spirit yacht below my comment.
Cheers! - Sakib
▲
⟩⟩
Colin H
ChrisG
💬 Re: Sport yacht 19"
8 months ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 30 Views · 0 Likes
Flag
💬 Add Comment
Hey!! @ Jumpugly
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
💬 Re: Sport yacht 19"
8 months ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 30 Views · 0 Likes
Flag
💬 Add Comment
Thank you, @Doogle!
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
💬 Re: Sport yacht 19"
8 months ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 59 Views · 3 Likes
Flag
💬 Add Comment
THANK YOU , Colin!
Yes,it does look good and it's much more fun to run!
Yes,it does look good and it's much more fun to run!
▲
⟩⟩
ChrisG
Colin H
GaryLC
📝 Sport yacht 19"
8 months ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 60 Views · 16 Likes · 11 Comments
Flag
💬 Add Comment

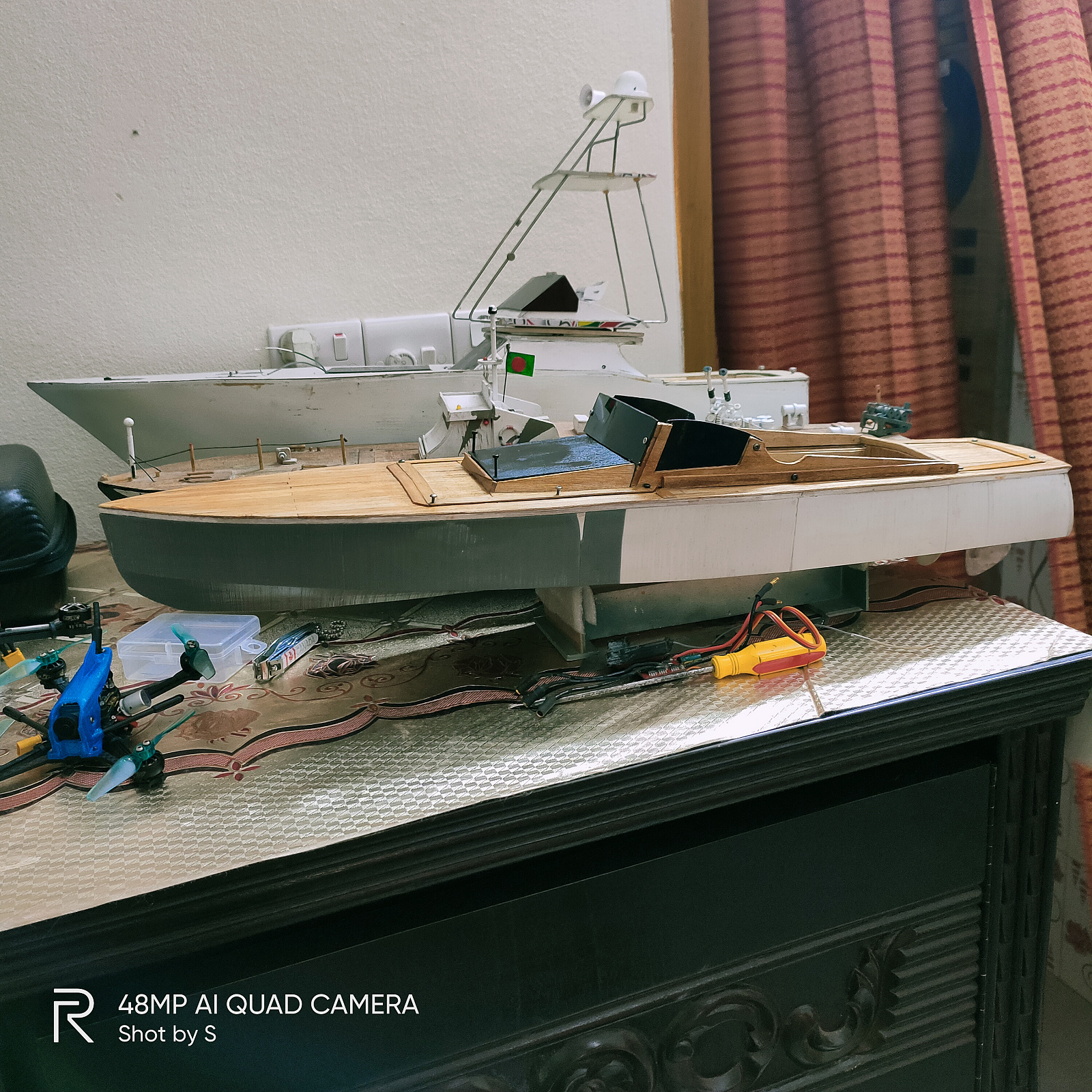

2x2300 kv , 27mm dual blades
2x 35A opto
1x 850-1300mah 2s/3s lipo
Balsa wood deck, pvc + balsa composite hull, aluminum motor mount. It's my first ever wooden work,so i wasn't expecting a lot.
Star, a 19" sportyacht
2x 35A opto
1x 850-1300mah 2s/3s lipo
Balsa wood deck, pvc + balsa composite hull, aluminum motor mount. It's my first ever wooden work,so i wasn't expecting a lot.
Star, a 19" sportyacht
▲
⟩⟩
AustinG
ChrisG
boatmam
flaxbybuck
dave976
jumpugly
RogerA1
RodC
GaryLC
DuncanP
Scratchbuilder
Doogle
Fred
RNinMunich
hermank
Colin H
📝 Sportfish 24"
8 months ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 36 Views · 7 Likes · 3 Comments
Flag
💬 Add Comment
Sorry for the late update.
I have changed a lot spec's. It has 2x Emax 2212 1400kv , 35mm triple blade props, 35A opto x2 and a 5200mah 3s lipo with a metal gear 9g servo. Looks good,sails good.
I have changed a lot spec's. It has 2x Emax 2212 1400kv , 35mm triple blade props, 35A opto x2 and a 5200mah 3s lipo with a metal gear 9g servo. Looks good,sails good.
▲
⟩⟩
ChrisF
MouldBuilder
jbkiwi
RNinMunich
GaryLC
hermank
Scratchbuilder
Login To
Remove Ads
Remove Ads
💬 Re: Deck planking and bridge
2 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 69 Views · 0 Likes
Flag
💬 Add Comment
All hail SPORT FISHERMAN 💪😅
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 Deck planking and bridge
2 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 89 Views · 9 Likes · 2 Comments
Flag
💬 Add Comment

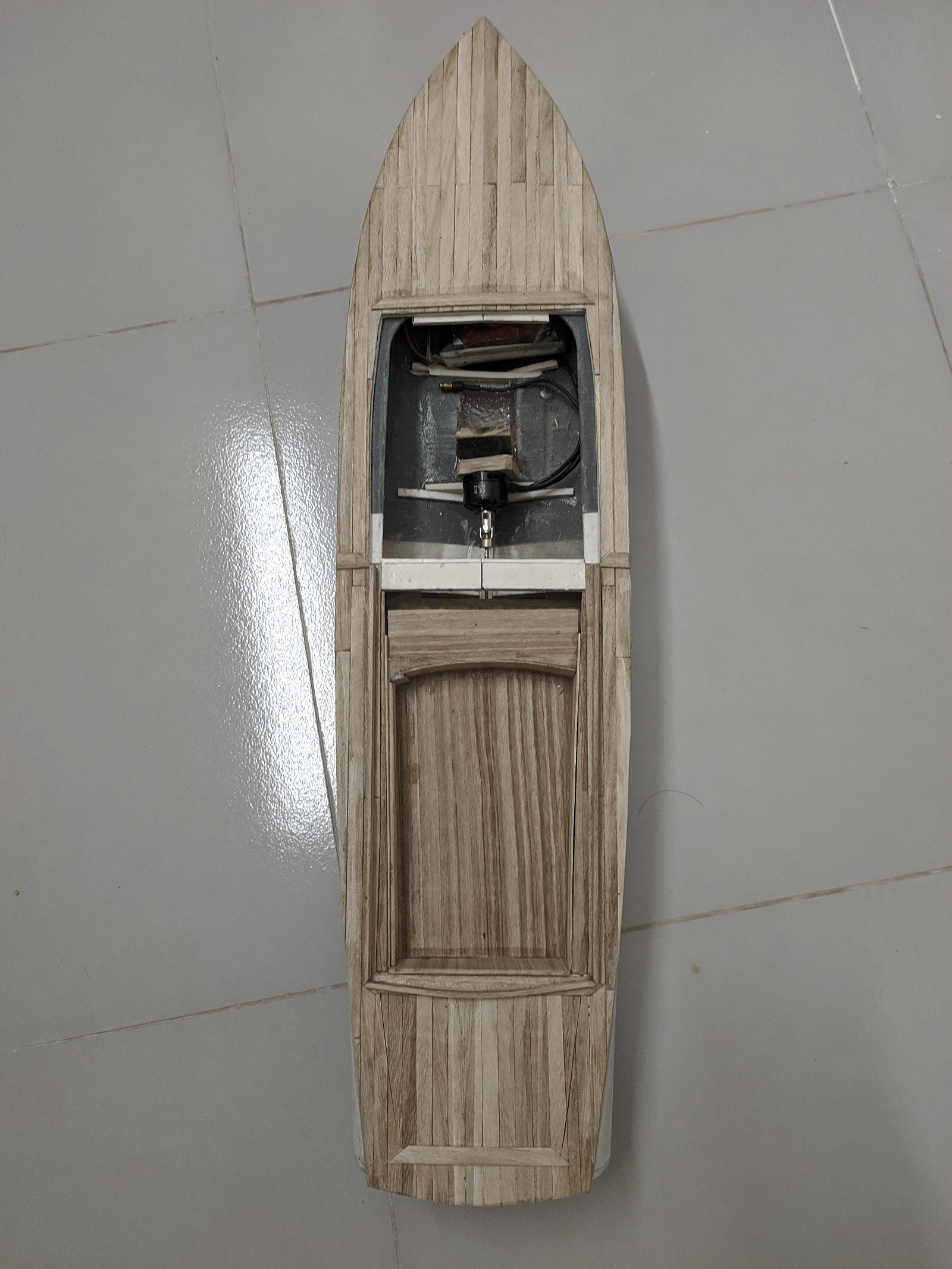

2mm balsa on the whole deck.under the wood,there will be pvc.
Shame,the wood will be painted white.
Bridge is also wooden.
Shame,the wood will be painted white.
Bridge is also wooden.
▲
⟩⟩
RNinMunich
boatmam
GaryLC
hermank
Scratchbuilder
jbkiwi
Krampus
mturpin013
Colin H

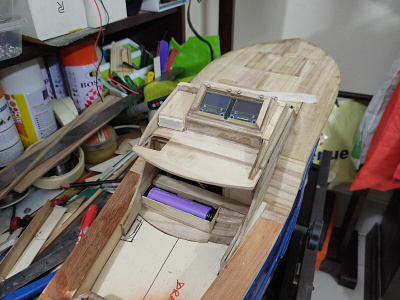

📝 Rpm seson set-up to get the RPM. Kinda fancy,uh?
2 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 89 Views · 4 Likes
Flag
💬 Add Comment
This was an idea from nowhere. Looking at the actual boat's from famous Jarrett Bay Boat work's,they all has Garmin display on the bridge.
Wanted to do the same but what could be a good mini display and what should i show?
My friend, who's good with electronics ,helped me to build these arduino oled displays and did all the coding stuff. So i can put on the Boat name,rpm, distance covered, engine temp.
The black fan is a 12v blower fan for 3d printer. Air cooling.
Wanted to do the same but what could be a good mini display and what should i show?
My friend, who's good with electronics ,helped me to build these arduino oled displays and did all the coding stuff. So i can put on the Boat name,rpm, distance covered, engine temp.
The black fan is a 12v blower fan for 3d printer. Air cooling.
▲
⟩⟩
RNinMunich
jbkiwi
mturpin013
Colin H
💬 Re: Air vent and deck support
2 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 89 Views · 2 Likes
Flag
💬 Add Comment
Thanks a lot for the sharing,Chris!
Firstly, same here. I'm not sure how it will work or even if it will work or not. Hopefully the shafts wont bent, HOPEFULLY.
And the rudder linkage, I'm not sure what you were talking about. I hope you will share some more ideas so i can do better with them.
I live in Bangladesh and there's no Boat shop here. I am trying these ideas so i can know before opening a Boat shop/Hobbyshop. I do get the parts from China but bringing all the part's are kind of expensive so i tried to build some parts myself. R&D 😊
-Sakib
Firstly, same here. I'm not sure how it will work or even if it will work or not. Hopefully the shafts wont bent, HOPEFULLY.
And the rudder linkage, I'm not sure what you were talking about. I hope you will share some more ideas so i can do better with them.
I live in Bangladesh and there's no Boat shop here. I am trying these ideas so i can know before opening a Boat shop/Hobbyshop. I do get the parts from China but bringing all the part's are kind of expensive so i tried to build some parts myself. R&D 😊
-Sakib
▲
⟩⟩
RNinMunich
Colin H
💬 Re: Setting the motors and propeller shaft
2 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 98 Views · 1 Like
Flag
💬 Add Comment
I chose brass because it doesn't catch rust. And i had to cut some threads on the shaft. Brass is softer than SS.
I tried to thread my ss shafts but my drill machine can't handle it.
I don't have lathe either so brass was my only option.
Im putting some photos,there you can see i used brass shaft on them both and they didn't let me down,till now. 😐
So i had to keep faith!
-Sakib
I tried to thread my ss shafts but my drill machine can't handle it.
I don't have lathe either so brass was my only option.
Im putting some photos,there you can see i used brass shaft on them both and they didn't let me down,till now. 😐
So i had to keep faith!
-Sakib
▲
⟩⟩
RNinMunich
📝 Air vent and deck support
2 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 99 Views · 4 Likes · 3 Comments
Flag
💬 Add Comment
2mm balsa to make the air vent. 2/3mm PVC to build the supports. I will put a layer of balsa on top. The top will be wooden, hopefully.
▲
⟩⟩
RNinMunich
jbkiwi
MouldBuilder
Colin H
📝 The rudder blades are angled!
2 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 99 Views · 2 Likes
Flag
💬 Add Comment

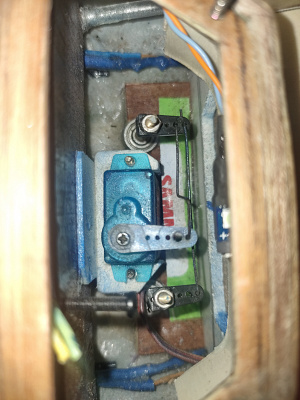

This is one confusing test I'm doing on the boat.
Normally rudder blades are vertical but on this one i tried a bit angle on them. Sail boats has these kind of angle's.
I'm still not sure,if these will work or not but I'm gonna give a try.
I put a couple of bearings,the the copper pipe and then the shaft. I wasn't sure if the bearings would stop the water so i kept another way to rotate the rudder shafts. But the bearings are good enough. I will put some more white grease on them.

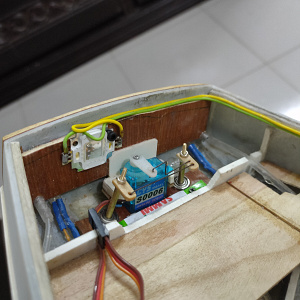

Had some changes on the rudder's arm. Servo arm's are better that the handmade wooden arms.
Any help appreciated!
Normally rudder blades are vertical but on this one i tried a bit angle on them. Sail boats has these kind of angle's.
I'm still not sure,if these will work or not but I'm gonna give a try.
I put a couple of bearings,the the copper pipe and then the shaft. I wasn't sure if the bearings would stop the water so i kept another way to rotate the rudder shafts. But the bearings are good enough. I will put some more white grease on them.
Had some changes on the rudder's arm. Servo arm's are better that the handmade wooden arms.
Any help appreciated!
▲
⟩⟩
RNinMunich
Colin H
📝 Lube supply
2 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 99 Views · 2 Likes
Flag
💬 Add Comment
Another thing i tried myself was the Lubricant supply to the propeller shafts. The oil supply box will hold the lube and slowly deliver to shaft sleeves. It's kinda funny but it works.
▲
⟩⟩
RNinMunich
Colin H
📝 Setting the motors and propeller shaft
2 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 100 Views · 2 Likes · 2 Comments
Flag
💬 Add Comment

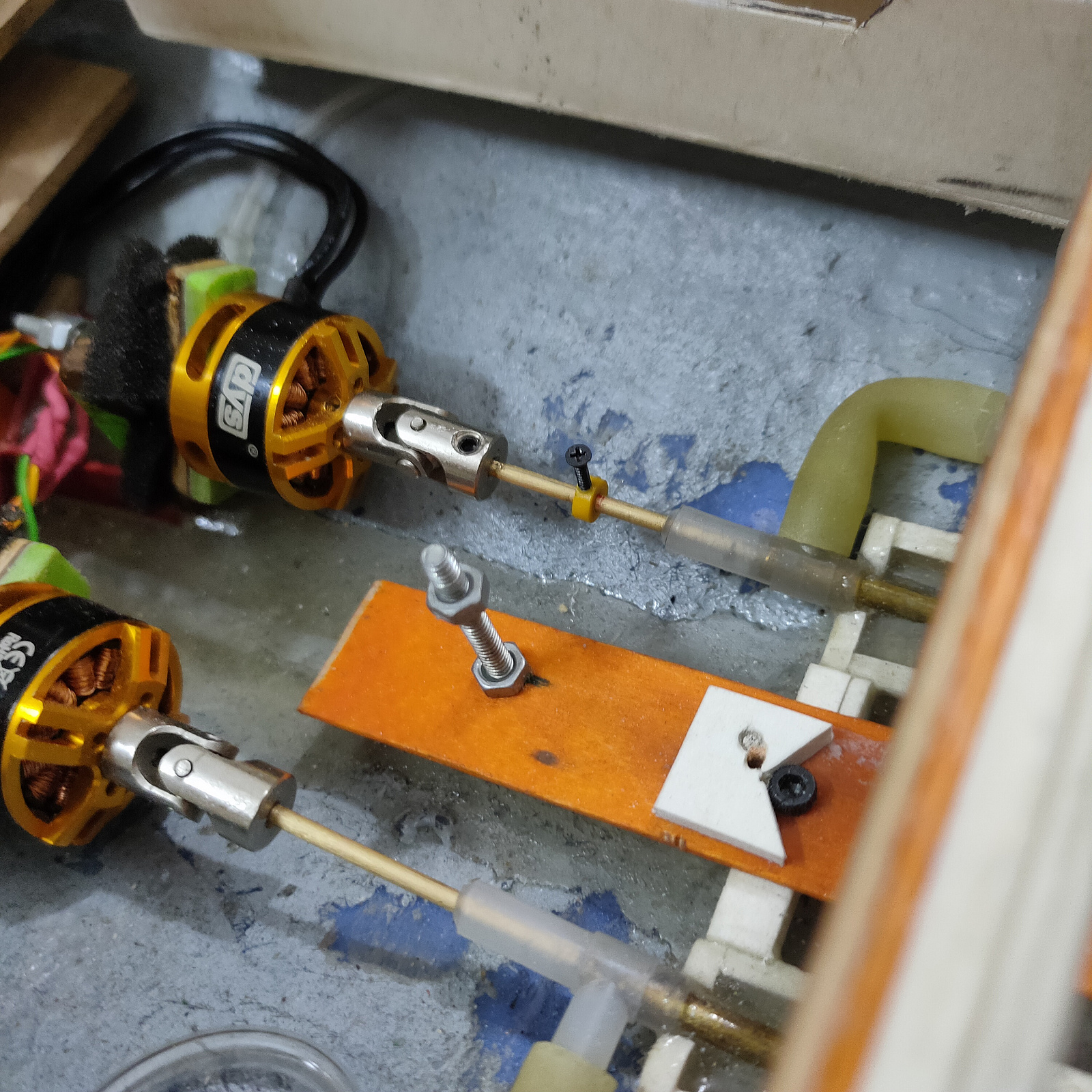

I had to find a way,how to set up the motor so it can run and vibrate. I found this way myself and it looks promising,till now.
Conventional motor mounting used,made a lot sound and sometimes the universal joints just came out one side.
The way i set the motors now can run free and vibrate.
I wanted to know,how do you do it? Do you ever tried to make a flexible motor mount? If yes,how was it?
On the propeller shaft,im using brass rod,m2. Bought a thread cutter to cut threads on the shafts. It wasn't to hard. Using brass gives me a painless rust free running time.
I would use stainless steel but ss ain't easy to cut threads on it.
Conventional motor mounting used,made a lot sound and sometimes the universal joints just came out one side.
The way i set the motors now can run free and vibrate.
I wanted to know,how do you do it? Do you ever tried to make a flexible motor mount? If yes,how was it?
On the propeller shaft,im using brass rod,m2. Bought a thread cutter to cut threads on the shafts. It wasn't to hard. Using brass gives me a painless rust free running time.
I would use stainless steel but ss ain't easy to cut threads on it.
▲
⟩⟩
RNinMunich
Colin H
📝 Sport fisherman build blog
2 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 101 Views · 2 Likes
Flag
💬 Add Comment

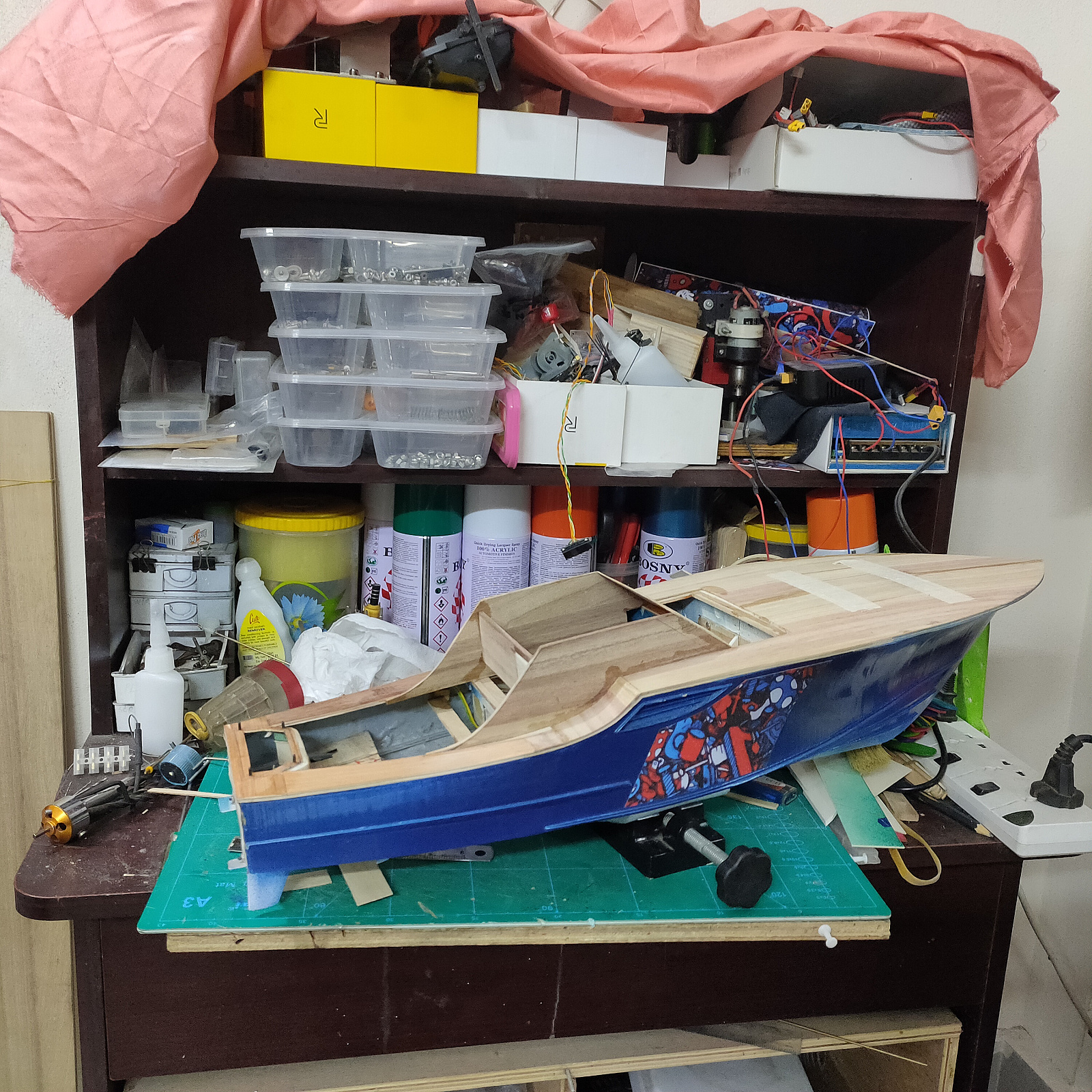

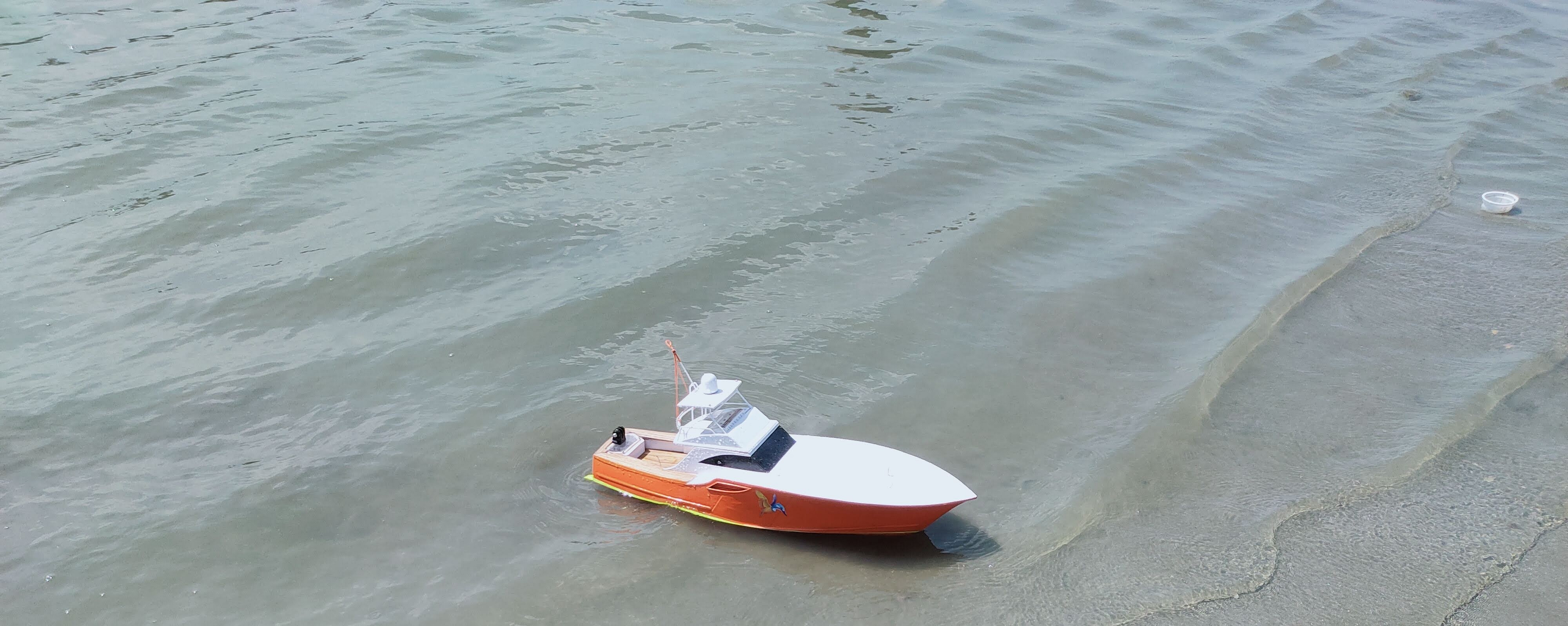

Always wanted to build a sportfisher. Now building one.
24" L, 7" Beam
Flashhobby 2300kv outrunner x2
360 A single brushless ESC
Name plate was laser cut on 3mm ply. Decided to call it "Show Time".
24" L, 7" Beam
Flashhobby 2300kv outrunner x2
360 A single brushless ESC
Name plate was laser cut on 3mm ply. Decided to call it "Show Time".
▲
⟩⟩
RNinMunich
Colin H
Login To
Remove Ads
Remove Ads
📝 Gentlemen's Cruiser
2 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 336 Views · 8 Likes
Flag
💬 Add Comment
22" L, 4" B
Flashhobby 2300kv outrunner
30A emax brushless
7.4-11.1v
Weighs about 950 grams.
GoPro session
Flashhobby 2300kv outrunner
30A emax brushless
7.4-11.1v
Weighs about 950 grams.
GoPro session
▲
⟩⟩
RNinMunich
Roy-Bullivant-Jnr
Madwelshman
buddy
pressonreguardless
Jimba
philcaretaker
Colin H
💬 Re: Gentleman's cruiser
3 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 43 Views · 1 Like
Flag
💬 Add Comment
Hello Stephan,
I guess you're asking about the plank color.
I just varnished it several times till i love the color on the boat. When it becomes red, i sprayed clear coat. Just these 2.
-Sakib
I guess you're asking about the plank color.
I just varnished it several times till i love the color on the boat. When it becomes red, i sprayed clear coat. Just these 2.
-Sakib
▲
⟩⟩
stevedownunder
💬 Re: Gentleman's cruiser
3 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 43 Views · 2 Likes
Flag
💬 Add Comment
Hello,mturpin013.
It takes time to print a boat in 3d printer. If you take this boat,it has a 2mm thick hull. Took 2 days approx.
And if you build a fiberglass hull thats very rigid. Wooden hulls also. But a 3d printed hull aint that strong. I put a layer of fiberglass in it. And the part's were together using CA glue.
I'm currently building a 610mm sports fisherman. The front part takes 14 hours to print. Will try to make a blog with it. Wish me luck!
It takes time to print a boat in 3d printer. If you take this boat,it has a 2mm thick hull. Took 2 days approx.
And if you build a fiberglass hull thats very rigid. Wooden hulls also. But a 3d printed hull aint that strong. I put a layer of fiberglass in it. And the part's were together using CA glue.
I'm currently building a 610mm sports fisherman. The front part takes 14 hours to print. Will try to make a blog with it. Wish me luck!
▲
⟩⟩
RNinMunich
stevedownunder
💬 Re: Gentleman's cruiser
3 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 43 Views · 1 Like
Flag
💬 Add Comment
Haha. Thank you so much,newby.
I already had the first run. Can't upload the video. It only supports YouTube.
I already had the first run. Can't upload the video. It only supports YouTube.
▲
⟩⟩
stevedownunder
📝 Motor Gunboat
3 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 196 Views · 5 Likes
Flag
💬 Add Comment
Scratch built motor gun boat from Bangladesh.
Tried my best to upgrade it into a brushless one. First attempt was brushed and it was kind of a pain in the ass.
It runs far better now.
Tried my best to upgrade it into a brushless one. First attempt was brushed and it was kind of a pain in the ass.
It runs far better now.
▲
⟩⟩
Colin H
RNinMunich
Madwelshman
Commodore-H
jbkiwi
📝 Gentleman's cruiser
3 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 49 Views · 5 Likes · 6 Comments
Flag
💬 Add Comment
Hello everyone,this is my gentleman's cruiser.
3d printed hull, supposed to be a motor launch. I moved away the enclosed bridge space and kept it open with front windshield only.
Did a planking job with balsa wood of 1mm. 2300KV flash hobby motor with 30A brushless ESC.
Normally use a lipo of 850maH for a 10minutes run.
It has also a 2cell 2000mah Li-ion setup inside.
Ask me anything if you want to know.
Thank you, everyone!
3d printed hull, supposed to be a motor launch. I moved away the enclosed bridge space and kept it open with front windshield only.
Did a planking job with balsa wood of 1mm. 2300KV flash hobby motor with 30A brushless ESC.
Normally use a lipo of 850maH for a 10minutes run.
It has also a 2cell 2000mah Li-ion setup inside.
Ask me anything if you want to know.
Thank you, everyone!
▲
⟩⟩
RNinMunich
stevedownunder
Graham93
MouldBuilder
Newby7
💬 Re: EXHAUST SMOKER MKIV WATER PULSING
4 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 30 Views · 0 Likes
Flag
💬 Add Comment
Where to get those water pumps?
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 Putty and sanding
5 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 24 Views · 4 Likes
Flag
💬 Add Comment

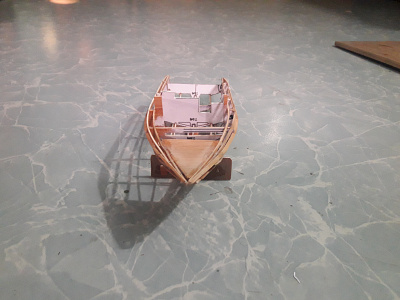

Did some putty job on both sides. Still a lot sanding to do. And put some white paint inside. it will make it look bit clean and also work as a layer. Will prevent the water reaching ply.
Beside of it a small cabin cruiser.
Beside of it a small cabin cruiser.
▲
⟩⟩
Donnieboy
Inkoust
BOATSHED
figtree7nts
💬 Sports cruiser "ALI"
5 years ago by 🇧🇹 Sakibian ( Chief Petty Officer 2nd Class)
Chief Petty Officer 2nd Class)✧ 19 Views · 2 Likes
Flag
💬 Add Comment
I actually drop small amount first then i use my 120number sand paper on the joint to genarate some ply powder then put another drip on it.
The powder works great.
But i will try your idea 😎
The powder works great.
But i will try your idea 😎
▲
⟩⟩
RNinMunich
BOATSHED
Login To
Remove Ads
Remove Ads
