Emma C. Berry Sailboat

Started by carpemoment

7 updates 28 likes 8 comments 0 followers

Emma C. Berry Conversion

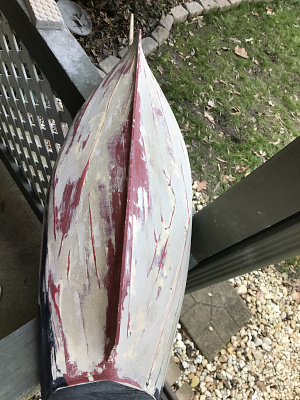

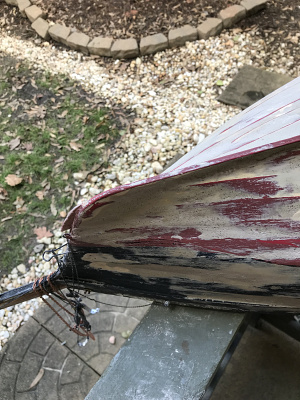

I purchased this kit 30 years ago. I finally finished it 8 years ago as a static model. Recently, I decided to convert it to a remote control model. We displayed it for a few years but when we moved and downsized, it had to go to storage. Overall it survived but the hull had some damage. Also, since I didn't build it with the intent of ever putting it into the water, I had to patch, seal, rethink, etc.
Liked by miketheballast and Ronald and
1 comment
  1. Grumpy1949
    Leading Seaman
    I got my first kit back in 1974. it went to god during a house shift. Over the last 4 yeays i have built another 2 Emmas. The first is a 30in model ofthe schooner rig and recently a 48in model of the original single masted smack.
    The schooner is fitted with a bulb keel tee shaped and sails beautifully in all strengths of wind. The smack is a 5 knot max sail due to the massive amount of sail area. The smack was fitted with a pond bulb seal as most of its sailing was in reedy ponds. The winch system on both boats sre endless which work beautifully using 6v. I have a heap of photos if reqd
    Liked by miketheballast and alan20 and

Sign in to comment on this update.

Emma C Berry Schooner Rig

built this one a few years ago. she is fitted with an aux motor only used when we were becalmed. bilge pump auto ops a couple of times in really high wind and foolishly left the topsail up. drop bulb keel installed. flyin jib loosely tethered to jib boom. she is about 30ins and the schooner rig fits quite nicely into the back of my outlander without demasting. she is lovely to sail
Liked by alan20 and RNinMunich and
4 comments
  1. carpemoment
    Leading Seaman
    Beautiful work. Would you mind sharing some photos/info about your rc setup. Winches used, other servos, etc.

Sign in to comment on this update.

Emma C Berry Fishing Smack

this was how she was first built. as a lobster smack with wet wells to bring the catch back alive. she is 40ins single mast single jib massive amount of sail area. short heavy pond keel.aux motor fitted and auto bilge pump fitted. hates a breeze above 5 knots. when the main is out about half, she suddenly becomes lee helmed. will rectify this in the near future.
had a complete electrical at the pond, rescued by our rescue barge. difficult to keep on course, no wonder they went to schooner rig
Liked by jacko and Donnieboy and
2 comments
  1. RNinMunichBronze
    Fleet Admiral
    Probably because -
    "The root cause of lee helm is when the centre of pressure exerted by the wind on the sails falls too far forward of the centre of resistance of the hull—the natural point at which the hull tries to pivot. This tends to push the bow of the boat away from the wind. This can be due to a poor design, for example with the mast too far forward."
    Good ol' Wiki! 😉
    https://en.wikipedia.org/wiki/Lee_helm
    Nice build 👍 Be interesting to see how a schooner rigged model would behave. Cheers, Doug
    PS love the Rescue Barge 👍
    Liked by teejay and Inkoust and
  2. Ronald
    Fleet Admiral
    I was told by a boat yard, that the rudder placement was be far a stern with this type of rig. Where is it on this boat, your photos do not show the model out of the water.

Sign in to comment on this update.

Emma C. Berry Conversion

Lines and shrouds - check. Winch, rudder servo, ballast -- check, check, and check. Ready for her maiden voyage as soon as a last minute repair on the hatches dries.

Sign in to comment on this update.

Emma C. Berry Conversion

Decided to sail her maiden voyage in a more controlled environment -- our condo pool. Rudder worked fine. Lines for sails got fouled up in the winch quickly. Wind was very light. A lot of sideways movement so I will have to increase the keel. I expected that but was hoping that it would be okay for pleasure cruising but there is clearly not enough underwater resistance to gain much control. With the lines fouled, a sudden 30 foot wave took her over and she turtled. BUT she didn't sink and she was a beauty while it lasted. Funny thing is my maiden cruise in my 14' Cyclone ended with capsizing for a similar reason. Only difference is it had been awhile since I had sailed and I forgot to let off the throttle when the wind picked up and a 100' wave took me over. Recovery with my Emma was much less challenging than with my Cyclone. 😀😉⛵️
Liked by figtree7nts

Sign in to comment on this update.

carpemoment Opening post

Emma C. Berry Sailboat

I took my Emma out for a second "real" water voyage, tethered of course. Overall I am pleased with my progress. I need a more powerful servo to manage the sails and my rudder mechanism needs to be reworked so that it doesn't bind-up short when tacking starboard.

Sign in to comment on this update.

Getting Close

I've been trying different configurations for controlling the sails. Finally settled on the winch circular method and managed to get it installed and calibrated. My tether broke the other day. Fortunately, a kayaker came along and graciously retrieved her for me. So I decided it was time to go ahead and add a motor. The drag of the tether was affecting my ability to get control of her. After a few failed attempts, I was able to come up with a configuration that works. Probably way overpowered but I had a spare motor from a defunk helicopter sitting around. AND finally, the beauty of her markings are back. I found a source for new labels (much easier to apply than the original ones that were water based).
Liked by Ronald and alan20 and
1 comment
  1. alan20
    Master Seaman
    Very interested in your experiences with this vessel - love to share more. I am currently scratch building one from the original kit plans but have used plank on frame construction and incorporated a detachable keel. Currently fitting the standing rigging.
    Photo of my efforts attached
    Liked by miketheballast and Ronald and

Sign in to comment on this update.
