📝 New competition in SK and CZ rep.
8 years ago by 🇸🇰 Othello (
Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 3 Views · 0 Likes · 2 Comments
Flag
💬 Add Comment
The kiel still in one piece is complletly cutted and sanded. Two pieces of support parts for kiel and shaft hole must be glued together with kiel sequentially. For first must be glued support on one side, then must be cutted out the hole for shaft. After that can be glued on place the second support from other side of the kiel. After drying can be the hole ajusted for the shaft. Please do not glue the shaft in the kiel in this time.
The same procedure is used for rudder shaft.
The same procedure is used for rudder shaft.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
Login To
Remove Ads
Remove Ads
📝 First step...smel of wood
8 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 4 Views · 1 Like
Flag
💬 Add Comment
many guys use parts cutted by plasma cutter or CNC miller. For old timers like me is the best the fret saw. For transfering of lines from plans on plywood I use the copies of plan maded with laser copy maschine. I put it on the plywood with the lined side and then with iron I melt the printer collor and transfer the lines on the plywood. I stard with cutting of the kiel rib which is maded from four parts.
▲
⟩⟩
sandkb
📝 (Yacht) Alice the motor yacht
8 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 3 Views · 2 Likes
Flag
💬 Add Comment
Scrap build from ply wood, HPS plate and glass fiber, regards plans buyed from Czech Rep. RC Revue e-shop. The model was built as a sample in the project for beginners "Build your own Alice" at Slovak modeller web www.rcportal.sk (Motor: MIG 400, 7,2V) (ESC: Hobby King) (5/10)
▲
⟩⟩
ianed57
Brightwork
📝 MinI version of cult model In SK CZ -Fisher Boat ARTUR
9 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 3 Views · 0 Likes
Flag
💬 Add Comment
Another loooong time is behind us and this model is ready to run. Test on water is successfully behind us, but other projects push this boat on the beckround. In this time lies on rack without ESC and motor.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 (Other) ARTUR
9 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 1 View · 0 Likes
Flag
💬 Add Comment
Scratch build of fisher boat according to old plans. Boat is shrinked from original 65cm to 41cm for easier transportation. in this time lay on the rack without electronic. (Motor: MIG 280) (ESC: DSYS 16 Uni) (5/10)
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
💬 New competition in SK and CZ rep.
9 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 3 Views · 0 Likes
Flag
💬 Add Comment
The plans you can order here: [url]
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 hurey to work...
9 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 4 Views · 1 Like
Flag
💬 Add Comment
For first this challenge was preparet for new and young modellers. As you can see on attached plans, the construction of this boat is pretty simple. For more interest is possible to chosse from three super structures. Till September we just prepare beginers for building with explanations about constructions and material. From first of September we start with building. First thing was re-drawing of some parts in plans. Model is drawed like model for EX500 class. That means, its not a radio controled model.
We re-draw all ribs and kiel in sketchup which must be prepared for rudder servo and rc components.
We re-draw all ribs and kiel in sketchup which must be prepared for rudder servo and rc components.
▲
⟩⟩
fact77
📝 New competition in SK and CZ rep.
9 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 3 Views · 0 Likes · 2 Comments
Flag
💬 Add Comment
I dont know why , I dont how but this year at start of May I start with my friends a challenge or competition if you want. The point is to build a motor yacht named ALICA. Comapny which sale the plans make 20% rabat so it was perfect timing for this competition.
Here some pics of construction plans...
Here some pics of construction plans...
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 (Tug Boat) TITAN
9 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 2 Views · 1 Like
Flag
💬 Add Comment

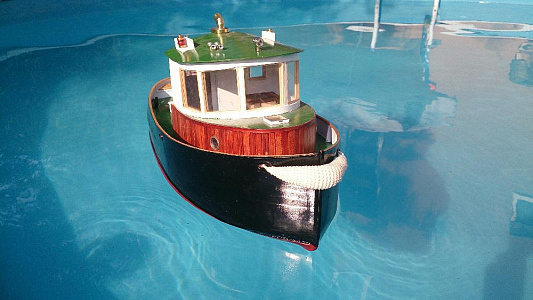

Inspired by minI tugs from american web sites. model was drawn in sketchup and then built. Plywood construction sealed with glass fiber and epoxy. The model is equipped with sound module witch contains two chanel light switch. The Boat is still under construction. Still missing some fenders and details on deck. (Motor: MIG 600 Boat 12V) (ESC: Fusion Aquapower ) (5/10)
▲
⟩⟩
ianed57
💬 Velsheda
10 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 5 Views · 0 Likes
Flag
💬 Add Comment
Do you have some plans for Velsheda? I can't find any on web.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
💬 Velsheda
10 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 5 Views · 0 Likes
Flag
💬 Add Comment
Sorry I mean what you use like whaterseal for deck planking.
Wanish or epoxI or some oil wax? How long is the hull?
Wanish or epoxI or some oil wax? How long is the hull?
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
Login To
Remove Ads
Remove Ads
💬 after loooong time 😊
10 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 3 Views · 0 Likes
Flag
💬 Add Comment
thanks, but the work on ARTUR goes realy slow.
As you can read in first post original model is 65 cm (25,59 inch) long but I build it in 41 cm (16,14 inch) version.
As you can read in first post original model is 65 cm (25,59 inch) long but I build it in 41 cm (16,14 inch) version.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
💬 Velsheda
10 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 5 Views · 0 Likes
Flag
💬 Add Comment
Neil it looks perfect.
What you use for finish of the deck?
What you use for finish of the deck?
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 after loooong time 😊
10 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 3 Views · 0 Likes · 3 Comments
Flag
💬 Add Comment
Hello peoples, after long time I attached the update of progress on ARTUR.
Job on hull is almost done. Now I work on super structures and lights and some deck details. I hope Brother will like it 😁
Job on hull is almost done. Now I work on super structures and lights and some deck details. I hope Brother will like it 😁
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 (Yacht) J Class Cheveyo
10 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 1 View · 0 Likes
Flag
💬 Add Comment
-Fibre glass hull produced by MP plast SK
-complete deck with deck house,mast and spar was made by my self
-sails and deck winches was custom made.
- sail are stitched form parachute material produced by Czech firm.
-sails are controled by three vinch servos from Hitec
-rudder servo is from Hitec too,
Everithing is powered by 2cell Lipo 7,4V/2200mAh through FOXY 3A BEC
This boat have two types of sails:
1., Main sail, front and midle JIB,
2., Main sail, Genua (5/10)
-complete deck with deck house,mast and spar was made by my self
-sails and deck winches was custom made.
- sail are stitched form parachute material produced by Czech firm.
-sails are controled by three vinch servos from Hitec
-rudder servo is from Hitec too,
Everithing is powered by 2cell Lipo 7,4V/2200mAh through FOXY 3A BEC
This boat have two types of sails:
1., Main sail, front and midle JIB,
2., Main sail, Genua (5/10)
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 progress...
11 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 3 Views · 0 Likes
Flag
💬 Add Comment
So the hull is covered with one layer of 80g fibreglass.
and I make some littleness on board.
and I make some littleness on board.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
💬 progress...
11 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 3 Views · 0 Likes
Flag
💬 Add Comment
Flack thanks, you tickle my ego 😁
I hope my brother will like it.
Any way, all work will go slower because I work on another project in same time.
I build "J" Class sail boat CHEVEYO in 1:25 scale.
I put here soon some photos.
I hope my brother will like it.
Any way, all work will go slower because I work on another project in same time.
I build "J" Class sail boat CHEVEYO in 1:25 scale.
I put here soon some photos.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 progress...
11 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 3 Views · 0 Likes · 2 Comments
Flag
💬 Add Comment
from last update I make some progress in build.
After coating inner side with epoxy, I cover the deck with planks. Then I sand the deck and cut the holes for superstructures and service access. Then I finish the sides planking and start with superstructures. On last photo you can see the wires for position light on front mast. I cut two grooves on sides of mast and then I stick in two wires with glue and putty. After sanding its almost invisible.
(guys sorry for my English 😁 , if you see some errors just let me know 😛 )
After coating inner side with epoxy, I cover the deck with planks. Then I sand the deck and cut the holes for superstructures and service access. Then I finish the sides planking and start with superstructures. On last photo you can see the wires for position light on front mast. I cut two grooves on sides of mast and then I stick in two wires with glue and putty. After sanding its almost invisible.
(guys sorry for my English 😁 , if you see some errors just let me know 😛 )
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 progress...
11 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 3 Views · 0 Likes
Flag
💬 Add Comment
So the hull is ready for Impregnating with epoxy. Then will be covered with deck.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 some photos from progress...
11 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 3 Views · 0 Likes
Flag
💬 Add Comment
Today I cover the hull with planks. I fix it with fast glue.
When the hull will be done I coat inner side with epoxy.
When the hull will be done I coat inner side with epoxy.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 let the work begin...
11 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 3 Views · 0 Likes
Flag
💬 Add Comment
So today I find some free time and start work on hull for ARTUR.
Work goes well so from morning to lunch I prepare complete frame for covering with planks.
Work goes well so from morning to lunch I prepare complete frame for covering with planks.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
Login To
Remove Ads
Remove Ads
📝 Small shoping 😊
11 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 3 Views · 0 Likes
Flag
💬 Add Comment
Today I buy 155 mm shaft, coupling and 3 blade propeller with 30 mm of diameter.
Next update about start of build.
Next update about start of build.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 REGATA ISTRPOLITANA 2013
11 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 1 View · 0 Likes
Flag
📝 Reply
Hello Captains 😊
Please be welcomed on 8th session of Regata Istropolitana on Strkovec lake In Bratislava Slovakia.
On 6 of October 2013 from 10:00 to 16:00 hour, modellers with sail boats, speed boats, navy boats, fisher boats and many other floating things, will enjoy the waves of Strkovec lake.
So If you be near and will swim with us don't forget on your models..... 😁
Please be welcomed on 8th session of Regata Istropolitana on Strkovec lake In Bratislava Slovakia.
On 6 of October 2013 from 10:00 to 16:00 hour, modellers with sail boats, speed boats, navy boats, fisher boats and many other floating things, will enjoy the waves of Strkovec lake.
So If you be near and will swim with us don't forget on your models..... 😁
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 Build material Info...
11 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 3 Views · 0 Likes
Flag
💬 Add Comment
Keel - 4 mm hard ply wood
Ribs - 3 mm Birch ply wood
Hull cover - 4x2 mm spruce planks covered with one layer of fibreglass 80g/cm2.
Cabins - 1.5mm hard ply wood
Ribs - 3 mm Birch ply wood
Hull cover - 4x2 mm spruce planks covered with one layer of fibreglass 80g/cm2.
Cabins - 1.5mm hard ply wood
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 MinI version of cult model In SK CZ -Fisher Boat ARTUR
11 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 3 Views · 0 Likes
Flag
💬 Add Comment
Her is the first sheet of plans for this build.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 Cult model 😊 In SK CZ Fisherboat ARTUR
11 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 2 Views · 0 Likes
Flag
💬 Add Comment
and don't know how.... 💭
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 MinI version of cult model In SK CZ -Fisher Boat ARTUR
11 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 3 Views · 0 Likes
Flag
💬 Add Comment
On last modeler meeting my brother please me if I can built him some RC Boat.
He was excited by my Fisher boat Naxos.
So it was on me to find some plans for fisher boat.
I remember on plans of old Norwegian fisher boat model called ARTUR.
It's cult model in Czech and Slovak republic 😀 .
Standard length of this model is around 65 cm.
For better manipulation and transporting I mus make shorter version.
So I remake the plans and now I start built model with 41 cm length.
I hope you will enjoy the build with me.
He was excited by my Fisher boat Naxos.
So it was on me to find some plans for fisher boat.
I remember on plans of old Norwegian fisher boat model called ARTUR.
It's cult model in Czech and Slovak republic 😀 .
Standard length of this model is around 65 cm.
For better manipulation and transporting I mus make shorter version.
So I remake the plans and now I start built model with 41 cm length.
I hope you will enjoy the build with me.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
📝 Cult model 😊 In SK CZ Fisherboat ARTUR
11 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 2 Views · 0 Likes
Flag
💬 Add Comment
After boat modeler meeting in last weekend, my brother please me if I can build him some RC boat.
He was enchanted by my fisher boat NAXOS. So it was on me find some plans for building. I remember on plans of old fisher boat called ARTUR. We can say its cult model in Czech and Slovak rep. 😀 .
For better manipulation and transporting I must choose ideal dimensions for model.
Standard length of this model is around 65 cm. I got to fit to box 50x50x50 cm.
So the length of this model will be 41 cm.
For keel I use hard ply wood with 4 mm thickness and for ribs 3 mm Ceiba ply wood.
Plating with spruce planks 4x2 mm.
Hope you enjoy the build with me 👍
He was enchanted by my fisher boat NAXOS. So it was on me find some plans for building. I remember on plans of old fisher boat called ARTUR. We can say its cult model in Czech and Slovak rep. 😀 .
For better manipulation and transporting I must choose ideal dimensions for model.
Standard length of this model is around 65 cm. I got to fit to box 50x50x50 cm.
So the length of this model will be 41 cm.
For keel I use hard ply wood with 4 mm thickness and for ribs 3 mm Ceiba ply wood.
Plating with spruce planks 4x2 mm.
Hope you enjoy the build with me 👍
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
💬 RAF Crash Boat
11 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 6 Views · 0 Likes
Flag
💬 Add Comment
HI looks great 👍
Do you use fibreglass on the bottom, or it's just the resin?
Do you use fibreglass on the bottom, or it's just the resin?
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
💬 Tabletop Waterway - literally!
11 years ago by 🇸🇰 Othello ( Petty Officer 2nd Class)
Petty Officer 2nd Class)✧ 4 Views · 0 Likes
Flag
💬 Add Comment
Good job. Looks like the boat need some side bumpers :-) but perfect idea for slow river boats.
▲
⟩⟩
No likes yet
This member will receive 1 point
for every like received
This member will receive 1 point
for every like received
Login To
Remove Ads
Remove Ads
