    Bristol Pilot Cutter - Katie
    by AndyB ๐Ÿ‡ฌ๐Ÿ‡ง ( Chief Petty Officer 2nd Class)
    ๐Ÿ“ฃ










    Click To
    Follow
    22 Posts 53 Comments 0 Photos 145 Likes
    Most recent posts shown first   (Show Oldest First) (Print Booklet)
    ๐Ÿ“ The Rigging
    10 days ago by AndyB ( Chief Petty Officer 2nd Class)
    Flag
    View All

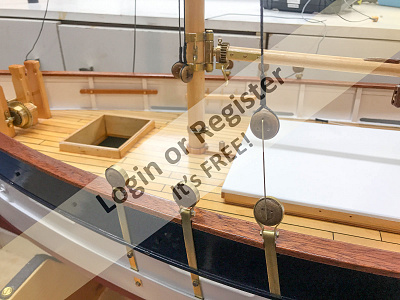

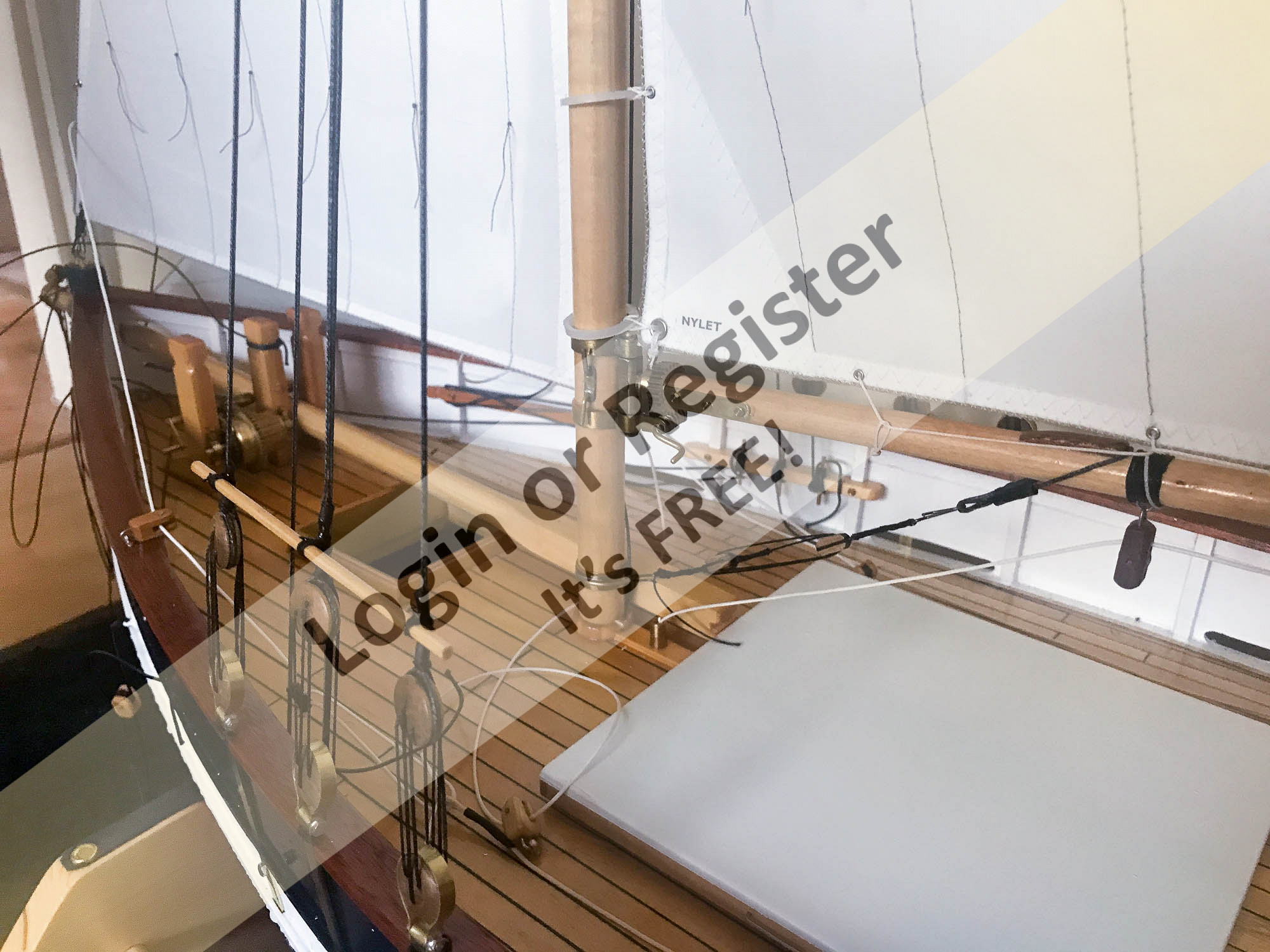

    Have started the rigging. Wanted to check how well the jibs would work, checking to see there was enough travel in the sheets, to ensure that it would be possible to move the jib from one side to another, as the boat tacked. In fact there was far too much travel, if I used the full length of the winch/track. I'll leave things as they are for now but may reduce the travel (end points) once having actually used the boat on the water.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comments
    ๐Ÿ‘€ 44 Views
    7
    4
    ๐Ÿ’ฌ Re: The Rigging
    4 days ago by dave976 ( Sub-Lieutenant)
    Flag
    Hi AndyB
    I usually attach the line from my winch to a hook on the spar and run the line along the spar to another hook then back to use a bowsie. That way I can adjust the travel as the wind dictates. I have used end point adjustment and agree it works well for initial setup. However many of my schooners use one winch so I need to have individual adjustment of the spars.
    Model coming along well and I look forward to seeing her on the water
    dave976
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 21 Views
    1
    ๐Ÿ’ฌ Re: The Rigging
    5 days ago by Muskrat ( Warrant Officer)
    Flag
    It would be great to see both of them on the water, I am getting on well with my Fairmile now so I will be getting back to building my Katie soon.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 27 Views
    2
    ๐Ÿ’ฌ Re: The Rigging
    10 days ago by AndyB ( Chief Petty Officer 2nd Class)
    Flag
    Thanks Jon
    I would be great to see both boats out on the water sailing together.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 43 Views
    1
    ๐Ÿ’ฌ Re: The Rigging
    10 days ago by Muskrat ( Warrant Officer)
    Flag
    Hi Andy, I have been following your build of your Katie and you have made a beautiful job of Her and when I do get back to building mine if I can it half as good as yours I will be happy but we will see. Looking forward to seeing her on the water.

    Cheers Jon.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 43 Views
    2
    ๐Ÿ“ The Winch
    14 days ago by AndyB ( Chief Petty Officer 2nd Class)
    Flag
    View All
    The winch does work but think I'll not add an actual anchor and chain yet. The aim is to get it sailing and finer details can be added later. Another area for development, would be the central hatch, which really needs to be made from planking and a dinghy added, as this would have been used to carry the pilot over to another vessel that needed guiding into port.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comments
    ๐Ÿ‘€ 57 Views
    6
    1
    ๐Ÿ’ฌ Re: The Winch
    13 days ago by stevedownunder ( Commander)
    Flag
    That's a very nice looking winch Andy. ๐Ÿ‘

    Cheers,
    Stephen.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 57 Views
    1
    ๐Ÿ“ Rudder Fitting
    21 days ago by AndyB ( Chief Petty Officer 2nd Class)
    Flag
    View All
    Did another flotation test, with servos and batteries in place, which showed I needed to move some of the ballast forward, as the stern was definitely sitting down, also removed some, so the total is about 6.5 Kg.

    Once the rudder, cockpit and companionway were added I realised the tiller was really to long, so this needs shortening.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 75 Views
    8
    ๐Ÿ“ Ballast
    23 days ago by AndyB ( Chief Petty Officer 2nd Class)
    Flag
    View All
    I added the shroud plates, just bolted in place with M2 stainless hex heads. The shroud plates should be black - did think of painting but this would not be durable and would start to look "tatty".

    I've got 7.8Kg of lead, most in shot form. Added 7Kg of it and fixed in place with some resin. Once cured I'll use the remaining lead to trim the hull. However, even with all the lead the hull still floats above the water line. Perhaps after some "sea trials" some more ballast could be added.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comments
    ๐Ÿ‘€ 92 Views
    6
    1
    ๐Ÿ’ฌ Re: Ballast
    22 days ago by ChrisG ( Chief Petty Officer 1st Class)
    Flag
    What a beautiful build you should be very proud. Look forward to seeing her finished.
    Regards ChrisG
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 87 Views
    2
    ๐Ÿ“ Painting
    24 days ago by AndyB ( Chief Petty Officer 2nd Class)
    Flag
    View All
    The final colour scheme reflects a more contemporary style, but should look appealing once on the water. The masking went quite well, just a need for a slight tidy up in a small number of areas/corners.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comments
    ๐Ÿ‘€ 93 Views
    10
    4
    ๐Ÿ’ฌ Re: Painting
    23 days ago by stevedownunder ( Commander)
    Flag
    Hi Andy,

    Looking great, neat and tidy.

    Cheers,
    Stephen.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 93 Views
    1
    ๐Ÿ’ฌ Re: Painting
    23 days ago by Newby7 ( Admiral)
    Flag
    Paint turned out well. So right should look good on the water. Rick
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 92 Views
    2
    ๐Ÿ’ฌ Re: Painting
    24 days ago by AndyB ( Chief Petty Officer 2nd Class)
    Flag
    Thanks Graham
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 92 Views
    1
    ๐Ÿ’ฌ Re: Painting
    24 days ago by Graham93 ( Rear Admiral)
    Flag
    I like the colour scheme. Good choice of colours.

    Graham93
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 92 Views
    2
    ๐Ÿ“ Some finishing details
    24 days ago by AndyB ( Chief Petty Officer 2nd Class)
    Flag
    View All
    The belaying pins are currently just 2mm dia brass rod, which are functional but there is a need to make some that are more realistic. There will also be the need for some more cleats, perhaps on the side of the mast but need to ensure that any additions do not provide a source for the jib sheets to catch. The shroud plates will be painted black and held in place by 2mm hex head bolts.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 93 Views
    4
    ๐Ÿ“ Cockpit and Companionway
    24 days ago by AndyB ( Chief Petty Officer 2nd Class)
    Flag
    View All

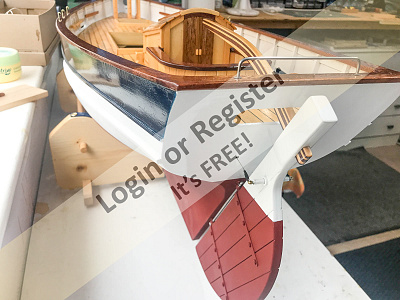

    Making the cockpit and companionway did prove a little bit of a challenge. Both need to be removable, the on/off switch is under the companionway. Wanted some details, hence the indication of handles on the doors, but did forget to scribe the seat surface, to indicate individual planks. Some boats had a commode under the seat, so the helm did not need to leave his post - perhaps something to model in a future project !

    Some boats paint the panels on the side of the companionway white. I might cut some paper to fit and see what this would look like before actual painting.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comments
    ๐Ÿ‘€ 93 Views
    5
    4
    ๐Ÿ’ฌ Re: Cockpit and Companionway
    22 days ago by Ron ( Rear Admiral)
    Flag
    Very nice clean workmanship
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 92 Views
    ๐Ÿ’ฌ Re: Cockpit and Companionway
    23 days ago by AndyB ( Chief Petty Officer 2nd Class)
    Flag
    Thanks Stephen/Gary - it was a bit of a fiddle, due to the curved back and the need to make both parts removable, as well as keeping the water out. I'm not certain how else I could have made it - but would be open to any suggestions.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 92 Views
    1
    ๐Ÿ’ฌ Re: Cockpit and Companionway
    23 days ago by GaryLC ( Lieutenant)
    Flag
    Very neat indeed, bordering on absolute perfection especially the deck planking around the edges.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 94 Views
    2
    ๐Ÿ’ฌ Re: Cockpit and Companionway
    23 days ago by stevedownunder ( Commander)
    Flag
    Hi Andy,
    Your Cockpit and Companionway look tricky to build, you have done a great job.

    Cheers,
    Stephen.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 93 Views
    2
    ๐Ÿ“ Capping
    1 month ago by AndyB ( Chief Petty Officer 2nd Class)
    Flag
    View All
    The capping pieces were initially glued in place to the bulwarks with Titebond 3. Then a fillet of West Epoxy was added to the outside of the hull, blending the underside of the capping into the hull.

    Its only had one coat of varnish so far and there was a need to use a very short brush to get to the underside of the capping. Some light sanding and more coats of varnish are now needed. There is also a need to make small cutouts for the shroud plates to fit flush with the hull.

    Think the final colour scheme will be - dark blue top sides, white water line and red undercoat for below the water line.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comments
    ๐Ÿ‘€ 100 Views
    8
    1
    ๐Ÿ’ฌ Re: Capping
    1 month ago by stevedownunder ( Commander)
    Flag
    Looking great Andy,

    She will look very smart in those colors.

    Cheers,
    Stephen.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 100 Views
    2
    ๐Ÿ“ Hatches
    2 months ago by AndyB ( Chief Petty Officer 2nd Class)
    Flag
    View All
    The front hatch is made from some of the deck planking, added some West Epoxy on the inside/underside face to help give its strength. The main hatch is really a short term solution, which will be fine for some first sails. But will look at remaking this again, either with a skylight or place for a dinghy.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comments
    ๐Ÿ‘€ 111 Views
    5
    3
    ๐Ÿ’ฌ Re: Hatches
    2 months ago by AndyB ( Chief Petty Officer 2nd Class)
    Flag
    Varnish
    Certainly several thinned coats and perhaps the final couple straight from the tin
    Ronseal Yacht Varnish from B&Q
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 107 Views
    ๐Ÿ’ฌ Re: Hatches
    2 months ago by mturpin013 ( Vice Admiral)
    Flag
    Looking really good Andy, can you tell me what brand of varnish are you using and do you use a thinned coat?
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 125 Views
    ๐Ÿ’ฌ Re: Hatches
    2 months ago by Muskrat ( Warrant Officer)
    Flag
    Hi Andy, your boat is looking better and better every day I see your perfect handywork, I can't wait to see it on the water. I keep meaning to tell you your figure over looking your handy work is a very good model I bought one a while ago, with a little work he will look good on the boat.

    Keep up the great work, Jon
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 108 Views
    2
    ๐Ÿ“ Finishing the Deck
    2 months ago by AndyB ( Chief Petty Officer 2nd Class)
    Flag
    View All
    The next idea was to make the cockpit and companionway. Made an initial start and have fabricated the basic structures but am uncertain about the detail aspects of finishing them, so they have been put aside until I've made some decisions.

    The gunwale capping was made using some 4mm mahogany. Initially some cardboard templates were made and these we used to mark out on the wood. I haven't got a bandsaw, which would have been ideal to cut the mahogany. The solution - which is not very safe - was to clamp the jigsaw the wrong way up in a vice and use a fine blade. With some care it worked ok, the cut shapes were then finished with a small plane and glass paper.

    Once the deck had received several coats of varnish the edges were masked and then the white spray paint was used to finish the inside of the bulwarks.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comments
    ๐Ÿ‘€ 116 Views
    6
    4
    ๐Ÿ’ฌ Re: Finishing the Deck
    2 months ago by stevedownunder ( Commander)
    Flag
    Great resalt Andy,

    The white looks really nice.

    Cheers,
    Stephen.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 115 Views
    1
    ๐Ÿ’ฌ Re: Finishing the Deck
    2 months ago by Muskrat ( Warrant Officer)
    Flag
    Thanks Andy I kept looking at the plan and thought the same it is to big and totally agree the fittings will be easier to source. Keep up the good work and looking forward to the next chapter.

    Cheers Jon.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 115 Views
    2
    ๐Ÿ’ฌ Re: Finishing the Deck
    2 months ago by AndyB ( Chief Petty Officer 2nd Class)
    Flag
    Hi Jon

    The drawings indicate a mast diameter of about 25mm, which would equate to 1 foot diameter in real life and could be seen as reasonable. However, mine is 18mm dia. Think this is plenty strong enough and the smaller diameter makes things slightly easier when it comes to some fittings.

    I did try some 25mm dowel, but it just looked to โ€œchunkyโ€
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 116 Views
    2
    ๐Ÿ’ฌ Re: Finishing the Deck
    2 months ago by Muskrat ( Warrant Officer)
    Flag
    Hi Andy, A very beautiful job so far Buddy looking forward to next steps but be careful and mind your fingers. As a matter of interest have you made the main mast diameter as per plan, difficult to tell from photo's.

    Cheers Jon.
    ๐Ÿ‘ Like
    ๐Ÿ’ฌ Comment
    ๐Ÿ‘€ 115 Views
    2
    Show 12 More Posts
