    Marian Belle' Empire class tug (Mobile Marine.)
    2 Photos ยท 28 Likes ยท 19 Comments
    5 years ago by ๐Ÿ‡ฌ๐Ÿ‡ง GaryLC
    Flag

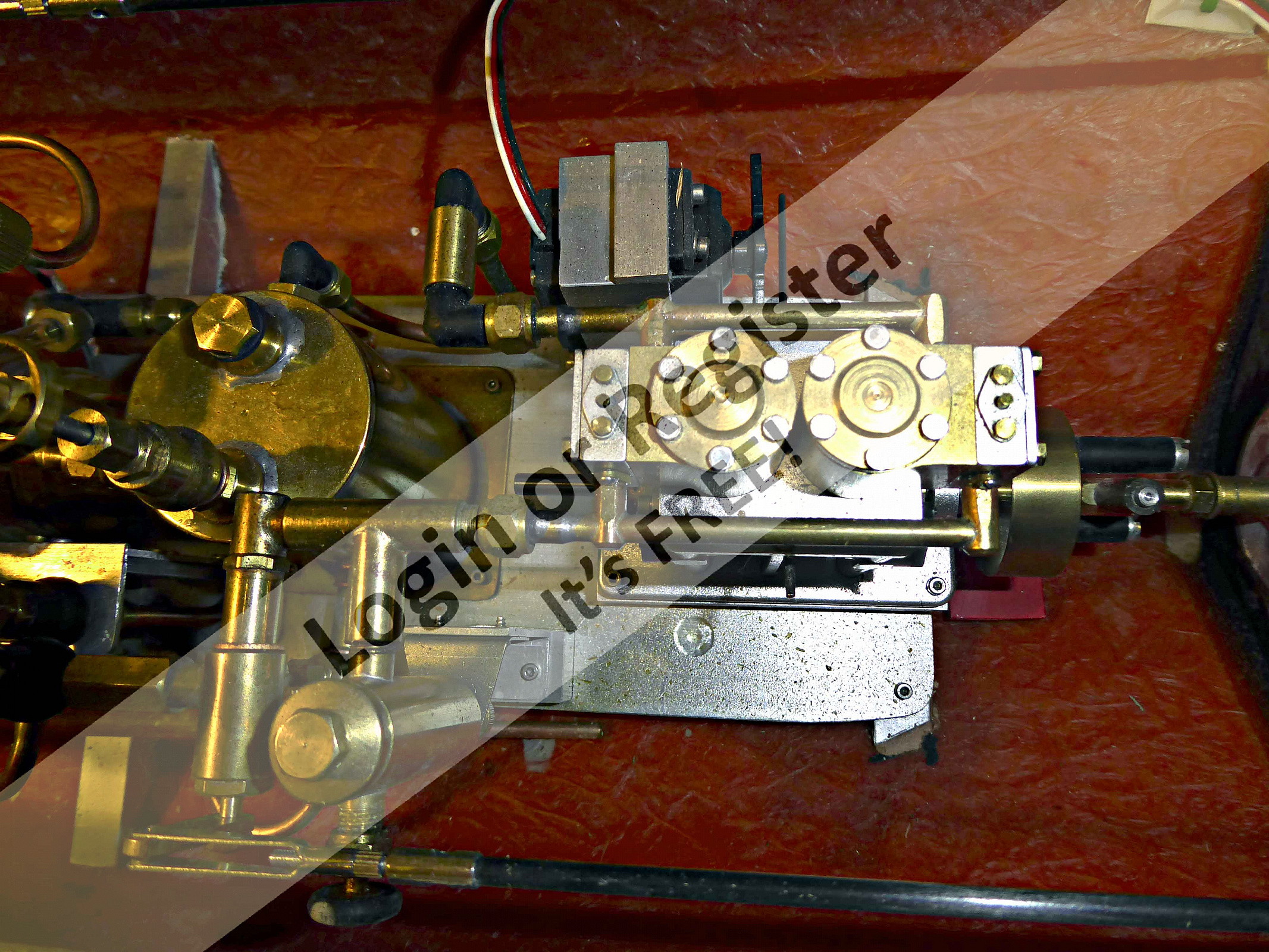

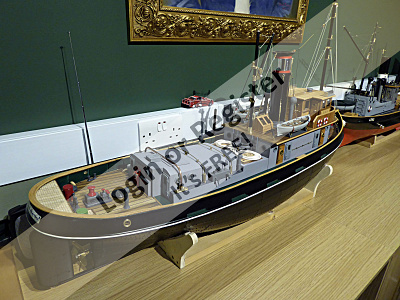

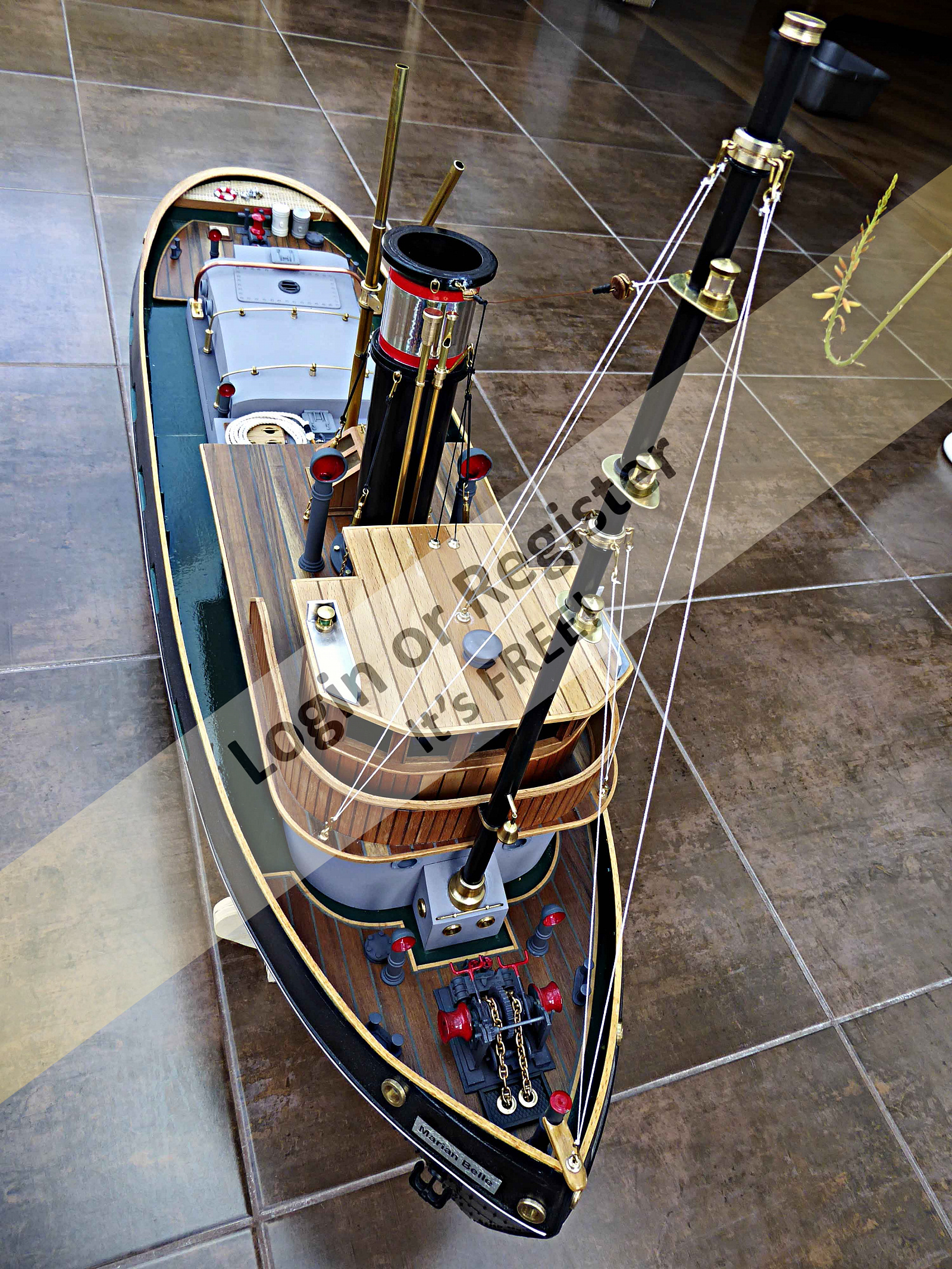

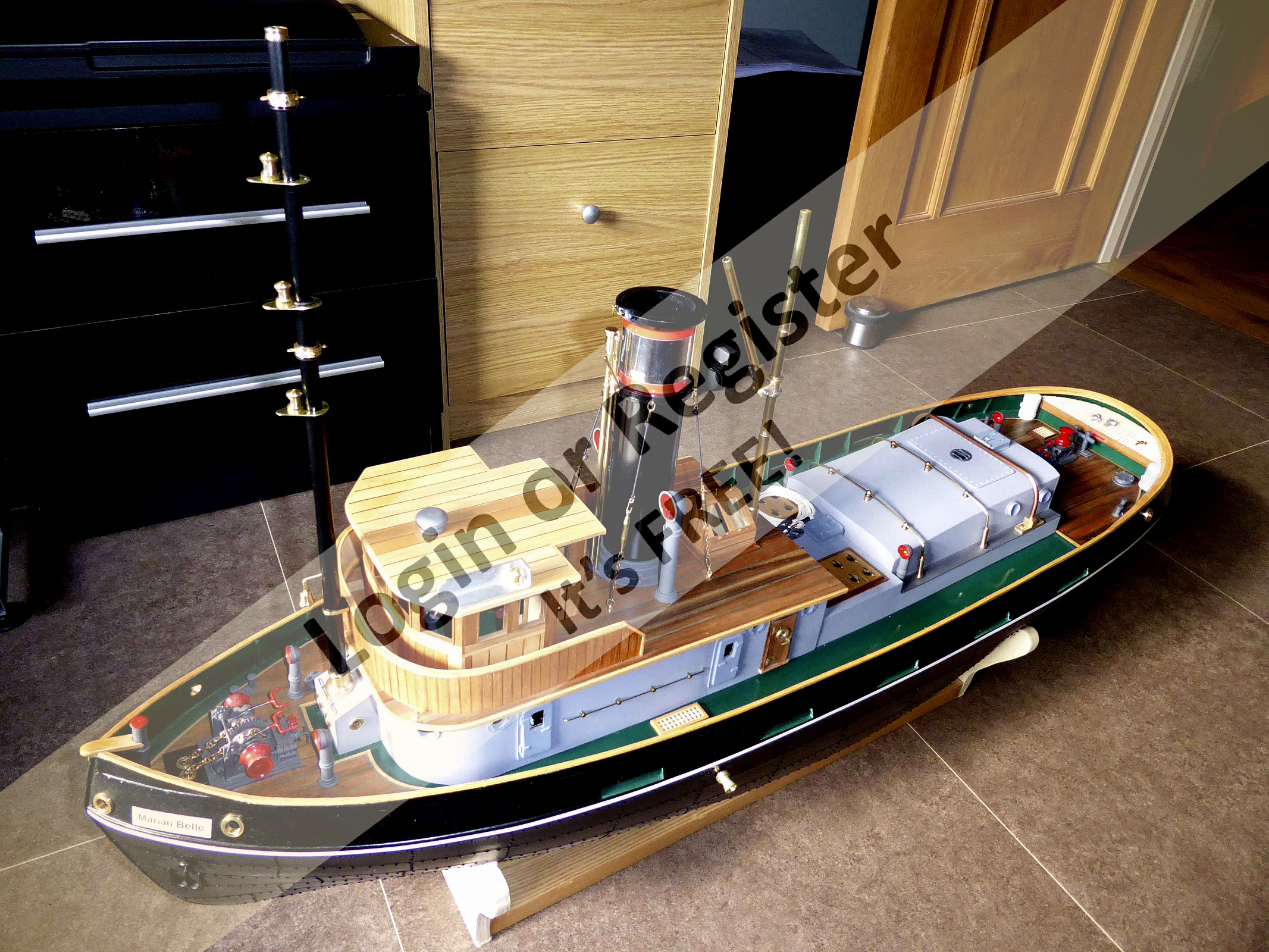

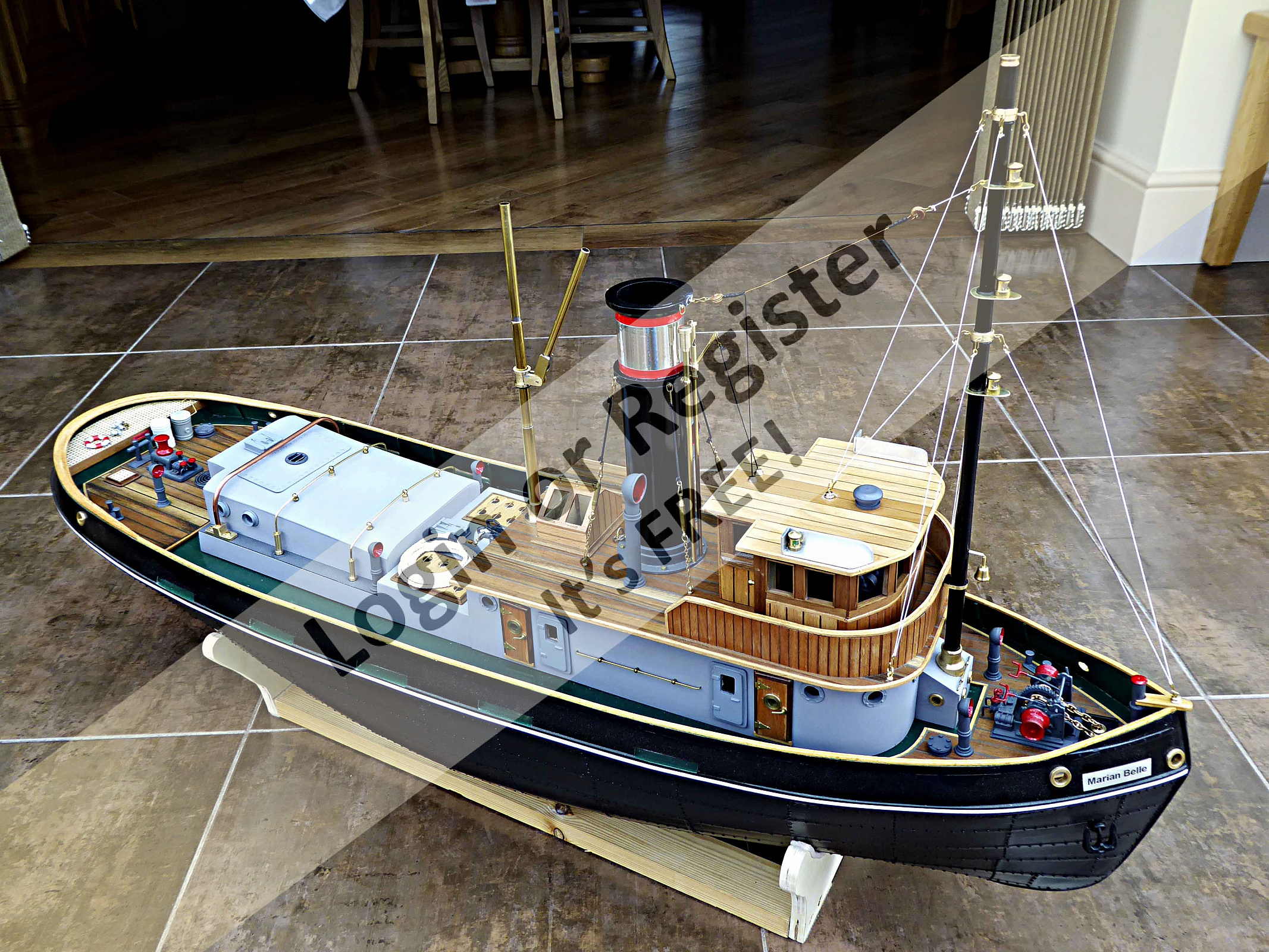

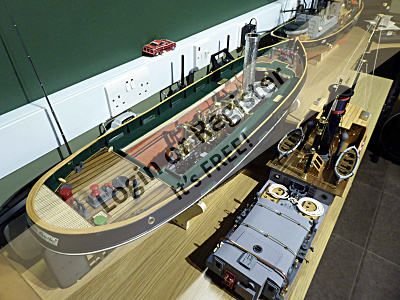

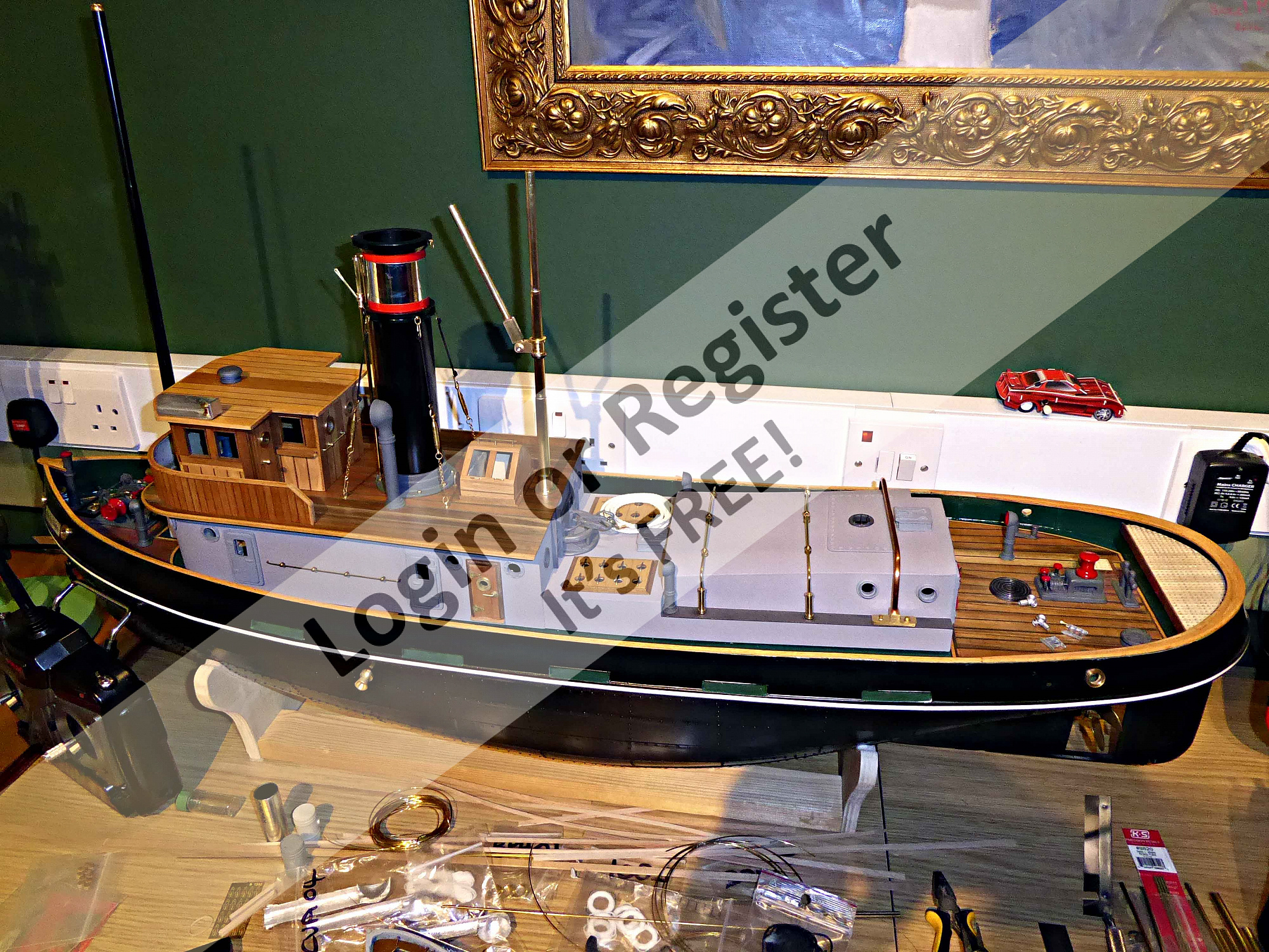

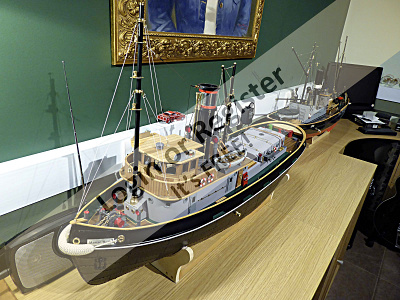

    This model has been on the go for the last three years and is now finally almost complete, this one as per the others is powered by a TVR1ABB steam engine and a 3 1/2" diameter x 6" gas fired boiler.

    ๐Ÿ’ฌ Add Comment

    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    9 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง GaryLC ( Captain)
    โœง 121 Views ยท 4 Likes
    Flag
    The operating servo needs to be fastened to the base plate, with the servo arm securing screw at the same height as the operating rod in the mid-neutral position, in order for this to function properly. Go for the full metal jacket option as per my servos. Regards, Gary.
    Login To
    Remove Ads

    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    9 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง GaryLC ( Captain)
    โœง 121 Views ยท 4 Likes
    Flag

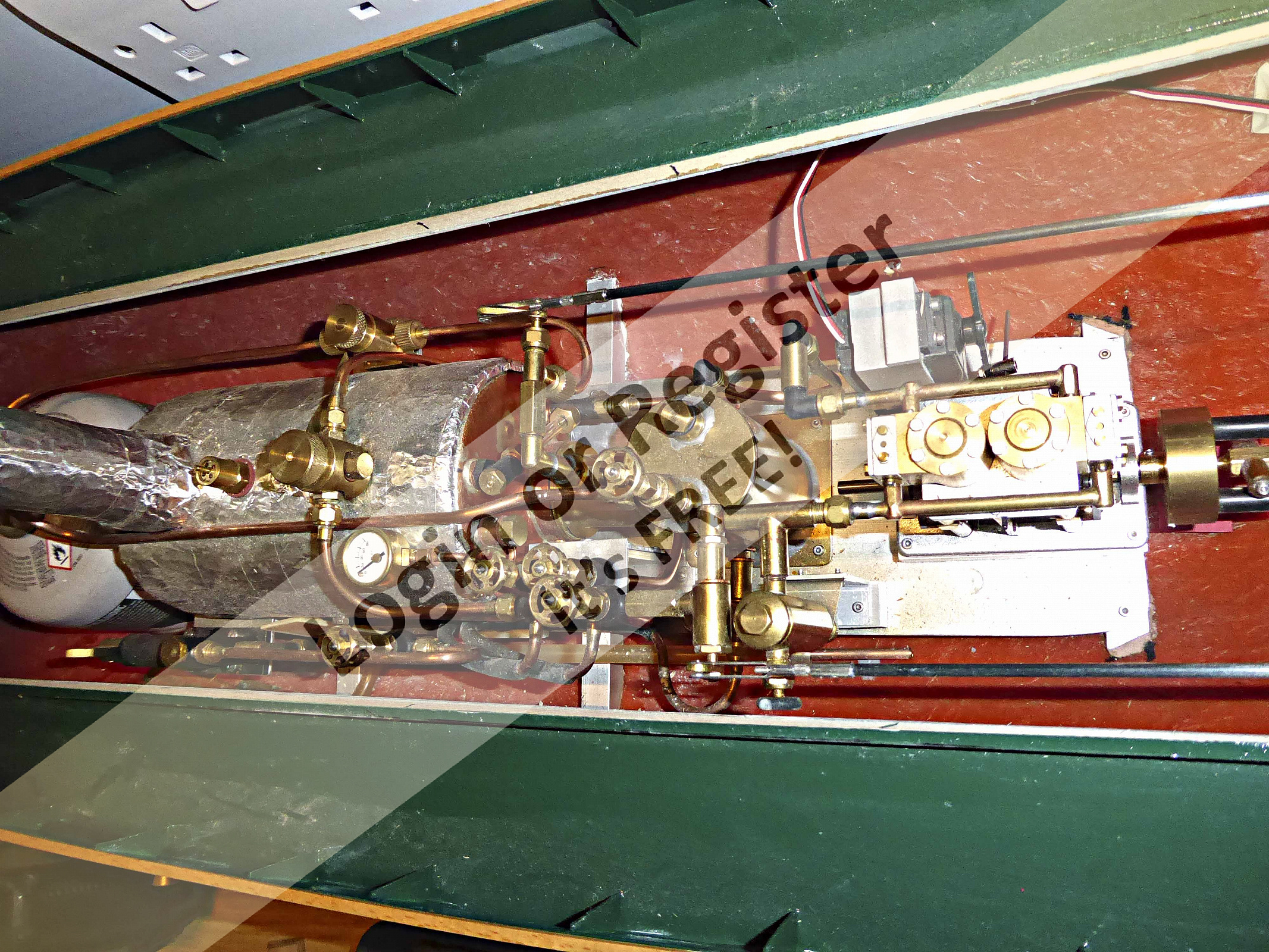

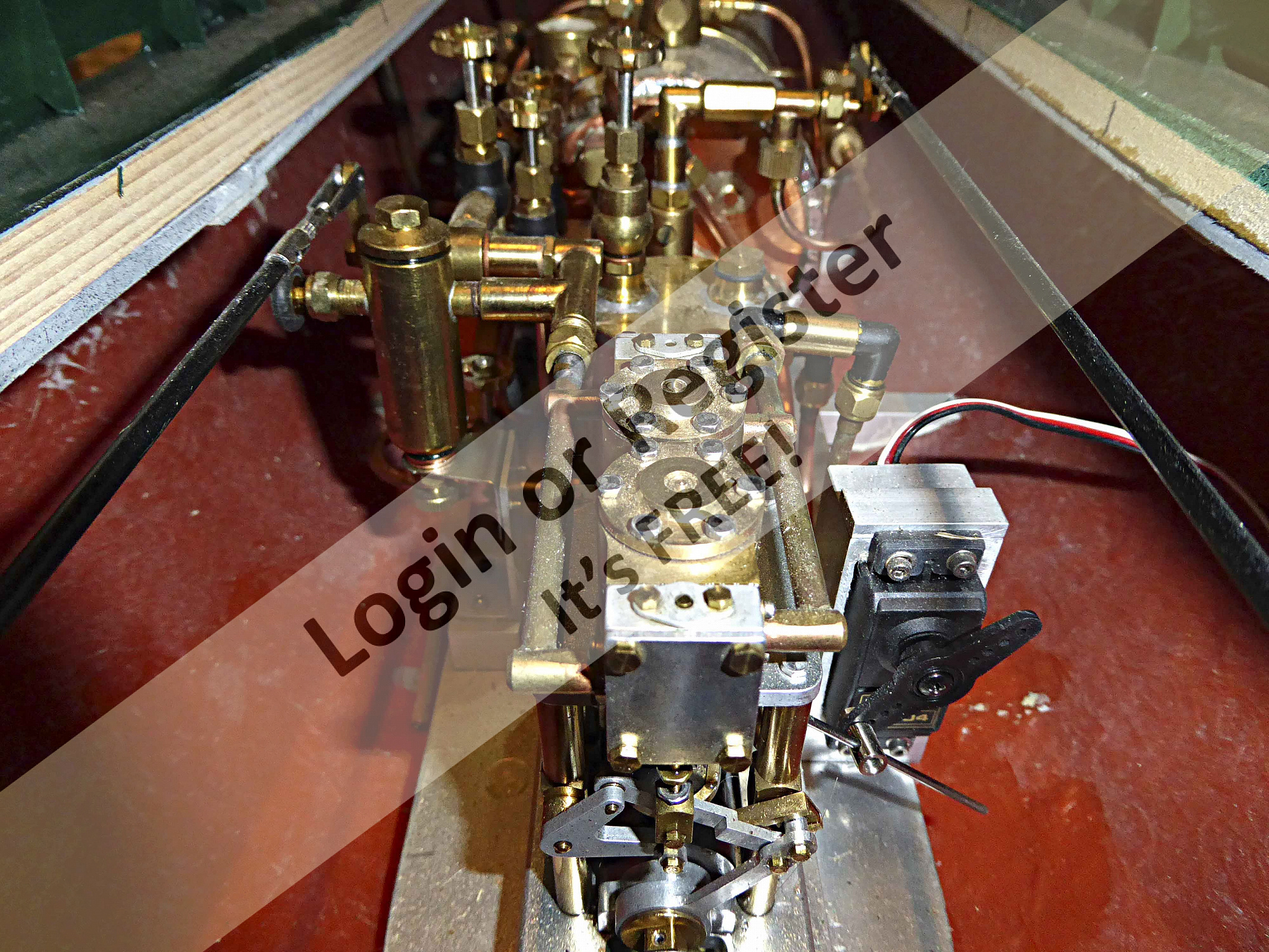

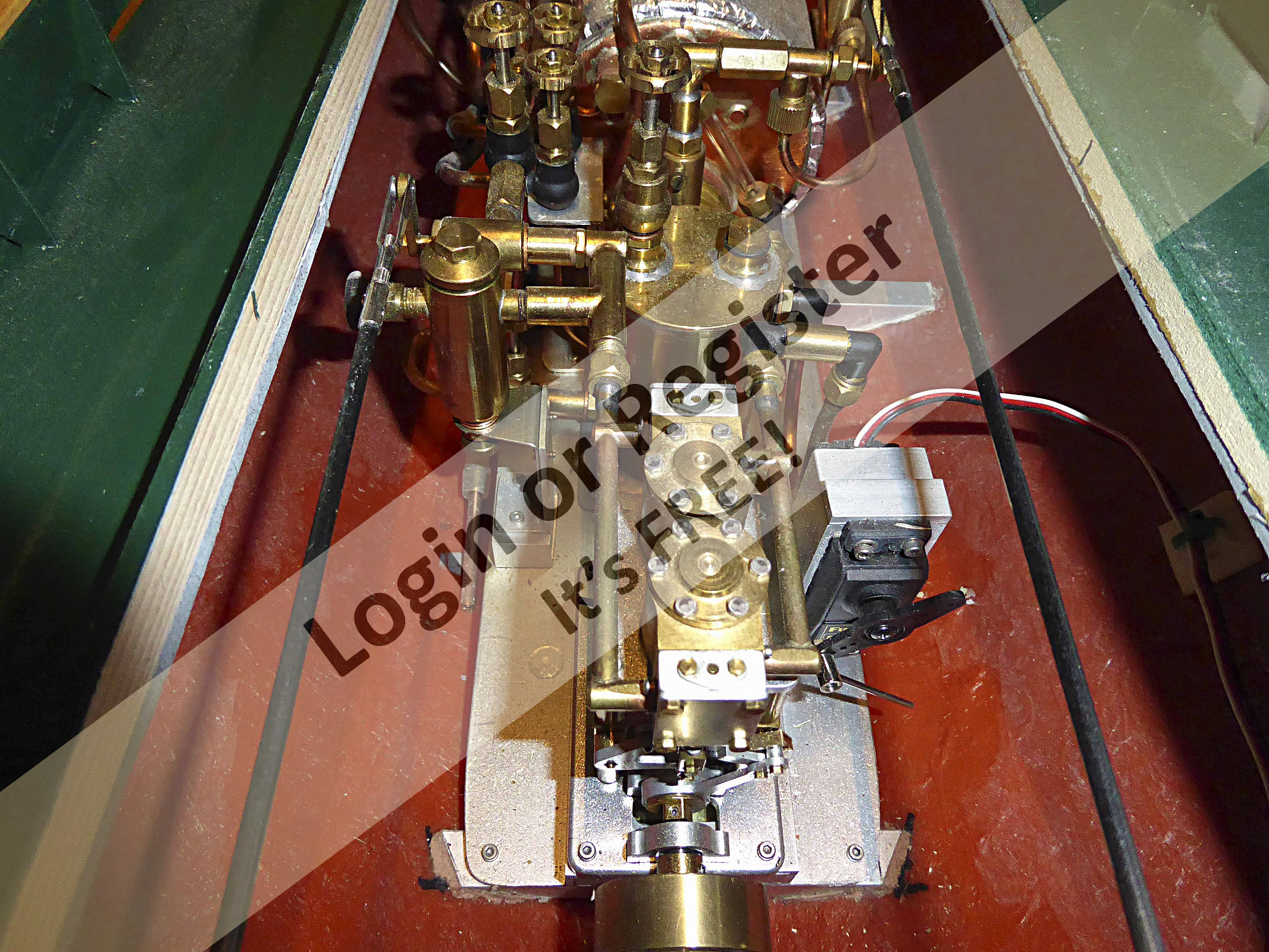

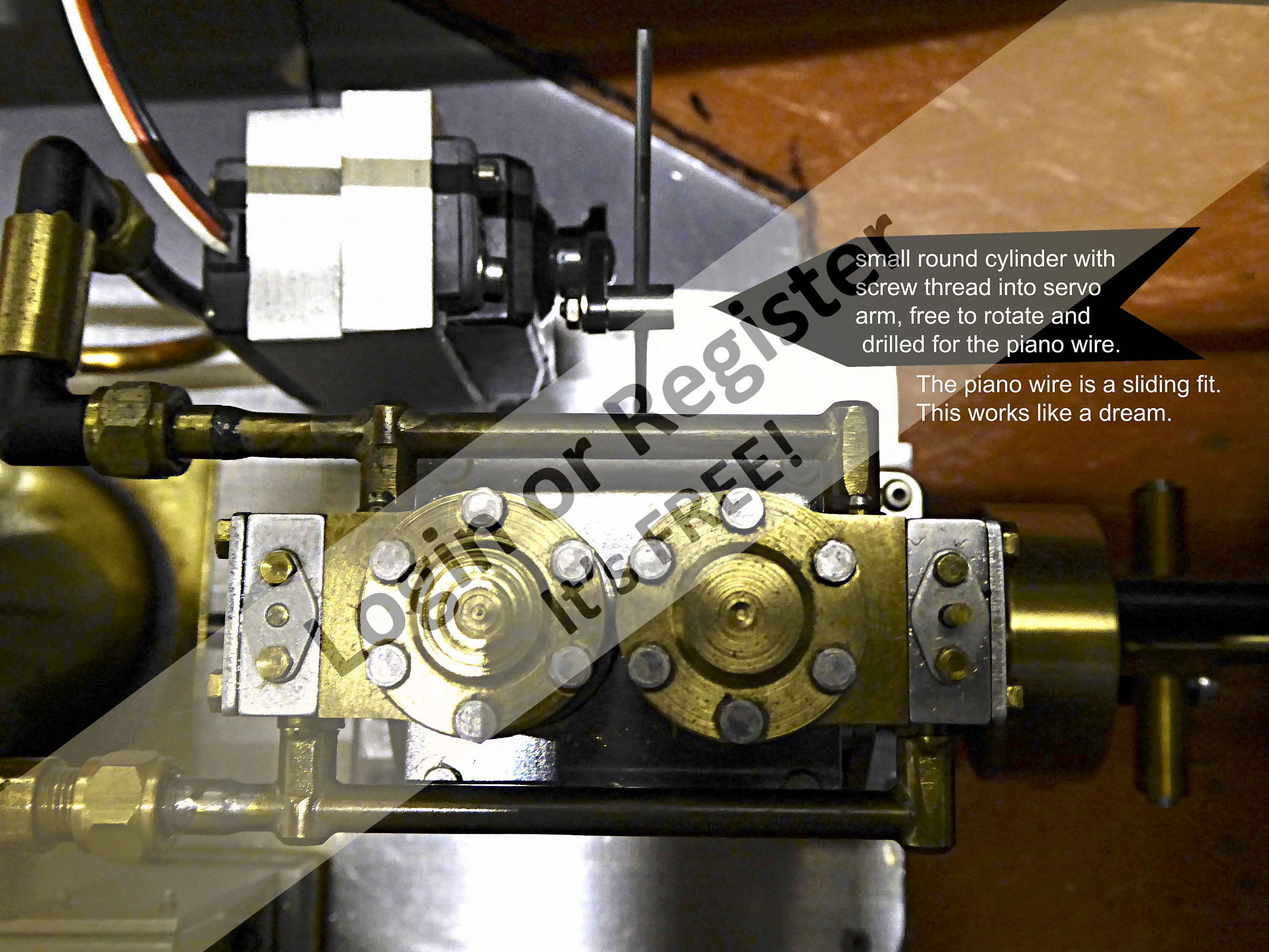

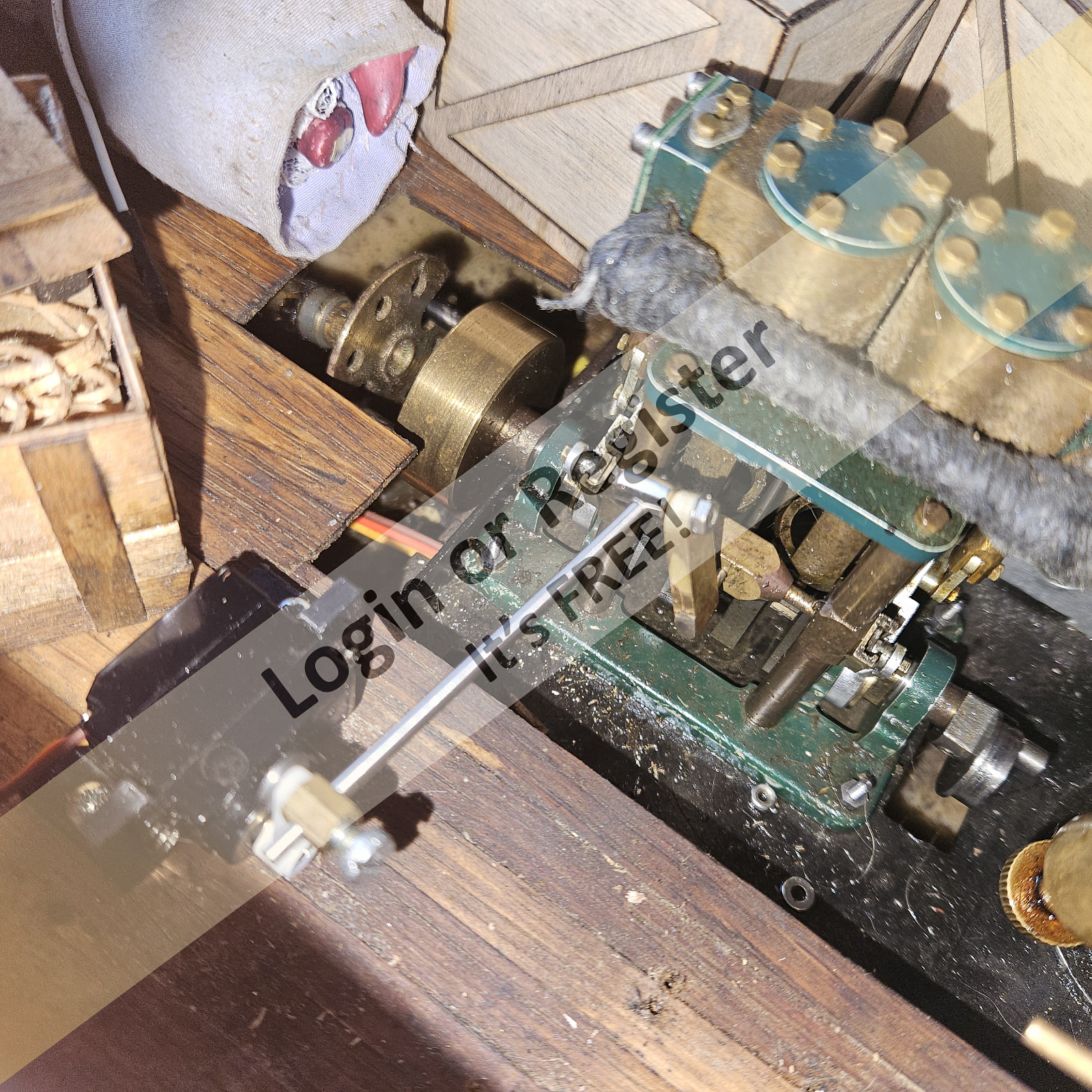

    Hi Nick, and here we go with some sort of explanation regarding the servo for the TVR control. I am afraid I could not find the photos I was looking for which were definitely helpful. So we will have to manage without them. Right, first off you will need to remove the original operating rod with handle. Next, the square rod with the notches cut into it, carefully file the notches flat so that the rod will slide up and down without catching, be careful not to damage the highest and lowest stop, which gives you maximum revs in forward and reverse. You now need to replace the original operating rod with a piece of piano wire approx length 5". I will send a couple of photos and hope you can figure it out with regard to what to do and why. The operating rod needs to slide through the grommet thing on the servo arm. If you have any questions or problems what so ever then get in touch and I will try and help to get it sorted. Regards, Gary.
    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    9 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง Nickthesteam ( Commander)
    โœง 120 Views ยท 2 Likes
    Flag
    New tug is the Tollman. I particularly like open bridges. One of the snags with A Q is that the engine sits about 20mm lower than the nearest point to mount a servo.
    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    9 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง GaryLC ( Captain)
    โœง 128 Views ยท 4 Likes
    Flag
    Hi Nick, I can definitely help you with that problem, as I have invented a method which works really well, having had a lot of teething problems as I have three TVR Engines in various boats. I took a set of photos that explain everything. As I am on my way out I will post them on here later. I promise this will solve your problem. Regards, Gary. ( which MMM tug are you building mine is Lady Jan, with a one-piece superstructure. )
    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    9 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง Nickthesteam ( Commander)
    โœง 129 Views ยท 2 Likes
    Flag

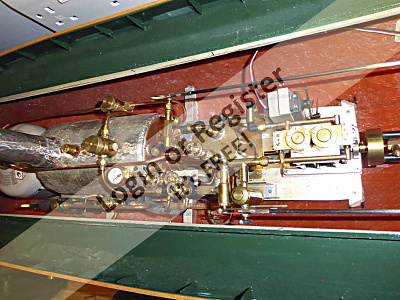

    Hi Gary. I have just seen your engine room layout and thinking about adopting your method to operate the reversing lever. Does the operating rod slide in the servo arm fitting as it moves from forward to reverse? It looks a lot simpler than what I have done on the African Queen engine, I have had nothing but trouble with it since I built it...
    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    9 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง DuncanP ( Sub-Lieutenant)
    โœง 141 Views ยท 1 Like
    Flag
    Beautiful model. Well done - it is a credit to you!
    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    9 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง ChrisG ( Lieutenant Commander)
    โœง 154 Views ยท 2 Likes
    Flag
    Absolutely magnificent and such workmanship, most modellers like myself can only look on in envy.
    You are a true artist pleasure to see your models.
    Regards ChrisG
    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    9 months ago by ๐Ÿ‡ฌ๐Ÿ‡ง flaxbybuck ( Captain)
    โœง 146 Views ยท 1 Like
    Flag
    She looks a real beauty Gary. ๐Ÿ˜‰
    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    9 months ago by ๐Ÿ‡บ๐Ÿ‡ธ RamseyA ( Able Seaman)
    โœง 151 Views ยท 4 Likes
    Flag
    I love tugboats ! SEQUIN tug under construction; 1884 - oldest ๐Ÿ‡บ๐Ÿ‡ธ wooden steam-powered tugboat.
    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    2 years ago by ๐Ÿ‡บ๐Ÿ‡ธ pressonreguardless ( Rear Admiral)
    โœง 194 Views ยท 4 Likes
    Flag
    Gary,
    I visited your Harbor. What an incredible collection, and all Steam!!
    I was getting palpitations just looking at them๐Ÿ˜‚๐Ÿ˜‚
    Thanks for sharing.
    Trev
    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    2 years ago by ๐Ÿ‡บ๐Ÿ‡ธ pressonreguardless ( Rear Admiral)
    โœง 194 Views ยท 4 Likes
    Flag
    Hi Gary,
    Yes, it is a shame about Graham. They were in the States so shipping wasn't a big deal for me.
    I have been looking at Chiltern Steam. They have some very fine engines, also walking beam engines!!
    some of the Chinese engines and boilers on ebay are very interesting. They have what the call a P5 regulator that moderates the fire based on boiler pressure. also they have a water pump that pumps the condensed steam back to the boiler.
    No matter where I look you are talking at least $1000.00 US for a boiler engine package.
    But I would be interested in any additional suppliers that you know of.
    Also, any experiences that you have had operating Marian Belle i would find most interesting
    Thanks,
    Trev
    Login To
    Remove Ads

    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    2 years ago by ๐Ÿ‡ฌ๐Ÿ‡ง GaryLC ( Captain)
    โœง 200 Views ยท 5 Likes
    Flag

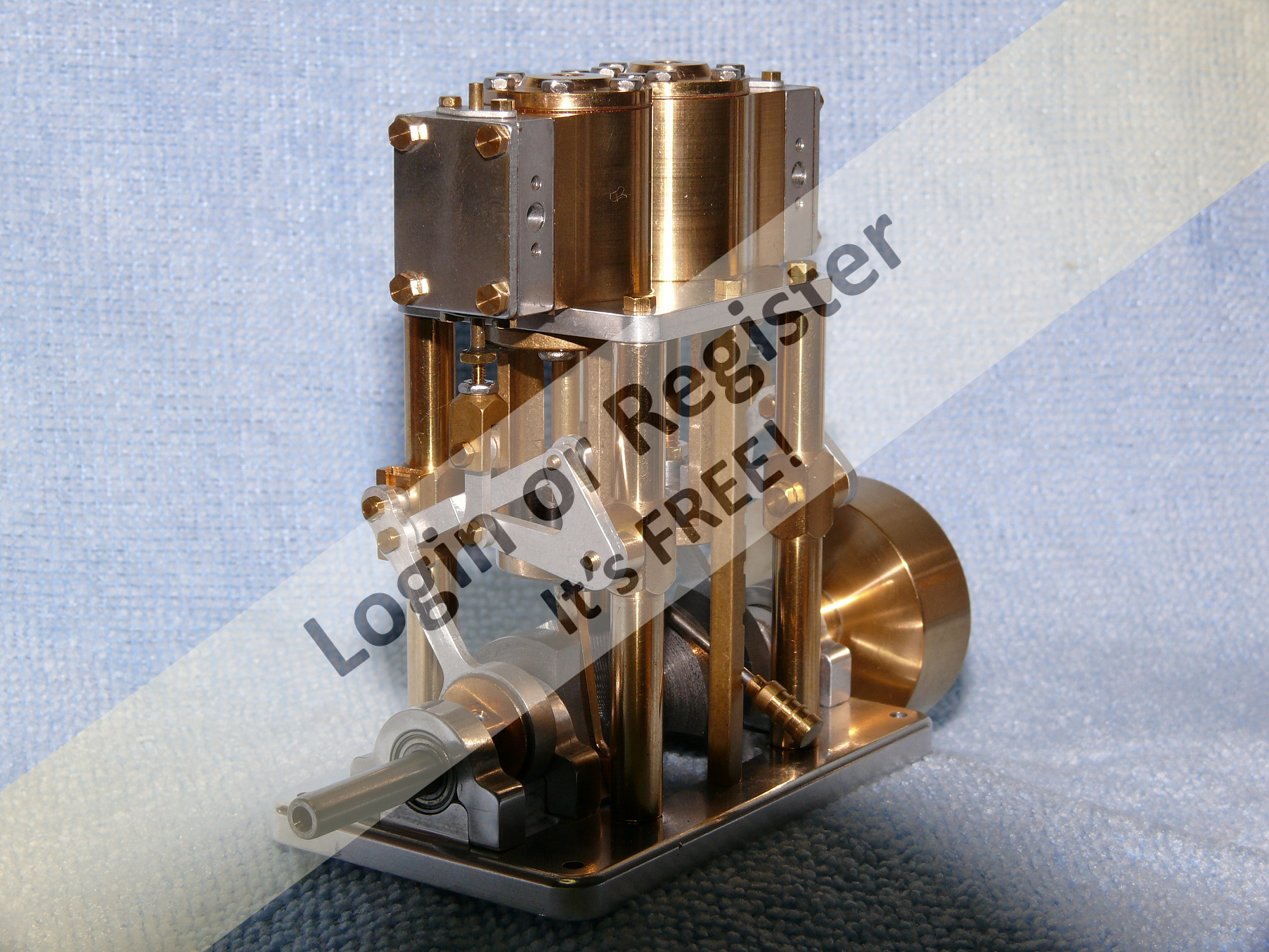

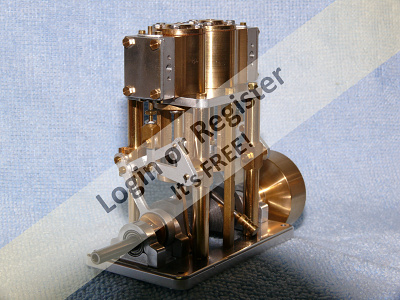

    Hi Trev, yes the TVR engine had a lot going for it at a very reasonable price, excellent machining, and ball race bearings on the crank-shaft. Also a good size for hulls from 30"ish, to 48"ish. If I had only known the company was in trouble, I would have bought a few engines as a very wise investment. We do have a few companies here in the U/K if you are looking for a twin-cylinder slide valve engine at a reasonable price. Regards, Gary.
    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    2 years ago by ๐Ÿ‡ฆ๐Ÿ‡บ stevedownunder ( Captain)
    โœง 194 Views ยท 3 Likes
    Flag
    Hi Gary,
    Beautiful looking boat and steam plant. ๐Ÿ‘๐Ÿ‘
    Any chance of some on the water shots or a short video.

    Cheers,
    Stephen.
    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    2 years ago by ๐Ÿ‡ณ๐Ÿ‡ฟ jbkiwi ( Fleet Admiral)
    โœง 195 Views ยท 3 Likes
    Flag
    Fantastic job Gary, engine's a bit of artwork as well, -very nice installation.๐Ÿ‘๐Ÿ‘๐Ÿ‘

    JB
    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    2 years ago by ๐Ÿ‡บ๐Ÿ‡ธ pressonreguardless ( Rear Admiral)
    โœง 197 Views ยท 2 Likes
    Flag
    Hi Gary
    It is a beautiful boat!!
    Unfortunately, Graham Industries (Steam Engine) are no longer in business
    Trev
    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    2 years ago by ๐Ÿ‡ฌ๐Ÿ‡ง GaryLC ( Captain)
    โœง 202 Views ยท 7 Likes
    Flag
    Hi Ken, and the answer is a definite YES, as I have just checked their website. Mind, a damn site more expensive than when I bought mine about five years ago. The company you want is Mobile Marine (Tugs,) and it is a pretty comprehensive kit including the running gear with two choices, either standard or turbo, and lighting. This can be bought in installments, with Packs one to five as you will see on their website. Her real name is Lady Jan, which you have to admit doesn't sound very exciting. The reason I went for this one is a large superstructure allowing for good access to its steam engine and boiler. A few more details built on the River Humber during 1941 and 1945 second World War, a Warrior class Empire Tug, scale 1:32, OAL 40" Beam 11". There you have it, let me know how you get on? Regards Gary.
    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    2 years ago by ๐Ÿ‡ฆ๐Ÿ‡บ KenB1 ( Recruit)
    โœง 197 Views ยท 1 Like
    Flag
    Can I buy one now and how much
    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    5 years ago by ๐Ÿ‡ฉ๐Ÿ‡ช RNinMunich ( Fleet Admiral)
    โœง 218 Views ยท 2 Likes
    Flag
    Absolutely Magnificent, museum 'As built' quality.
    Something for us to aspire to.
    Hat off Sir ๐Ÿ‘๐Ÿ‘๐Ÿ‘
    All the best, Doug ๐Ÿ˜Ž
    ๐Ÿ’ฌ Re: Marian Belle' Empire class tug (Mobile Marine.)
    5 years ago by ๐Ÿ‡บ๐Ÿ‡ธ figtree7nts ( Admiral)
    โœง 218 Views ยท 1 Like
    Flag
    Very nice, Great details!
    You must make a video.....
