    Fairey Huntsman 31
    by StuartE πŸ‡¬πŸ‡§ ( Petty Officer 2nd Class)
    πŸ“£










    Click To
    Follow
    10 Posts 22 Comments 42 Photos 49 Likes
    Most recent posts shown first   (Show Oldest First) (Print Booklet)
    πŸ“ Now onto the Superstructure
    8 days ago by StuartE ( Petty Officer 2nd Class)
    Flag
    View All

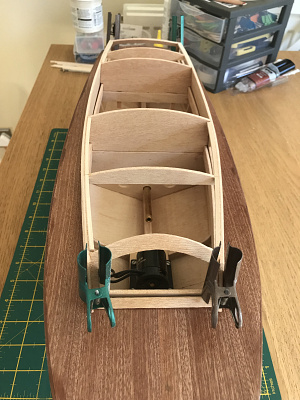

    Now the hull is complete, instead of putting in all the electrics, I decided to start the superstructure build. As per the instructrions and to get a good snug fit on the hull, it has to be built on the hull. It's going well at present and no real worries yet!

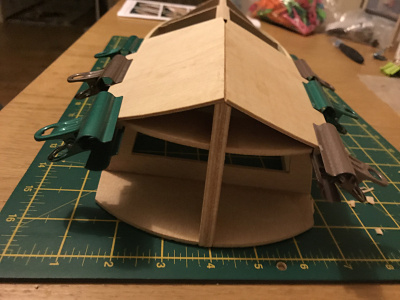

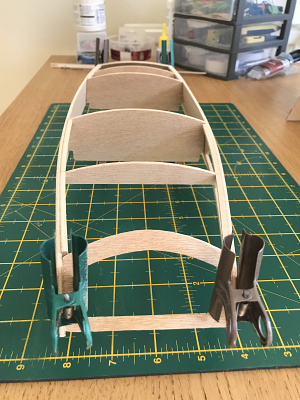

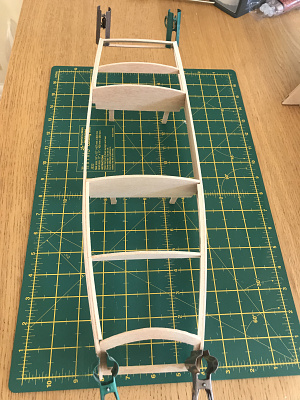

    Skeleton is complete, now onto the roofs and cockpit. I have decided to do roof in sheets of balsa 3mm thick rather than the 3/32" planks that the instructions suggest....that seems like a disaster waiting to happen for a novice! 😎

    balsa 3mm thick
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    2

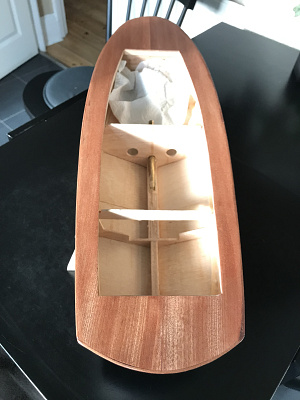

    πŸ“ Decking added
    14 days ago by StuartE ( Petty Officer 2nd Class)
    Flag
    View All

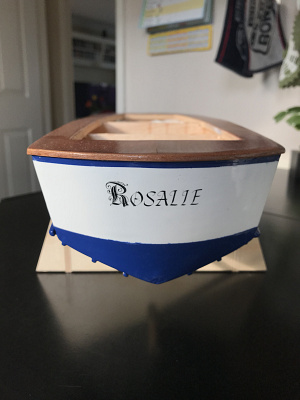

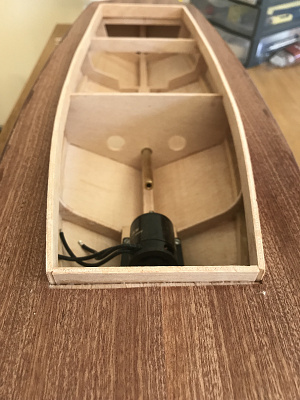

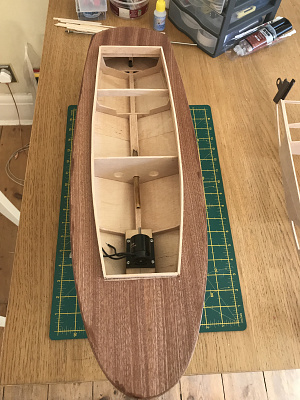

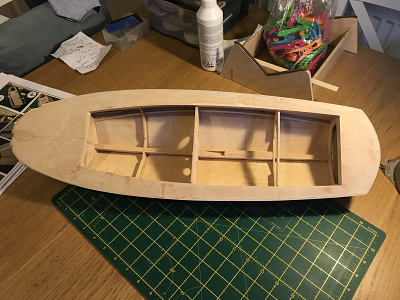

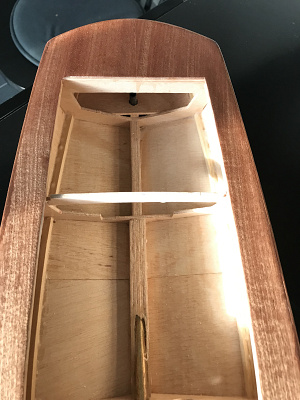

    With the Hull paint job complete, the next stage of the build was to add the decking and rubbing strip. Being a novice at this I decided the best option was not to go for a complicated deck....KISS!!
    So I opted for solid mahogany. Veneer was not included in the kit, but the nice people at SLEC sent me a 2mm solid sheet to make the decking out of. The instructions said to make the decking out of 6 pieces, 2 for the aft deck, 2 pieces port and starboard and 2 for the bow. I went for just the 2 pieces, one port side and one starboard as I didn't want to see too many joins. Cutting was a little tricky as I didnt want a large piece splitting, but a solid support for the cutting table and a sharp scalpel did the trick.
    However, as throughout this build I learnt another valuable lesson, dont use a water based glue to attach bare wood to bare wood, especially one so thin....result are it bows and curls and distorts in all the wrong places. Use a two part contact adhesive! I weighed down the two pieces of decking for the entire deck and it eventually laid flat.
    I finished it off with mahogany 1/8" x 1/4" strip all round the deck for the rubbing strip, sanded and then varnished with 3 coats of satin yatch varnish. I think the results are good, but judge for yourself....
    Now its onto the superstructure....😎😜

    kit
    glue
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    2
    πŸ“ Hull Paint job complete
    27 days ago by StuartE ( Petty Officer 2nd Class)
    Flag
    View All

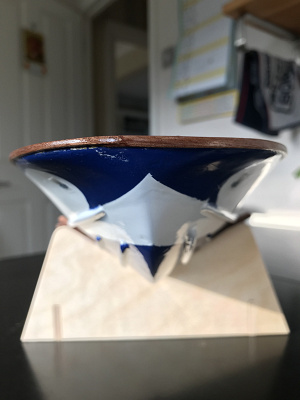

    So.... Patience is not one of my strong points and paint spraying is definately not. I don't have the facilities or the right equipment to create a first class excellent paint job, so this part of the build was always going to be a challeng and it proved to be right.
    the first primer layer went on great and it looked good, followed by a layer of brilliant appliance white from a large can from my local Halfords.....all looked perfect. Then came the masking and application of the Capri Blue hull and pinstriping at deck level. Well, this didn't go great as I couldn't get the hull line correct as it shows on real life Huntsmans or the instruction sheet. In addition, the Frog tape I used, lifted in places over the hull stringers and was a real mess......it had to come off!
    A re-application of primer and white gloss coat followed, and with more patience than I thought I had, managed to mask up again for the Blue Hull. I learnt from the first mistake and made sure that the stirngers were masked on all sides first, then added a solid masking strip all the way down the hull.

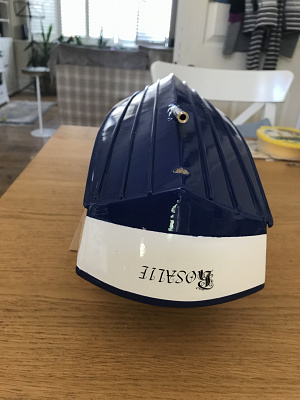

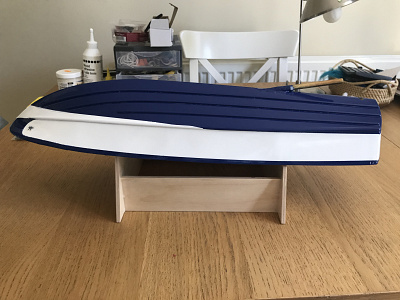

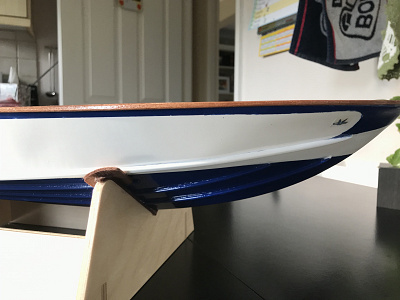

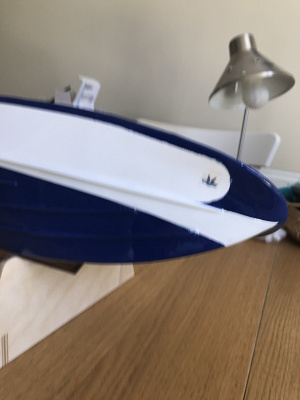

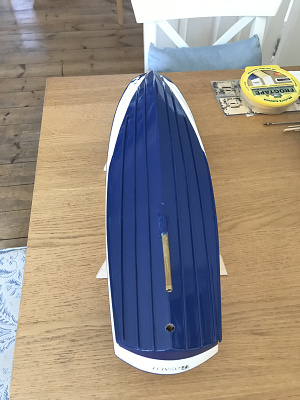

    Although not perfect the results can be see here in the pictures.
    I decided that I'd add a couple of layers of Halfords clear laquer to finish of the paint job to create a tough, clear, glossy finish, but before this decided to name the boat by using lettraset. Here I learnt a second and third valuable lesson.....make sure the paint is completely dry first and also don't spray too much laquer in one place......it makes the paint run into the laquer!!! The results can be seen on the bow.
    Oh well, I tried my best and not going to re-do it now.
    So, Rosalie hull is now painted and its time to do the decking.
    For this I am going to use thin sheets of mahogany. They were not provided as part of the kit so had to appeal to SLEC who kindly sent me two sheets of mahogany for this purpose. Thank you SLEC for being understanding that a "Kit" should contain all that's necessary to build it and not have to go and find more pieces to buy.
    Judge the paint job for yourself and don't be tooo critical as its only my second boat build.πŸ˜‹

    tape
    boat
    sheets
    can
    Kit
    kit
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ—£οΈ Share
    5
    8
    πŸ’¬ Re: Hull Pint job complete
    26 days ago by figtree7nts ( Commodore)
    Flag
    Hi Stuart,

    That very good considering it's your second boat and all!πŸ‘
    I like the way she's coming out. Job well done!

    Cheers, Ed

    boat
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    2
    πŸ’¬ Re: Hull Pint job complete
    26 days ago by Colin H ( Lieutenant)
    Flag
    Looks a lot better than mine, now you've had the practice can I send you a couple of huntsmen that need repainting.
    Even the colour scheme is great. I like the Fairey decals, where did you locate them.
    Super job, keep up the good work matey, looking forward to seeing it on the water.
    Cheers Colin.
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    πŸ’¬ Re: Hull Pint job complete
    26 days ago by mturpin013 ( Sub-Lieutenant)
    Flag
    Each modeler has different abilities and you should be proud of your achievements the paint job looks OK but you could easily improve the joint lines with some pinstripe tape a nice 2mm yellow would look good.
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    πŸ’¬ Re: Hull Pint job complete
    26 days ago by Rookysailor ( Chief Petty Officer 2nd Class)
    Flag
    Nice paint job Stuart, particular the bow scoop and logo, a trim line to Finnish it, and you will have the envy at the pool side.πŸ‘

    Peter
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    πŸ’¬ Re: Hull Pint job complete
    26 days ago by Brianaro ( Master Seaman)
    Flag
    View All
    The painting, lining and masking is never easy. I’m at a similar stage to you, I’ve just finished planking the deck, a lengthy task, now it needs sanding flat and varnishing
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    πŸ’¬ Re: Hull Paint job complete
    26 days ago by StuartE ( Petty Officer 2nd Class)
    Flag
    Hi Colin, thanks. The Fairey decals came with the kit from SLEC.

    kit
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    πŸ’¬ Re: Hull Paint job complete
    26 days ago by StuartE ( Petty Officer 2nd Class)
    Flag
    Many thanks for the idea.
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    πŸ’¬ Re: Hull Paint job complete
    26 days ago by StuartE ( Petty Officer 2nd Class)
    Flag
    WoW. Fantastic planking!. How long did that take? I dont think I could attempt that so I'm just using Mahogany sheet for the decking like the instructions show. What wood have you used to get that effect?
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share

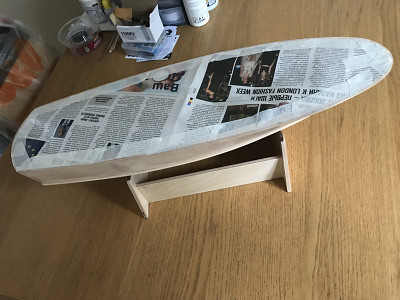

    πŸ“ Ready for the Paint job!
    1 month ago by StuartE ( Petty Officer 2nd Class)
    Flag
    View All

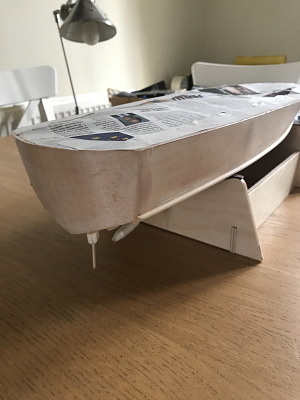

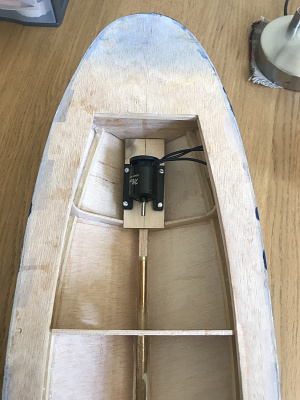

    Following the completion of the basic hull build, I installed the prop shaft and motor ( Mtroniks Hydra 15A) and all lined up nicely. Next, drilled the hole ready for the rudder assembly to be inserted and it all fits perfectly vertical to my great delight. Its now masked up and ready for the hull paint job which will start with a primer filler layer followed by white primer, then brilliant white gloss with an Ink Blue design and black anti-foul keel.
    I'm just waiting for the shed to warm up a bit and reduce the humidity as the wife wil definitely kick me out if I spray indoors. She just about allows me to do the build in the dining room, but only when she's out!

    primer
    Table
    Furniture
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    6

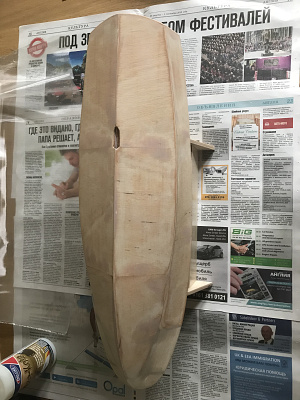

    πŸ“ Hull finishing touches
    1 month ago by StuartE ( Petty Officer 2nd Class)
    Flag
    View All
    The Huntsman Hull has now had the finishing touches applied...Sanding Sealer, Eze-Kote, glassfibre sheet and hull chine bars added. The inside of the hull has been given a good dollop of Eze-Kote to seal it and waterproof it so next job is to fit the prop tube and motor before the whole hull gets a coat of primer...
    I've only just realised, but the kit from SLEC does not contain any decking, so I need to sort out whether to just go for plain mahogany veneer or try to find teak decking which is laser cut to fit with plank marks....any help or advice here welcome for a novice! (I can't find anything suitable on the internet). 😑

    huntsman
    motor
    prop
    hull
    kit
    primer
    roof
    deck
    advice
    glass fibre
    prop tube
    chine
    sealer
    sanding
    glass
    mahogany
    good advice
    waterproof
    decking
    seal
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ—£οΈ Share
    7
    1
    πŸ’¬ Hull finishing touches
    1 month ago by ChrisF ( Petty Officer 2nd Class)
    Flag
    Stuart - as you can see from the article in Model Boats, Colin has fitted a contrasting timber to the perimeter of the hull and up the centre of the bow and then infilled with planking.

    Another method is to veneer the deck and just varnish it or drawn lines on it with Biro or pencil before varnishing.

    SLEC do laser etched ply but the planks are straight.

    Really it depends on how accurate you want the result to be and how much time you want to spend on it.

    With my Huntsman 28 build I'm just using birch ply and varnishing it whilst with my larger Swordsman 33 (but same scale) I'm going the whole hog and planking it.

    Chris

    swordsman
    huntsman
    model boats
    hull
    model
    build
    deck
    planking
    planks
    varnish
    bow
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    1

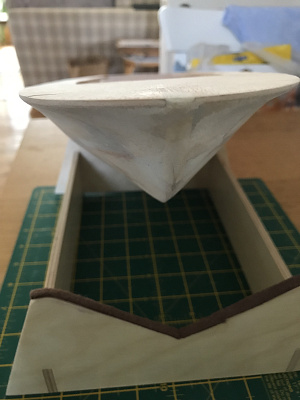

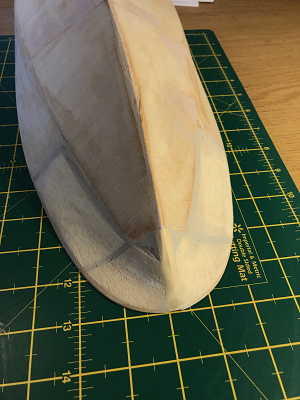

    πŸ“ Basic hull construction completed
    2 months ago by StuartE ( Petty Officer 2nd Class)
    Flag
    View All

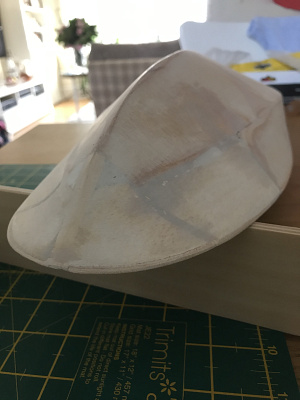

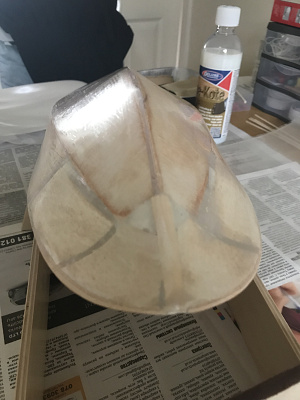

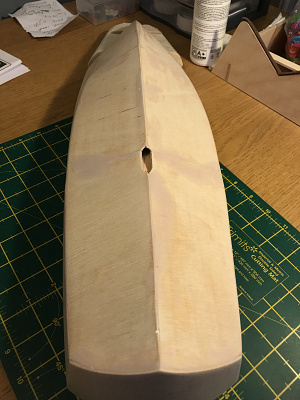

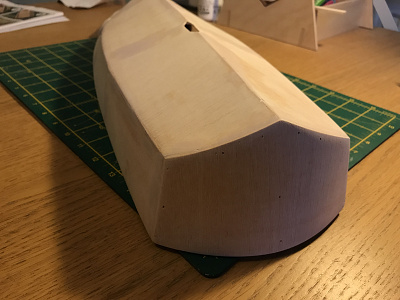

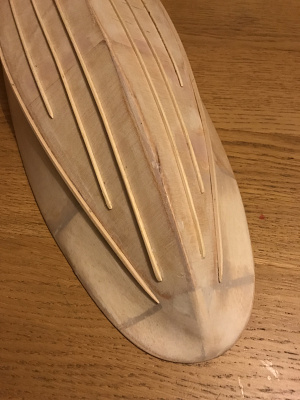

    This week has been about getting the basic hull construction completed and especially the tricky bow. This was done in three stages; the first group of pictures shows the four balsa blocks being roughly sanded to shape. The instructions were good here as they recommended the required curves be shaped using sandpaper wrapped around an aerosol can....This being achieved, the next stage was to fill all the gaps around the balsa blocks with P38 and sand back to smooth out the curves. The 3rd stage was to fully coat the entire hull with Balsa Lite fine surface filler and sand back to wood so that all the fine grain imperfections are filled. I'm very happy with the results, but now concerned that too much has been sanded off the bow to get those curves...What do you think? πŸ˜‰
    Next stage is to apply a couple of thin coats of sanding sealer and then onto covering with 35gsm lightweight glassfibre fabric and Eze-Kote to give the hull more strength and durability.

    hull
    wood
    filler
    balsa wood
    weight
    glass fibre
    sealer
    sanding
    sanding sealer
    instructions
    show
    glass
    bow
    aerosol
    seal
    cover
    coats
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ—£οΈ Share
    9
    8
    πŸ’¬ Basic hull construction completed
    2 months ago by ChrisF ( Petty Officer 2nd Class)
    Flag
    Hi Stuart - I'm scratch building a Swordsman, albeit larger than your Huntsman as I'm building at 1:12, so 33" long. I haven't worked on it for a few weeks but am at a similar stage with the hull in that I'm just about to sand the concave into the bow to form the flare. This is a stressful part and I might delay it and start on the superstructure!

    From the photos it's difficult to tell if you have overdone it or not due to the different materials breaking up the lines. it looks OK head on and from the side but when looking down towards the keel it does look a little excessve.

    I'm going to be building a Huntsman 31 as well soon but again at 1:12 so will be from plans, either existing or my own. I've got three Fairey builds on the go at the moment and another on the drawing board, well PC.

    Chris

    plans
    swordsman
    huntsman
    hull
    build
    superstructure
    scratch
    tow
    keel
    scratch build
    bow
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    1
    πŸ’¬ Basic hull construction completed
    2 months ago by StuartE ( Petty Officer 2nd Class)
    Flag
    Hi Chris. Thanks for your feedback.....I thought so too, but I suppose its too late to change that now and we'll just have to see what it looks like after the glassfibre application. it probably won't affect performance, just the looks!😎
    It's my first attempt at a hull like this, so can only learn from the experience.

    hull
    glass fibre
    glass
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    1
    πŸ’¬ Basic hull construction completed
    2 months ago by ChrisF ( Petty Officer 2nd Class)
    Flag
    I guess you will only be able to tell properly is when it's primered. I suppose you could always fill it and resand - that will be my fallback position!

    Is the motor size in the instructions? Had a look at a build article and it's not in there. if you haven't got it it's well worth getting because as well as the build of that very kit Dave Milbourn has written an article on finishing nd painting which I'm reffering to. it's the Model Boats Winter Special Edition 2018.

    Chris

    paint
    motor
    prop
    model boats
    hull
    model
    winter
    kit
    primer
    build
    instructions
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    πŸ’¬ Basic hull construction completed
    2 months ago by StuartE ( Petty Officer 2nd Class)
    Flag
    No. The motor size is not in the instructions, but from a previous forum post I've been recommended a 28xx Brushless 1100Kv with a 11.1V 2200Mah LiPo battery.
    Yes. I have that edition and following the editorial. it is a more detailed version of the instructions as both written by Dave Milbourne. πŸ‘

    motor
    hull
    lipo
    instructions
    brush
    brushless
    forum
    battery
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    1
    πŸ’¬ Basic hull construction completed
    2 months ago by BOATSHED ( Warrant Officer)
    Flag
    very nice bit of shaping on the balsa there and filling. I purchased a Perkasa MTB hull off of a boot fair and that part they have done is awful. I have got to sort that out. As far as the motor size goes, I put a 10 cc Irvine engine in a model boat that should only have had a 7.5cc in it. it went like stink. But even then it would all depend on how you use your throttle control. I would myself still go larger than instructions say but that's because I'm a speed freak. Flat out on the straight and test to the extreme on turn's. Turned a couple upside down as well and still was able to carry on running once recovered. I always take a telescopic fishing rod with me with a weight and floating line for recovery.

    motor
    hull
    model
    engine
    weight
    instructions
    mtb
    air boat
    rc boat
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    πŸ’¬ Basic hull construction completed
    2 months ago by ChrisF ( Petty Officer 2nd Class)
    Flag
    Hi Stuart - I have a Huntress which is the same length as your Huntsman which was built by Dave M. it will be a little lighter as it doesn't have an aft cabin. it is fitted with a Turnigy D2836/11 750kV so the one recommended to you is a good choice.

    Chris

    huntsman
    cabin
    hull
    turnigy
    built
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    1
    πŸ’¬ Basic hull construction completed
    2 months ago by vortex ( Leading Seaman)
    Flag
    View All
    Nice hard work, well done i now usually get a glass fibre hull if i can. Ive run mine with Irvine 40, and 2 different brushless, 2075 kva and 1150 motors and all performed well 3 or 4 cell lipos, go for the biggest capacity 5200`s as the weight is no problem and double your run time. Pic shows latest motor i think its 2900 kva ill try it out soon. I seem to use the Huntsman then take the motors out for other projects

    huntsman
    motor
    hull
    lipo
    run time
    weight
    glass fibre
    brushless motor
    brush
    brushless
    show
    glass
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    1
    πŸ’¬ Basic hull construction completed
    1 month ago by ChrisB ( Recruit)
    Flag
    Great work on the hull Stuart. I built the same kit last year and really enjoyed the project, the Huntsman is an awesome looking craft too and super light weight. in mine I’ve experimented with a few different brushed motors, trying to get scale speed versus β€œplay time” balance. I landed on a 35 turn which at half speed is pretty good for scale speed and at full noise it really gets up and moves for a bit of fun. The last few runs I’ve seen up to 25-30 mins from a 7.2v Ni-Mh pack which has been great. Look forward to seeing your progress, all the best and enjoy the build.

    huntsman
    motor
    hull
    kit
    build
    weight
    brush
    brushed motor
    brushed
    built
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    2

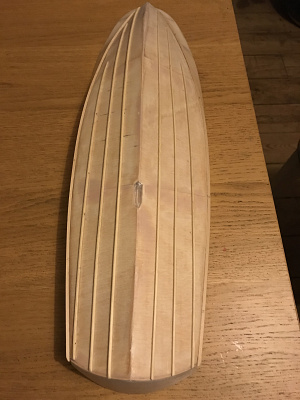

    πŸ“ Hull progressing nicely!
    2 months ago by StuartE ( Petty Officer 2nd Class)
    Flag
    View All
    OK, so the last 2 posts on the blog were from work undertaken three weeks ago. I am now up to the present day and have spent the whole week and weekend in getting the bottom and side skins on the skeleton of the hull and putting on the transom. Because the curves of the hull are quite specific on the Huntsman, only one piece of skin can be fitted at a time, and then trimmed into place before the next piece of skin will fit.
    In the previous post I mentioned all the laser cut pieces are cut oversize.....fitting the skins was a real challenge!
    Following the instructions at this stage went out the window and I fitted the skins in the reverse order, but feel it was the best option. The instructions say built from the bow first and work back to the transom, but impossible to fit the pieces in this order, so I started with the aft and worked forwards.
    It also mentions to overlap the side skins with the bottom skins, but all I could manage was to butt the pieces together with a tight fit and fill with P38 afterwards.

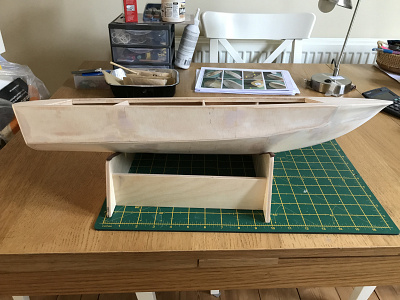

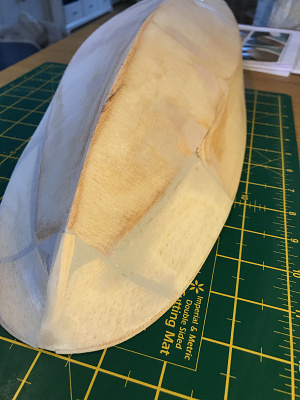

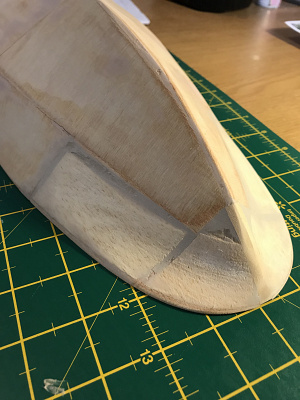

    The pictures show the completed skins, trimmed, sanded and gaps filled with P38 and then sanded again.

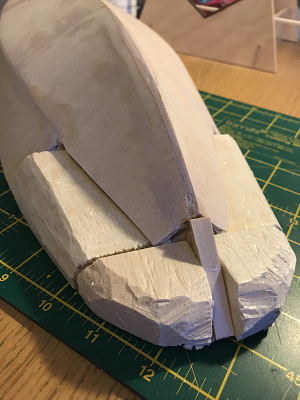

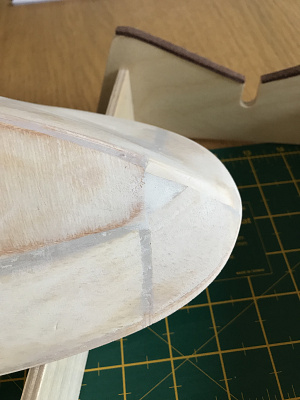

    It now takes on a good shape, however the difficult pieces on the bow are still to be completed. These are formed of 4 pieces of solid balsa wood that need to be cut and sanded to multiple curves...… next weeks job!
    Once this is done then its on to filling again and re-sanding and finishing. Hopefully it would look more like a Huntsman Hull rather than a hammer head shark!

    huntsman
    hull
    wood
    balsa wood
    sanding
    instructions
    wind
    show
    bow
    fitting led
    window
    built
    fitting the side skins
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ—£οΈ Share
    7
    1
    πŸ’¬ Hull progressing nicely!
    2 months ago by BOATSHED ( Warrant Officer)
    Flag
    I hate the idea of having to shape the balsa front ends. I have in the past re cut the bottom skins on 1/16th marine ply and steamed and pinned with small brass nails. But if that model is all balsa you couldn't do that but if the bulkheads are ply and chine stringers then it is possible.

    hull
    steam
    model
    bulkheads
    bulkhead
    chine
    nails
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    1

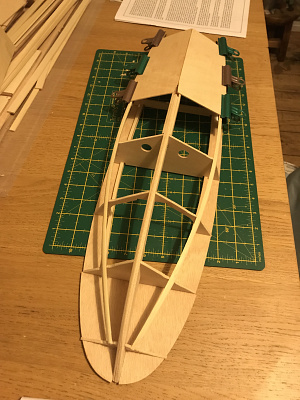

    πŸ“ First problem.......
    2 months ago by StuartE ( Petty Officer 2nd Class)
    Flag
    View All

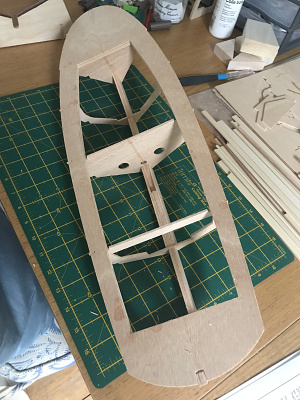

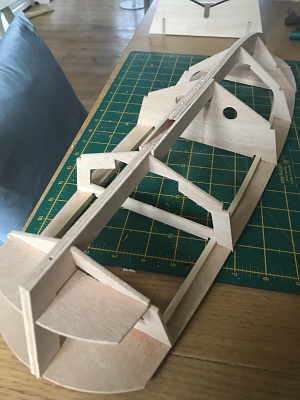

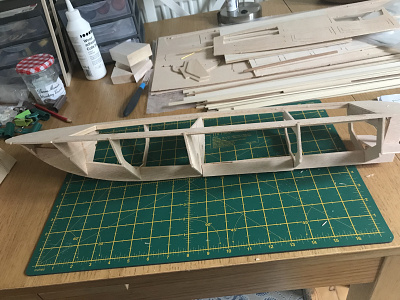

    OK..... so after the first week and the excitement of getting the skeleton of the hull and keel in place I hit the first problem.....this is not a kit where everything is cut to the exact size, length, dimensions of the model. You have to do some cutting, sanding and getting out a modelling plane to get the parts supplied fitted.
    This now requires some skill and careful fitting of the stringers. Basically they are 2 pieces of hardwood 1/8" x 1/4" cut to length and glued together and need to be shaped and held in place while the glue sets overnight...….not a simple task.

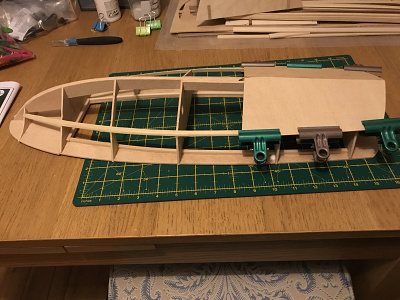

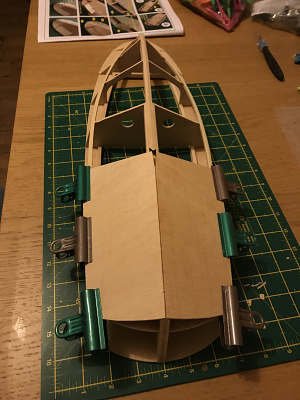

    Next, to start fitting the hull skins, the stringers need to be shaped to 2 angles. One for the bottom skins and a different angle for the side skins.
    Taking too much of the stringers off by using a plane will mean the skins don't lie at the correct angles for gluing….gently does it!!
    I take my time and check angles after each pass of the plane over the stringers...WOW stressful, but all's well with the first 2 bottom skins!
    In addition the Keel needs to be trimmed to the exact angles of the bottom skins so they overlap or butt up against each other.
    My advice here is to follow the instructions to the letter or you'll probably be using far more P38 in the later stages filling holes and gaps!!
    NOTE: The bottom and side skins are cut oversize, so they don't fit exactly to the stringers.

    glue
    hull
    model
    parts
    wood
    kit
    sanding
    keel
    fitting the side skins
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ—£οΈ Share
    5
    3
    πŸ’¬ First problem.......
    2 months ago by robbob ( Lieutenant Commander)
    Flag
    Hi Stuart.
    Progressing well but don't rush it!
    Mistakes are easy to make and harder to fix so I spend more time planning to do something than doing it 😁.
    Robbob.
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    1
    πŸ’¬ First problem.......
    2 months ago by Brianaro ( Master Seaman)
    Flag
    Hello Stuart, all part of the challenge I’m afraid, but rewarding once you have used your skills and cracked it. I’ve yet to build a model of anything, especially with wood, where everything is cut to fit, ( I’m not sure if that is really possiible) Fairey Huntsman is a lovely craft to build and plenty of references if needed to the detail of the real boat from http://www.faireyownersclub.co.uk/
    Good luck, don’t give up, enjoy the challendge
    http://www.faireyownersclub.co.uk/
    πŸ”—

    huntsman
    model
    wood
    build
    fairey huntsman
    wood boat
    air boat
    boat club
    model boat club
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    1
    πŸ’¬ First problem.......
    2 months ago by StuartE ( Petty Officer 2nd Class)
    Flag
    Yes. The biggest enemy of making this model is patience! Thankyou for you responses...

    model
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    1
    πŸ“ Fist eager steps...easy!
    2 months ago by StuartE ( Petty Officer 2nd Class)
    Flag
    View All
    I opened the box, eager to start and quickly assembled the keel and base deck following the excellent and easy to read instructions and picture manuals....easy...I'll finish this in a week or two with a following wind and the wife and daughter being away on half term holidays!

    deck
    instructions
    manual
    wind
    keel
    πŸ‘ Like
    πŸ’¬ Comments
    πŸ—£οΈ Share
    6
    1
    πŸ’¬ Fist eager steps...easy!
    2 months ago by robbob ( Lieutenant Commander)
    Flag
    I do like the Huntsman, maybe I'll build one myself one day.
    Following your blog with interest.
    Robbob.

    huntsman
    build
    build blog
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share
    πŸ“ Fairey Huntsman 31
    2 months ago by StuartE ( Petty Officer 2nd Class)
    Flag
    View All
    Just purchased a new "Kit" from SLEC to build a Fairey Huntsman 31. This is only the second boat I'm building, the first being a Mowe 2 from an Aeronauts kit. πŸ˜†
    πŸ‘ Like
    πŸ’¬ Comment
    πŸ—£οΈ Share


    About This Website
    Terms of Service
    Privacy Policy
    Cookies used in this website are gluten free, wheat free and dairy free. By using this website you agree to our use of cookies. More Info
